Argo Float WMO # 4901705 : Plots based on data files at the GDAC

Metadata:
WMO #: 4901705
PI: Breck Owens, Steven Jayne, P.E. Robbins
DAC: AOML

DAC #: 5509
WHOI Float #: 7134
Last Heard From: 2020-02-08
Longevity: 5.37 yrs

Hardware:
Telcom: IRIDIUM 7134
Telcom: IRIDIUM 7134
Instrument: MRV150_SB30
ROM version: SBE602 20Sep13 V1.5
Temperature: SBE41CP, s/n: 3760
Conductivity: SBE41CP, s/n: 3760
Pressure: Druck, s/n: 3205983

Deployment:
Deployed: 2014-09-14
Latitude: 41.772
Longitude: -60.908
Deployment Platform: HUDSON
Cruise ID: AZMP
Deployer: Hebert

GDAC file status:
Last Update: 2020-04-05
Profiles at GDAC: 204
GDAC D-files: 191
GDAC R-files: 13

Links (at WHOI):
Telemetry plots: WHOI
Calibration Plots: PDF (06-Jan-2021)

Links (offsite):
Float Page: IFREMER
Altimeter Comparison: IFREMER
data access via ftp: GODAE GDAC
data access via ftp: Coriolis GDAC

Key: DMQC Status

DMQC Status
Profile Positions
Temperature-Salinity Relation
Deep T-S Relation
Temperature Sections (0-500 dbar)
Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)
Salt Anomaly Sections (0-500 dbar)
Temperature Sections
Salinity Sections
Density Sections
Salt Anomaly Sections

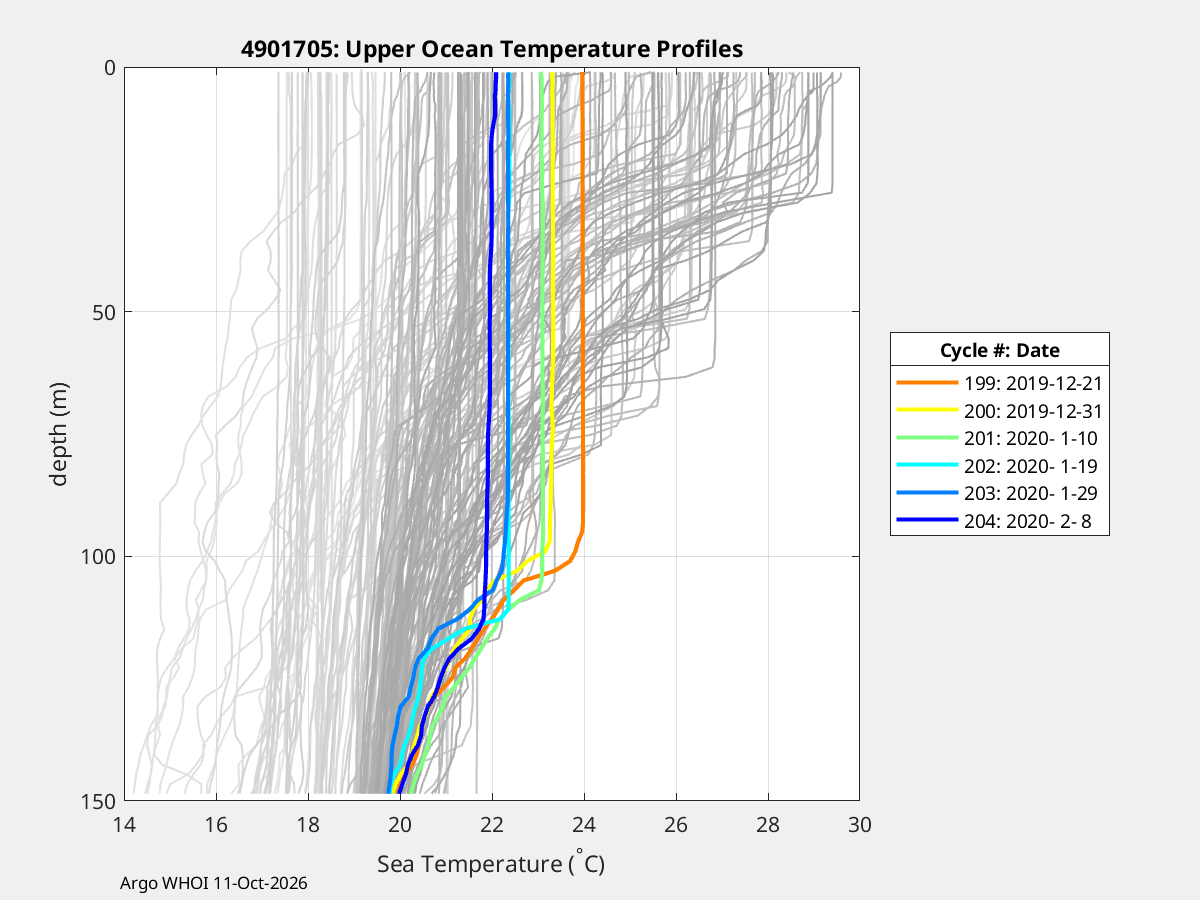

Temperature Profiles

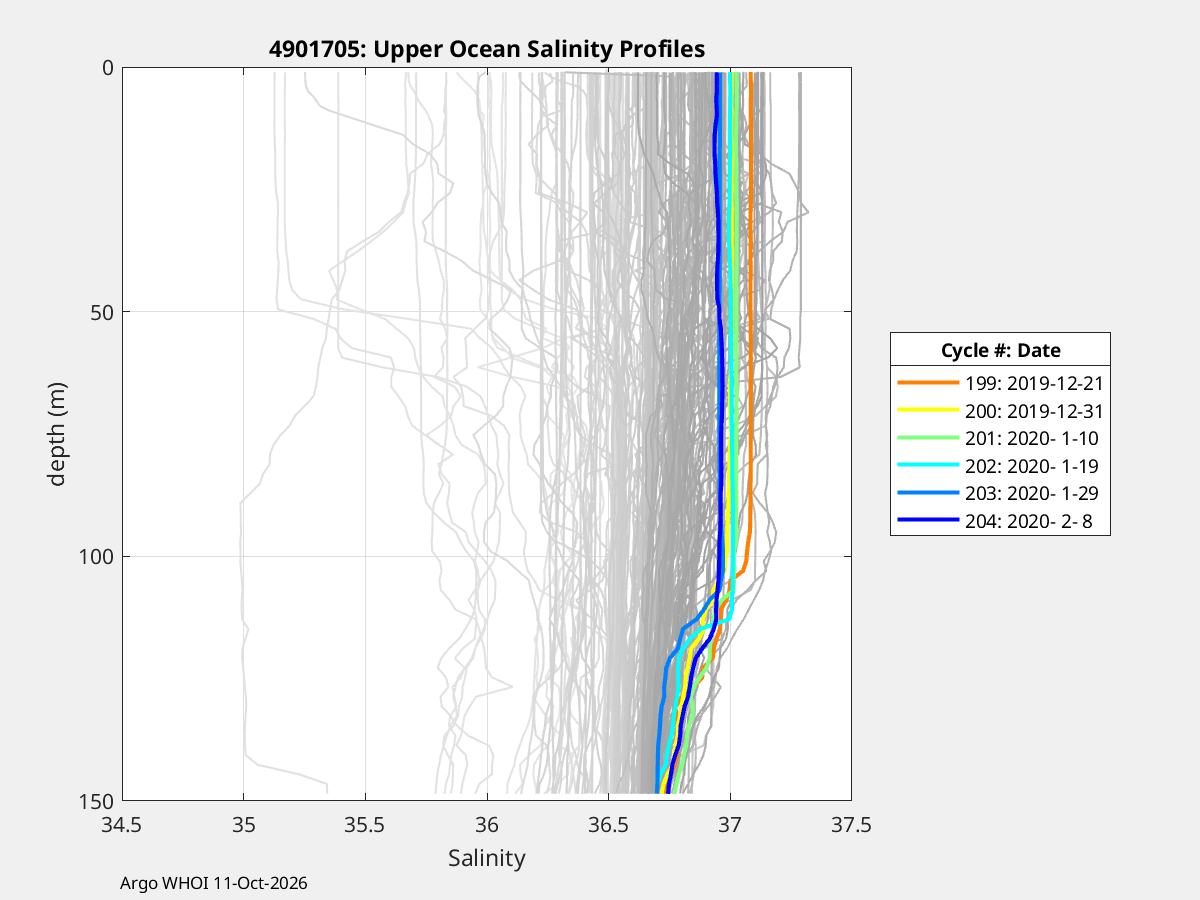

Salinity Profiles

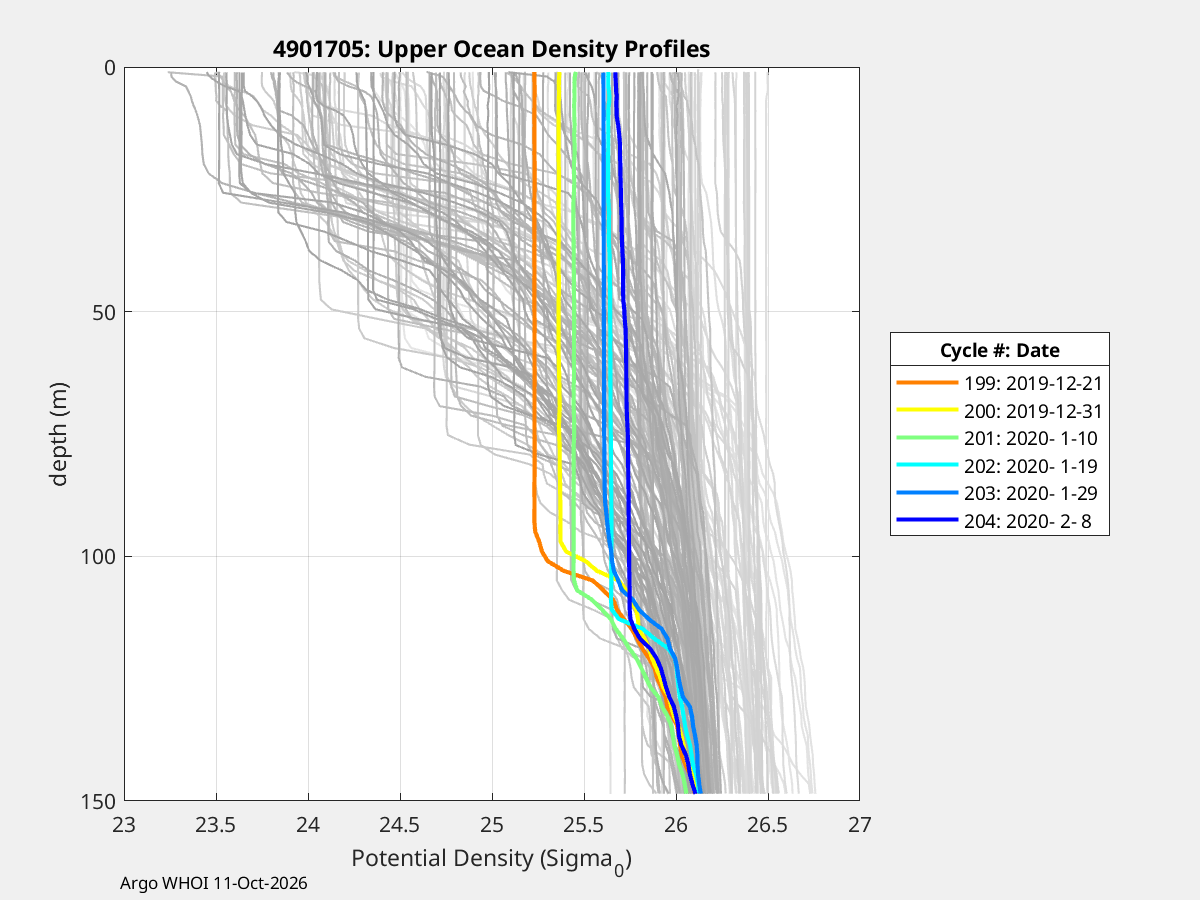

Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
Bathymetry
Submerged Displacement
N-Square
Salinity vs CARS
OW Calibration Adjustment
OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info
Basin

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
0
2014
9/25
A A A
1
2014
9/25
A A A
2
2014
9/26
A A C
3
2014
9/27
A A B
4
2014
9/28
A A E
5
2014
10/08
A A D
6
2014
10/18
A A A
7
2014
10/28
A A A
8
2014
11/07
A A A
9
2014
11/17
A A A
10
2014
11/27
A A A
11
2014
12/07
A A A
12
2014
12/17
A A A
13
2014
12/27
A A A
14
2015
1/06
A A A
15
2015
1/16
A A A
16
2015
1/26
A A A
17
2015
2/05
A A A
18
2015
2/15
A A A
19
2015
2/25
A A A
20
2015
3/07
A A A
21
2015
3/17
A A A
22
2015
3/27
A A A
23
2015
4/06
A A A
24
2015
4/16
A A B
25
2015
4/26
A A B
26
2015
5/06
A A A
27
2015
5/16
A A A
28
2015
5/26
A A A
29
2015
6/05
A A A
30
2015
6/15
A A A
31
2015
6/25
A A A
32
2015
7/05
A A A
33
2015
7/15
A A A
34
2015
7/24
A A A
35
2015
8/03
A A A
36
2015
8/13
A A A
37
2015
8/23
A A A
38
2015
9/02
A A A
39
2015
9/12
A A A
40
2015
9/22
A A A
41
2015
10/02
A A A
42
2015
10/12
A A A
43
2015
10/22
A A A
44
2015
11/01
A A A
45
2015
11/11
A A A
46
2015
11/21
A A A
47
2015
12/01
A A A
48
2015
12/11
A A A
49
2015
12/21
A A A
50
2015
12/31
A A A
51
2016
1/10
A A A
52
2016
1/20
A A A
53
2016
1/30
A A A
54
2016
2/09
A A A
55
2016
2/19
A A A
56
2016
2/29
A A A
57
2016
3/10
A A A
58
2016
3/20
A A A
59
2016
3/30
A A A
60
2016
4/09
A A A
61
2016
4/19
A A A
62
2016
4/29
A A A
63
2016
5/09
A A A
64
2016
5/19
A A A
65
2016
5/29
A A A
66
2016
6/08
A A A
67
2016
6/17
A A A
68
2016
6/27
A A A
69
2016
7/07
A A A
70
2016
7/17
A A A
71
2016
7/26
A A A
72
2016
8/05
A A A
73
2016
8/15
A A A
74
2016
8/24
A A A
75
2016
9/03
A A A
76
2016
9/13
A A A
77
2016
9/23
A A A
78
2016
10/02
A A A
79
2016
10/12
A A A
80
2016
10/22
A A A
81
2016
10/31
A A A
82
2016
11/10
A A A
83
2016
11/20
A A A
84
2016
11/30
A A A
85
2016
12/09
A A A
86
2016
12/19
A A A
87
2016
12/29
A A A
88
2017
1/07
A A A
89
2017
1/17
A A A
90
2017
1/27
A A A
91
2017
2/06
A A A
92
2017
2/15
A A A
93
2017
2/25
A A A
94
2017
3/07
A A A
95
2017
3/16
A A A
96
2017
3/26
A A A
97
2017
4/05
A A A
98
2017
4/15
A A A
99
2017
4/24
A A A
100
2017
5/04
A A A
101
2017
5/14
A A A
102
2017
5/23
A A A
103
2017
6/02
A A A
104
2017
6/12
A A A
105
2017
6/22
A A A
106
2017
7/01
A A A
107
2017
7/11
A A A
108
2017
7/21
A A A
109
2017
7/30
A A A
110
2017
8/09
A A A
111
2017
8/19
A A A
112
2017
8/28
A A A
113
2017
9/07
A A A
114
2017
9/17
A A A
115
2017
9/27
A A A
116
2017
10/06
A A A
117
2017
10/16
A A A
118
2017
10/26
A A A
119
2017
11/04
A A A
120
2017
11/14
A A A
121
2017
11/24
A A A
122
2017
12/04
A A A
123
2017
12/13
A A A
124
2017
12/23
A A B
125
2018
1/02
A A A
126
2018
1/11
A A B
127
2018
1/21
A A A
128
2018
1/31
A A B
129
2018
2/10
A A B
130
2018
2/19
A A B
131
2018
3/01
A A B
132
2018
3/11
A A B
133
2018
3/20
A A B
134
2018
3/30
A A B
135
2018
4/09
A A B
136
2018
4/19
A A B
137
2018
4/28
A A B
138
2018
5/08
A A B
139
2018
5/18
A A B
141
2018
6/06
A A B
142
2018
6/16
A A A
143
2018
6/25
A A B
144
2018
7/05
A A A
145
2018
7/15
A A A
146
2018
7/25
A A A
147
2018
8/03
A A A
148
2018
8/13
A A A
149
2018
8/23
A A A
150
2018
9/01
A A A
151
2018
9/11
A A A
152
2018
9/21
A A A
153
2018
10/01
A A A
154
2018
10/10
A A A
155
2018
10/20
A A A
156
2018
10/30
A A A
157
2018
11/08
A A A
158
2018
11/18
A A A
159
2018
11/28
A A A
160
2018
12/08
A A A
161
2018
12/17
A A A
162
2018
12/27
A A A
163
2019
1/06
A A A
164
2019
1/15
A A A
165
2019
1/25
A A A
166
2019
2/04
A A A
167
2019
2/13
A A A
168
2019
2/23
A A A
169
2019
3/05
A A A
170
2019
3/15
A A A
171
2019
3/24
A A A
172
2019
4/03
A A A
173
2019
4/13
A A A
174
2019
4/22
A A A
175
2019
5/02
A A A
176
2019
5/12
A A A
177
2019
5/22
A A A
178
2019
5/31
A A A
179
2019
6/10
A A A
180
2019
6/20
A A A
181
2019
6/29
A A A
182
2019
7/09
A A A
183
2019
7/19
A A A
184
2019
7/29
A A A
185
2019
8/07
A A A
186
2019
8/17
A A A
187
2019
8/27
A A A
188
2019
9/05
A A A
189
2019
9/15
A A A
190
2019
9/25
A A A
191
2019
10/05
A A A
192
2019
10/14
A A A
193
2019
10/24
A A A
194
2019
11/03
A A A
195
2019
11/12
A A A
196
2019
11/22
A A A
197
2019
12/02
A A A
198
2019
12/11
A A A
199
2019
12/21
A A A
200
2019
12/31
A A A
201
2020
1/10
A A A
202
2020
1/19
A A A
203
2020
1/29
A A A
204
2020
2/08
A A A

Creation Date: 2021-01-07
