WMO # 5900119

Argo Float WMO # 5900119 : Plots based on data files at the GDAC

Metadata:
WMO #:	5900119
PI:	Breck Owens
DAC:	AOML

DAC #:	171
WHOI Float #:	65
Last Heard From:	2005-04-11
Longevity:	3.54 yrs

Hardware:
Telcom:	ARGOS 24868
Telcom:	ARGOS 24868
Instrument:	NM522_SB10
ROM version:	SB5.22 1 2001
Temperature:	SBE41CP, s/n: 0132
Conductivity:	SBE41CP, s/n: 0132
Pressure:	Paines, s/n: 2657714132

Deployment:
Deployed:	2001-09-17
Latitude:	-10.000
Longitude:	-11.124
Deployment Platform:	n/a
Cruise ID:	AX08
Deployer:	n/a

GDAC file status:
Last Update:	2019-10-30
Profiles at GDAC:	125
GDAC D-files:	125
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

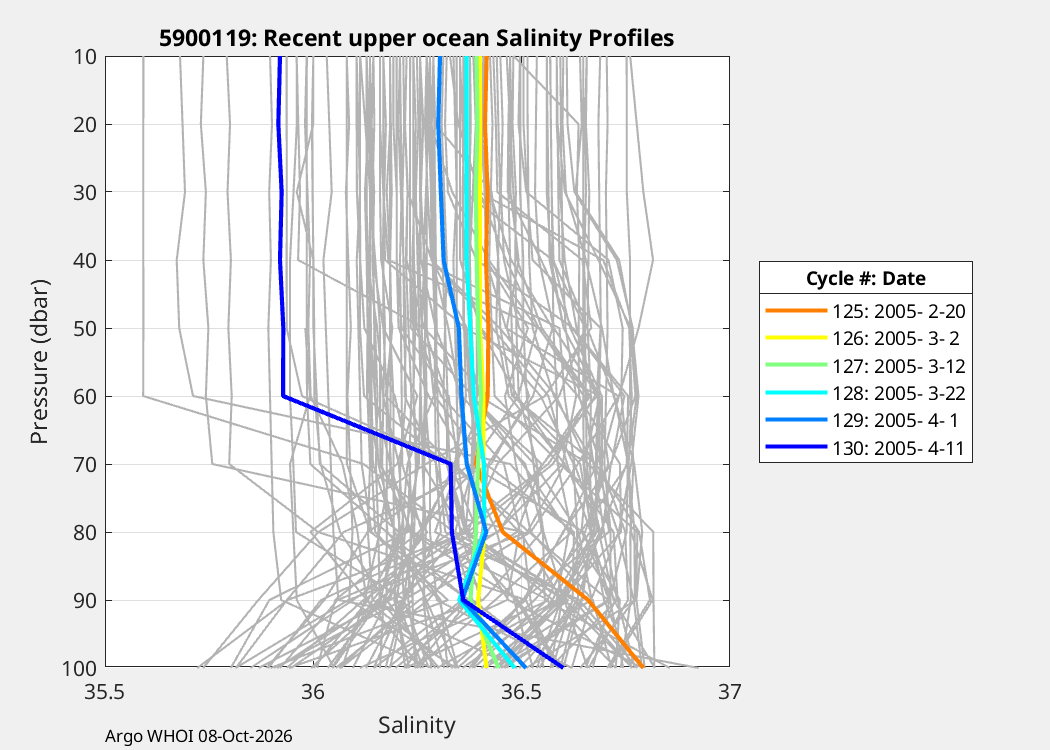

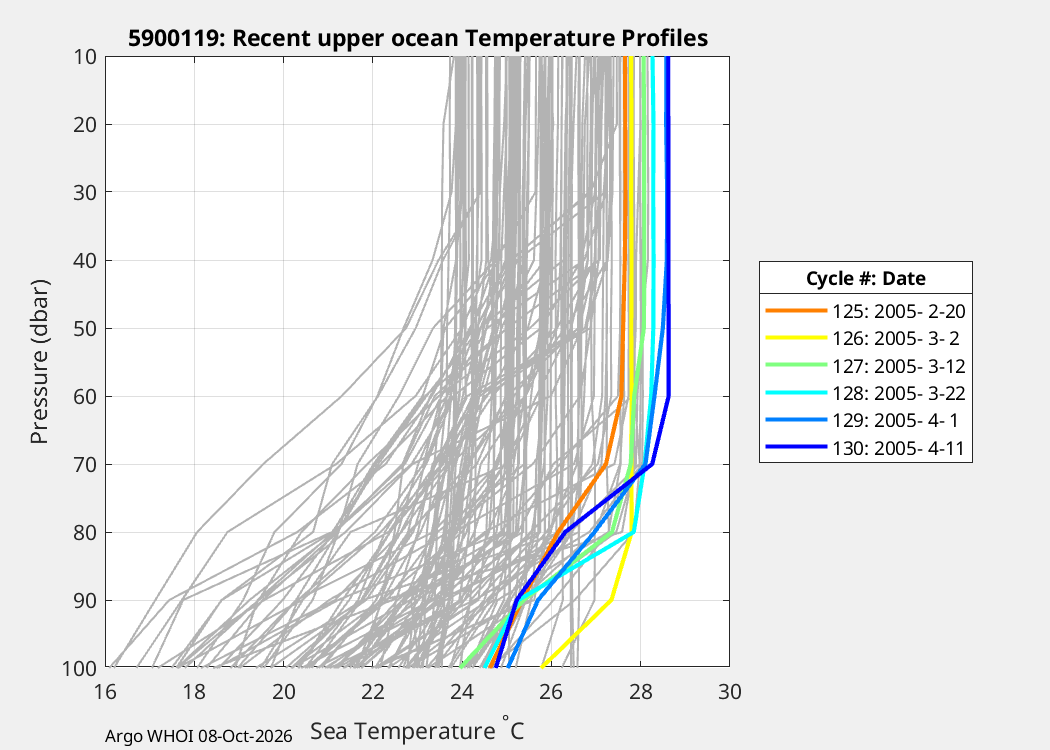

Temperature Profiles	Salinity Profiles

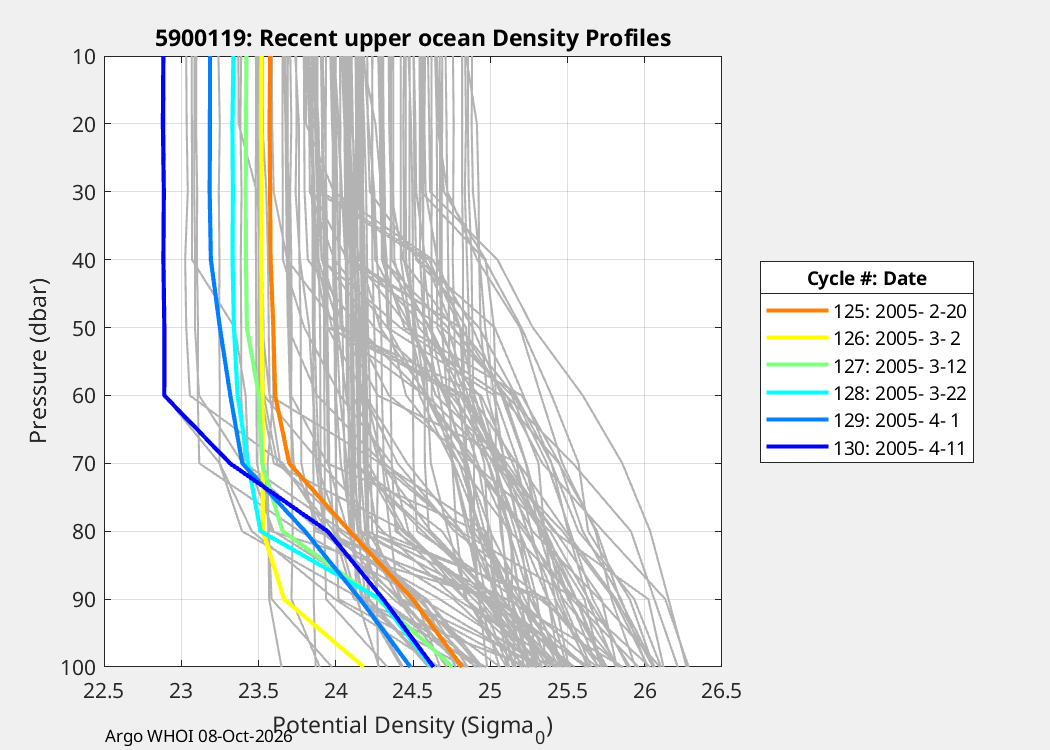

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

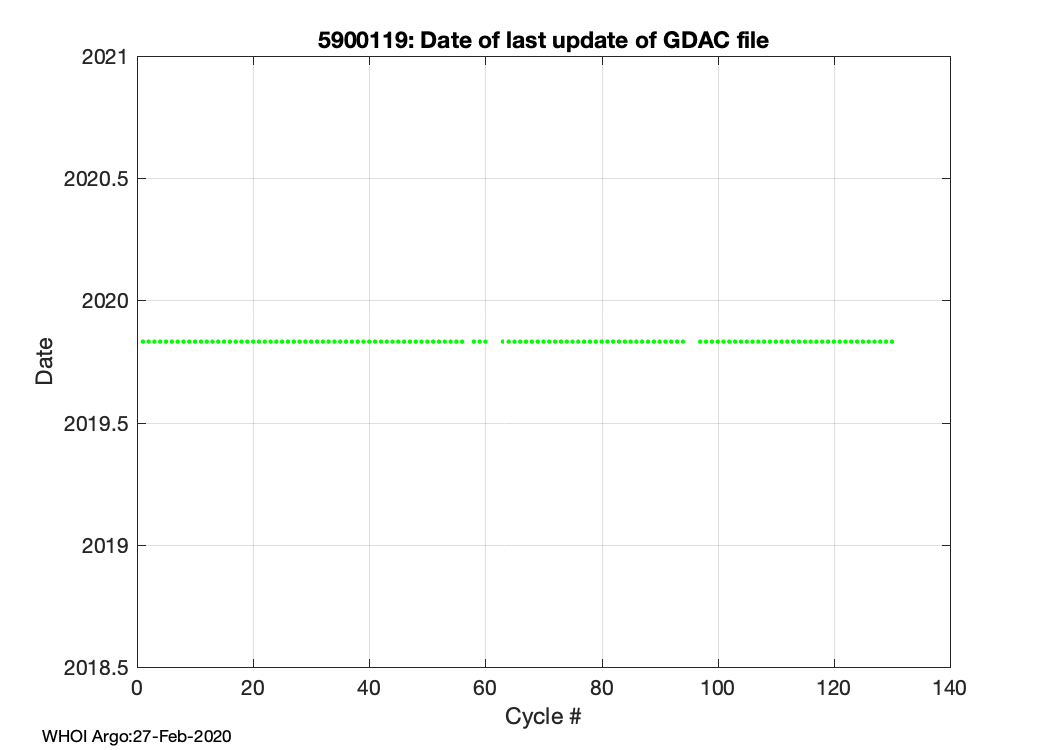

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2001 9/26 A A A	2 2001 10/06 A A A	3 2001 10/16 A A A	4 2001 10/26 A A A	5 2001 11/05 A A A	6 2001 11/15 A A A	7 2001 11/25 A A A	8 2001 12/05 A A A	9 2001 12/15 A A A	10 2001 12/25 A A A	11 2002 1/04 A A A	12 2002 1/14 A A A	13 2002 1/24 A A A	14 2002 2/03 A A A	15 2002 2/13 A A A	16 2002 2/23 A A A	17 2002 3/05 A A A	18 2002 3/15 A A A	19 2002 3/25 A A A
20 2002 4/04 A A A	21 2002 4/14 A A A	22 2002 4/24 A A A	23 2002 5/05 A A A	24 2002 5/14 A A A	25 2002 5/25 A A A	26 2002 6/04 A A A	27 2002 6/14 A A A	28 2002 6/24 A A A	29 2002 7/04 A A A	30 2002 7/14 A A A	31 2002 7/24 A A A	32 2002 8/03 A A A	33 2002 8/13 A A A	34 2002 8/23 A A A	35 2002 9/02 A A A	36 2002 9/12 A A A	37 2002 9/22 A A A	38 2002 10/02 A A A	39 2002 10/12 A A A
40 2002 10/22 A A A	41 2002 11/01 A A A	42 2002 11/11 A A A	43 2002 11/21 A A A	44 2002 12/01 A A A	45 2002 12/11 A A A	46 2002 12/21 A A A	47 2002 12/31 A A A	48 2003 1/10 A A A	49 2003 1/20 A A A	50 2003 1/30 A A A	51 2003 2/09 A A A	52 2003 2/19 A A A	53 2003 3/01 A A A	54 2003 3/11 A A A	55 2003 3/21 A A A	56 2003 3/31 A A A		58 2003 4/20 A A A	59 2003 4/30 A A A
60 2003 5/10 A A A			63 2003 6/09 A A A	64 2003 6/19 A A A	65 2003 6/29 A A A	66 2003 7/10 A A A	67 2003 7/19 A A B	68 2003 7/29 A A A	69 2003 8/09 A A A	70 2003 8/19 A A A	71 2003 8/29 A A A	72 2003 9/08 A A A	73 2003 9/18 A A A	74 2003 9/28 A A A	75 2003 10/08 A A A	76 2003 10/18 A A A	77 2003 10/28 A A A	78 2003 11/07 A A A	79 2003 11/17 A A A
80 2003 11/27 A A A	81 2003 12/07 A A A	82 2003 12/17 A A A	83 2003 12/27 A A F	84 2004 1/06 A A A	85 2004 1/16 A A A	86 2004 1/26 A A A	87 2004 2/05 A A A	88 2004 2/15 A A A	89 2004 2/25 A A A	90 2004 3/06 A A A	91 2004 3/16 A A A	92 2004 3/26 A A A	93 2004 4/05 A A A	94 2004 4/15 A A A			97 2004 5/15 A A A	98 2004 5/25 A A A	99 2004 6/04 A A A
100 2004 6/14 A A A	101 2004 6/24 A A A	102 2004 7/04 A A B	103 2004 7/14 A A A	104 2004 7/24 A A A	105 2004 8/03 A A A	106 2004 8/13 A A A	107 2004 8/23 A A A	108 2004 9/02 A A A	109 2004 9/13 A A A	110 2004 9/23 A A A	111 2004 10/03 A A A	112 2004 10/13 A A A	113 2004 10/23 A A A	114 2004 11/02 A A A	115 2004 11/12 A A A	116 2004 11/22 A A A	117 2004 12/02 A A A	118 2004 12/12 A A A	119 2004 12/22 A A A
120 2005 1/01 A A A	121 2005 1/11 A A A	122 2005 1/21 A A A	123 2005 1/31 A A A	124 2005 2/10 A A A	125 2005 2/20 A A A	126 2005 3/02 A A A	127 2005 3/12 A A A	128 2005 3/22 A A A	129 2005 4/01 A A A	130 2005 4/11 A A A

Creation Date: 2024-08-27
