WMO # 5900117

Argo Float WMO # 5900117 : Plots based on data files at the GDAC

Metadata:
WMO #:	5900117
PI:	Breck Owens
DAC:	AOML

DAC #:	169
WHOI Float #:	30
Last Heard From:	2004-06-03
Longevity:	2.69 yrs

Hardware:
Telcom:	ARGOS 11913
Telcom:	ARGOS 11913
Instrument:	SOLO_TS2
ROM version:	SB5.22 1 2001
Temperature:	SBE41CP, s/n: 0063
Conductivity:	SBE41CP, s/n: 0063
Pressure:	Paines, s/n: 2657710620

Deployment:
Deployed:	2001-09-15
Latitude:	-20.020
Longitude:	-0.537
Deployment Platform:	n/a
Cruise ID:	AX08
Deployer:	n/a

GDAC file status:
Last Update:	2019-10-30
Profiles at GDAC:	98
GDAC D-files:	98
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

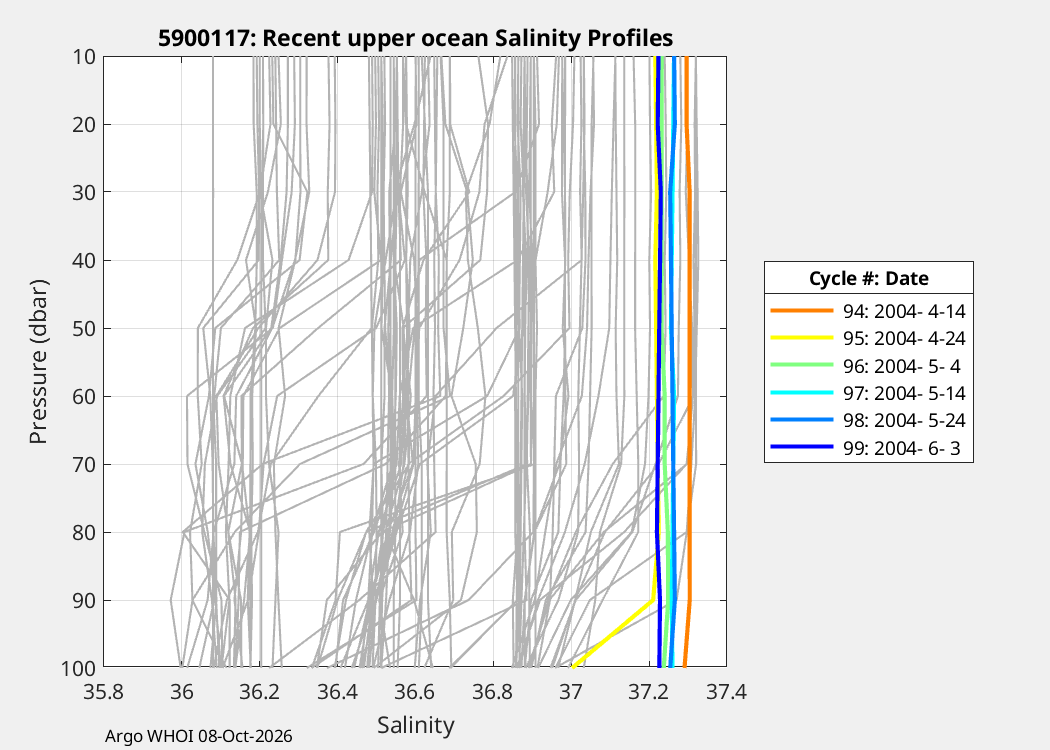

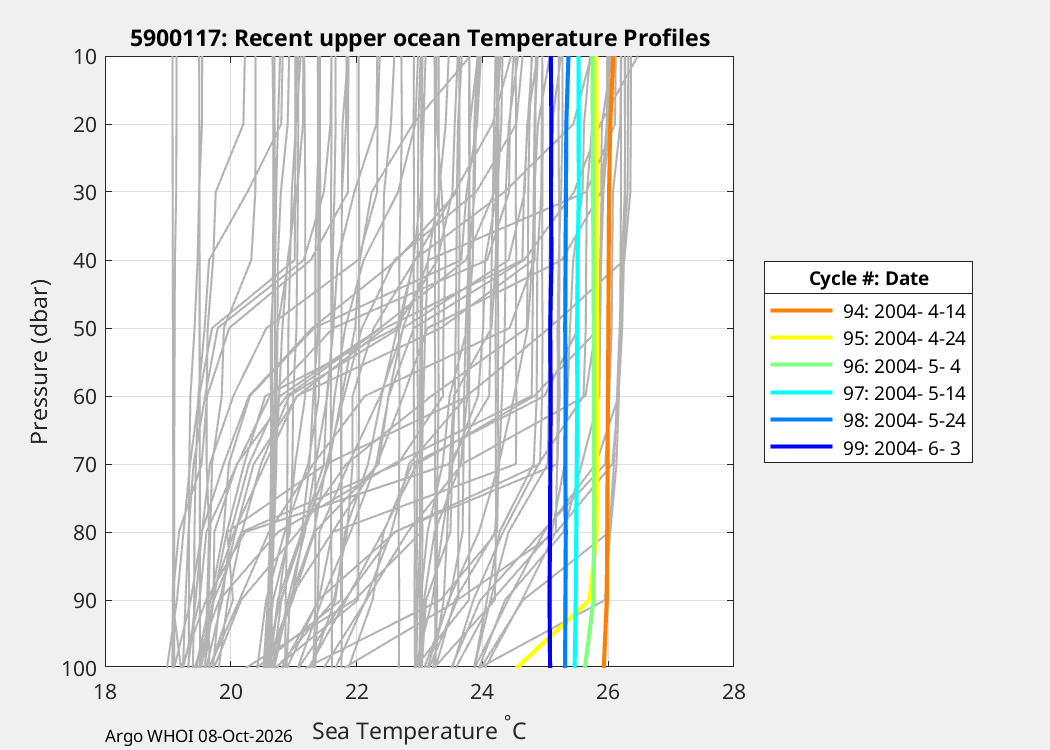

Temperature Profiles	Salinity Profiles

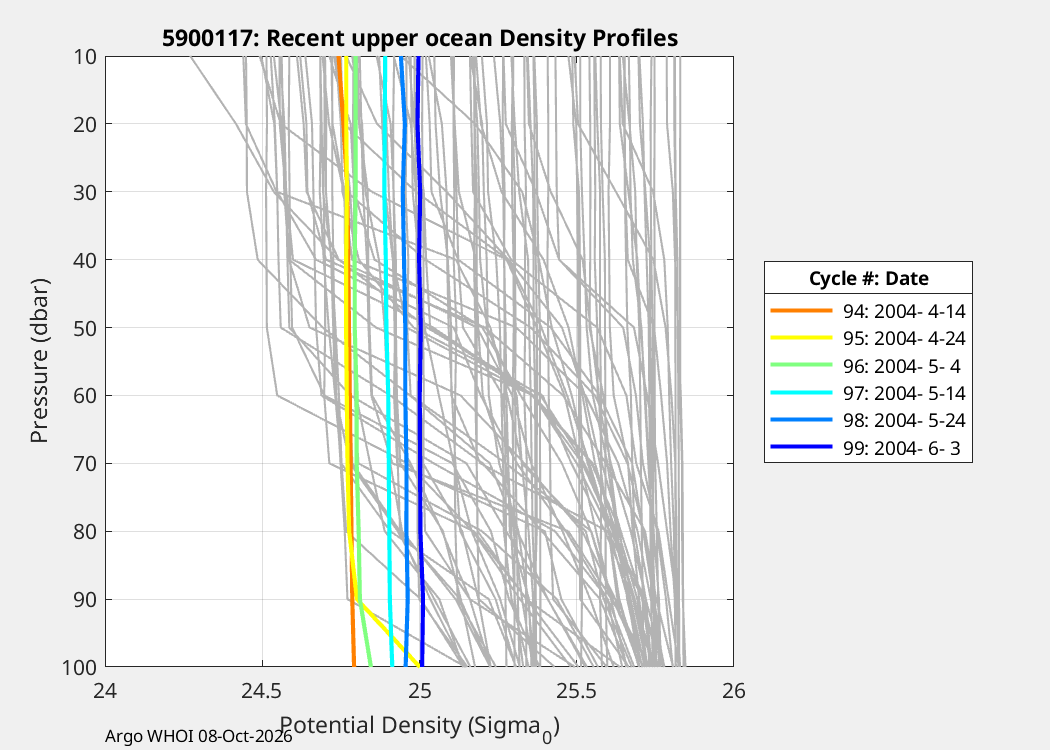

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2001 9/24 A A A	2 2001 10/04 A A A	3 2001 10/14 A A A	4 2001 10/24 A A A	5 2001 11/03 A A A	6 2001 11/13 A A A	7 2001 11/23 A A A	8 2001 12/03 A A A	9 2001 12/13 A A A	10 2001 12/23 A A A	11 2002 1/02 A A A	12 2002 1/12 A A A	13 2002 1/22 A A A	14 2002 2/01 A A A	15 2002 2/11 A A A	16 2002 2/21 A A A	17 2002 3/03 A A A	18 2002 3/13 A A A	19 2002 3/23 A A A
20 2002 4/03 A A A	21 2002 4/13 A A A	22 2002 4/23 A A A	23 2002 5/03 A A A	24 2002 5/13 A A A	25 2002 5/23 A A A	26 2002 6/02 A A A	27 2002 6/12 A A A	28 2002 6/22 A A A	29 2002 7/02 A A A	30 2002 7/12 A A A	31 2002 7/22 A A A	32 2002 8/01 A A A	33 2002 8/11 A A A	34 2002 8/21 A A A	35 2002 8/31 A A A	36 2002 9/10 A A A	37 2002 9/20 A A A	38 2002 9/30 A A A	39 2002 10/10 A A A
40 2002 10/20 A A A	41 2002 10/30 A A A	42 2002 11/09 A A A	43 2002 11/19 A A A	44 2002 11/29 A A A	45 2002 12/09 A A A	46 2002 12/19 A A A	47 2002 12/29 A A A	48 2003 1/08 A A A	49 2003 1/18 A A A	50 2003 1/29 A A A	51 2003 2/08 A A A	52 2003 2/18 A A A	53 2003 2/28 A A A	54 2003 3/10 A A A	55 2003 3/20 A A A	56 2003 3/30 A A A	57 2003 4/09 A A A	58 2003 4/19 A A A	59 2003 4/29 A A A
60 2003 5/09 A A A		62 2003 5/29 A A A	63 2003 6/08 A A A	64 2003 6/18 A A A	65 2003 6/28 A A A	66 2003 7/08 A A A	67 2003 7/18 A A A	68 2003 7/28 A A A	69 2003 8/07 A A A	70 2003 8/17 A A A	71 2003 8/27 A A A	72 2003 9/06 A A A	73 2003 9/16 A A A	74 2003 9/26 A A A	75 2003 10/06 A A A	76 2003 10/16 A A A	77 2003 10/27 A A A	78 2003 11/06 A A A	79 2003 11/15 A A A
80 2003 11/26 A A A	81 2003 12/06 A A A	82 2003 12/16 A A A	83 2003 12/26 A A A	84 2004 1/05 A A A	85 2004 1/15 A A A	86 2004 1/25 A A A	87 2004 2/04 A A A	88 2004 2/14 A A A	89 2004 2/24 A A A	90 2004 3/05 A A A	91 2004 3/15 A A A	92 2004 3/25 A A A	93 2004 4/04 A A A	94 2004 4/14 A A A	95 2004 4/24 A A A	96 2004 5/04 A A A	97 2004 5/14 A A A	98 2004 5/24 A A A	99 2004 6/03 A A A

Creation Date: 2024-12-06
