WMO 4901446

Argo WMO 4901446 : Plots based on NetCDF data files at the GDAC

Metadata:
WMO #:	4901446
PI:	Amy BOWER
DAC:	AOML

DAC #:	4479
WHOI Float #:	3483
Longevity:	4.51 yrs

Hardware:
Telcom:	IRIDIUM 5271
Telcom:	IRIDIUM 5271
Instrument:	APEXIR_TS3
ROM version:	062907
Temperature:	SBE41CP, s/n: 2136
Conductivity:	SBE41CP, s/n: 2136
Pressure:	DRUCK, s/n: 7574

Deployment:
Deployed:	2008-06-03
Latitude:	60.426
Longitude:	-52.615
Deployment Platform:	Knorr SALP
Cruise ID:	KN-SALP-2008
Deployer:	n/a

GDAC file status:
Last Update:	2025-11-17
Profiles at GDAC:	314
GDAC D-files:	314
GDAC R-files:	0

Links (at WHOI):
Telemetry plots:	WHOI

Links (offsite):
Data Visualizations:	at EuroArgo
Altimeter Comparison:	IFREMER
GDAC (data archive):	Coriolis

Key:	DMQC Status

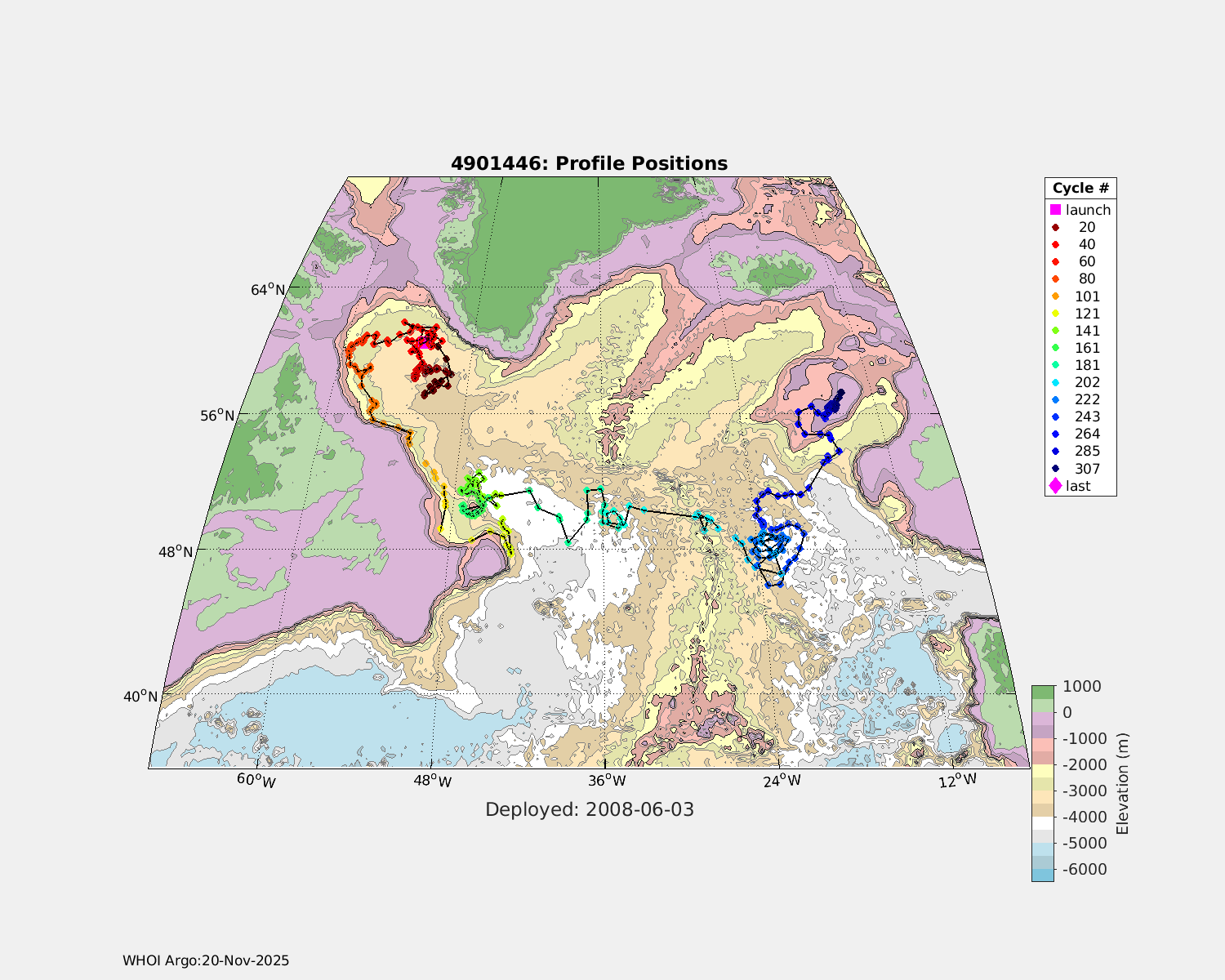

Profile Positions	DMQC Status	Dive History

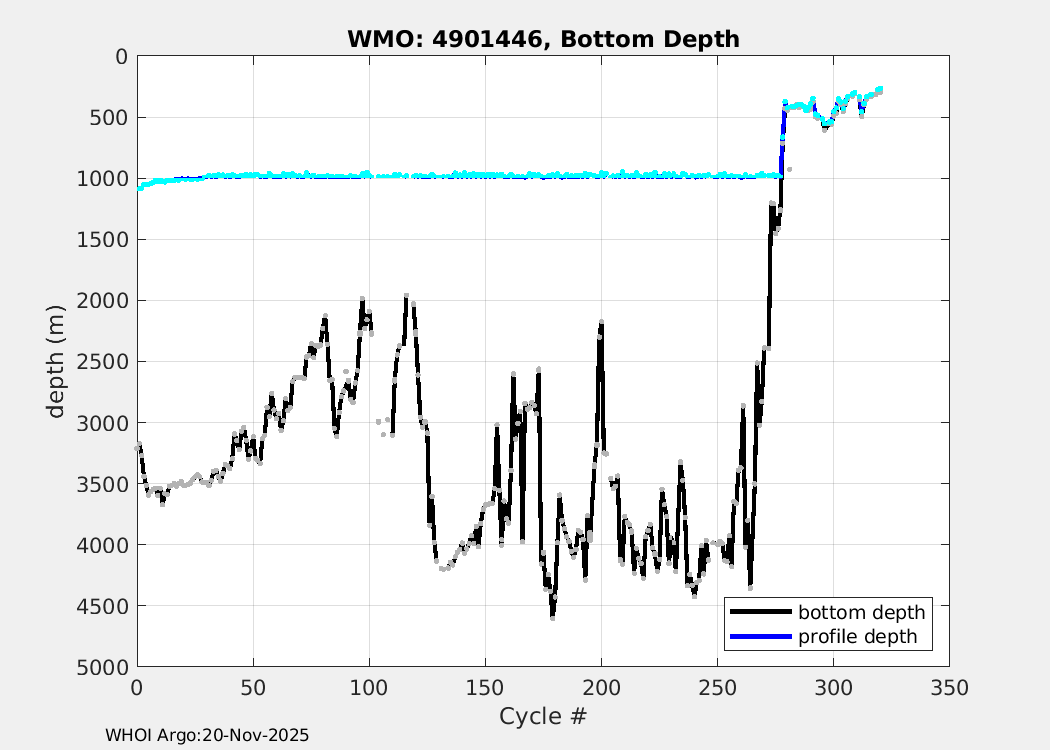

N-Square	Salinity Comparisons	Bathymetry

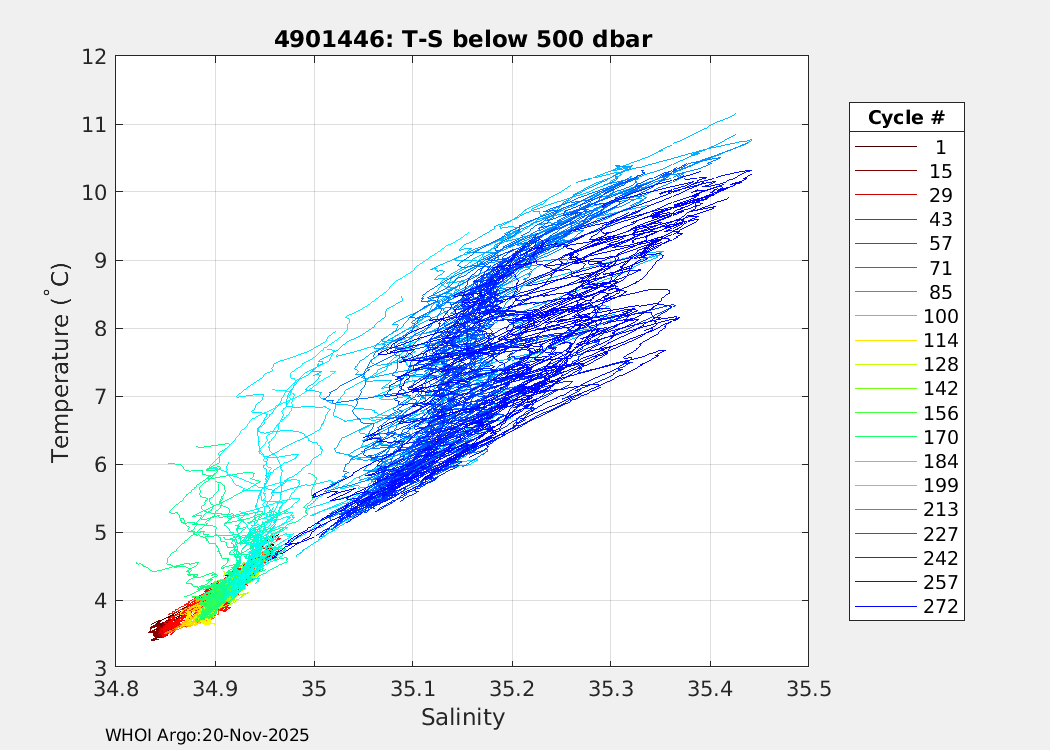

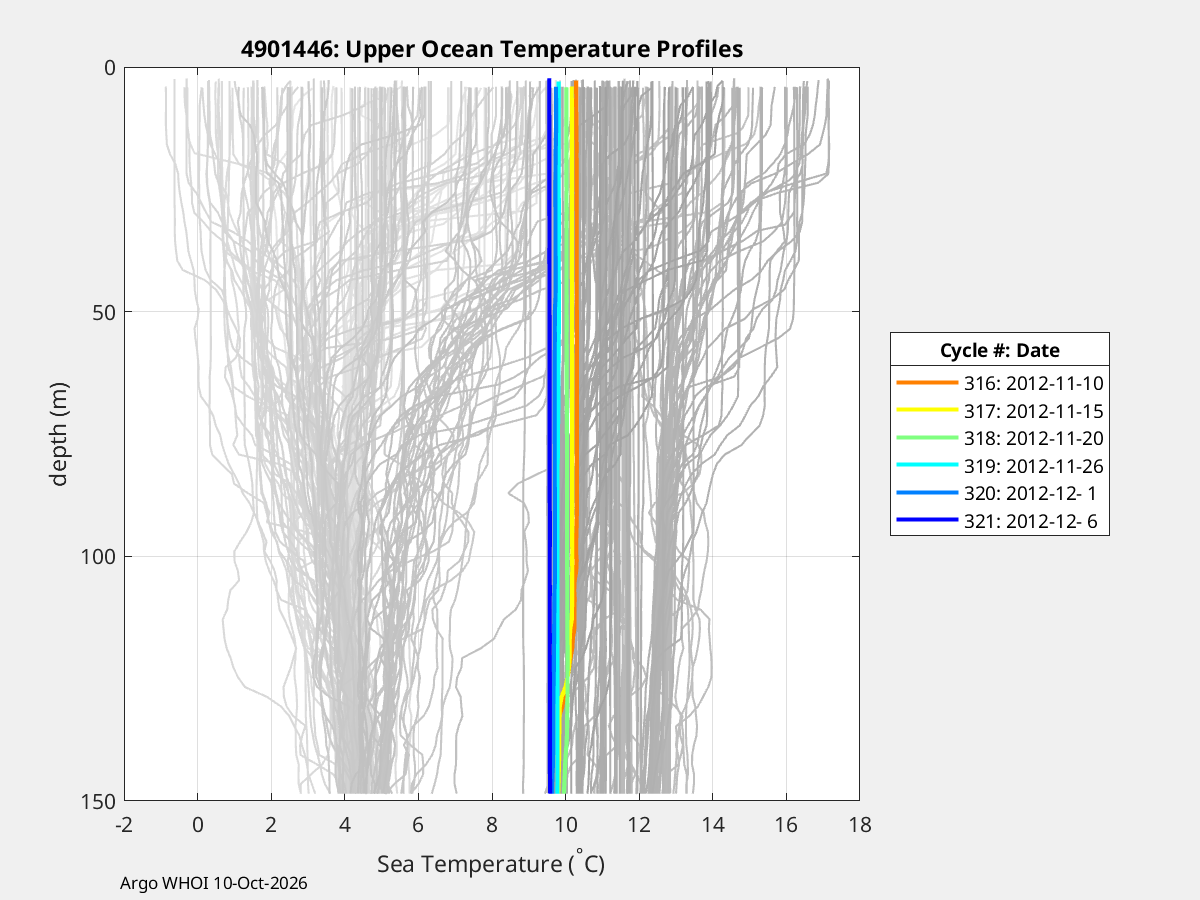

Temperature Profiles	Temperature QC Flags	Deep T-S Relation

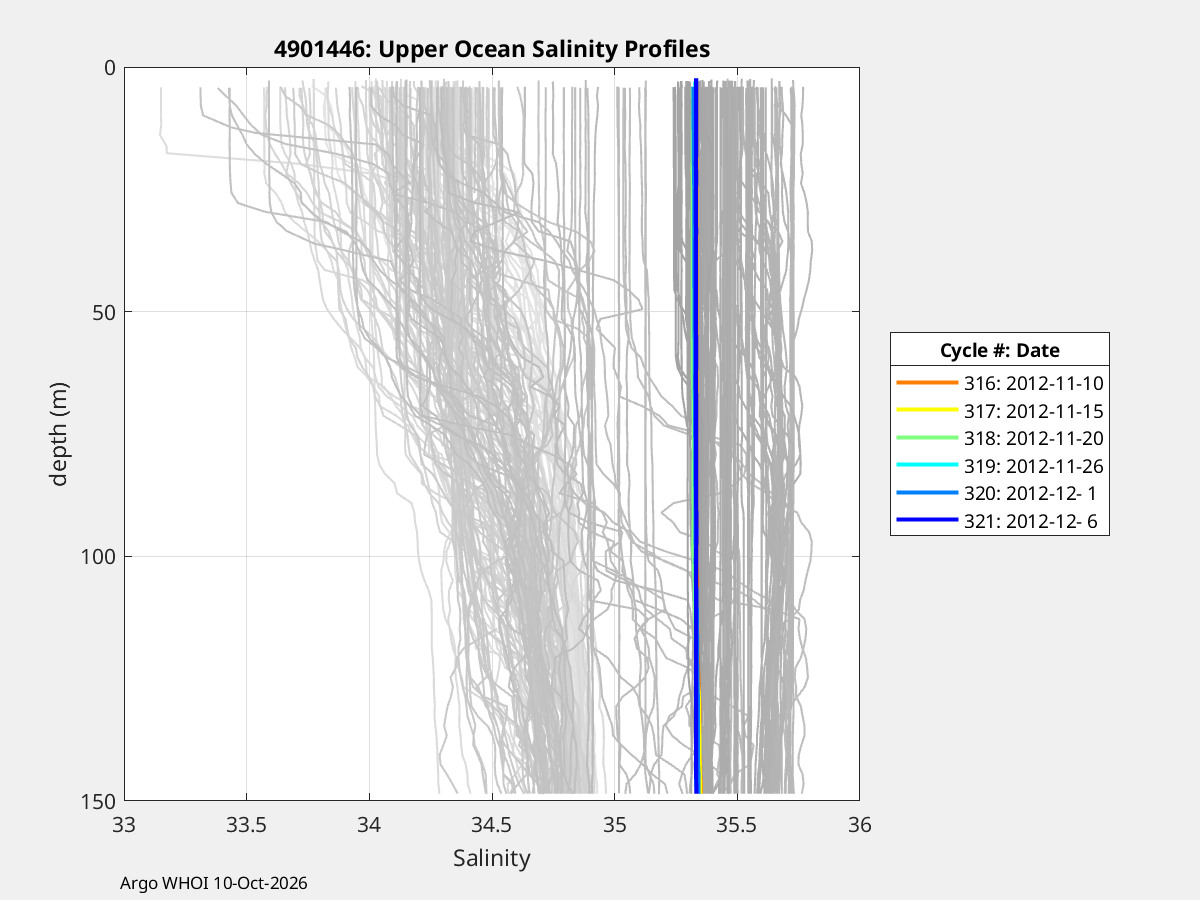

Salinity Profiles	Salinity QC Flags	Seasonal T-S Relation

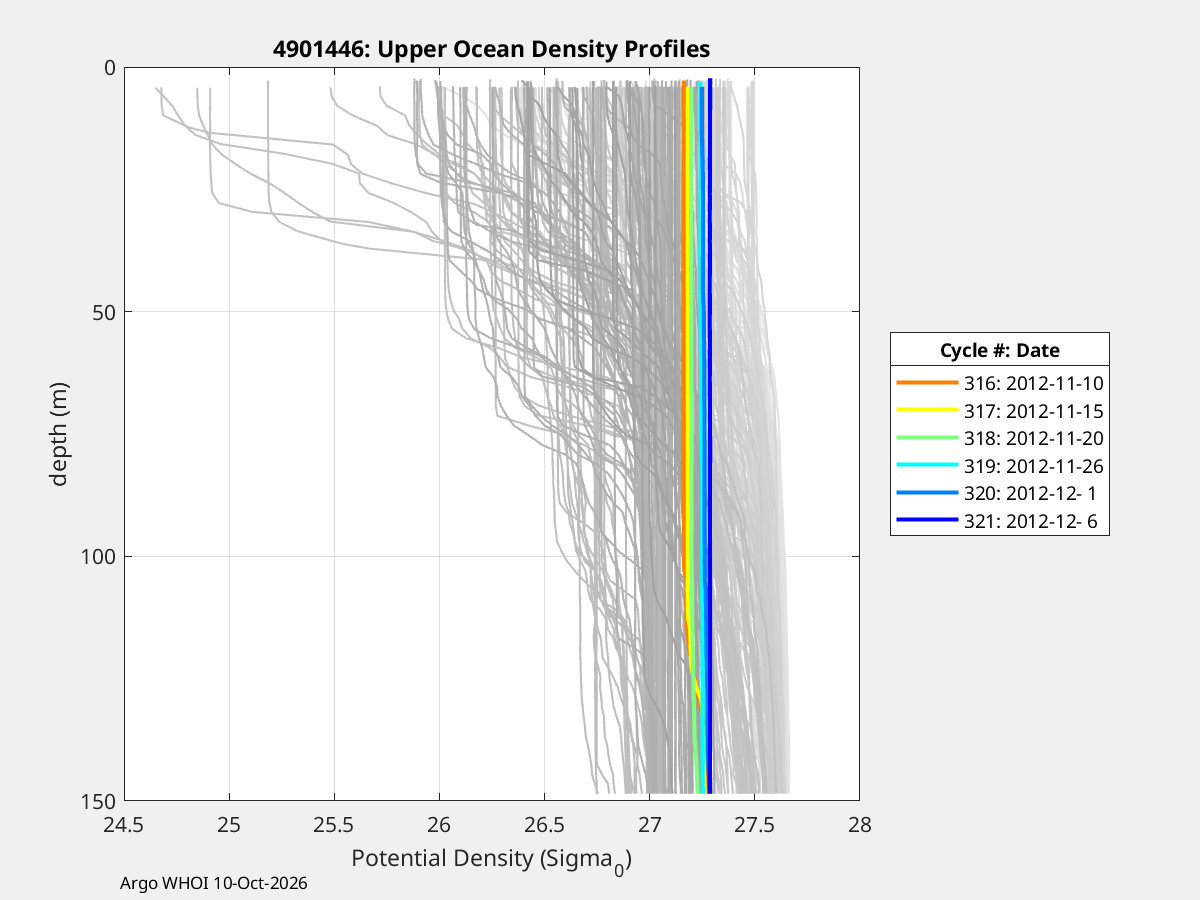

Density Profiles	Pressure QC Flags	Salt Anom Profiles
Traj Cycle	Traj Position	Traj Speed

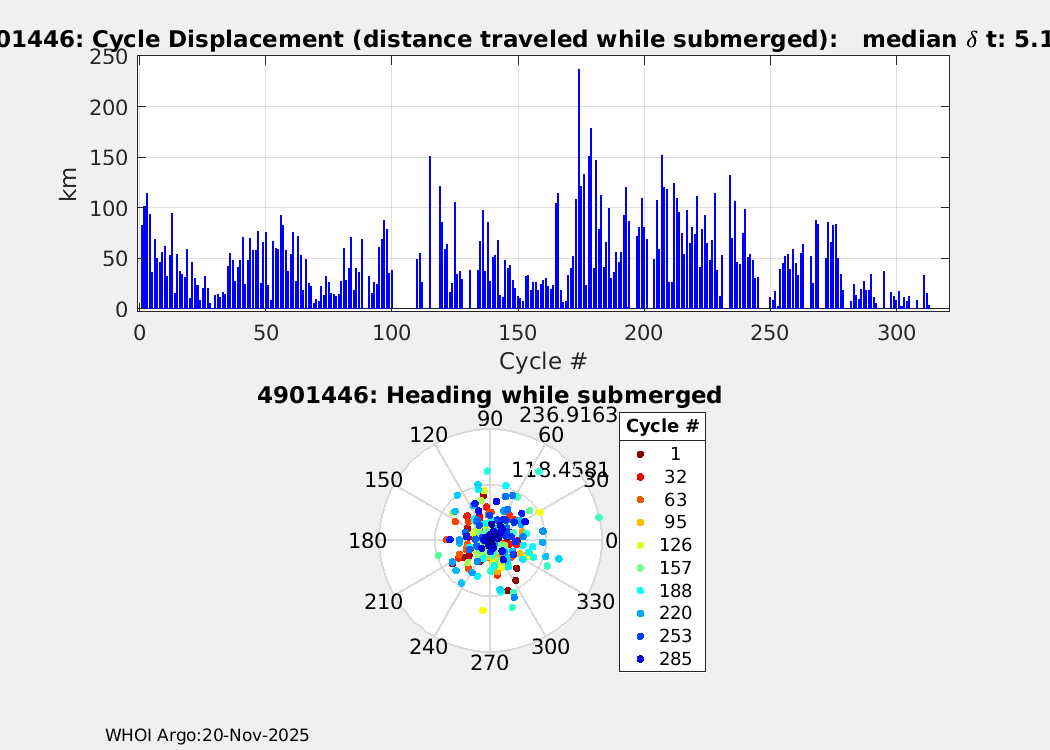

Traj Drift 1	Traj Drift 2	Submerged Displacement
Temperature Section	Salinity Section	Density Section
OW Calibration Adjustment	OW Inputs	Mean Salinity difference (RT vs DM)

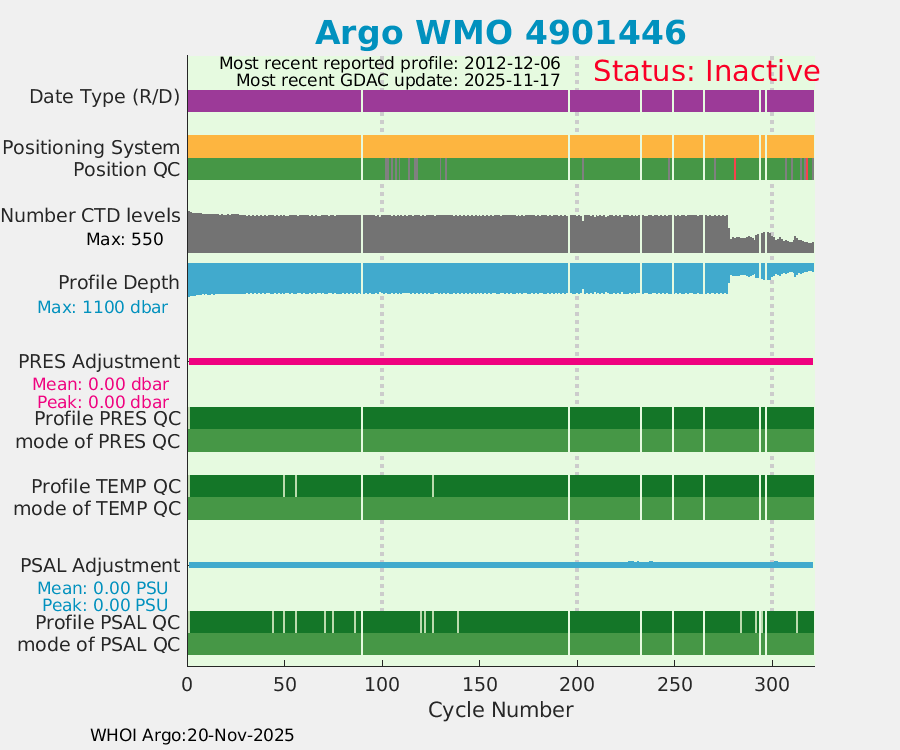

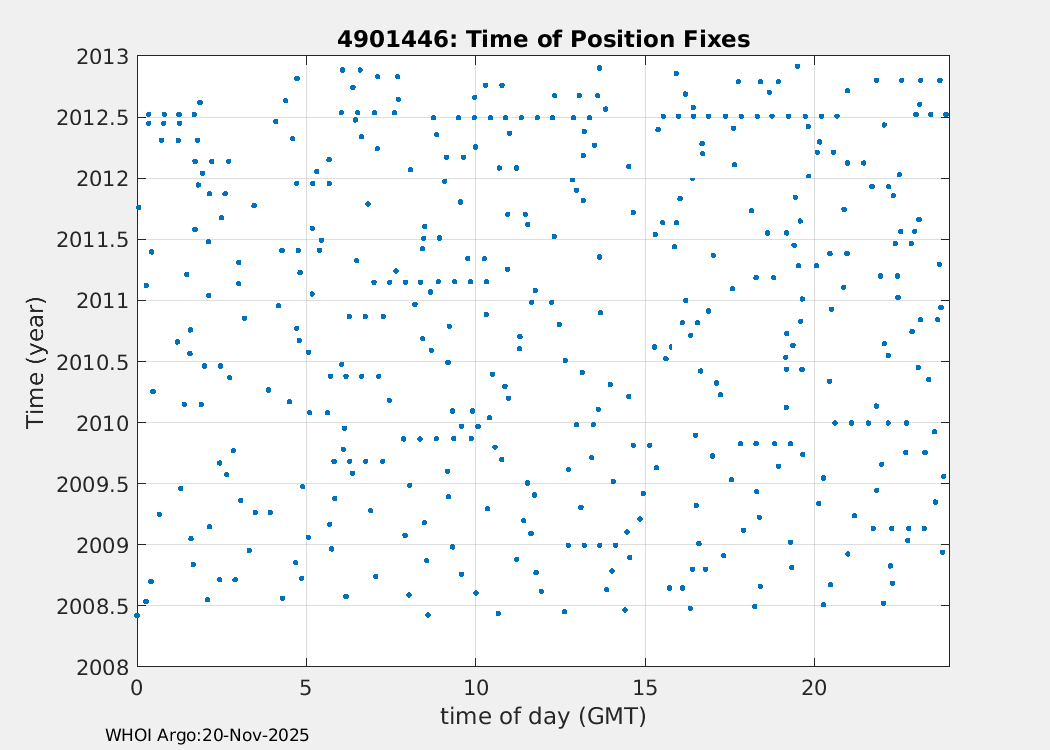

GDAC File info	Surface Fixes

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2008 6/03 B B B	2 2008 6/09 A A A	3 2008 6/14 A A A	4 2008 6/19 A A A	5 2008 6/24 A A A	6 2008 6/29 A A A	7 2008 7/04 A A A	8 2008 7/09 A A A	9 2008 7/14 A A A	10 2008 7/19 A A A	11 2008 7/24 A A A	12 2008 7/29 A A A	13 2008 8/03 A A A	14 2008 8/09 A A A	15 2008 8/14 A A A	16 2008 8/19 A A A	17 2008 8/24 A A A	18 2008 8/29 A A A	19 2008 9/03 A A A
20 2008 9/08 A A A	21 2008 9/13 A A A	22 2008 9/18 A A A	23 2008 9/23 A A A	24 2008 9/28 A A A	25 2008 10/04 A A A	26 2008 10/09 A A A	27 2008 10/14 A A A	28 2008 10/19 A A A	29 2008 10/24 A A A	30 2008 10/29 A A A	31 2008 11/03 A A A	32 2008 11/08 A A A	33 2008 11/13 A A A	34 2008 11/19 A A A	35 2008 11/24 A A A	36 2008 11/29 A A A	37 2008 12/04 A A A	38 2008 12/09 A A A	39 2008 12/14 A A A
40 2008 12/19 A A A	41 2008 12/25 A A A	42 2008 12/30 A A A	43 2009 1/04 A A A	44 2009 1/09 A A B	45 2009 1/14 A A A	46 2009 1/19 A A A	47 2009 1/24 A A A	48 2009 1/29 A A A	49 2009 2/04 A A A	50 2009 2/09 A B B	51 2009 2/14 A A A	52 2009 2/19 A A A	53 2009 2/24 A A A	54 2009 3/01 A A A	55 2009 3/06 A A A	56 2009 3/12 A B B	57 2009 3/17 A A A	58 2009 3/22 A A A	59 2009 3/27 A A A
60 2009 4/01 A A A	61 2009 4/06 A A A	62 2009 4/11 A A A	63 2009 4/17 A A A	64 2009 4/22 A A A	65 2009 4/27 A A A	66 2009 5/02 A A A	67 2009 5/07 A A A	68 2009 5/12 A A A	69 2009 5/17 A A A	70 2009 5/23 A A A	71 2009 5/28 A A B	72 2009 6/02 A A A	73 2009 6/07 A A A	74 2009 6/12 A A A	75 2009 6/17 A A B	76 2009 6/22 A A A	77 2009 6/27 A A A	78 2009 7/03 A A A	79 2009 7/08 A A A
80 2009 7/13 A A A	81 2009 7/18 A A A	82 2009 7/23 A A A	83 2009 7/28 A A A	84 2009 8/02 A A A	85 2009 8/08 A A A	86 2009 8/13 A A B	87 2009 8/18 A A A	88 2009 8/23 A A A	89 2009 8/28 A A A		91 2009 9/07 A A A	92 2009 9/13 A A A	93 2009 9/18 A A A	94 2009 9/23 A A A	95 2009 9/28 A A A	96 2009 10/03 A A A	97 2009 10/08 A A A	98 2009 10/13 A A A	99 2009 10/19 A A A
100 2009 10/24 A A A	101 2009 10/29 A A A	102 2009 11/03 A A A	103 2009 11/08 A A A	104 2009 11/13 A A A	105 2009 11/19 A A A	106 2009 11/24 A A A	107 2009 11/29 A A A	108 2009 12/04 A A A	109 2009 12/09 A A A	110 2009 12/14 A A A	111 2009 12/20 A A A	112 2009 12/25 A A A	113 2009 12/30 A A A	114 2010 1/04 A A A	115 2010 1/09 A A A	116 2010 1/15 A A A	117 2010 1/20 A A A	118 2010 1/25 A A A	119 2010 1/30 A A A
120 2010 2/05 A A B	121 2010 2/10 A A A	122 2010 2/15 A A B	123 2010 2/20 A A A	124 2010 2/25 A A A	125 2010 3/02 A A A	126 2010 3/07 A B B	127 2010 3/13 A A A	128 2010 3/18 A A A	129 2010 3/23 A A A	130 2010 3/28 A A A	131 2010 4/02 A A A	132 2010 4/07 A A A	133 2010 4/12 A A A	134 2010 4/18 A A A	135 2010 4/23 A A A	136 2010 4/28 A A A	137 2010 5/03 A A A	138 2010 5/08 A A A	139 2010 5/13 A A B
140 2010 5/18 A A A	141 2010 5/24 A A A	142 2010 5/29 A A A	143 2010 6/03 A A A	144 2010 6/08 A A A	145 2010 6/13 A A A	146 2010 6/18 A A A	147 2010 6/23 A A A	148 2010 6/29 A A A	149 2010 7/04 A A A	150 2010 7/09 A A A	151 2010 7/14 A A A	152 2010 7/19 A A A	153 2010 7/24 A A A	154 2010 7/29 A A A	155 2010 8/03 A A A	156 2010 8/09 A A A	157 2010 8/14 A A A	158 2010 8/19 A A A	159 2010 8/24 A A A
160 2010 8/29 A A A	161 2010 9/03 A A A	162 2010 9/08 A A A	163 2010 9/14 A A A	164 2010 9/19 A A A	165 2010 9/24 A A A	166 2010 9/29 A A A	167 2010 10/04 A A A	168 2010 10/09 A A A	169 2010 10/14 A A A	170 2010 10/20 A A A	171 2010 10/25 A A A	172 2010 10/30 A A A	173 2010 11/04 A A A	174 2010 11/09 A A A	175 2010 11/14 A A A	176 2010 11/20 A A A	177 2010 11/25 A A A	178 2010 11/30 A A A	179 2010 12/05 A A A
180 2010 12/10 A A A	181 2010 12/15 A A A	182 2010 12/20 A A A	183 2010 12/26 A A A	184 2010 12/31 A A A	185 2011 1/05 A A A	186 2011 1/10 A A A	187 2011 1/15 A A A	188 2011 1/20 A A A	189 2011 1/25 A A A	190 2011 1/31 A A A	191 2011 2/05 A A A	192 2011 2/10 A A A	193 2011 2/15 A A A	194 2011 2/20 A A A	195 2011 2/25 A A A		197 2011 3/08 A A A	198 2011 3/13 A A A	199 2011 3/18 A A A
200 2011 3/23 A A A	201 2011 3/28 A A A	202 2011 4/03 A A A	203 2011 4/08 A A A	204 2011 4/13 A A A	205 2011 4/18 A A A	206 2011 4/23 A A A	207 2011 4/28 A A A	208 2011 5/04 A A A	209 2011 5/09 A A A	210 2011 5/14 A A A	211 2011 5/19 A A A	212 2011 5/24 A A A	213 2011 5/29 A A A	214 2011 6/03 A A A	215 2011 6/09 A A A	216 2011 6/14 A A A	217 2011 6/19 A A A	218 2011 6/24 A A A	219 2011 6/29 A A A
220 2011 7/04 A A A	221 2011 7/10 A A A	222 2011 7/15 A A A	223 2011 7/20 A A A	224 2011 7/25 A A A	225 2011 7/30 A A A	226 2011 8/04 A A A	227 2011 8/09 A A A	228 2011 8/15 A A A	229 2011 8/20 A A A	230 2011 8/25 A A A	231 2011 8/30 A A A	232 2011 9/04 A A A		234 2011 9/15 A A A	235 2011 9/20 A A A	236 2011 9/25 A A A	237 2011 9/30 A A A	238 2011 10/05 A A A	239 2011 10/10 A A A
240 2011 10/15 A A A	241 2011 10/21 A A A	242 2011 10/26 A A A	243 2011 10/31 A A A	244 2011 11/05 A A A	245 2011 11/10 A A A	246 2011 11/15 A A A	247 2011 11/20 A A A	248 2011 11/26 A A A		250 2011 12/06 A A A	251 2011 12/11 A A A	252 2011 12/16 A A A	253 2011 12/22 A A A	254 2011 12/27 A A A	255 2012 1/01 A A A	256 2012 1/06 A A A	257 2012 1/11 A A A	258 2012 1/16 A A A	259 2012 1/21 A A A
260 2012 1/26 A A A	261 2012 2/01 A A A	262 2012 2/06 A A A	263 2012 2/11 A A A	264 2012 2/16 A A A		266 2012 2/26 A A A	267 2012 3/03 A A A	268 2012 3/08 A A A	269 2012 3/13 A A A	270 2012 3/18 A A A	271 2012 3/23 A A A	272 2012 3/28 A A A	273 2012 4/03 A A A	274 2012 4/08 A A A	275 2012 4/13 A A A	276 2012 4/18 A A A	277 2012 4/23 A A A	278 2012 4/28 A A A	279 2012 5/03 A A A
280 2012 5/09 A A A	281 2012 5/14 A A A	282 2012 5/19 A A A	283 2012 5/24 A A A	284 2012 5/29 A A B	285 2012 6/03 A A A	286 2012 6/08 A A A	287 2012 6/13 A A A	288 2012 6/18 A A A	289 2012 6/23 A A A	290 2012 6/28 A A A	291 2012 7/04 A A A	292 2012 7/09 A A B	293 2012 7/14 A A A		295 2012 7/25 A A B	296 2012 7/30 A A A		298 2012 8/09 A A A	299 2012 8/14 A A A
300 2012 8/19 A A A	301 2012 8/24 A A A	302 2012 8/30 A A A	303 2012 9/04 A A A	304 2012 9/09 A A A	305 2012 9/14 A A A	306 2012 9/19 A A A	307 2012 9/24 A A A	308 2012 9/29 A A A	309 2012 10/05 A A A	310 2012 10/10 A A A	311 2012 10/15 A A A	312 2012 10/20 A A A	313 2012 10/25 A A B	314 2012 10/30 A A A	315 2012 11/05 A A A	316 2012 11/10 A A A	317 2012 11/15 A A A	318 2012 11/20 A A A	319 2012 11/26 A A A
320 2012 12/01 A A A	321 2012 12/06 A A A

Creation Date: 2025-11-20
