WMO 4901403

Argo WMO 4901403 : Plots based on NetCDF data files at the GDAC

Metadata:
WMO #:	4901403
PI:	Amy BOWER
DAC:	AOML

DAC #:	4472
WHOI Float #:	3475
Longevity:	3.54 yrs

Hardware:
Telcom:	IRIDIUM 5263
Telcom:	IRIDIUM 5263
Instrument:	APEXIR_TS3
ROM version:	062907
Temperature:	SBE41CP, s/n: 2142
Conductivity:	SBE41CP, s/n: 2142
Pressure:	DRUCK, s/n: 7583

Deployment:
Deployed:	2007-09-26
Latitude:	60.426
Longitude:	-52.615
Deployment Platform:	Knorr SALP
Cruise ID:	KN-192-1-2007
Deployer:	John Lund

GDAC file status:
Last Update:	2019-04-03
Profiles at GDAC:	236
GDAC D-files:	236
GDAC R-files:	0

Links (at WHOI):
Telemetry plots:	WHOI

Links (offsite):
Data Visualizations:	at EuroArgo
Altimeter Comparison:	IFREMER
GDAC (data archive):	Coriolis

Key:	DMQC Status

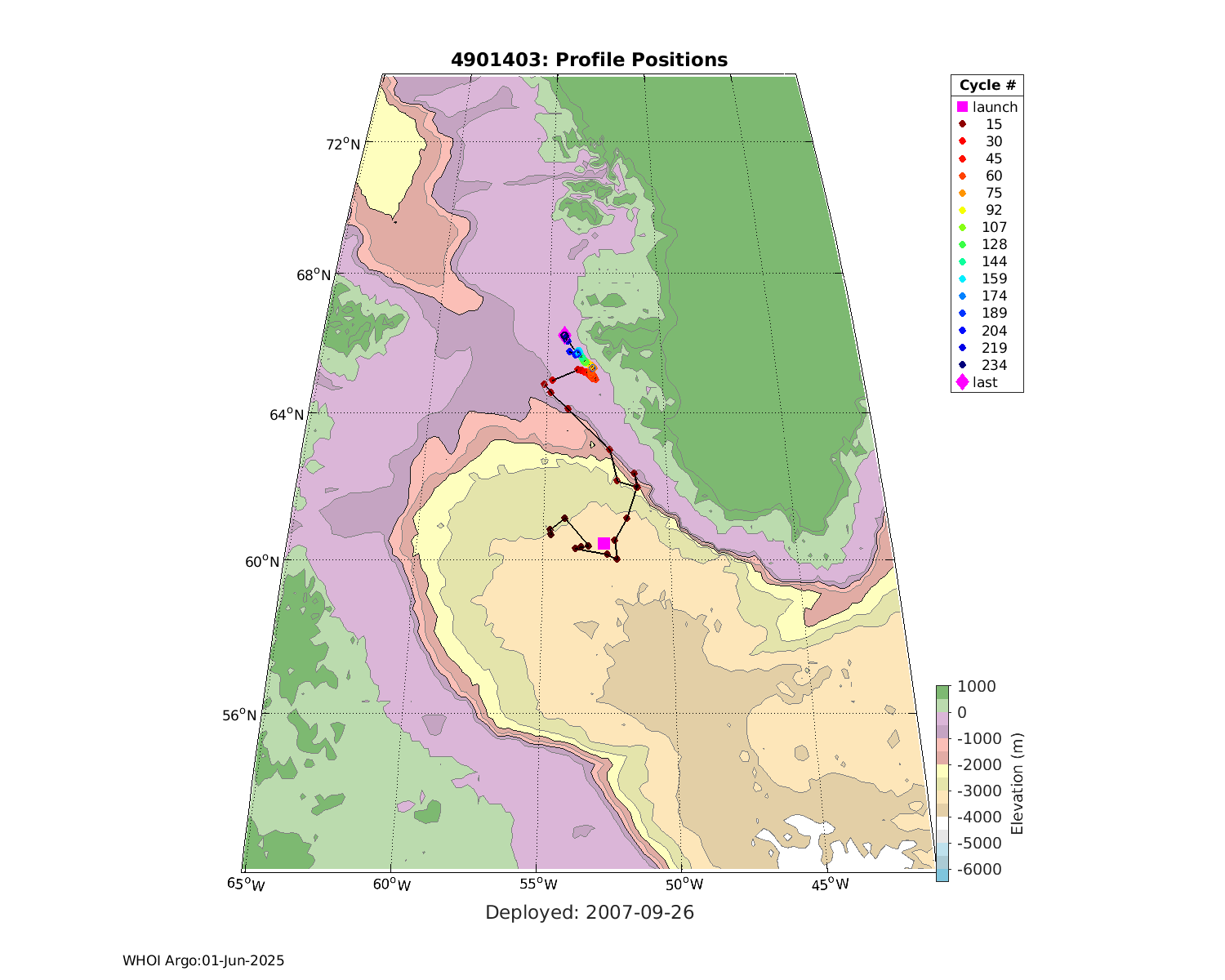

Profile Positions	DMQC Status	Dive History

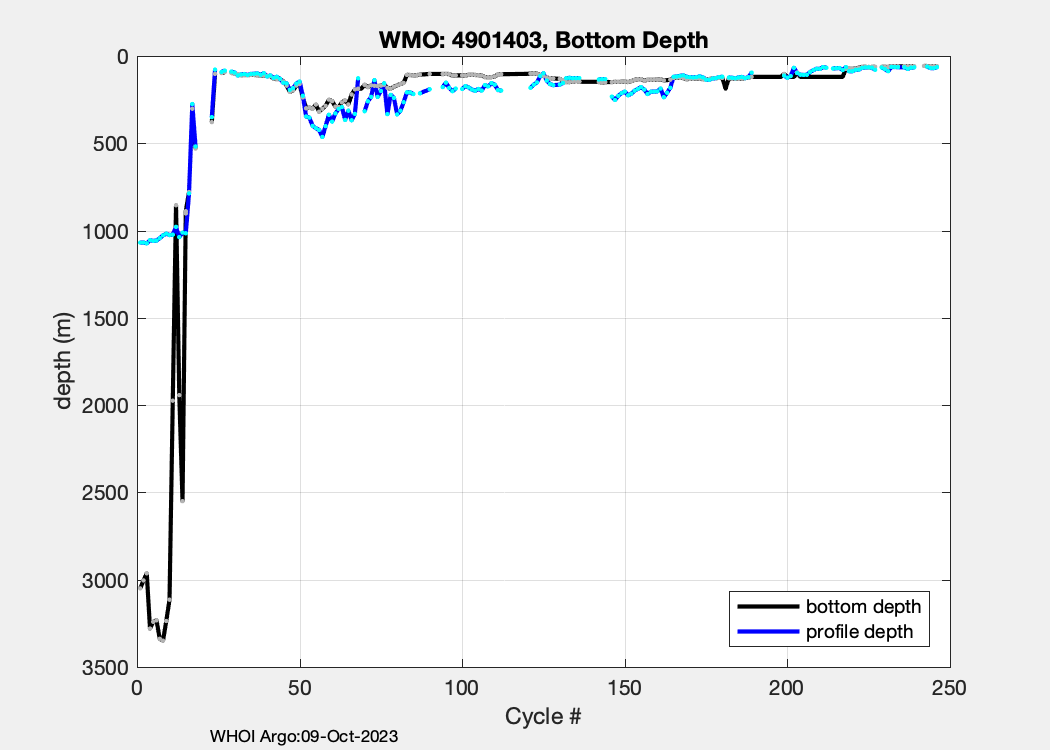

N-Square	Salinity Comparisons	Bathymetry

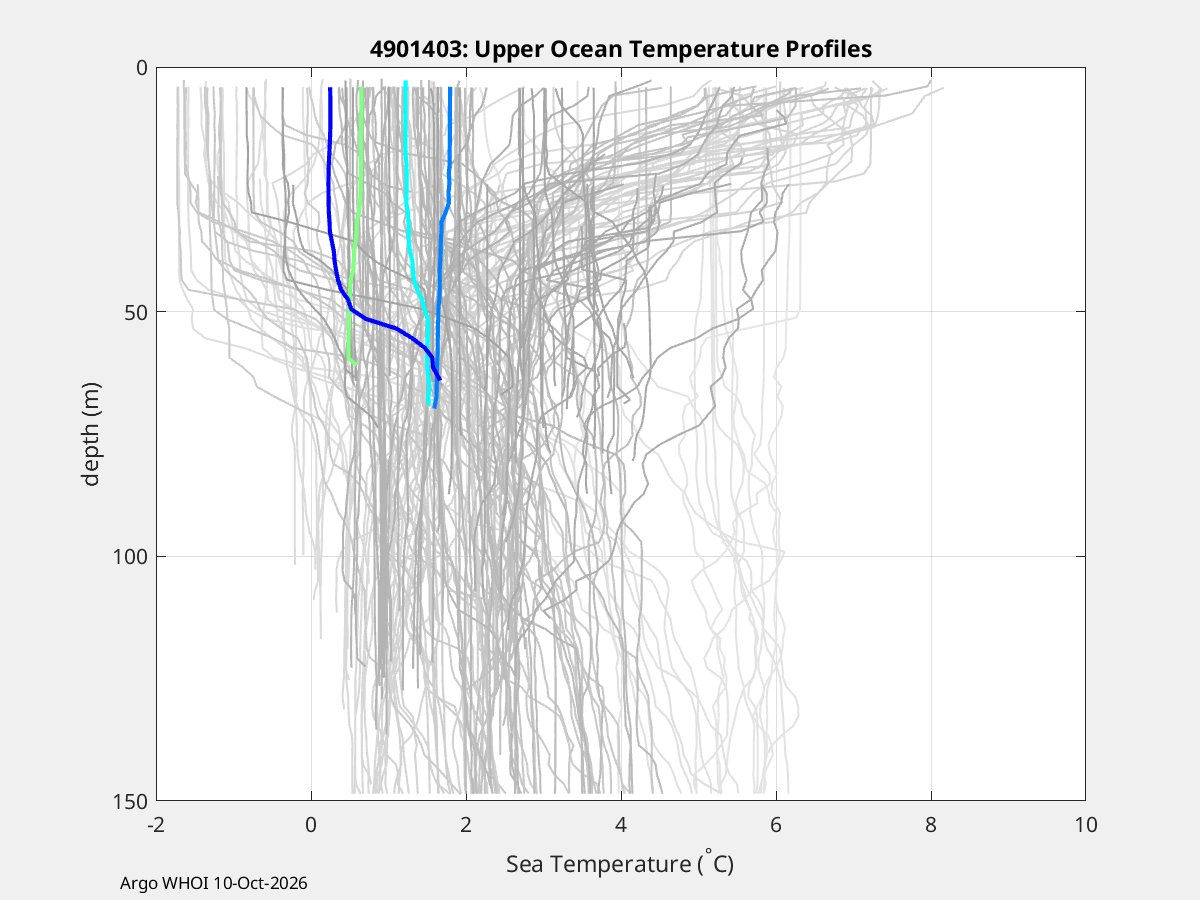

Temperature Profiles	Temperature QC Flags	Deep T-S Relation

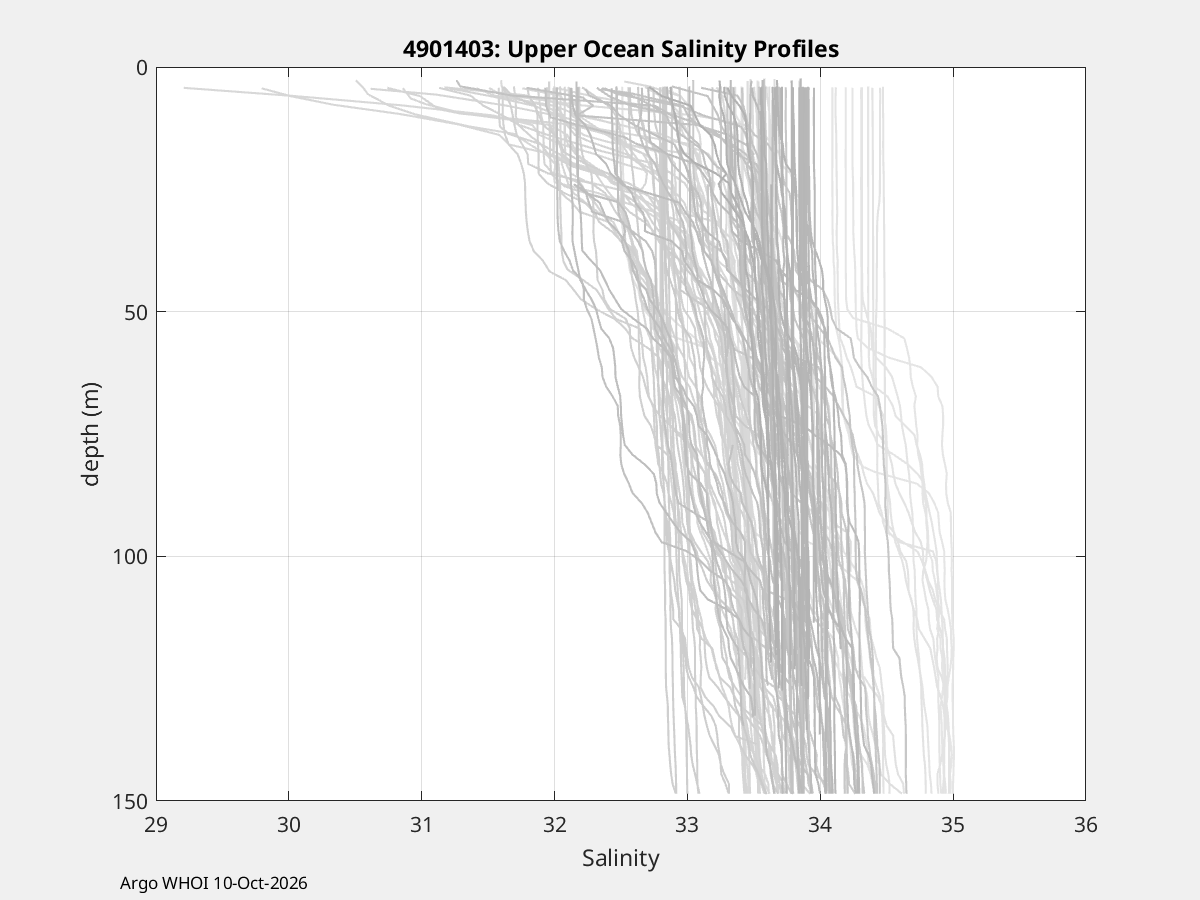

Salinity Profiles	Salinity QC Flags	Seasonal T-S Relation

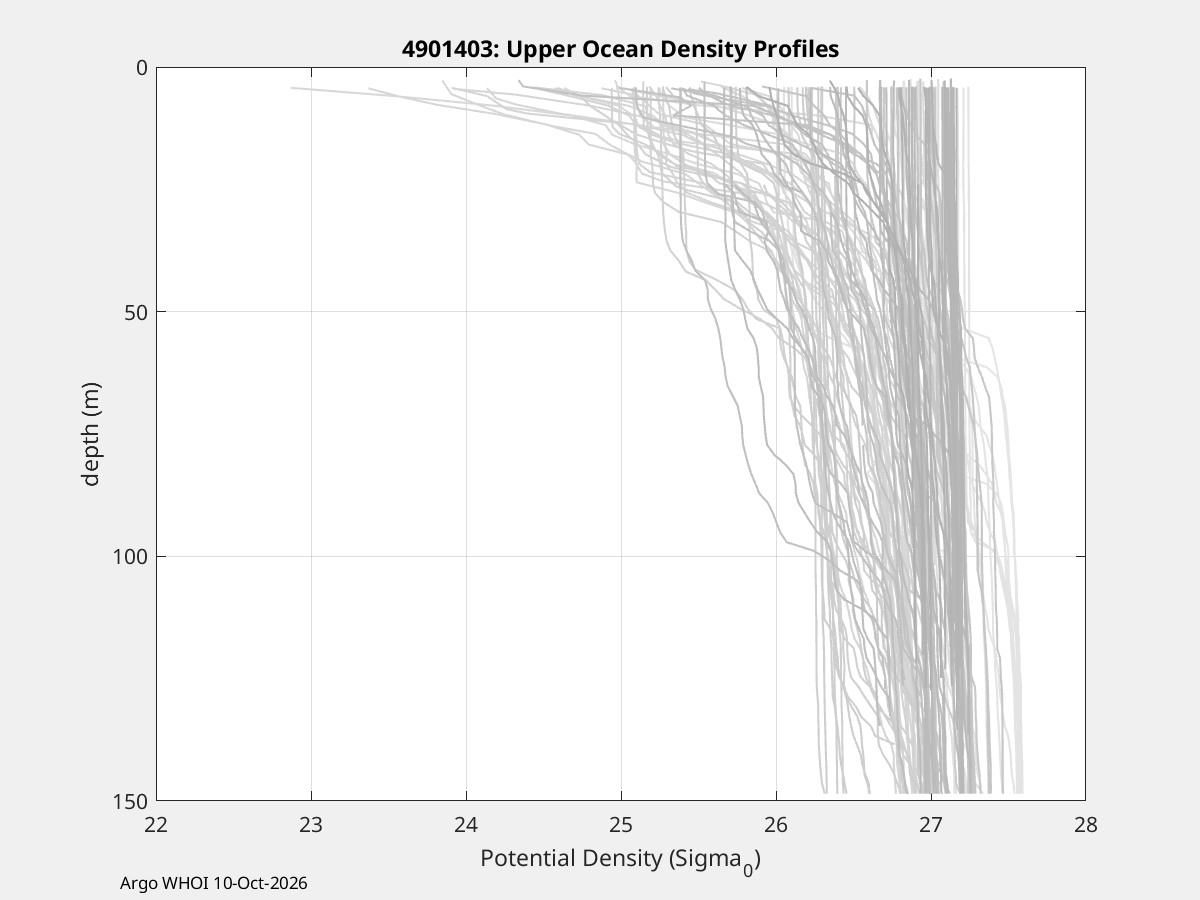

Density Profiles	Pressure QC Flags	Salt Anom Profiles
Traj Cycle	Traj Position	Traj Speed

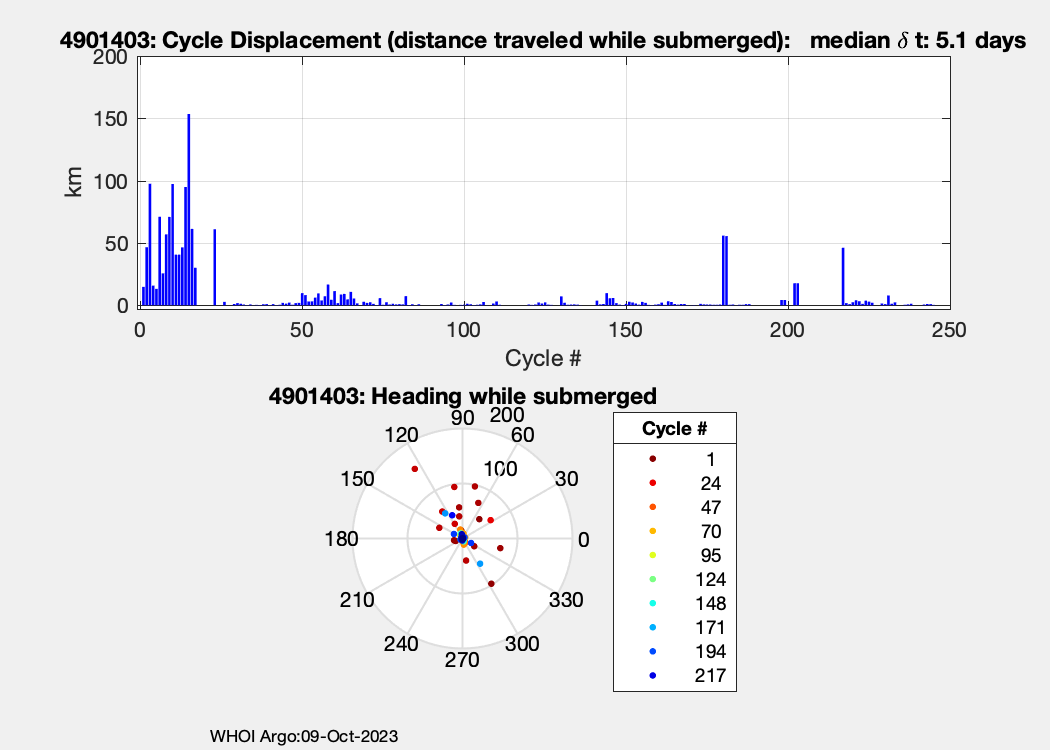

Traj Drift 1	Traj Drift 2	Submerged Displacement
Temperature Section	Salinity Section	Density Section
OW Calibration Adjustment	OW Inputs	Mean Salinity difference (RT vs DM)

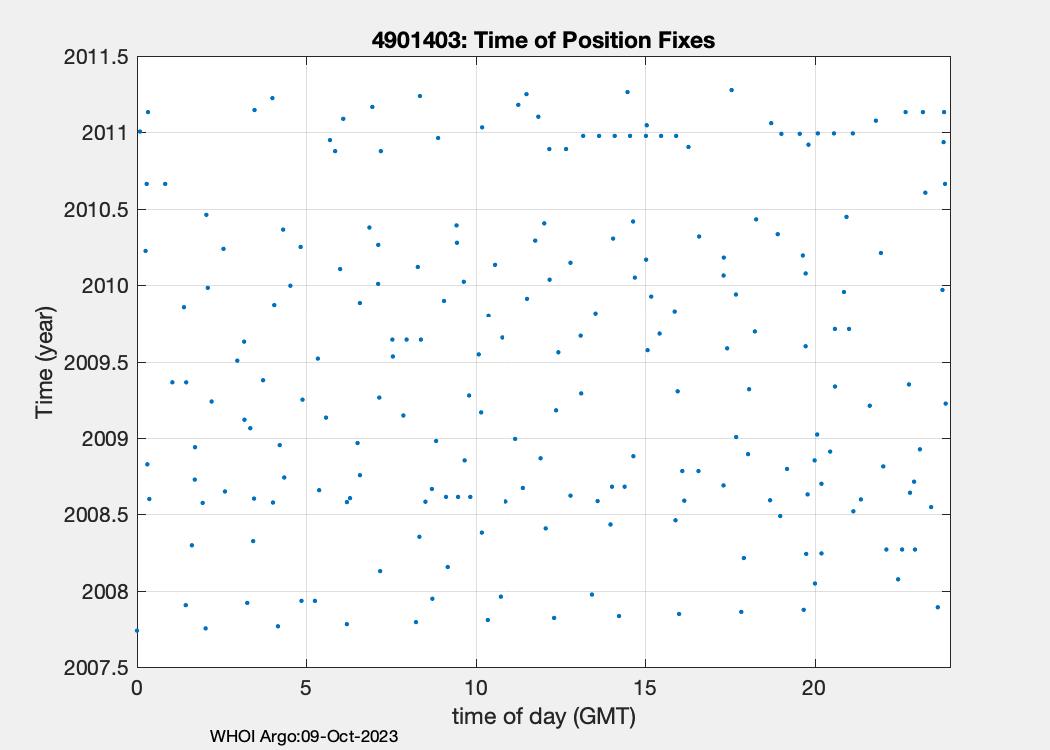

GDAC File info	Surface Fixes

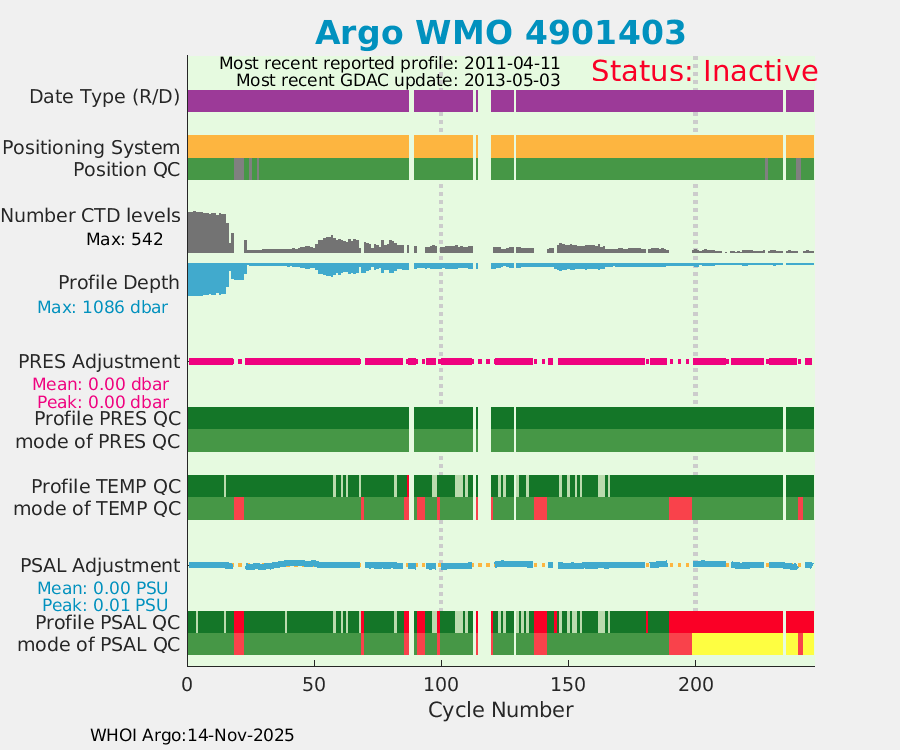

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2007 9/27 A A A	2 2007 10/02 A A A	3 2007 10/07 A A A	4 2007 10/12 A A B	5 2007 10/17 A A A	6 2007 10/22 A A A	7 2007 10/27 A A A	8 2007 11/01 A A A	9 2007 11/06 A A A	10 2007 11/11 A A A	11 2007 11/16 A A A	12 2007 11/22 A A A	13 2007 11/27 A A A	14 2007 12/02 A A A	15 2007 12/07 A B B	16 2007 12/12 A A A	17 2007 12/17 A A A	18 2007 12/22 A A A	19 2007 12/27 A A F
20 2008 1/02 A A F	21 2008 1/07 A A F	22 2008 1/12 A A F	23 2008 1/17 A A A	24 2008 1/28 A A A	25 2008 2/07 A A A	26 2008 2/17 A A A	27 2008 2/27 A A A	28 2008 3/08 A A A	29 2008 3/18 A A A	30 2008 3/28 A A A	31 2008 4/08 A A A	32 2008 4/18 A A A	33 2008 4/28 A A A	34 2008 5/08 A A A	35 2008 5/18 A A A	36 2008 5/28 A A A	37 2008 6/07 A A A	38 2008 6/17 A A A	39 2008 6/27 A A B
40 2008 7/08 A A A	41 2008 7/18 A A A	42 2008 7/28 A A A	43 2008 7/29 A A A	44 2008 7/30 A A A	45 2008 7/31 A A A	46 2008 8/01 A A A	47 2008 8/02 A A A	48 2008 8/03 A A A	49 2008 8/04 A A A	50 2008 8/06 A A A	51 2008 8/07 A A A	52 2008 8/08 A A A	53 2008 8/09 A A A	54 2008 8/12 A A A	55 2008 8/15 A A A	56 2008 8/18 A A A	57 2008 8/22 A A A	58 2008 8/25 A B B	59 2008 8/28 A A A
60 2008 8/31 A A A	61 2008 9/03 A B B	62 2008 9/06 A A A	63 2008 9/09 A B B	64 2008 9/12 A A A	65 2008 9/18 A A A	66 2008 9/23 A A A	67 2008 9/28 A A A	68 2008 10/03 A B B	69 2008 10/08 A A F	70 2008 10/13 A A A	71 2008 10/18 A A A	72 2008 10/24 A A A	73 2008 10/29 A A A	74 2008 11/03 A A A	75 2008 11/08 A A A	76 2008 11/13 A A A	77 2008 11/18 A A A	78 2008 11/23 A A A	79 2008 11/29 A A A
80 2008 12/04 A A A	81 2008 12/09 A A A	82 2008 12/14 A B B	83 2008 12/19 A A A	84 2008 12/24 A A A	85 2008 12/29 A A A	86 2009 1/03 A A F	87 2009 1/08 A F F			90 2009 1/24 A A A	91 2009 1/29 A A F	92 2009 2/03 A A F	93 2009 2/09 A A F	94 2009 2/14 A A A	95 2009 2/19 A A A	96 2009 2/24 A A A	97 2009 3/01 A B B	98 2009 3/06 A B B	99 2009 3/11 A A F
100 2009 3/17 A A A	101 2009 3/22 A A A	102 2009 3/27 A A A	103 2009 4/01 A A A	104 2009 4/06 A A A	105 2009 4/11 A A A	106 2009 4/16 A B B	107 2009 4/21 A B B	108 2009 4/26 A B B	109 2009 5/02 A A A	110 2009 5/07 A B B	111 2009 5/12 A A A	112 2009 5/17 A A A		114 2009 5/27 A A F
120 2009 6/28 A A F	121 2009 7/03 A A A	122 2009 7/08 A A A	123 2009 7/13 A B B	124 2009 7/18 A A A	125 2009 7/23 A B B	126 2009 7/28 A A A	127 2009 8/02 A A A	128 2009 8/07 A A A		130 2009 8/18 A B B	131 2009 8/23 A A A	132 2009 8/28 A A B	133 2009 9/02 A A A	134 2009 9/07 A B B	135 2009 9/12 A A A	136 2009 9/18 A A A	137 2009 9/23 A A F	138 2009 9/28 A A F	139 2009 10/03 A A F
140 2009 10/09 A A F	141 2009 10/14 A A F	142 2009 10/19 A A A	143 2009 10/24 A A A	144 2009 10/29 A A A	145 2009 11/04 A A F	146 2009 11/09 A A A	147 2009 11/14 A B B	148 2009 11/19 A A A	149 2009 11/24 A A A	150 2009 11/29 A B B	151 2009 12/04 A A A	152 2009 12/09 A A B	153 2009 12/14 A B B	154 2009 12/20 A A A	155 2009 12/25 A B B	156 2009 12/30 A A A	157 2010 1/04 A A A	158 2010 1/09 A A A	159 2010 1/14 A A A
160 2010 1/19 A A A	161 2010 1/24 A A A	162 2010 1/29 A B B	163 2010 2/04 A B B	164 2010 2/09 A B B	165 2010 2/14 A A A	166 2010 2/19 A B B	167 2010 2/24 A A A	168 2010 3/01 A A A	169 2010 3/06 A A A	170 2010 3/11 A A A	171 2010 3/17 A A A	172 2010 3/22 A A A	173 2010 3/27 A A A	174 2010 4/01 A A A	175 2010 4/06 A A A	176 2010 4/11 A A A	177 2010 4/16 A A A	178 2010 4/21 A A A	179 2010 4/26 A A A
180 2010 5/01 A A A	181 2010 5/07 A A F	182 2010 5/12 A A A	183 2010 5/17 A A A	184 2010 5/22 A A A	185 2010 5/27 A A A	186 2010 6/01 A A A	187 2010 6/06 A A A	188 2010 6/12 A A A	189 2010 6/17 A A A	190 2010 6/22 A A F	191 2010 6/27 A A F	192 2010 7/03 A A F	193 2010 7/08 A A F	194 2010 7/13 A A F	195 2010 7/18 A A F	196 2010 7/24 A A F	197 2010 7/29 A A F	198 2010 8/03 A A F	199 2010 8/08 A A F
200 2010 8/14 A A F	201 2010 8/19 A A F	202 2010 8/24 A A F	203 2010 8/30 A A F	204 2010 9/04 A A F	205 2010 9/09 A A F	206 2010 9/15 A A F	207 2010 9/20 A A F	208 2010 9/25 A A F	209 2010 9/30 A A F	210 2010 10/06 A A F	211 2010 10/11 A A F	212 2010 10/16 A A F	213 2010 10/22 A A F	214 2010 10/27 A A F	215 2010 11/01 A A F	216 2010 11/06 A A F	217 2010 11/12 A A F	218 2010 11/17 A A F	219 2010 11/22 A A F
220 2010 11/27 A A F	221 2010 12/02 A A F	222 2010 12/08 A A F	223 2010 12/13 A A F	224 2010 12/18 A A F	225 2010 12/23 A A F	226 2010 12/28 A A F	227 2011 1/03 A A F	228 2011 1/08 A A F	229 2011 1/13 A A F	230 2011 1/18 A A F	231 2011 1/23 A A F	232 2011 1/29 A A F	233 2011 2/03 A A F	234 2011 2/08 A A F		236 2011 2/19 A A F	237 2011 2/24 A A F	238 2011 3/01 A A F	239 2011 3/06 A A F
240 2011 3/11 A A F	241 2011 3/17 A A F	242 2011 3/22 A A F	243 2011 3/27 A A F	244 2011 4/01 A A F	245 2011 4/06 A A F	246 2011 4/11 A A F
