WMO # 4901207

Argo Float WMO # 4901207 : Plots based on data files at the GDAC

Metadata:
WMO #:	4901207
PI:	Breck Owens
DAC:	AOML

DAC #:	3419
WHOI Float #:	993
Last Heard From:	2016-11-29
Longevity:	6.21 yrs

Hardware:
Telcom:	IRIDIUM 217948
Telcom:	IRIDIUM 217948
Instrument:	SS202_SB19
ROM version:	2.02
Temperature:	SBE41CP, s/n: 2561
Conductivity:	SBE41CP, s/n: 2561
Pressure:	Druck, s/n: 3042461

Deployment:
Deployed:	2010-09-12
Latitude:	-24.051
Longitude:	4.343
Deployment Platform:	M/V Safmarine Ngami
Cruise ID:	AX08
Deployer:	Andrew Birkett

GDAC file status:
Last Update:	2019-09-04
Profiles at GDAC:	225
GDAC D-files:	225
GDAC R-files:	0

Links (at WHOI):
Telemetry plots:	WHOI

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

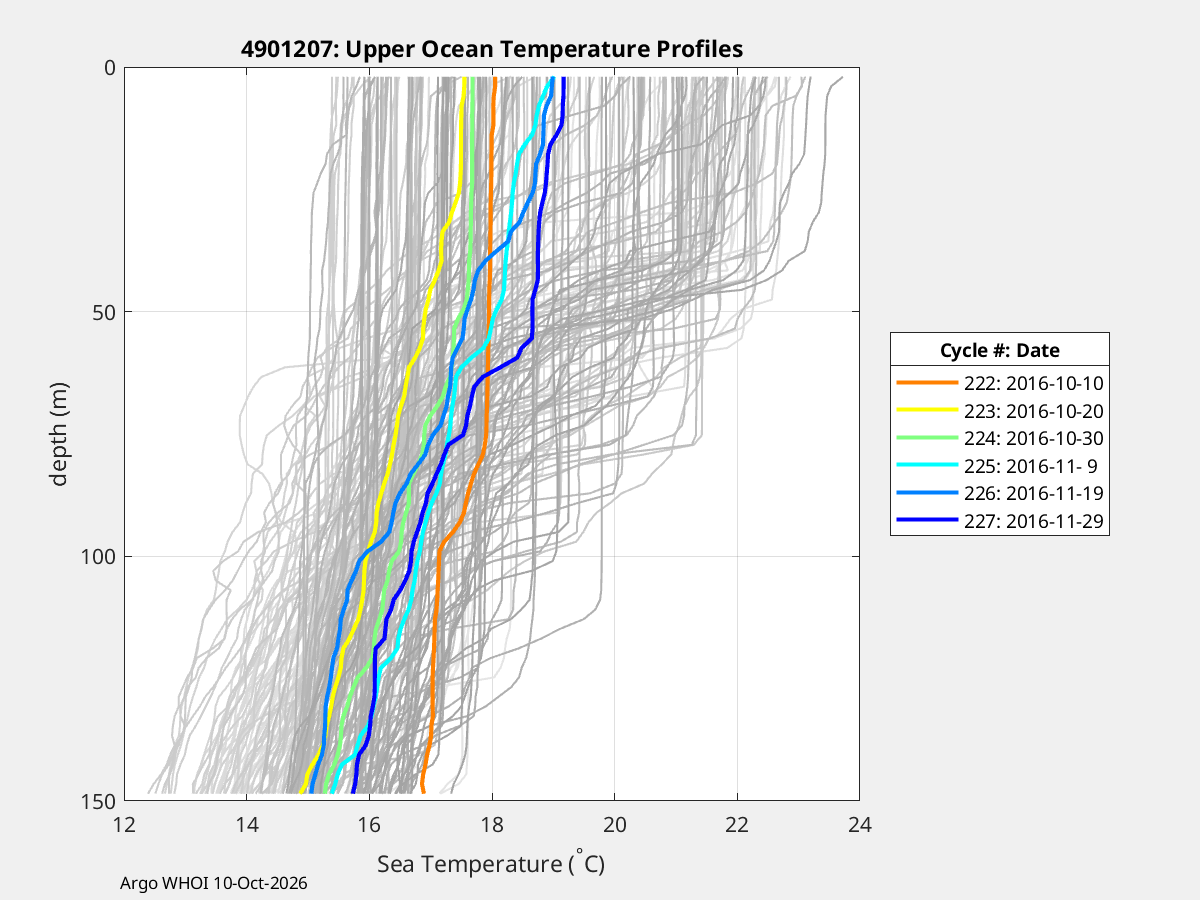

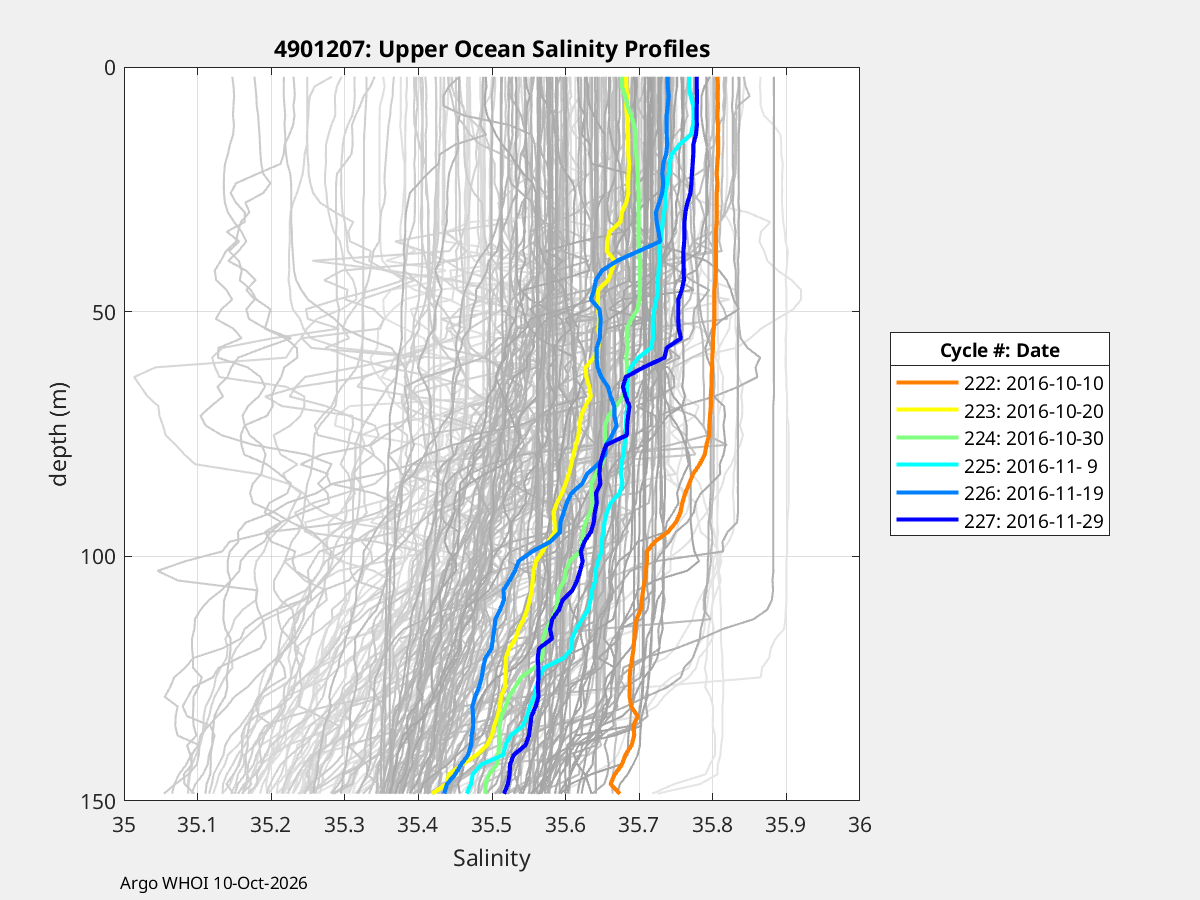

Temperature Profiles	Salinity Profiles

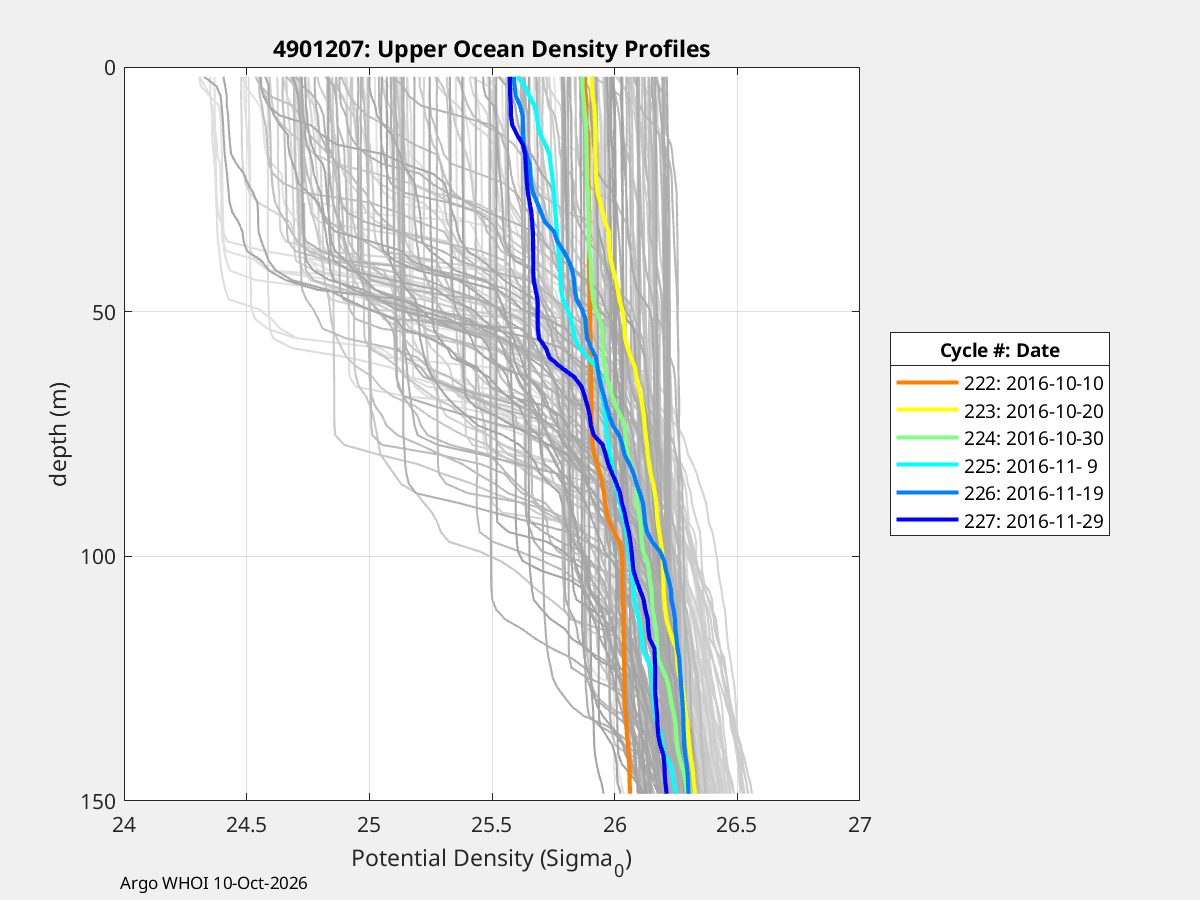

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2010 9/12 A A A	1 2010 9/22 A A A	2 2010 10/02 A A A	3 2010 10/12 A A A	4 2010 10/22 A A A	5 2010 11/01 A A A	6 2010 11/11 A A A	7 2010 11/21 A A A	8 2010 12/01 A A A	9 2010 12/11 A A A	10 2010 12/21 A A A	11 2010 12/31 A A A	12 2011 1/10 A A A	13 2011 1/20 A A A	14 2011 1/30 A A A	15 2011 2/09 A A A	16 2011 2/19 A A A	17 2011 3/01 A A A	18 2011 3/11 A A A	19 2011 3/21 A A A
20 2011 3/31 A A A	21 2011 4/10 A B B	22 2011 4/20 A A A	23 2011 4/30 A A A	24 2011 5/10 A A A	25 2011 5/20 A A A	26 2011 5/30 A A A	27 2011 6/09 A A A	28 2011 6/19 A A A	29 2011 6/29 A A A	30 2011 7/09 A A A	31 2011 7/19 A A A	32 2011 7/29 A A A	33 2011 8/08 A A A	34 2011 8/18 A A A	35 2011 8/28 A A A	36 2011 9/07 A A A	37 2011 9/17 A A A	38 2011 9/27 A A A	39 2011 10/07 A A A
40 2011 10/18 A A A	41 2011 10/27 A A A	42 2011 11/06 A A A	43 2011 11/16 A A A	44 2011 11/26 A A A	45 2011 12/06 A A A	46 2011 12/16 A A A	47 2011 12/26 A A B	48 2012 1/05 A A A	49 2012 1/15 A A A	50 2012 1/25 A A A	51 2012 2/04 A A A	52 2012 2/14 A A A	53 2012 2/24 A A A	54 2012 3/05 A A A	55 2012 3/15 A A A	56 2012 3/25 A A A	57 2012 4/04 A A A	58 2012 4/14 A A A	59 2012 4/24 A A A
60 2012 5/04 A A A	61 2012 5/14 A A A	62 2012 5/24 A A A	63 2012 6/03 A A A	64 2012 6/13 A A A	65 2012 6/23 A A A	66 2012 7/03 A A A	67 2012 7/13 A A A	68 2012 7/23 A A A	69 2012 8/02 A A A	70 2012 8/12 A A A	71 2012 8/22 A A A	72 2012 9/01 A A A	73 2012 9/11 A A A	74 2012 9/21 A A B	75 2012 10/01 A A A	76 2012 10/11 A A A	77 2012 10/21 A A A	78 2012 10/31 A A A	79 2012 11/10 A A A
80 2012 11/20 A A A	81 2012 11/30 A A A	82 2012 12/10 A A A	83 2012 12/20 A A A	84 2012 12/30 A A A	85 2013 1/09 A A A	86 2013 1/19 A A A	87 2013 1/29 A A A	88 2013 2/08 A A A	89 2013 2/18 A A A	90 2013 2/28 A A A	91 2013 3/10 A A A	92 2013 3/20 A A A	93 2013 3/30 A A A	94 2013 4/09 A A A	95 2013 4/19 A A A	96 2013 4/29 A A A	97 2013 5/09 A A A	98 2013 5/19 A A A	99 2013 5/29 A A A
100 2013 6/08 A A A	101 2013 6/18 A A A	102 2013 6/28 A B B	103 2013 7/08 A A A	104 2013 7/18 A A A	105 2013 7/28 A A A	106 2013 8/07 A A A	107 2013 8/17 A A A	108 2013 8/27 A A A	109 2013 9/06 A A A	110 2013 9/16 A A A	111 2013 9/26 A A A	112 2013 10/06 A A A	113 2013 10/16 A A A	114 2013 10/26 A A A	115 2013 11/05 A A A	116 2013 11/15 A A A	117 2013 11/25 A A A	118 2013 12/05 A A A	119 2013 12/15 A A A
120 2013 12/25 A A A	121 2014 1/04 A A A	122 2014 1/14 A A A	123 2014 1/24 A A A	124 2014 2/03 A A A	125 2014 2/13 A A A	126 2014 2/23 A A A	127 2014 3/05 A A A	128 2014 3/15 A A B	129 2014 3/25 A A A	130 2014 4/04 A A A	131 2014 4/14 A A A	132 2014 4/24 A A A	133 2014 5/04 A A A	134 2014 5/14 A A A	135 2014 5/24 A A A	136 2014 6/03 A A A	137 2014 6/13 A A A	138 2014 6/23 A A A	139 2014 7/03 A A A
140 2014 7/13 A A A	141 2014 7/23 A A A	142 2014 8/02 A A A	143 2014 8/12 A A A	144 2014 8/22 A A A	145 2014 9/01 A A A	146 2014 9/11 A A A	147 2014 9/21 A A A	148 2014 10/01 A A A	149 2014 10/11 A A A	150 2014 10/21 A A A	151 2014 10/31 A A A	152 2014 11/10 A A A	153 2014 11/20 A A A	154 2014 11/30 A A A	155 2014 12/10 A A A	156 2014 12/20 A A A	157 2014 12/30 A A A	158 2015 1/09 A A A	159 2015 1/19 A A A
160 2015 1/29 A A A	161 2015 2/08 A A A	162 2015 2/18 A A A	163 2015 2/28 A A A	164 2015 3/10 A A A	165 2015 3/20 A A A	166 2015 3/30 A A A	167 2015 4/09 A A A	168 2015 4/19 A A A	169 2015 4/29 A A A	170 2015 5/09 A A A	171 2015 5/19 A A A	172 2015 5/29 A A A	173 2015 6/08 A A A	174 2015 6/18 A A A	175 2015 6/28 A A A	176 2015 7/08 A A A	177 2015 7/18 A A A	178 2015 7/28 A A A	179 2015 8/07 A A A
180 2015 8/17 A A A			183 2015 9/16 A A A	184 2015 9/26 A A A	185 2015 10/06 A A A	186 2015 10/16 A A A	187 2015 10/26 A A A	188 2015 11/05 A A A	189 2015 11/15 A A A	190 2015 11/25 A A A	191 2015 12/05 A A A	192 2015 12/15 A A A	193 2015 12/25 A A A	194 2016 1/04 A A A	195 2016 1/14 A A A	196 2016 1/24 A A A	197 2016 2/03 A A A	198 2016 2/13 A A A	199 2016 2/23 A A A
200 2016 3/04 A A A	201 2016 3/14 A A A	202 2016 3/24 A A A	203 2016 4/03 A A A	204 2016 4/13 A A A		206 2016 5/03 A A A	207 2016 5/13 A A A	208 2016 5/23 A A A	209 2016 6/02 A A A	210 2016 6/12 A A A	211 2016 6/22 A A A	212 2016 7/02 A A A	213 2016 7/12 A A A	214 2016 7/22 A A A	215 2016 8/01 A A A	216 2016 8/11 A A A	217 2016 8/21 A A A	218 2016 8/31 A A A	219 2016 9/10 A A A
220 2016 9/20 A A A	221 2016 9/30 A A A	222 2016 10/10 A A A	223 2016 10/20 A A A	224 2016 10/30 A A A	225 2016 11/09 A A A	226 2016 11/19 A A A	227 2016 11/29 A A A

Creation Date: 2024-08-27
