WMO # 4900784

Argo Float WMO # 4900784 : Plots based on data files at the GDAC

Metadata:
WMO #:	4900784
PI:	Breck Owens
DAC:	AOML

DAC #:	2176
WHOI Float #:	638
Last Heard From:	2009-12-30
Longevity:	3.28 yrs

Hardware:
Telcom:	ARGOS 64128
Telcom:	ARGOS 64128
Instrument:	SS110_SB17
ROM version:	1.10
Temperature:	SBE41CP, s/n: 1458
Conductivity:	SBE41CP, s/n: 1458
Pressure:	Druck, s/n: 9968

Deployment:
Deployed:	2006-09-17
Latitude:	34.300
Longitude:	-72.167
Deployment Platform:	Horizon Hawaii
Cruise ID:	AX10-0609
Deployer:	Pedro Di Nezio

GDAC file status:
Last Update:	2019-08-19
Profiles at GDAC:	121
GDAC D-files:	121
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

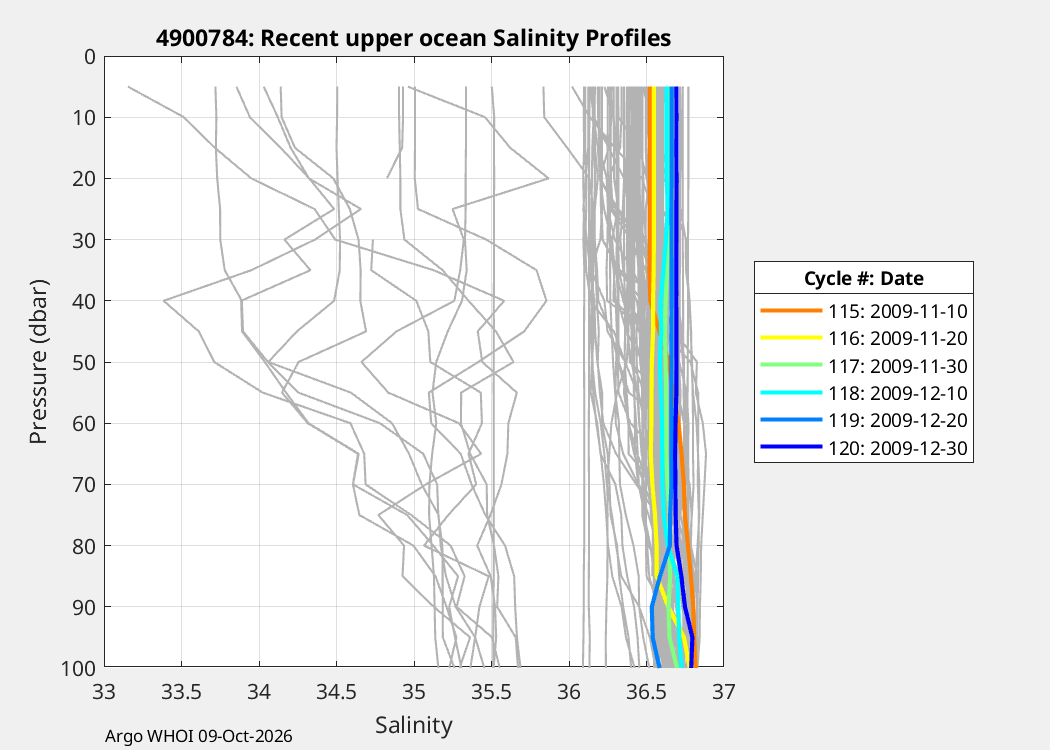

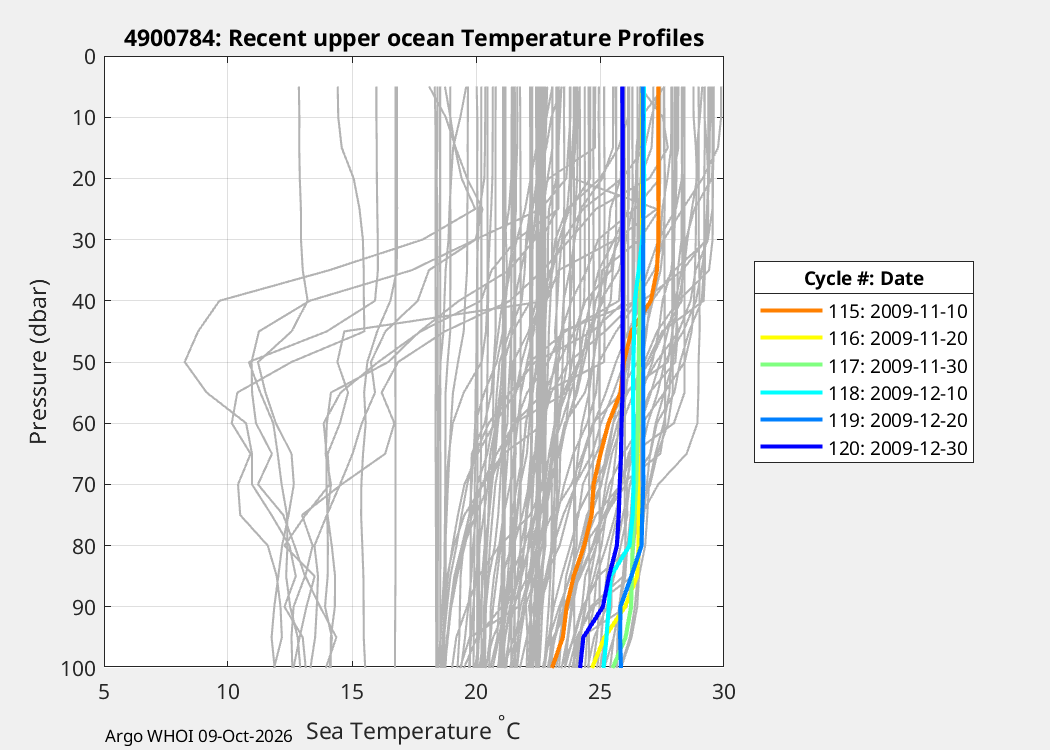

Temperature Profiles	Salinity Profiles

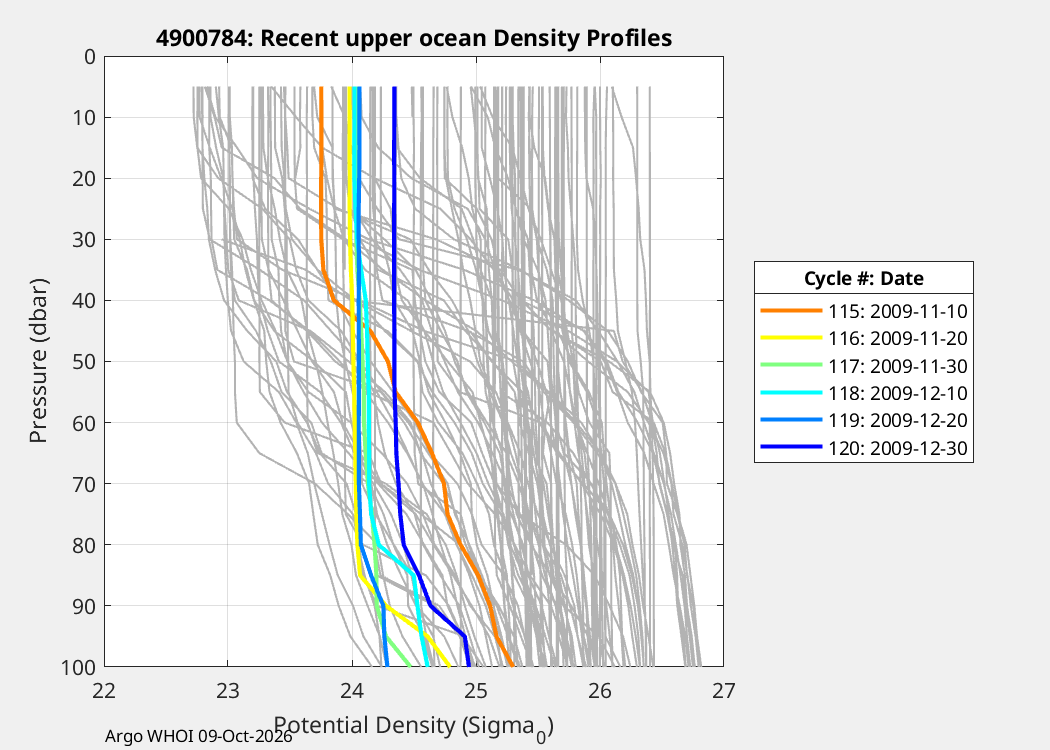

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2006 9/17 A A B	1 2006 9/27 A A A	2 2006 10/07 A A A	3 2006 10/17 A A B	4 2006 10/27 A A A	5 2006 11/06 A A B	6 2006 11/16 A A A	7 2006 11/26 A A A	8 2006 12/06 A A A	9 2006 12/16 A A B	10 2006 12/26 A A A	11 2007 1/05 A A A	12 2007 1/15 A A A	13 2007 1/25 A A A	14 2007 2/04 A A A	15 2007 2/14 A A B	16 2007 2/24 A A A	17 2007 3/06 A A B	18 2007 3/16 A A A	19 2007 3/26 A A A
20 2007 4/05 A A A	21 2007 4/15 A A A	22 2007 4/25 A A A	23 2007 5/05 A A A	24 2007 5/15 A A A	25 2007 5/25 A A A	26 2007 6/04 A A B	27 2007 6/14 A A A	28 2007 6/24 A A A	29 2007 7/04 A A A	30 2007 7/14 A A A	31 2007 7/24 A A B	32 2007 8/03 A A A	33 2007 8/13 A A A	34 2007 8/23 A A A	35 2007 9/02 A A A	36 2007 9/12 A A A	37 2007 9/22 A A B	38 2007 10/02 A A A	39 2007 10/12 A A A
40 2007 10/22 A A A	41 2007 11/01 A A A	42 2007 11/11 A A A	43 2007 11/21 A A A	44 2007 12/01 A A A	45 2007 12/11 A A A	46 2007 12/21 A A A	47 2007 12/31 A A A	48 2008 1/10 A A A	49 2008 1/20 A A A	50 2008 1/30 A A A	51 2008 2/09 A A A	52 2008 2/19 A A A	53 2008 2/29 A A A	54 2008 3/10 A A A	55 2008 3/20 A A A	56 2008 3/30 A A A	57 2008 4/09 A A A	58 2008 4/19 A A A	59 2008 4/29 A A A
60 2008 5/09 A A A	61 2008 5/19 A A A	62 2008 5/29 A A A	63 2008 6/08 A A A	64 2008 6/18 A A A	65 2008 6/28 A A A	66 2008 7/08 A A A	67 2008 7/18 A A A	68 2008 7/28 A A A	69 2008 8/07 A A A	70 2008 8/17 A A A	71 2008 8/27 A A A	72 2008 9/06 A A A	73 2008 9/16 A A A	74 2008 9/26 A A A	75 2008 10/06 A A A	76 2008 10/16 A A A	77 2008 10/26 A A A	78 2008 11/05 A A A	79 2008 11/15 A A A
80 2008 11/25 A A A	81 2008 12/05 A A A	82 2008 12/15 A A A	83 2008 12/25 A A A	84 2009 1/04 A A A	85 2009 1/14 A A A	86 2009 1/24 A A A	87 2009 2/03 A A A	88 2009 2/13 A A A	89 2009 2/23 A A A	90 2009 3/05 A A A	91 2009 3/15 A F F	92 2009 3/25 A A A	93 2009 4/04 A A A	94 2009 4/14 A A A	95 2009 4/24 A A A	96 2009 5/04 A A A	97 2009 5/14 A A A	98 2009 5/24 A A A	99 2009 6/03 A A A
100 2009 6/13 A A A	101 2009 6/23 A A A	102 2009 7/03 A A A	103 2009 7/13 A A A	104 2009 7/23 A A A	105 2009 8/02 A A A	106 2009 8/12 A A A	107 2009 8/22 A A A	108 2009 9/01 A A A	109 2009 9/11 A A A	110 2009 9/21 A A A	111 2009 10/01 A A A	112 2009 10/11 A A A	113 2009 10/21 A A A	114 2009 10/31 A A A	115 2009 11/10 A A A	116 2009 11/20 A A A	117 2009 11/30 A A A	118 2009 12/10 A A A	119 2009 12/20 A A A
120 2009 12/30 A A A

Creation Date: 2024-08-27
