WMO # 4900687

Argo Float WMO # 4900687 : Plots based on data files at the GDAC

Metadata:
WMO #:	4900687
PI:	Breck Owens
DAC:	AOML

DAC #:	1609
WHOI Float #:	462
Last Heard From:	2011-03-17
Longevity:	5.48 yrs

Hardware:
Telcom:	ARGOS 52810
Telcom:	ARGOS 52810
Instrument:	SOLO_TS16
ROM version:	1.10
Temperature:	SBE41CP, s/n: 1078
Conductivity:	SBE41CP, s/n: 1078
Pressure:	Druck, s/n: 7626

Deployment:
Deployed:	2005-09-23
Latitude:	30.758
Longitude:	-44.001
Deployment Platform:	CP Achiever
Cruise ID:	AX07
Deployer:	Nelson Melo

GDAC file status:
Last Update:	2023-08-18
Profiles at GDAC:	164
GDAC D-files:	164
GDAC R-files:	0

Links (at WHOI):
Calibration Plots:	PDF (18-Aug-2023)

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

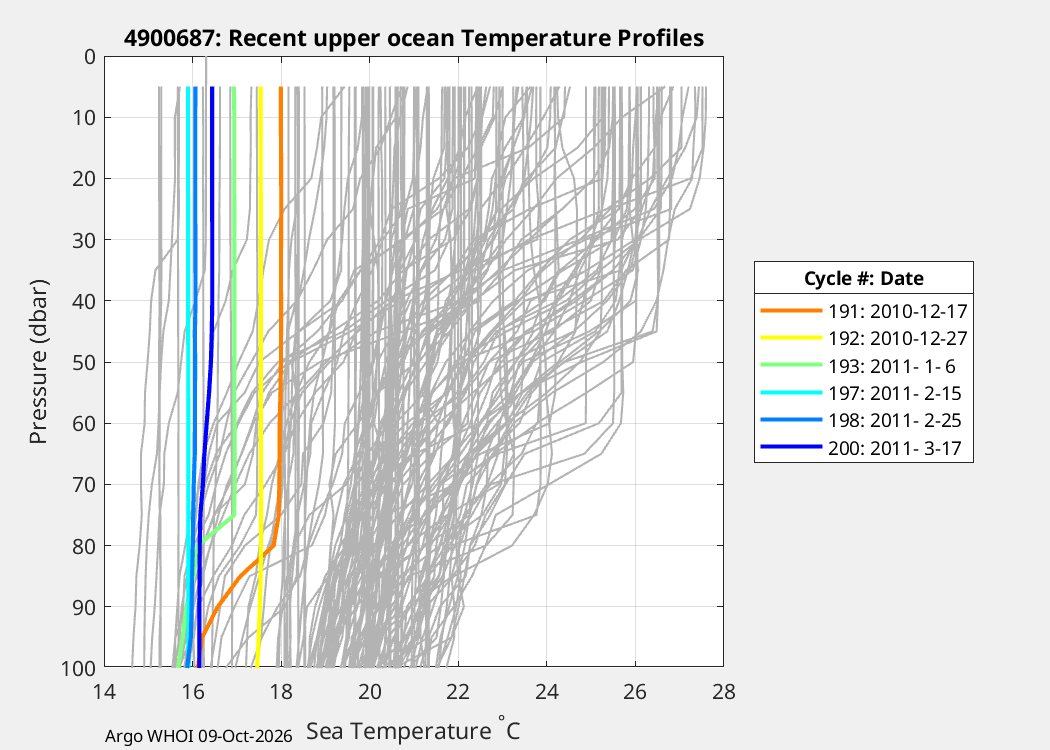

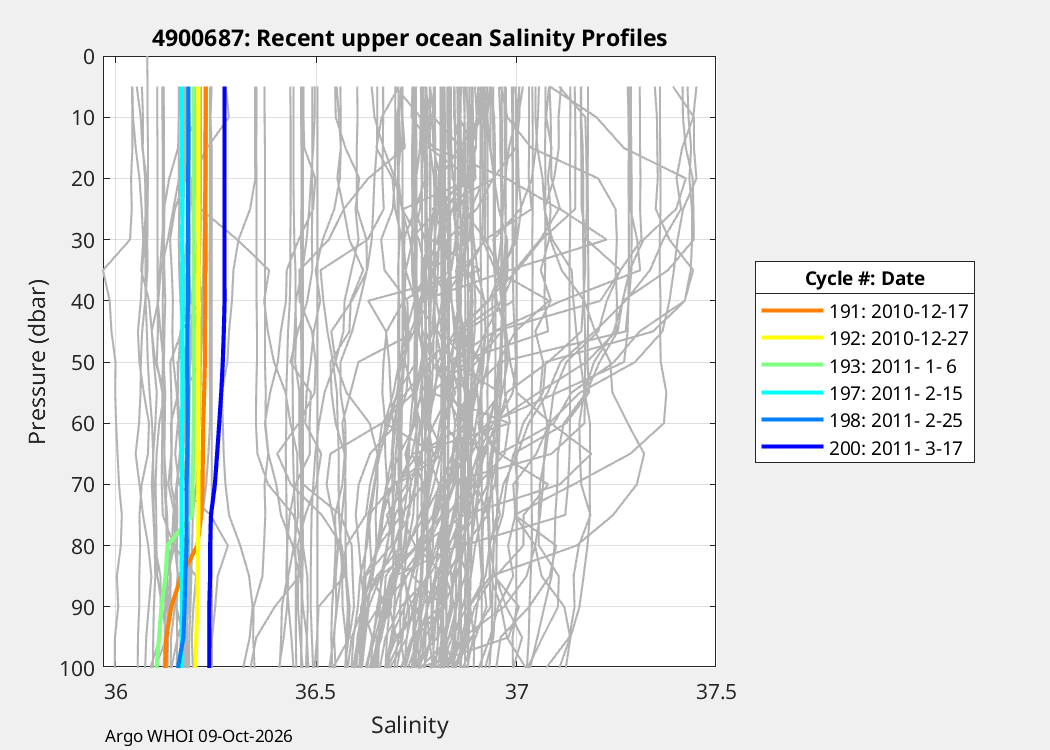

Temperature Profiles	Salinity Profiles

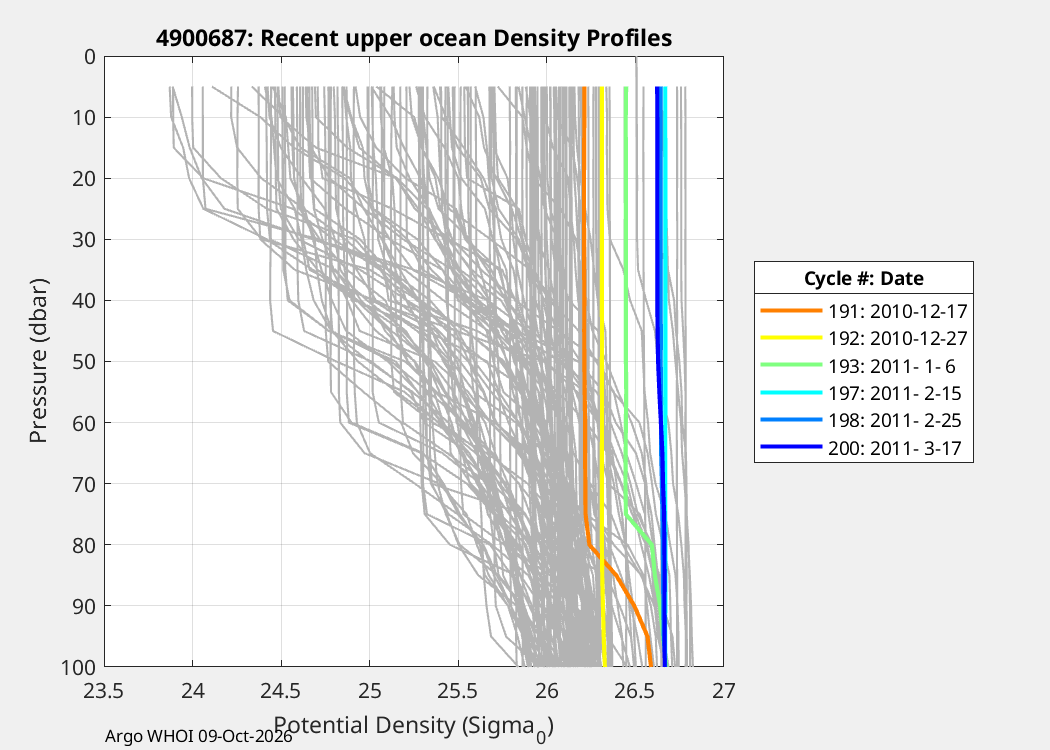

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2005 9/24 A A A	1 2005 10/04 A A A	2 2005 10/14 A A A	3 2005 10/24 A A A	4 2005 11/03 A A A	5 2005 11/13 A A A	6 2005 11/23 A A A	7 2005 12/03 A A A	8 2005 12/13 A A B	9 2005 12/23 A A A	10 2006 1/02 A A A	11 2006 1/12 A A B	12 2006 1/22 A A A	13 2006 2/01 A A A	14 2006 2/11 A A A	15 2006 2/21 A A A	16 2006 3/03 A A A	17 2006 3/13 A A A	18 2006 3/23 A A A	19 2006 4/02 A A A
20 2006 4/12 A A A	21 2006 4/22 A A A	22 2006 5/02 A A A	23 2006 5/12 A A A	24 2006 5/22 A A A	25 2006 6/01 A A A	26 2006 6/11 A A A	27 2006 6/21 A A A	28 2006 7/01 A A A	29 2006 7/11 A A A	30 2006 7/21 A A A	31 2006 7/31 A A A	32 2006 8/10 A A A	33 2006 8/20 A A A	34 2006 8/30 A A A	35 2006 9/09 A A A	36 2006 9/19 A A A	37 2006 9/29 A A A	38 2006 10/09 A A A	39 2006 10/19 A A A
40 2006 10/29 A A A	41 2006 11/08 A A A	42 2006 11/18 A A A	43 2006 11/28 A A A	44 2006 12/08 A A A	45 2006 12/18 A A A	46 2006 12/28 A A A	47 2007 1/07 A A A	48 2007 1/17 A A A	49 2007 1/27 A A A	50 2007 2/06 A A A		52 2007 2/26 A A A	53 2007 3/08 A A A	54 2007 3/18 A A A	55 2007 3/28 A A A	56 2007 4/07 A A A	57 2007 4/17 A A A	58 2007 4/27 A A A	59 2007 5/07 A A A
60 2007 5/17 A A A	61 2007 5/27 A A A	62 2007 6/06 A A A	63 2007 6/16 A A A	64 2007 6/26 A A A	65 2007 7/06 A A A	66 2007 7/16 A A A	67 2007 7/26 A A A	68 2007 8/05 A A A	69 2007 8/15 A A A	70 2007 8/25 A A A	71 2007 9/04 A A A	72 2007 9/14 A A A	73 2007 9/24 A A A	74 2007 10/04 A A A	75 2007 10/14 A A A		77 2007 11/03 A A A	78 2007 11/13 A A A	79 2007 11/23 A A A
80 2007 12/03 A A A	81 2007 12/13 A A A	82 2007 12/23 A A A	83 2008 1/02 A A A		85 2008 1/22 A A A	86 2008 2/01 A A A	87 2008 2/11 A A A	88 2008 2/21 A A A	89 2008 3/02 A A A	90 2008 3/12 A A A	91 2008 3/22 A A A	92 2008 4/01 A A A	93 2008 4/11 A A A	94 2008 4/21 A A A	95 2008 5/01 A A A	96 2008 5/11 A A A	97 2008 5/21 A A A	98 2008 5/31 A A A	99 2008 6/10 A A A
100 2008 6/20 A A A	101 2008 6/30 A A A	102 2008 7/10 A A A	103 2008 7/20 A A A	104 2008 7/30 A A A	105 2008 8/09 A A A	106 2008 8/19 A A A	107 2008 8/29 A A A	108 2008 9/08 A A A	109 2008 9/18 A A A	110 2008 9/28 A A A	111 2008 10/08 A A A	112 2008 10/18 A A A	113 2008 10/28 F F F	114 2008 11/07 A A A	115 2008 11/17 A A A	116 2008 11/27 A A A			119 2008 12/27 A A A
120 2009 1/06 A A A			123 2009 2/05 A A A	124 2009 2/15 A A A	125 2009 2/25 A A A	126 2009 3/07 A A A	127 2009 3/17 F F F	128 2009 3/27 A A A	129 2009 4/06 A A A	130 2009 4/16 A A A	131 2009 4/26 A A A			134 2009 5/26 A A A		136 2009 6/15 A A A		138 2009 7/05 A A A
					145 2009 9/13 A A A	146 2009 9/23	147 2009 10/03 A A A	148 2009 10/13 A A A			151 2009 11/12 A A A	152 2009 11/22 A A A	153 2009 12/02 A A A	154 2009 12/12 A A A	155 2009 12/22 A A A			158 2010 1/21 A A A
	161 2010 2/20 A A A	162 2010 3/02 A A A	163 2010 3/12 A A A			166 2010 4/11 A A A	167 2010 4/21 A A A	168 2010 5/01 F F F	169 2010 5/11 A A A	170 2010 5/21 A A A			173 2010 6/20 A A A	174 2010 6/30 A A A		176 2010 7/20 A A A		178 2010 8/09 F F F	179 2010 8/19 A A A
180 2010 8/29 A A A	181 2010 9/08 A A A	182 2010 9/18 A A A		184 2010 10/08 A A A				188 2010 11/17 F F F	189 2010 11/27 A A A	190 2010 12/07 A A A	191 2010 12/17 A A A	192 2010 12/27 A A A	193 2011 1/06 A A A				197 2011 2/15 A A A	198 2011 2/25 A A A
200 2011 3/17 A A A

Creation Date: 2024-12-06
