WMO # 4900594

Argo Float WMO # 4900594 : Plots based on data files at the GDAC

Metadata:
WMO #:	4900594
PI:	Breck Owens
DAC:	AOML

DAC #:	1227
WHOI Float #:	402
Last Heard From:	2010-08-15
Longevity:	5.48 yrs

Hardware:
Telcom:	ARGOS 52750
Telcom:	ARGOS 52750
Instrument:	SS110_SB17
ROM version:	1.10
Temperature:	SBE41CP, s/n: 0603
Conductivity:	SBE41CP, s/n: 0603
Pressure:	Druck, s/n: 5761

Deployment:
Deployed:	2005-02-21
Latitude:	28.000
Longitude:	-63.000
Deployment Platform:	Sinaloa
Cruise ID:	n/a
Deployer:	Craig Engler

GDAC file status:
Last Update:	2019-08-14
Profiles at GDAC:	145
GDAC D-files:	145
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

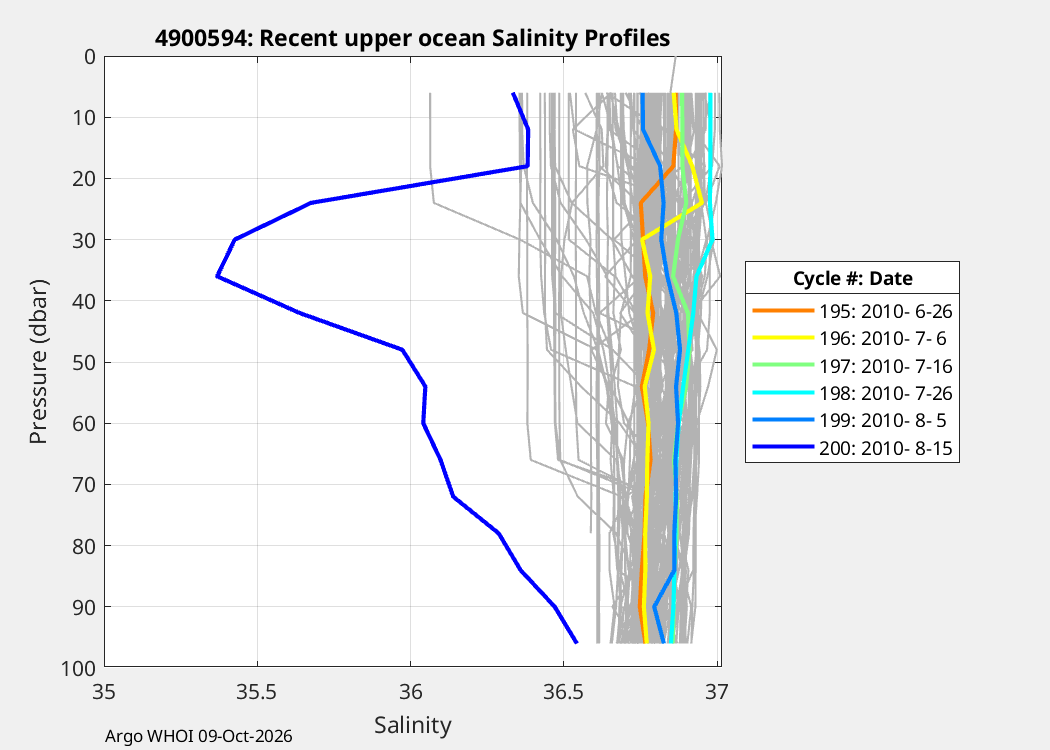

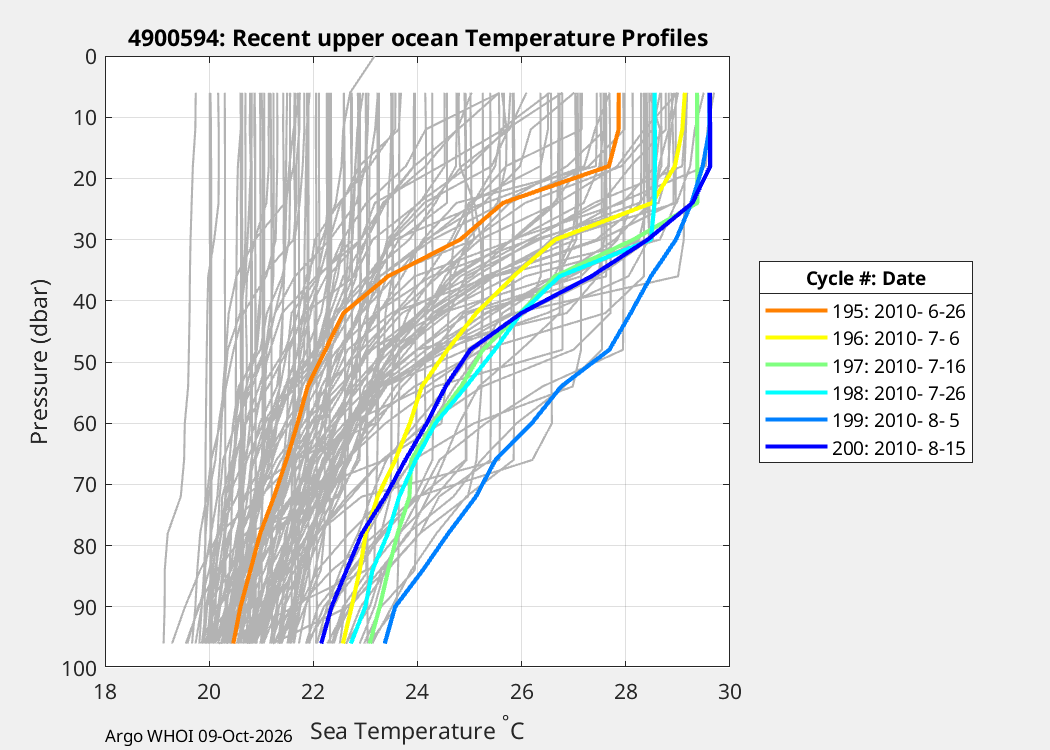

Temperature Profiles	Salinity Profiles

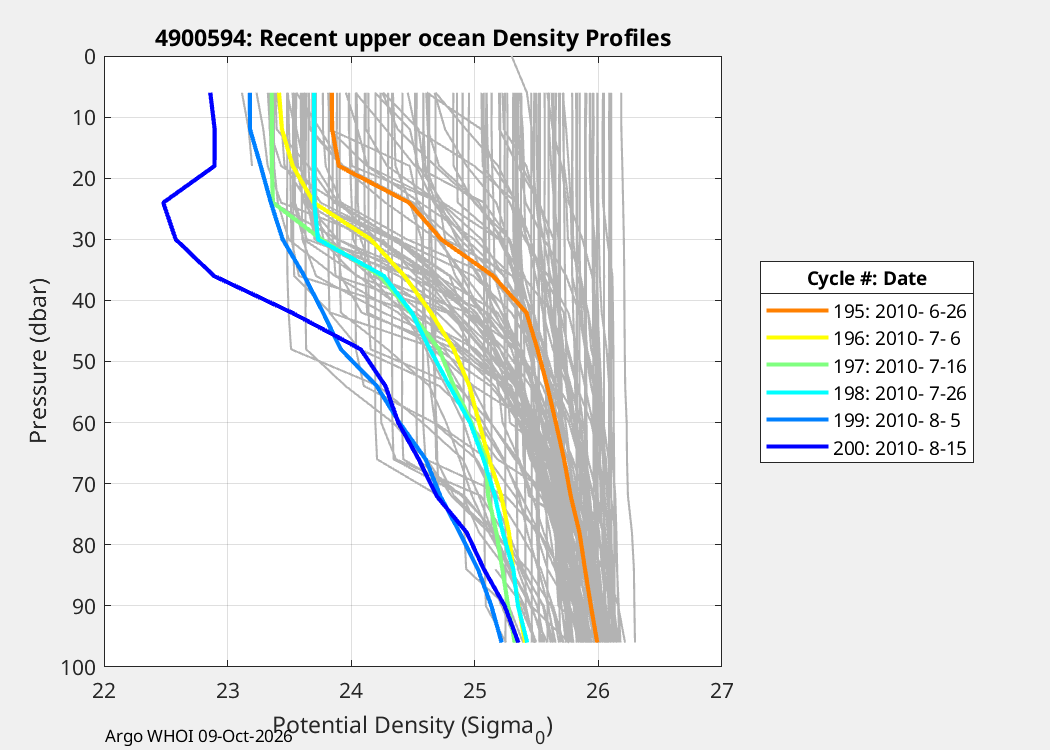

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2005 2/22 A A A	1 2005 3/04 A B B	2 2005 3/14 A A A	3 2005 3/24 A A A	4 2005 4/03 A A A	5 2005 4/13 A A A	6 2005 4/23 A A A	7 2005 5/03 A A A	8 2005 5/13 A A A	9 2005 5/23 A A A	10 2005 6/02 A A A	11 2005 6/12 A A A	12 2005 6/22 A A A	13 2005 7/02 A A A	14 2005 7/12 A B B	15 2005 7/22 A B B	16 2005 8/01 A A A	17 2005 8/11 A A A	18 2005 8/21 A A A	19 2005 8/31 A A A
20 2005 9/10 A A A	21 2005 9/20 A A A	22 2005 9/30 A A A	23 2005 10/10 A A A	24 2005 10/20 A A A	25 2005 10/30 A A A	26 2005 11/09 A A A	27 2005 11/19 A A A	28 2005 11/29 A A A	29 2005 12/09 A A A	30 2005 12/19 A A A	31 2005 12/29 A A A	32 2006 1/08 A A A	33 2006 1/18 A A A	34 2006 1/28 A A A	35 2006 2/07 A A A	36 2006 2/17 A A A	37 2006 2/27 A A A	38 2006 3/09 A A A	39 2006 3/19 A A A
40 2006 3/29 A A A	41 2006 4/08 A A A	42 2006 4/18 A A A	43 2006 4/28 A A A	44 2006 5/08 A A A	45 2006 5/18 A A A	46 2006 5/28 A A A	47 2006 6/07 A A A	48 2006 6/17 A A A	49 2006 6/27 A A A	50 2006 7/07 A A B	51 2006 7/17 A A A	52 2006 7/27 A B B	53 2006 8/06 A A A	54 2006 8/16 A A B	55 2006 8/26 A A B	56 2006 9/05 A A B	57 2006 9/15 A A B	58 2006 9/25 A A B	59 2006 10/05 A A A
60 2006 10/15 A A B	61 2006 10/25 A A B	62 2006 11/04 A A B	63 2006 11/14 A A B	64 2006 11/24 A A B	65 2006 12/03 A A B		67 2006 12/24 A F F	68 2007 1/03 A B B	69 2007 1/13 F F F	70 2007 1/23 A A B	71 2007 2/02 A A A	72 2007 2/12 A A A			75 2007 3/13 F F F		77 2007 4/03 A A A		79 2007 4/23 A A A
				84 2007 6/12 A A F			87 2007 7/12 A A B	88 2007 7/22 A A A			91 2007 8/21 A A A	92 2007 8/31 A A A	93 2007 9/10 A F F				97 2007 10/20 A A A	98 2007 10/30 F F F	99 2007 11/09 A A A
	101 2007 11/29 A A B	102 2007 12/09 A A A	103 2007 12/19 F F F			106 2008 1/18 A A A				110 2008 2/26 A A A	111 2008 3/08 A A A	112 2008 3/18 A B B	113 2008 3/28 A A A	114 2008 4/07 A B B				118 2008 5/17 A A A
			123 2008 7/06 A A A					128 2008 8/25 A A A				132 2008 10/04 A A A	133 2008 10/14 A A A		135 2008 11/03 A A A				139 2008 12/13 A A A
140 2008 12/23 A A A		142 2009 1/12 A B B		144 2009 2/01 A B B			147 2009 3/03 A B B			150 2009 4/02 A B B					155 2009 5/22 A B B	156 2009 6/01 A B B	157 2009 6/11 A B B	158 2009 6/21 A B B	159 2009 7/01 A B B
160 2009 7/11 A B B	161 2009 7/21 A B B		163 2009 8/10 A B B	164 2009 8/20 A B B	165 2009 8/30 A B B	166 2009 9/09 A B B	167 2009 9/19 A B B		169 2009 10/09 A B B	170 2009 10/19 A B B	171 2009 10/29 A B B	172 2009 11/08 A B B	173 2009 11/18 A B B	174 2009 11/28 A B B		176 2009 12/18 A B B	177 2009 12/28 A B B	178 2010 1/07 A B B
180 2010 1/27 A B B	181 2010 2/06 A B B		183 2010 2/26 A B B		185 2010 3/18 A A A	186 2010 3/28 A A A	187 2010 4/07 A B B	188 2010 4/17 A B B	189 2010 4/27 A B B	190 2010 5/07 A B B	191 2010 5/17 A F F	192 2010 5/27 A A A	193 2010 6/06 A A A	194 2010 6/16 A A A	195 2010 6/26 A A A	196 2010 7/06 A A A	197 2010 7/16 A A A	198 2010 7/26 A A A	199 2010 8/05 A B A
200 2010 8/15 A A A

Creation Date: 2024-08-27
