WMO # 4900593

Argo Float WMO # 4900593 : Plots based on data files at the GDAC

Metadata:
WMO #:	4900593
PI:	Breck Owens
DAC:	AOML

DAC #:	1226
WHOI Float #:	401
Last Heard From:	2009-08-30
Longevity:	4.52 yrs

Hardware:
Telcom:	ARGOS 52749
Telcom:	ARGOS 52749
Instrument:	SS110_SB17
ROM version:	1.10
Temperature:	SBE41CP, s/n: 0602
Conductivity:	SBE41CP, s/n: 0602
Pressure:	Druck, s/n: 5760

Deployment:
Deployed:	2005-02-22
Latitude:	27.293
Longitude:	-67.000
Deployment Platform:	Sinaloa
Cruise ID:	n/a
Deployer:	Craig Engler

GDAC file status:
Last Update:	2019-08-14
Profiles at GDAC:	118
GDAC D-files:	118
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

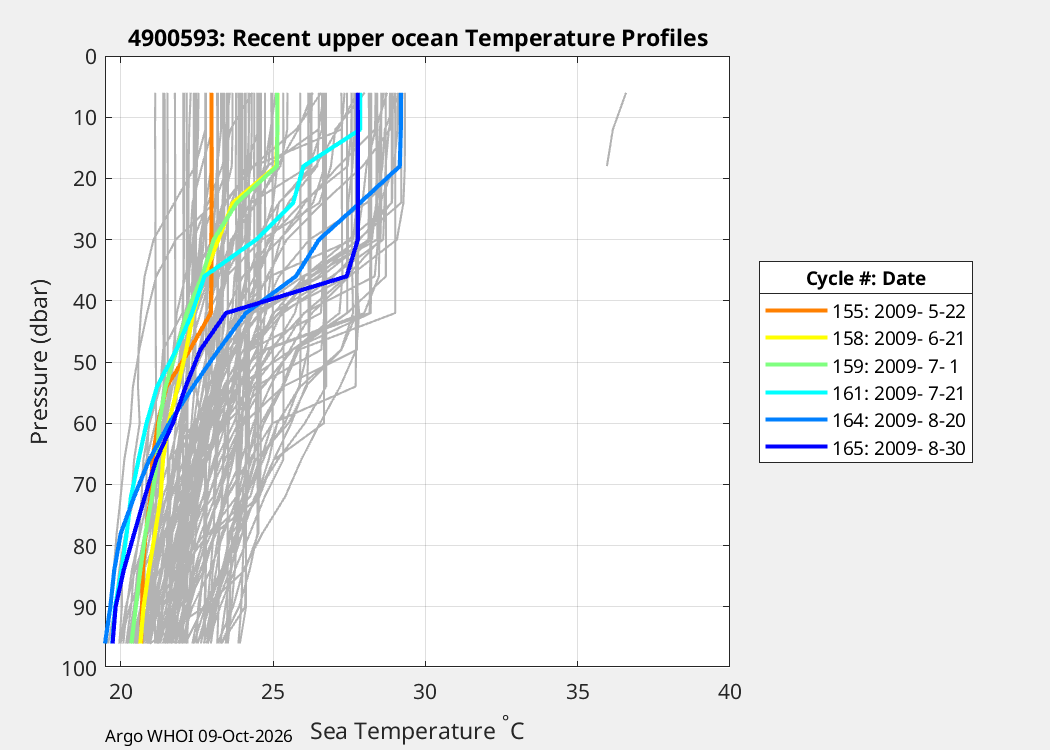

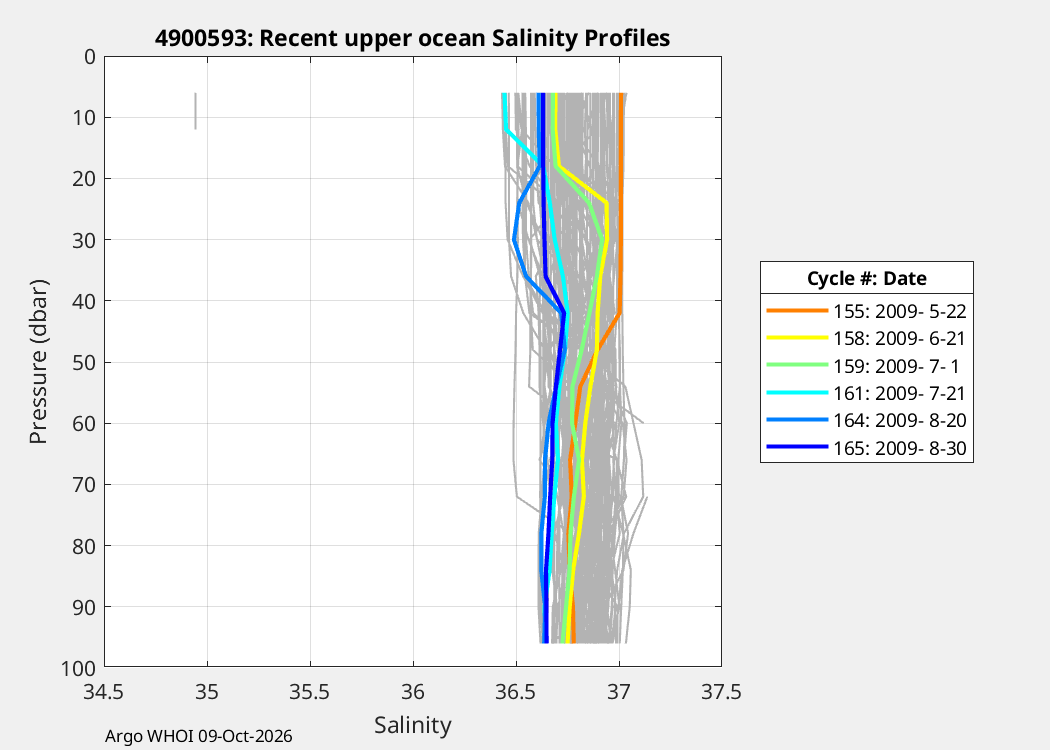

Temperature Profiles	Salinity Profiles

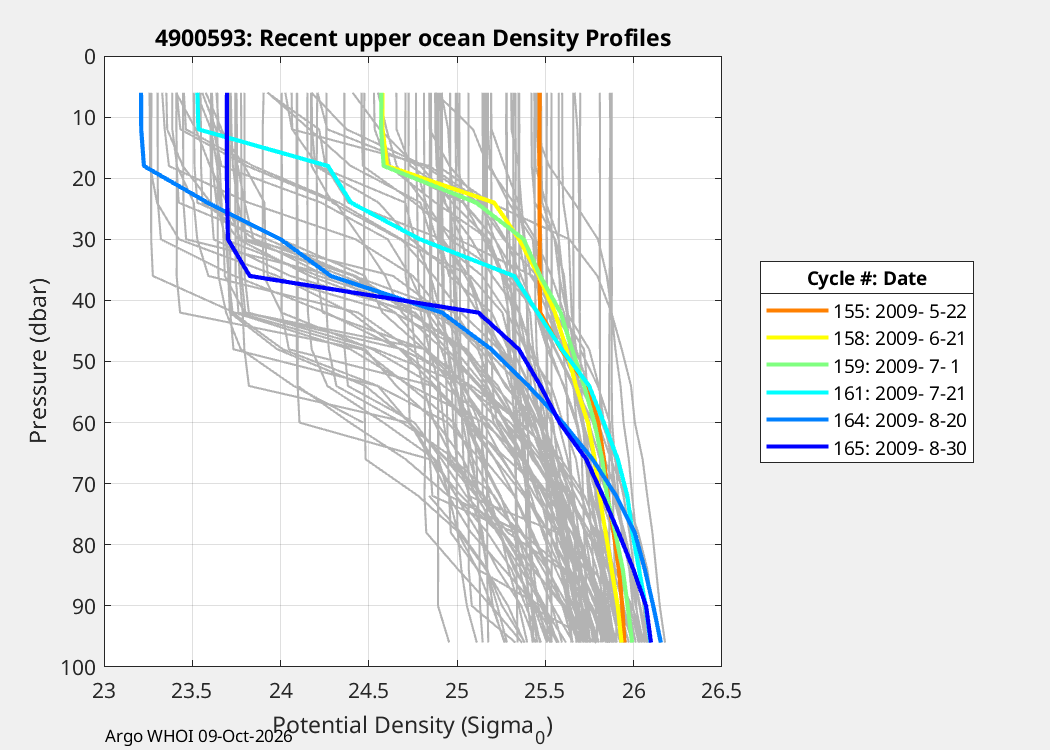

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2005 2/22 A B B	1 2005 3/04 A A A	2 2005 3/14 A A B	3 2005 3/24 A A A	4 2005 4/03 A A A	5 2005 4/13 A B B	6 2005 4/23 A B B	7 2005 5/03 A B B	8 2005 5/13 A B B	9 2005 5/23 A B B	10 2005 6/02 A B B	11 2005 6/12 A B B	12 2005 6/22 A B B	13 2005 7/02 A B B	14 2005 7/12 A B B	15 2005 7/22 A B B	16 2005 8/01 A B B	17 2005 8/11 A B B	18 2005 8/21 A B B	19 2005 8/31 A B B
20 2005 9/10 A B B	21 2005 9/20 A B B	22 2005 9/30 A B B	23 2005 10/10 A B B	24 2005 10/20 A B B	25 2005 10/30 A B B	26 2005 11/09 A B B	27 2005 11/19 A B B	28 2005 11/29 A B B	29 2005 12/09 A B B	30 2005 12/19 A B B	31 2005 12/29 A B B	32 2006 1/08 A B B	33 2006 1/18 A B B	34 2006 1/28 A B B	35 2006 2/07 A B B	36 2006 2/17 A B B	37 2006 2/27 A B B	38 2006 3/09 A B B	39 2006 3/19 A B B
40 2006 3/29 A B B	41 2006 4/08 A B B	42 2006 4/18 A B B	43 2006 4/28 A B B	44 2006 5/08 A B B	45 2006 5/18 A B B	46 2006 5/28 A B B	47 2006 6/07 A B B	48 2006 6/17 A B B	49 2006 6/27 A B B	50 2006 7/07 A B B			53 2006 8/06 A B B	54 2006 8/16 A A A	55 2006 8/26 A A A	56 2006 9/05 A A A	57 2006 9/15 A A A	58 2006 9/25 A A A	59 2006 10/05 A A A
60 2006 10/15 A A A	61 2006 10/25 A A A	62 2006 11/04 A A A	63 2006 11/14 A A A	64 2006 11/24 F F F	65 2006 12/04 A A A		67 2006 12/24 A A A	68 2007 1/03 A A A	69 2007 1/13 A B B	70 2007 1/23 A A B			73 2007 2/22 A A A		75 2007 3/14 A A A		77 2007 4/03 A A A		79 2007 4/23 A A A
		82 2007 5/23 A A A	83 2007 6/02 A B B	84 2007 6/12 A A A			87 2007 7/12 A A A				91 2007 8/21 A A A	92 2007 8/31 A A A	93 2007 9/10 F F F	94 2007 9/20 A A A		96 2007 10/10 A A A	97 2007 10/20 A A A	98 2007 10/30 A A A
100 2007 11/19 A A A	101 2007 11/29 A B B			104 2007 12/29 A A A	105 2008 1/08 A A A	106 2008 1/18 A A A					111 2008 3/08 A A A		113 2008 3/28 A A A			116 2008 4/27 A A A
120 2008 6/06 A A A		122 2008 6/26 A A A	123 2008 7/06 A A A	124 2008 7/16 A A A		126 2008 8/05 A A A		128 2008 8/25 A B B		130 2008 9/14 A F D	131 2008 9/24 A B B	132 2008 10/04 A B B	133 2008 10/14 A B B				137 2008 11/23 A B B		139 2008 12/13 A A A
140 2008 12/23 A A A	141 2009 1/02 A A A	142 2009 1/12 A A A	143 2009 1/22 A A A				147 2009 3/03 A A A		149 2009 3/23 A A A	150 2009 4/02 A A A		152 2009 4/22 A D F		154 2009 5/12 A A A	155 2009 5/22 A B B			158 2009 6/21 A B B	159 2009 7/01 A B B
	161 2009 7/21 A B B			164 2009 8/20 A A A	165 2009 8/30 A A A
