WMO # 4900446

Argo Float WMO # 4900446 : Plots based on data files at the GDAC

Metadata:
WMO #:	4900446
PI:	Breck Owens
DAC:	AOML

DAC #:	614
WHOI Float #:	244
Last Heard From:	2007-01-29
Longevity:	3.29 yrs

Hardware:
Telcom:	ARGOS 40369
Telcom:	ARGOS 40369
Instrument:	SOLO_TS16
ROM version:	n/a
Temperature:	EXCELL, s/n: 1507
Conductivity:	EXCELL, s/n: 1507
Pressure:	Druck, s/n: n/a

Deployment:
Deployed:	2003-10-09
Latitude:	38.992
Longitude:	-50.083
Deployment Platform:	M/V Lykes Raider
Cruise ID:	AX08
Deployer:	Ben Kates

GDAC file status:
Last Update:	2023-09-29
Profiles at GDAC:	121
GDAC D-files:	121
GDAC R-files:	0

Links (at WHOI):
Calibration Plots:	PDF (29-Sep-2023)

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

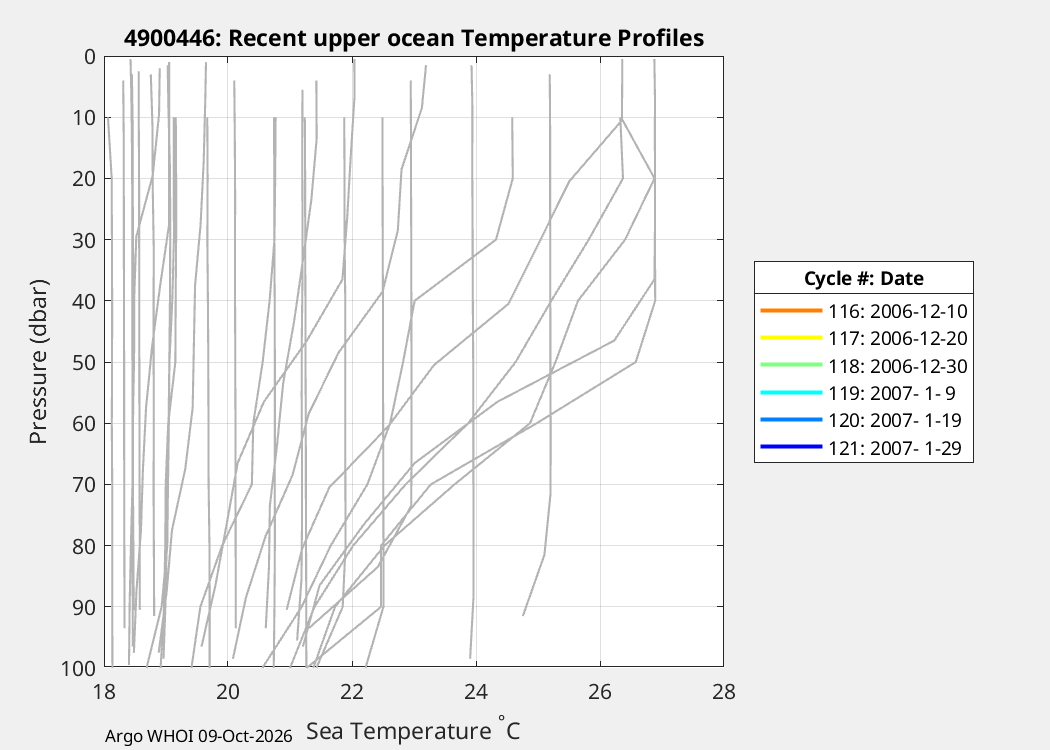

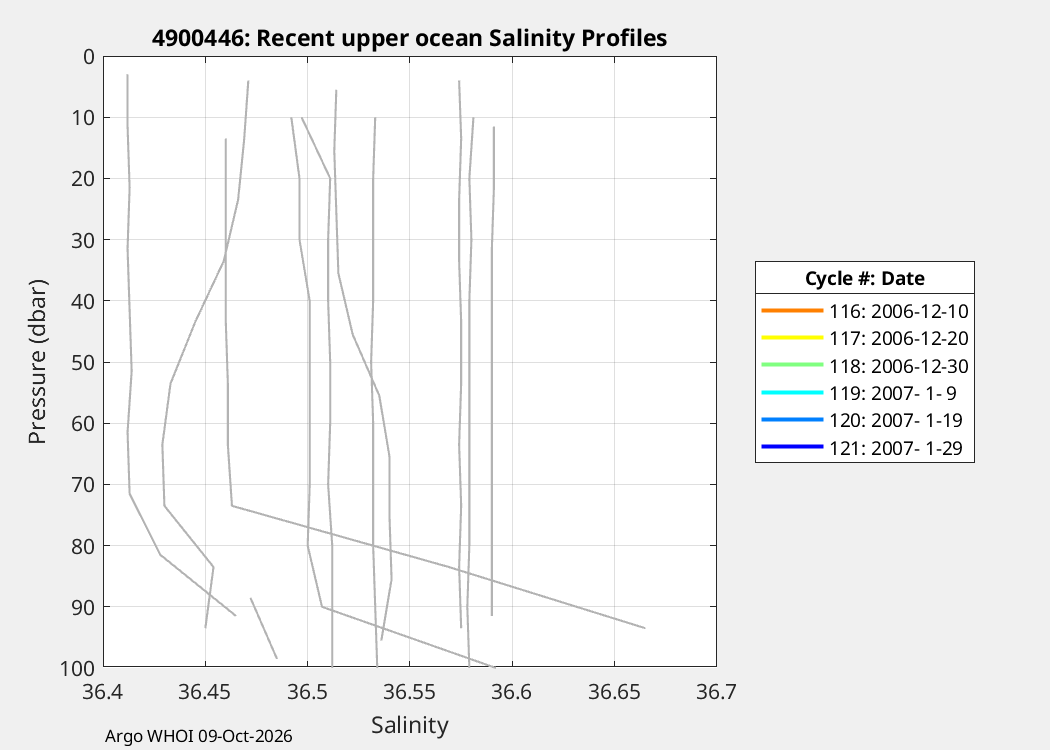

Temperature Profiles	Salinity Profiles

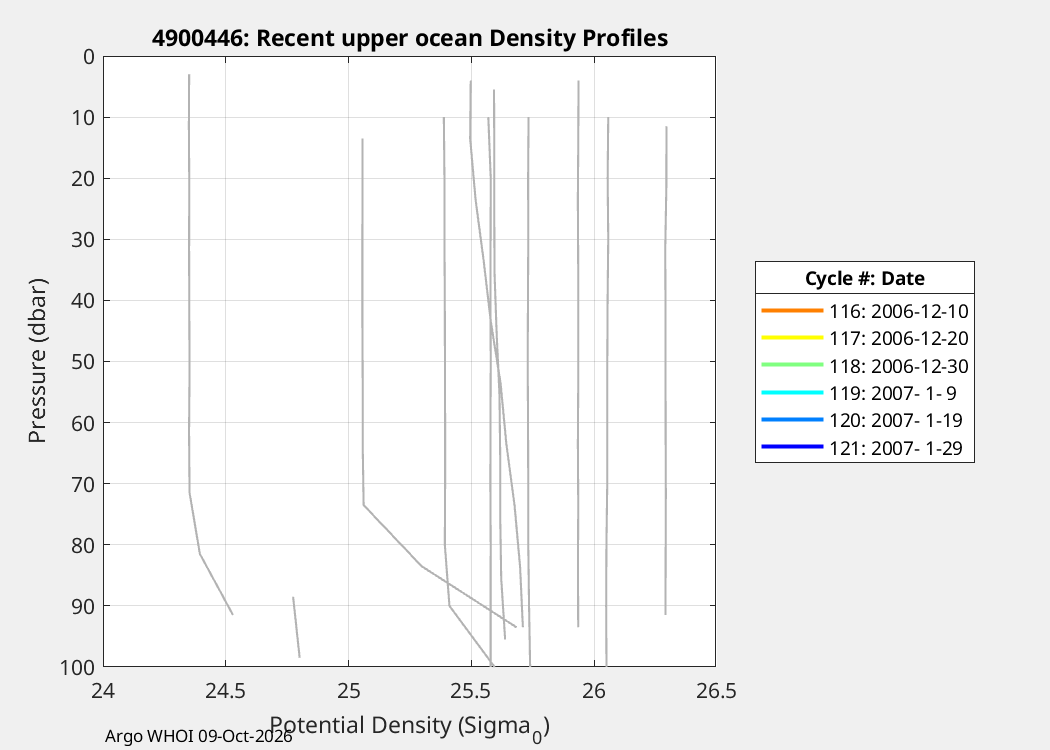

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2003 10/17 A A A	2 2003 10/27 A A B	3 2003 11/06 A A B	4 2003 11/16 F F F	5 2003 11/26 A A A	6 2003 12/06 A A A	7 2003 12/16 A A A	8 2003 12/26 A A A	9 2004 1/05 A A A	10 2004 1/15 A A A	11 2004 1/25 A A A	12 2004 2/04 A A B	13 2004 2/14 A A F	14 2004 2/24 A A F	15 2004 3/05 A A F	16 2004 3/15 A A F	17 2004 3/25 A A F	18 2004 4/04 A A F	19 2004 4/14 A A F
20 2004 4/24 A A F	21 2004 5/04 A A F	22 2004 5/14 A A F	23 2004 5/24 A A F	24 2004 6/03 A A F	25 2004 6/13 A A F	26 2004 6/23 A A F	27 2004 7/03 A A F	28 2004 7/13 A A F	29 2004 7/23 A A F	30 2004 8/02 A A F	31 2004 8/12 A A F	32 2004 8/22 A A F	33 2004 9/01 A A F	34 2004 9/11 A F F	35 2004 9/21 A F F	36 2004 10/01 A F F	37 2004 10/11 A F F	38 2004 10/21 A F F	39 2004 10/31 A F F
40 2004 11/10 A F F	41 2004 11/20 A F F	42 2004 11/30 A F F	43 2004 12/10 A F F	44 2004 12/20 A F F	45 2004 12/30 A F F	46 2005 1/09 A F F	47 2005 1/19 A F F	48 2005 1/29 A F F	49 2005 2/08 A F F	50 2005 2/18 A F F	51 2005 2/28 A F F	52 2005 3/10 A F F	53 2005 3/20 A F F	54 2005 3/30 A F F	55 2005 4/09 A F F	56 2005 4/19 A F F	57 2005 4/29 A F F	58 2005 5/09 A F F	59 2005 5/19 A F F
60 2005 5/29 A F F	61 2005 6/08 A F F	62 2005 6/18 A F F	63 2005 6/28 A F F	64 2005 7/08 A F F	65 2005 7/18 A F F	66 2005 7/28 A F F	67 2005 8/07 A F F	68 2005 8/17 A F F	69 2005 8/27 A F F	70 2005 9/06 A F F	71 2005 9/16 A F F	72 2005 9/26 A F F	73 2005 10/06 A F F	74 2005 10/16 A F F	75 2005 10/26 A F F	76 2005 11/05 A F F	77 2005 11/15 A F F	78 2005 11/25 A F F	79 2005 12/05 A F F
80 2005 12/15 A F F	81 2005 12/25 A F F	82 2006 1/04 A F F	83 2006 1/14 A F F	84 2006 1/24 A F F	85 2006 2/03 A F F	86 2006 2/13 A F F	87 2006 2/23 A F F	88 2006 3/05 A F F	89 2006 3/15 A F F	90 2006 3/25 A F F	91 2006 4/04 A F F	92 2006 4/14 A F F	93 2006 4/24 A F F	94 2006 5/04 A F F	95 2006 5/14 A F F	96 2006 5/24 A F F	97 2006 6/03 A F F	98 2006 6/13 A F F	99 2006 6/23 A F F
100 2006 7/03 A F F	101 2006 7/13 A F F	102 2006 7/23 A F F	103 2006 8/02 A F F	104 2006 8/12 A F F	105 2006 8/22 A F F	106 2006 9/01 F F F	107 2006 9/11 A F F	108 2006 9/21 A F F	109 2006 10/01 A F F	110 2006 10/11 A F F	111 2006 10/21 A F F	112 2006 10/31 B F F	113 2006 11/10 A F F	114 2006 11/20 A F F	115 2006 11/30 A F F	116 2006 12/10 A F F	117 2006 12/20 A F F	118 2006 12/30 A F F	119 2007 1/09 A F F
120 2007 1/19 A F F	121 2007 1/29 A F F

Creation Date: 2024-12-06
