WMO # 4900435

Argo Float WMO # 4900435 : Plots based on data files at the GDAC

Metadata:
WMO #:	4900435
PI:	Breck Owens
DAC:	AOML

DAC #:	615
WHOI Float #:	245
Last Heard From:	2008-07-01
Longevity:	4.79 yrs

Hardware:
Telcom:	ARGOS 40370
Telcom:	ARGOS 40370
Instrument:	SOLO_TS16
ROM version:	n/a
Temperature:	EXCELL, s/n: 1518
Conductivity:	EXCELL, s/n: 1518
Pressure:	Druck, s/n: n/a

Deployment:
Deployed:	2003-09-07
Latitude:	31.763
Longitude:	-71.650
Deployment Platform:	Horizon Hawaii
Cruise ID:	AX10
Deployer:	Ulises Rivero

GDAC file status:
Last Update:	2023-10-13
Profiles at GDAC:	176
GDAC D-files:	176
GDAC R-files:	0

Links (at WHOI):
Calibration Plots:	PDF (29-Sep-2023)

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

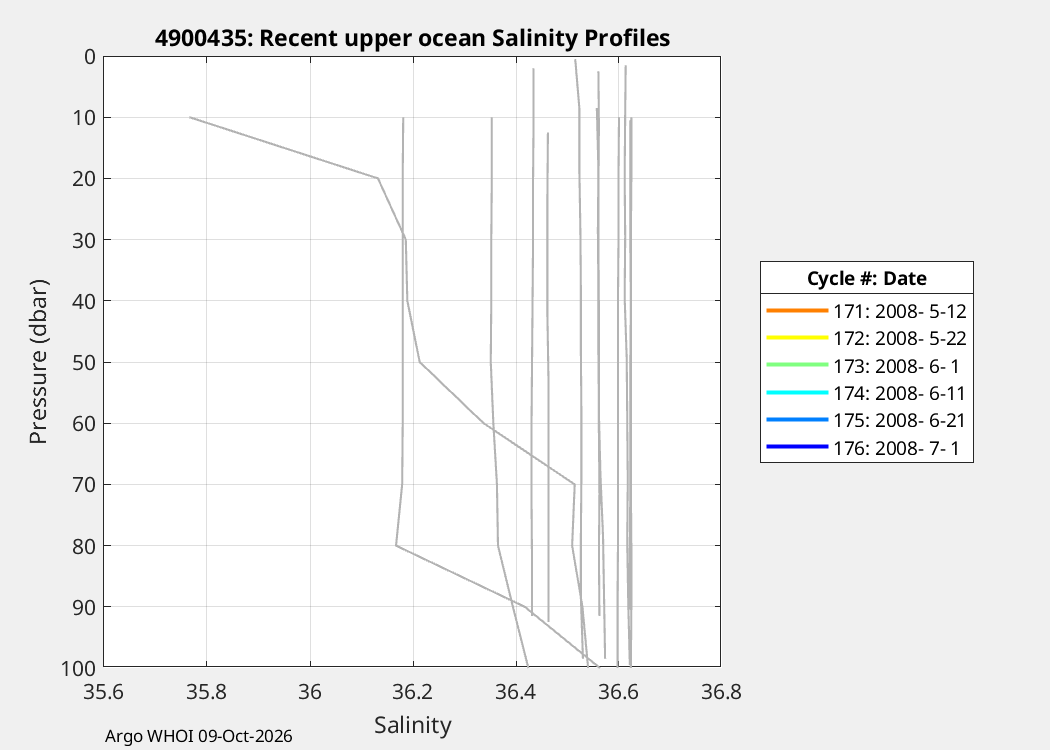

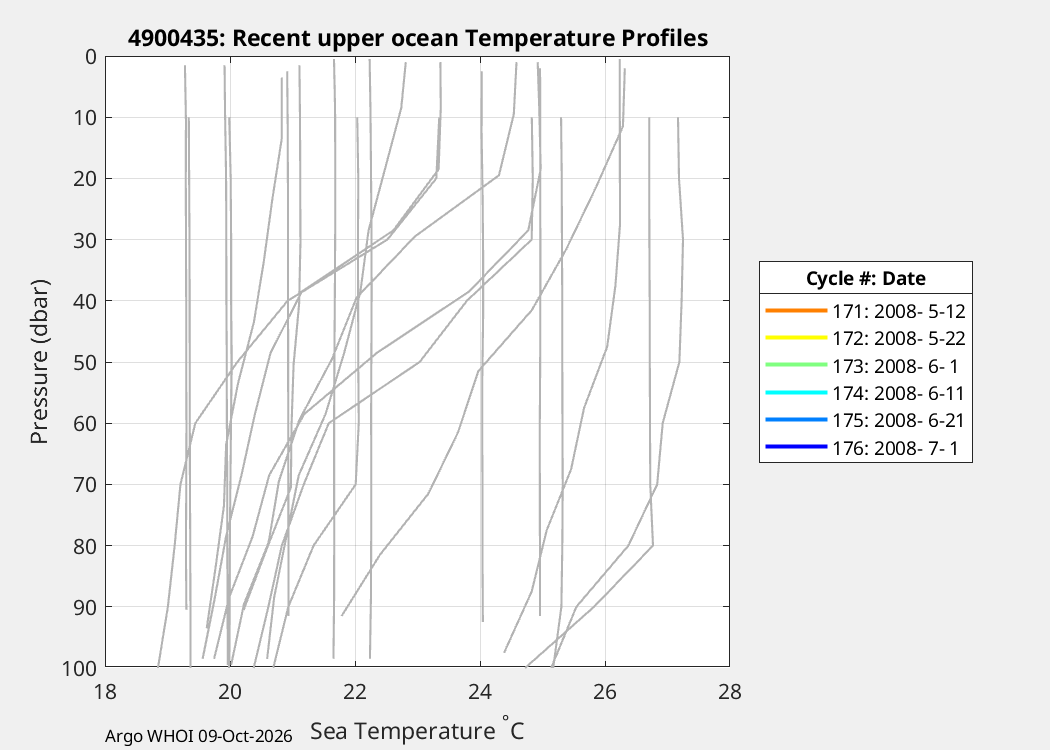

Temperature Profiles	Salinity Profiles

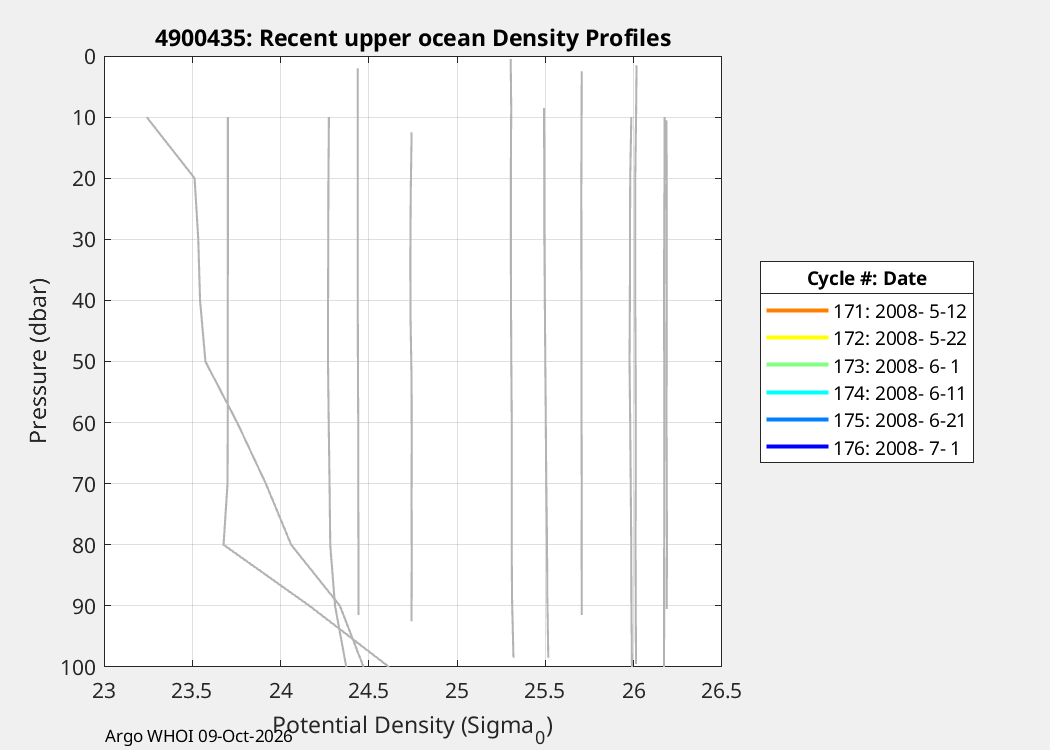

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2003 9/16 F F F	2 2003 9/26 A A A	3 2003 10/06 A A A	4 2003 10/16 F F F	5 2003 10/26 A A A	6 2003 11/05 A A A	7 2003 11/15 A B B	8 2003 11/25 F F F	9 2003 12/05 F F F	10 2003 12/15 A A A	11 2003 12/25 A A B	12 2004 1/04 F F F	13 2004 1/14 A A A	14 2004 1/24 A A B	15 2004 2/03 F F F	16 2004 2/13 F F F	17 2004 2/23 A A A	18 2004 3/04 F F F	19 2004 3/14 A A A
20 2004 3/24 A A A	21 2004 4/03 F F F	22 2004 4/13 A A F	23 2004 4/23 A A F	24 2004 5/03 A A F	25 2004 5/13 A A F	26 2004 5/23 A A F	27 2004 6/02 A A F	28 2004 6/12 A A F	29 2004 6/22 A A F	30 2004 7/02 A A F	31 2004 7/12 A A F	32 2004 7/22 A A F	33 2004 8/01 F F F	34 2004 8/11 A F F	35 2004 8/21 A F F	36 2004 8/31 A F F	37 2004 9/10 A F F	38 2004 9/20 A F F	39 2004 9/30 A F F
40 2004 10/10 A F F	41 2004 10/20 A F F	42 2004 10/30 A F F	43 2004 11/09 B F F	44 2004 11/19 A F F	45 2004 11/29 A F F	46 2004 12/09 A F F	47 2004 12/19 A F F	48 2004 12/29 A F F	49 2005 1/08 A F F	50 2005 1/18 A F F	51 2005 1/28 A F F	52 2005 2/07 A F F	53 2005 2/17 A F F	54 2005 2/27 A F F	55 2005 3/09 A F F	56 2005 3/19 A F F	57 2005 3/29 B F F	58 2005 4/08 A F F	59 2005 4/18 A F F
60 2005 4/28 A F F	61 2005 5/08 A F F	62 2005 5/18 B F F	63 2005 5/28 A F F	64 2005 6/07 B F F	65 2005 6/17 A F F	66 2005 6/27 B F F	67 2005 7/07 A F F	68 2005 7/17 A F F	69 2005 7/27 A F F	70 2005 8/06 A F F	71 2005 8/15 A F F	72 2005 8/26 A F F	73 2005 9/05 B F F	74 2005 9/15 B F F	75 2005 9/25 A F F	76 2005 10/05 A F F	77 2005 10/15 A F F	78 2005 10/25 A F F	79 2005 11/04 A F F
80 2005 11/14 A F F	81 2005 11/24 A F F	82 2005 12/04 A F F	83 2005 12/14 A F F	84 2005 12/24 A F F	85 2006 1/03 A F F	86 2006 1/13 A F F	87 2006 1/23 A F F	88 2006 2/02 A F F	89 2006 2/12 A F F	90 2006 2/22 A F F	91 2006 3/04 A F F	92 2006 3/14 A F F	93 2006 3/24 A F F	94 2006 4/03 A F F	95 2006 4/13 A F F	96 2006 4/23 A F F	97 2006 5/03 A F F	98 2006 5/13 A F F	99 2006 5/23 A F F
100 2006 6/02 A F F	101 2006 6/12 A F F	102 2006 6/22 A F F	103 2006 7/02 A F F	104 2006 7/12 A F F	105 2006 7/22 A F F	106 2006 8/01 A F F	107 2006 8/11 A F F	108 2006 8/21 A F F	109 2006 8/31 A F F	110 2006 9/10 A F F	111 2006 9/20 A F F	112 2006 9/30 A F F	113 2006 10/10 A F F	114 2006 10/20 A F F	115 2006 10/30 A F F	116 2006 11/09 A F F	117 2006 11/19 A F F	118 2006 11/29 A F F	119 2006 12/09 A F F
120 2006 12/19 A F F	121 2006 12/29 A F F	122 2007 1/08 A F F	123 2007 1/18 A F F	124 2007 1/28 A F F	125 2007 2/07 A F F	126 2007 2/17 A F F	127 2007 2/27 A F F	128 2007 3/09 A F F	129 2007 3/19 A F F	130 2007 3/29 A F F	131 2007 4/08 A F F	132 2007 4/18 A F F	133 2007 4/28 A F F	134 2007 5/08 A F F	135 2007 5/18 A F F	136 2007 5/28 A F F	137 2007 6/07 A F F	138 2007 6/17 A F F	139 2007 6/27 A F F
140 2007 7/07 A F F	141 2007 7/17 A F F	142 2007 7/27 A F F	143 2007 8/06 A F F	144 2007 8/16 A F F	145 2007 8/26 A F F	146 2007 9/05 A F F	147 2007 9/15 A F F	148 2007 9/25 A F F	149 2007 10/05 A F F	150 2007 10/15 A F F	151 2007 10/25 B F F	152 2007 11/04 A F F	153 2007 11/14 A F F	154 2007 11/24 A F F	155 2007 12/04 A F F	156 2007 12/14 A F F	157 2007 12/24 A F F	158 2008 1/03 A F F	159 2008 1/13 A F F
160 2008 1/23 B F F	161 2008 2/02 A F F	162 2008 2/12 B F F	163 2008 2/22 A F F	164 2008 3/03 B F F	165 2008 3/13 A F F	166 2008 3/23 A F F	167 2008 4/02 A F F	168 2008 4/12 A F F	169 2008 4/22 A F F	170 2008 5/02 A F F	171 2008 5/12 A F F	172 2008 5/22 A F F	173 2008 6/01 A F F	174 2008 6/11 A F F	175 2008 6/21 A F F	176 2008 7/01 A F F

Creation Date: 2024-12-06
