WMO # 4900232

Argo Float WMO # 4900232 : Plots based on data files at the GDAC

Metadata:
WMO #:	4900232
PI:	Breck Owens
DAC:	AOML

DAC #:	387
WHOI Float #:	184
Last Heard From:	2011-09-26
Longevity:	8.48 yrs

Hardware:
Telcom:	ARGOS 7370
Telcom:	ARGOS 7370
Instrument:	NM525_SB10
ROM version:	5.25
Temperature:	SBE41CP, s/n: 0327
Conductivity:	SBE41CP, s/n: 0327
Pressure:	Paines, s/n: 2657730053

Deployment:
Deployed:	2003-03-25
Latitude:	30.045
Longitude:	-48.002
Deployment Platform:	M/V Lykes Commander
Cruise ID:	AX07
Deployer:	n/a

GDAC file status:
Last Update:	2020-12-18
Profiles at GDAC:	286
GDAC D-files:	286
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

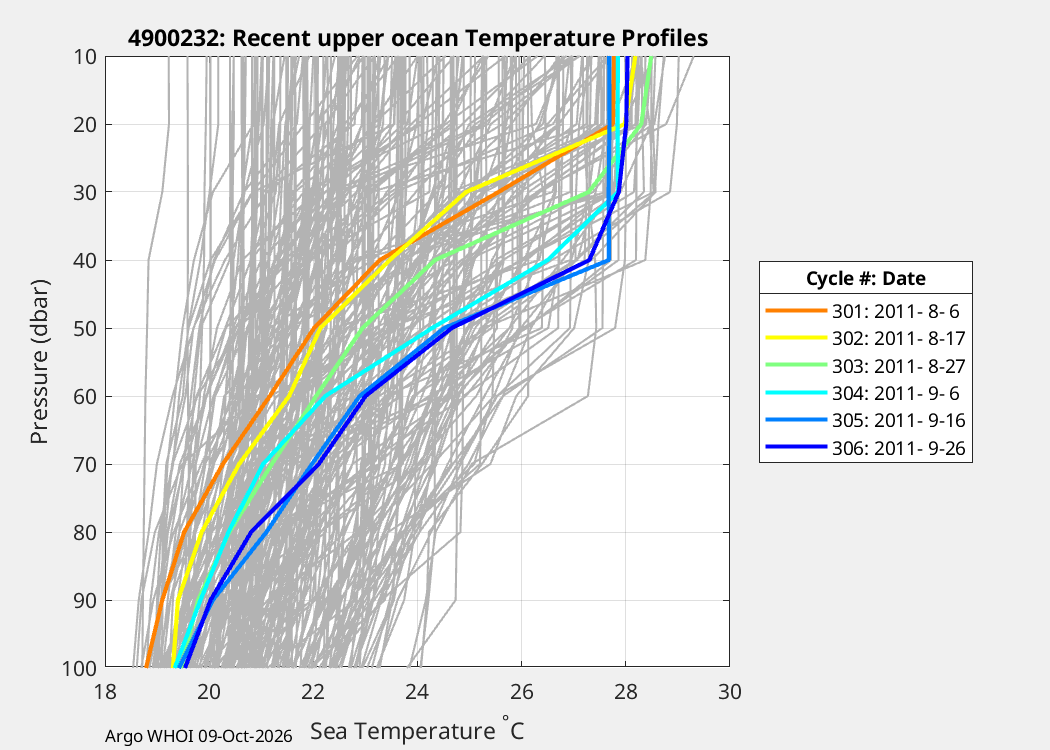

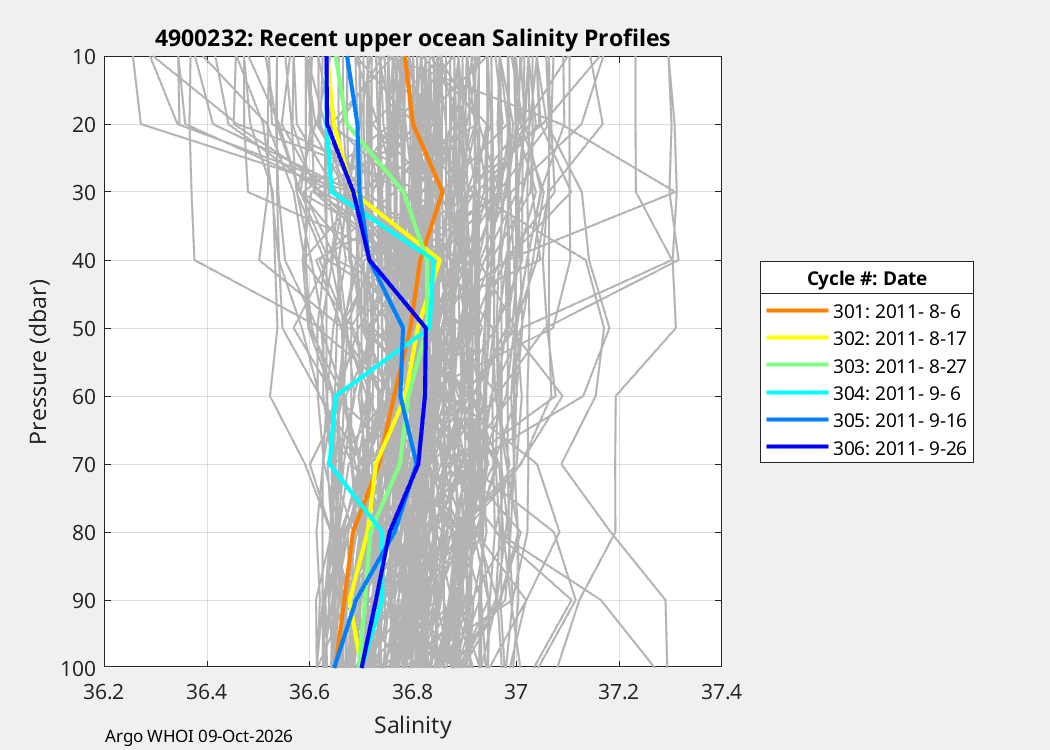

Temperature Profiles	Salinity Profiles

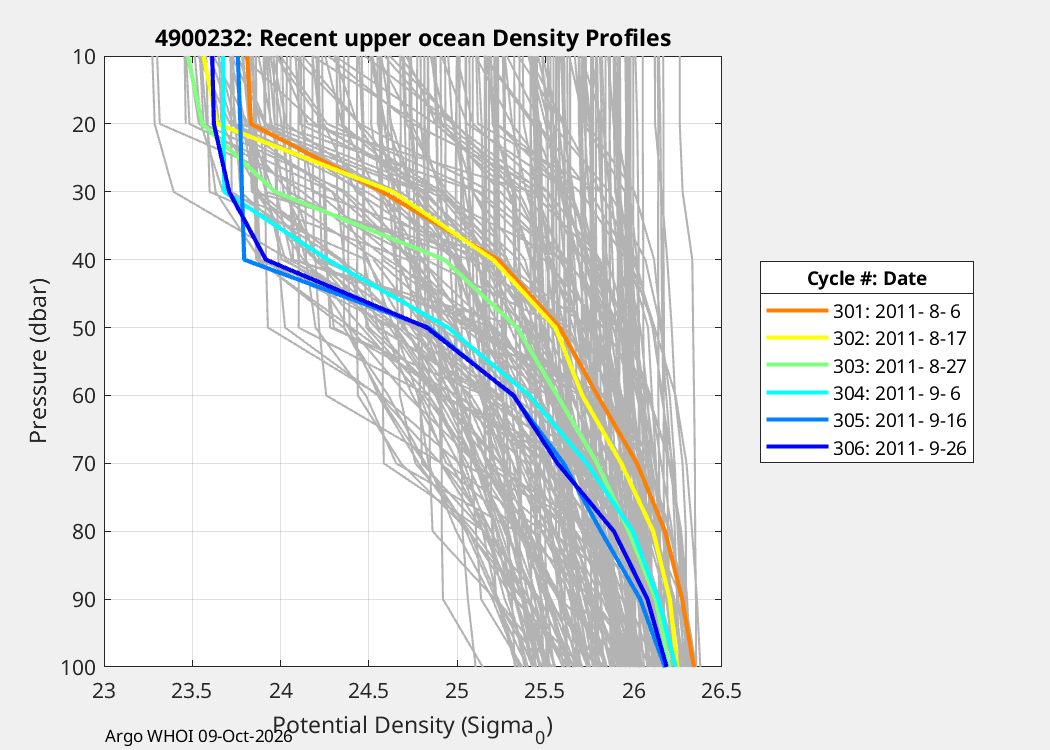

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2003 4/03 A F F	2 2003 4/13 A F F	3 2003 4/24 A F F	4 2003 5/04 A A A	5 2003 5/14 A C F	6 2003 5/24 A F F	7 2003 6/03 A A D	8 2003 6/13 A F F	9 2003 6/23 A A D	10 2003 7/04 A D F	11 2003 7/14 A A D	12 2003 7/24 A A F	13 2003 8/03 A F F	14 2003 8/13 A F F	15 2003 8/23 A F F	16 2003 9/03 A F F	17 2003 9/13 A F F	18 2003 9/23 A A A	19 2003 10/03 A F F
20 2003 10/13 A F F	21 2003 10/23 A A A	22 2003 11/03 A F F	23 2003 11/13 A A F	24 2003 11/23 A F F		26 2003 12/13 A A F	27 2003 12/23 A F F		29 2004 1/13 A C F	30 2004 1/23 A D D	31 2004 2/02 A D F	32 2004 2/12 A D D		34 2004 3/04 A F F	35 2004 3/14 A F F	36 2004 3/24 A F F	37 2004 4/03 A F F		39 2004 4/23 A A A
40 2004 5/04 A F F	41 2004 5/14 A D D	42 2004 5/24 A F F	43 2004 6/03 A D D	44 2004 6/13 A D D	45 2004 6/23 A D D	46 2004 7/04 A F F	47 2004 7/14 A C F	48 2004 7/24 A F F	49 2004 8/03 A F F			52 2004 9/02 A C F		54 2004 9/23 A A F	55 2004 10/03 A A F	56 2004 10/13 A C F	57 2004 10/23 A F F
60 2004 11/23 A D D	61 2004 12/03 A D D	62 2004 12/13 A A A	63 2004 12/23 A C C		65 2005 1/12 A A A		67 2005 2/02 A A A								75 2005 4/24 A A D	76 2005 5/04 A A C	77 2005 5/14 A A A	78 2005 5/24 A A D	79 2005 6/03 A A F
80 2005 6/14 A C C	81 2005 6/24 A A A	82 2005 7/04 A B F	83 2005 7/14 A A F	84 2005 7/24 A F F	85 2005 8/03 A D D	86 2005 8/14 A A A	87 2005 8/24 A F F	88 2005 9/03 A F F	89 2005 9/13 A A A	90 2005 9/23 A A A	91 2005 10/03 A A F	92 2005 10/13 A A A	93 2005 10/24 A A A	94 2005 11/03 A A A	95 2005 11/13 A A A	96 2005 11/23 A A A	97 2005 12/03 A A A	98 2005 12/13 A A A	99 2005 12/24 A A A
100 2006 1/03 A A A	101 2006 1/13 A A A	102 2006 1/23 A A A	103 2006 2/02 A A A	104 2006 2/12 A A A	105 2006 2/23 A A A	106 2006 3/05 A A A	107 2006 3/15 A A A		109 2006 4/04 A A A	110 2006 4/14 A A A	111 2006 4/25 A A A	112 2006 5/05 A A A	113 2006 5/15 A A A	114 2006 5/25 A A A	115 2006 6/04 A A A	116 2006 6/14 A A A	117 2006 6/24 A A B	118 2006 7/05 A A A	119 2006 7/15 A A A
120 2006 7/25 A A A	121 2006 8/04 A A A	122 2006 8/14 A A A	123 2006 8/24 A A A	124 2006 9/04 A A A	125 2006 9/14 A A A	126 2006 9/24 A A A	127 2006 10/04 A A A	128 2006 10/14 A A A	129 2006 10/24 A A A	130 2006 11/04 A A A	131 2006 11/14 A A A	132 2006 11/24 A A A	133 2006 12/04 A A A	134 2006 12/14 A A A	135 2006 12/24 A A A	136 2007 1/04 A A A	137 2007 1/14 A A A	138 2007 1/24 A A A	139 2007 2/03 A A A
140 2007 2/13 A A A	141 2007 2/23 A A A	142 2007 3/05 A A A	143 2007 3/16 A A A	144 2007 3/26 A A A	145 2007 4/05 A A A	146 2007 4/15 A A A	147 2007 4/25 A A A	148 2007 5/05 A A A	149 2007 5/16 A A A	150 2007 5/26 A A A	151 2007 6/05 A A A	152 2007 6/15 A A A	153 2007 6/25 A A A	154 2007 7/05 A A A	155 2007 7/15 A A A	156 2007 7/26 A A A	157 2007 8/05 A A A	158 2007 8/15 A A A	159 2007 8/25 A A A
160 2007 9/04 A A B	161 2007 9/14 A A A	162 2007 9/25 A A A	163 2007 10/05 A A A	164 2007 10/15 A A A	165 2007 10/25 A A A	166 2007 11/04 A A A	167 2007 11/14 A A A	168 2007 11/25 A A A	169 2007 12/05 A A A	170 2007 12/15 A A A	171 2007 12/25 A A A	172 2008 1/04 A A A	173 2008 1/14 A A A	174 2008 1/24 A A A	175 2008 2/04 A A A	176 2008 2/14 A A A	177 2008 2/24 A A A	178 2008 3/05 A A A	179 2008 3/15 A A A
180 2008 3/25 A A A	181 2008 4/05 A A A	182 2008 4/15 A A A	183 2008 4/25 A A A	184 2008 5/05 A A A	185 2008 5/15 A A A	186 2008 5/25 A A A	187 2008 6/05 A A A	188 2008 6/15 A A A	189 2008 6/25 A A B	190 2008 7/05 A A A	191 2008 7/15 A A A	192 2008 7/25 A A A	193 2008 8/05 A A A	194 2008 8/15 A A A	195 2008 8/25 A A A	196 2008 9/04 A A A	197 2008 9/14 A A A	198 2008 9/24 A A A	199 2008 10/04 A A A
200 2008 10/15 A A A	201 2008 10/25 A A A	202 2008 11/04 A A A	203 2008 11/14 A A A	204 2008 11/24 A A A	205 2008 12/04 A A A	206 2008 12/15 A A A	207 2008 12/25 A A A	208 2009 1/04 A A A	209 2009 1/14 A A A	210 2009 1/24 A A A	211 2009 2/03 A A A	212 2009 2/13 A A A	213 2009 2/24 A A A	214 2009 3/06 A A A	215 2009 3/16 A A A	216 2009 3/26 A A A	217 2009 4/05 A A A	218 2009 4/15 A A A	219 2009 4/26 A A A
220 2009 5/06 A A A	221 2009 5/16 A A A	222 2009 5/26 A A A	223 2009 6/05 A A A	224 2009 6/15 A A A	225 2009 6/26 A A A	226 2009 7/06 A A A	227 2009 7/16 A A A	228 2009 7/26 A A B	229 2009 8/05 A A B	230 2009 8/15 A A A	231 2009 8/25 A A A	232 2009 9/05 A A A	233 2009 9/15 A A A	234 2009 9/25 A A A	235 2009 10/05 A A A	236 2009 10/15 A A A	237 2009 10/25 A A A	238 2009 11/05 A A A	239 2009 11/15 A A A
240 2009 11/25 A A A	241 2009 12/05 A A A	242 2009 12/15 A A A	243 2009 12/25 A A A	244 2010 1/05 A A A	245 2010 1/15 A A A	246 2010 1/25 A A A	247 2010 2/04 A A A	248 2010 2/14 A A A	249 2010 2/24 A A A	250 2010 3/07 A A A	251 2010 3/17 A A A	252 2010 3/27 A A A	253 2010 4/06 A A A	254 2010 4/16 A A A	255 2010 4/26 A A A	256 2010 5/06 A A A	257 2010 5/17 A A A	258 2010 5/27 A A A	259 2010 6/06 A A A
260 2010 6/16 B A A	261 2010 6/26 B A A	262 2010 7/06 B A A	263 2010 7/17 B A A	264 2010 7/27 B A A	265 2010 8/06 B A A	266 2010 8/16 B A A	267 2010 8/26 B A A	268 2010 9/05 B A A	269 2010 9/16 B A A	270 2010 9/26 B A A	271 2010 10/06 B A A	272 2010 10/16 B A A	273 2010 10/26 A A A	274 2010 11/05 A A A	275 2010 11/15 A A A	276 2010 11/26 A A A	277 2010 12/06 A A A	278 2010 12/16 A A A	279 2010 12/26 A A A
280 2011 1/05 A A A	281 2011 1/16 A A A	282 2011 1/26 A A A	283 2011 2/05 A A A	284 2011 2/15 A A A	285 2011 2/25 A A A	286 2011 3/07 A A A	287 2011 3/17 A A A		289 2011 4/07 A A A	290 2011 4/17 A A A	291 2011 4/27 B A A	292 2011 5/07 B A A	293 2011 5/17 B A A	294 2011 5/28 B A A	295 2011 6/07 B A A	296 2011 6/17 B A A	297 2011 6/27 B A A	298 2011 7/07 B A A	299 2011 7/18 A A A
300 2011 7/28 A A A	301 2011 8/06 A A A	302 2011 8/17 A A A	303 2011 8/27 A A A	304 2011 9/06 A A A	305 2011 9/16 A A A	306 2011 9/26 A A A

Creation Date: 2024-08-27
