WMO # 3900594

Argo Float WMO # 3900594 : Plots based on data files at the GDAC

Metadata:
WMO #:	3900594
PI:	Breck Owens
DAC:	AOML

DAC #:	2187
WHOI Float #:	675
Last Heard From:	2010-03-28
Longevity:	3.45 yrs

Hardware:
Telcom:	ARGOS 67426
Telcom:	ARGOS 67426
Instrument:	SS110_SB19
ROM version:	1.10
Temperature:	SBE41CP, s/n: 1533
Conductivity:	SBE41CP, s/n: 1533
Pressure:	Druck, s/n: 2324154

Deployment:
Deployed:	2006-10-15
Latitude:	-18.162
Longitude:	-85.025
Deployment Platform:	Ron Brown
Cruise ID:	STRATUS
Deployer:	unknown

GDAC file status:
Last Update:	2019-07-10
Profiles at GDAC:	127
GDAC D-files:	127
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

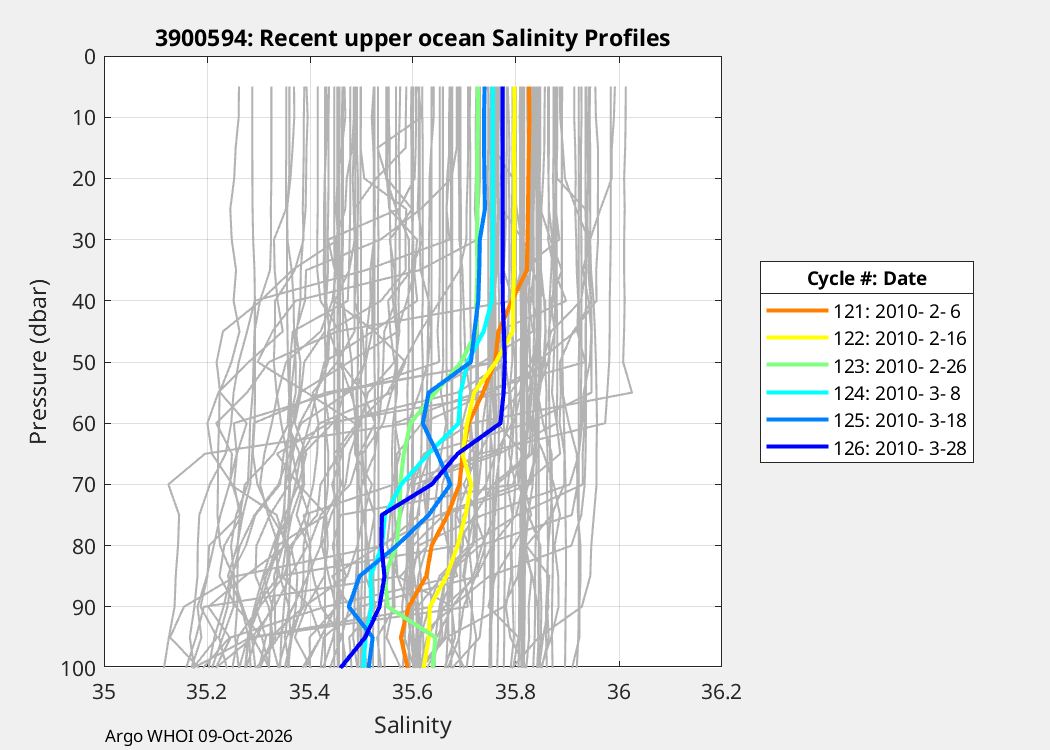

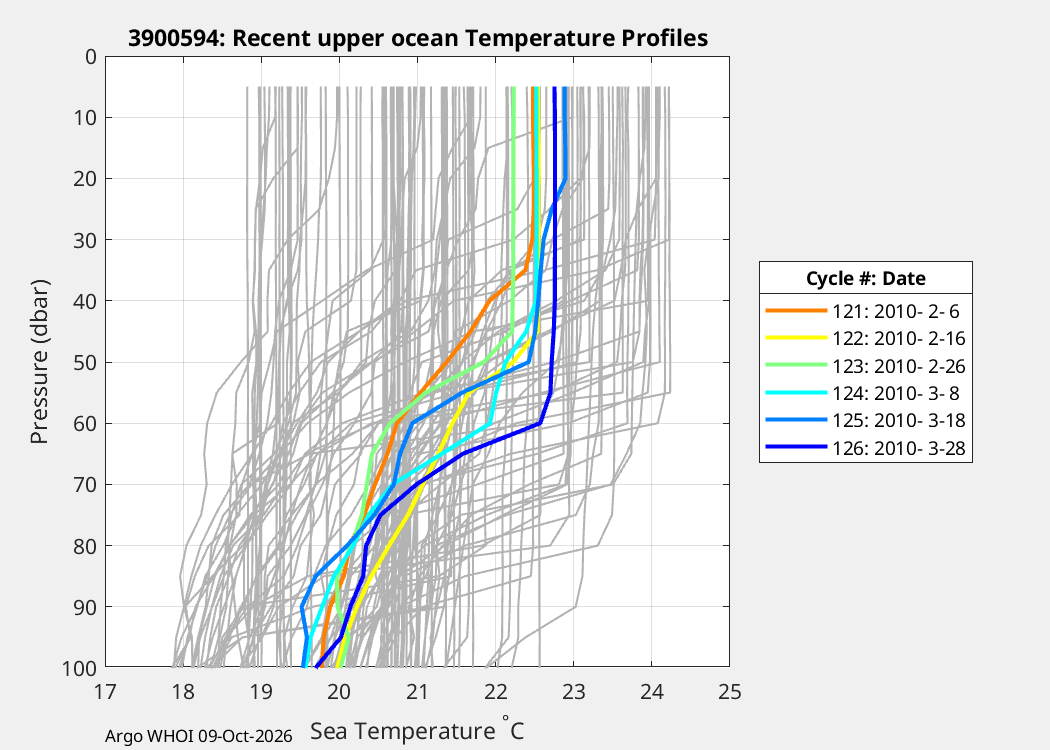

Temperature Profiles	Salinity Profiles

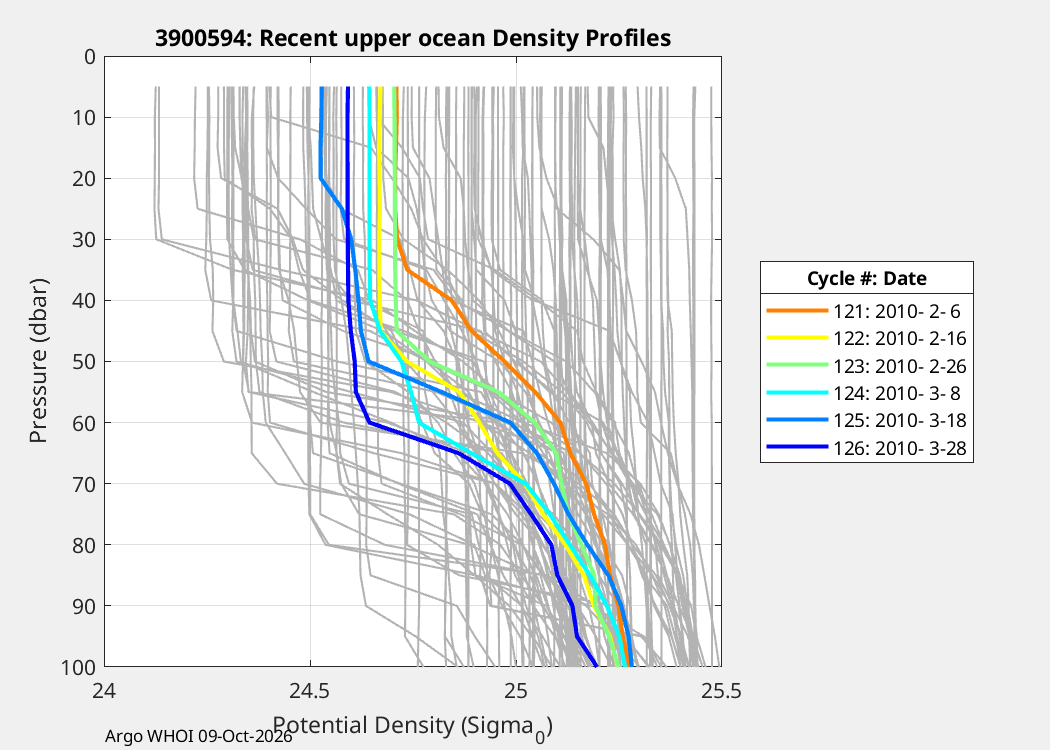

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2006 10/15 A B B	1 2006 10/25 A B B	2 2006 11/04 A A A	3 2006 11/14 A A A	4 2006 11/24 A A A	5 2006 12/04 A A A	6 2006 12/14 A B B	7 2006 12/24 A A A	8 2007 1/03 A A A	9 2007 1/13 A A A	10 2007 1/23 A A A	11 2007 2/02 A A A	12 2007 2/12 A A A	13 2007 2/22 A A A	14 2007 3/04 A A A	15 2007 3/14 A A A	16 2007 3/24 A A A	17 2007 4/03 A A A	18 2007 4/13 A A A	19 2007 4/23 B A B
20 2007 5/03 B A B	21 2007 5/13 B A B	22 2007 5/23 B A C	23 2007 6/02 B A C	24 2007 6/12 B A C	25 2007 6/22 B A D	26 2007 7/02 B A C	27 2007 7/12 A F F	28 2007 7/22 A B B	29 2007 8/01 A A A	30 2007 8/11 A A A	31 2007 8/21 A B A	32 2007 8/31 A A A	33 2007 9/10 A A A	34 2007 9/20 A A A	35 2007 9/30 A A A	36 2007 10/10 A A A	37 2007 10/20 A A A	38 2007 10/30 A A A	39 2007 11/09 A A A
40 2007 11/19 A A A	41 2007 11/29 A A A	42 2007 12/09 A A A	43 2007 12/19 A A A	44 2007 12/29 A A A	45 2008 1/08 A A A	46 2008 1/18 A A A	47 2008 1/28 A A A	48 2008 2/07 A A A	49 2008 2/17 A A A	50 2008 2/27 A A A	51 2008 3/08 A A A	52 2008 3/18 A A A	53 2008 3/28 A A A	54 2008 4/07 A A A	55 2008 4/17 A A A	56 2008 4/27 A A A	57 2008 5/07 A A A	58 2008 5/17 A A A	59 2008 5/27 A A A
60 2008 6/06 A A A	61 2008 6/16 A A A	62 2008 6/26 A A A	63 2008 7/06 A A A	64 2008 7/16 A A A	65 2008 7/26 A A A	66 2008 8/05 A A A	67 2008 8/15 A A A	68 2008 8/25 A A A	69 2008 9/04 A A A	70 2008 9/14 A A A	71 2008 9/24 A A A	72 2008 10/04 A A A	73 2008 10/14 A A A	74 2008 10/24 A A A	75 2008 11/03 A A A	76 2008 11/13 A A A	77 2008 11/23 A A A	78 2008 12/03 A A A	79 2008 12/13 A A A
80 2008 12/23 A A A	81 2009 1/02 A A A	82 2009 1/12 A A A	83 2009 1/22 A A A	84 2009 2/01 A A A	85 2009 2/11 A A A	86 2009 2/21 A A A	87 2009 3/03 A A A	88 2009 3/13 A A A	89 2009 3/23 A A A	90 2009 4/02 A A A	91 2009 4/12 A A A	92 2009 4/22 A A A	93 2009 5/02 A A A	94 2009 5/12 A A A	95 2009 5/22 A A A	96 2009 6/01 A A A	97 2009 6/11 A A A	98 2009 6/21 A A A	99 2009 7/01 A A A
100 2009 7/11 A A A	101 2009 7/21 A A A	102 2009 7/31 A A A	103 2009 8/10 A A A	104 2009 8/20 A A A	105 2009 8/30 A A A	106 2009 9/09 A A A	107 2009 9/19 A A A	108 2009 9/29 A A A	109 2009 10/09 A A A	110 2009 10/19 A A A	111 2009 10/29 A A B	112 2009 11/08 A A A	113 2009 11/18 A A A	114 2009 11/28 A A A	115 2009 12/08 A A A	116 2009 12/18 A A A	117 2009 12/28 A A A	118 2010 1/07 A A A	119 2010 1/17 A A A
120 2010 1/27 A A A	121 2010 2/06 A A A	122 2010 2/16 A A A	123 2010 2/26 A A A	124 2010 3/08 A A A	125 2010 3/18 A A A	126 2010 3/28 A A A

Creation Date: 2024-02-27
