WMO # 3900582

Argo Float WMO # 3900582 : Plots based on data files at the GDAC

Metadata:
WMO #:	3900582
PI:	Breck Owens
DAC:	AOML

DAC #:	2030
WHOI Float #:	594
Last Heard From:	2011-12-25
Longevity:	5.48 yrs

Hardware:
Telcom:	ARGOS 64084
Telcom:	ARGOS 64084
Instrument:	SS110_SB17
ROM version:	1.10
Temperature:	SBE41CP, s/n: 1118
Conductivity:	SBE41CP, s/n: 1118
Pressure:	Druck, s/n: 8044

Deployment:
Deployed:	2006-07-03
Latitude:	21.068
Longitude:	-67.164
Deployment Platform:	Hawaii
Cruise ID:	AX10
Deployer:	Andrew Stefanick

GDAC file status:
Last Update:	2019-07-10
Profiles at GDAC:	201
GDAC D-files:	201
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

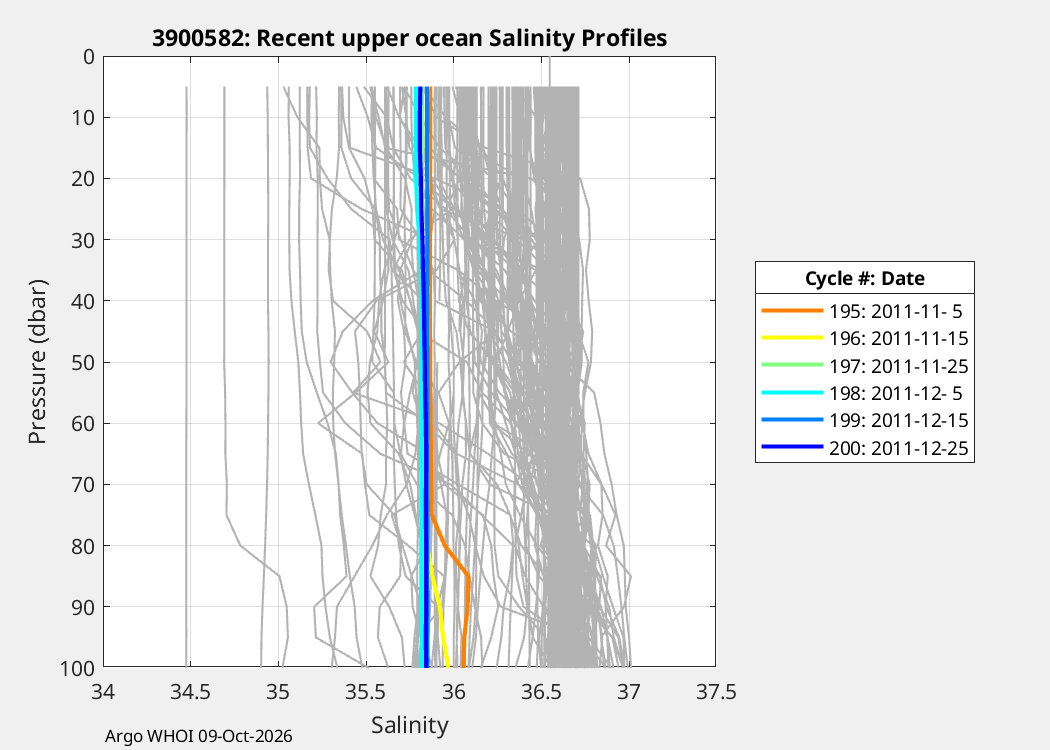

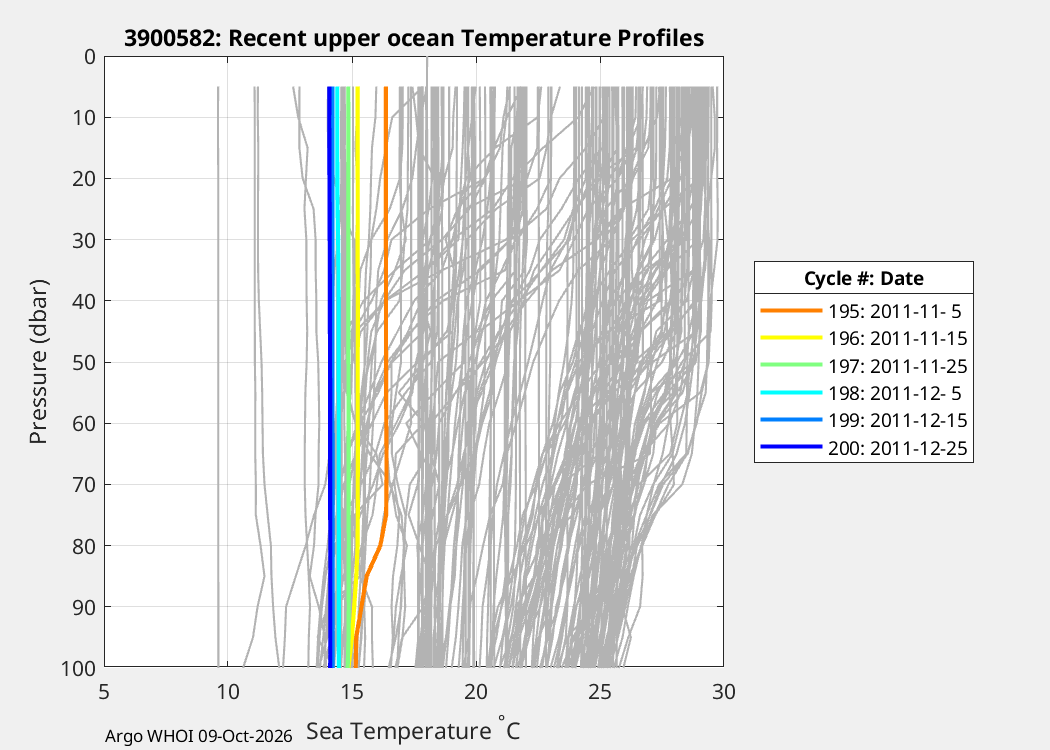

Temperature Profiles	Salinity Profiles

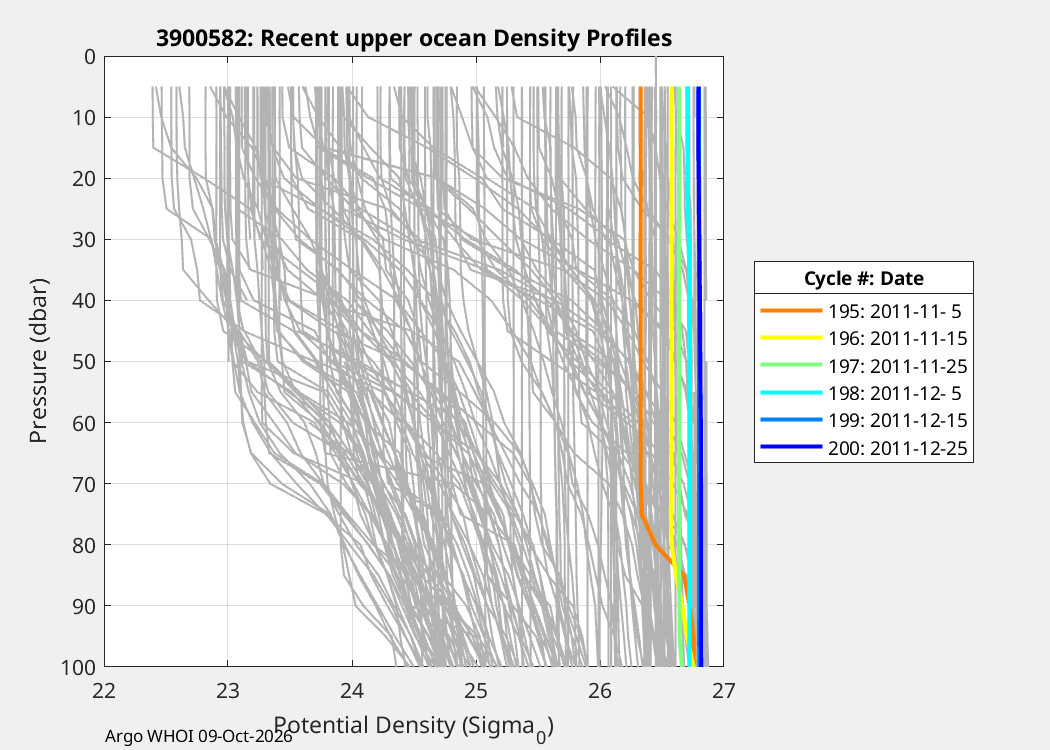

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2006 7/04 A A B	1 2006 7/14 A A A	2 2006 7/24 A A B	3 2006 8/03 A A A	4 2006 8/13 A A A	5 2006 8/23 A A A	6 2006 9/02 A A A	7 2006 9/12 A A A	8 2006 9/22 A A A	9 2006 10/02 A A A	10 2006 10/12 A A A	11 2006 10/22 A A A	12 2006 11/01 A A A	13 2006 11/11 A A A	14 2006 11/21 A A A	15 2006 12/01 A A A	16 2006 12/11 A A A	17 2006 12/21 A A A	18 2006 12/31 A A A	19 2007 1/10 A A A
20 2007 1/20 A A A	21 2007 1/30 A A A	22 2007 2/09 A A A	23 2007 2/19 A A A	24 2007 3/01 A A A	25 2007 3/11 A A A	26 2007 3/21 A A A	27 2007 3/31 A A A	28 2007 4/10 A A A	29 2007 4/20 A A A	30 2007 4/30 A A A	31 2007 5/10 A A A	32 2007 5/20 A A A	33 2007 5/30 A A A	34 2007 6/09 A A A	35 2007 6/19 A A B	36 2007 6/29 A A B	37 2007 7/09 A A A	38 2007 7/19 A A A	39 2007 7/29 A A B
40 2007 8/08 A A A	41 2007 8/18 A A A	42 2007 8/28 A A B	43 2007 9/07 A A A	44 2007 9/17 A A B	45 2007 9/27 A A A	46 2007 10/07 A A A	47 2007 10/17 A A A	48 2007 10/27 A A A	49 2007 11/06 A A A	50 2007 11/16 A A A	51 2007 11/26 A A A	52 2007 12/06 A A A	53 2007 12/16 A A A	54 2007 12/26 A A A	55 2008 1/05 A A A	56 2008 1/15 A A A	57 2008 1/25 A A A	58 2008 2/04 A A A	59 2008 2/14 A A A
60 2008 2/24 A A A	61 2008 3/05 A A A	62 2008 3/15 A A A	63 2008 3/25 A A A	64 2008 4/04 A A A	65 2008 4/14 A A A	66 2008 4/24 A A A	67 2008 5/04 A A A	68 2008 5/14 A A A	69 2008 5/24 A A A	70 2008 6/03 A A A	71 2008 6/13 A A A	72 2008 6/23 A A A	73 2008 7/03 A A A	74 2008 7/13 A A A	75 2008 7/23 A A A	76 2008 8/02 A A A	77 2008 8/12 A A A	78 2008 8/22 A A A	79 2008 9/01 A A B
80 2008 9/11 A A B	81 2008 9/21 A A A	82 2008 10/01 A A A	83 2008 10/11 A A A	84 2008 10/21 A A A	85 2008 10/31 A A A	86 2008 11/10 A A A	87 2008 11/20 A A A	88 2008 11/30 A A A	89 2008 12/10 A A A	90 2008 12/20 A A A	91 2008 12/30 A A A	92 2009 1/09 A A A	93 2009 1/19 A A A	94 2009 1/29 A A A	95 2009 2/08 A A A	96 2009 2/18 A A A	97 2009 2/28 A A A	98 2009 3/10 A A A	99 2009 3/20 A A A
100 2009 3/30 A A A	101 2009 4/09 A A A	102 2009 4/19 A A A	103 2009 4/29 A A A	104 2009 5/09 A A A	105 2009 5/19 A A B	106 2009 5/29 A A A	107 2009 6/08 A A A	108 2009 6/18 A A A	109 2009 6/28 A A A	110 2009 7/08 A A A	111 2009 7/18 A A A	112 2009 7/28 A A A	113 2009 8/07 A A A	114 2009 8/17 A A A	115 2009 8/27 A A A	116 2009 9/06 A A A	117 2009 9/16 A A A	118 2009 9/26 A A A	119 2009 10/06 A A A
120 2009 10/16 A A A	121 2009 10/26 A A A	122 2009 11/05 A A A	123 2009 11/15 A A A	124 2009 11/25 A A A	125 2009 12/05 A A A	126 2009 12/15 A A A	127 2009 12/25 A A A	128 2010 1/04 A A A	129 2010 1/14 A A A	130 2010 1/24 A A A	131 2010 2/03 A A A	132 2010 2/13 A A A	133 2010 2/23 A A A	134 2010 3/04 A A A	135 2010 3/15 A A A	136 2010 3/25 A A A	137 2010 4/04 A A A	138 2010 4/14 A A A	139 2010 4/24 A A A
140 2010 5/04 A A A	141 2010 5/14 A A A	142 2010 5/24 A A A	143 2010 6/03 A A A	144 2010 6/13 A A A	145 2010 6/23 A A A	146 2010 7/03 A A A	147 2010 7/13 A A A	148 2010 7/23 A A A	149 2010 8/02 A A A	150 2010 8/12 A A A	151 2010 8/22 A A A	152 2010 9/01 A A A	153 2010 9/11 A A A	154 2010 9/21 A A A	155 2010 10/01 A A A	156 2010 10/11 A A A	157 2010 10/21 A A A	158 2010 10/31 A A A	159 2010 11/10 A A A
160 2010 11/20 A A A	161 2010 11/30 A A A	162 2010 12/10 A A A	163 2010 12/20 A A A	164 2010 12/30 A A A	165 2011 1/09 A A A	166 2011 1/19 A A A	167 2011 1/29 A A A	168 2011 2/08 A A A	169 2011 2/18 A A B	170 2011 2/28 A A A	171 2011 3/10 A A A	172 2011 3/20 A A A	173 2011 3/30 A A B	174 2011 4/09 A A A	175 2011 4/19 A B A	176 2011 4/29 A A A	177 2011 5/09 A A B	178 2011 5/19 A A A	179 2011 5/29 A A A
180 2011 6/08 A A A	181 2011 6/18 A A B	182 2011 6/28 A A A	183 2011 7/08 A A B	184 2011 7/18 A A A	185 2011 7/28 A A B	186 2011 8/07 A A A	187 2011 8/17 A A A	188 2011 8/27 A A A	189 2011 9/06 A A A	190 2011 9/16 A A A	191 2011 9/26 A A A	192 2011 10/06 A A A	193 2011 10/16 A A A	194 2011 10/26 A A A	195 2011 11/05 A A A	196 2011 11/15 A A B	197 2011 11/25 A A B	198 2011 12/05 A A A	199 2011 12/15 A A A
200 2011 12/25 A A B

Creation Date: 2024-08-27
