WMO # 3900404

Argo Float WMO # 3900404 : Plots based on data files at the GDAC

Metadata:
WMO #:	3900404
PI:	Breck Owens
DAC:	AOML

DAC #:	1209
WHOI Float #:	381
Last Heard From:	2009-03-20
Longevity:	4.08 yrs

Hardware:
Telcom:	ARGOS 52729
Telcom:	ARGOS 52729
Instrument:	SS110_SB17
ROM version:	1.10
Temperature:	SBE41CP, s/n: 0113
Conductivity:	SBE41CP, s/n: 0113
Pressure:	Druck, s/n: 2657710703

Deployment:
Deployed:	2005-02-18
Latitude:	-7.000
Longitude:	-25.000
Deployment Platform:	Ronald H. Brown
Cruise ID:	n/a
Deployer:	Carlos Fonseca

GDAC file status:
Last Update:	2019-07-08
Profiles at GDAC:	145
GDAC D-files:	145
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

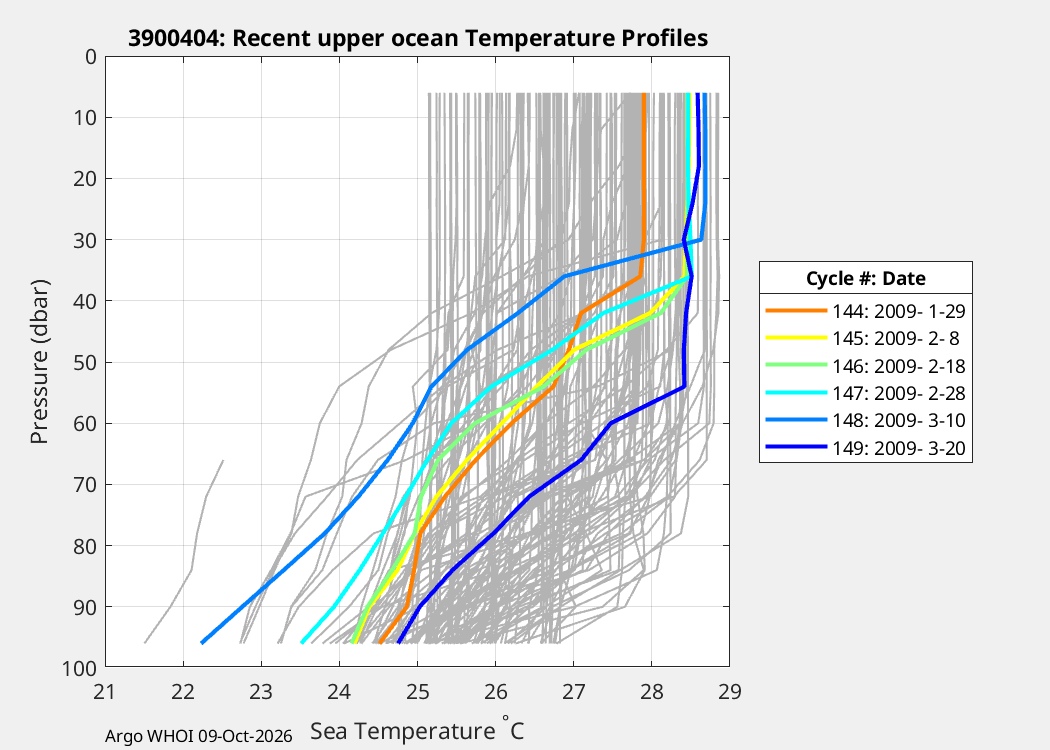

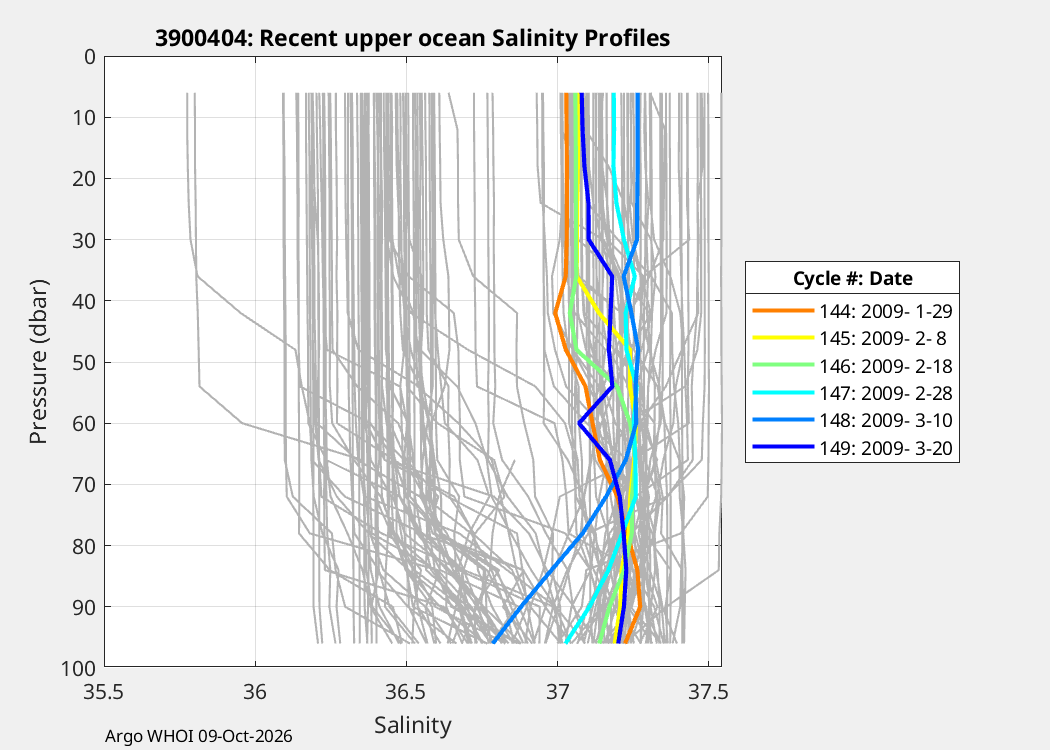

Temperature Profiles	Salinity Profiles

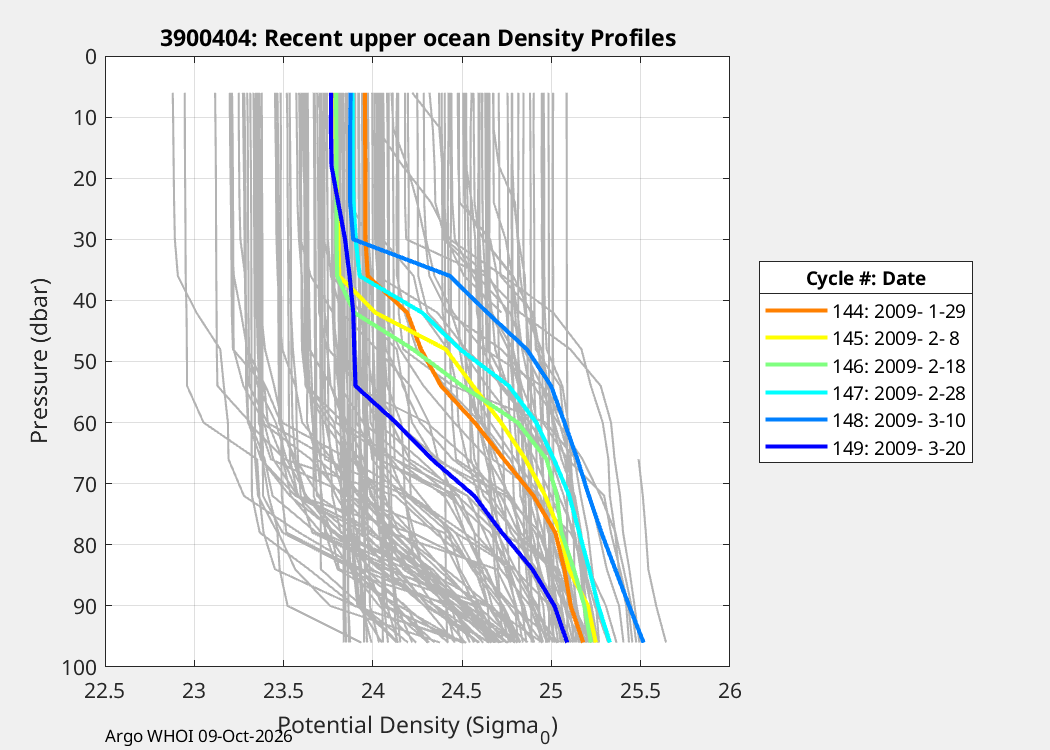

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2005 2/19 A A A	1 2005 3/01 A B A	2 2005 3/11 A B A	3 2005 3/21 A B A	4 2005 3/31 A B B	5 2005 4/10 A B A	6 2005 4/20 A B A	7 2005 4/30 A B A	8 2005 5/10 A B A	9 2005 5/20 A B A	10 2005 5/30 A A A	11 2005 6/09 A B A	12 2005 6/19 A A A	13 2005 6/29 A B A	14 2005 7/09 A B B	15 2005 7/19 A B A	16 2005 7/29 A B A	17 2005 8/08 A A A	18 2005 8/18 A A A	19 2005 8/28 A A A
20 2005 9/07 A A A	21 2005 9/17 A A A	22 2005 9/27 A A A	23 2005 10/07 A A A	24 2005 10/17 A A A	25 2005 10/27 A A A	26 2005 11/06 A A A	27 2005 11/16 A A A	28 2005 11/26 A A A	29 2005 12/06 A A A	30 2005 12/16 A A A	31 2005 12/26 A B A	32 2006 1/05 A A A	33 2006 1/15 A A A	34 2006 1/25 A B A	35 2006 2/04 A A A	36 2006 2/14 A A A	37 2006 2/24 A A A	38 2006 3/06 A A A	39 2006 3/16 A A A
40 2006 3/26 A A A	41 2006 4/05 A A A	42 2006 4/15 A A A	43 2006 4/25 A A A	44 2006 5/05 A A A	45 2006 5/15 A A A	46 2006 5/25 A A A	47 2006 6/04 A A A	48 2006 6/14 A A A	49 2006 6/24 A A A	50 2006 7/04 A A A	51 2006 7/14 A B A	52 2006 7/24 A A A	53 2006 8/03 A A A	54 2006 8/13 A A A	55 2006 8/23 A A A	56 2006 9/02 A A A	57 2006 9/12 A A A	58 2006 9/22 A A A	59 2006 10/02 A A A
60 2006 10/12 A A A	61 2006 10/22 A A A	62 2006 11/01 A B A	63 2006 11/11 A B A	64 2006 11/21 A B A	65 2006 12/01 A A A	66 2006 12/11 A A A	67 2006 12/21 A A A	68 2006 12/31 A A A	69 2007 1/10 A A A	70 2007 1/20 A A A	71 2007 1/30 A A A	72 2007 2/09 A A A	73 2007 2/19 A A A	74 2007 3/01 A A A	75 2007 3/11 A A A	76 2007 3/21 A A A	77 2007 3/31 A A A	78 2007 4/10 A A A	79 2007 4/20 A A A
80 2007 4/30 A A A	81 2007 5/10 A A A	82 2007 5/20 A A A	83 2007 5/30 A A A	84 2007 6/09 A A A	85 2007 6/19 A B B	86 2007 6/29 A B B	87 2007 7/09 A A A	88 2007 7/19 A A A	89 2007 7/29 A A A	90 2007 8/08 A A A	91 2007 8/18 A A A	92 2007 8/28 A A A	93 2007 9/07 A A A	94 2007 9/17 A A A	95 2007 9/27 A A A	96 2007 10/07 A B B	97 2007 10/17 A A A	98 2007 10/27 A A A	99 2007 11/06 A B B
100 2007 11/16 A B B	101 2007 11/26 A A A	102 2007 12/06 A B B	103 2007 12/16 A B B	104 2007 12/26 A B B	105 2008 1/05 A A A	106 2008 1/15 A A A		108 2008 2/04 A B B	109 2008 2/14 A B B	110 2008 2/24 A B B	111 2008 3/05 A F F		113 2008 3/25 A C C	114 2008 4/04 A B B	115 2008 4/14 A B B	116 2008 4/24 A A A	117 2008 5/04 A B B	118 2008 5/14 A A A	119 2008 5/24 A A A
120 2008 6/03 A A A	121 2008 6/13 A B B	122 2008 6/23 A B B	123 2008 7/03 A B B	124 2008 7/13 A B A	125 2008 7/23 A B A	126 2008 8/02 A B A	127 2008 8/12 A A A	128 2008 8/22 A B B	129 2008 9/01 A A A	130 2008 9/11 A A A	131 2008 9/21 A A A		133 2008 10/11 A B B	134 2008 10/21 A B B		136 2008 11/10 A F F		138 2008 11/30 A B B	139 2008 12/10 A A A
140 2008 12/20 A B B	141 2008 12/30 A B B	142 2009 1/09 A B B	143 2009 1/19 A B B	144 2009 1/29 A A A	145 2009 2/08 A A A	146 2009 2/18 A B B	147 2009 2/28 A B B	148 2009 3/10 A A A	149 2009 3/20 A B B

Creation Date: 2024-08-27
