WMO # 3900356

Argo Float WMO # 3900356 : Plots based on data files at the GDAC

Metadata:
WMO #:	3900356
PI:	Breck Owens
DAC:	AOML

DAC #:	1098
WHOI Float #:	347
Last Heard From:	2010-03-12
Longevity:	5.23 yrs

Hardware:
Telcom:	ARGOS 46217
Telcom:	ARGOS 46217
Instrument:	SOLO_TS16
ROM version:	1.10
Temperature:	SBE41CP, s/n: 0539
Conductivity:	SBE41CP, s/n: 0539
Pressure:	Druck, s/n: n/a

Deployment:
Deployed:	2004-12-18
Latitude:	-21.997
Longitude:	-86.587
Deployment Platform:	Stratus
Cruise ID:	n/a
Deployer:	unknown

GDAC file status:
Last Update:	2020-12-03
Profiles at GDAC:	161
GDAC D-files:	161
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

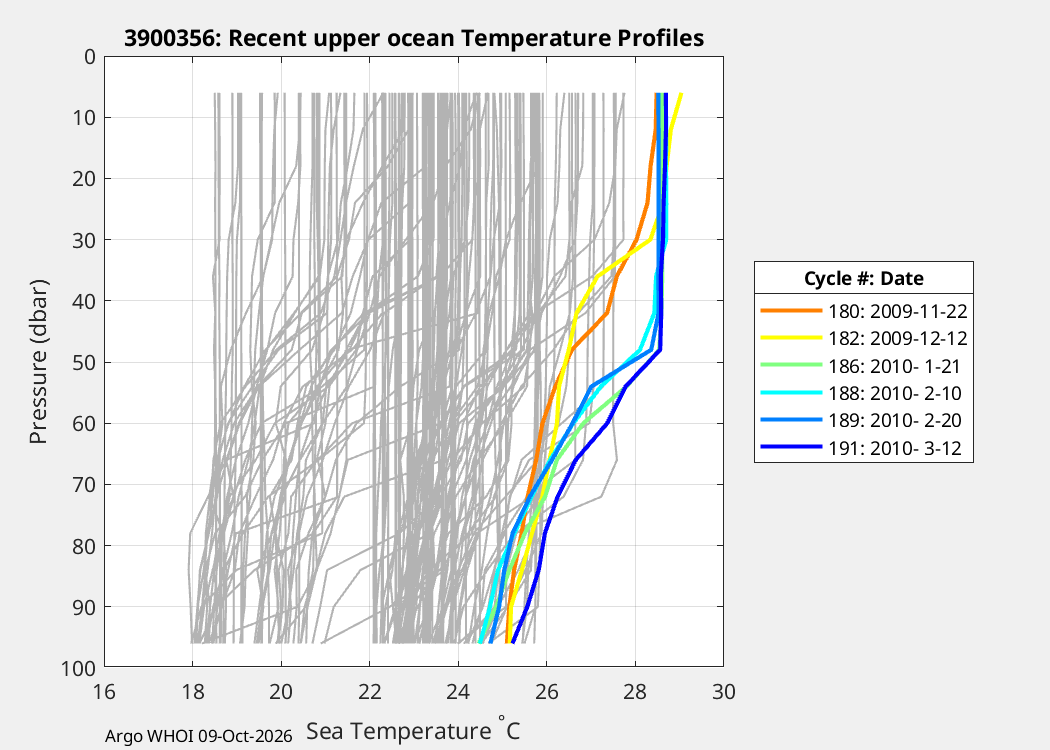

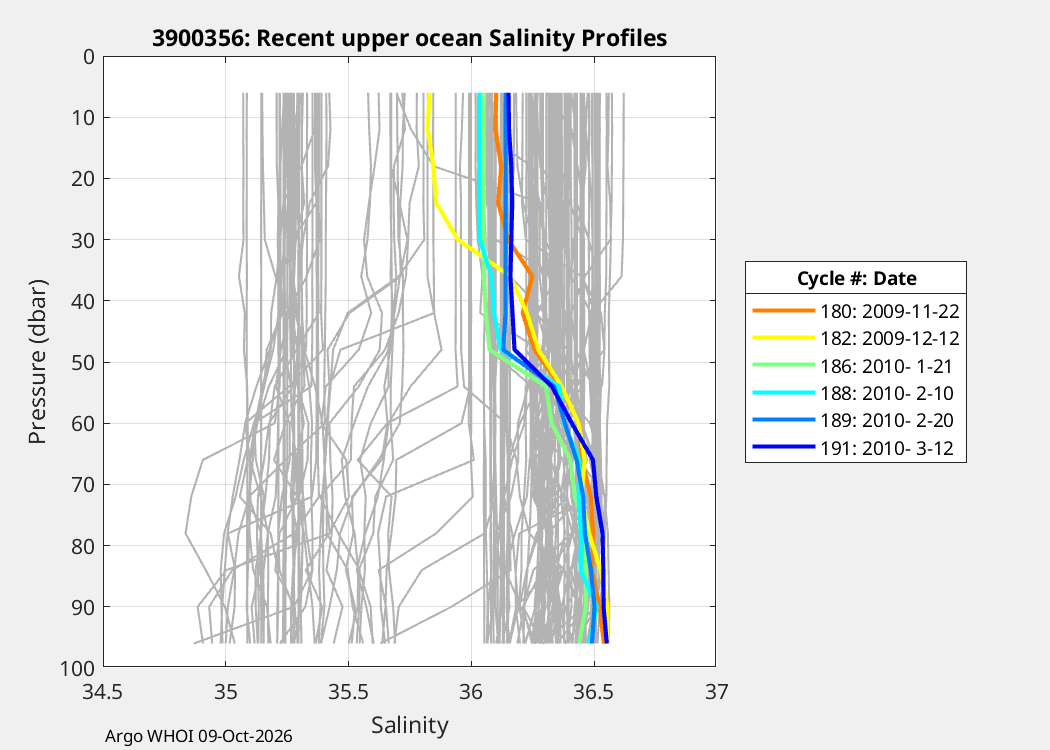

Temperature Profiles	Salinity Profiles

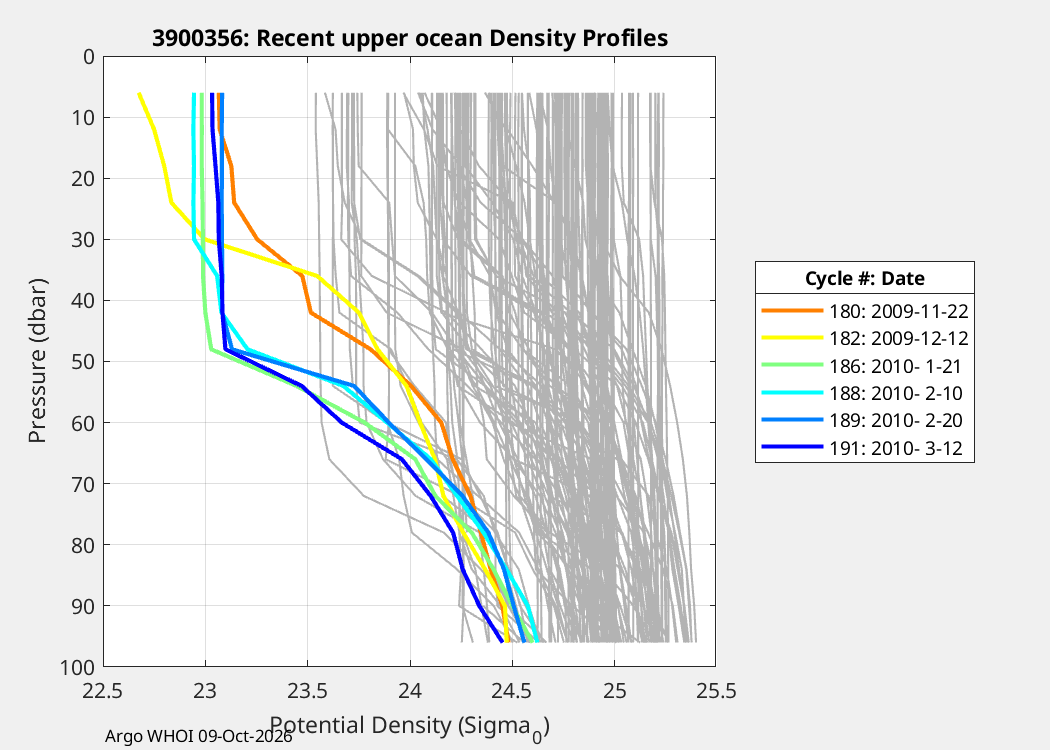

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2004 12/18 A B B	1 2004 12/28 A B B	2 2005 1/07 A B B	3 2005 1/17 A B B	4 2005 1/27 A C C	5 2005 2/06 A C C	6 2005 2/16 A C C	7 2005 2/26 A C C	8 2005 3/08 A C C	9 2005 3/18 A C C	10 2005 3/28 A C C	11 2005 4/07 A B B	12 2005 4/17 A B B	13 2005 4/27 A B B	14 2005 5/07 A B B	15 2005 5/17 A B B	16 2005 5/27 A C C	17 2005 6/06 A C C	18 2005 6/16 A C C	19 2005 6/26 A C C
20 2005 7/06 A C C	21 2005 7/16 A C C	22 2005 7/26 A C C	23 2005 8/05 A C C	24 2005 8/15 A C C	25 2005 8/25 A C C	26 2005 9/04 A C C	27 2005 9/14 A C C	28 2005 9/24 A C C	29 2005 10/04 A C C	30 2005 10/14 A C C	31 2005 10/24 A C C	32 2005 11/03 A C C	33 2005 11/13 A C C	34 2005 11/23 A C C	35 2005 12/03 A C C	36 2005 12/13 A C C	37 2005 12/23 A C C	38 2006 1/02 A C C	39 2006 1/12 A C C
40 2006 1/22 A C C	41 2006 2/01 A C C	42 2006 2/11 A C C	43 2006 2/21 A C C	44 2006 3/03 A C C	45 2006 3/13 A C C	46 2006 3/23 A C C	47 2006 4/02 A C C	48 2006 4/12 A C C	49 2006 4/22 A C C	50 2006 5/02 A C C	51 2006 5/12 A C C	52 2006 5/22 A C C	53 2006 6/01 A C C	54 2006 6/11 A C C	55 2006 6/21 A C C	56 2006 7/01 A C C	57 2006 7/11 A C C	58 2006 7/21 A C C	59 2006 7/31 A C C
60 2006 8/10 A C C	61 2006 8/20 A C C	62 2006 8/30 A C C	63 2006 9/09 A C C	64 2006 9/19 A C C	65 2006 9/29 A C C	66 2006 10/09 A C C	67 2006 10/19 A C C	68 2006 10/29 A C C	69 2006 11/08 A C C	70 2006 11/18 A C C	71 2006 11/28 A C C	72 2006 12/08 A C C	73 2006 12/18 A C C	74 2006 12/28 A C C	75 2007 1/07 A C C	76 2007 1/17 A B B	77 2007 1/27 A C C	78 2007 2/06 A C C	79 2007 2/16 A C C
80 2007 2/26 A C C		82 2007 3/18 A C C			85 2007 4/17 A C C		87 2007 5/07 A C C	88 2007 5/17 A C C	89 2007 5/27 A C C	90 2007 6/06 A C C	91 2007 6/16 A C C	92 2007 6/26 A C C	93 2007 7/06 A C C	94 2007 7/16 A B B			97 2007 8/15 A B B	98 2007 8/25 A C C	99 2007 9/04 A B B
100 2007 9/14 A C C	101 2007 9/24 A C C	102 2007 10/04 A C C	103 2007 10/14 A C C	104 2007 10/24 A C C	105 2007 11/03 A C C	106 2007 11/13 A C C	107 2007 11/23 A C C	108 2007 12/03 A C C	109 2007 12/13 A C C	110 2007 12/23 A B B	111 2008 1/02 A B B		113 2008 1/22 A B B	114 2008 2/01 A B B		116 2008 2/21 A B B		118 2008 3/12 A C C	119 2008 3/22 A C C
120 2008 4/01 A C C	121 2008 4/11 A C C	122 2008 4/21 A C C	123 2008 5/01 A C C	124 2008 5/11 A C C	125 2008 5/21 A C C	126 2008 5/31 D C C	127 2008 6/10 A C C	128 2008 6/20 A C C	129 2008 6/30 A C C	130 2008 7/10 A C C	131 2008 7/20 A B B			134 2008 8/19 A B B	135 2008 8/29 A B B	136 2008 9/08 A B B		138 2008 9/28 A C C	139 2008 10/08 A B B
140 2008 10/18 B B B	141 2008 10/28 A B B	142 2008 11/07 A C C	143 2008 11/17 A D D		145 2008 12/07 A B B		147 2008 12/27 A B B	148 2009 1/06 A B B		150 2009 1/26 A B B	151 2009 2/05 A B B	152 2009 2/15 A B B		154 2009 3/07 A B B			157 2009 4/06 A B B	158 2009 4/16 A B B	159 2009 4/26 A B B
	161 2009 5/16 F F F	162 2009 5/26 A B B	163 2009 6/05 A C C	164 2009 6/15 A C C	165 2009 6/25 A C C	166 2009 7/05 A B B	167 2009 7/15 A B B	168 2009 7/25 A B B	169 2009 8/04 F F F				173 2009 9/13 A B B		175 2009 10/03 A B B	176 2009 10/13 A B B	177 2009 10/23 A B B
180 2009 11/22 A B B		182 2009 12/12 A B B				186 2010 1/21 A B B		188 2010 2/10 A B B	189 2010 2/20 A B B		191 2010 3/12 A B B

Creation Date: 2024-12-06
