WMO # 3900199

Argo Float WMO # 3900199 : Plots based on data files at the GDAC

Metadata:
WMO #:	3900199
PI:	Breck Owens
DAC:	AOML

DAC #:	653
WHOI Float #:	265
Last Heard From:	2009-05-11
Longevity:	5.45 yrs

Hardware:
Telcom:	ARGOS 40690
Telcom:	ARGOS 40690
Instrument:	SOLO_TS16
ROM version:	1.10
Temperature:	EXCELL, s/n: 1540
Conductivity:	EXCELL, s/n: 1540
Pressure:	Druck, s/n: n/a

Deployment:
Deployed:	2003-11-20
Latitude:	-29.984
Longitude:	-17.023
Deployment Platform:	Mirai
Cruise ID:	n/a
Deployer:	n/a

GDAC file status:
Last Update:	2019-11-04
Profiles at GDAC:	200
GDAC D-files:	200
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

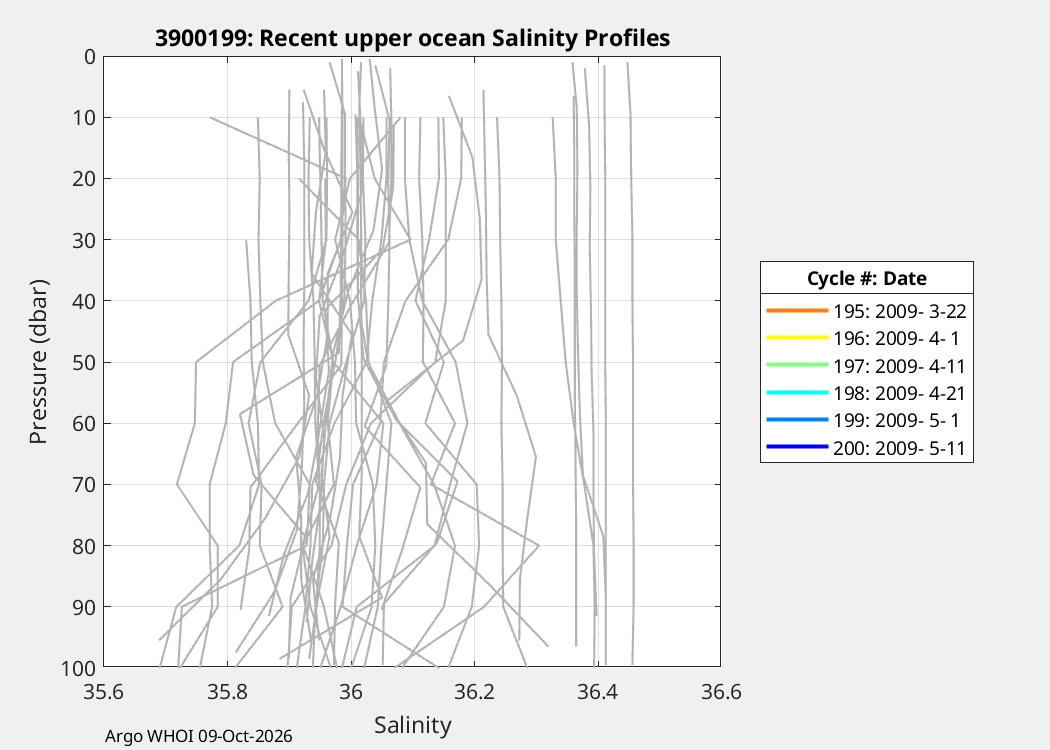

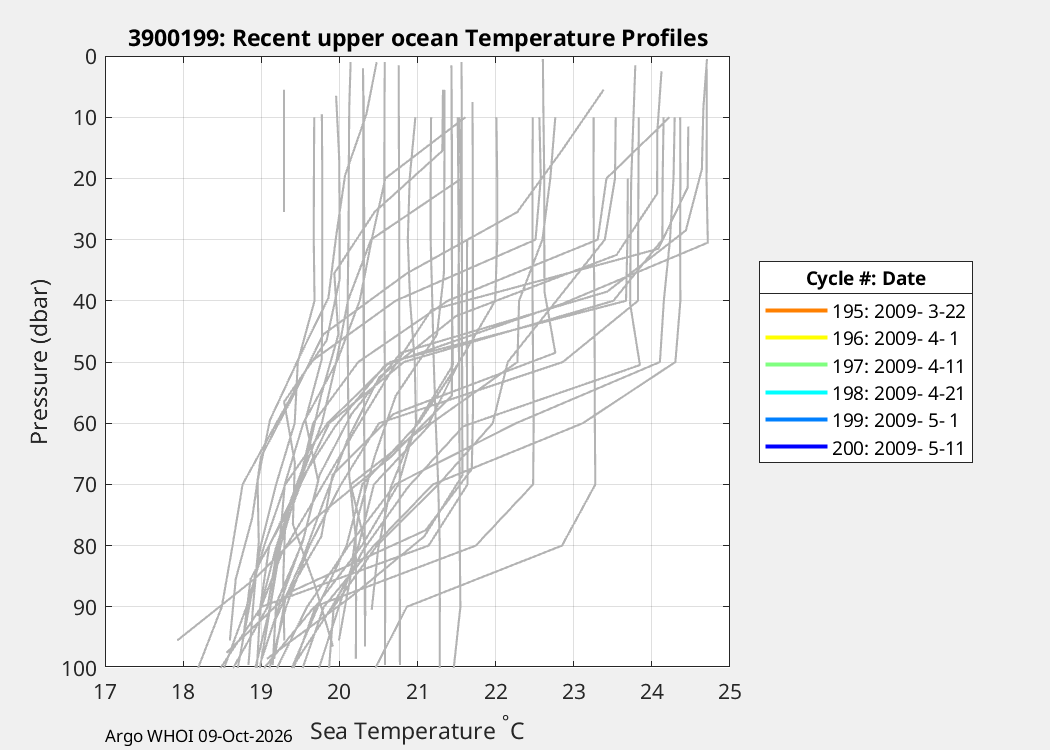

Temperature Profiles	Salinity Profiles

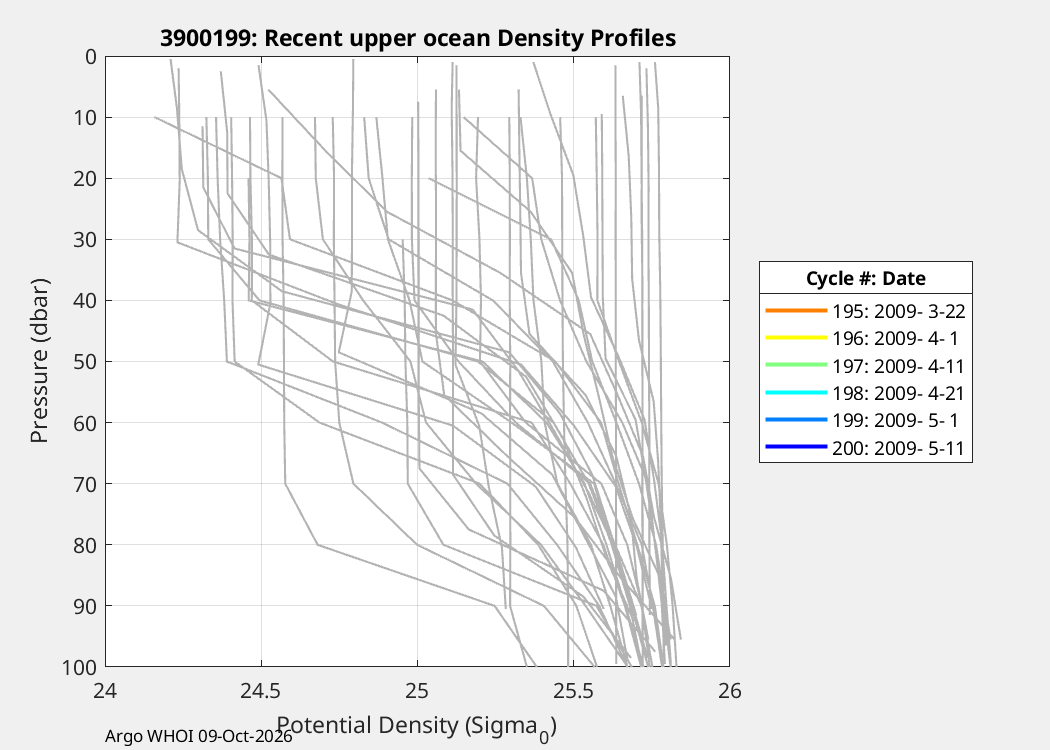

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2003 11/29 A A A	2 2003 12/09 A B B	3 2003 12/19 A A A	4 2003 12/29 B B B	5 2004 1/08 A A A	6 2004 1/18 A A A	7 2004 1/28 A B B	8 2004 2/07 A A A	9 2004 2/17 A B B	10 2004 2/27 A A A	11 2004 3/08 A A A	12 2004 3/18 A A A	13 2004 3/28 A A A	14 2004 4/07 A A A	15 2004 4/17 A A A	16 2004 4/27 A A A	17 2004 5/07 A A A	18 2004 5/17 A A A	19 2004 5/27 A B B
20 2004 6/06 B B B	21 2004 6/16 B B B	22 2004 6/26 A A A	23 2004 7/06 A A A	24 2004 7/16 A A A	25 2004 7/26 A A A	26 2004 8/05 A A A	27 2004 8/15 B B B	28 2004 8/25 A A A	29 2004 9/04 A A A	30 2004 9/14 B B B	31 2004 9/24 A A A	32 2004 10/04 B B B	33 2004 10/14 A A A	34 2004 10/24 A B B	35 2004 11/03 A A A	36 2004 11/13 B B B	37 2004 11/23 A A A	38 2004 12/03 B B B	39 2004 12/13 A A A
40 2004 12/23 A A A	41 2005 1/02 A A A	42 2005 1/12 A A A	43 2005 1/22 A F F	44 2005 2/01 A F F	45 2005 2/11 A F F	46 2005 2/21 B F F	47 2005 3/03 A F F	48 2005 3/13 A F F	49 2005 3/23 A F F	50 2005 4/02 A F F	51 2005 4/12 A F F	52 2005 4/22 A F F	53 2005 5/02 A F F	54 2005 5/12 A F F	55 2005 5/22 A F F	56 2005 6/01 A F F	57 2005 6/11 A F F	58 2005 6/21 A F F	59 2005 7/01 A F F
60 2005 7/11 B F F	61 2005 7/21 A F F	62 2005 7/31 A F F	63 2005 8/10 A F F	64 2005 8/20 A F F	65 2005 8/30 A F F	66 2005 9/09 A F F	67 2005 9/19 A F F	68 2005 9/29 A F F	69 2005 10/09 A F F	70 2005 10/19 A F F	71 2005 10/29 A F F	72 2005 11/08 A F F	73 2005 11/18 A F F	74 2005 11/28 A F F	75 2005 12/08 A F F	76 2005 12/18 A F F	77 2005 12/28 A F F	78 2006 1/07 A F F	79 2006 1/17 A F F
80 2006 1/27 A F F	81 2006 2/06 A F F	82 2006 2/16 A F F	83 2006 2/26 A F F	84 2006 3/08 A F F	85 2006 3/18 A F F	86 2006 3/28 A F F	87 2006 4/07 A F F	88 2006 4/17 A F F	89 2006 4/27 A F F	90 2006 5/07 A F F	91 2006 5/17 A F F	92 2006 5/27 A F F	93 2006 6/06 A F F	94 2006 6/16 A F F	95 2006 6/26 A F F	96 2006 7/06 A F F	97 2006 7/16 A F F	98 2006 7/26 A F F	99 2006 8/05 B F F
100 2006 8/15 A F F	101 2006 8/25 A F F	102 2006 9/04 A F F	103 2006 9/14 B F F	104 2006 9/24 A F F	105 2006 10/04 A F F	106 2006 10/14 A F F	107 2006 10/24 A F F	108 2006 11/03 A F F	109 2006 11/13 A F F	110 2006 11/23 A F F	111 2006 12/03 A F F	112 2006 12/13 A F F	113 2006 12/22 A F F	114 2007 1/02 A F F	115 2007 1/12 A F F	116 2007 1/22 A F F	117 2007 2/01 A F F	118 2007 2/11 A F F	119 2007 2/21 A F F
120 2007 3/03 A F F	121 2007 3/13 A F F	122 2007 3/23 A F F	123 2007 4/02 A F F	124 2007 4/12 A F F	125 2007 4/22 A F F	126 2007 5/02 A F F	127 2007 5/12 A F F	128 2007 5/22 A F F	129 2007 6/01 A F F	130 2007 6/11 A F F	131 2007 6/21 A F F	132 2007 7/01 A F F	133 2007 7/11 A F F	134 2007 7/21 A F F	135 2007 7/31 A F F	136 2007 8/10 A F F	137 2007 8/20 A F F	138 2007 8/30 A F F	139 2007 9/09 A F F
140 2007 9/19 A F F	141 2007 9/29 A F F	142 2007 10/09 A F F	143 2007 10/19 A F F	144 2007 10/29 A F F	145 2007 11/08 A F F	146 2007 11/18 A F F	147 2007 11/28 B F F	148 2007 12/08 A F F	149 2007 12/18 A F F	150 2007 12/28 A F F	151 2008 1/07 B F F	152 2008 1/17 A F F	153 2008 1/27 A F F	154 2008 2/06 B F F	155 2008 2/16 B F F	156 2008 2/26 A F F	157 2008 3/07 A F F	158 2008 3/17 A F F	159 2008 3/27 A F F
160 2008 4/06 A F F	161 2008 4/16 A F F	162 2008 4/26 A F F	163 2008 5/06 A F F	164 2008 5/16 A F F	165 2008 5/26 A F F	166 2008 6/05 A F F	167 2008 6/15 A F F	168 2008 6/25 A F F	169 2008 7/05 A F F	170 2008 7/15 A F F	171 2008 7/25 A F F	172 2008 8/04 A F F	173 2008 8/14 A F F	174 2008 8/24 A F F	175 2008 9/03 A F F	176 2008 9/13 A F F	177 2008 9/23 A F F	178 2008 10/03 A F F	179 2008 10/13 A F F
180 2008 10/23 A F F	181 2008 11/02 A F F	182 2008 11/12 A F F	183 2008 11/22 A F F	184 2008 12/02 A F F	185 2008 12/12 A F F	186 2008 12/22 A F F	187 2009 1/01 A F F	188 2009 1/11 A F F	189 2009 1/21 A F F	190 2009 1/31 A F F	191 2009 2/10 A F F	192 2009 2/20 A F F	193 2009 3/02 A F F	194 2009 3/12 A F F	195 2009 3/22 A F F	196 2009 4/01 A F F	197 2009 4/11 A F F	198 2009 4/21 A F F	199 2009 5/01 A F F
200 2009 5/11 B F F
