Argo Float WMO # 1902499 : Plots based on data files at the GDAC

Metadata:
WMO #: 1902499
PI: Nicholson, Wijffels
DAC: AOML

DAC #: 9407
WHOI Float #: 1562
Last Heard From: 2024-11-11
Longevity: 269 days

Hardware:
Telcom: IRIDIUM 1562
Telcom: IRIDIUM 1562
Instrument: 6
ROM version: 190520
Temperature: SBE41CP_V5.3.5, s/n: 19408
Conductivity: SBE41CP_V5.3.5, s/n: 19408
Pressure: DRUCK, s/n: 12310709

Deployment:
Deployed: 0-00-49
Latitude: -3.517
Longitude: -3.000
Deployment Platform: Marcus G. Langseth
Cruise ID: A13.5
Deployer: Jesse Anderson

GDAC file status:
Last Update: 2024-11-13
Profiles at GDAC: 27
GDAC D-files: 0
GDAC R-files: 27

Links (at WHOI):
BGC Argo database: 1562

Links (offsite):
Data Visualizations: at EuroArgo
Data Visualizations: at ArgoVis
Data Visualizations: at IFREMER
Altimeter Comparison: IFREMER
GDAC (data archive): GODAE
GDAC (data archive): Coriolis

Key: DMQC Status

DMQC Status
Profile Positions
Temperature-Salinity Relation
Deep T-S Relation
Temperature Sections (0-500 dbar)
Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)
Salt Anomaly Sections (0-500 dbar)
Temperature Sections
Salinity Sections
Density Sections
Salt Anomaly Sections

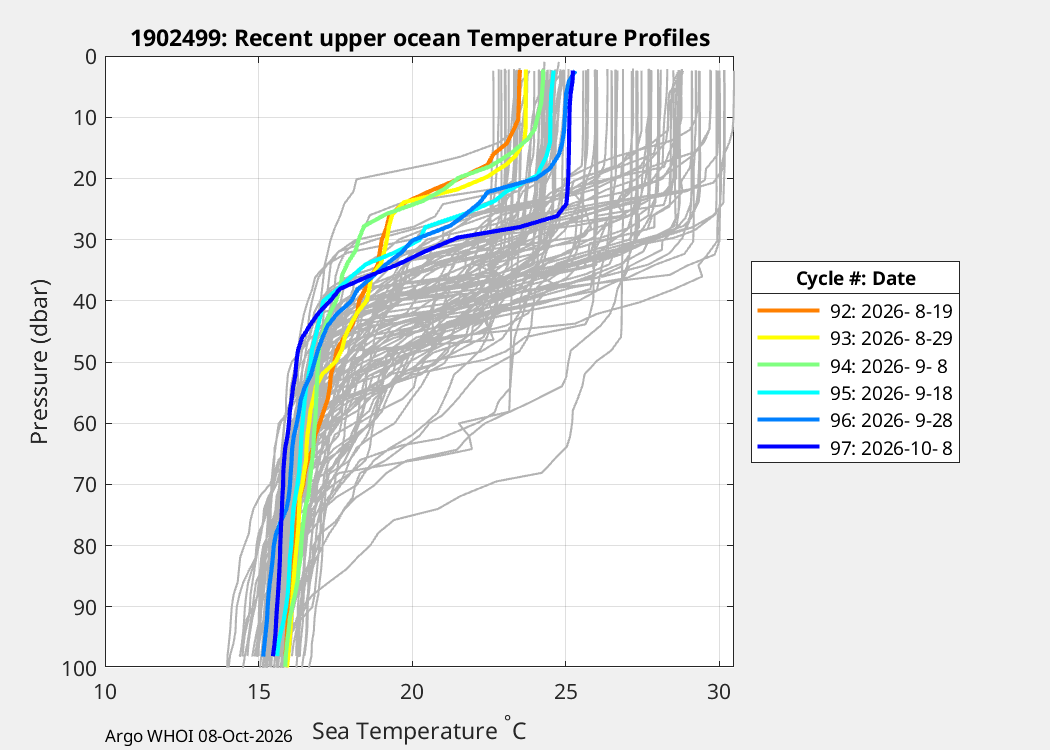

Temperature Profiles

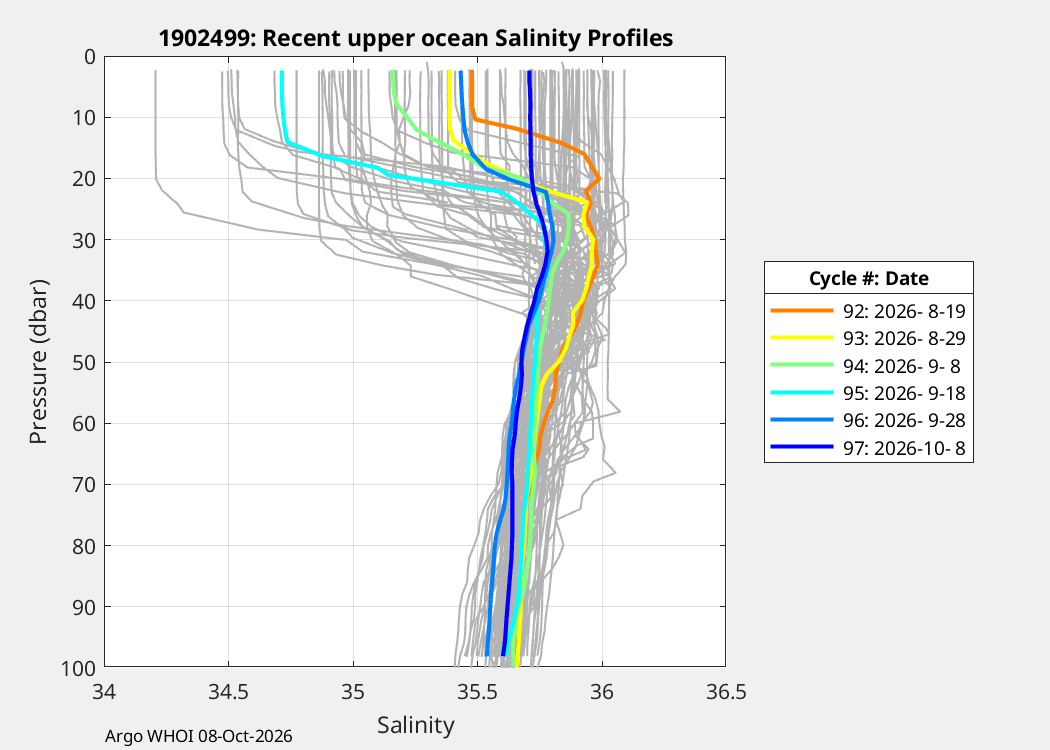

Salinity Profiles

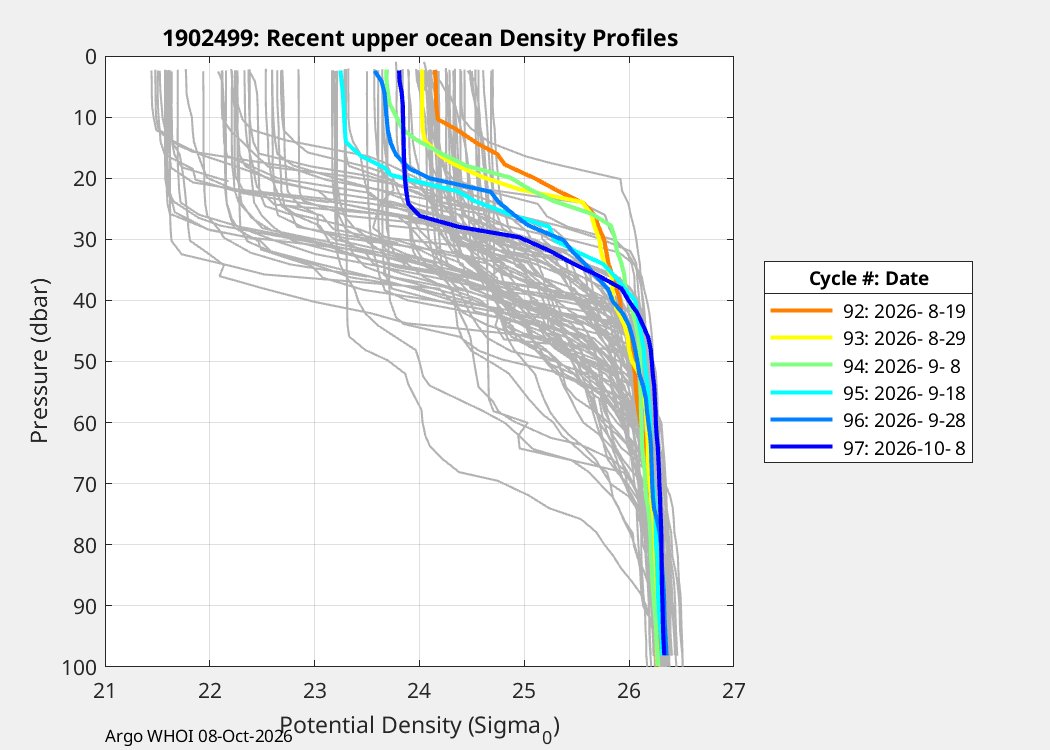

Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
Bathymetry
Submerged Displacement
Traj Cycle
Traj Position

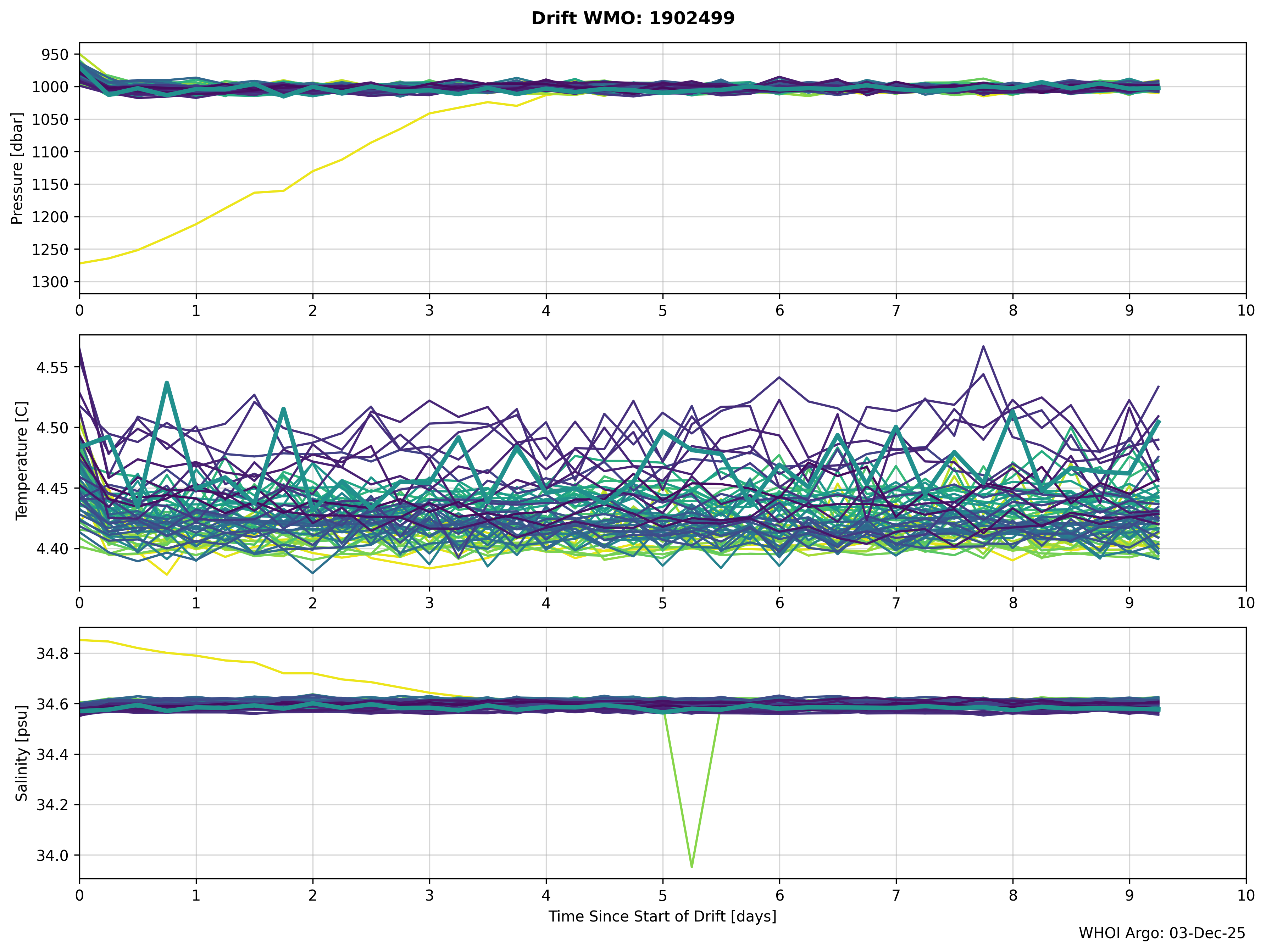

Traj Drift 1
Traj Drift 2
Traj Speed
N-Square
Salinity vs CARS
OW Calibration Adjustment
OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info
Basin

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
1
2024
2/16
A A A
2
2024
2/26
A A A
3
2024
3/06
A A A
4
2024
3/16
A A A
5
2024
3/26
A B B
6
2024
4/05
A A A
7
2024
4/15
A A A
8
2024
4/25
A A A
9
2024
5/05
A A A
10
2024
5/15
A A A
11
2024
5/25
A B B
12
2024
6/04
A B B
13
2024
6/14
A A A
14
2024
6/24
A A A
15
2024
7/04
A A A
16
2024
7/14
A A A
17
2024
7/24
A A A
18
2024
8/03
A B B
19
2024
8/13
A B B
20
2024
8/23
A A A
21
2024
9/02
A B B
22
2024
9/12
A A A
24
2024
10/02
A B B
25
2024
10/12
A B B
26
2024
10/22
A A A
27
2024
11/01
A A A
28
2024
11/11
A A A
29
2024
11/21
A A A

Creation Date: 2024-11-22
