| Metadata: | |
| WMO #: | 1902497 |
| PI: | Nicholson, Wijffels |
| DAC: | AOML |
| |
| DAC #: | 9405 |
| WHOI Float #: | 1560 |
| Last Heard From: | 2024-11-26 |
| Longevity: | 279 days |
| |
| Hardware: | |
| Telcom: | IRIDIUM 1560 |
| Telcom: | IRIDIUM 1560 |
| Instrument: | NAVISIR_TSOPJ1 |
| ROM version: | 190520 |
| Temperature: | SBE41CP_V5.3.5, s/n: 19406 |
| Conductivity: | SBE41CP_V5.3.5, s/n: 19406 |
| Pressure: | DRUCK, s/n: 12414158 |
| |
| Deployment: | |
| Deployed: | 2024-02-20 |
| Latitude: | -11.490 |
| Longitude: | 0.803 |
| Deployment Platform: | Marcus G. Langseth |
| Cruise ID: | A13.5 |
| Deployer: | Jesse Anderson |
| |
| GDAC file status: | |
| Last Update: | 2024-11-26 |
| Profiles at GDAC: | 28 |
| GDAC D-files: | 0 |
| GDAC R-files: | 28 |
| |
| Links (at WHOI): | |
| BGC Argo database: | 1560 |
| |
| Links (offsite): | |
| Data Visualizations: | at EuroArgo |
| Data Visualizations: | at ArgoVis |
| Data Visualizations: | at IFREMER |
| Altimeter Comparison: | IFREMER |
| GDAC (data archive): | GODAE |
| GDAC (data archive): | Coriolis |
| |
| Key: | DMQC Status |
| |
|

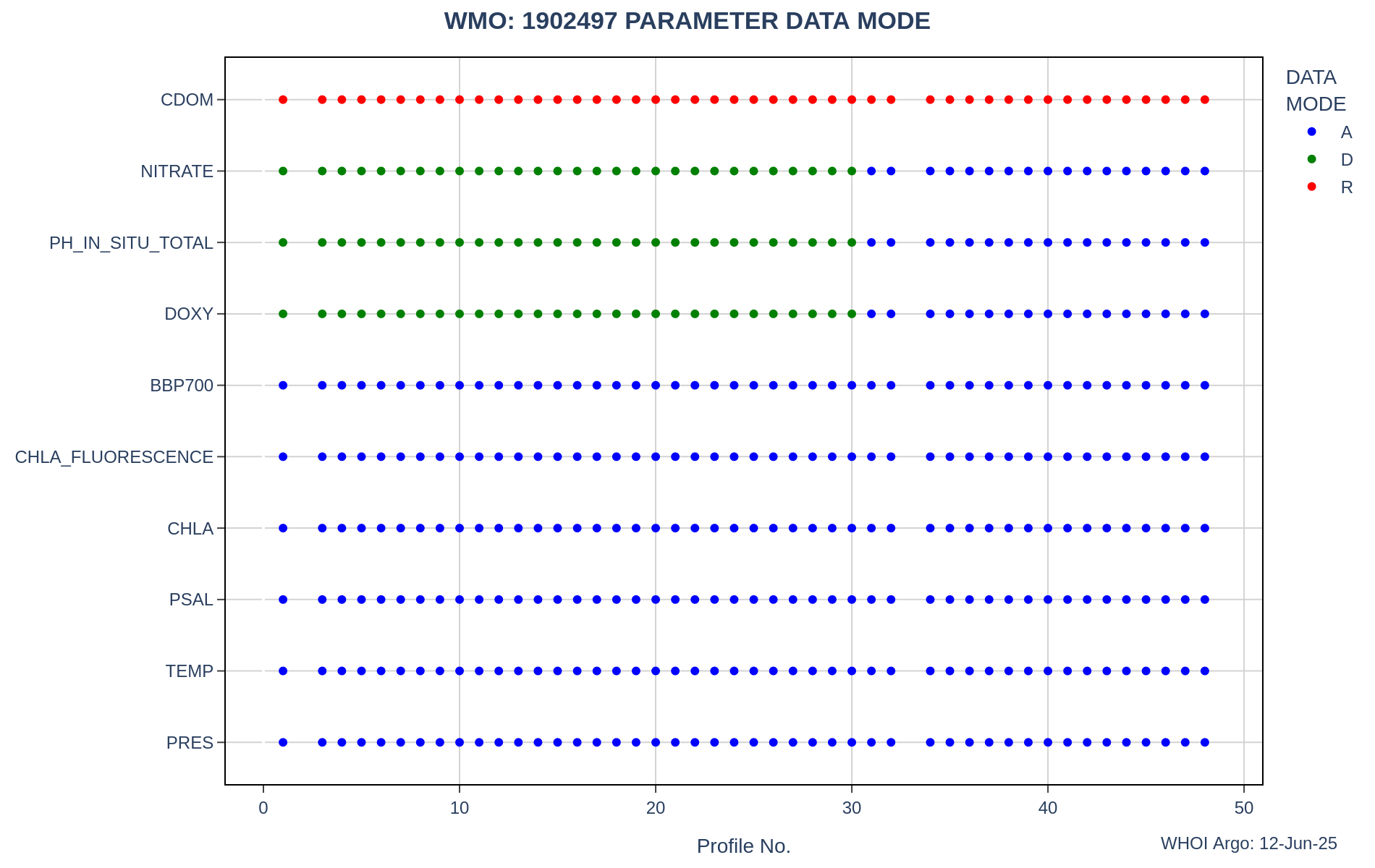

DMQC Status
 |
Profile Positions
 |
Temperature-Salinity Relation
 |
Deep T-S Relation
 |
Temperature Sections (0-500 dbar)
 |
Salinity Sections (0-500 dbar)
 |
Density Sections (0-500 dbar)
 |
Salt Anomaly Sections (0-500 dbar)
 |
Temperature Sections
 |
Salinity Sections
 |
Density Sections
 |
Salt Anomaly Sections
 |

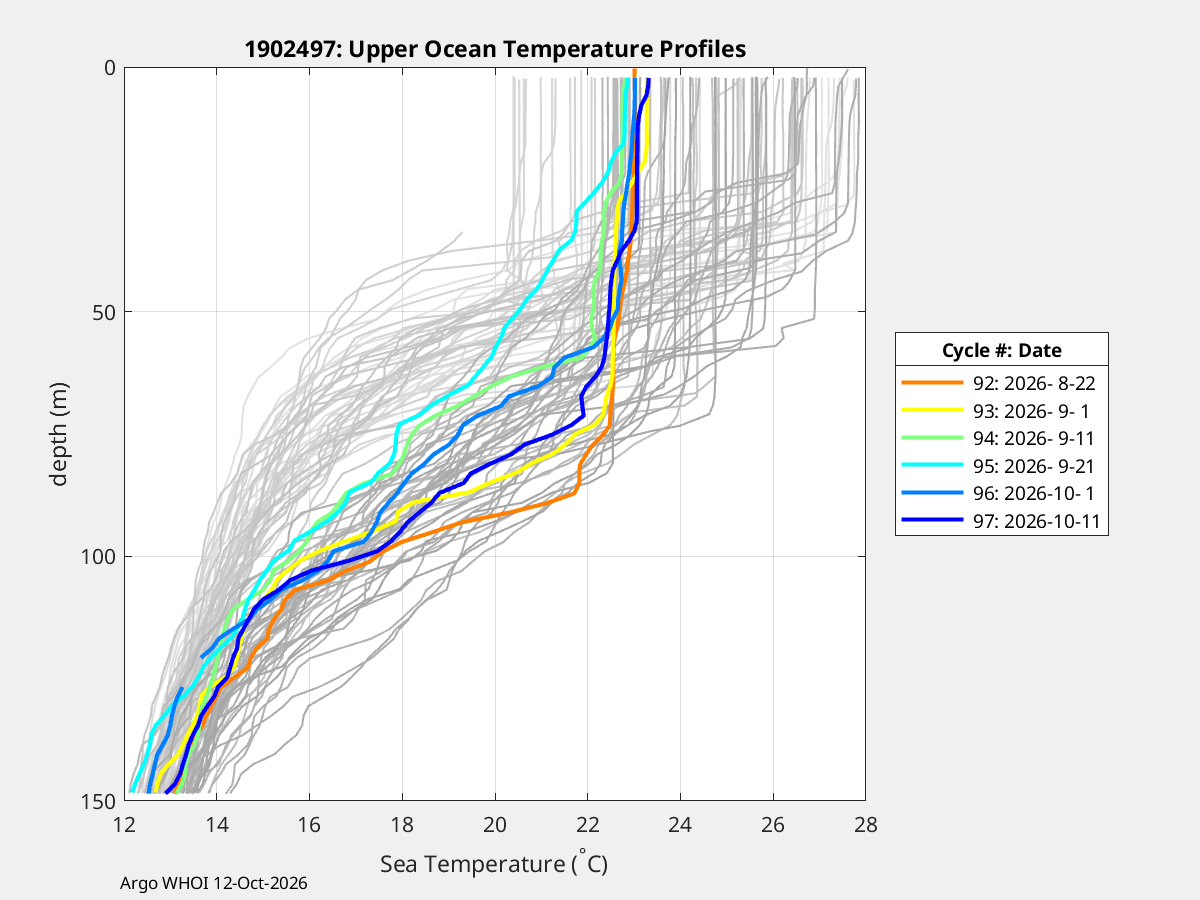

Temperature Profiles
 |

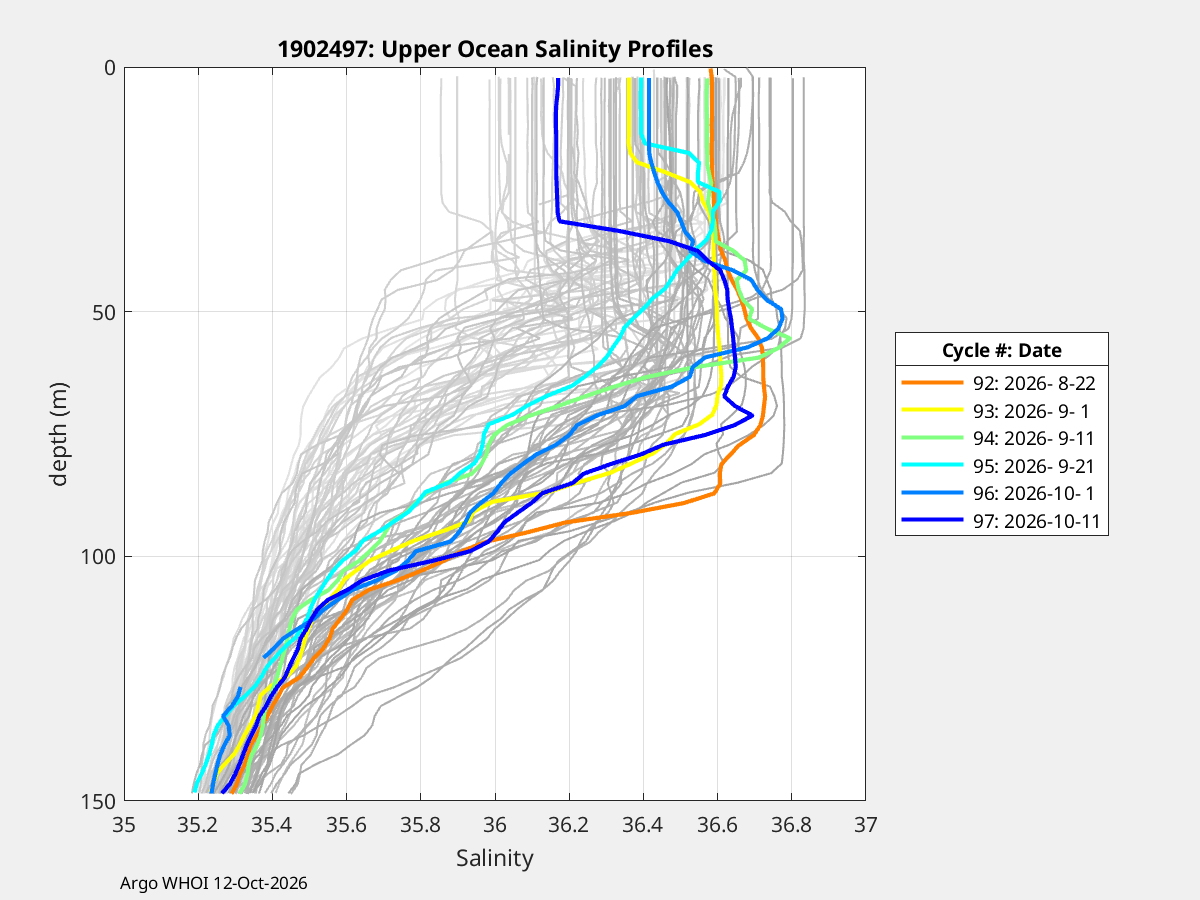

Salinity Profiles
 |

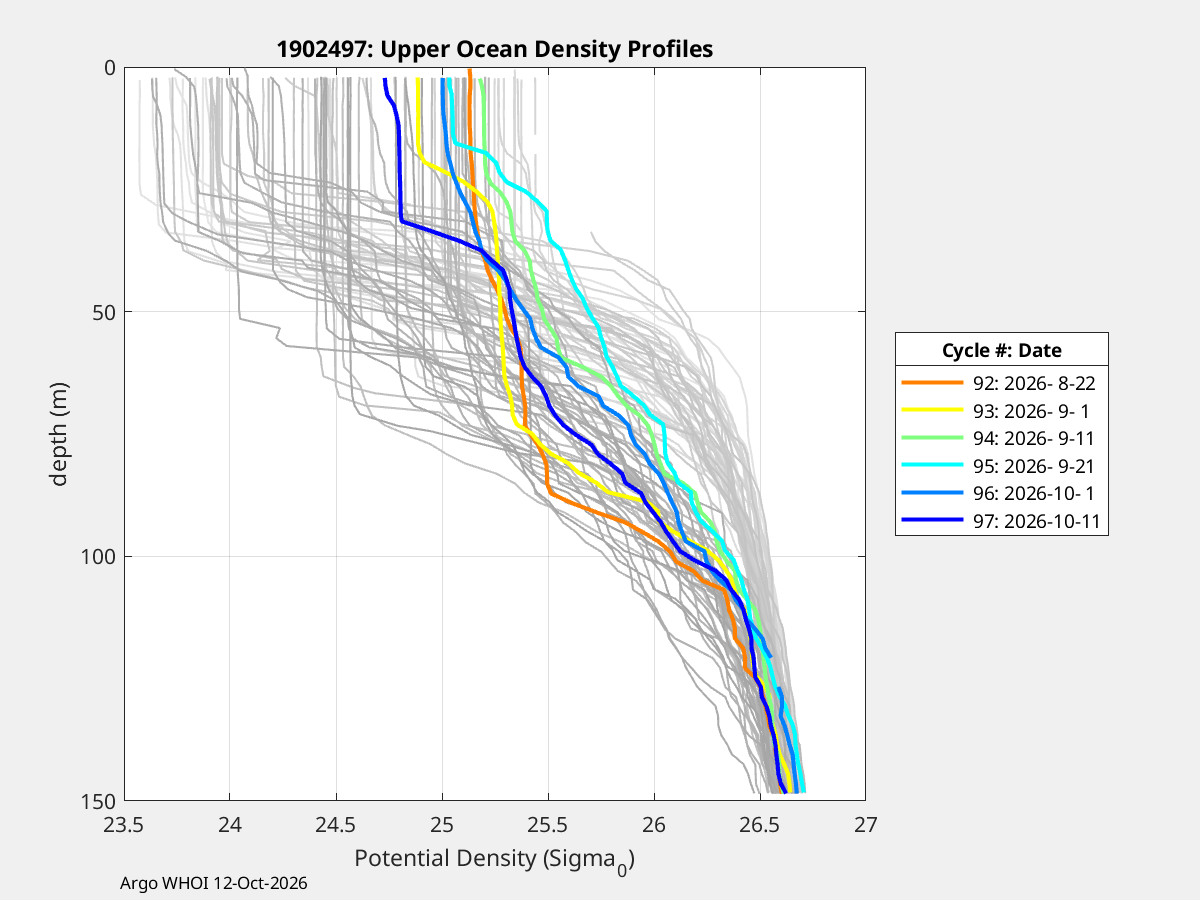

Density Profiles
 |
Salt Anom Profiles
 |
Temperature QC
 |
Salinity QC
 |
Pressure QC
 |
Surface Fixes
 |
Bathymetry
 |
Submerged Displacement
 |
Traj Cycle
 |
Traj Position
 |

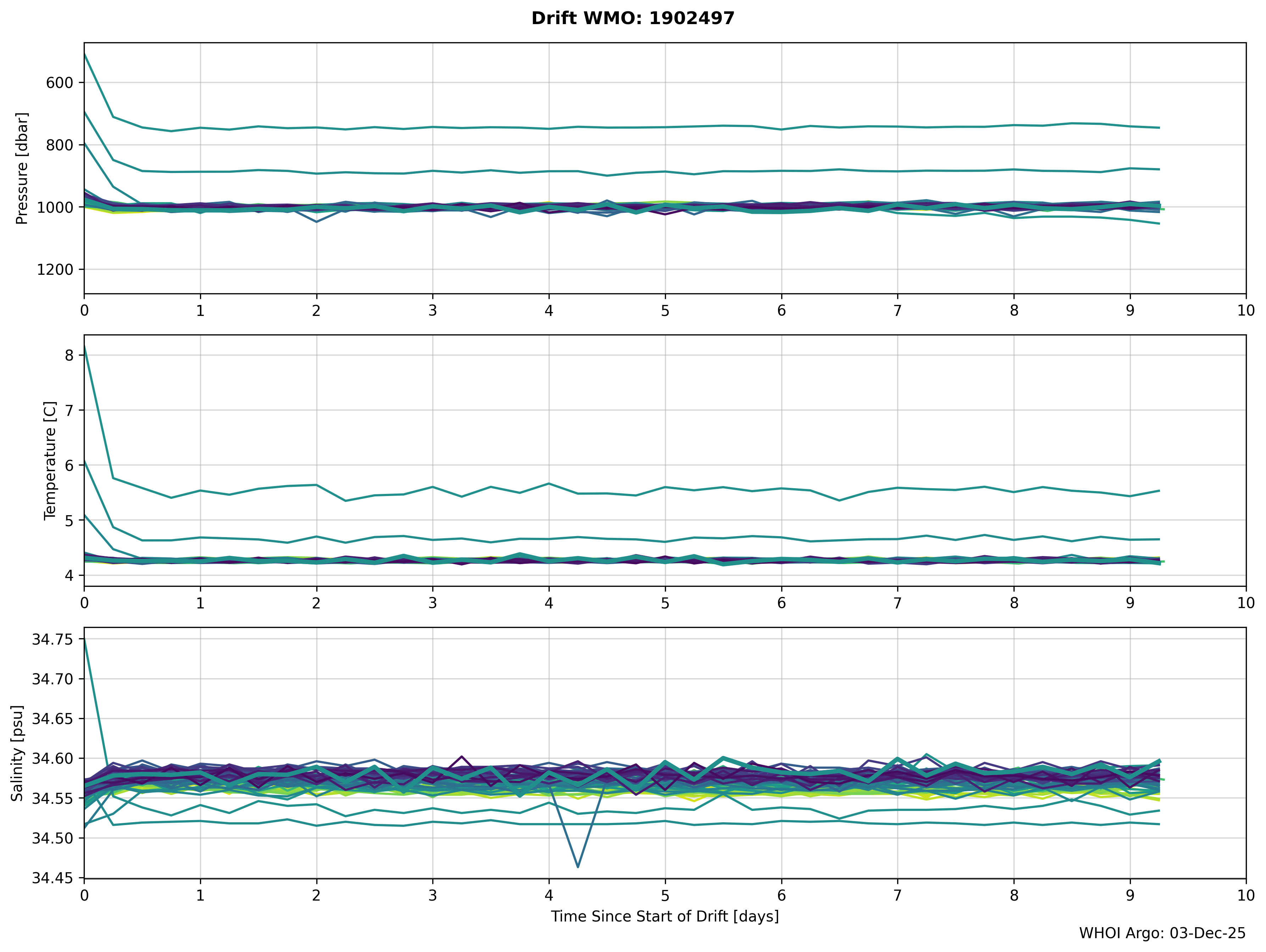

Traj Drift 1
 |
Traj Drift 2
 |
Traj Speed
 |
N-Square
 |
Salinity vs CARS
 |
OW Calibration Adjustment
 |
OW Inputs
 |
Mean Salinity difference (RT vs DM)
 |
GDAC File info
 |
Basin
 |
|
