Argo Float WMO # 1902475 : Plots based on data files at the GDAC

Metadata:
WMO #: 1902475
PI: Viviane MENEZES, Heather FUREY, Amy BOWER, Matthew MAZLOFF
DAC: AOML

DAC #: 9341
WHOI Float #: 12047
Last Heard From: 2023-05-24
Longevity: 19 days

Hardware:
Telcom: IRIDIUM 12047
Telcom: IRIDIUM 12047
Instrument: MRV110_SB61
ROM version: SBE 7Oct19 ARM V1.1
Temperature: SBE61_V5.0.2, s/n: 5775
Conductivity: SBE61_V5.0.2, s/n: 5775
Pressure: Kistler, s/n: 5361136

Deployment:
Deployed: 2023-05-05
Latitude: -29.488
Longitude: 58.613
Deployment Platform: ROGER REVELLE
Cruise ID: n/a
Deployer: Heather Furey, Viviane Menezes

GDAC file status:
Last Update: 2023-05-29
Profiles at GDAC: 11
GDAC D-files: 0
GDAC R-files: 11

Links (at WHOI):
Telemetry plots: WHOI

Links (offsite):
Data Visualizations: at EuroArgo
Data Visualizations: at ArgoVis
Data Visualizations: at IFREMER
Altimeter Comparison: IFREMER
GDAC (data archive): GODAE
GDAC (data archive): Coriolis

Key: DMQC Status

DMQC Status
Profile Positions
Temperature-Salinity Relation
Deep T-S Relation
Temperature Sections (0-500 dbar)
Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)
Salt Anomaly Sections (0-500 dbar)
Temperature Sections
Salinity Sections
Density Sections
Salt Anomaly Sections

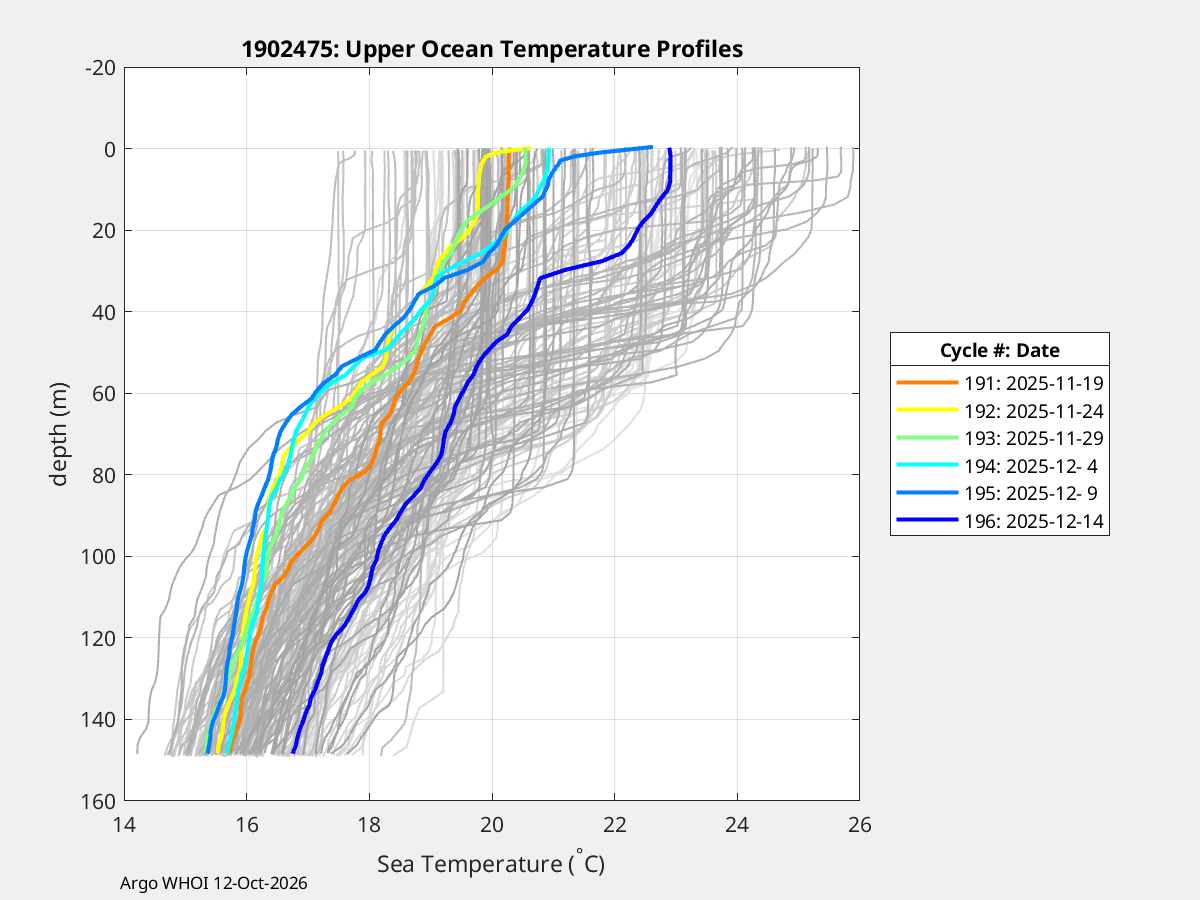

Temperature Profiles

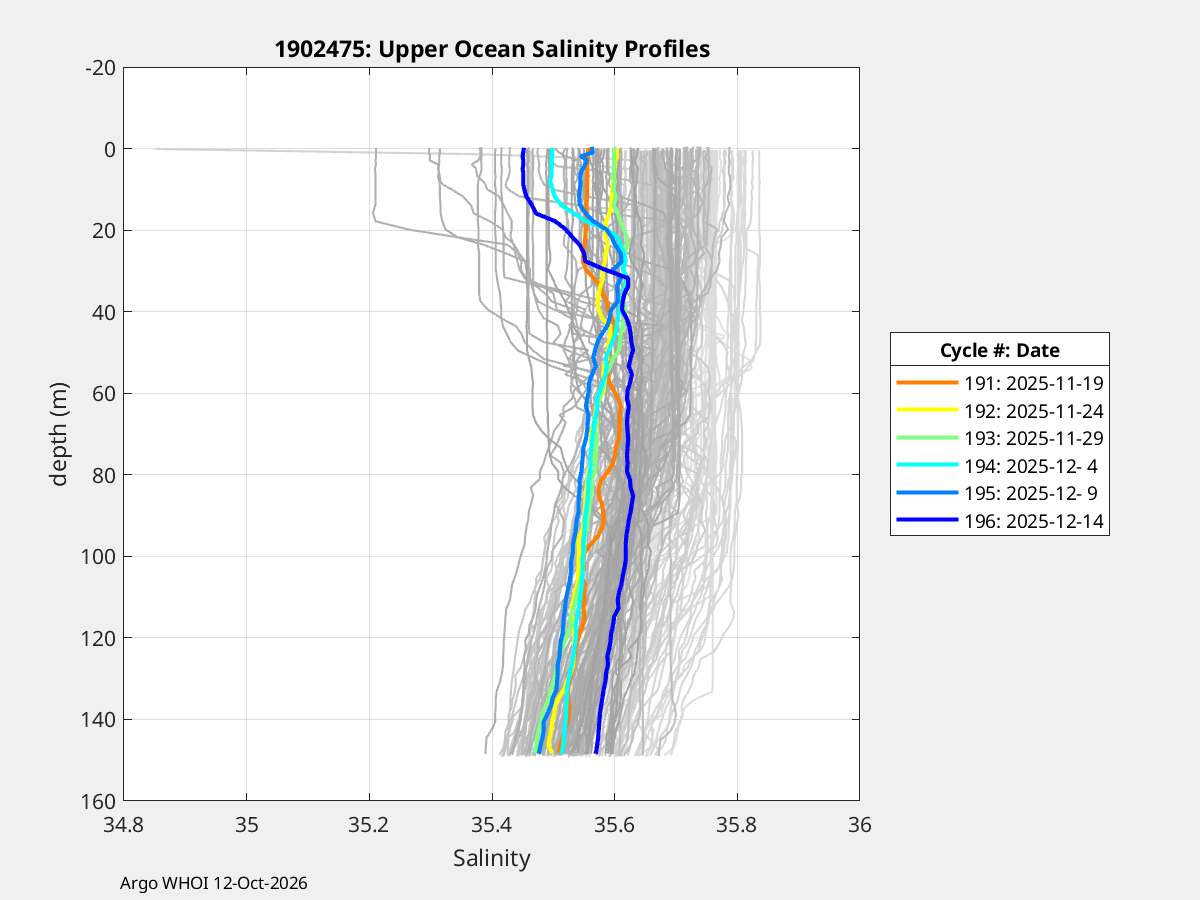

Salinity Profiles

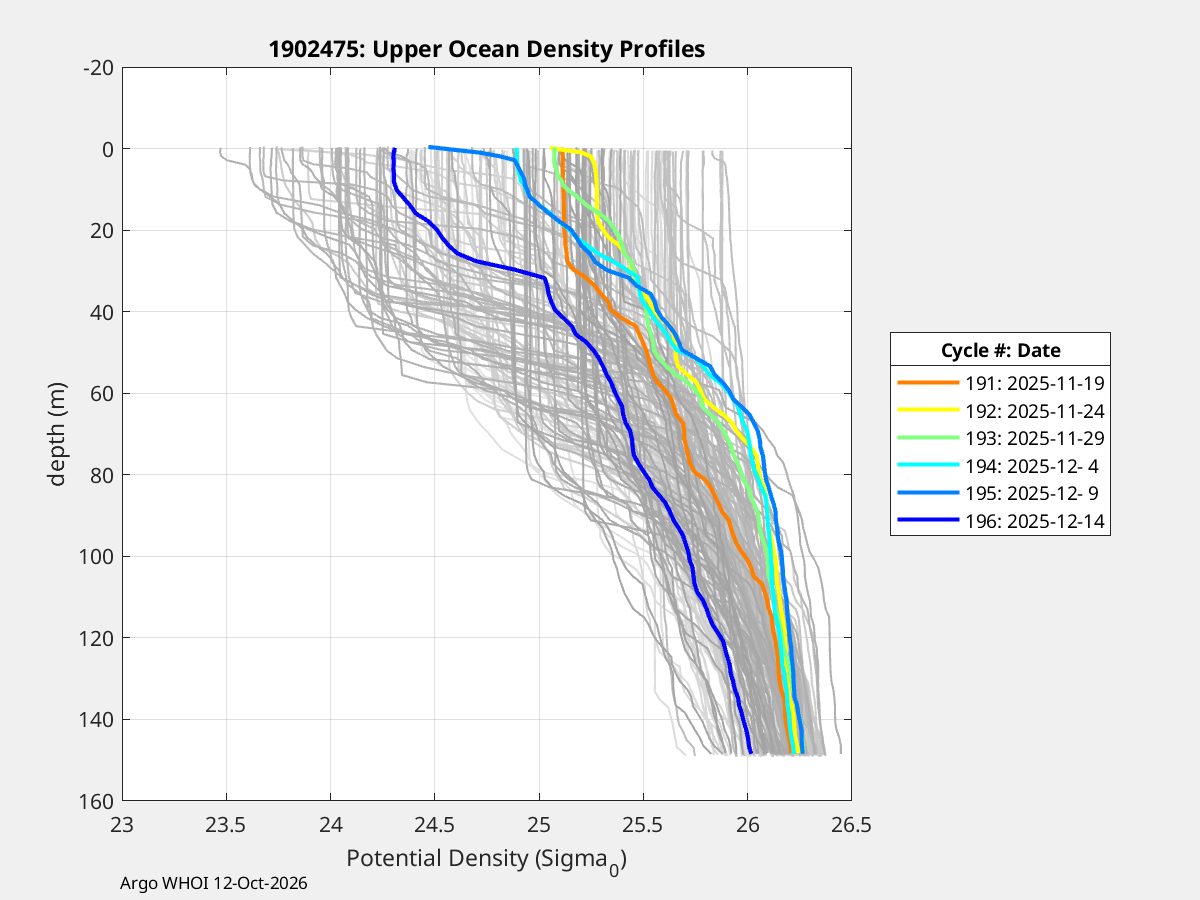

Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
Bathymetry
Submerged Displacement

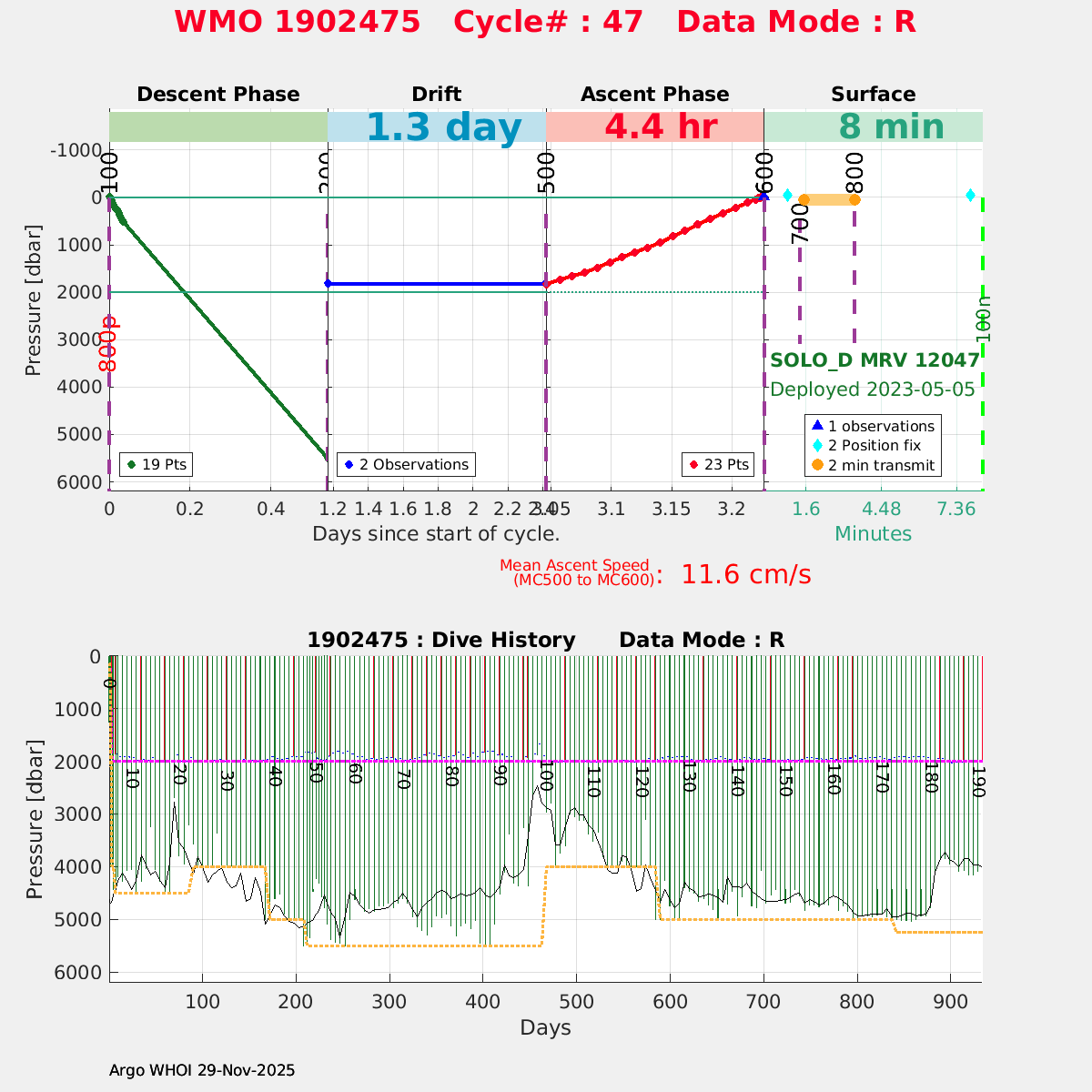

Traj Cycle
Traj Position
Traj Drift 1
Traj Drift 2
Traj Speed
N-Square
Salinity vs CARS
OW Calibration Adjustment
OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info
Basin

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
0
2023
5/05
A A A
1
2023
5/05
A A A
2
2023
5/05
A A A
3
2023
5/05
A A A
4
2023
5/06
A A A
5
2023
5/08
A A A
6
2023
5/09
A A A
7
2023
5/12
A A A
8
2023
5/14
A A A
9
2023
5/19
A A A
10
2023
5/24
A B B
11
2023
5/29
A A A

Creation Date: 2023-06-05
