Argo Float WMO # 1902375 : Plots based on data files at the GDAC

Metadata:
WMO #: 1902375
PI: WHOI: Wijffels, Jayne, Robbins
DAC: AOML

DAC #: 8832
WHOI Float #: 7610
Last Heard From: 2024-10-07
Longevity: 2.80 yrs

Hardware:
Telcom: IRIDIUM 7610
Telcom: IRIDIUM 7610
Instrument: MRV240_SB30
ROM version: SBE602 15Aug17 ARM V2.4
Temperature: SBE41CP, s/n: 12184
Conductivity: SBE41CP, s/n: 12184
Pressure: Druck, s/n: 11324323

Deployment:
Deployed: 2021-12-18
Latitude: 31.001
Longitude: -57.525
Deployment Platform: S/V IRIS
Cruise ID: BLUE OBSERVER 2021
Deployer: Blue Observer

GDAC file status:
Last Update: 2024-10-07
Profiles at GDAC: 108
GDAC D-files: 41
GDAC R-files: 67

Links (at WHOI):
Telemetry plots: WHOI

Links (offsite):
Data Visualizations: at EuroArgo
Data Visualizations: at ArgoVis
Data Visualizations: at IFREMER
Altimeter Comparison: IFREMER
GDAC (data archive): GODAE
GDAC (data archive): Coriolis

Key: DMQC Status

DMQC Status
Profile Positions
Temperature-Salinity Relation
Deep T-S Relation
Temperature Sections (0-500 dbar)
Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)
Salt Anomaly Sections (0-500 dbar)
Temperature Sections
Salinity Sections
Density Sections
Salt Anomaly Sections

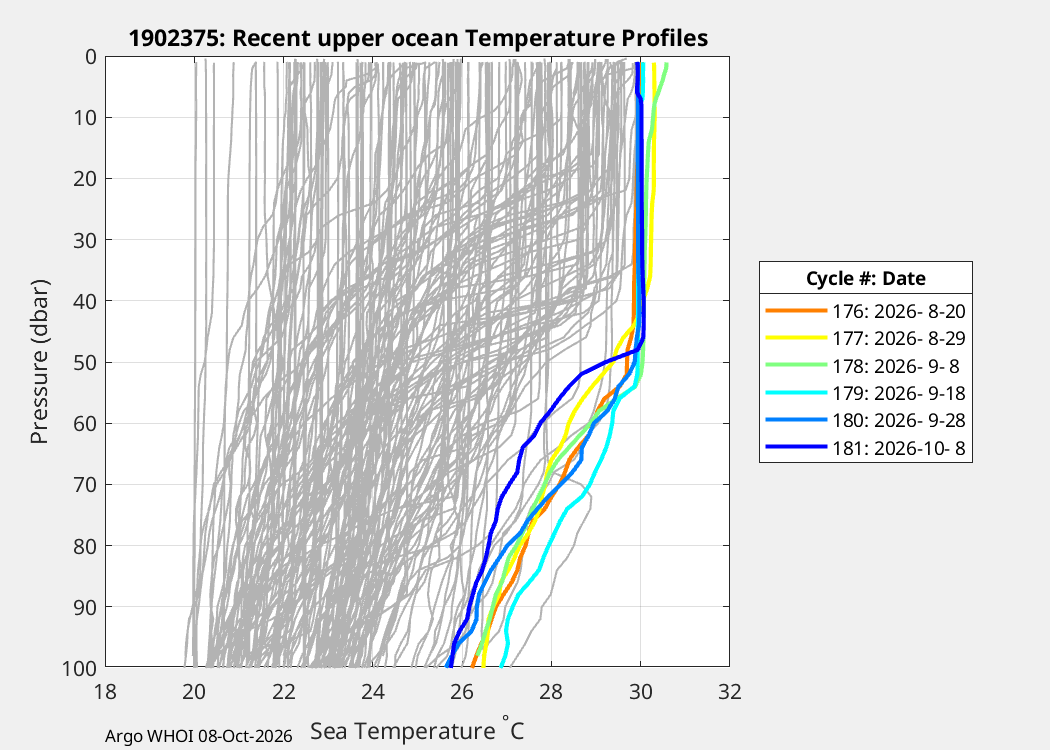

Temperature Profiles

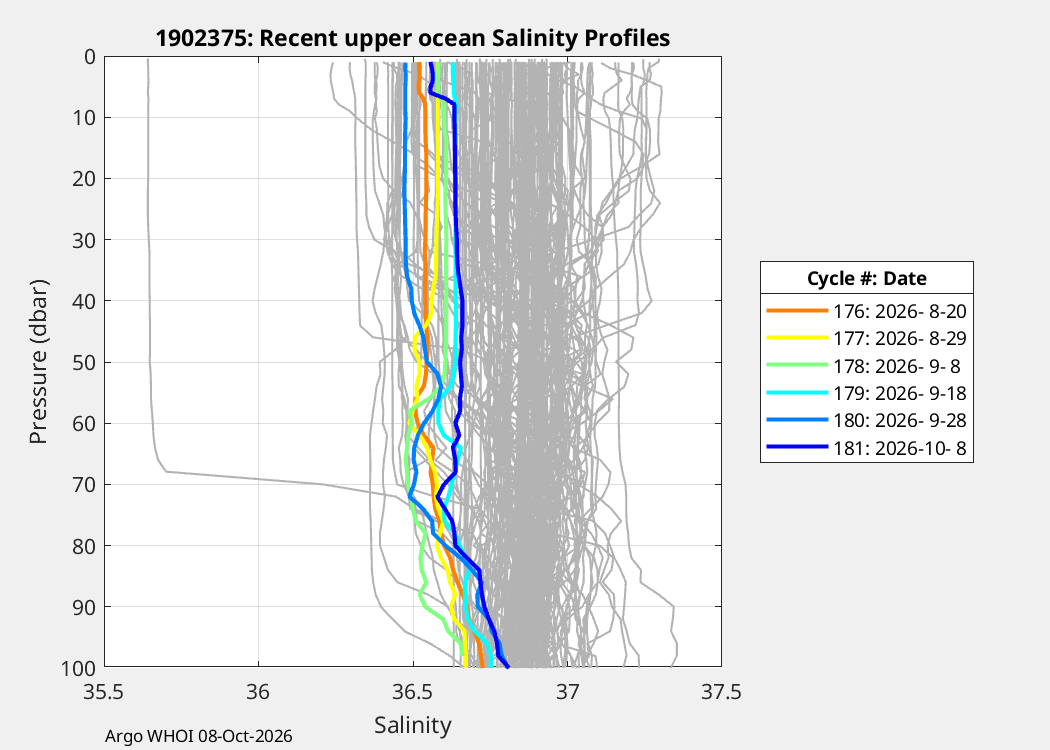

Salinity Profiles

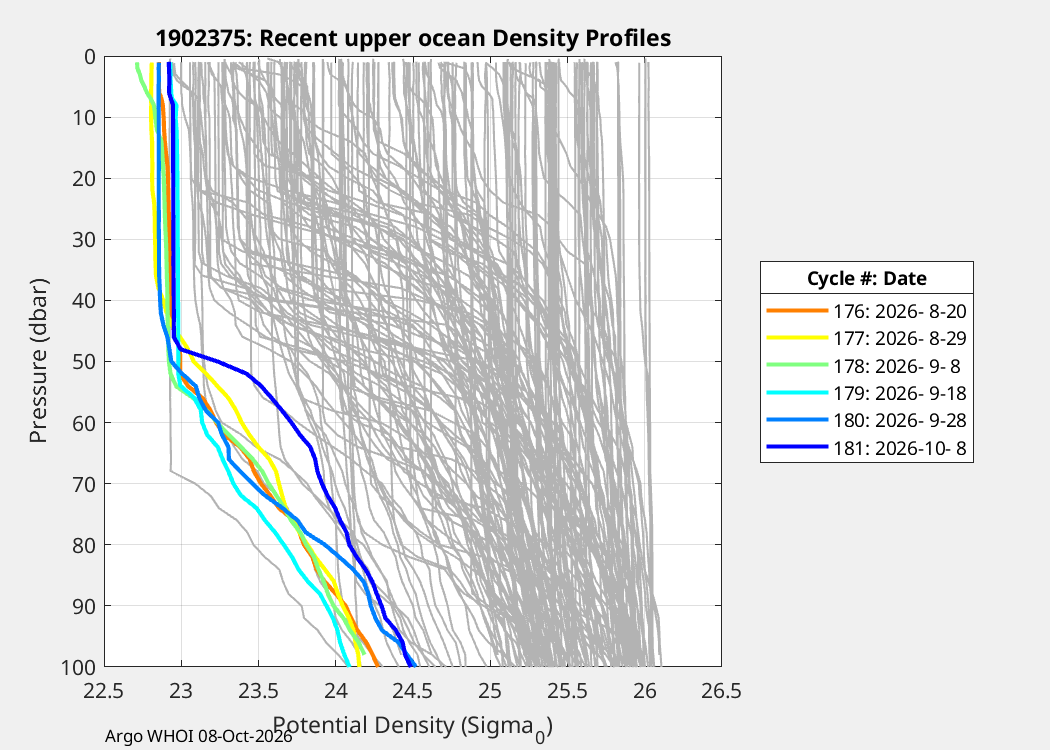

Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
Bathymetry
Submerged Displacement

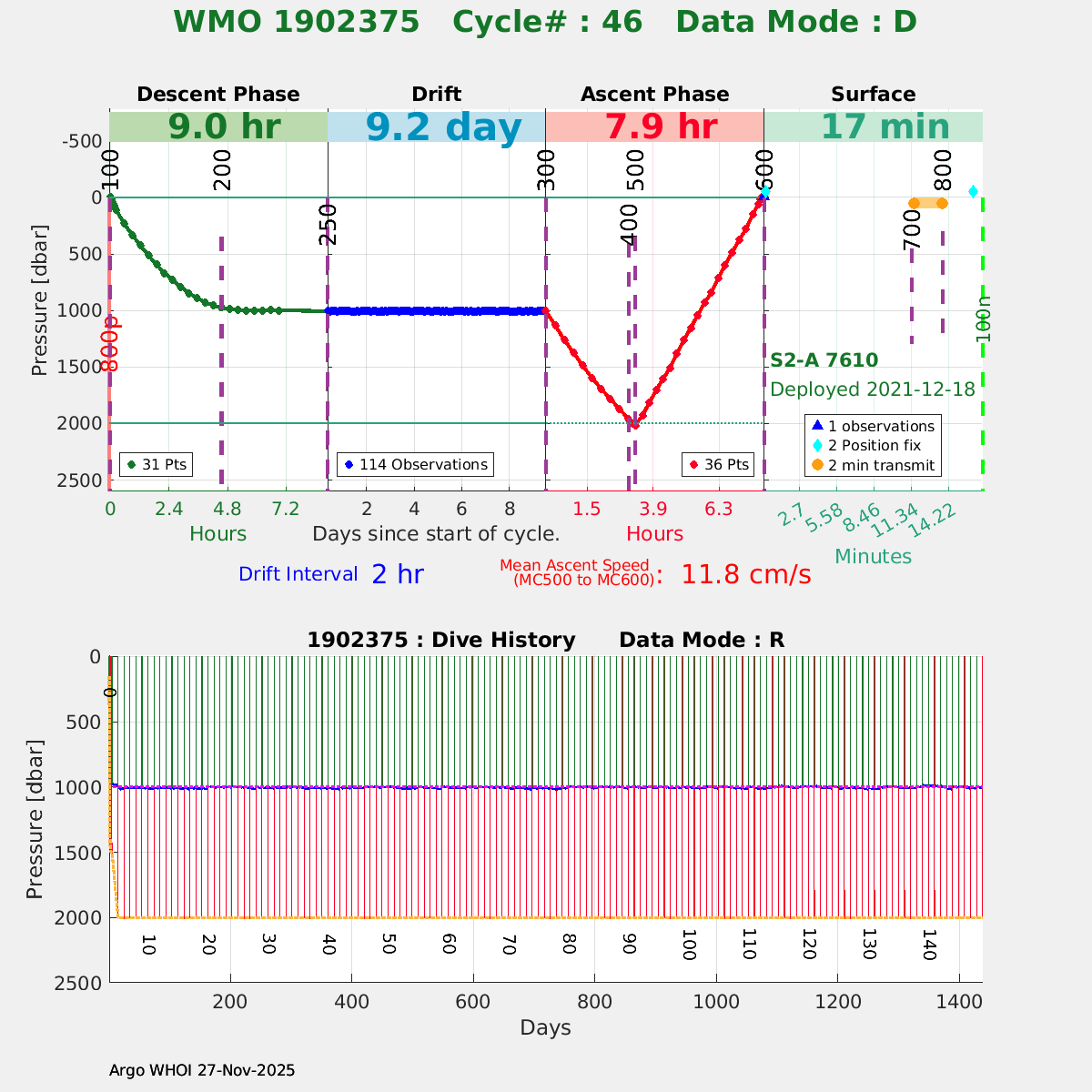

Traj Cycle
Traj Position
Traj Drift 1
Traj Drift 2
Traj Speed
N-Square
Salinity vs CARS
OW Calibration Adjustment
OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info
Basin

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
0
2021
12/18
A A A
1
2021
12/19
A A A
2
2021
12/20
A A A
3
2021
12/22
A A A
4
2021
12/23
A A A
5
2022
1/02
A A A
6
2022
1/12
A A A
7
2022
1/22
A A A
8
2022
2/01
A A A
9
2022
2/11
A A A
10
2022
2/21
A A A
11
2022
3/02
A A A
12
2022
3/12
A A A
13
2022
3/22
A A A
14
2022
4/01
A A A
15
2022
4/11
A A A
16
2022
4/21
A A A
17
2022
5/01
A A A
18
2022
5/11
A A A
19
2022
5/21
A A A
20
2022
5/30
A A A
21
2022
6/09
A A A
22
2022
6/19
A A A
23
2022
6/29
A A A
24
2022
7/09
A A A
25
2022
7/19
A A A
26
2022
7/29
A A A
27
2022
8/08
A A A
28
2022
8/18
A A A
29
2022
8/27
A A A
30
2022
9/06
A A A
31
2022
9/16
A A B
32
2022
9/26
A A A
33
2022
10/06
A A A
34
2022
10/16
A A A
35
2022
10/26
A A A
36
2022
11/05
A A A
37
2022
11/14
A A A
38
2022
11/24
A A A
39
2022
12/04
A A A
40
2022
12/14
A A A
41
2022
12/24
A A A
42
2023
1/03
A A A
43
2023
1/13
A A A
44
2023
1/23
A A A
45
2023
2/02
A A A
46
2023
2/11
A A A
47
2023
2/21
A A A
48
2023
3/03
A A A
49
2023
3/13
A A A
50
2023
3/23
A A A
51
2023
4/02
A A A
52
2023
4/12
A A A
53
2023
4/22
A A A
54
2023
5/02
A A A
55
2023
5/11
A A A
56
2023
5/21
A A A
57
2023
5/31
A A A
58
2023
6/10
A A A
59
2023
6/20
A A A
60
2023
6/30
A A A
61
2023
7/10
A A A
62
2023
7/20
A A A
63
2023
7/30
A A A
64
2023
8/08
A A A
65
2023
8/18
A A A
66
2023
8/28
A A A
67
2023
9/07
A A A
68
2023
9/17
A A A
69
2023
9/27
A A A
70
2023
10/07
A A A
71
2023
10/17
A A A
72
2023
10/27
A A A
73
2023
11/05
A A A
74
2023
11/15
A A A
75
2023
11/25
A A A
76
2023
12/05
A A A
77
2023
12/15
A A A
78
2023
12/25
A A A
79
2024
1/04
A A A
80
2024
1/14
A A A
81
2024
1/24
A A A
82
2024
2/02
A A A
83
2024
2/12
A A A
84
2024
2/22
A A A
85
2024
3/03
A A A
86
2024
3/13
A A A
87
2024
3/23
A A A
88
2024
4/02
A A A
89
2024
4/12
A A A
90
2024
4/21
A A A
91
2024
5/01
A A A
92
2024
5/11
A A A
93
2024
5/21
A A A
94
2024
5/31
A A A
95
2024
6/10
A A A
96
2024
6/20
A A A
97
2024
6/30
A A A
98
2024
7/10
A A A
99
2024
7/19
A A A
100
2024
7/29
A A A
101
2024
8/08
A A A
102
2024
8/18
A A A
103
2024
8/28
A A A
104
2024
9/07
A A A
105
2024
9/17
A A A
106
2024
9/27
A A A
107
2024
10/07
A A A
108
2024
10/16
A A A

Creation Date: 2024-10-17
