WMO # 1901706

Argo Float WMO # 1901706 : Plots based on data files at the GDAC

Metadata:
WMO #:	1901706
PI:	Breck Owens, Steve Jayne, P.E. Robbins
DAC:	AOML

DAC #:	5337
WHOI Float #:	1152
Last Heard From:	2015-06-21
Longevity:	1.30 yrs

Hardware:
Telcom:	IRIDIUM 1152
Telcom:	IRIDIUM 1152
Instrument:	SS301_SB19
ROM version:	3.01
Temperature:	SBE41CP, s/n: 2527
Conductivity:	SBE41CP, s/n: 2527
Pressure:	Druck, s/n: 2957312

Deployment:
Deployed:	2014-03-02
Latitude:	-19.012
Longitude:	-0.691
Deployment Platform:	MAERSK VILNIUS
Cruise ID:	AX08
Deployer:	Gus McKay

GDAC file status:
Last Update:	2020-12-18
Profiles at GDAC:	94
GDAC D-files:	94
GDAC R-files:	0

Links (at WHOI):
Telemetry plots:	WHOI

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

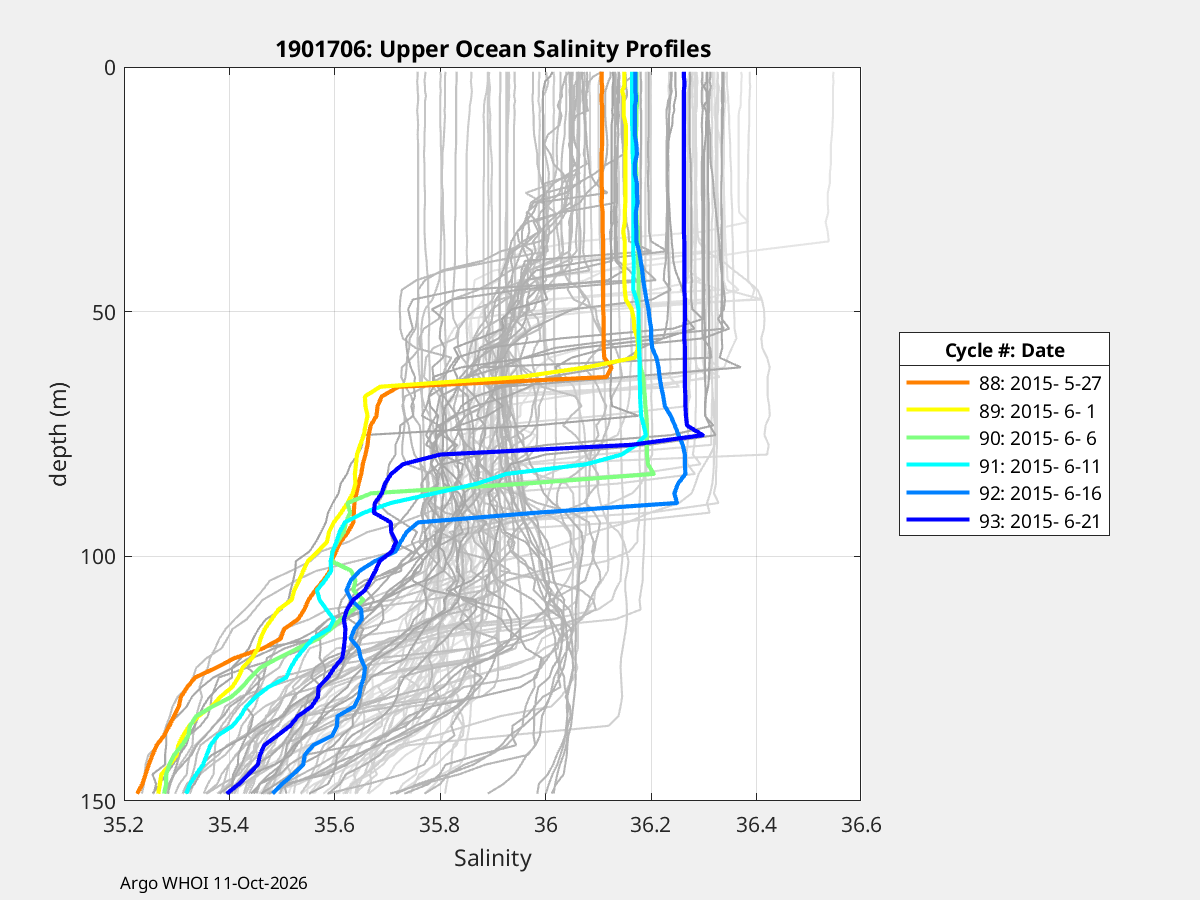

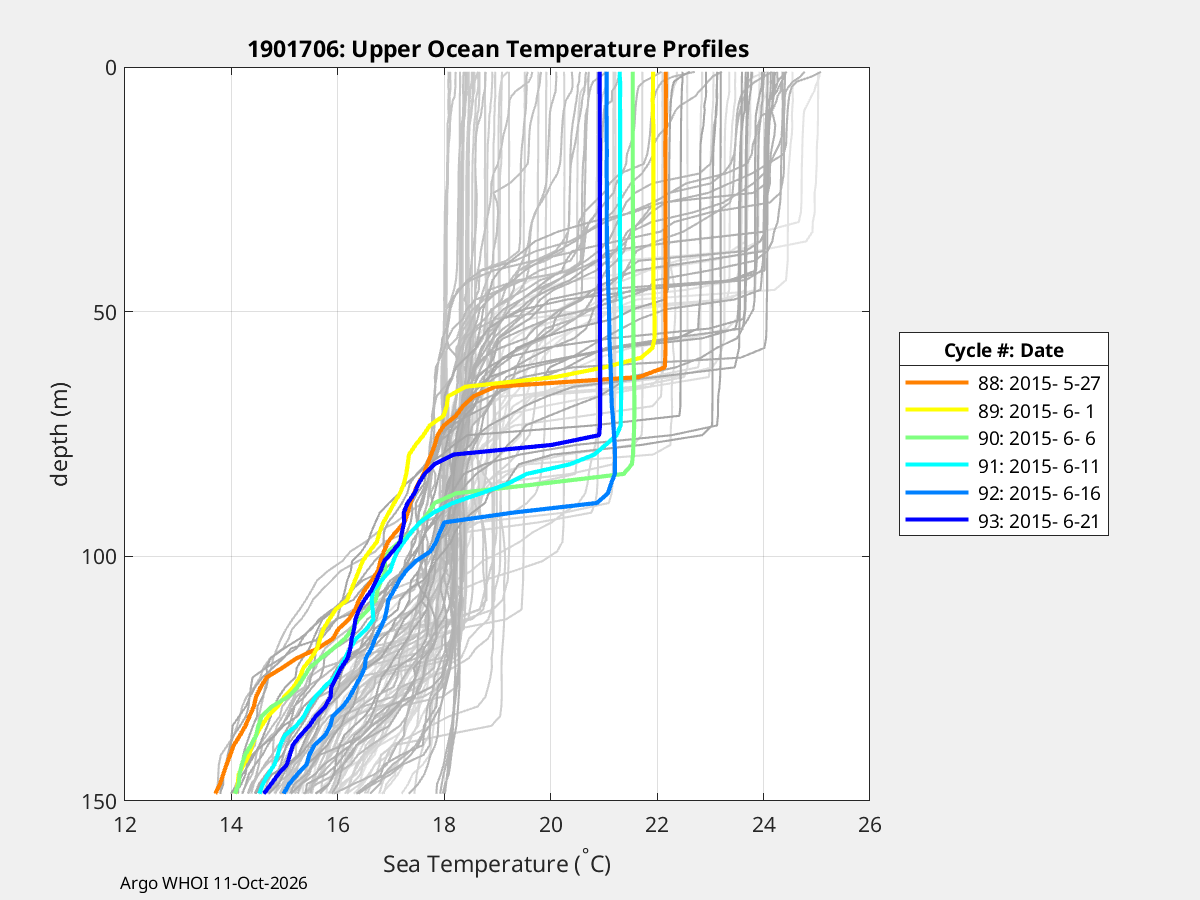

Temperature Profiles	Salinity Profiles

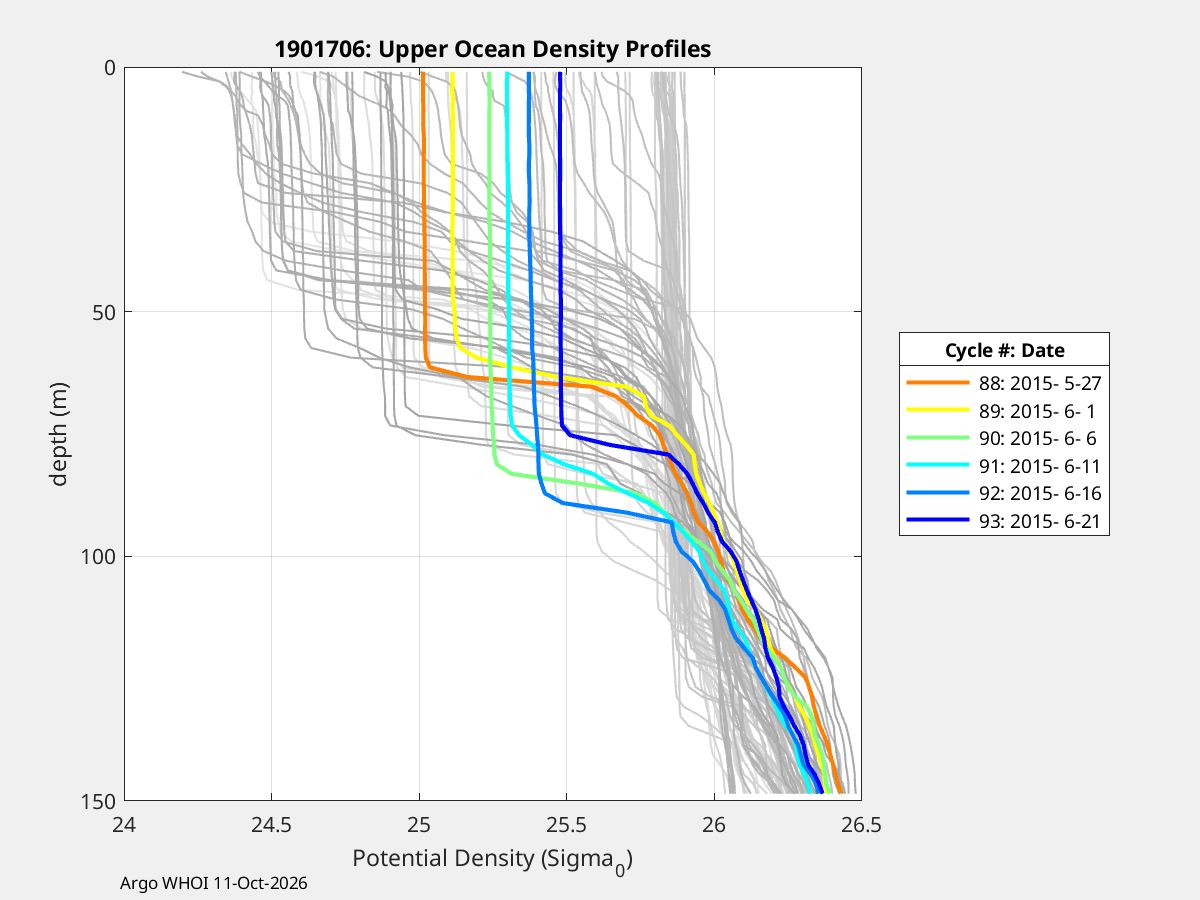

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2014 3/02 A B B	1 2014 3/18 A A B	2 2014 3/23 A A A	3 2014 3/28 A A A	4 2014 4/02 A A A	5 2014 4/07 A B B	6 2014 4/12 A B B	7 2014 4/17 A A A	8 2014 4/22 A A A	9 2014 4/27 A A B	10 2014 5/02 A A B	11 2014 5/07 A B B	12 2014 5/12 A B B	13 2014 5/17 A A B	14 2014 5/22 A A B	15 2014 5/27 A A B	16 2014 6/01 A A B	17 2014 6/06 A A B	18 2014 6/11 A A A	19 2014 6/16 A A A
20 2014 6/21 A B B	21 2014 6/26 A B B	22 2014 7/01 A B B	23 2014 7/06 A A B	24 2014 7/11 A A B	25 2014 7/16 A A A	26 2014 7/21 A A B	27 2014 7/26 A B B	28 2014 7/31 A A B	29 2014 8/05 A A A	30 2014 8/10 A A A	31 2014 8/15 A A B	32 2014 8/20 A A A	33 2014 8/25 A A B	34 2014 8/30 A A B	35 2014 9/04 A A B	36 2014 9/09 A B B	37 2014 9/14 A A B	38 2014 9/19 A B B	39 2014 9/24 A A B
40 2014 9/29 A B B	41 2014 10/04 A A B	42 2014 10/09 A B B	43 2014 10/14 A B B	44 2014 10/19 A A A	45 2014 10/24 A B B	46 2014 10/29 A A B	47 2014 11/03 A A A	48 2014 11/08 A A A	49 2014 11/13 A A B	50 2014 11/18 A A B	51 2014 11/23 A A A	52 2014 11/28 A A B	53 2014 12/03 A A A	54 2014 12/08 A A A	55 2014 12/13 A B B	56 2014 12/18 A B B	57 2014 12/23 A A A	58 2014 12/28 A B B	59 2015 1/02 A B B
60 2015 1/07 A A B	61 2015 1/12 A B B	62 2015 1/17 A A B	63 2015 1/22 A A B	64 2015 1/27 A A B	65 2015 2/01 A A A	66 2015 2/06 A B B	67 2015 2/11 A A A	68 2015 2/16 A A A	69 2015 2/21 A A B	70 2015 2/26 A A A	71 2015 3/03 A A C	72 2015 3/08 A A B	73 2015 3/13 A A B	74 2015 3/18 A A A	75 2015 3/23 A A A	76 2015 3/28 A A B	77 2015 4/02 A A B	78 2015 4/07 A B B	79 2015 4/12 A B B
80 2015 4/17 A A A	81 2015 4/22 A A B	82 2015 4/27 A A B	83 2015 5/02 A A A	84 2015 5/07 A A A	85 2015 5/12 A A B	86 2015 5/17 A A B	87 2015 5/22 A A A	88 2015 5/27 A A A	89 2015 6/01 A A A	90 2015 6/06 A A B	91 2015 6/11 A A B	92 2015 6/16 A A A	93 2015 6/21 A A A

Creation Date: 2024-08-27
