WMO # 1900684

Argo Float WMO # 1900684 : Plots based on data files at the GDAC

Metadata:
WMO #:	1900684
PI:	Breck Owens
DAC:	AOML

DAC #:	1734
WHOI Float #:	513
Last Heard From:	2011-08-09
Longevity:	5.48 yrs

Hardware:
Telcom:	ARGOS 57441
Telcom:	ARGOS 57441
Instrument:	SS110_SB17
ROM version:	1.10
Temperature:	SBE41CP, s/n: 1002
Conductivity:	SBE41CP, s/n: 1002
Pressure:	Druck, s/n: 7936

Deployment:
Deployed:	2006-02-15
Latitude:	-46.031
Longitude:	8.515
Deployment Platform:	Agulhas
Cruise ID:	n/a
Deployer:	Sebastian Swart

GDAC file status:
Last Update:	2020-12-03
Profiles at GDAC:	200
GDAC D-files:	200
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

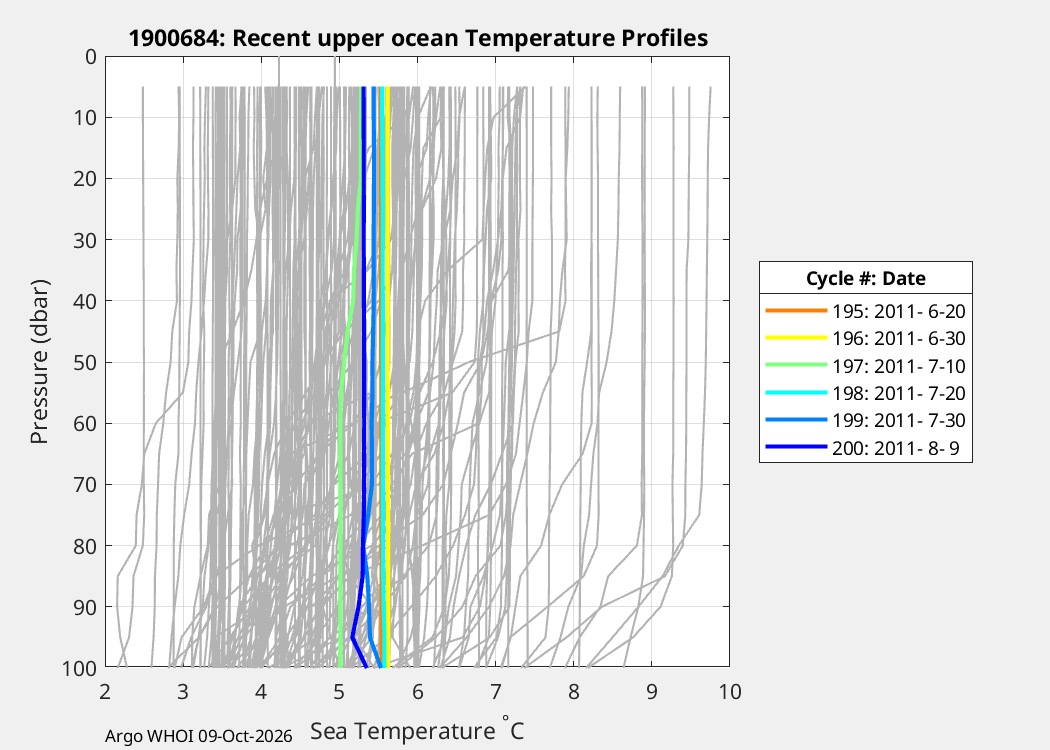

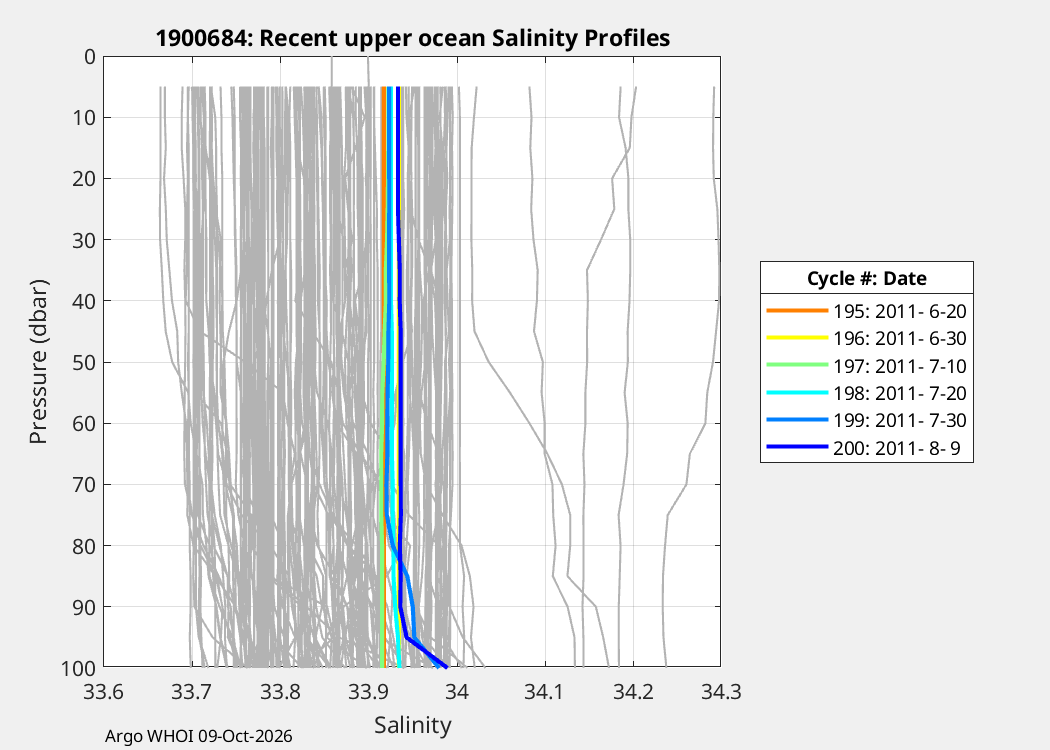

Temperature Profiles	Salinity Profiles

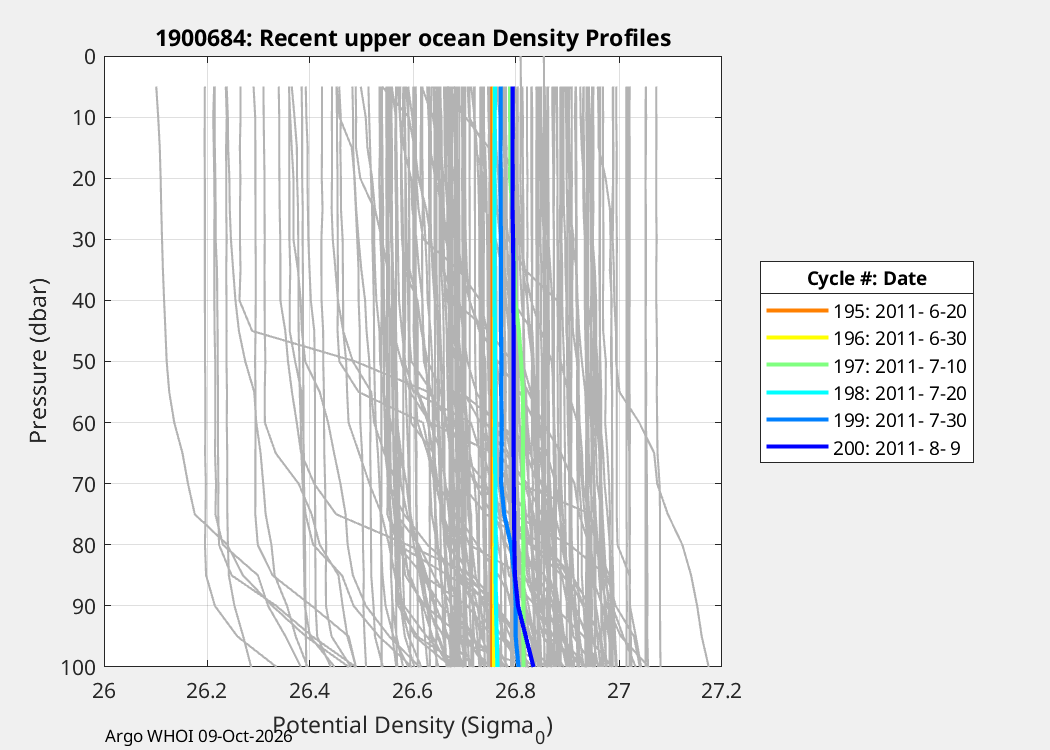

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2006 2/16 A A A	1 2006 2/26 A A A	2 2006 3/08 A A A	3 2006 3/18 A A A	4 2006 3/28 A A A	5 2006 4/07 A A A	6 2006 4/17 A A A	7 2006 4/27 A A A	8 2006 5/07 A A A	9 2006 5/17 A A A	10 2006 5/27 A A A	11 2006 6/06 A A A	12 2006 6/16 A A A	13 2006 6/26 A A A	14 2006 7/06 A A A	15 2006 7/16 A A A	16 2006 7/26 A A A	17 2006 8/05 A A A	18 2006 8/15 A A A	19 2006 8/25 A A A
20 2006 9/04 A A A	21 2006 9/14 A A A	22 2006 9/24 A A A	23 2006 10/04 A A A	24 2006 10/14 A A A	25 2006 10/24 A A A	26 2006 11/03 A A A	27 2006 11/13 A A A	28 2006 11/23 A A A	29 2006 12/03 A A A	30 2006 12/13 A A A	31 2006 12/23 A A A	32 2007 1/02 A A A	33 2007 1/12 A A A	34 2007 1/22 A A A	35 2007 2/01 A A A	36 2007 2/11 A A A	37 2007 2/21 A A A	38 2007 3/03 A A A	39 2007 3/13 A A A
40 2007 3/23 A A A	41 2007 4/02 A A A	42 2007 4/12 A A A	43 2007 4/22 A A A	44 2007 5/02 A A A	45 2007 5/12 A A A	46 2007 5/22 A A A	47 2007 6/01 A A A	48 2007 6/11 A A A	49 2007 6/21 A A A	50 2007 7/01 A A A	51 2007 7/11 A A A	52 2007 7/21 A A A	53 2007 7/31 A A A	54 2007 8/10 A A A	55 2007 8/20 A A A	56 2007 8/30 A A A	57 2007 9/09 A A A	58 2007 9/19 A A A	59 2007 9/29 A A A
60 2007 10/09 A A A	61 2007 10/19 A A A	62 2007 10/29 A A A	63 2007 11/08 A A B	64 2007 11/18 A A A	65 2007 11/28 A A A	66 2007 12/08 A A A	67 2007 12/18 A A A	68 2007 12/28 A A A	69 2008 1/07 A A A	70 2008 1/17 A A A	71 2008 1/27 A A A	72 2008 2/06 A A A	73 2008 2/16 A A A	74 2008 2/26 A A A	75 2008 3/07 A A A	76 2008 3/17 A A A	77 2008 3/27 A A A	78 2008 4/06 A A A	79 2008 4/16 A A A
80 2008 4/26 A A A	81 2008 5/06 A A A	82 2008 5/16 A A A	83 2008 5/26 A A A	84 2008 6/05 A A A	85 2008 6/15 A A A	86 2008 6/25 A A A	87 2008 7/05 A A A	88 2008 7/15 A A A	89 2008 7/25 A A A	90 2008 8/04 A A A	91 2008 8/14 A A A	92 2008 8/24 A A A	93 2008 9/03 A A A	94 2008 9/13 A A A	95 2008 9/23 A A A	96 2008 10/03 A A A	97 2008 10/13 A A A	98 2008 10/23 A A A	99 2008 11/02 A A A
100 2008 11/12 A A A	101 2008 11/22 A A A	102 2008 12/02 A A A	103 2008 12/12 A A A	104 2008 12/22 A A A	105 2009 1/01 A A A	106 2009 1/11 A A A	107 2009 1/21 A A A	108 2009 1/31 A A A	109 2009 2/10 A A A	110 2009 2/20 A A A	111 2009 3/02 A A A	112 2009 3/12 A A A	113 2009 3/22 A A A	114 2009 4/01 A A A	115 2009 4/11 A A A	116 2009 4/21 A A A	117 2009 5/01 A A A	118 2009 5/11 A A A	119 2009 5/21 A A A
120 2009 5/31 A A A	121 2009 6/10 A A A		123 2009 6/30 A A A	124 2009 7/10 A A A	125 2009 7/20 A A A	126 2009 7/30 A A A	127 2009 8/09 A A A	128 2009 8/19 A A A	129 2009 8/29 A A A	130 2009 9/08 A A A	131 2009 9/18 A A A	132 2009 9/28 A A A	133 2009 10/08 A A A	134 2009 10/18 A A A	135 2009 10/28 A A A	136 2009 11/07 A A A	137 2009 11/17 A A A	138 2009 11/27 A A A	139 2009 12/07 A A A
140 2009 12/17 A A A	141 2009 12/27 A A A	142 2010 1/06 A A A	143 2010 1/16 A A A	144 2010 1/26 A A A	145 2010 2/05 A A A	146 2010 2/15 A A A	147 2010 2/25 A A A	148 2010 3/07 A A A	149 2010 3/17 A A A	150 2010 3/27 A A A	151 2010 4/06 A A A	152 2010 4/16 A A A	153 2010 4/26 A A A	154 2010 5/06 A A A	155 2010 5/16 A A A	156 2010 5/26 A A A	157 2010 6/05 A A A	158 2010 6/15 A A A	159 2010 6/25 A A A
160 2010 7/05 A A A	161 2010 7/15 A A A	162 2010 7/25 A A A	163 2010 8/04 A A A	164 2010 8/14 A A A	165 2010 8/24 A A A	166 2010 9/03 A A A	167 2010 9/13 A A A	168 2010 9/23 A A A	169 2010 10/03 A A A	170 2010 10/13 A A A	171 2010 10/23 A A A	172 2010 11/02 A A A	173 2010 11/12 A A A	174 2010 11/22 A A A	175 2010 12/02 A A A	176 2010 12/12 A A A	177 2010 12/22 A A A	178 2011 1/01 A A A	179 2011 1/11 A A A
180 2011 1/21 A A A	181 2011 1/31 A A A	182 2011 2/10 A A A	183 2011 2/20 A A A	184 2011 3/02 A A A	185 2011 3/12 A A A	186 2011 3/22 A A A	187 2011 4/01 A A A	188 2011 4/11 A A A	189 2011 4/21 A A A	190 2011 5/01 A F F	191 2011 5/11 A A A	192 2011 5/21 A A A	193 2011 5/31 A A A	194 2011 6/10 A A A	195 2011 6/20 A A A	196 2011 6/30 A A A	197 2011 7/10 A A A	198 2011 7/20 A A A	199 2011 7/30 A A A
200 2011 8/09 A A A

Creation Date: 2024-08-27
