WMO # 1900164

Argo Float WMO # 1900164 : Plots based on data files at the GDAC

Metadata:
WMO #:	1900164
PI:	Breck Owens
DAC:	AOML

DAC #:	369
WHOI Float #:	179
Last Heard From:	2007-02-06
Longevity:	4.06 yrs

Hardware:
Telcom:	ARGOS 7337
Telcom:	ARGOS 7337
Instrument:	NM525_SB10
ROM version:	5.25
Temperature:	SBE41CP, s/n: 0344
Conductivity:	SBE41CP, s/n: 0344
Pressure:	Paines, s/n: 2657730088

Deployment:
Deployed:	2003-01-04
Latitude:	-40.315
Longitude:	10.551
Deployment Platform:	Melville
Cruise ID:	n/a
Deployer:	n/a

GDAC file status:
Last Update:	2019-05-08
Profiles at GDAC:	147
GDAC D-files:	147
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

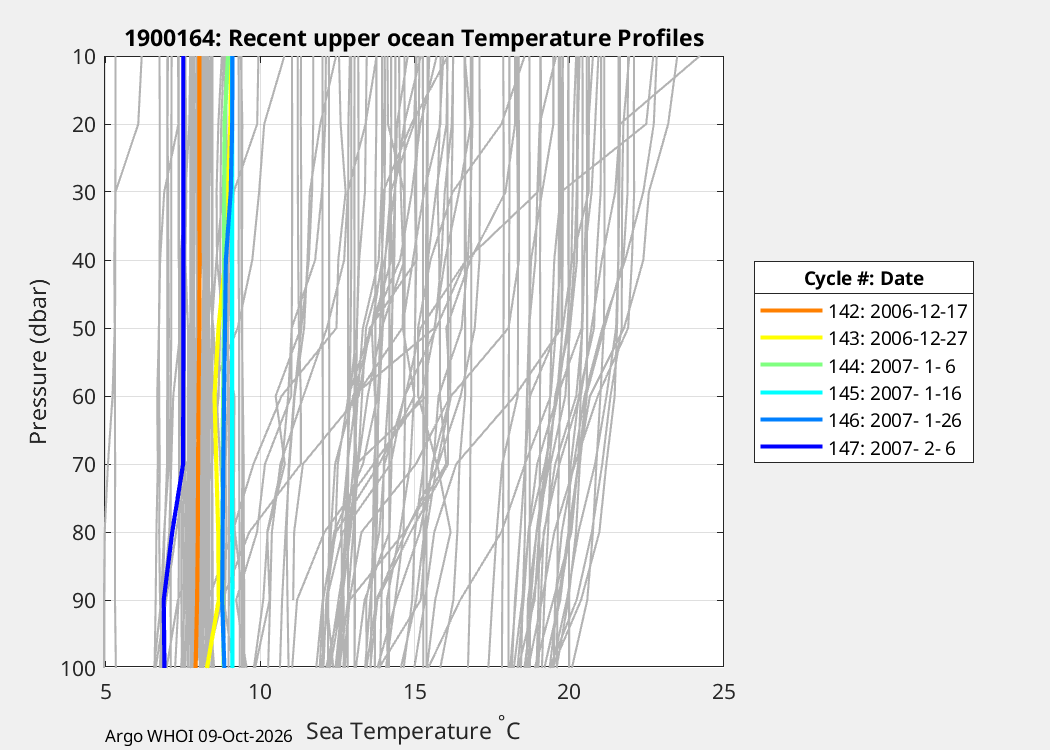

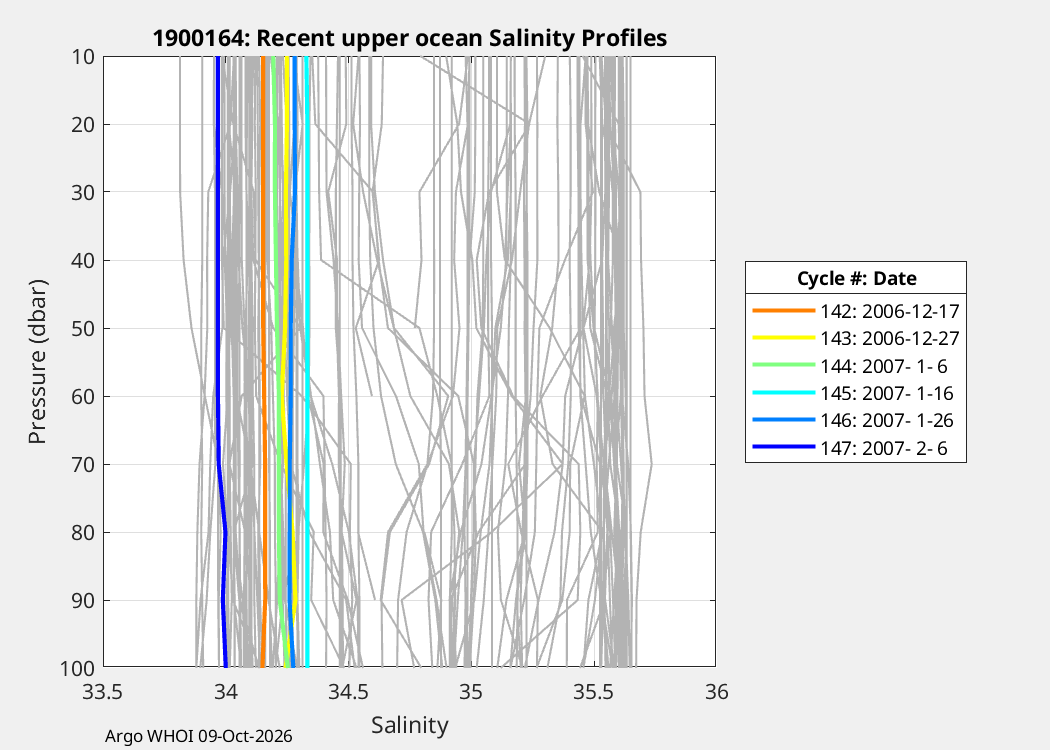

Temperature Profiles	Salinity Profiles

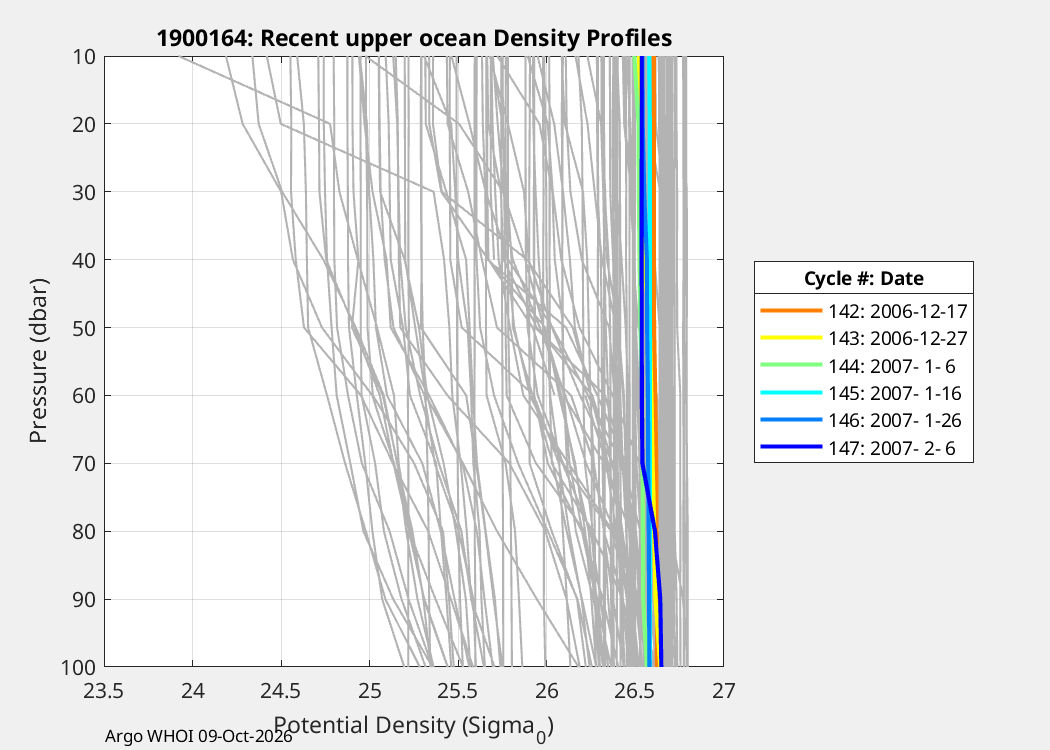

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2003 1/14 A B E	2 2003 1/24 A B E	3 2003 2/03 A A A	4 2003 2/14 A A A	5 2003 2/24 A A A	6 2003 3/06 A A A	7 2003 3/16 A A A	8 2003 3/26 A F F	9 2003 4/05 A A A	10 2003 4/16 A A A	11 2003 4/26 A B B	12 2003 5/06 A B B	13 2003 5/16 A A B	14 2003 5/26 A B B	15 2003 6/05 A A C	16 2003 6/15 A B B	17 2003 6/26 A B B	18 2003 7/06 A A A	19 2003 7/16 A A A
20 2003 7/26 A A A	21 2003 8/05 A F F	22 2003 8/15 A A A	23 2003 8/26 A B B	24 2003 9/05 A B B	25 2003 9/15 A A A	26 2003 9/25 A B C	27 2003 10/05 A A A	28 2003 10/15 A A A	29 2003 10/26 A A B	30 2003 11/05 A B B	31 2003 11/15 A A A	32 2003 11/25 A A B	33 2003 12/05 A A B	34 2003 12/15 A A B	35 2003 12/25 A A A	36 2004 1/05 A A B	37 2004 1/15 A A A	38 2004 1/25 A A A	39 2004 2/04 A A A
40 2004 2/14 A A A	41 2004 2/24 A A A	42 2004 3/06 A B B	43 2004 3/16 A B B	44 2004 3/26 A A A	45 2004 4/05 A A A	46 2004 4/15 A B B	47 2004 4/25 A A A	48 2004 5/06 A A A	49 2004 5/16 A A A	50 2004 5/26 A A A	51 2004 6/05 A A A	52 2004 6/15 A A A	53 2004 6/25 A A A	54 2004 7/06 A A A	55 2004 7/16 A A A	56 2004 7/26 A A A	57 2004 8/05 A A A	58 2004 8/15 A A C	59 2004 8/25 A A A
60 2004 9/05 A B B	61 2004 9/15 A B B	62 2004 9/25 A A A	63 2004 10/05 A A A	64 2004 10/15 A A A	65 2004 10/25 A A A	66 2004 11/04 A A A	67 2004 11/15 A A A	68 2004 11/25 A A A	69 2004 12/05 A B F	70 2004 12/15 A A B	71 2004 12/25 A B B	72 2005 1/04 A A B	73 2005 1/15 A A A	74 2005 1/25 A A A	75 2005 2/04 A A B	76 2005 2/14 A A A	77 2005 2/24 A A A	78 2005 3/06 A A A	79 2005 3/16 A B B
80 2005 3/27 A B B	81 2005 4/06 A A A	82 2005 4/16 A A A	83 2005 4/26 A A A	84 2005 5/06 A A A	85 2005 5/16 A A A	86 2005 5/27 A E E	87 2005 6/06 A E F	88 2005 6/16 A F F	89 2005 6/26 A A A	90 2005 7/06 A A B	91 2005 7/16 A A A	92 2005 7/27 A A A	93 2005 8/06 A A A	94 2005 8/16 A A A	95 2005 8/26 A A A	96 2005 9/05 A A A	97 2005 9/15 A A A	98 2005 9/26 A B B	99 2005 10/06 A A A
100 2005 10/16 A A A	101 2005 10/26 A A A	102 2005 11/05 A A A	103 2005 11/15 A A A	104 2005 11/25 A A A	105 2005 12/06 A A A	106 2005 12/16 A A A	107 2005 12/26 A A A	108 2006 1/05 A A A	109 2006 1/15 A A A	110 2006 1/25 A A A	111 2006 2/05 A A A	112 2006 2/15 A A A	113 2006 2/25 A A A	114 2006 3/07 A A A	115 2006 3/17 A A A	116 2006 3/27 A A A	117 2006 4/07 A A A	118 2006 4/17 A A A	119 2006 4/27 A A A
120 2006 5/07 A A A	121 2006 5/17 A A A	122 2006 5/27 A A A	123 2006 6/07 A A A	124 2006 6/17 A A A	125 2006 6/27 A A A	126 2006 7/07 A A A	127 2006 7/17 A A A	128 2006 7/27 A A B	129 2006 8/07 A A A	130 2006 8/17 A A A	131 2006 8/27 A A A	132 2006 9/06 A A A	133 2006 9/16 A A A	134 2006 9/26 A A A	135 2006 10/07 A A A	136 2006 10/17 A A A	137 2006 10/27 A A A	138 2006 11/06 A A A	139 2006 11/16 A A A
140 2006 11/26 A A A	141 2006 12/07 A A A	142 2006 12/17 A A A	143 2006 12/27 A A A	144 2007 1/06 A A A	145 2007 1/16 A A A	146 2007 1/26 A A A	147 2007 2/06 A A A

Creation Date: 2024-02-27
