WMO # 1900059

Argo Float WMO # 1900059 : Plots based on data files at the GDAC

Metadata:
WMO #:	1900059
PI:	Breck Owens
DAC:	AOML

DAC #:	211
WHOI Float #:	130
Last Heard From:	2009-10-09
Longevity:	6.81 yrs

Hardware:
Telcom:	ARGOS 26761
Telcom:	ARGOS 26761
Instrument:	SOLO_TS9
ROM version:	5.25
Temperature:	SBE41CP, s/n: 0307
Conductivity:	SBE41CP, s/n: 0307
Pressure:	Paines, s/n: 2657717569

Deployment:
Deployed:	2002-12-07
Latitude:	-7.005
Longitude:	-15.856
Deployment Platform:	Lykes Runner
Cruise ID:	AX08
Deployer:	Ulises Rivero

GDAC file status:
Last Update:	2022-06-10
Profiles at GDAC:	242
GDAC D-files:	242
GDAC R-files:	0

Links (at WHOI):
Calibration Plots:	PDF (10-Jun-2022)

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

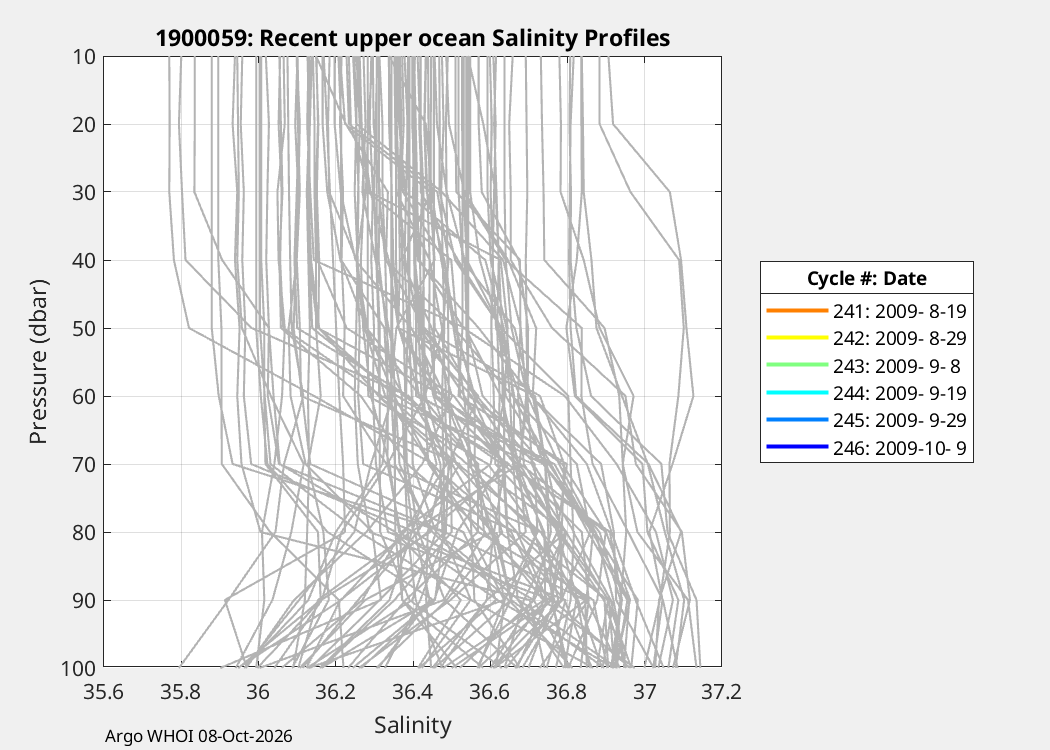

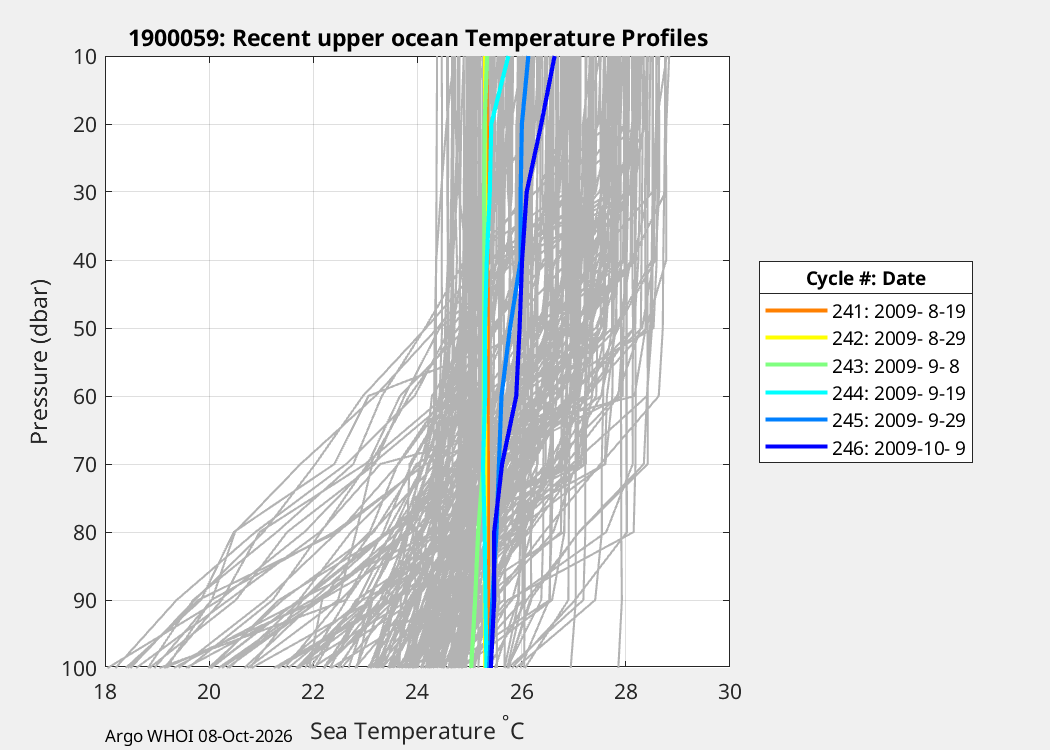

Temperature Profiles	Salinity Profiles

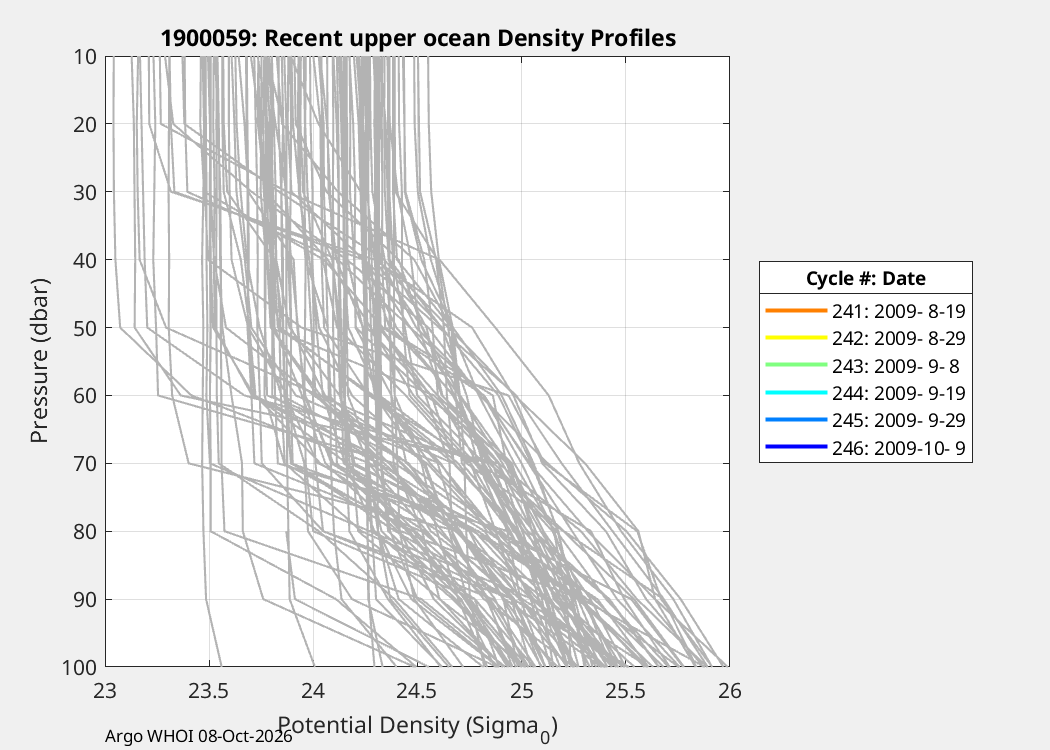

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement
Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
	1 2002 12/16 A A A	2 2002 12/27 A A A	3 2003 1/06 A A A	4 2003 1/16 A A A	5 2003 1/26 A A A	6 2003 2/05 A A A	7 2003 2/15 A A A	8 2003 2/25 A A A	9 2003 3/08 A A A	10 2003 3/18 A A A	11 2003 3/28 A A A	12 2003 4/07 A A A	13 2003 4/17 A A A	14 2003 4/27 A A A	15 2003 5/08 A A A	16 2003 5/18 A A A	17 2003 5/28 A A A	18 2003 6/07 A A A	19 2003 6/17 A A A
20 2003 6/27 A A A	21 2003 7/07 A A A	22 2003 7/18 A A A	23 2003 7/28 A A A	24 2003 8/07 A A A	25 2003 8/17 A A A	26 2003 8/27 A A A	27 2003 9/06 A A A	28 2003 9/17 A A A	29 2003 9/27 A A A	30 2003 10/07 A A A	31 2003 10/17 A A A	32 2003 10/27 A A A	33 2003 11/06 A A A	34 2003 11/16 A A A	35 2003 11/27 A A A	36 2003 12/07 A A A	37 2003 12/17 A A A	38 2003 12/27 A A A	39 2004 1/06 A C C
40 2004 1/16 A A A	41 2004 1/27 A A A	42 2004 2/06 A A A	43 2004 2/16 A A A	44 2004 2/26 A A A	45 2004 3/07 A A A	46 2004 3/17 A A A	47 2004 3/27 A A A	48 2004 4/07 A A A	49 2004 4/17 A A A	50 2004 4/27 A A A	51 2004 5/07 A A A	52 2004 5/17 A A A	53 2004 5/27 A A A	54 2004 6/07 A A A	55 2004 6/17 A A A	56 2004 6/27 A A A	57 2004 7/07 A A A	58 2004 7/17 A A A	59 2004 7/27 A A A
60 2004 8/07 A A A	61 2004 8/17 A A A	62 2004 8/27 A A A	63 2004 9/06 A A A	64 2004 9/16 A A A	65 2004 9/26 A A A	66 2004 10/06 A A A	67 2004 10/17 A A A	68 2004 10/27 A A A	69 2004 11/06 A A A	70 2004 11/16 A A A	71 2004 11/26 A A A	72 2004 12/06 A A A	73 2004 12/17 A A A	74 2004 12/27 A A A	75 2005 1/06 A A A	76 2005 1/16 A A A	77 2005 1/26 A A A	78 2005 2/05 A A A	79 2005 2/16 A A A
80 2005 2/26 A A A	81 2005 3/08 A A A	82 2005 3/18 A A A	83 2005 3/28 A A A	84 2005 4/07 A A A	85 2005 4/17 A A A		87 2005 5/08 A A A	88 2005 5/18 A A A	89 2005 5/28 A A A	90 2005 6/07 A A A	91 2005 6/17 A A B	92 2005 6/28 A A A	93 2005 7/08 A A A	94 2005 7/18 A A A	95 2005 7/28 A A A	96 2005 8/07 A A A	97 2005 8/17 A A A	98 2005 8/28 A A A	99 2005 9/07 A A A
100 2005 9/17 A A A	101 2005 9/27 A A A	102 2005 10/07 A A A	103 2005 10/17 A A A	104 2005 10/27 A A A	105 2005 11/07 A A A	106 2005 11/17 A A A	107 2005 11/27 A A A	108 2005 12/07 A A A	109 2005 12/17 A A A	110 2005 12/27 A A A	111 2006 1/07 A A A	112 2006 1/17 A A A	113 2006 1/27 A A A	114 2006 2/06 A A A	115 2006 2/16 A A A	116 2006 2/26 A A A	117 2006 3/09 A A A	118 2006 3/19 A A F	119 2006 3/29 A A F
120 2006 4/08 A A F	121 2006 4/18 A A F	122 2006 4/28 A A F	123 2006 5/08 A A F	124 2006 5/19 A A F	125 2006 5/29 A A F			128 2006 6/28 A A F	129 2006 7/08 A A F	130 2006 7/19 A A F	131 2006 7/29 A A F	132 2006 8/08 A A F	133 2006 8/18 A A F	134 2006 8/28 A A F	135 2006 9/07 A A F	136 2006 9/17 A A F	137 2006 9/28 A A F	138 2006 10/08 A A F	139 2006 10/18 A A F
140 2006 10/28 A A F	141 2006 11/07 A A F	142 2006 11/17 A A F	143 2006 11/28 A A F	144 2006 12/08 A A F	145 2006 12/18 A A F	146 2006 12/28 A A F	147 2007 1/07 A A F	148 2007 1/17 A A F	149 2007 1/28 A A F	150 2007 2/07 A A F	151 2007 2/17 A A F	152 2007 2/27 A A F	153 2007 3/09 A A F	154 2007 3/19 A A F	155 2007 3/30 A A F	156 2007 4/09 A A F	157 2007 4/19 A A F	158 2007 4/29 A A F
160 2007 5/19 A A F	161 2007 5/29 A A F	162 2007 6/09 A A F	163 2007 6/19 A A F	164 2007 6/29 A A F	165 2007 7/09 A A F	166 2007 7/19 A A F	167 2007 7/29 A A F	168 2007 8/09 A A F	169 2007 8/19 A A F	170 2007 8/29 A A F	171 2007 9/08 A A F	172 2007 9/18 A A F	173 2007 9/28 A A F	174 2007 10/08 A A F	175 2007 10/19 A A F	176 2007 10/29 A A F	177 2007 11/08 A A F	178 2007 11/18 A A F	179 2007 11/28 A A F
180 2007 12/08 A A F	181 2007 12/19 A A F	182 2007 12/29 A A F	183 2008 1/08 A A F	184 2008 1/18 A A F	185 2008 1/28 A A F	186 2008 2/07 A A F	187 2008 2/18 A A F	188 2008 2/28 A A F	189 2008 3/09 A A F	190 2008 3/19 A A F	191 2008 3/29 A A F	192 2008 4/08 A A F	193 2008 4/19 A A F	194 2008 4/29 A A F	195 2008 5/09 A A F	196 2008 5/19 A A F	197 2008 5/29 A A F	198 2008 6/08 A A F	199 2008 6/18 A A F
200 2008 6/29 A A F	201 2008 7/09 A A F	202 2008 7/19 A A F	203 2008 7/29 A A F	204 2008 8/08 A A F	205 2008 8/18 A A F	206 2008 8/29 A A F	207 2008 9/08 A A F	208 2008 9/18 A A F	209 2008 9/28 A A F	210 2008 10/08 A A F	211 2008 10/18 A A F	212 2008 10/29 A A F	213 2008 11/08 A A F	214 2008 11/18 A A F	215 2008 11/28 A A F	216 2008 12/08 A A F	217 2008 12/18 A A F	218 2008 12/28 A A F	219 2009 1/08 A A F
220 2009 1/18 A A F	221 2009 1/28 A A F	222 2009 2/07 A A F	223 2009 2/17 A A F	224 2009 2/27 A A F	225 2009 3/10 A A F	226 2009 3/20 A A F	227 2009 3/30 A A F	228 2009 4/09 A A F	229 2009 4/19 A A F	230 2009 4/29 A A F	231 2009 5/09 A A F	232 2009 5/20 A A F	233 2009 5/30 A A F	234 2009 6/09 A A F	235 2009 6/19 A A F	236 2009 6/29 A A F	237 2009 7/09 A A F	238 2009 7/20 A A F	239 2009 7/30 A A F
240 2009 8/09 A A F	241 2009 8/19 A A F	242 2009 8/29 A A F	243 2009 9/08 A A F	244 2009 9/19 A A F	245 2009 9/29 A A F	246 2009 10/09 A A F

Creation Date: 2024-12-06
