| WMO #: | 4903035 |
| DAC #: | 7490 |
| Serial #: | 7465 |
| |
| PI: | Breck OWENS, Steven JAYNE, Pelle ROBBINS |
| |
| Last Report: | 2025-07-07 |
| Last Cycle: | 289 |
| |
| Last Cycle: | |
| PumpT_Target: | 300.0 s |
| Voltage - open: | 8.9 V |
| Voltage - load: | 4.3 V |
| |
| Hardware: | |
| Platform: | SOLO2IR_TS9 |
| ROM version: | SBE602 11Dec15 ARM V2.1 |
| Temperature: | SBE41CP, s/n: 9272 |
| Conductivity: | SBE41CP, s/n: 9272 |
| Pressure: | Druck, s/n: 10449806 |
| Customisation: | Tadiran batteries |
| |
| Deployment: | |
| Launched: | 2018-01-12 |
| Launch Platform: | Neil Armstrong |
| Cruise ID: | AR-26 PEACH-2018 |
| Launch Deployer: | Andres / Bahr |
| |
| Links: | |
| Listing Files: | WHOI |
| Public plots of telemetry data: | WHOI |
| Plots based on GDAC data: | WHOI |
|
Energy Budget
 |
Telemetry
 |

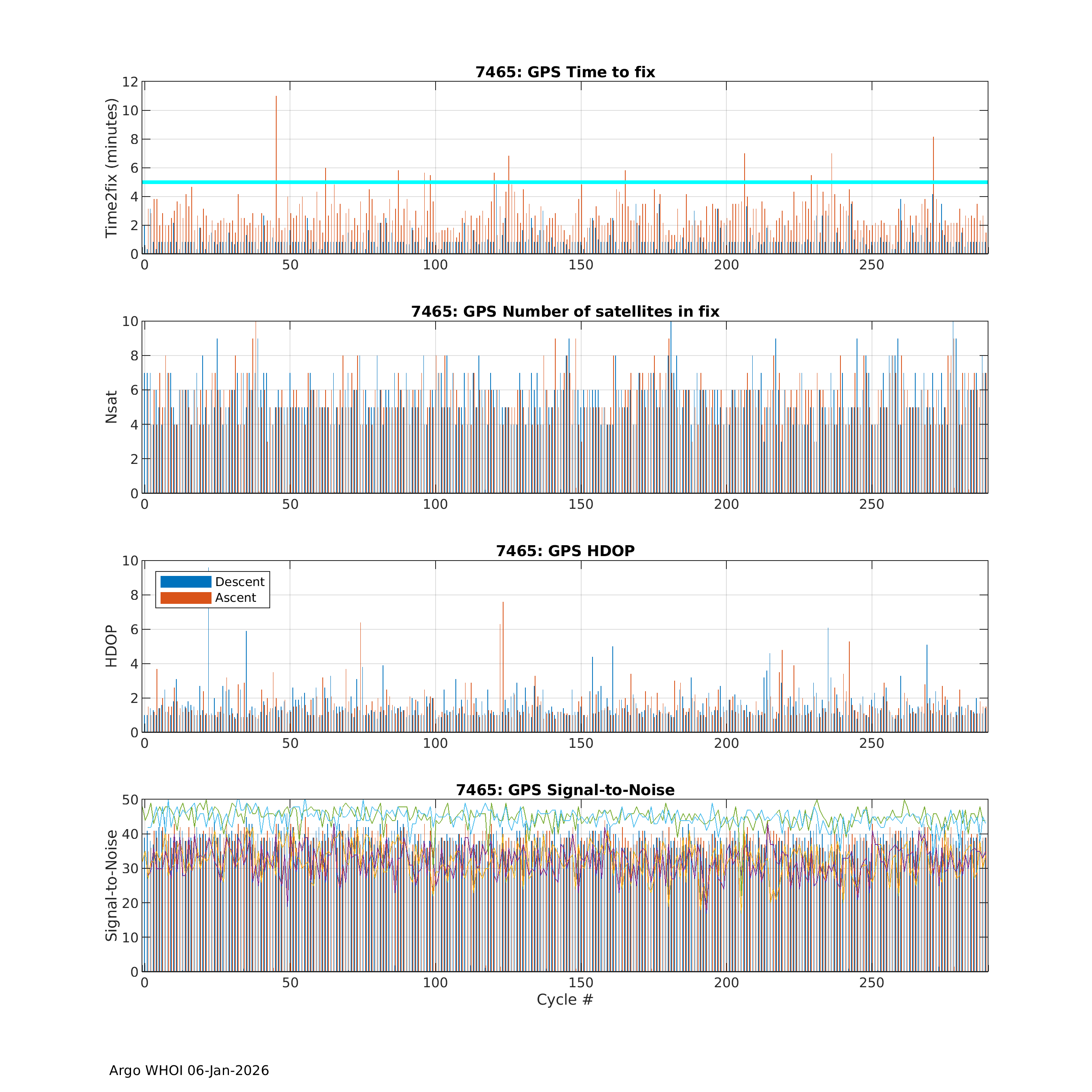

GPS
 |
Ice Detect Status
 |

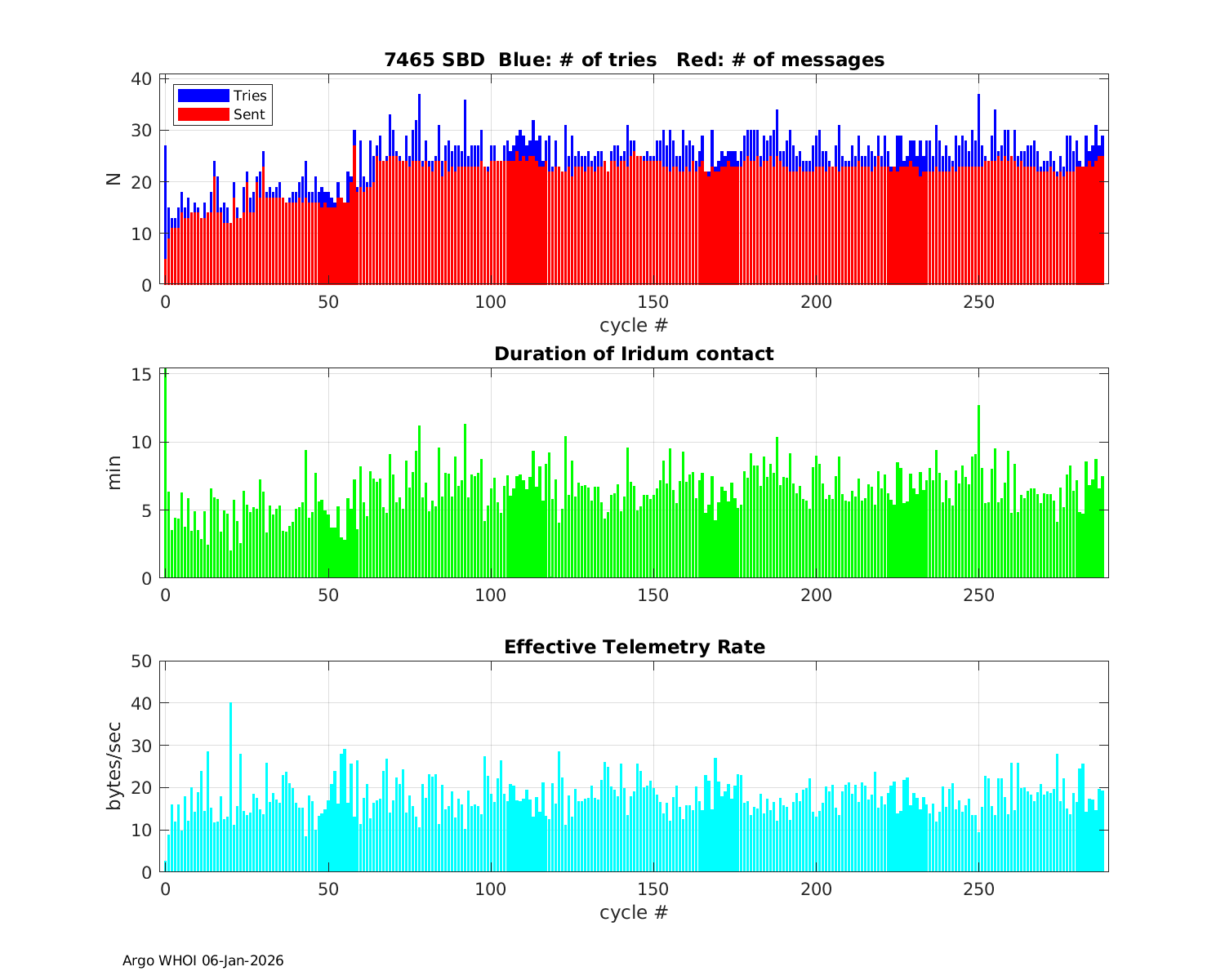

Iridium SBD
 |
Exception Flags
 |

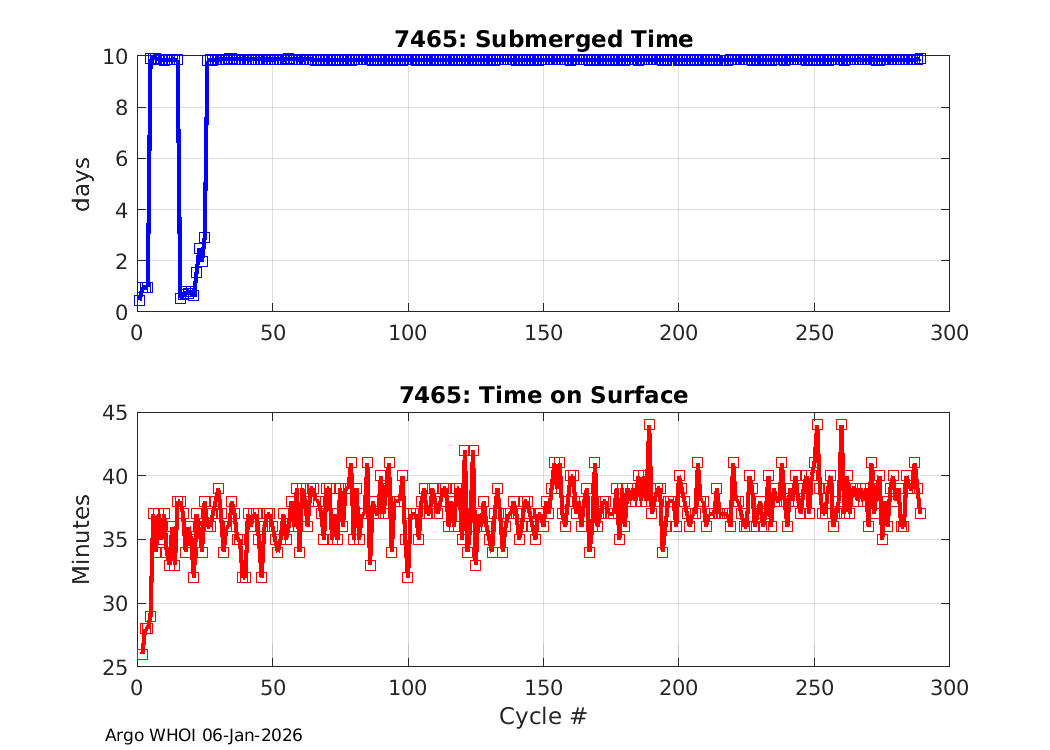

Cycle Times
 |

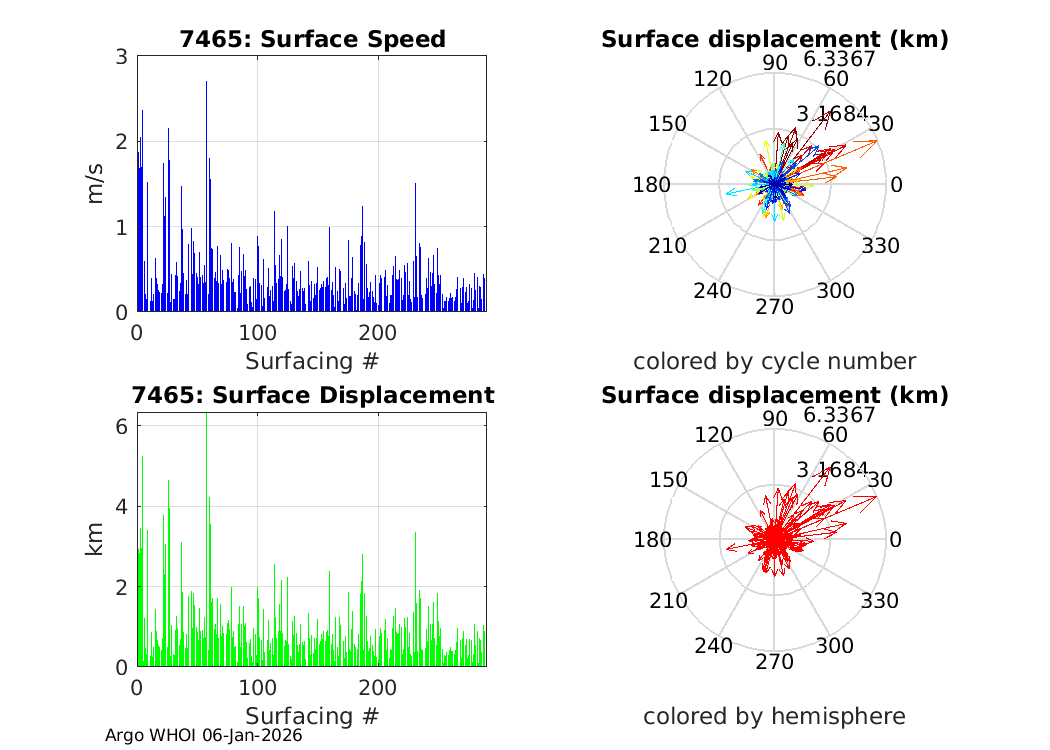

Surface
 |

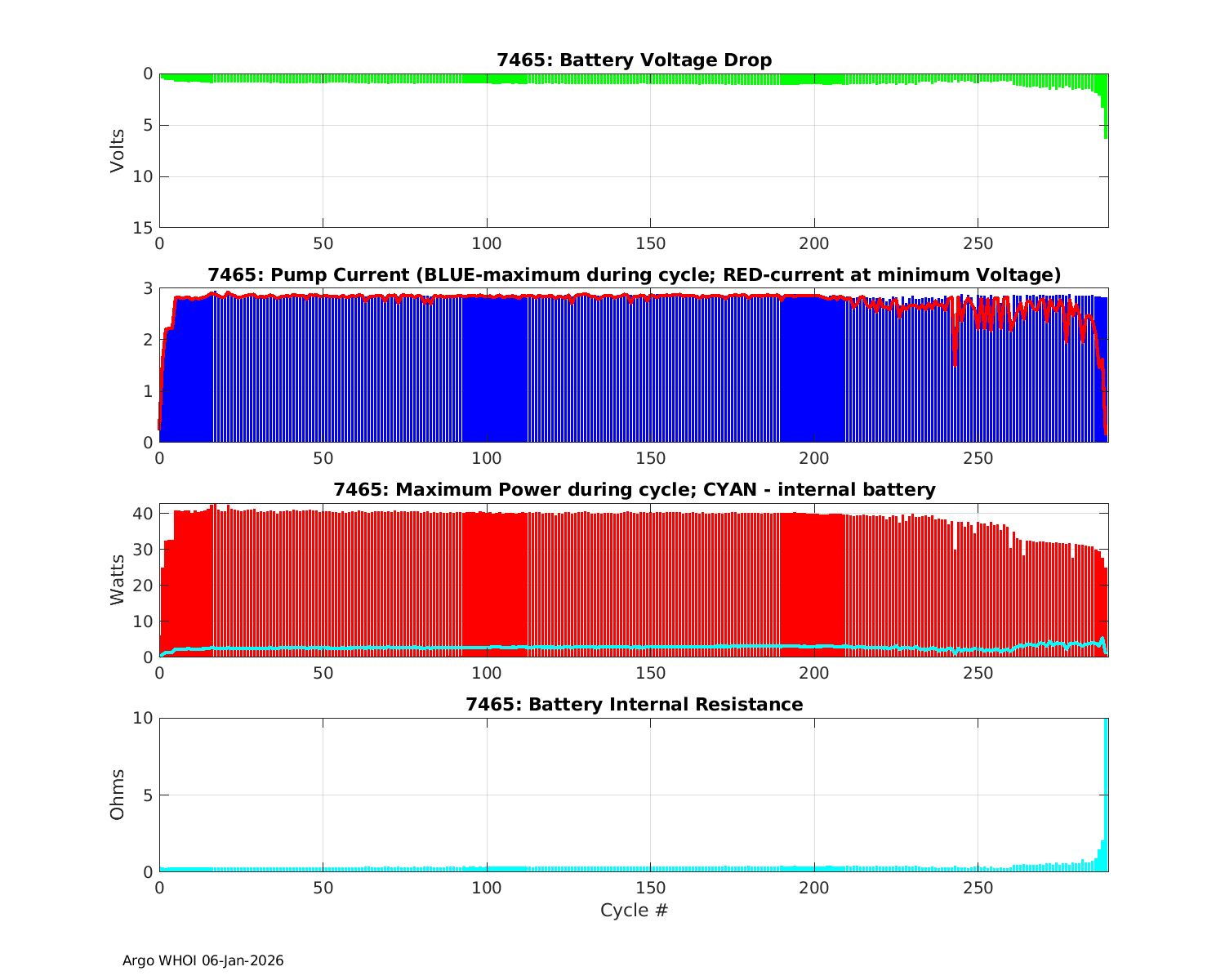

Battery Summary
 |
Batteries during Hydraulic Cycle
 |

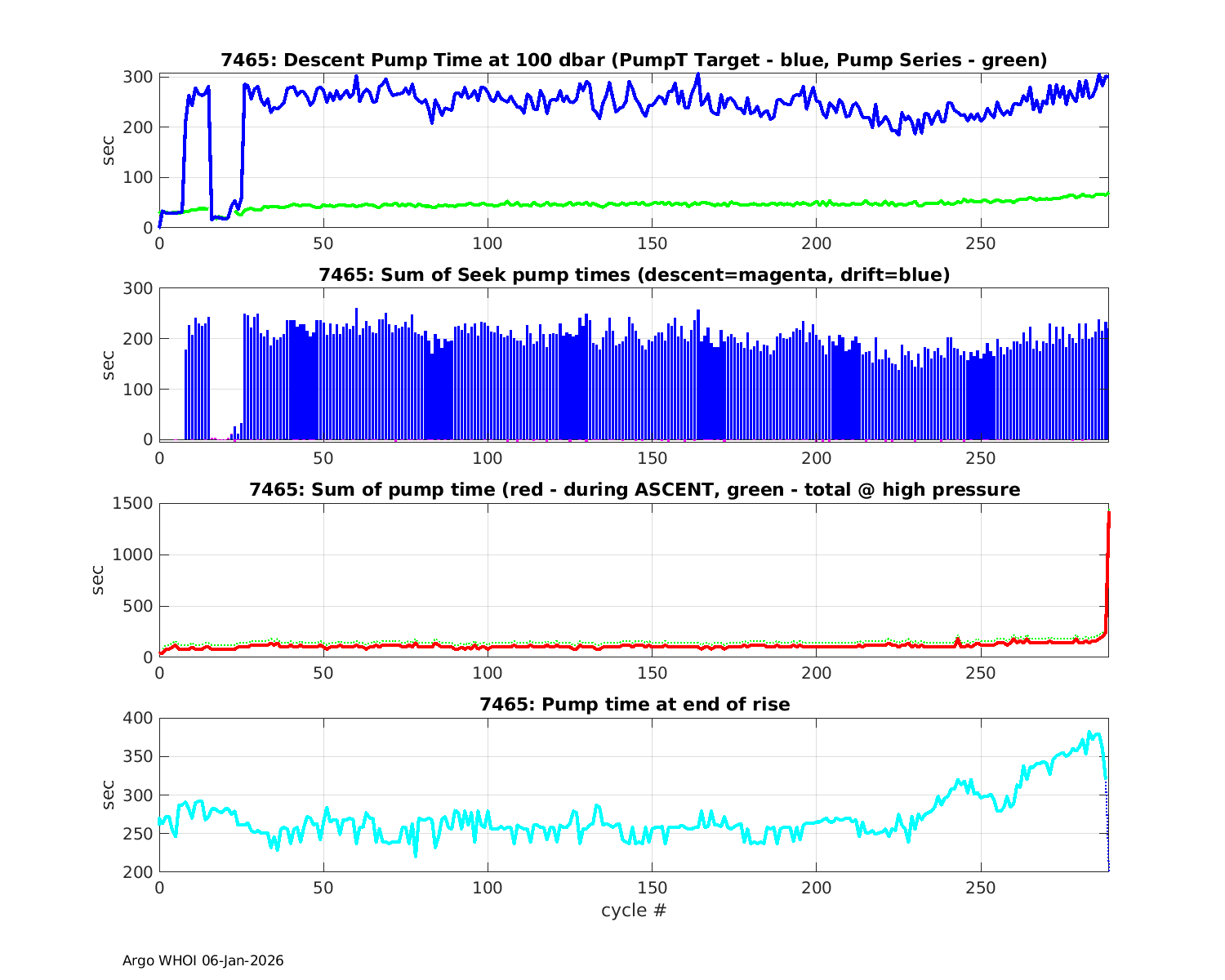

Pump Times
 |

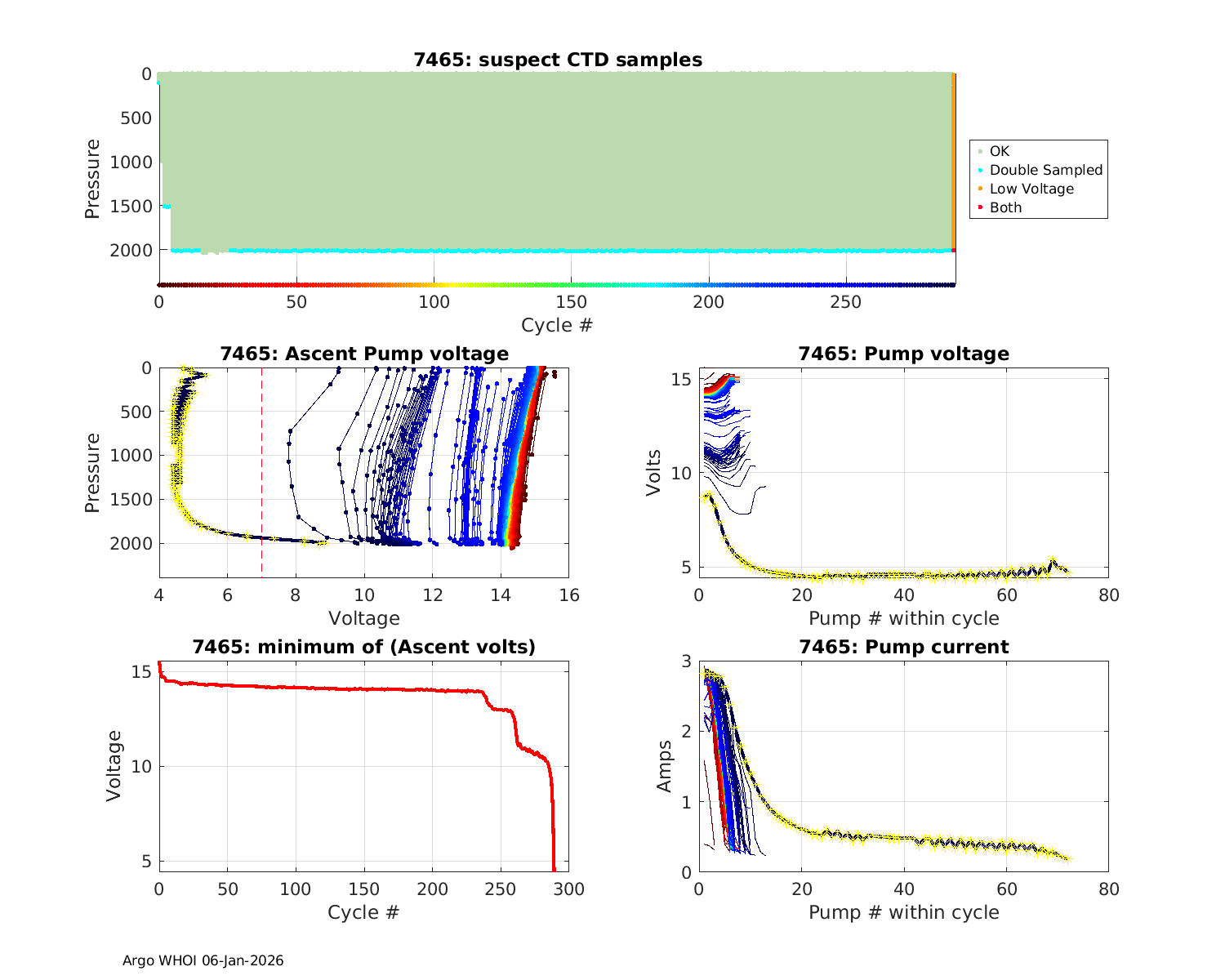

Pump
 |
Vacuum
 |

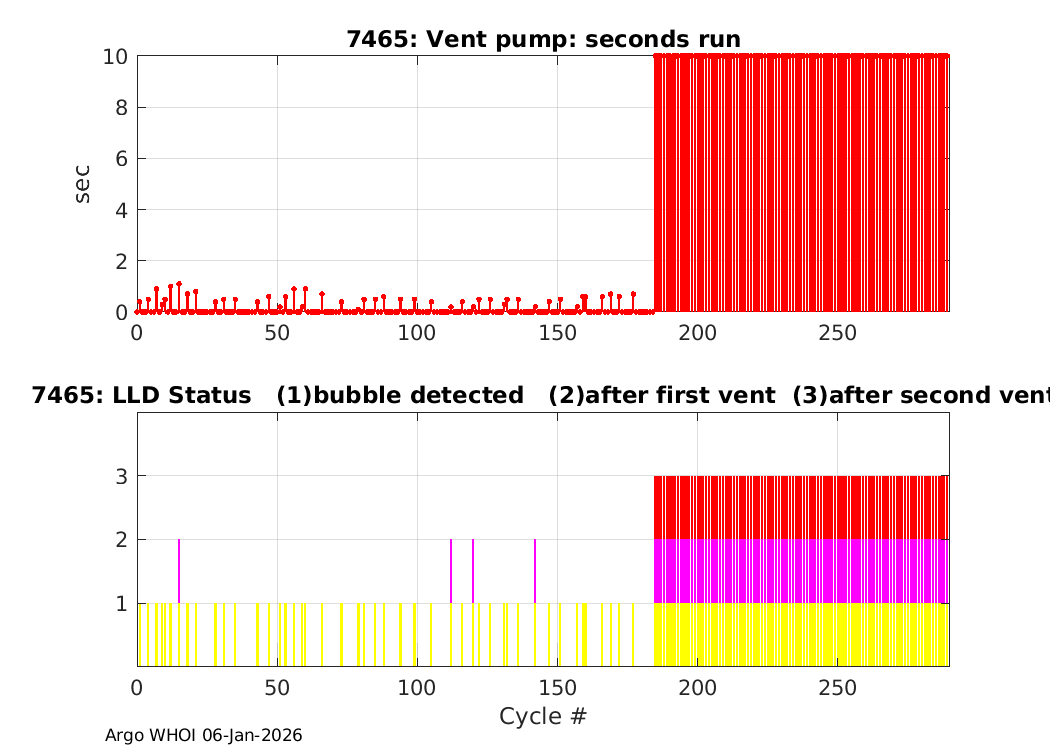

Vent
 |

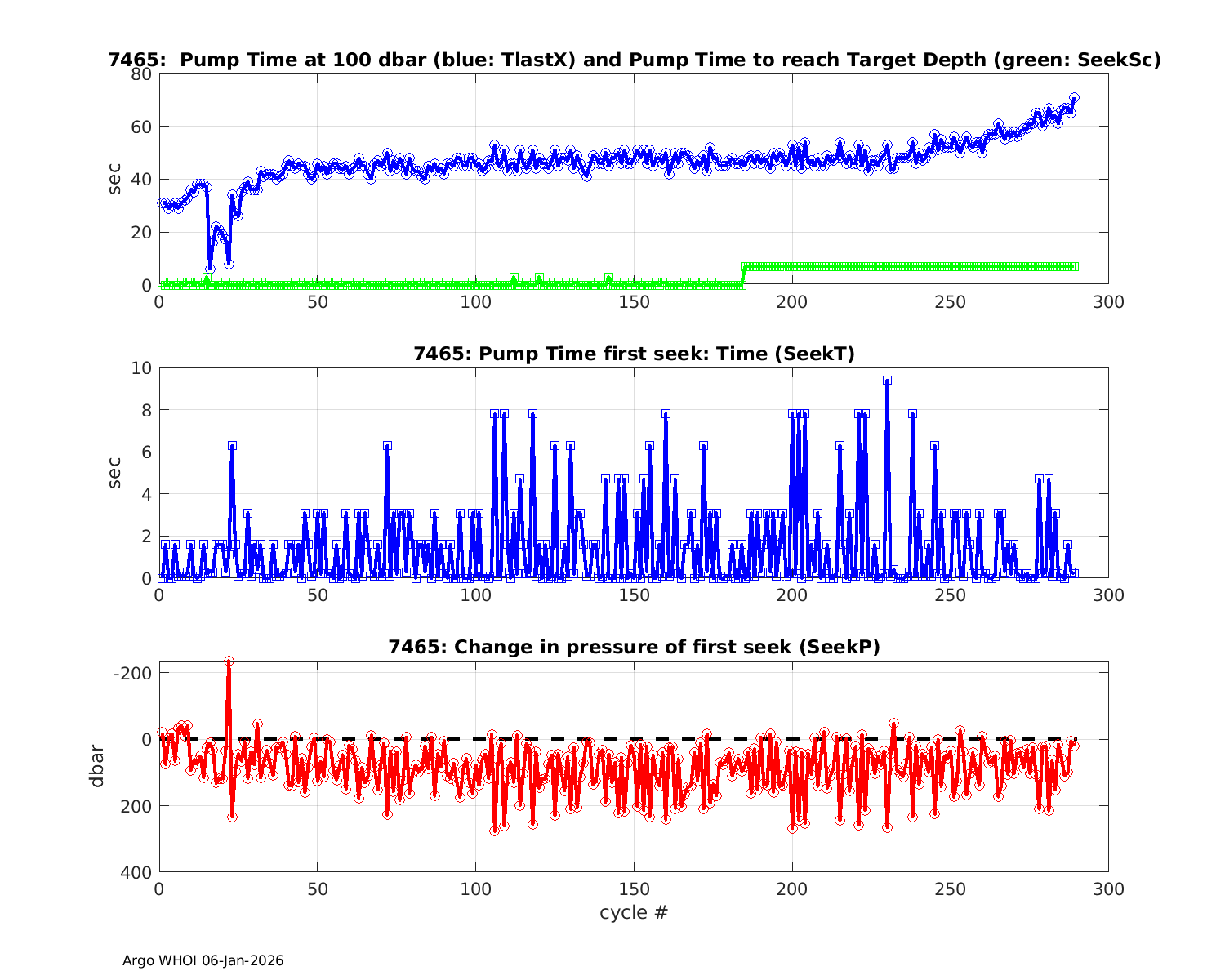

Seek Times
 |

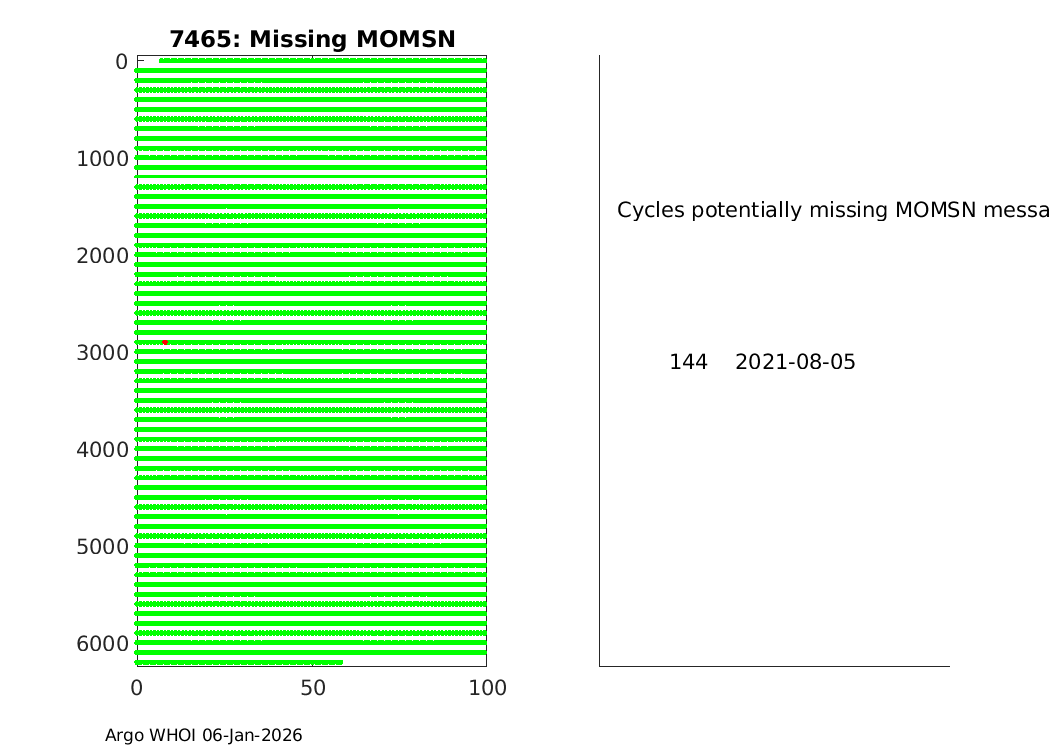

Iridium MOMSN
 |

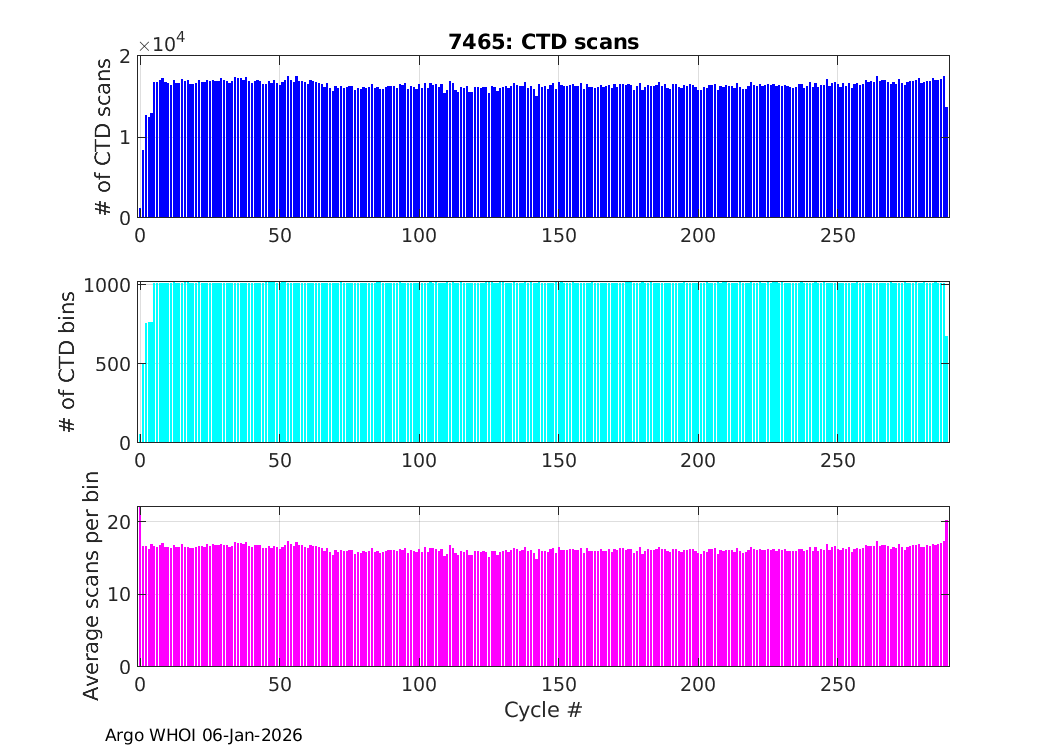

CTD scans
 |

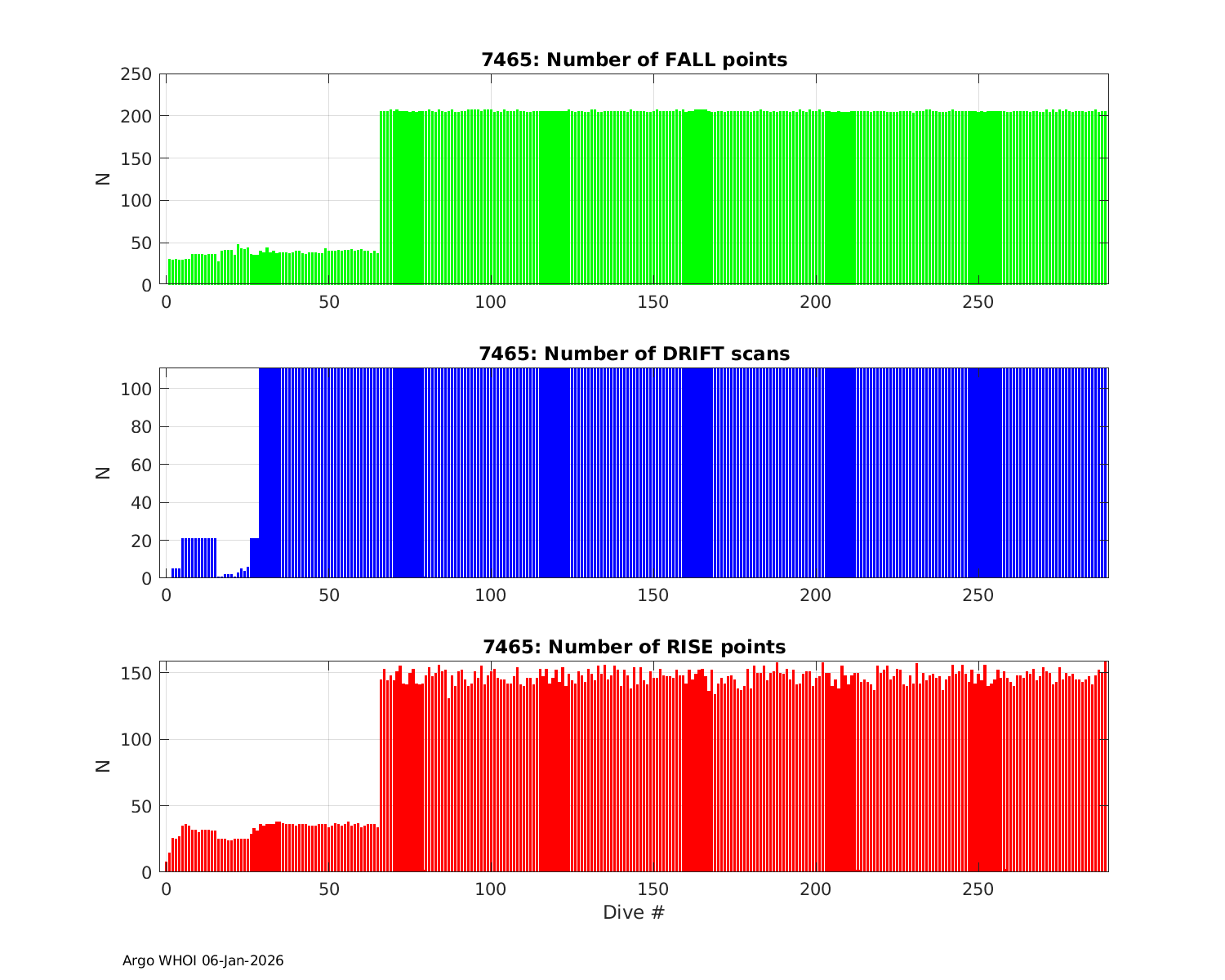

Fall/Drift/Rise Points
 |

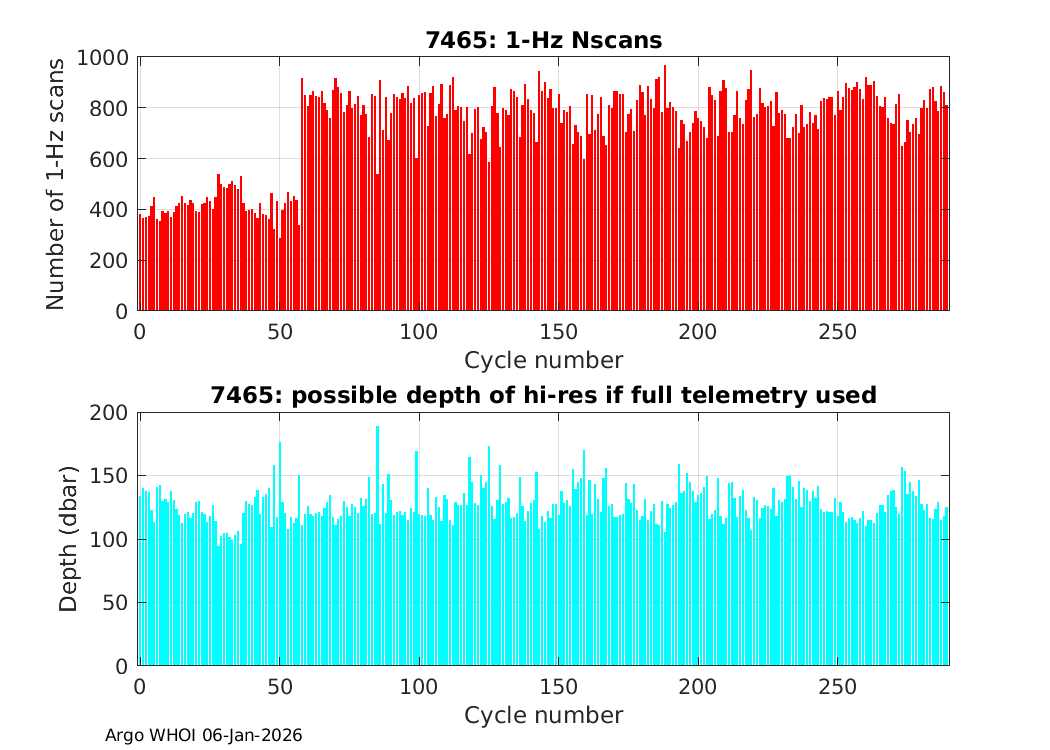

Hi-res Scans
 |

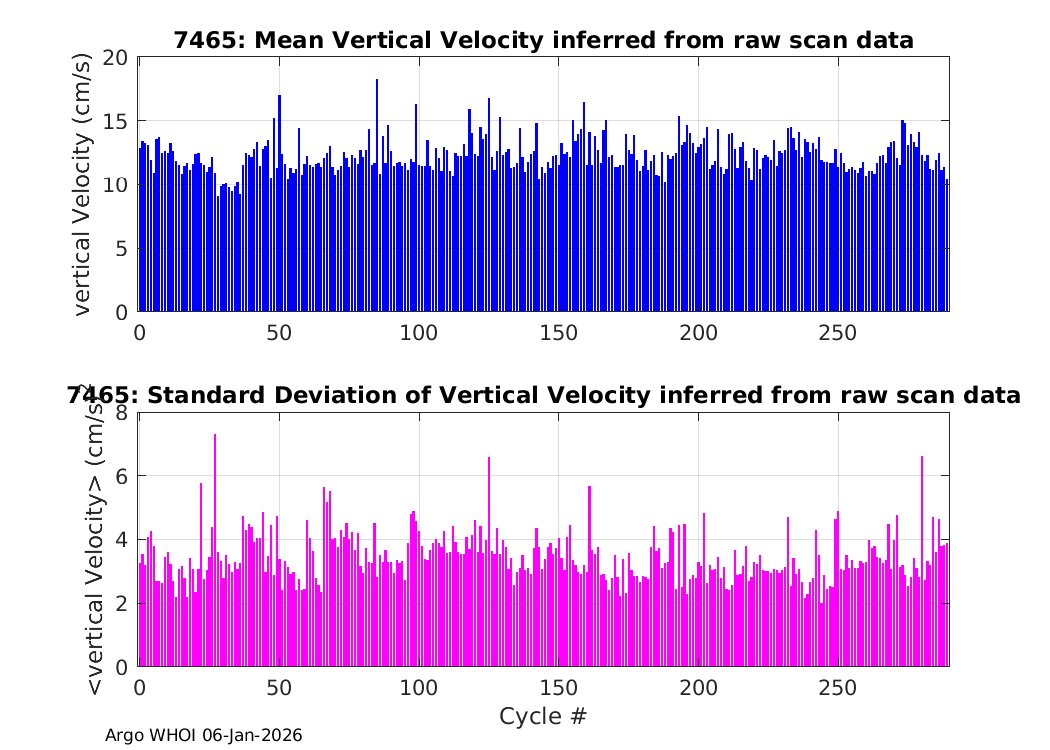

Hi-res W
 |
ccCor Deep
 |

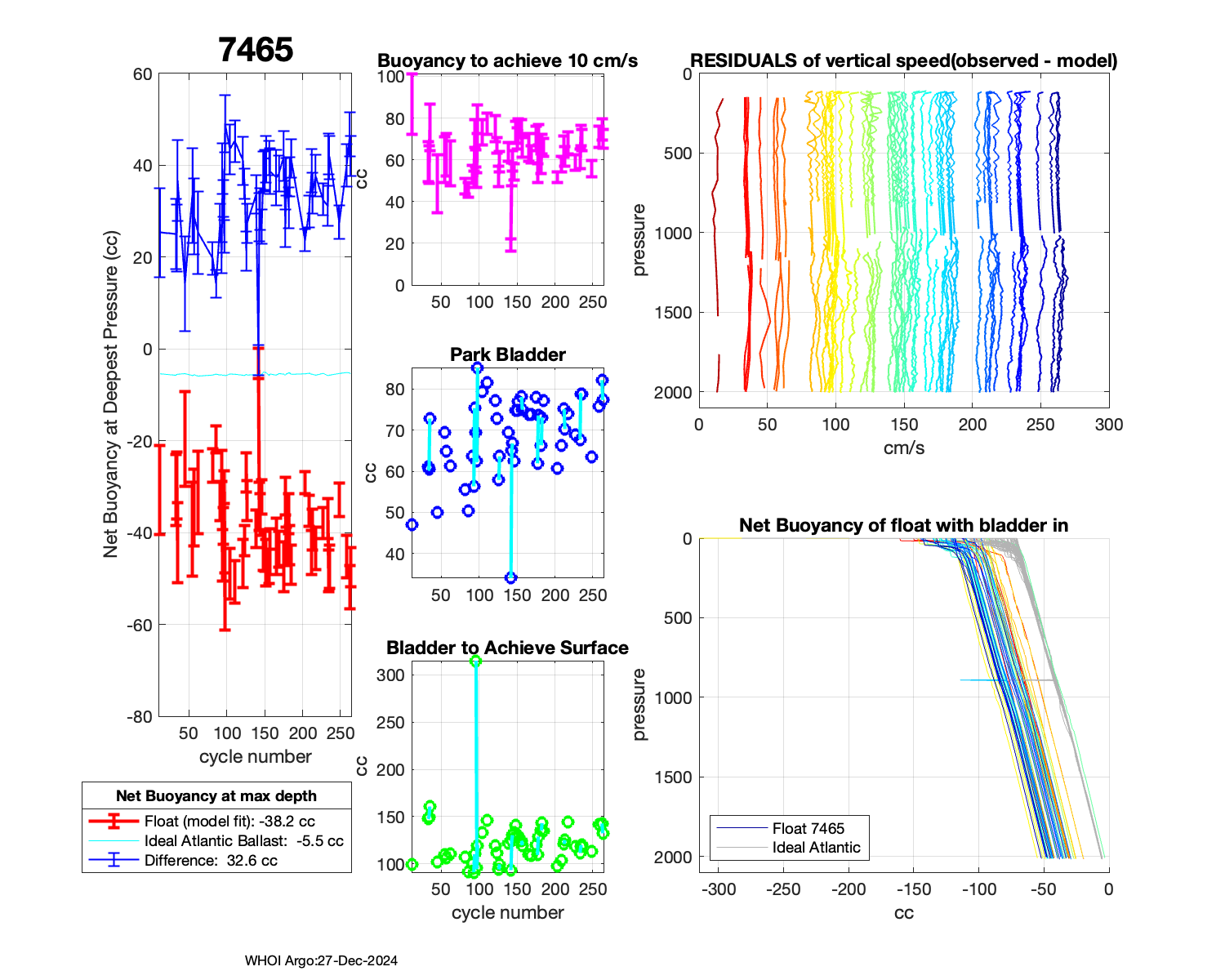

Ballast Trim
 |

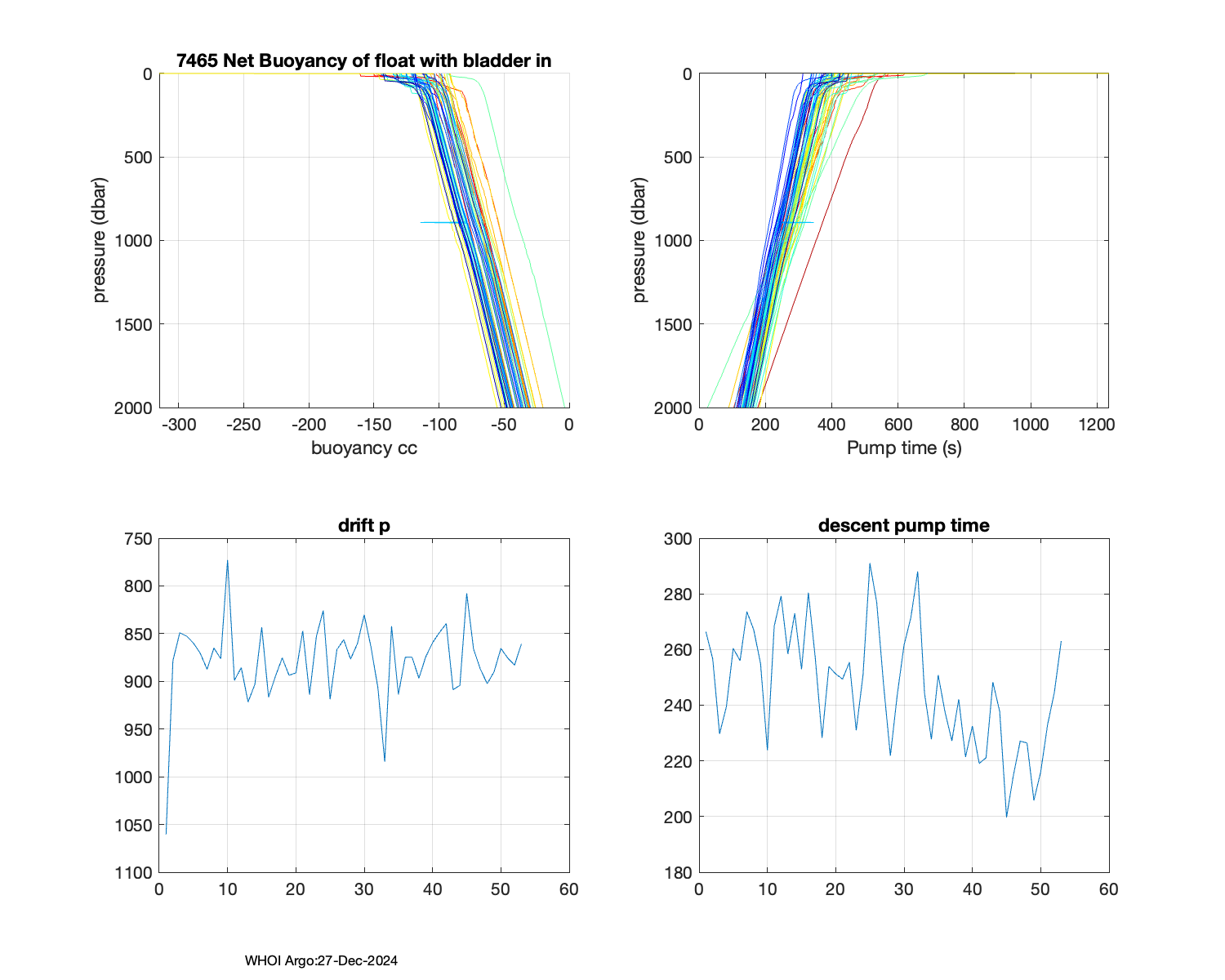

Pump Times
 |
|
