| WMO #: | 1902070 |
| DAC #: | 7477 |
| Serial #: | 7434 |
| |
| PI: | Breck OWENS, Steven JAYNE, Pelle ROBBINS |
| |
| Last Report: | 2025-05-09 |
| Last Cycle: | 280 |
| |
| Last Cycle: | |
| PumpT_Target: | 36.7 s |
| Voltage - open: | 15.0 V |
| Voltage - load: | 14.8 V |
| |
| Hardware: | |
| Platform: | SOLO2IR_TS9 |
| ROM version: | SBE602 11Dec15 ARM V2.1 |
| Temperature: | SBE41CP, s/n: 9131 |
| Conductivity: | SBE41CP, s/n: 9131 |
| Pressure: | Druck, s/n: 10444116 |
| Customisation: | Tadiran batteries |
| |
| Deployment: | |
| Launched: | 2017-11-14 |
| Launch Platform: | MV Maersk Vilnius |
| Cruise ID: | AX08-2017 |
| Launch Deployer: | unknown |
| |
| Links: | |
| Listing Files: | WHOI |
| Public plots of telemetry data: | WHOI |
| Plots based on GDAC data: | WHOI |
|
Energy Budget
 |
Telemetry
 |

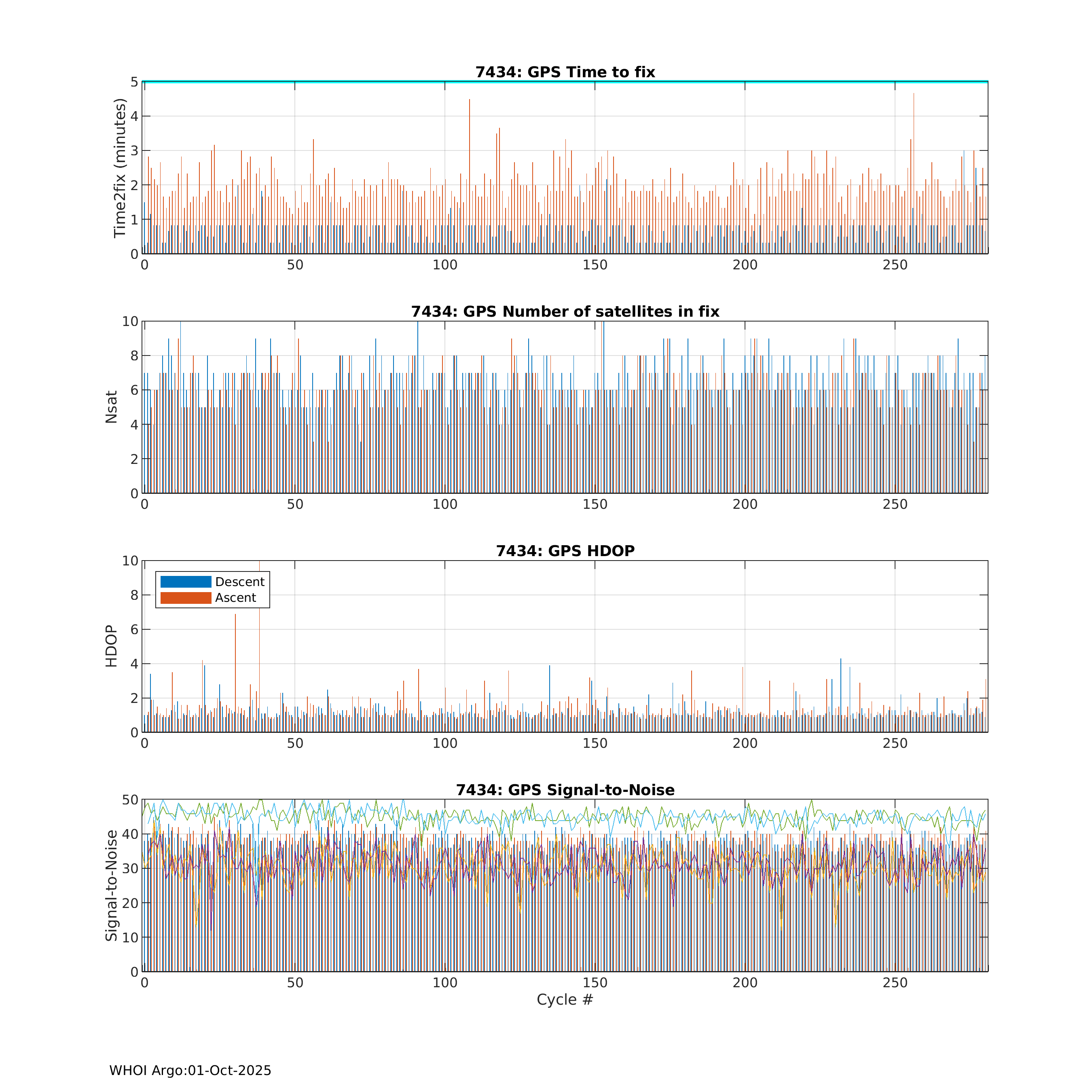

GPS
 |
Ice Detect Status
 |

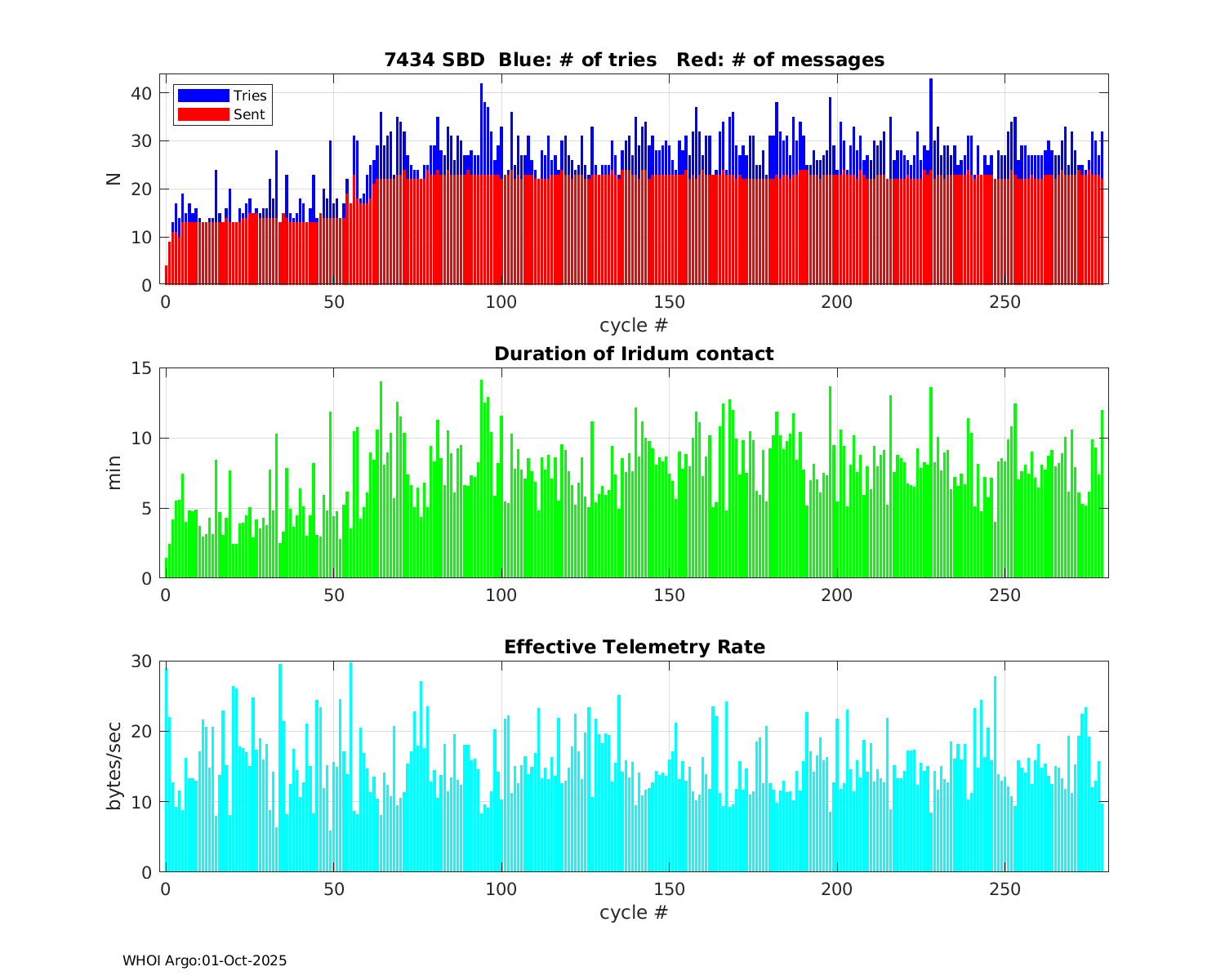

Iridium SBD
 |
Exception Flags
 |

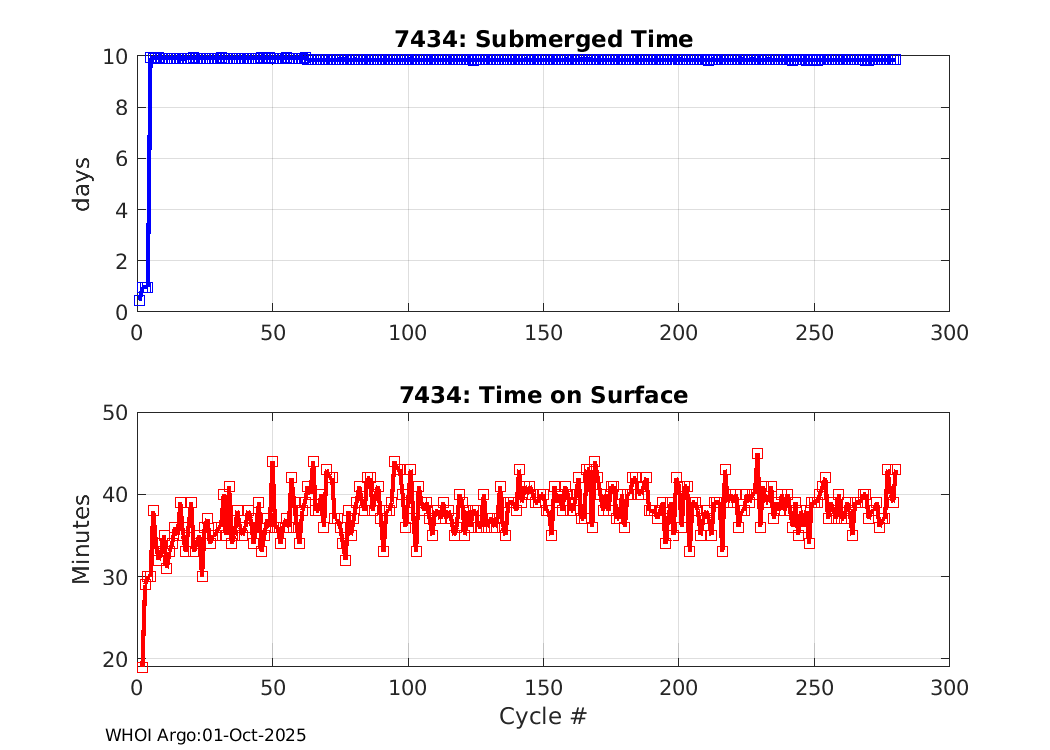

Cycle Times
 |

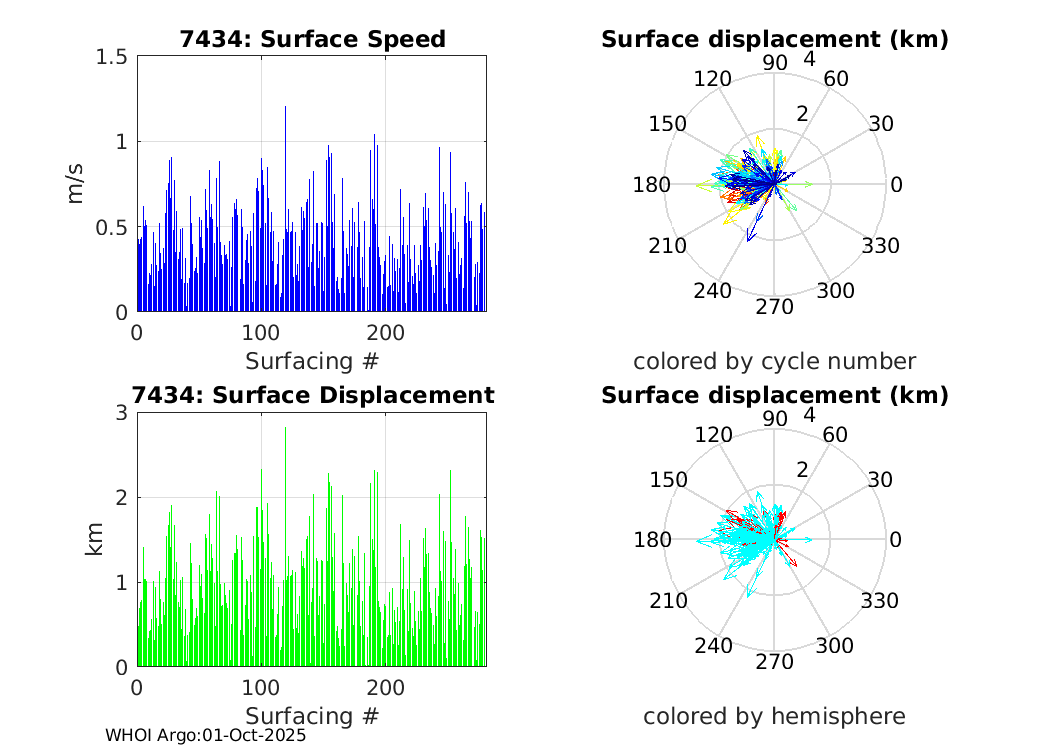

Surface
 |

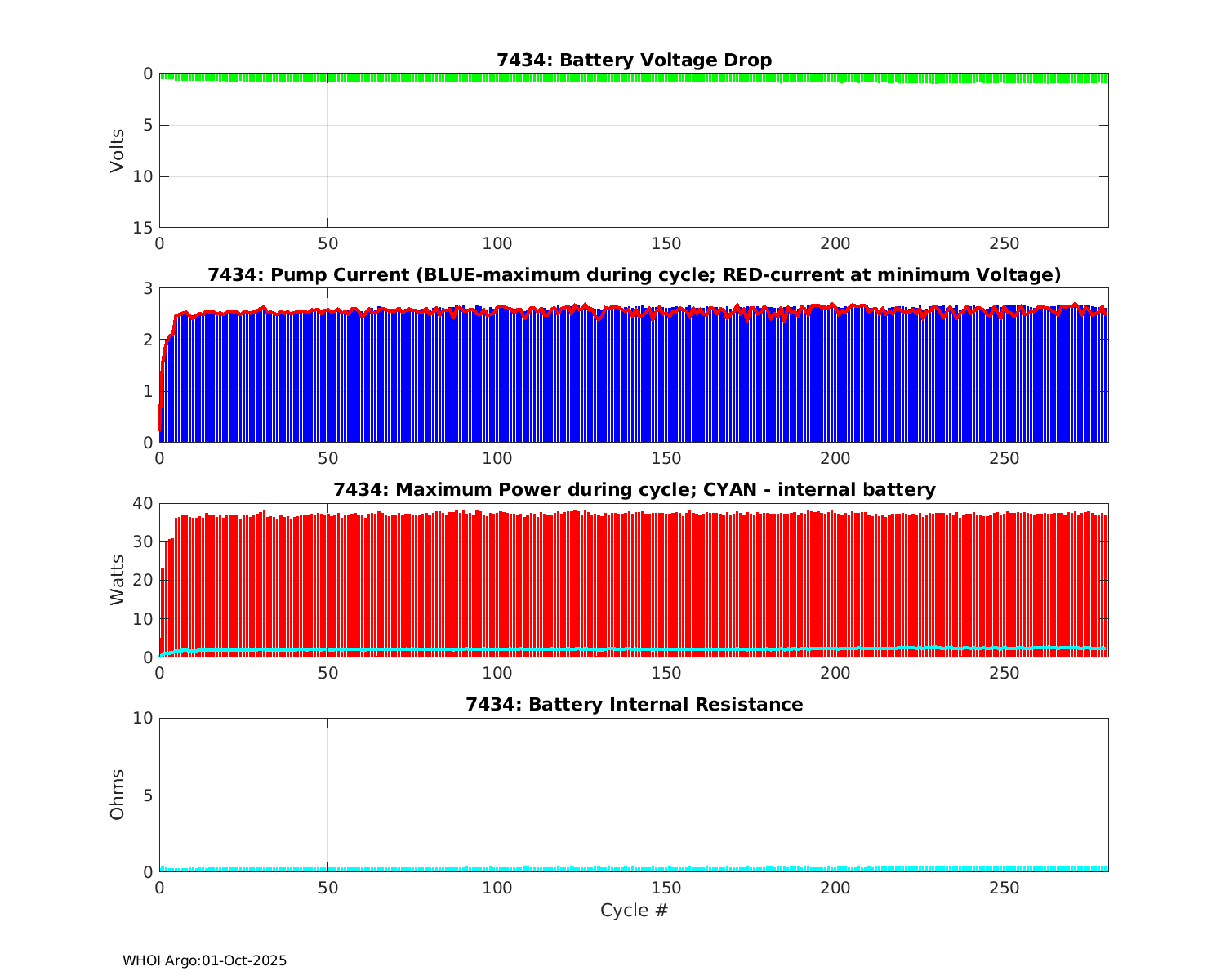

Battery Summary
 |
Batteries during Hydraulic Cycle
 |

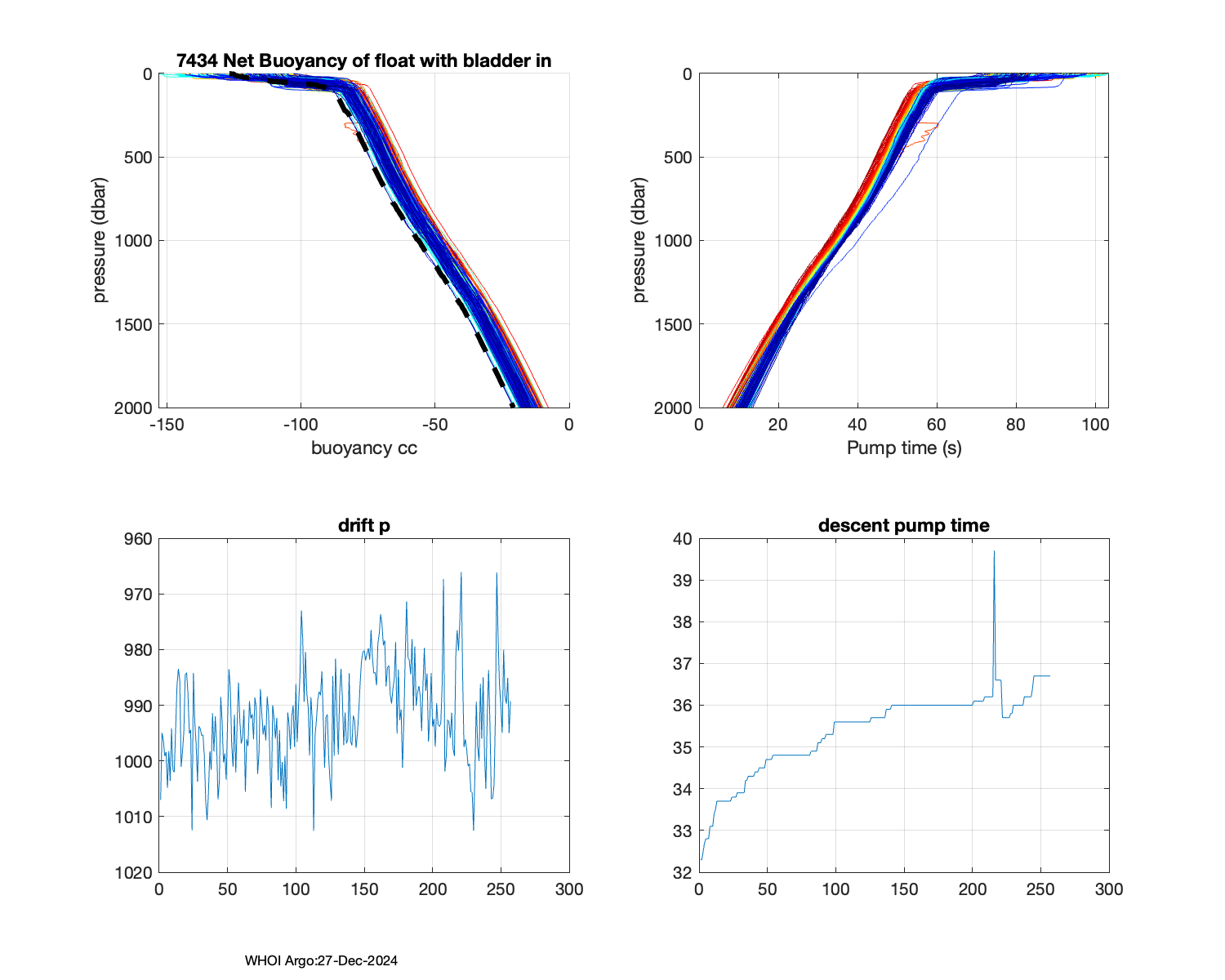

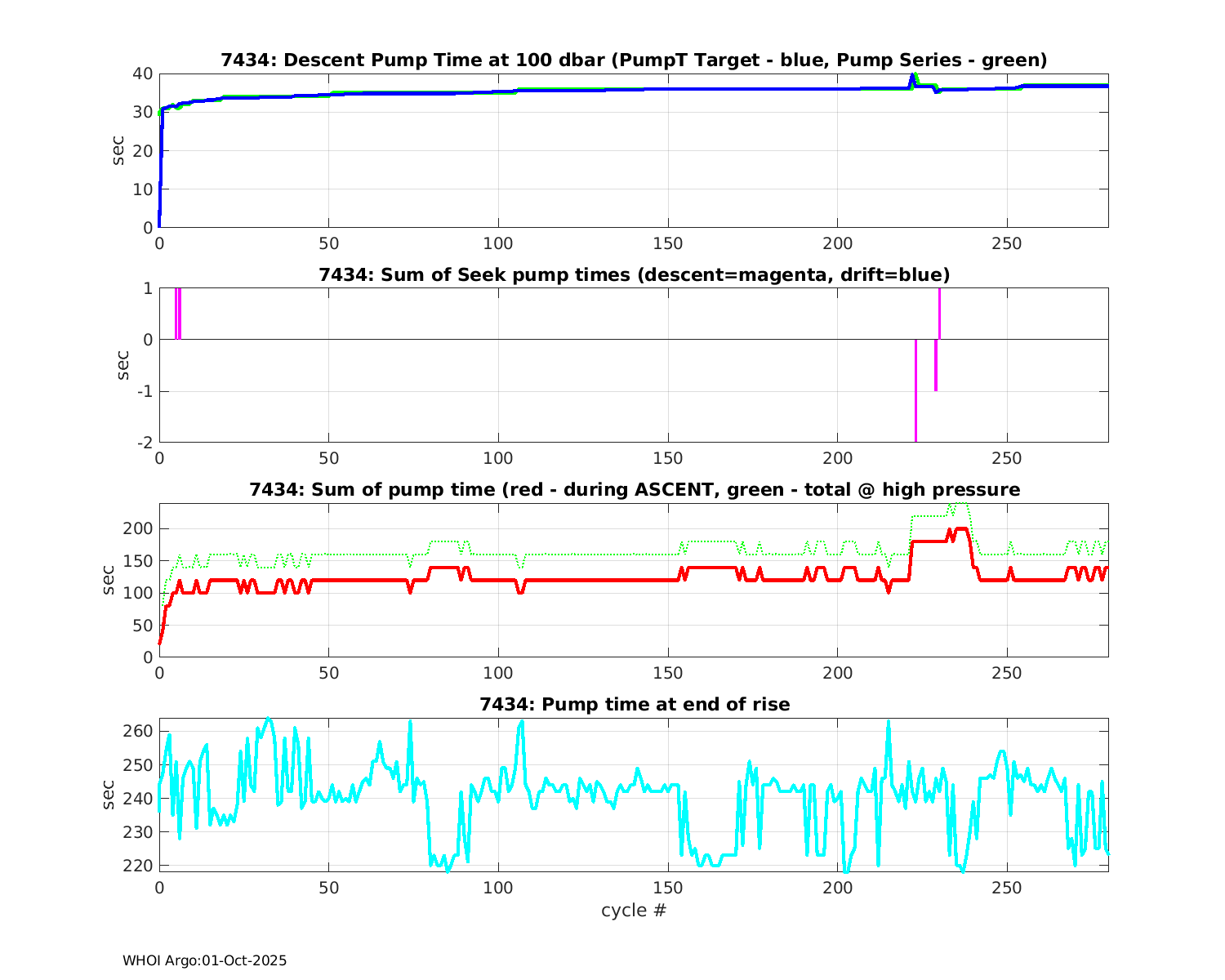

Pump Times
 |

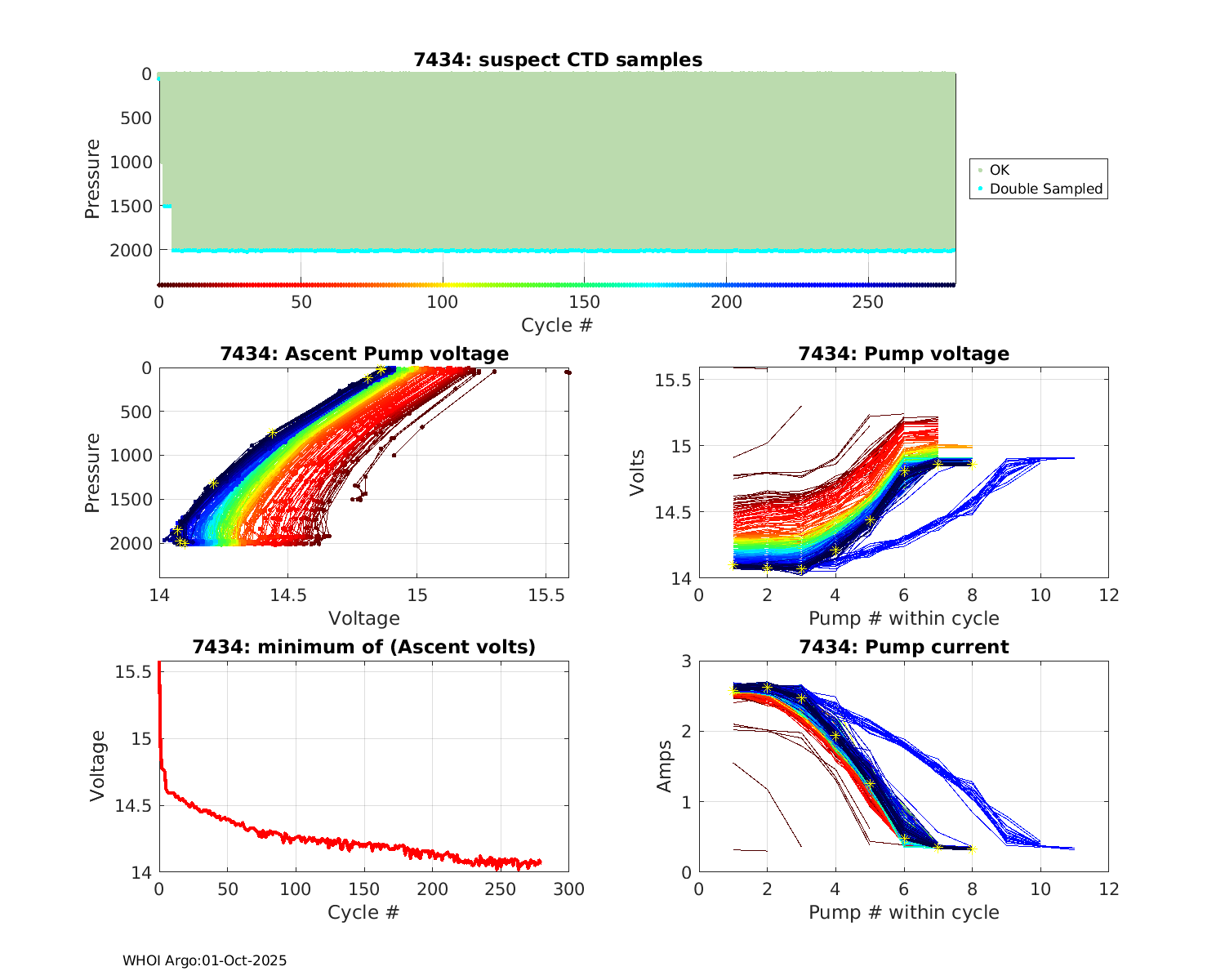

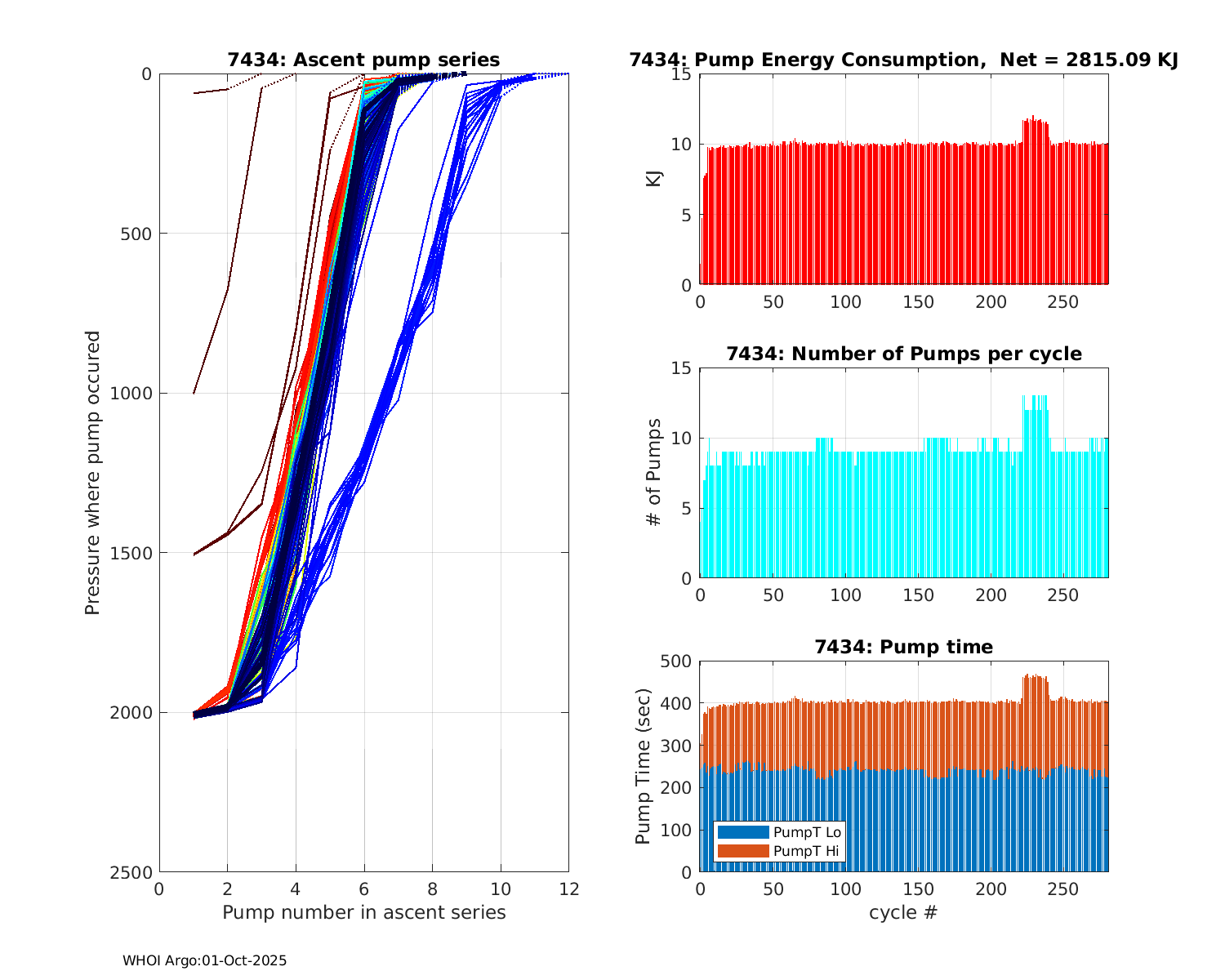

Pump
 |

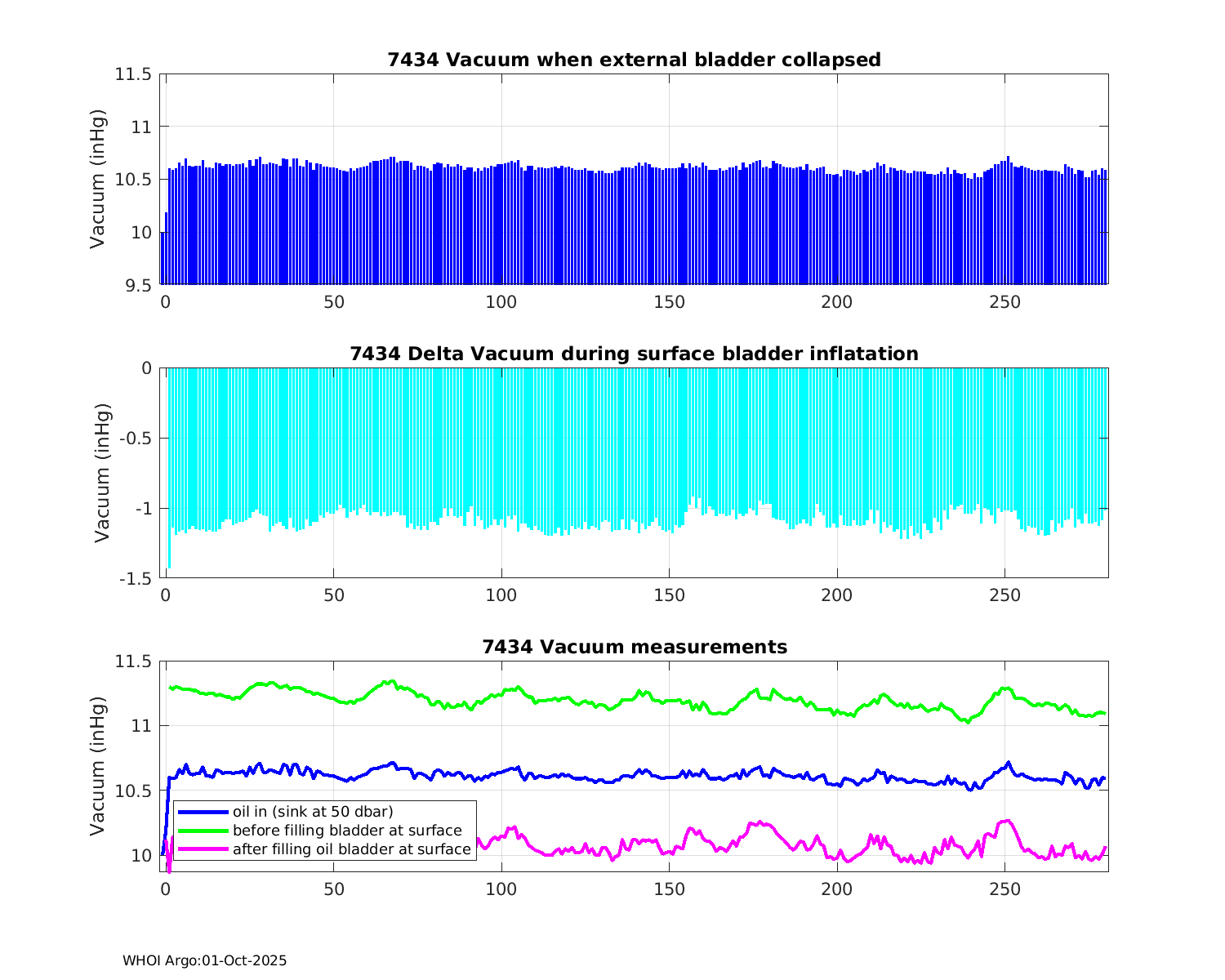

Vacuum
 |

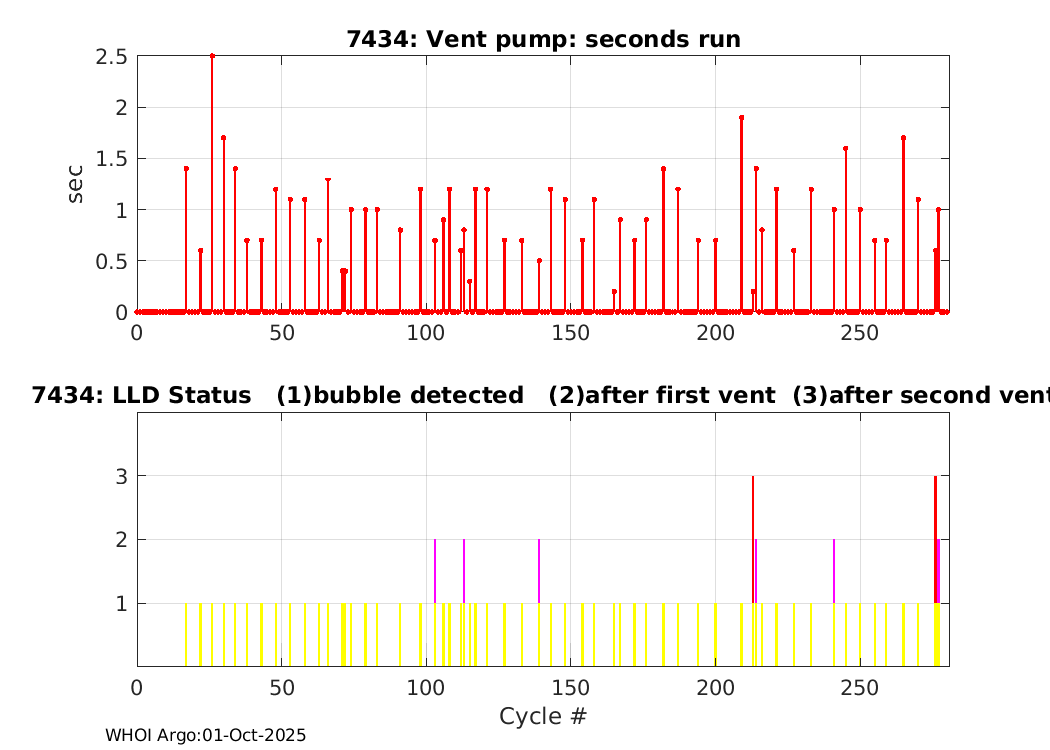

Vent
 |

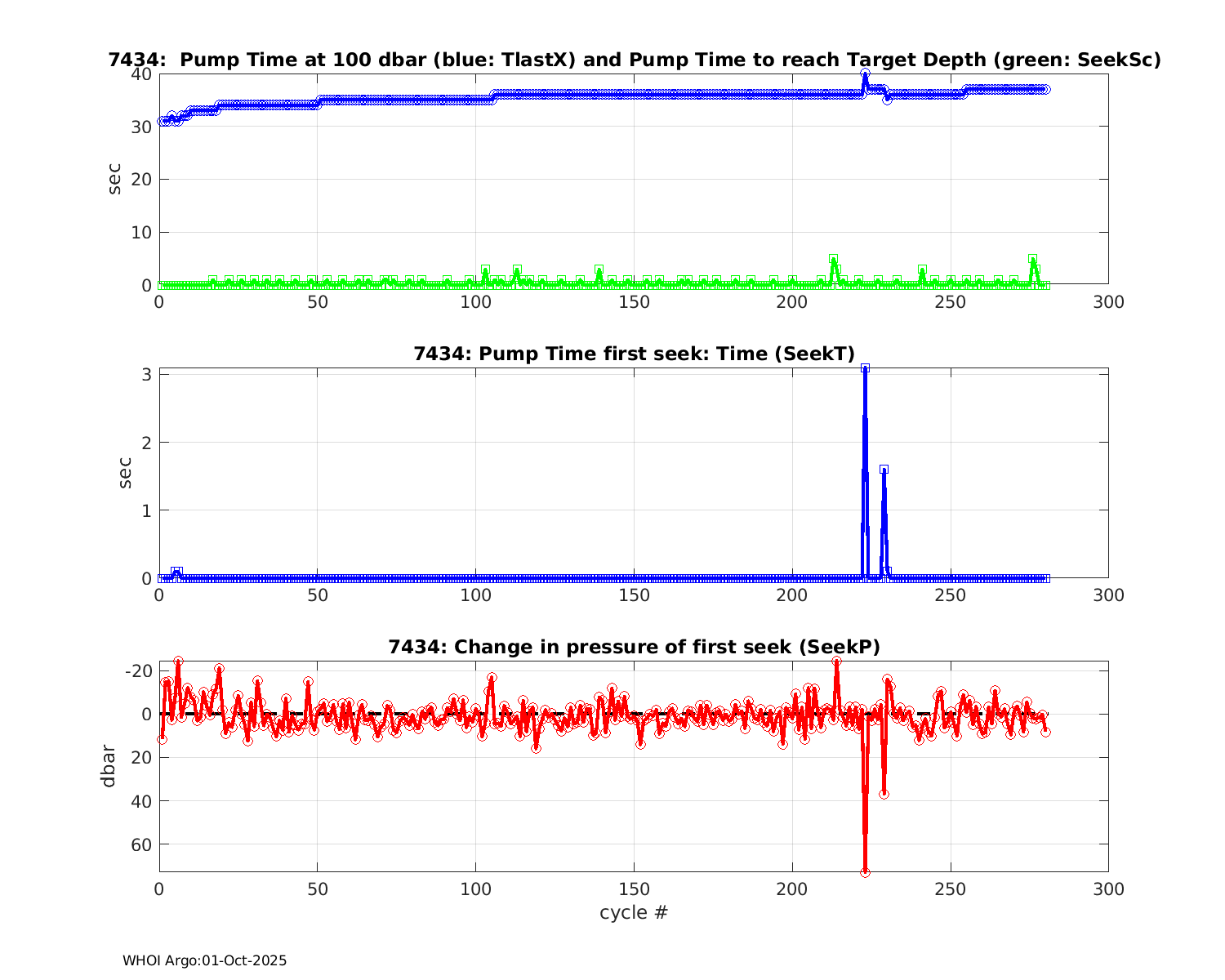

Seek Times
 |

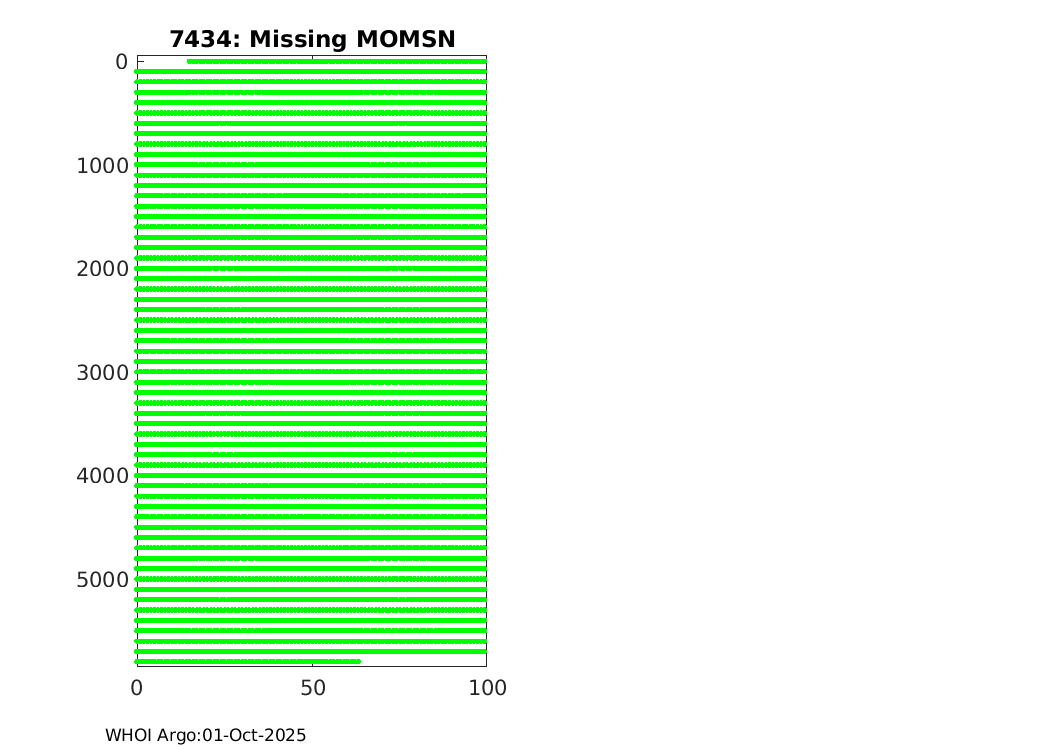

Iridium MOMSN
 |
CTD scans
 |

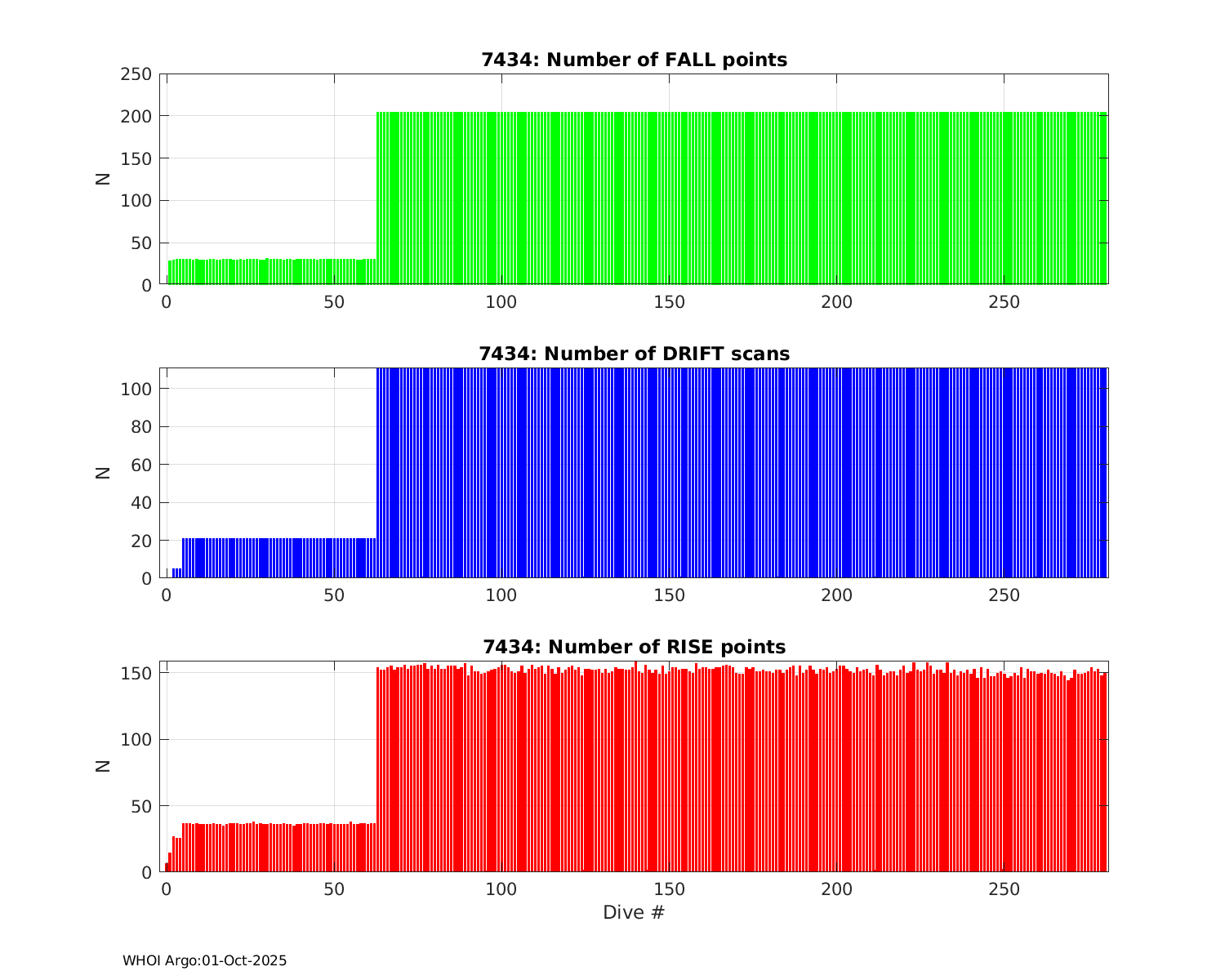

Fall/Drift/Rise Points
 |

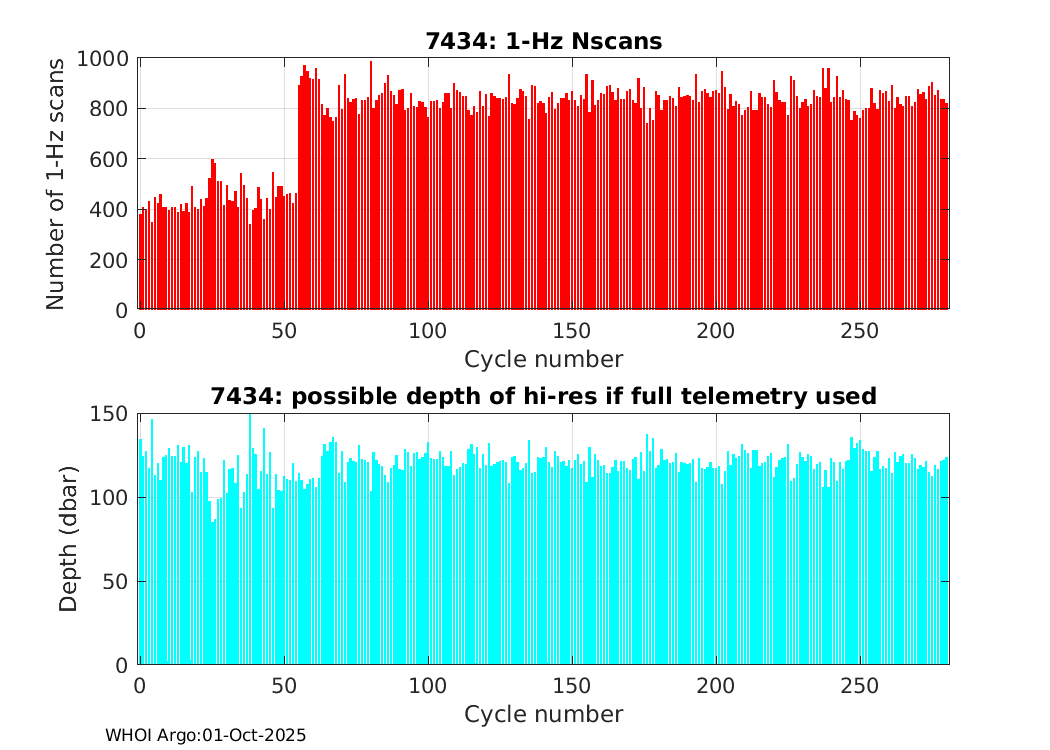

Hi-res Scans
 |

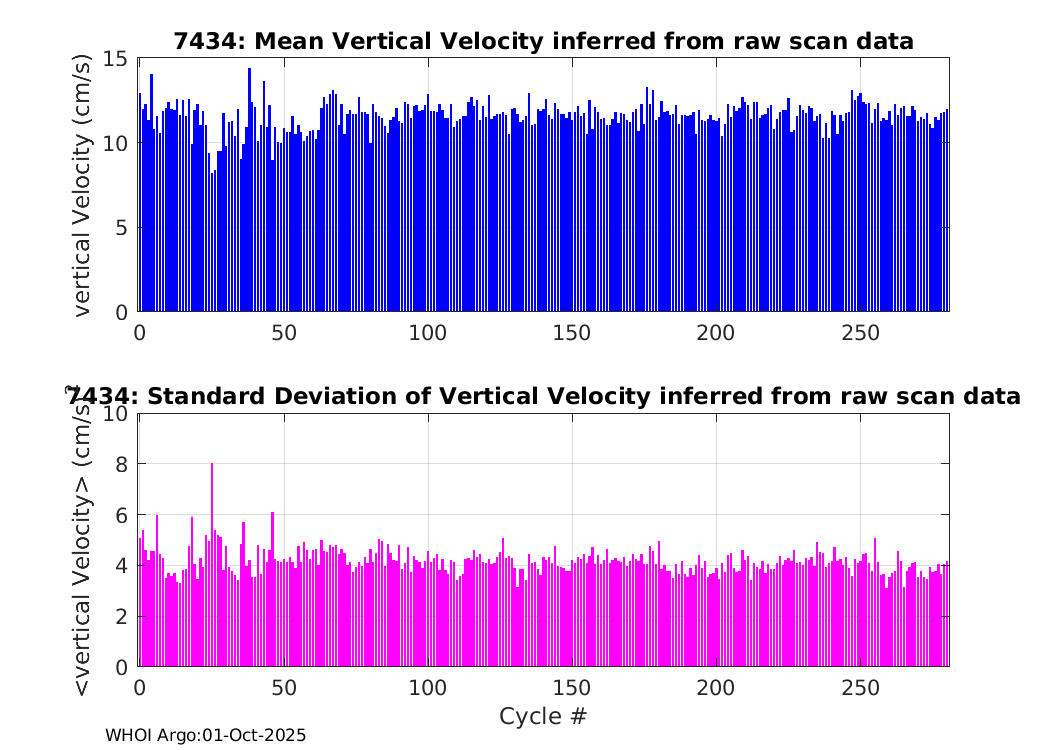

Hi-res W
 |
ccCor Deep
 |

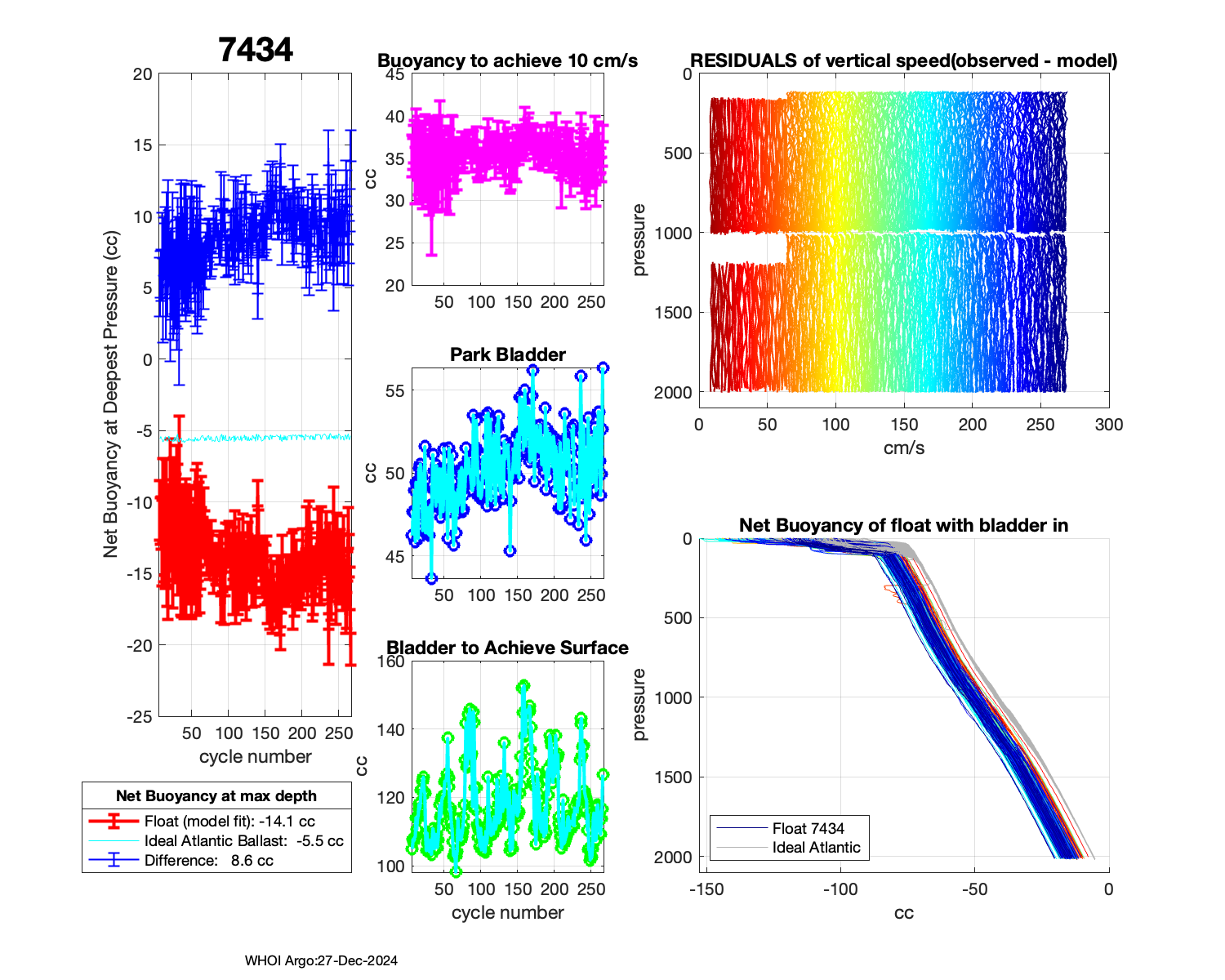

Ballast Trim
 |
Pump Times
 |
|
