| WMO #: | 4901704 |
| DAC #: | 5508 |
| Serial #: | 7064 |
| |
| PI: | Breck OWENS, Steven JAYNE, Pelle ROBBINS |
| |
| Last Report: | 2020-01-18 |
| Last Cycle: | 251 |
| |
| Last Cycle: | |
| PumpT_Target: | 105.9 s |
| Voltage - open: | 8.3 V |
| Voltage - load: | 7.7 V |
| |
| Hardware: | |
| Platform: | SOLO2IR_TS9 |
| ROM version: | SBE602 20Sep13 V1.5 |
| Temperature: | SBE41CP, s/n: 3411 |
| Conductivity: | SBE41CP, s/n: 3411 |
| Pressure: | Druck, s/n: 3268975 |
| Customisation: | n/a |
| |
| Deployment: | |
| Launched: | 2014-09-25 |
| Launch Platform: | Hudson |
| Cruise ID: | AZMP-2014 |
| Launch Deployer: | Hebert |
| |
| Links: | |
| Listing Files: | WHOI |
| Public plots of telemetry data: | WHOI |
| Plots based on GDAC data: | WHOI |
|
Energy Budget
 |
Telemetry
 |

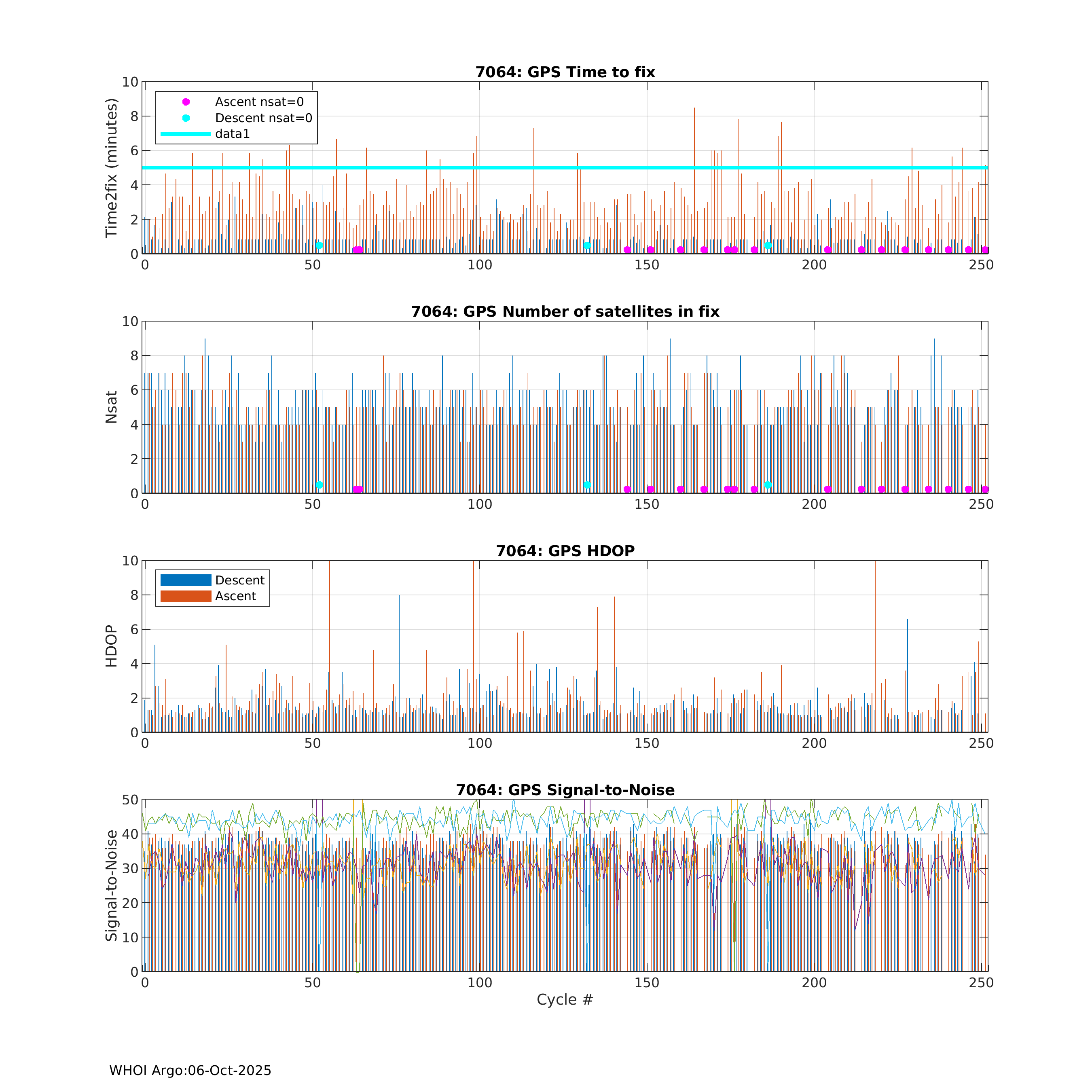

GPS
 |
Ice Detect Status
 |

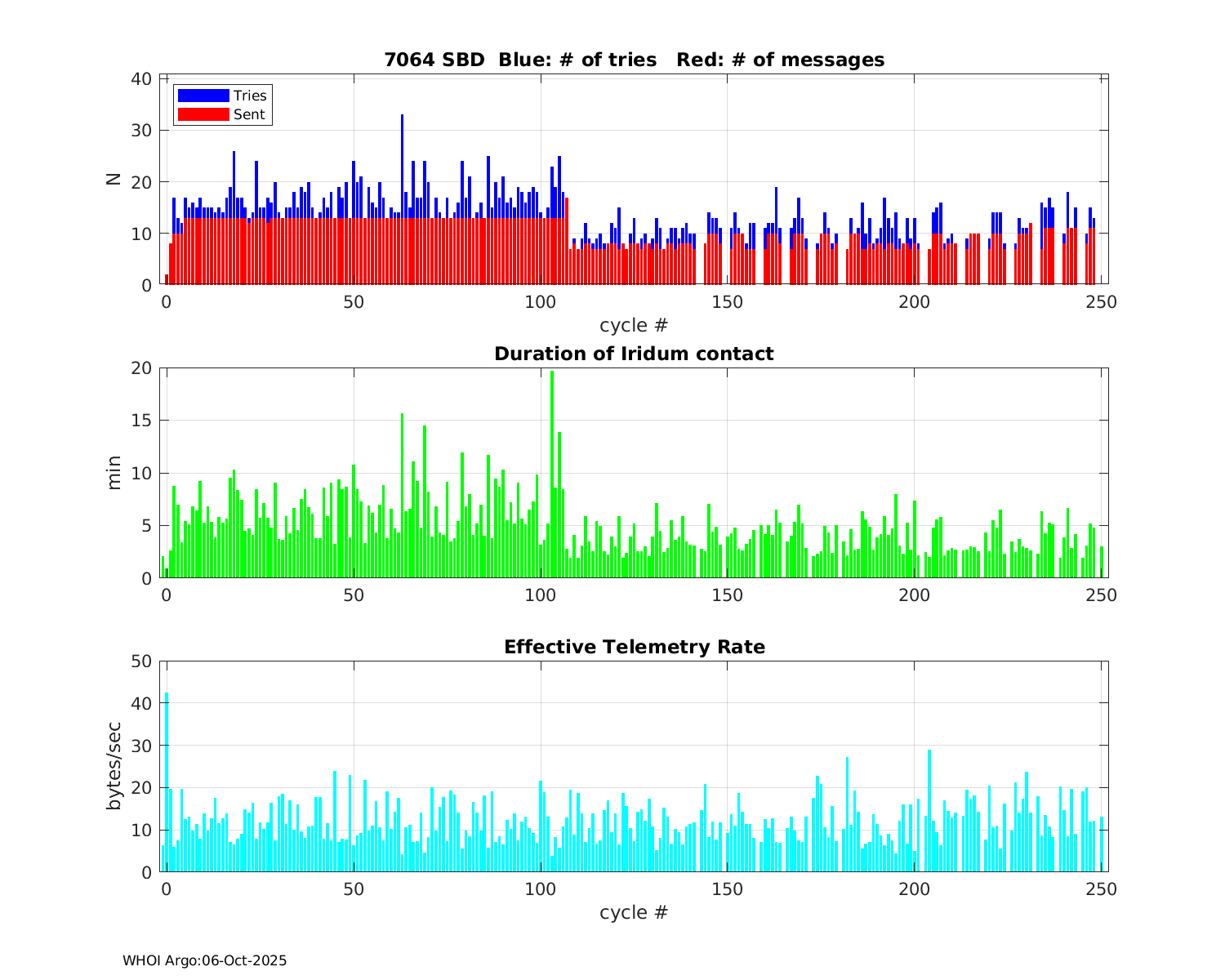

Iridium SBD
 |
Exception Flags
 |
Cycle Times
 |

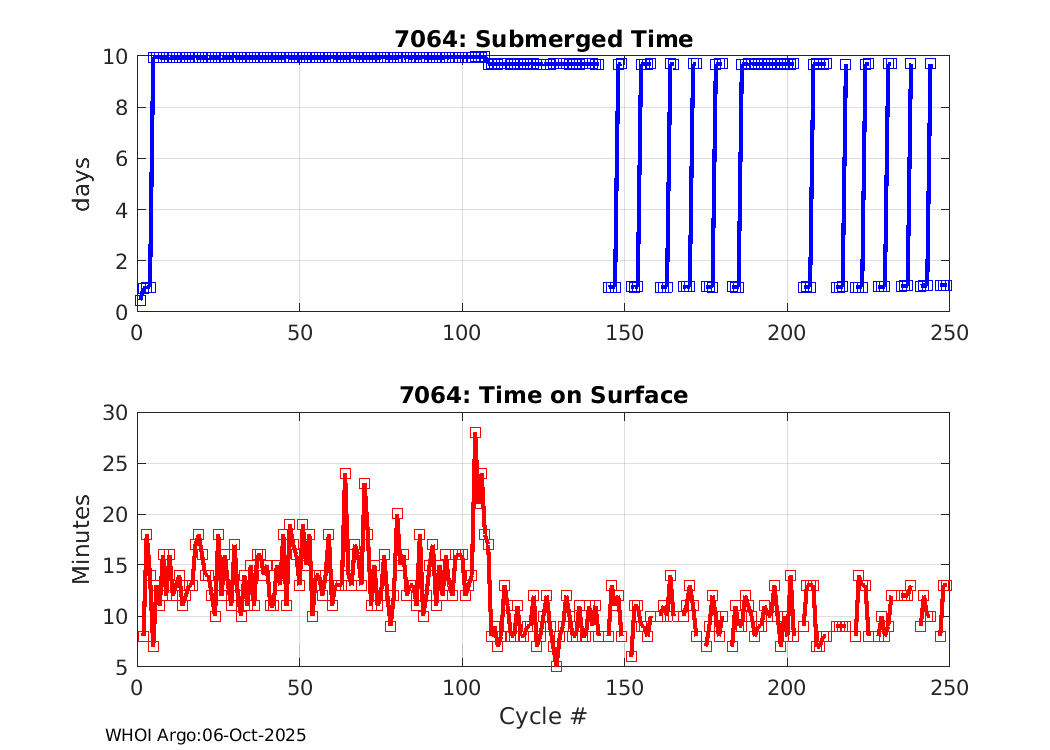

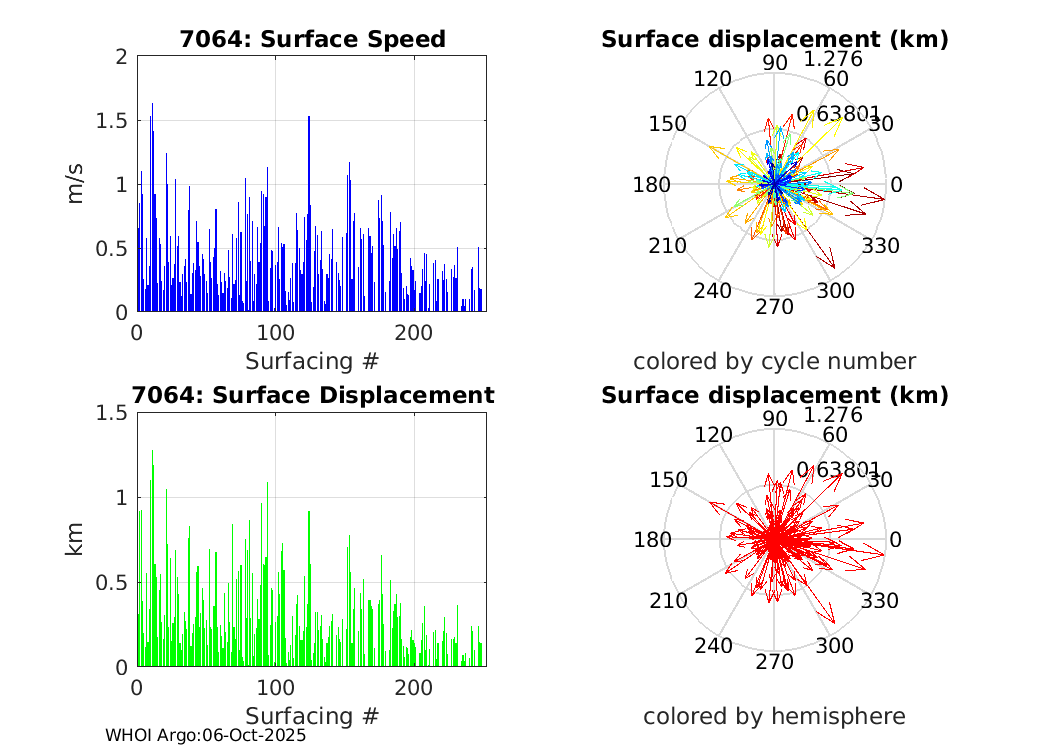

Surface
 |

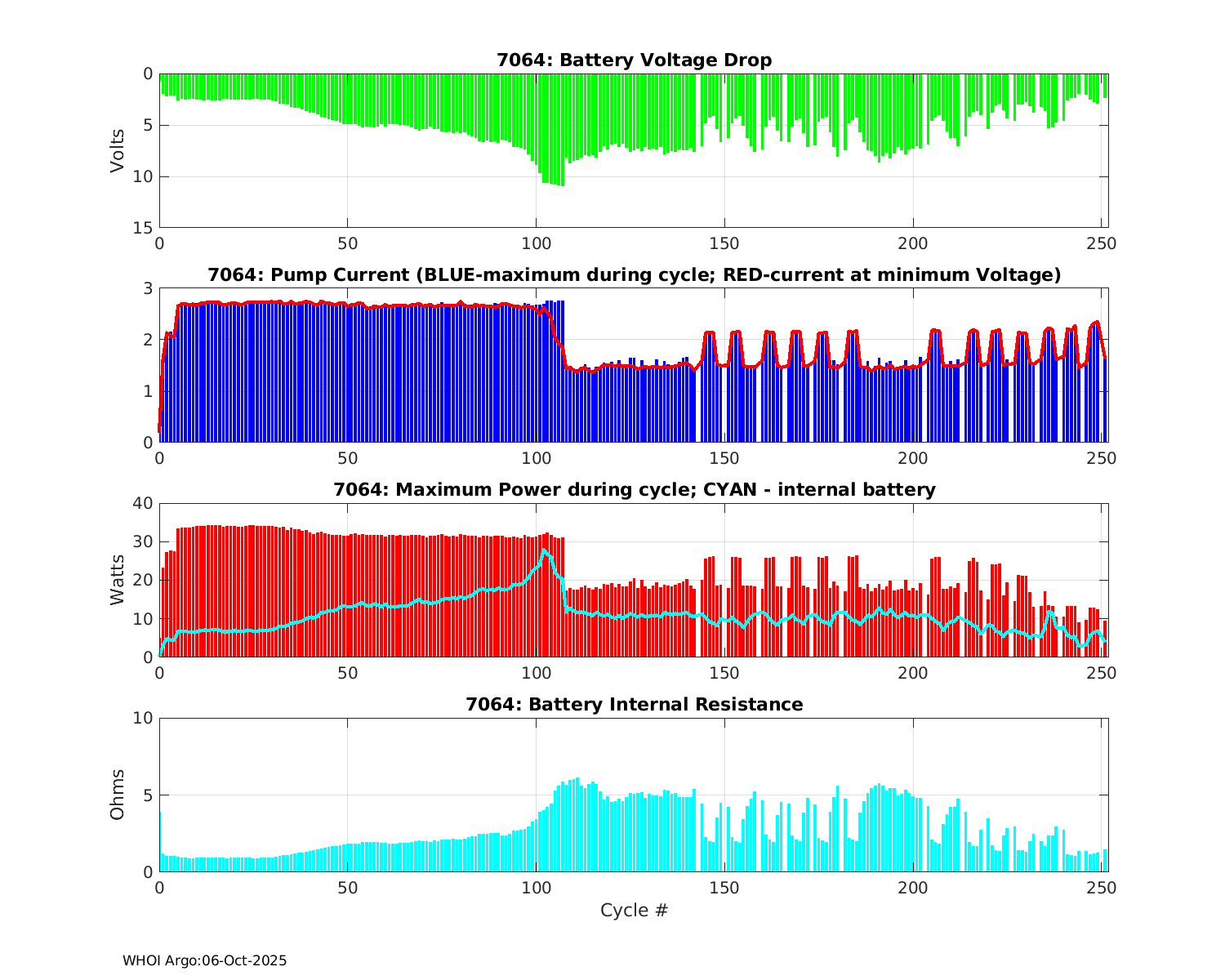

Battery Summary
 |
Batteries during Hydraulic Cycle
 |

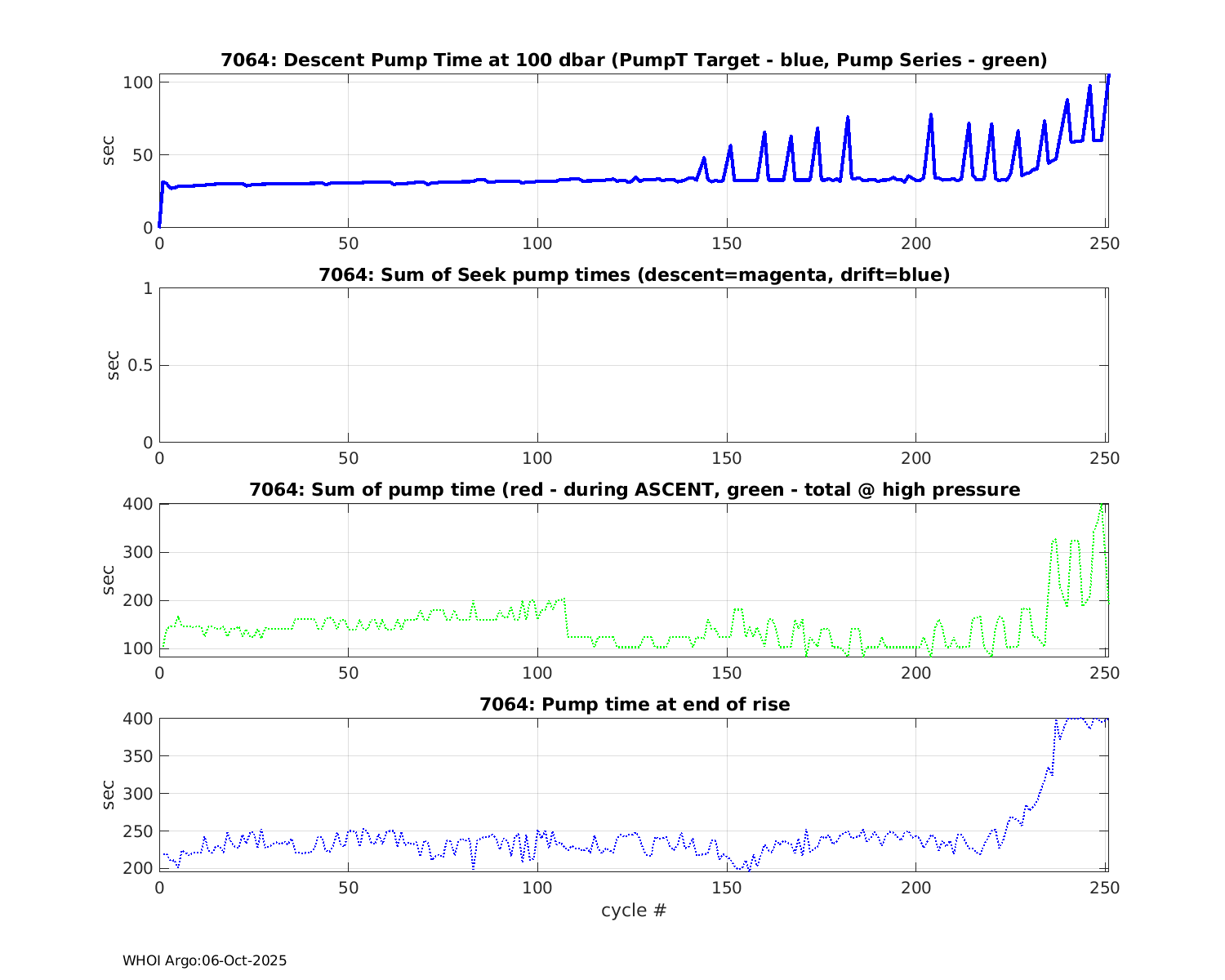

Pump Times
 |

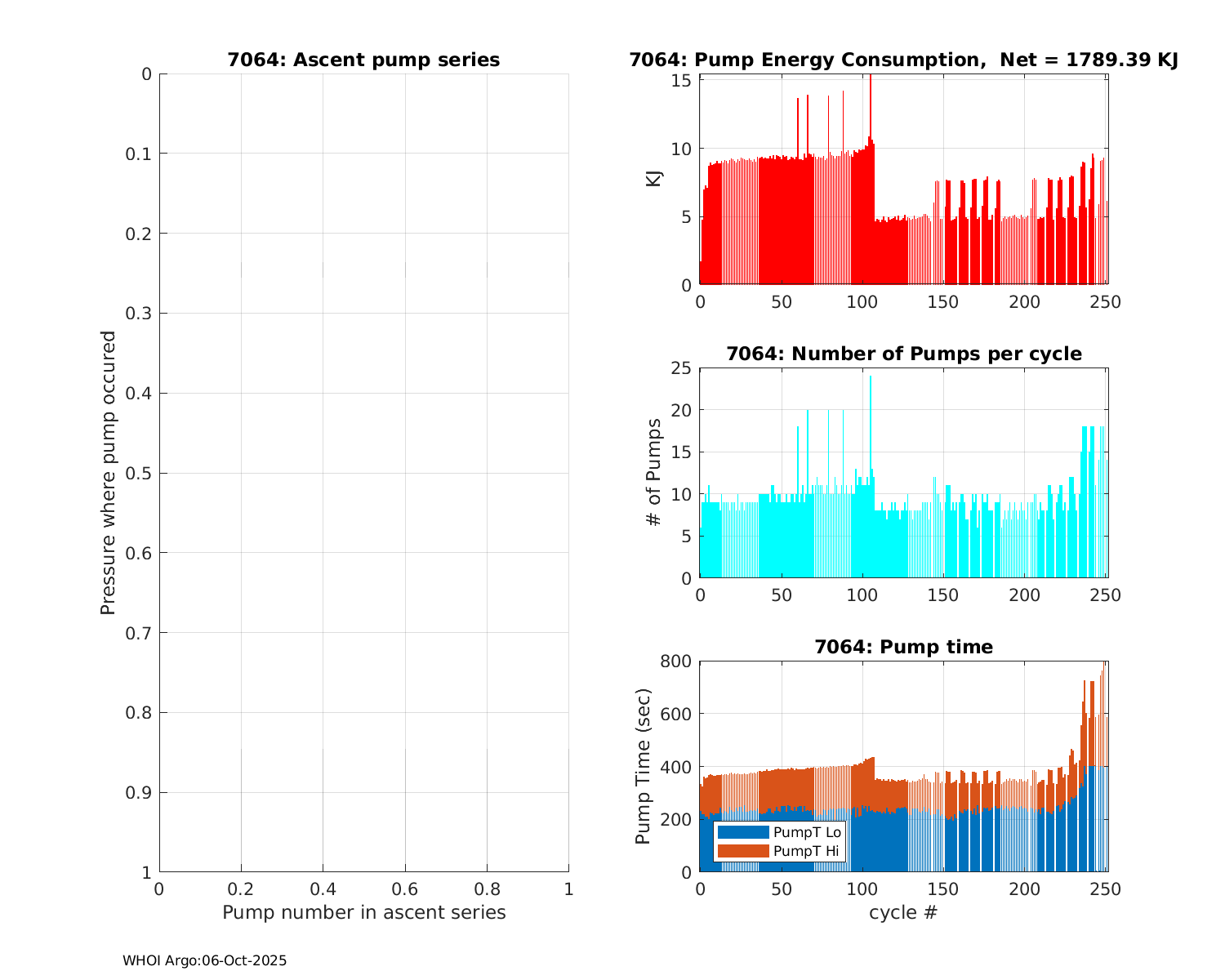

Pump
 |

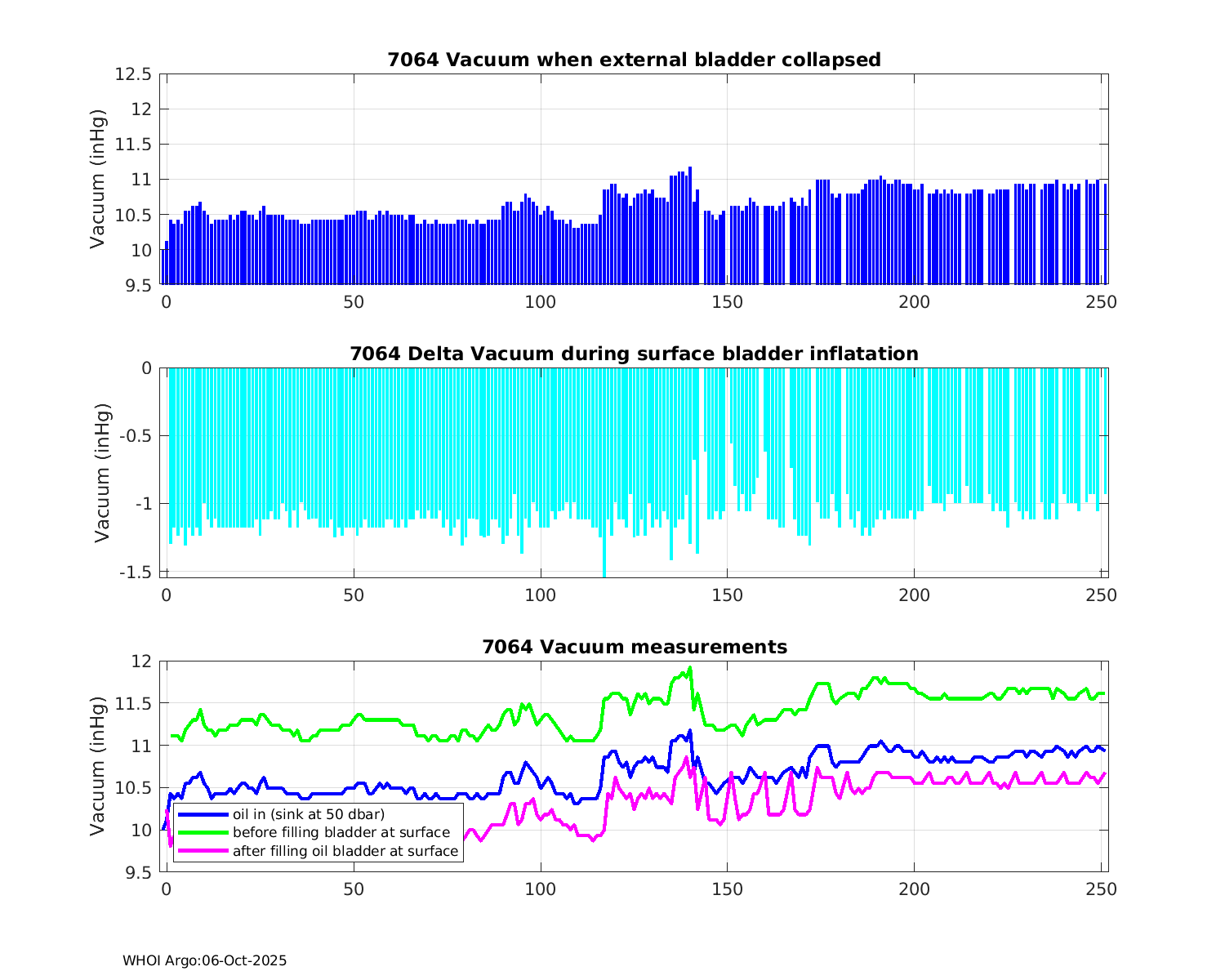

Vacuum
 |

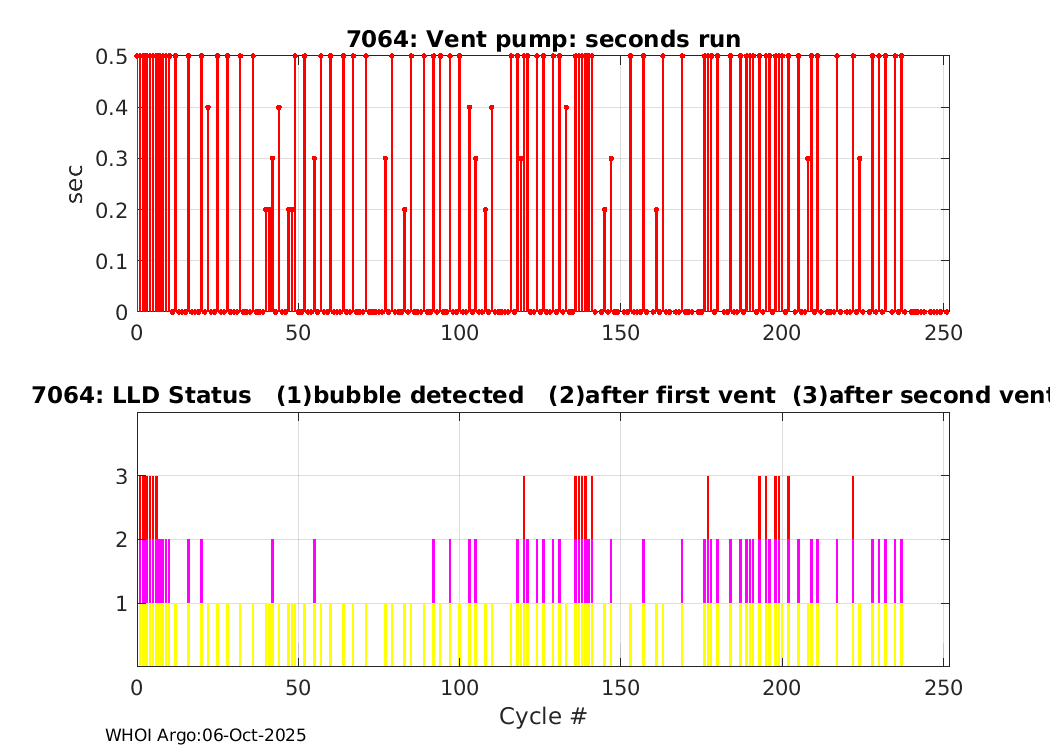

Vent
 |

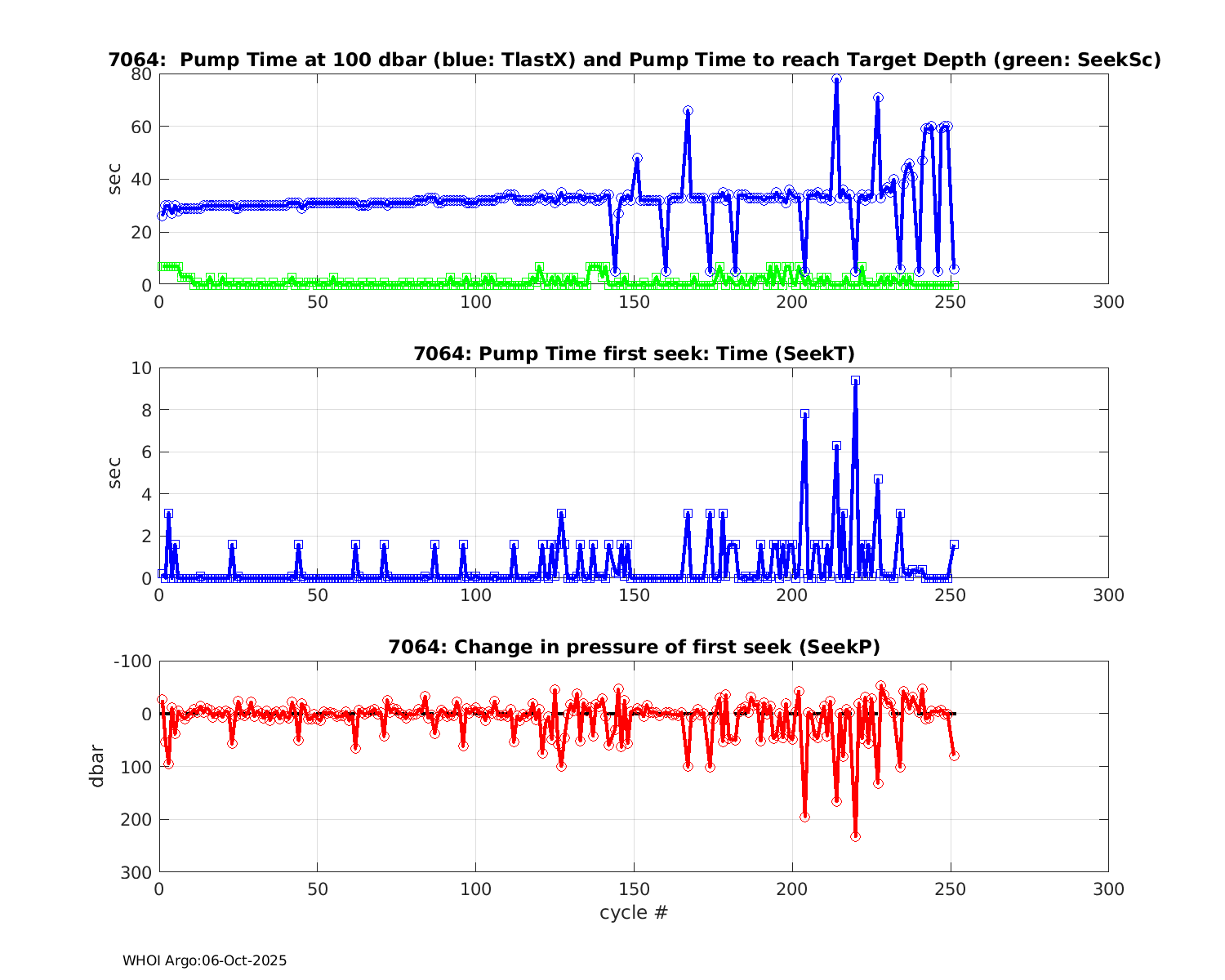

Seek Times
 |

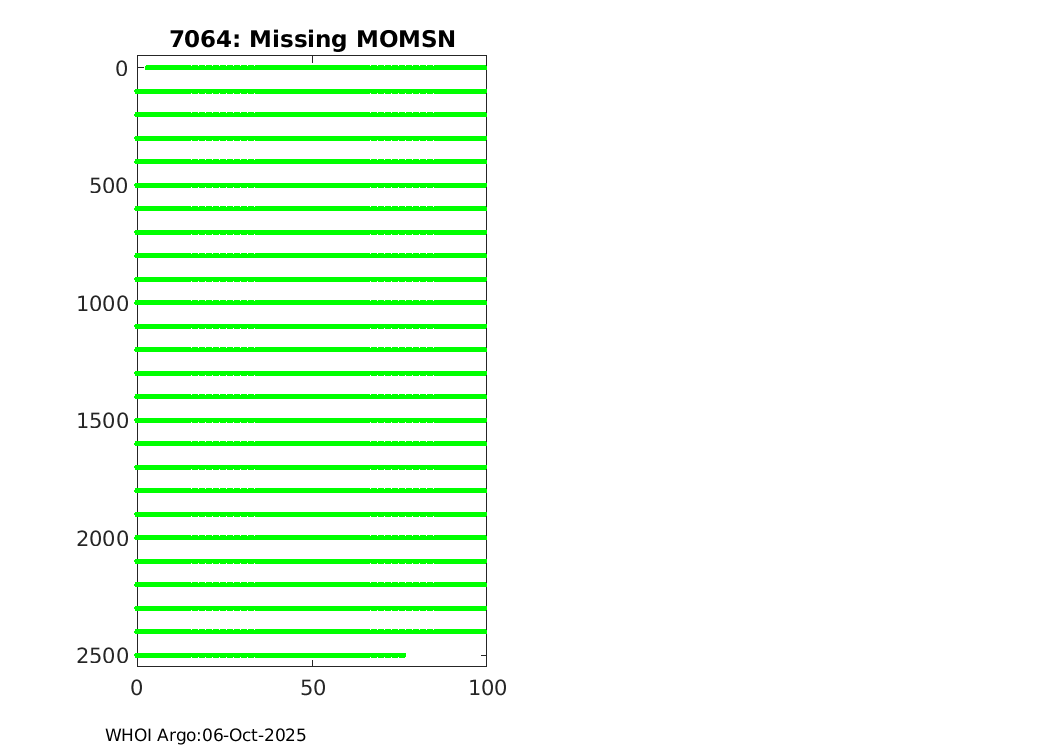

Iridium MOMSN
 |
CTD scans
 |

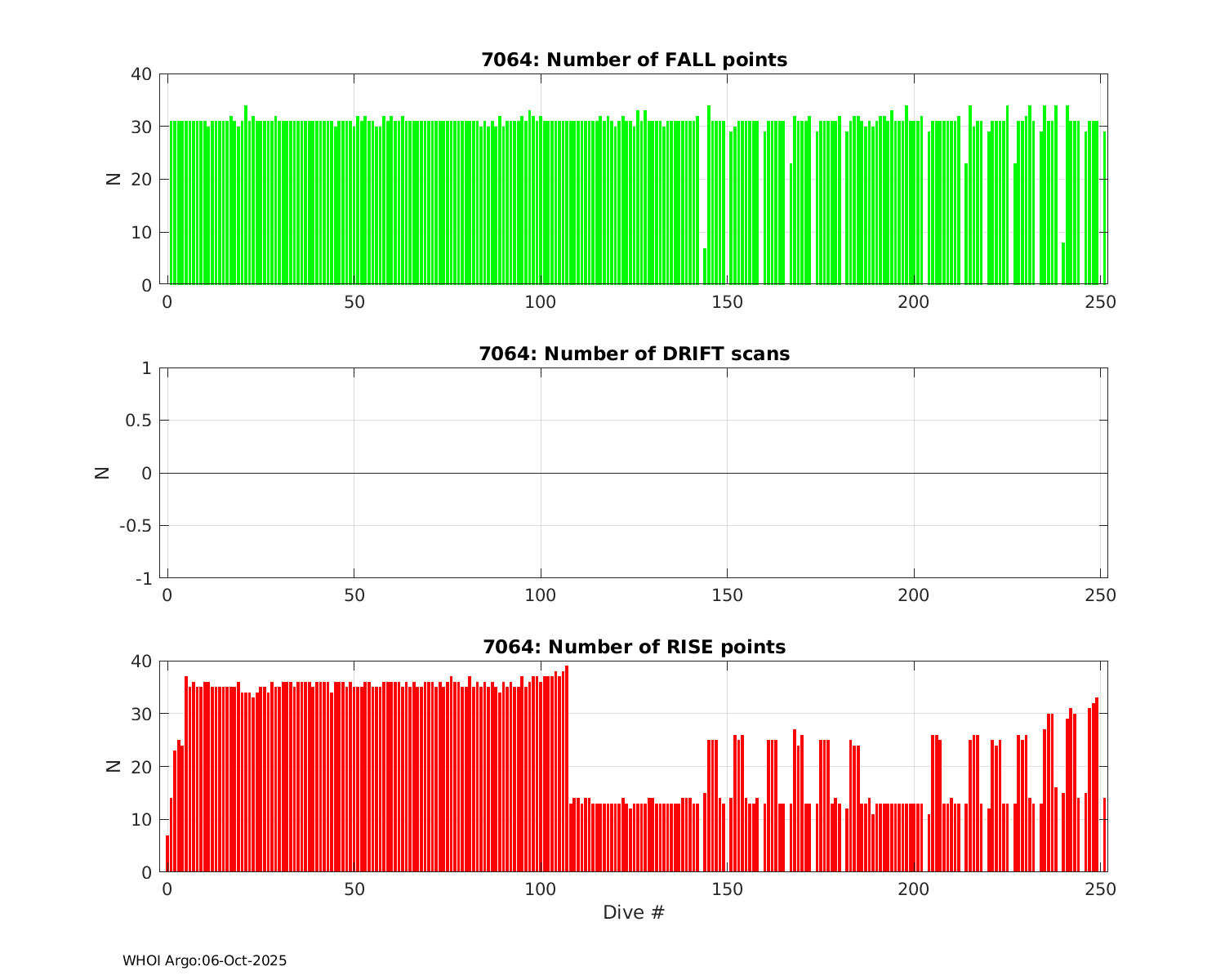

Fall/Drift/Rise Points
 |
Hi-res Scans
 |
Hi-res W
 |
ccCor Deep
 |
Ballast Trim
 |
Pump Times
 |
|
