| WMO #: | 1901628 |
| DAC #: | 4806 |
| Serial #: | 7047 |
| |
| PI: | Breck Owens |
| |
| Last Report: | 2017-10-04 |
| Last Cycle: | 244 |
| |
| Last Cycle: | |
| PumpT_Target: | 68.3 s |
| Voltage - open: | 8.3 V |
| Voltage - load: | 7.3 V |
| |
| Hardware: | |
| Platform: | SOLO2IR_TS9 |
| ROM version: | SBE602 9Feb12 |
| Temperature: | SBE41CP, s/n: 3387 |
| Conductivity: | SBE41CP, s/n: 3387 |
| Pressure: | Druck, s/n: 3257608 |
| Customisation: | n/a |
| |
| Deployment: | |
| Launched: | 2012-10-30 |
| Launch Platform: | M/V Explorer |
| Cruise ID: | n/a |
| Launch Deployer: | Jaime R. Soto |
| |
| Links: | |
| Listing Files: | WHOI |
| Public plots of telemetry data: | WHOI |
| Plots based on GDAC data: | WHOI |
|
Energy Budget
 |
Telemetry
 |

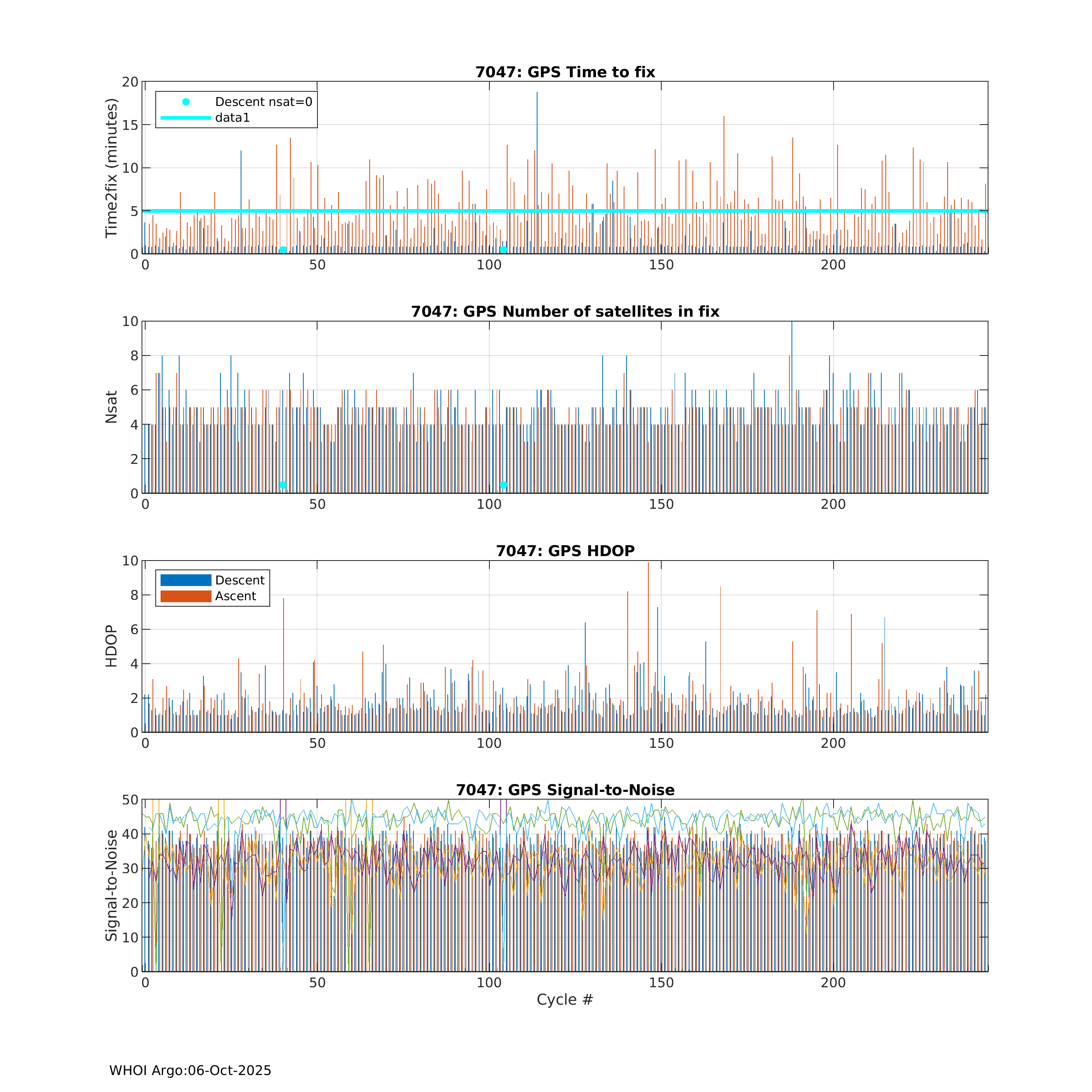

GPS
 |
Ice Detect Status
 |

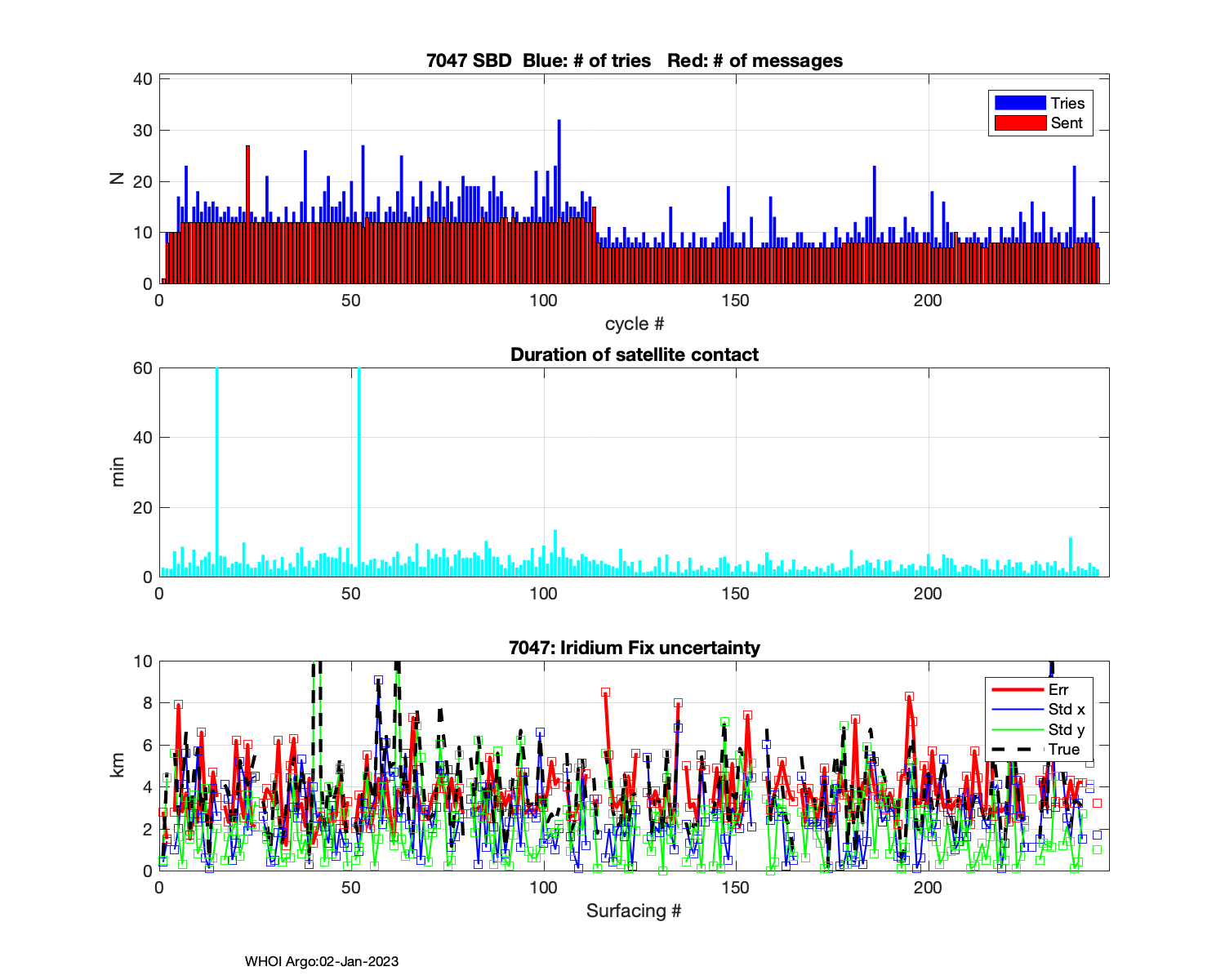

Iridium SBD
 |

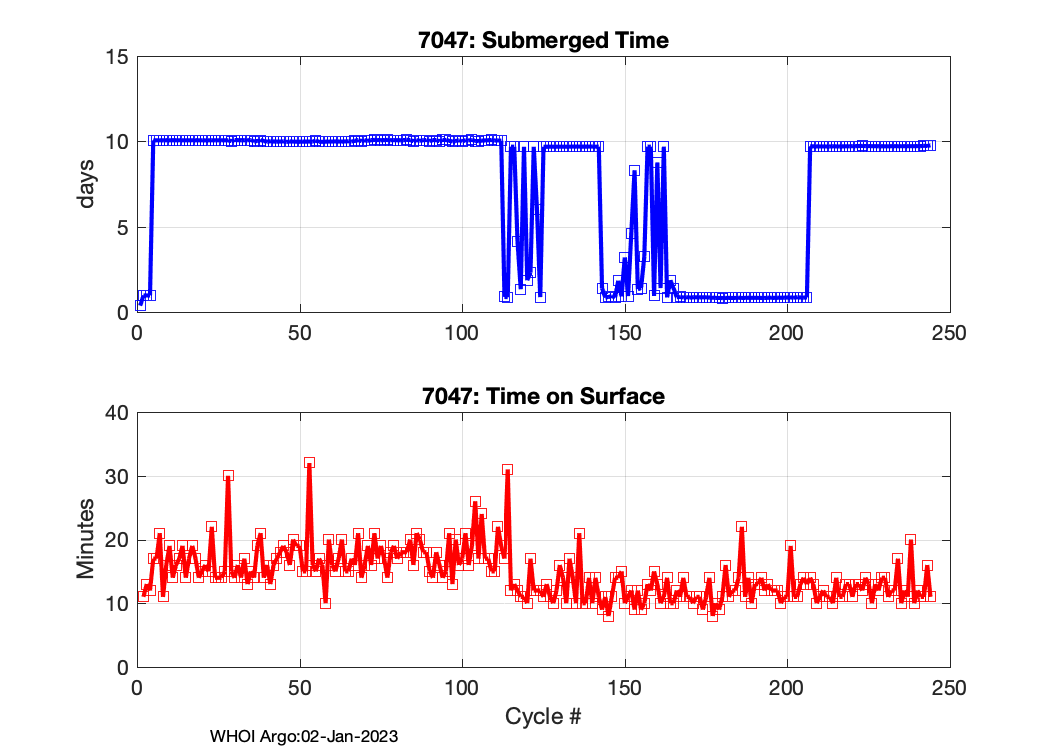

Cycle Times
 |

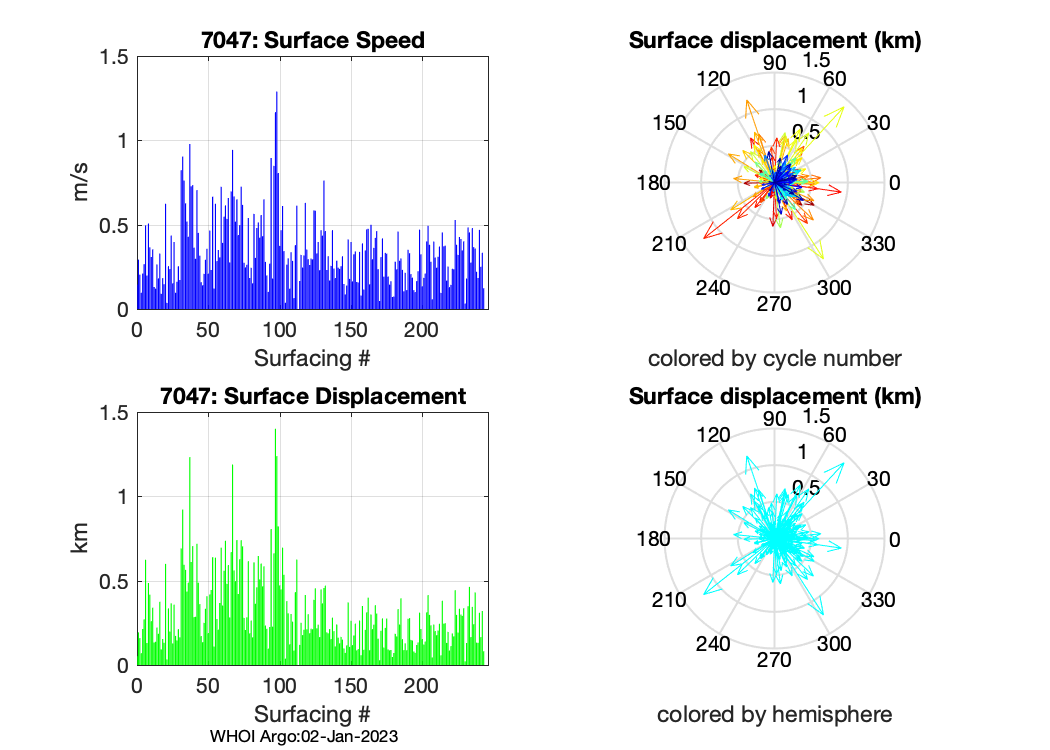

Surface
 |

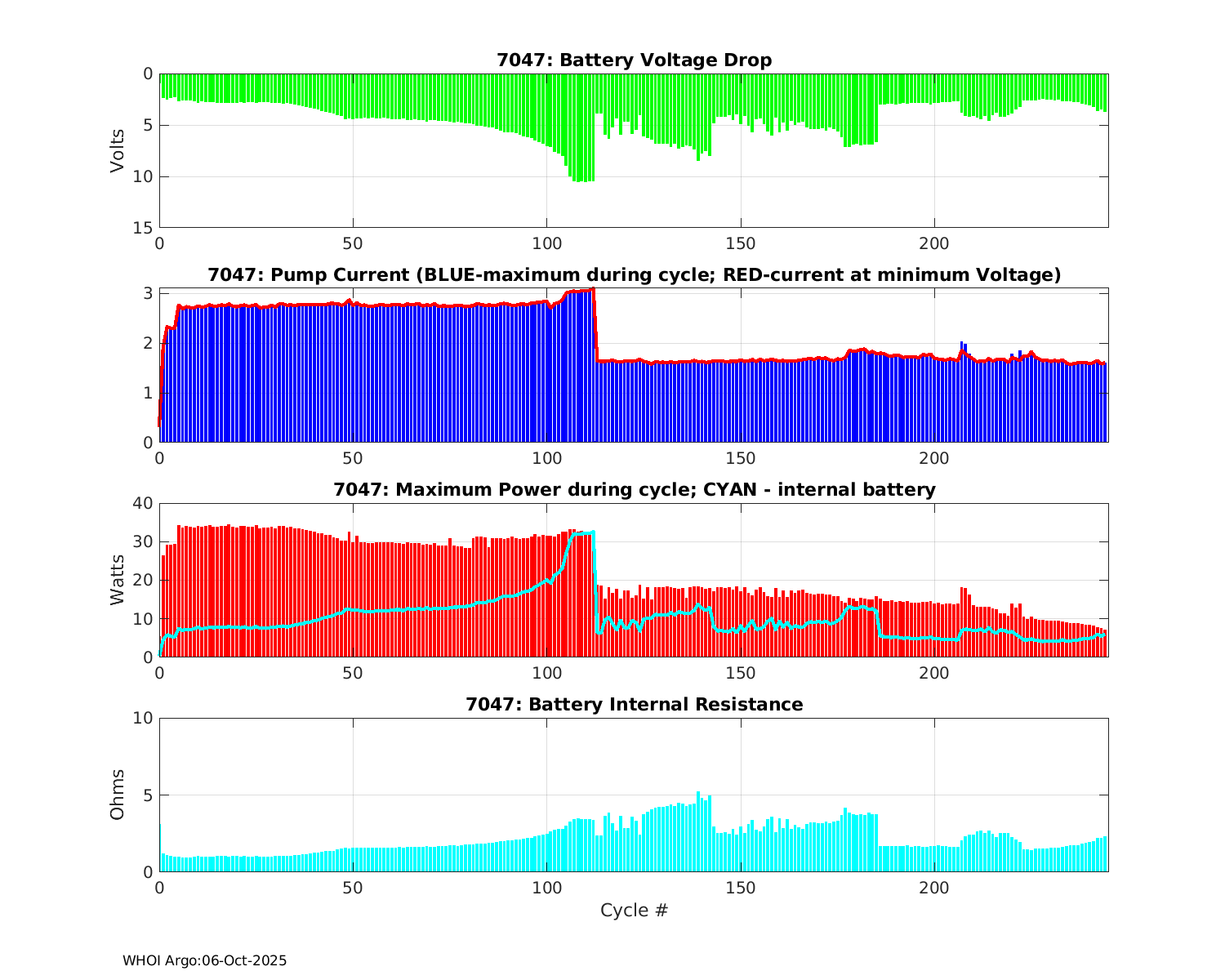

Battery Summary
 |
Batteries during Hydraulic Cycle
 |

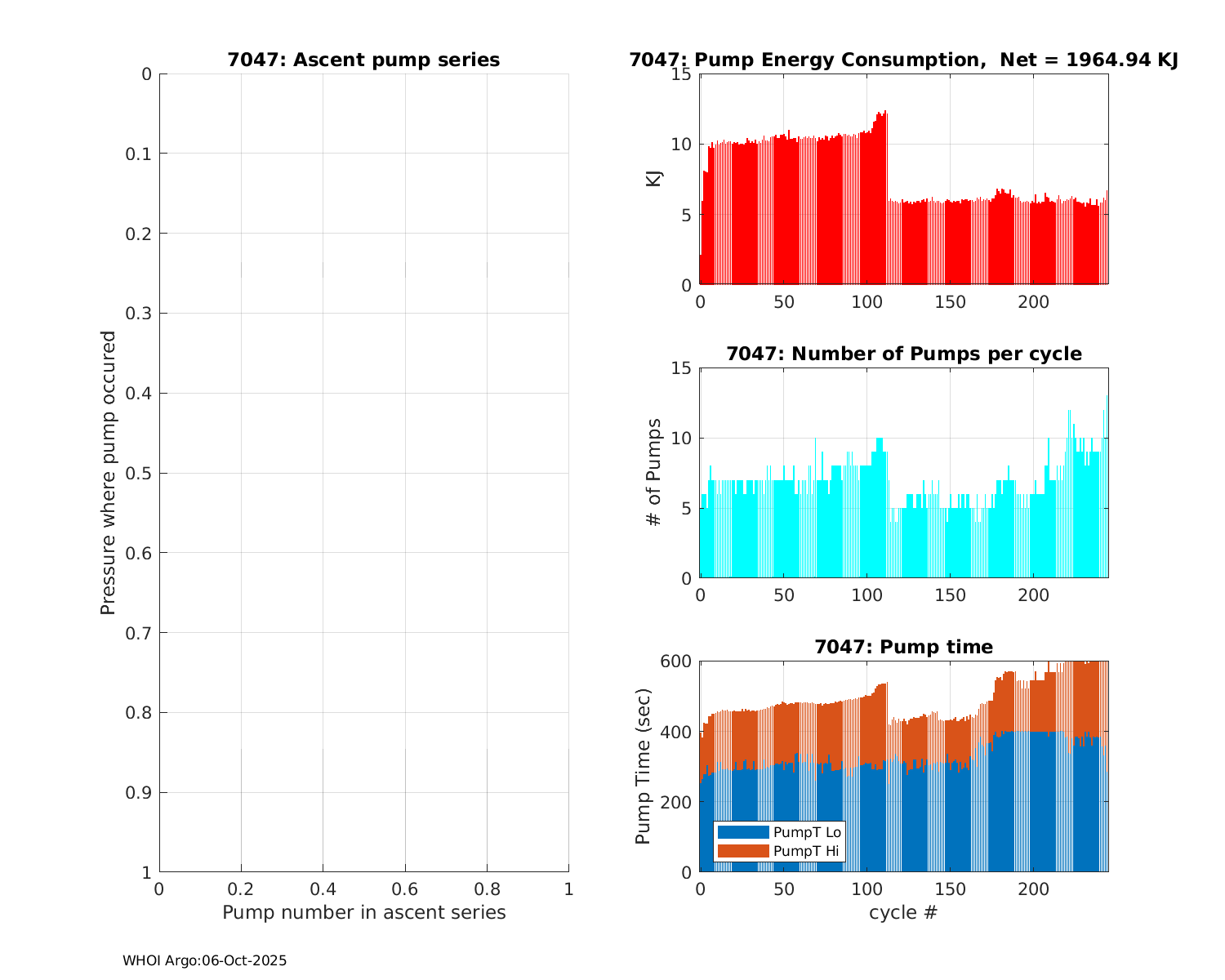

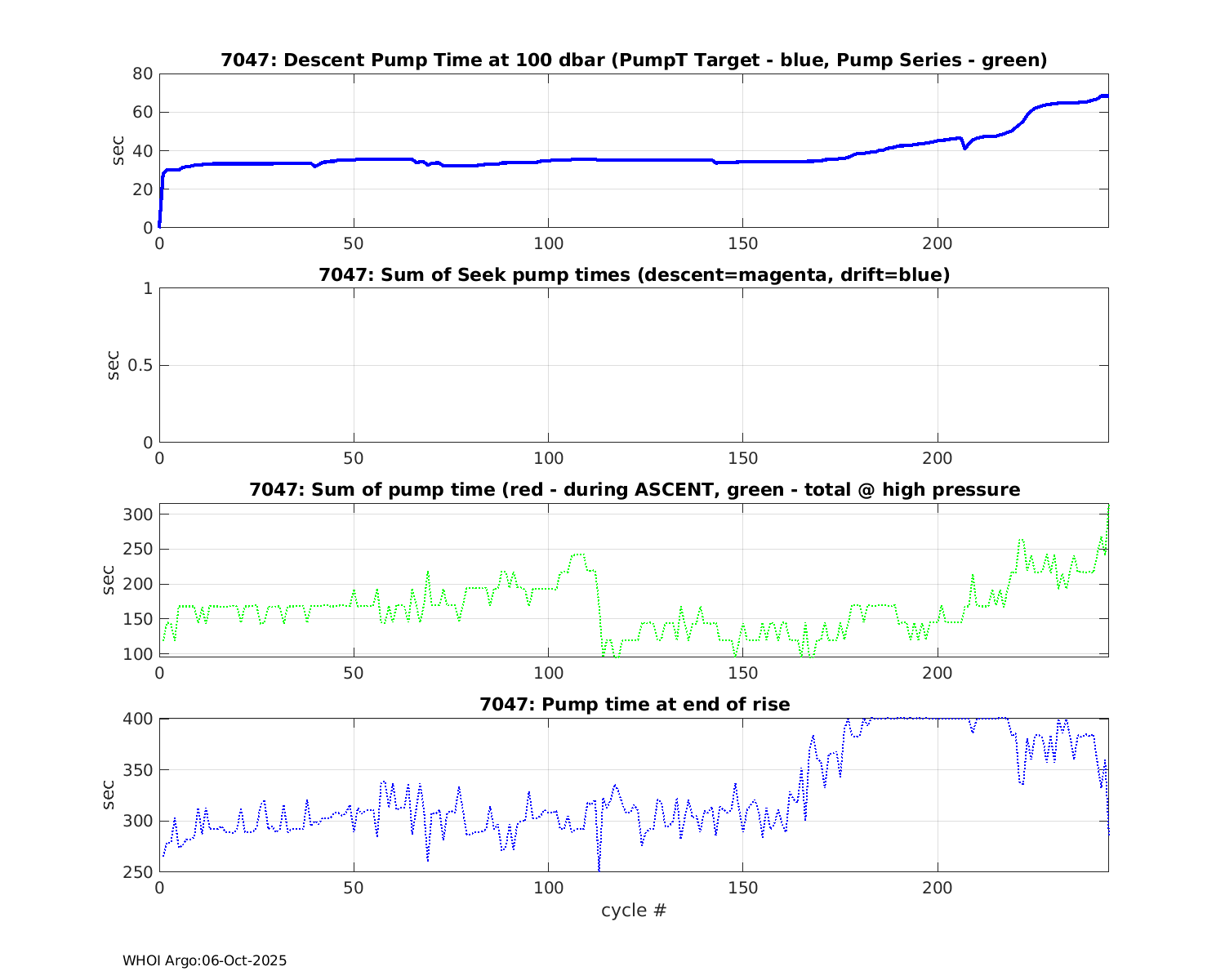

Pump Times
 |
Pump
 |

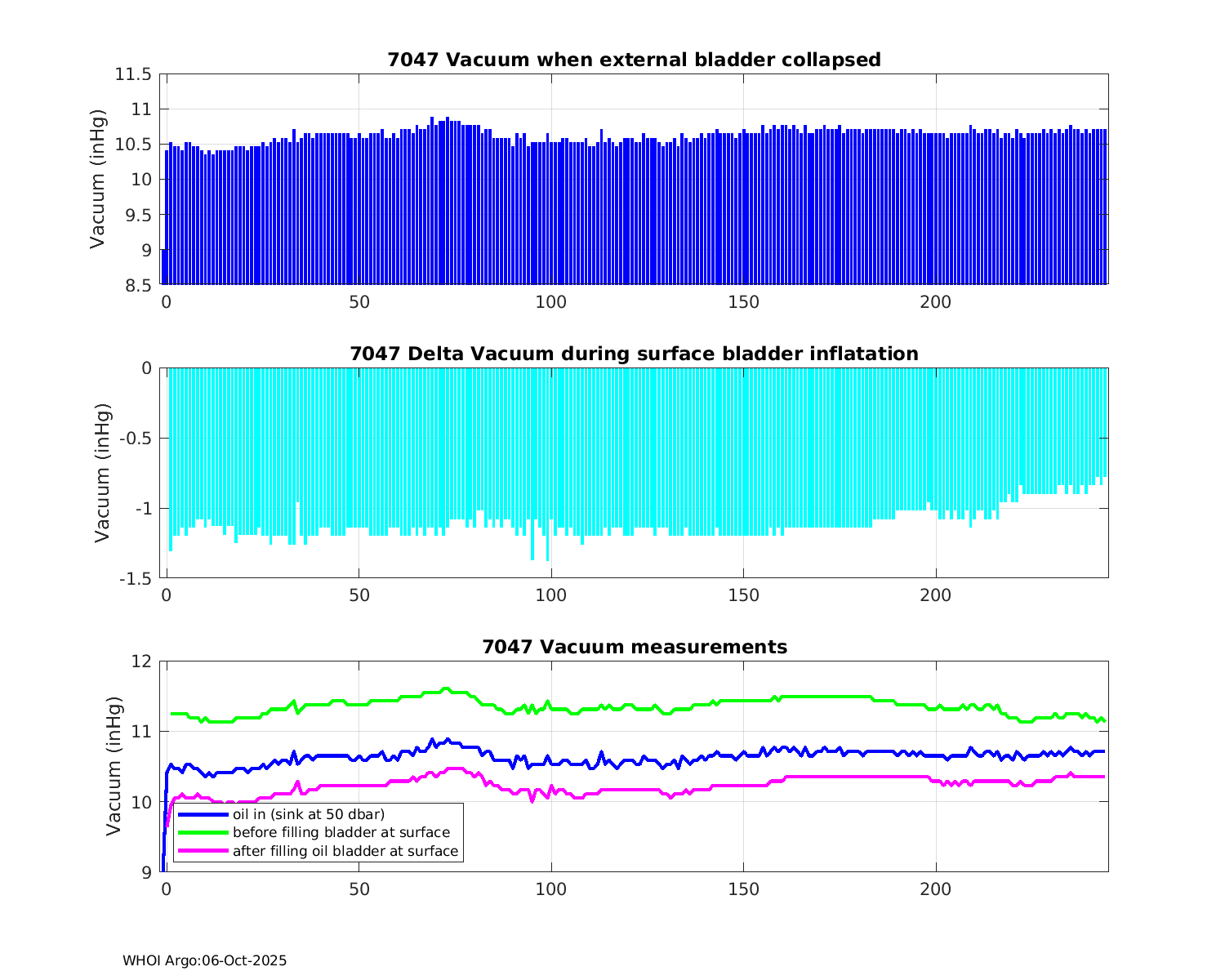

Vacuum
 |
Vent
 |
Seek Times
 |

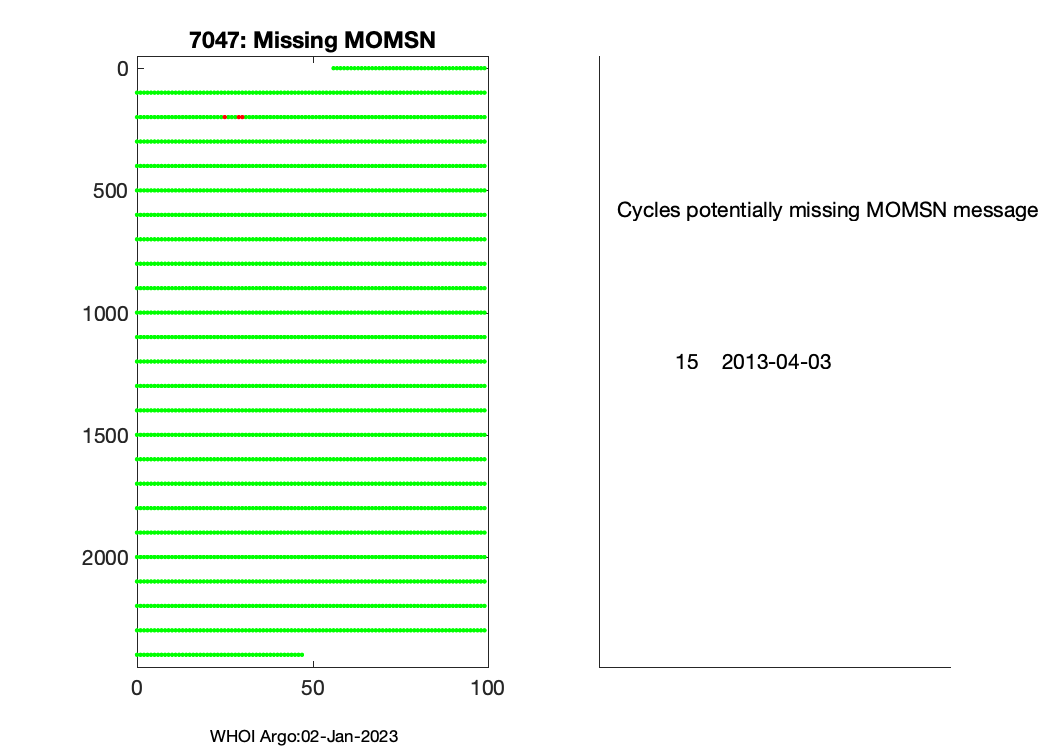

Iridium MOMSN
 |

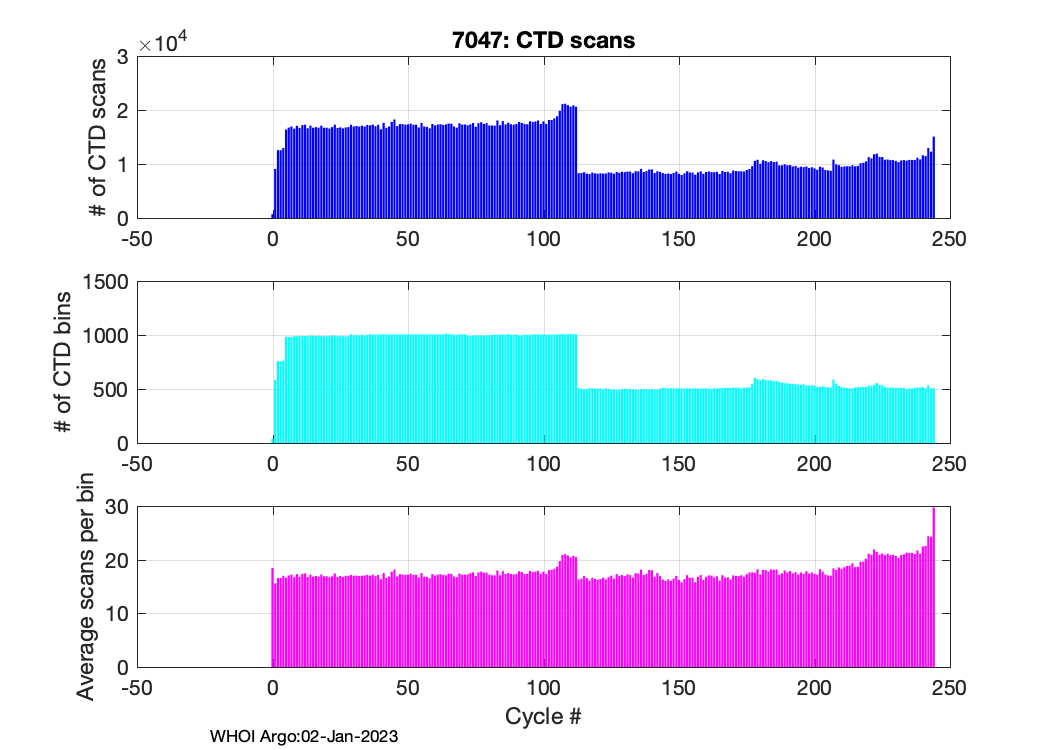

CTD scans
 |

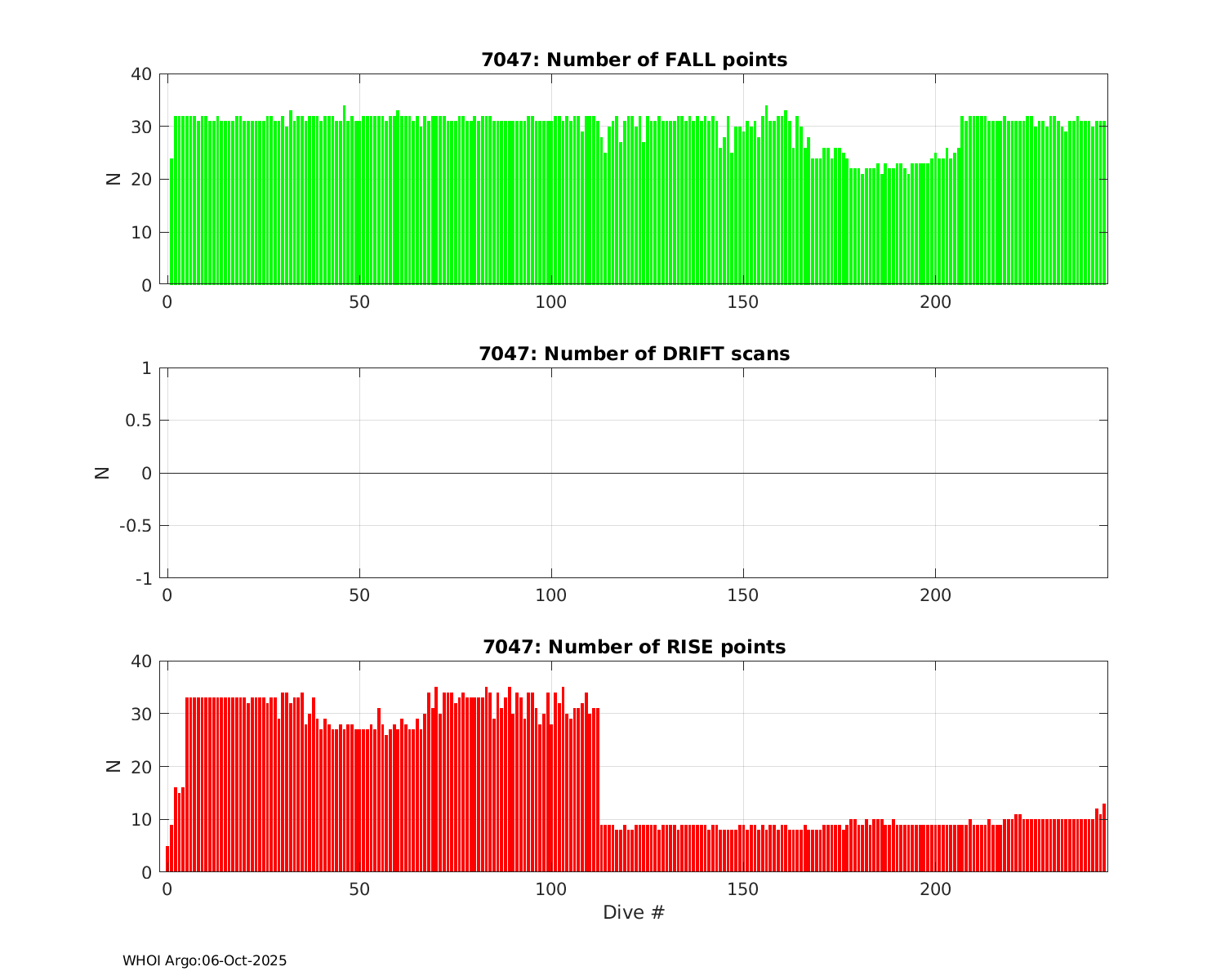

Fall/Drift/Rise Points
 |
Hi-res Scans
 |
Hi-res W
 |

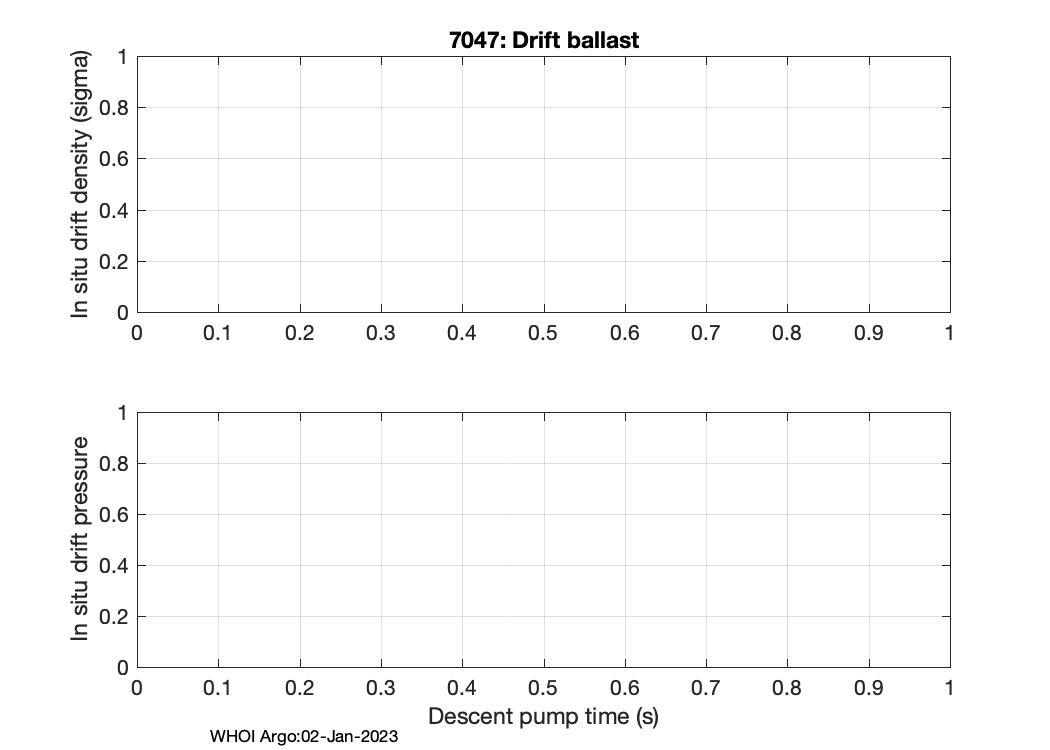

Drift Pump
 |
ccCor Deep
 |
Ballast Trim
 |
Pump Times
 |
|
