| WMO #: | 3902680 |
| DAC #: | 10303 |
| Serial #: | 2012 |
| |
| PI: | Susan WIJFFELS, Steven JAYNE, Pelle ROBBINS |
| |
| Last Report: | 2026-01-09 |
| Last Cycle: | 27 |
| |
| Last Cycle: | |
| PumpT_Target: | 19.9 s |
| Voltage - open: | 15.1 V |
| Voltage - load: | 14.9 V |
| |
| Hardware: | |
| Platform: | SOLO2IR_TS9 |
| ROM version: | SBE602 15Aug17 ARM V2.4 |
| Temperature: | SBE41CP, s/n: 20684 |
| Conductivity: | SBE41CP, s/n: 20684 |
| Pressure: | Druck, s/n: 12677400 |
| Customisation: | n/a |
| |
| Deployment: | |
| Launched: | 2025-05-13 |
| Launch Platform: | ARMSTRONG |
| Cruise ID: | AR89 |
| Launch Deployer: | T. Frank |
| |
| Links: | |
| Listing Files: | WHOI |
| Public plots of telemetry data: | WHOI |
| Plots based on GDAC data: | WHOI |
|
Energy Budget
 |
Telemetry
 |

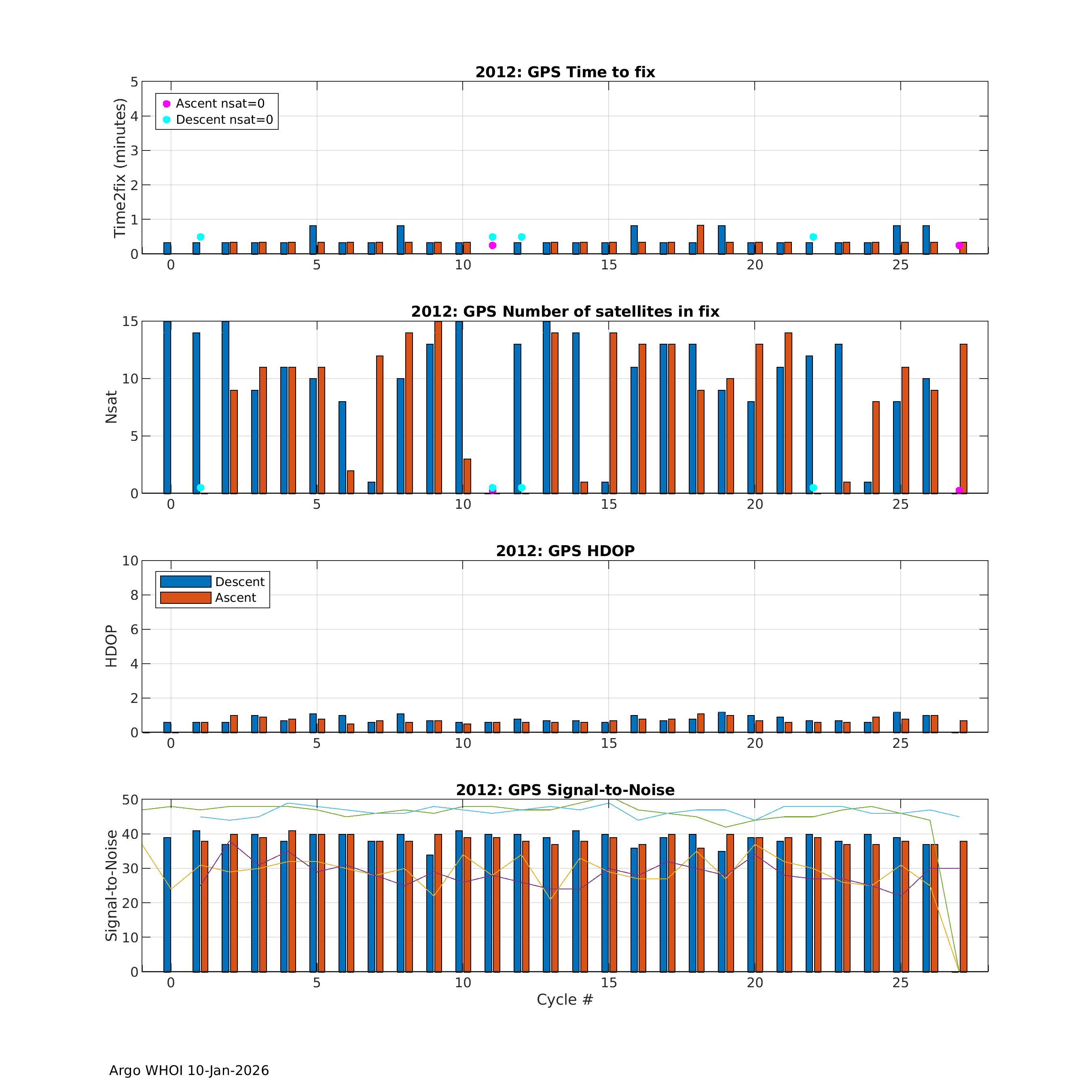

GPS
 |
Ice Detect Status
 |

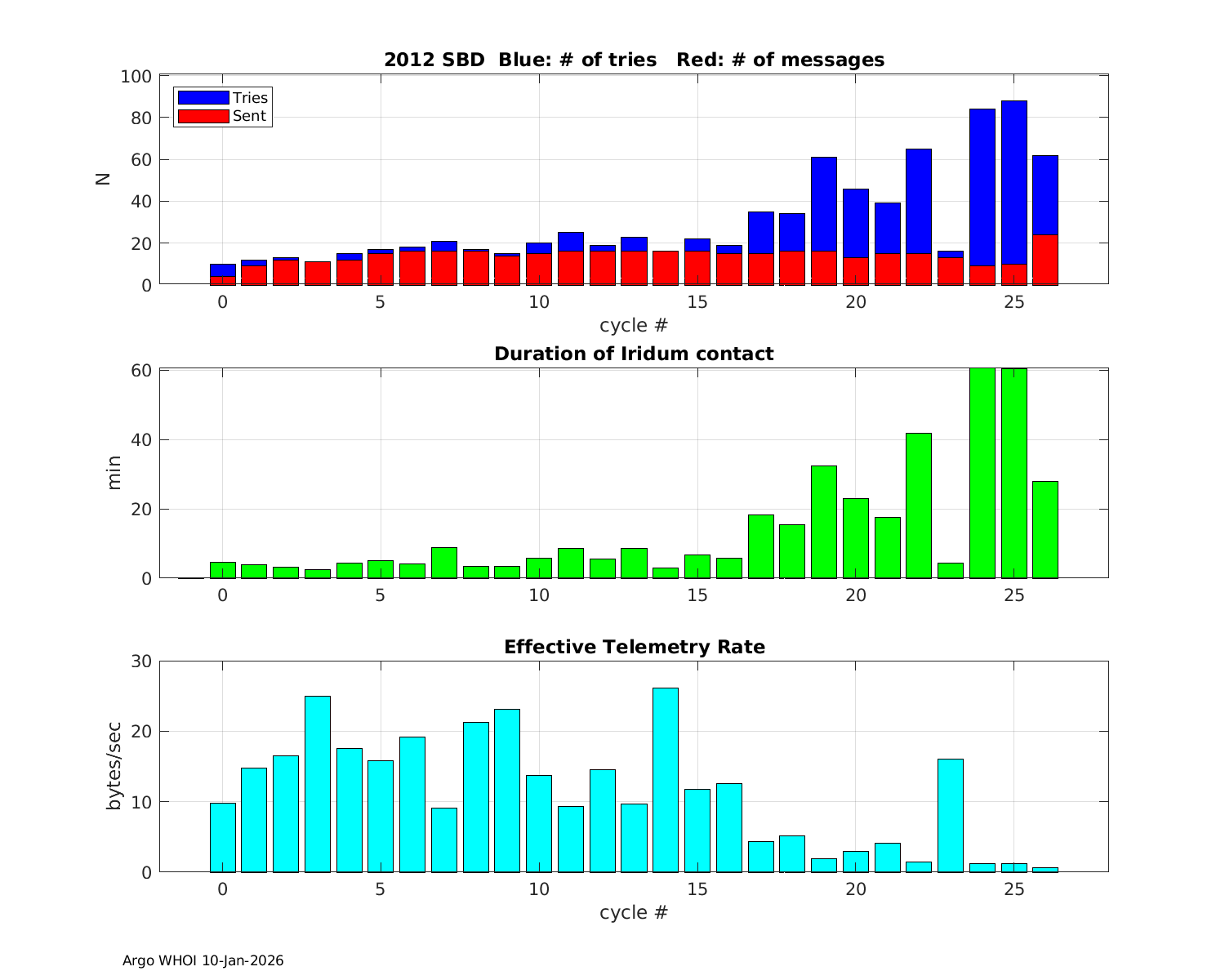

Iridium SBD
 |
Exception Flags
 |

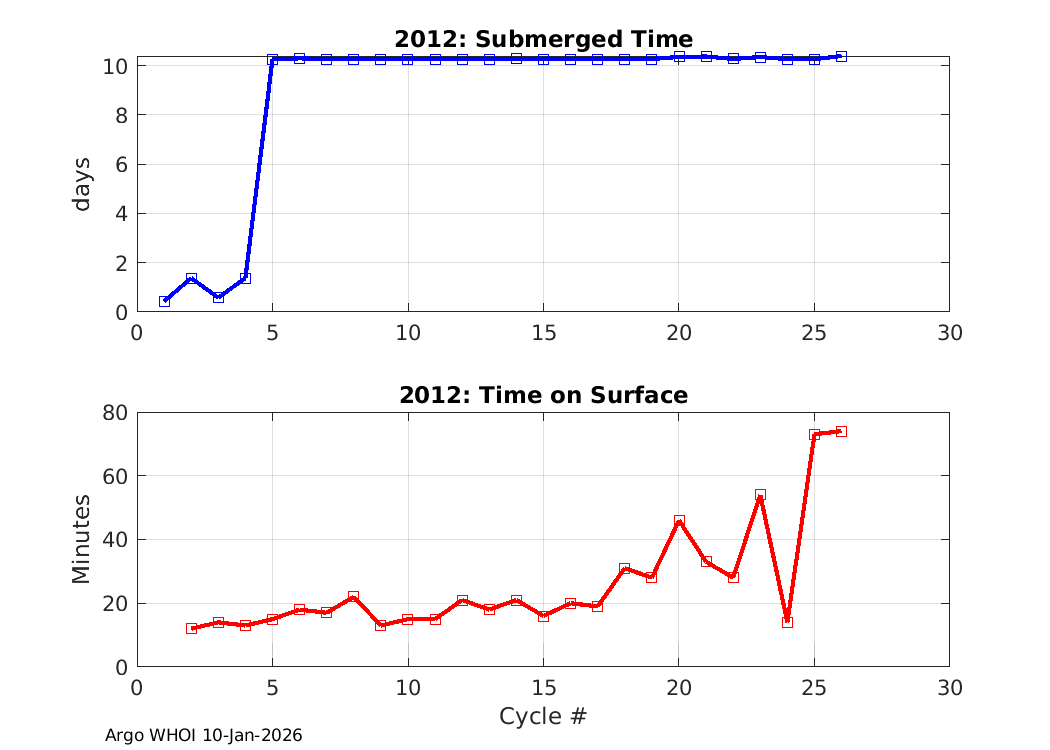

Cycle Times
 |

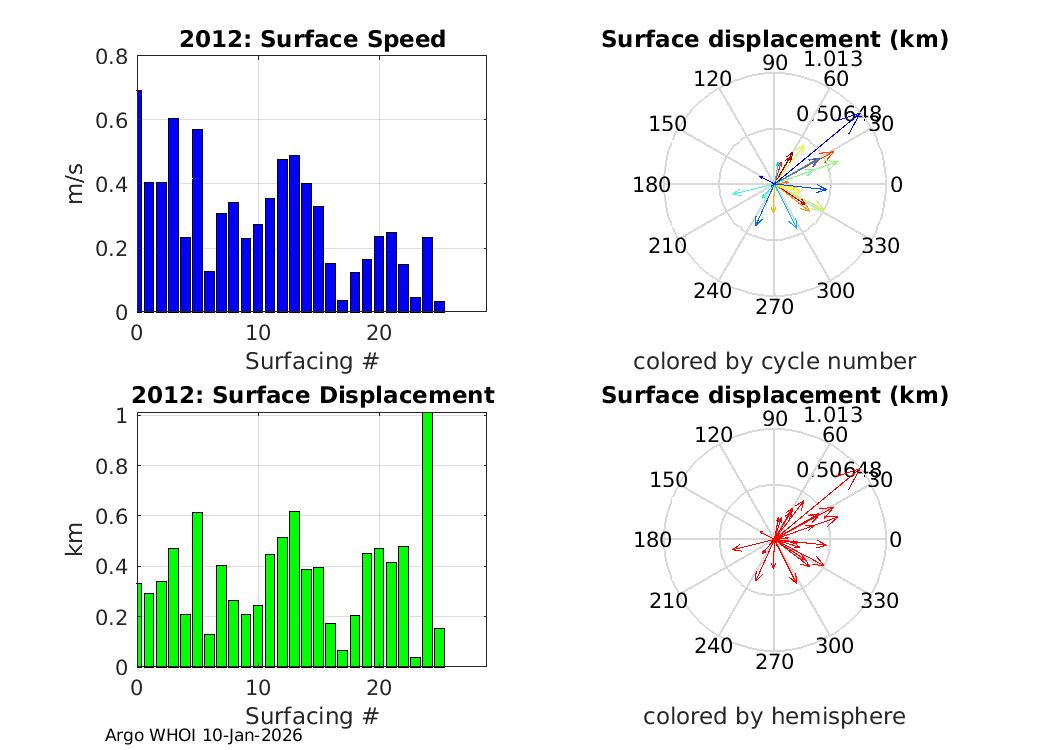

Surface
 |
Battery Summary
 |

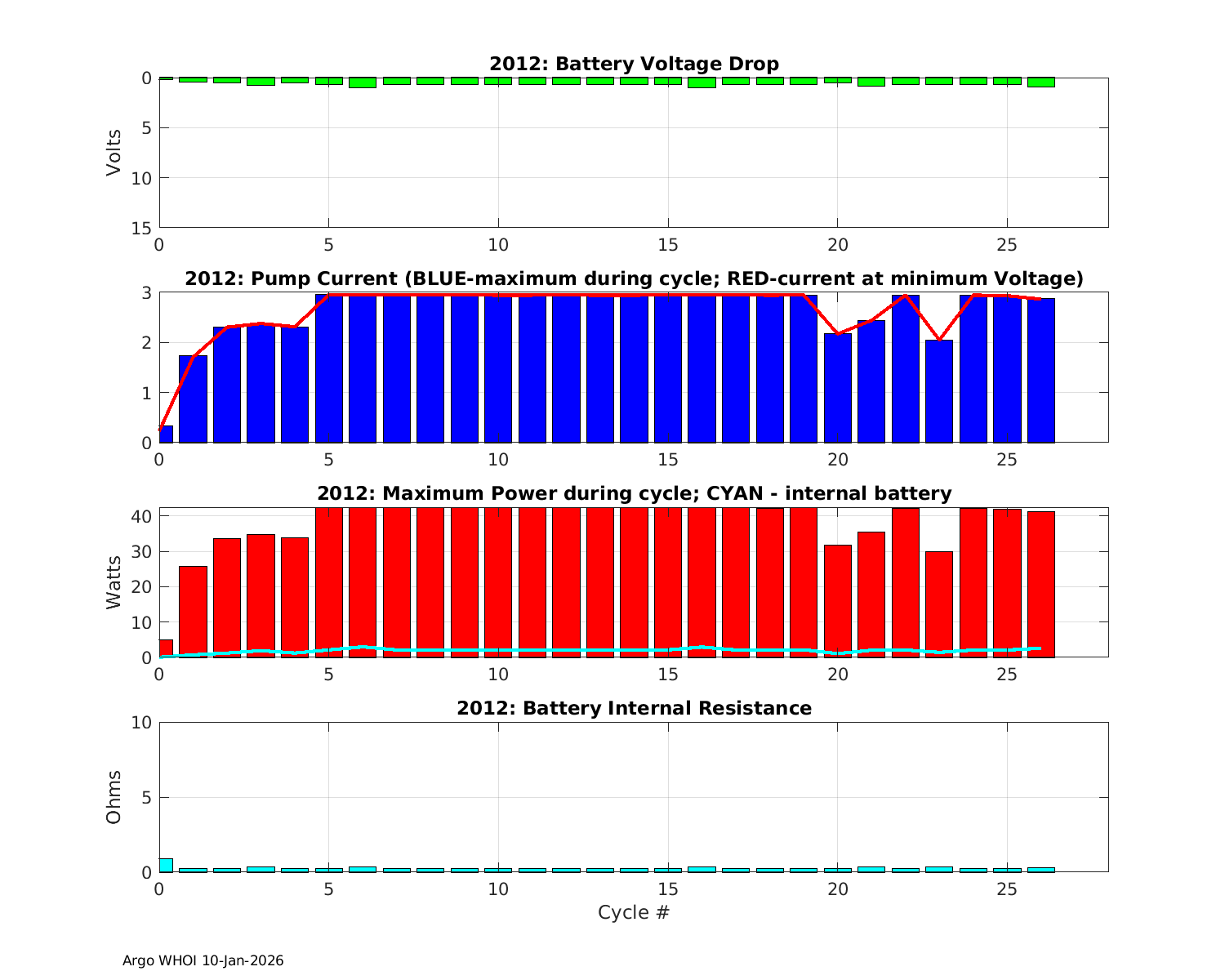

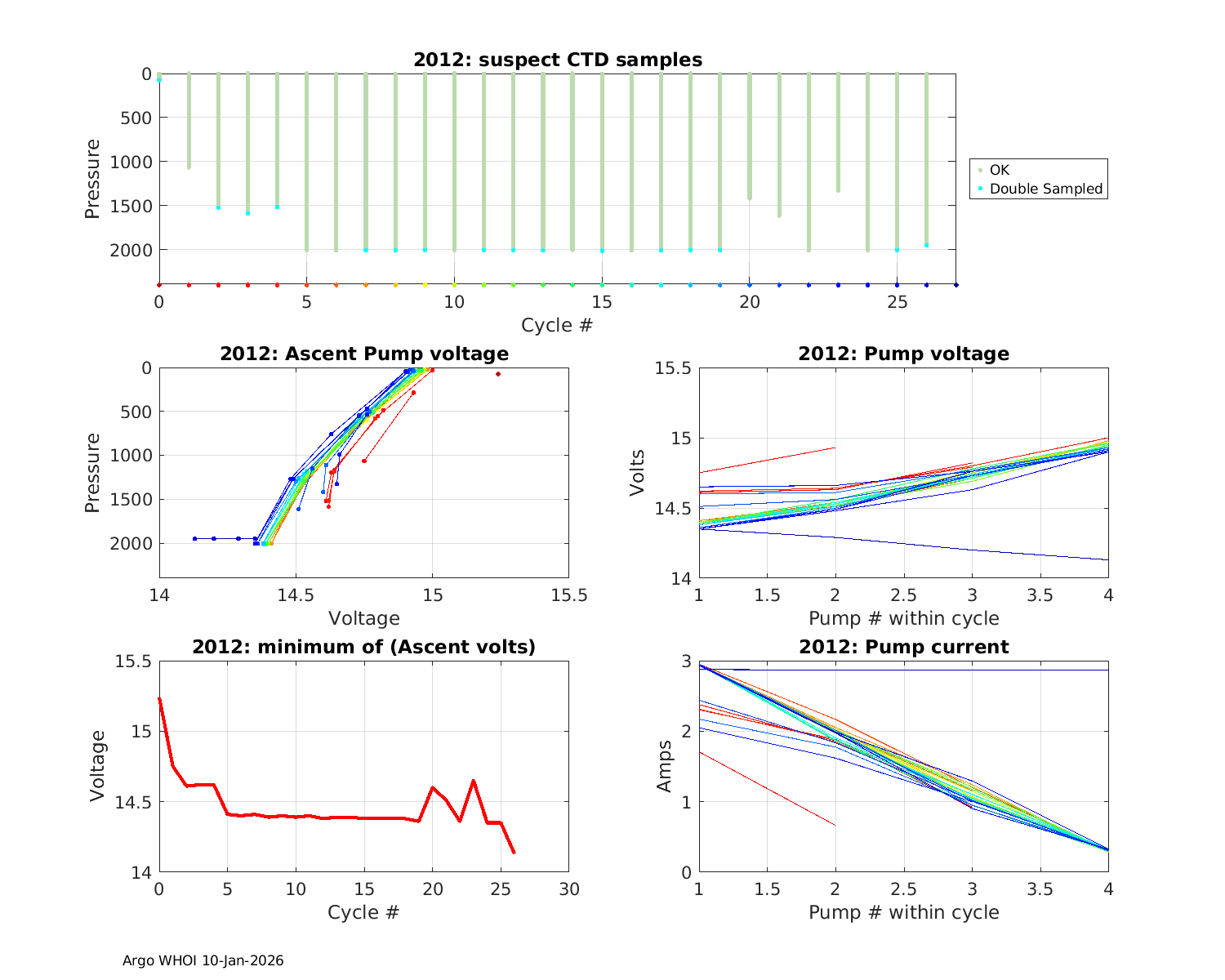

Batteries during Hydraulic Cycle
 |

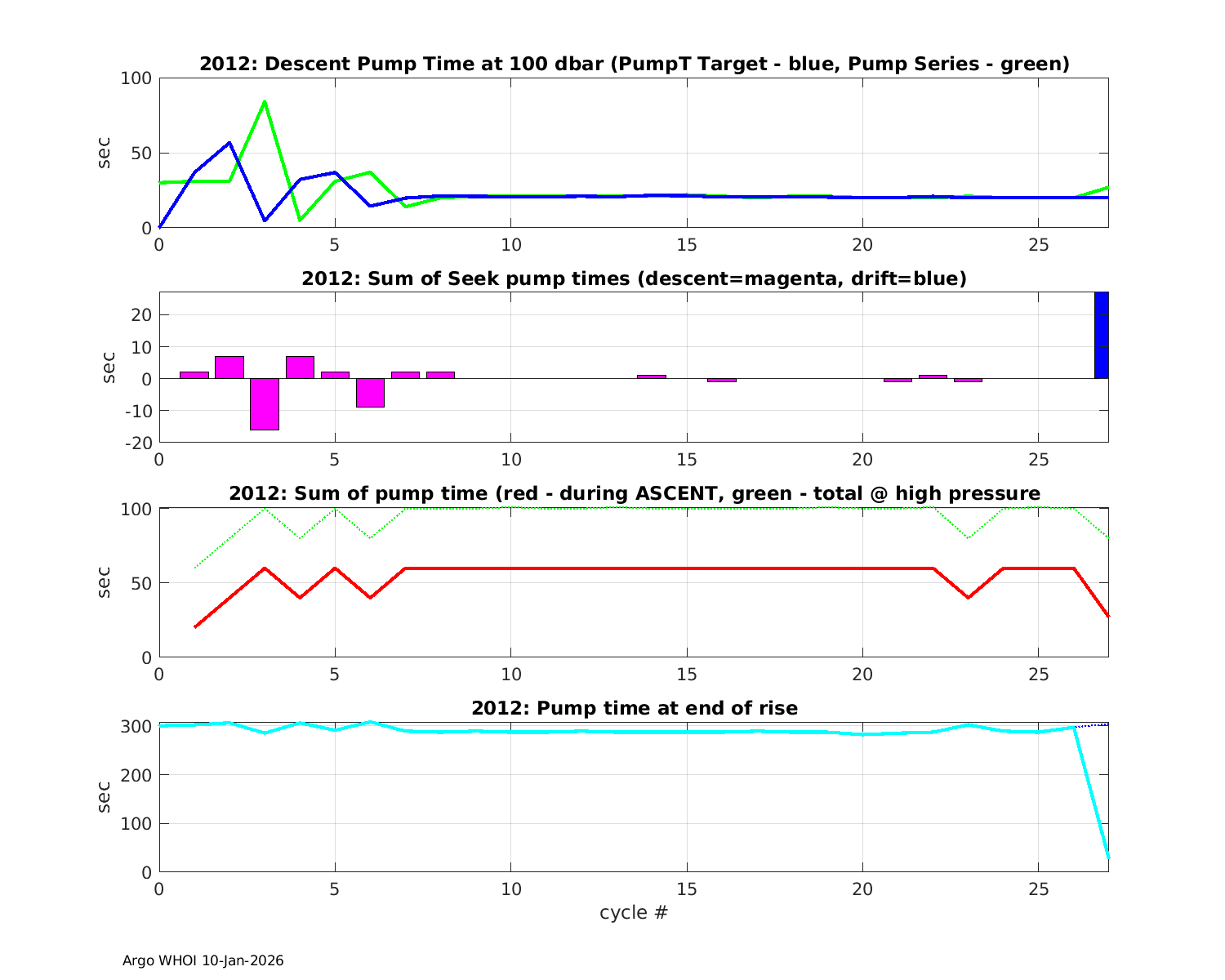

Pump Times
 |

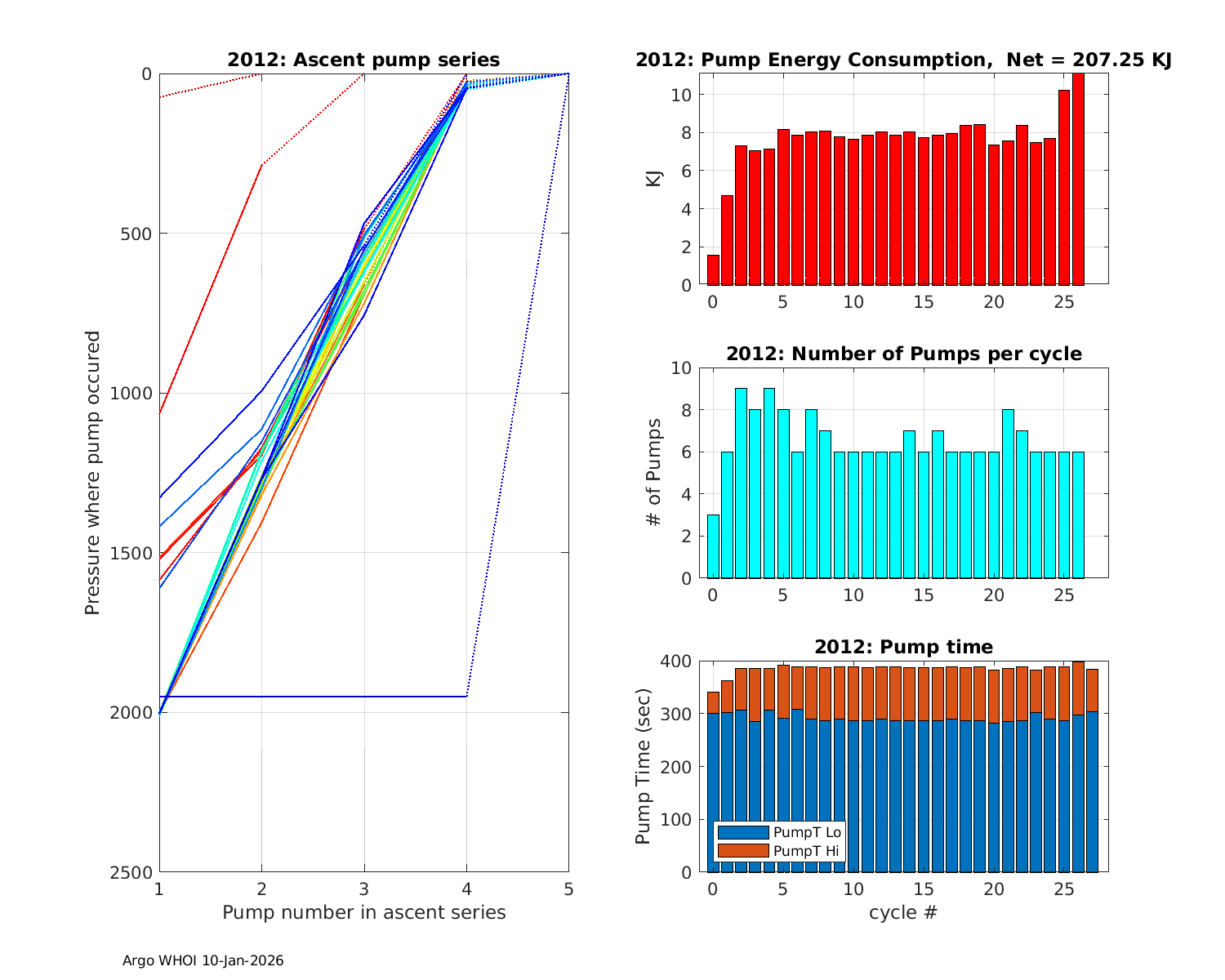

Pump
 |

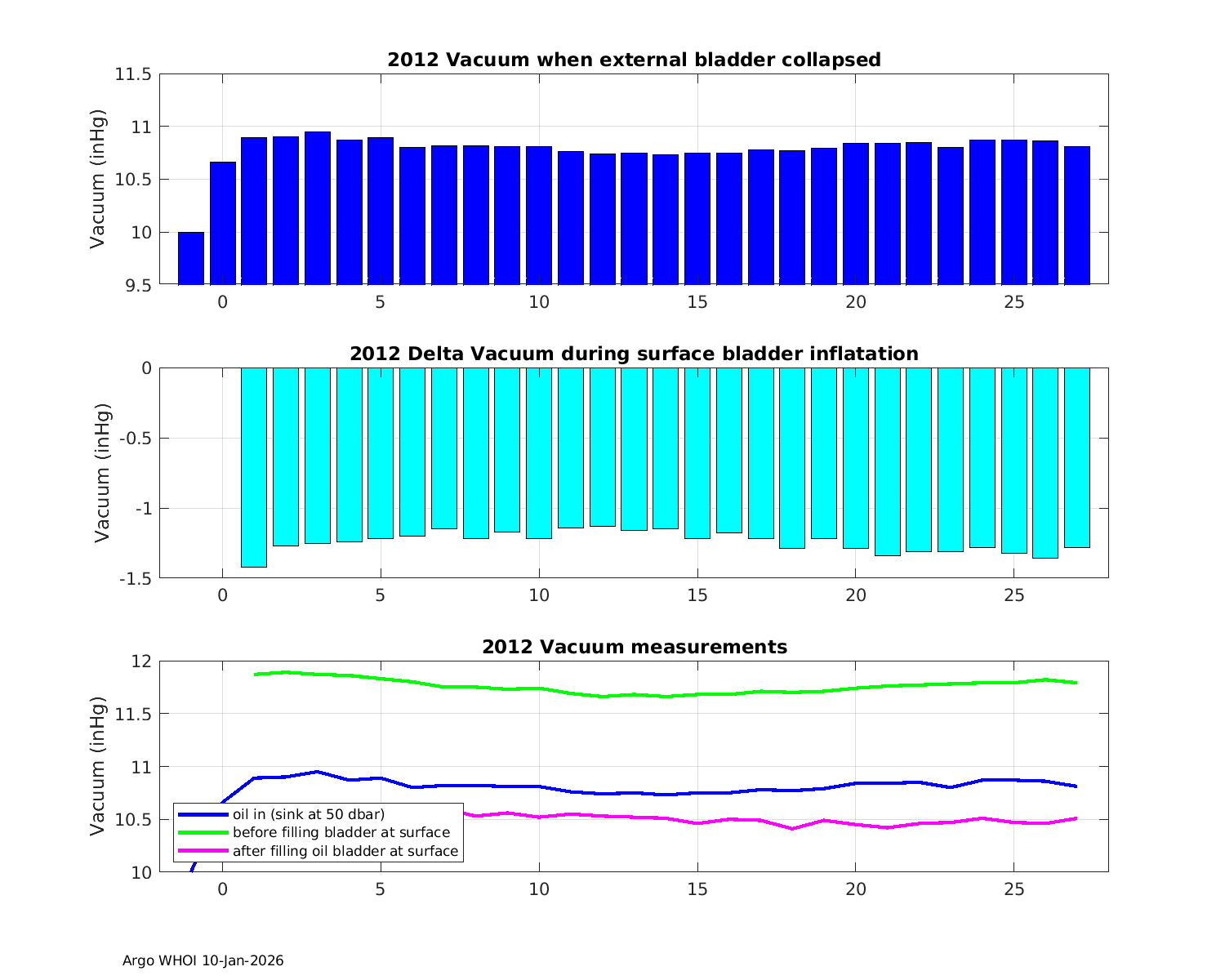

Vacuum
 |

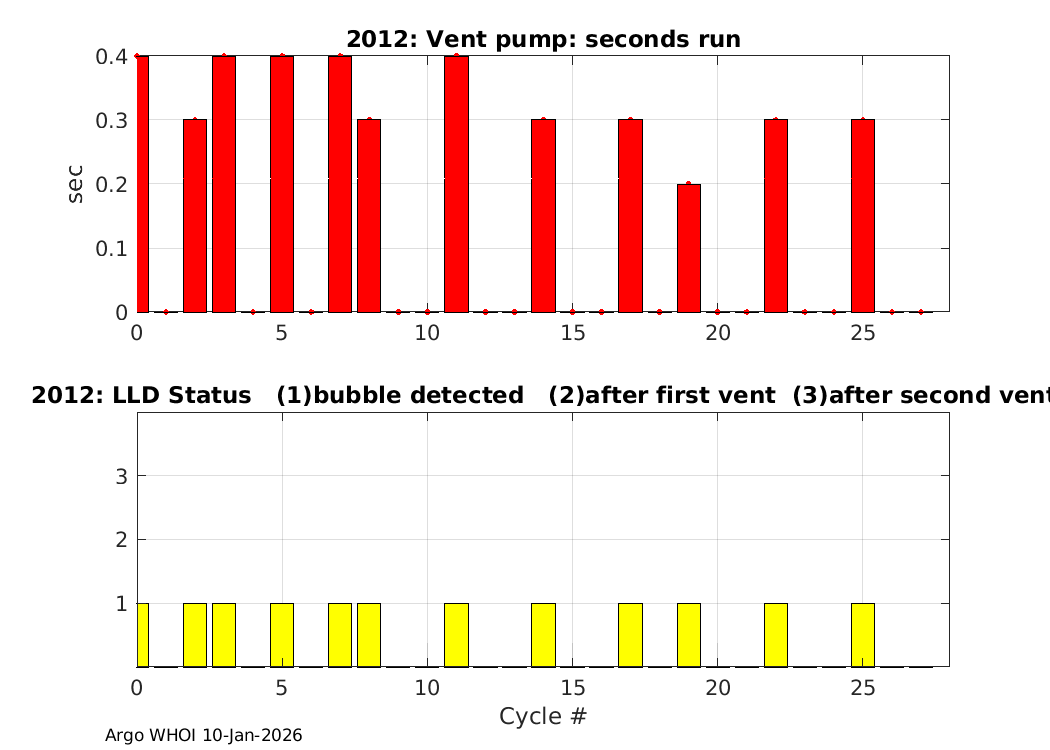

Vent
 |

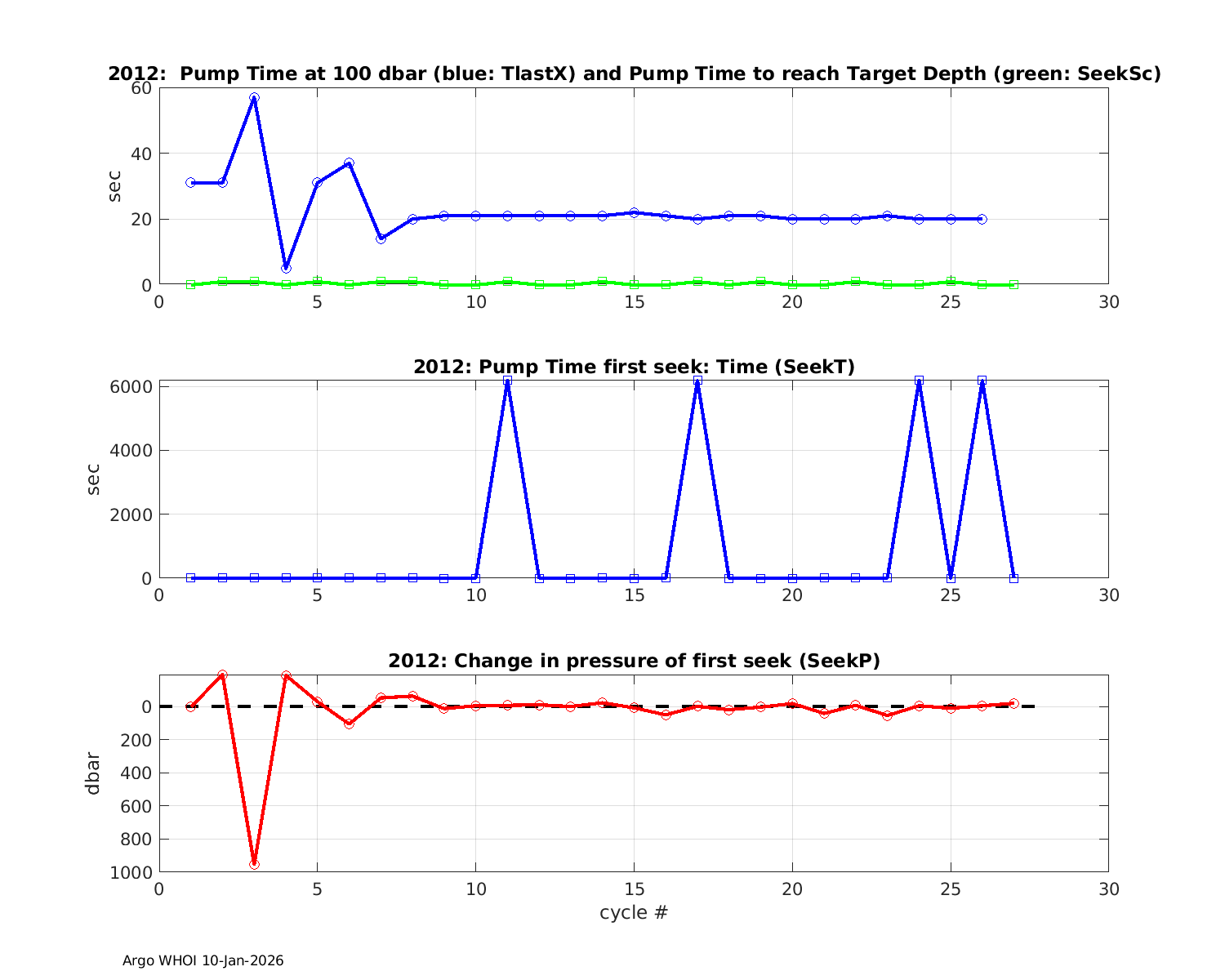

Seek Times
 |
Iridium MOMSN
 |

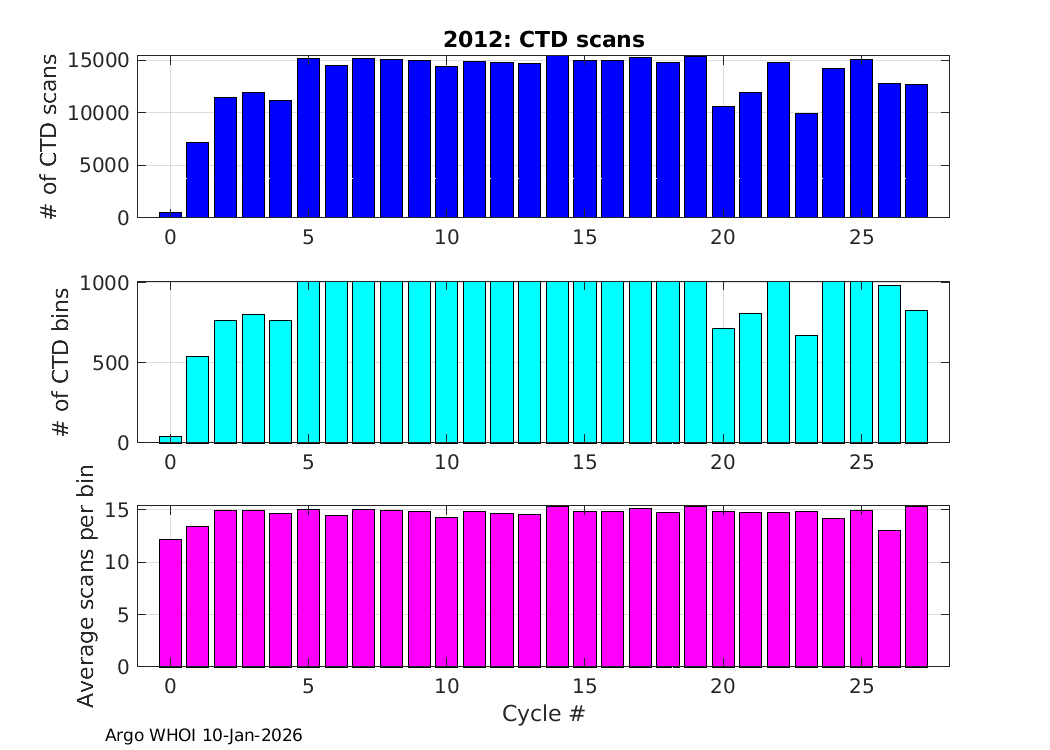

CTD scans
 |
Fall/Drift/Rise Points
 |

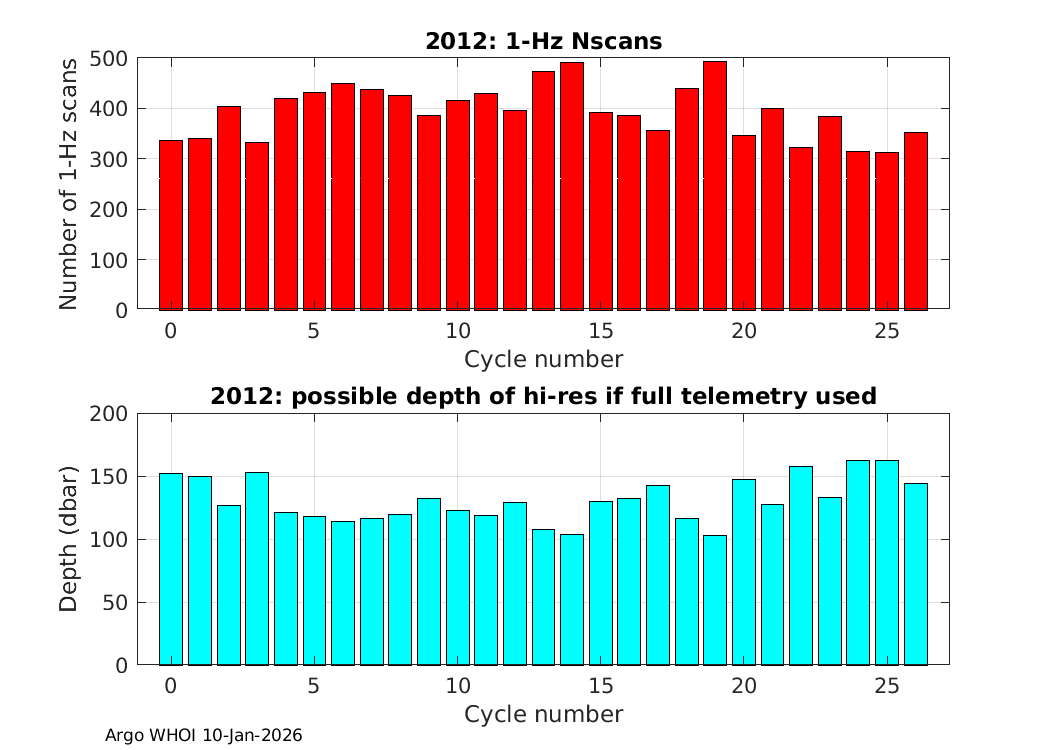

Hi-res Scans
 |

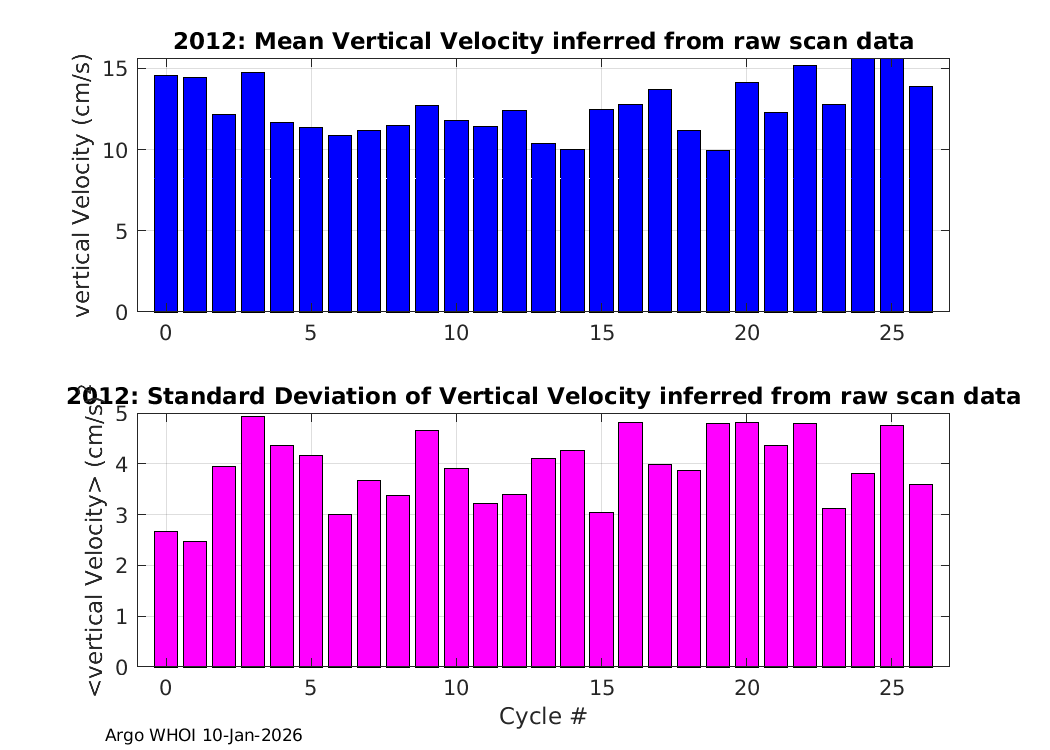

Hi-res W
 |
ccCor Deep
 |
Ballast Trim
 |
Pump Times
 |
|
