| WMO #: | 4903070 |
| DAC #: | 10383 |
| Serial #: | 12087 |
| |
| PI: | Peter BRICKLEY |
| |
| Last Report: | 2026-03-09 |
| Last Cycle: | 127 |
| |
| Last Cycle: | |
| PumpT_Target: | 18.2 s |
| Voltage - open: | 15.0 V |
| Voltage - load: | 14.9 V |
| |
| Hardware: | |
| Platform: | SOLODIR_TS38 |
| ROM version: | SBE 7Oct19 ARM V1.1 |
| Temperature: | SBE61, s/n: 6125 |
| Conductivity: | SBE61, s/n: 6125 |
| Pressure: | Kistler, s/n: 6230178 |
| Customisation: | n/a |
| |
| Deployment: | |
| Launched: | 2025-11-14 |
| Launch Platform: | RV Neil Armstrong |
| Cruise ID: | OOI Pioneer 22-2025 |
| Launch Deployer: | John Lund |
| |
| Links: | |
| Listing Files: | WHOI |
| Public plots of telemetry data: | WHOI |
| Plots based on GDAC data: | WHOI |
|
Energy Budget
 |
Telemetry
 |

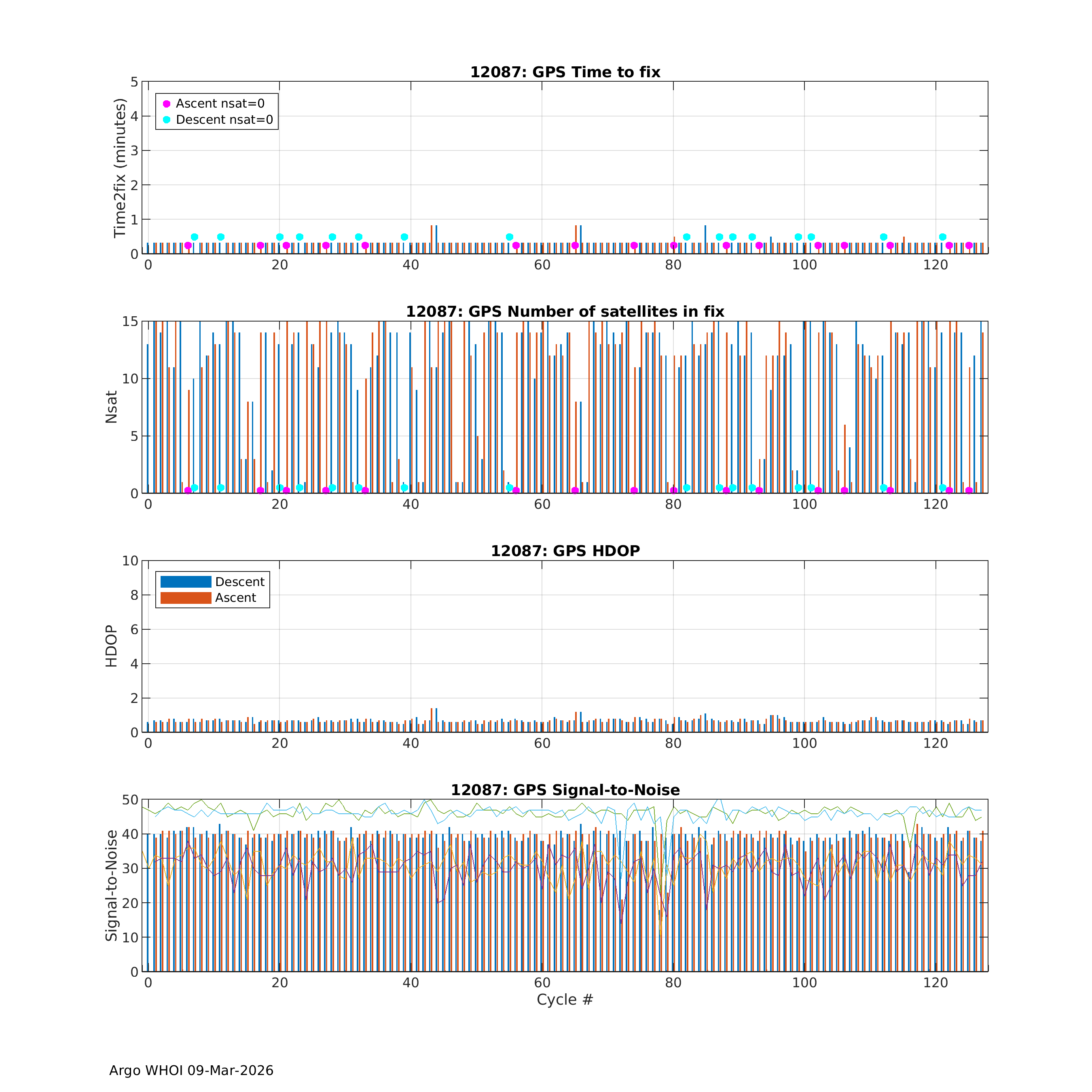

GPS
 |
Ice Detect Status
 |

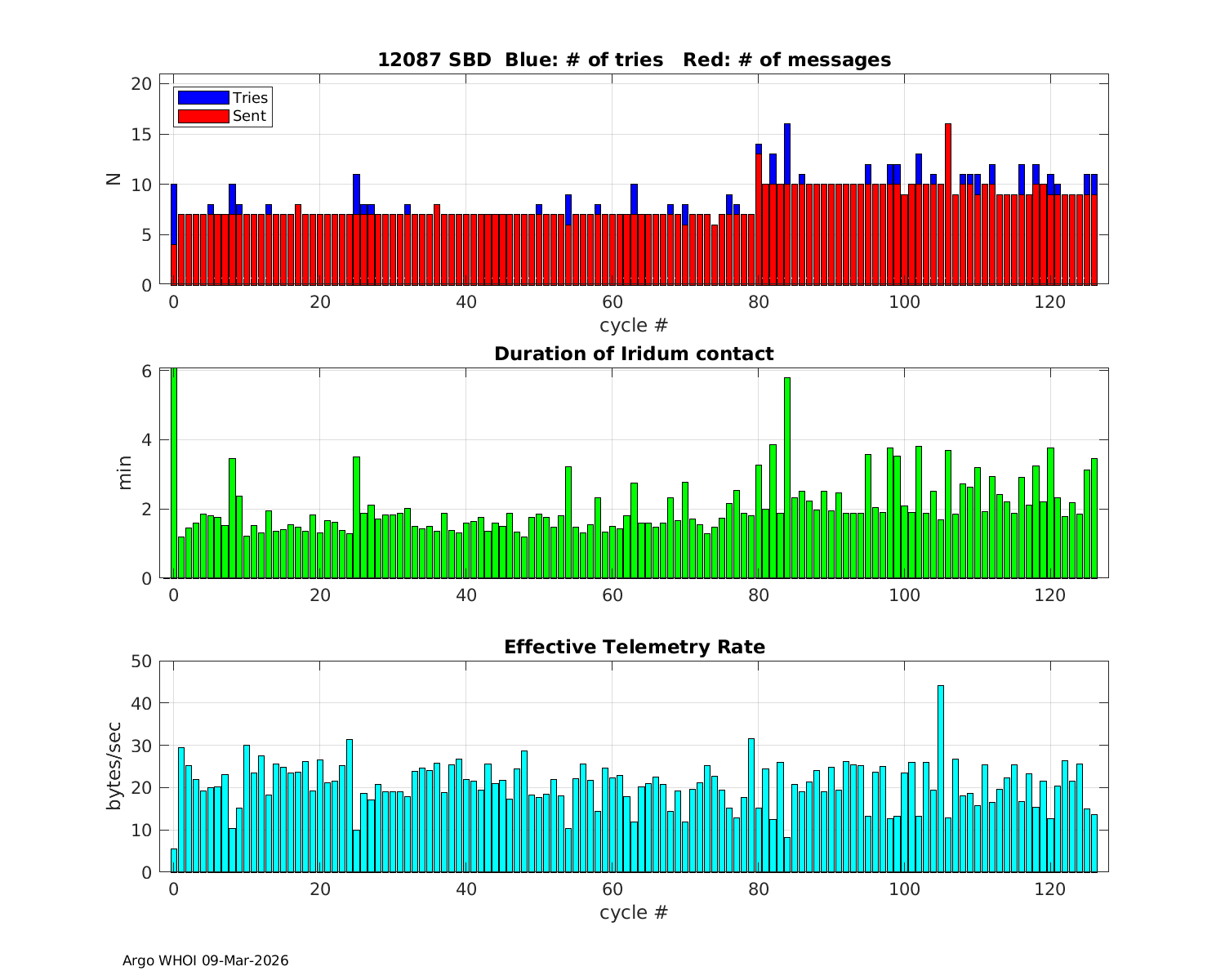

Iridium SBD
 |

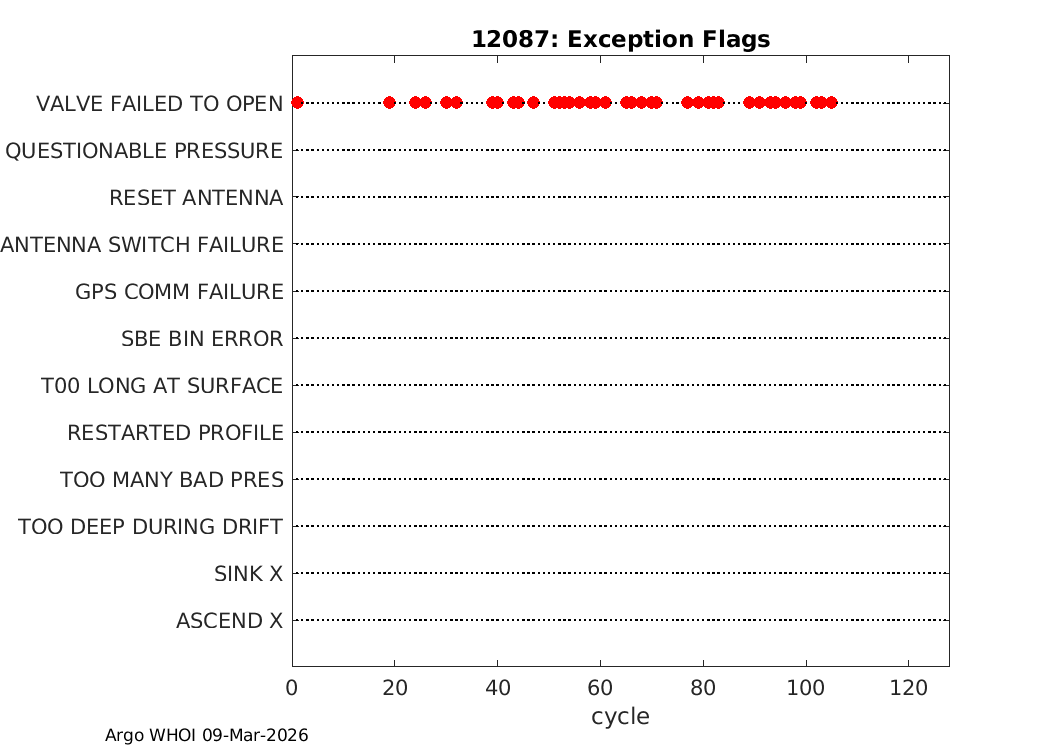

Exception Flags
 |
Cycle Times
 |

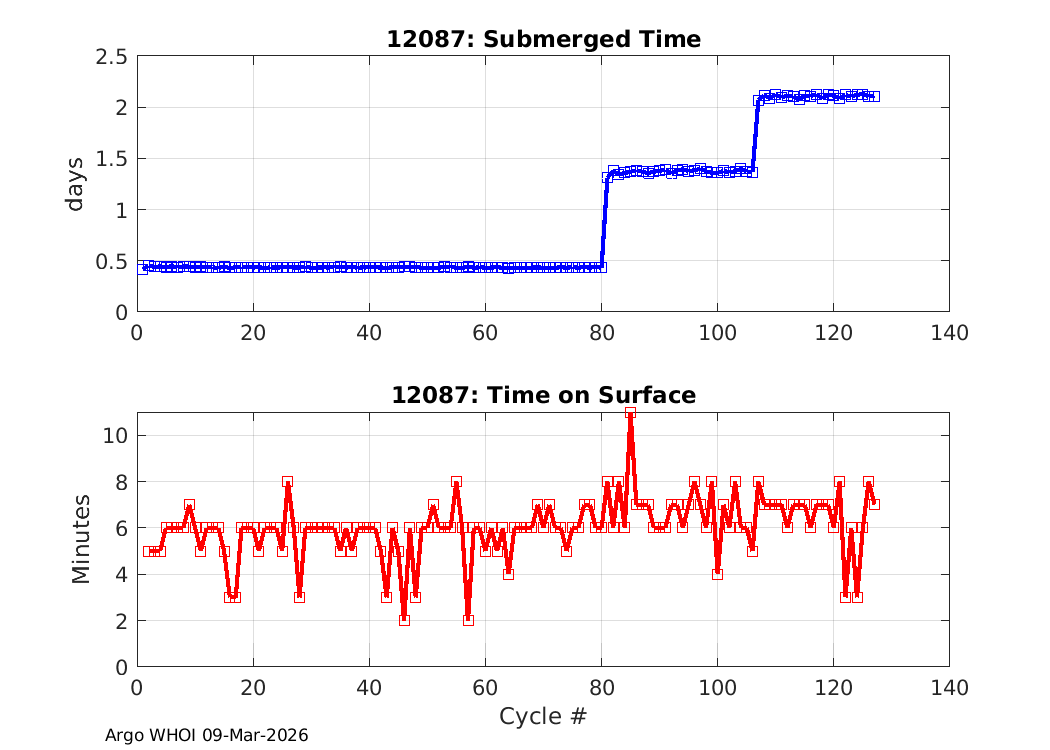

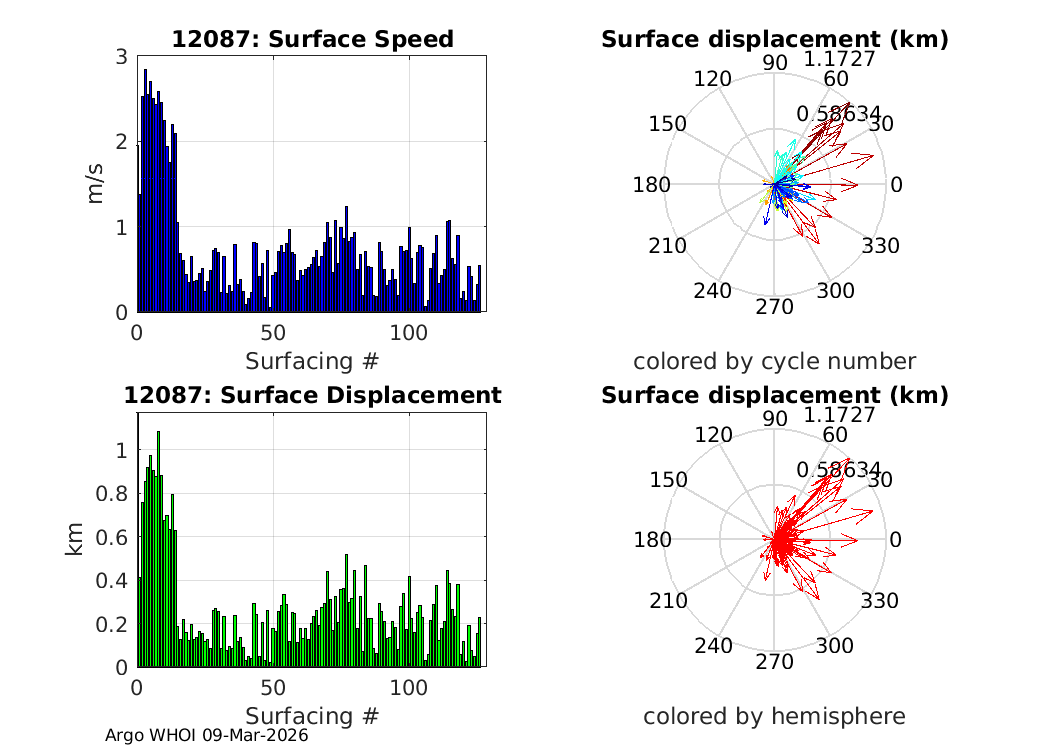

Surface
 |
Battery Summary
 |

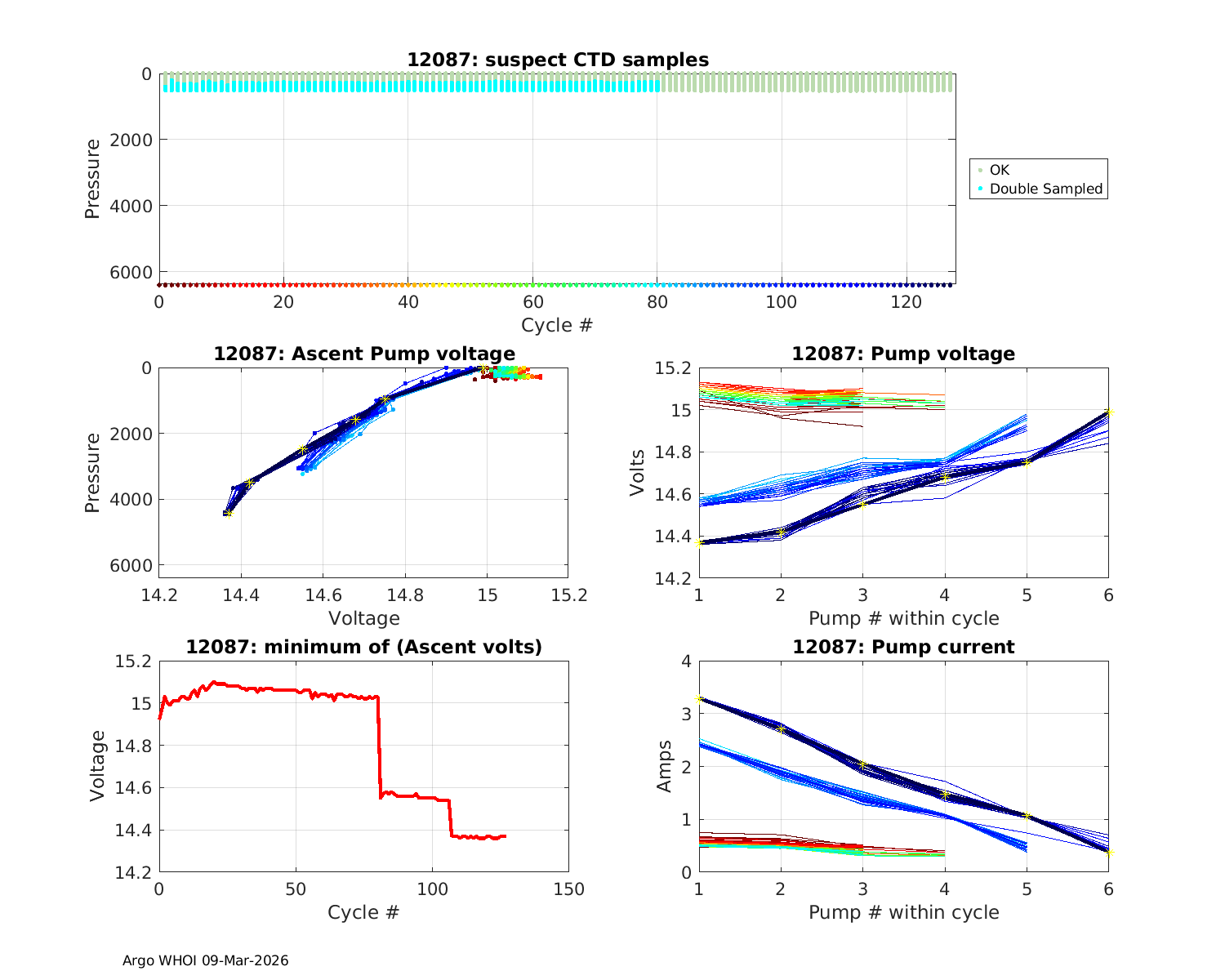

Batteries during Hydraulic Cycle
 |

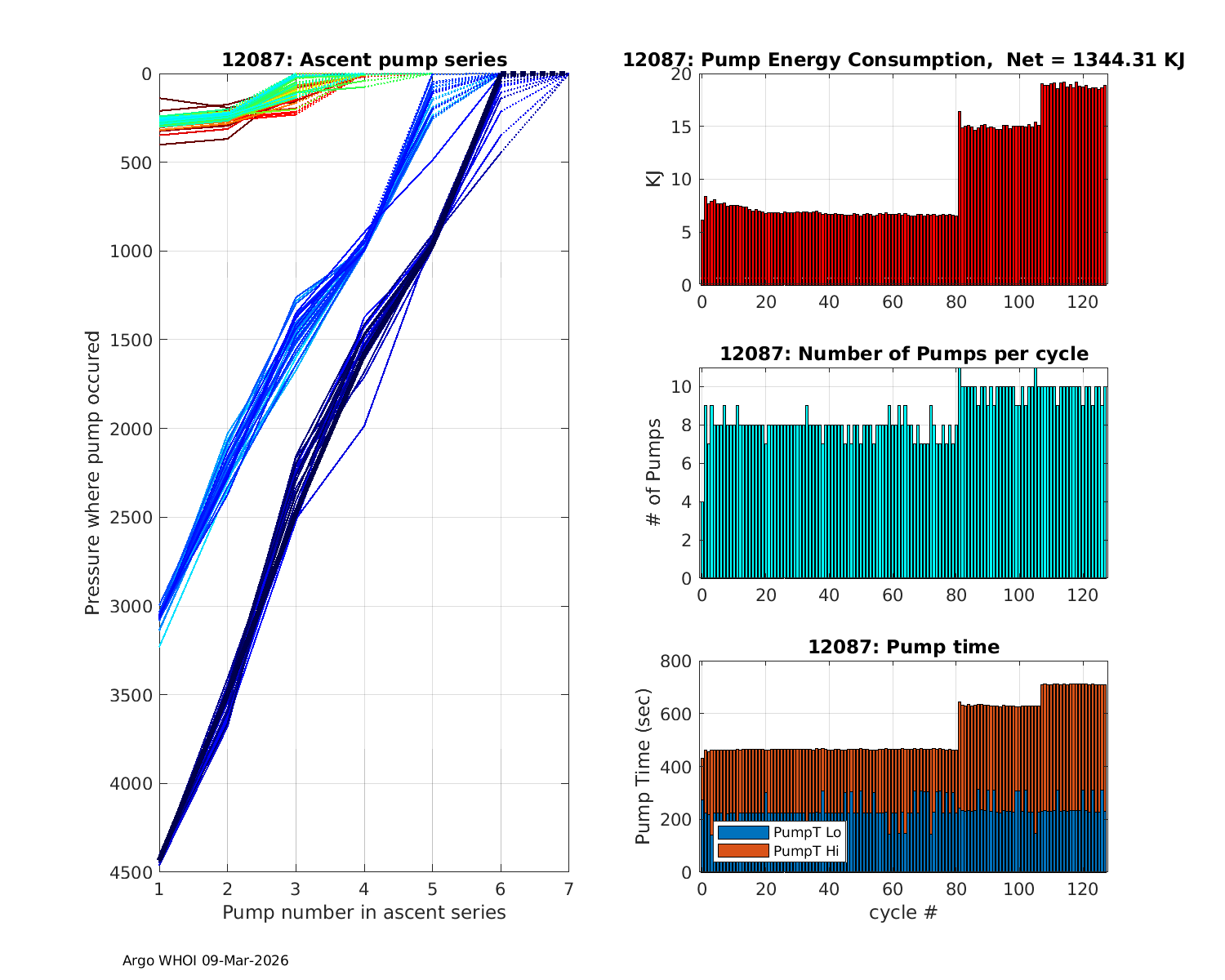

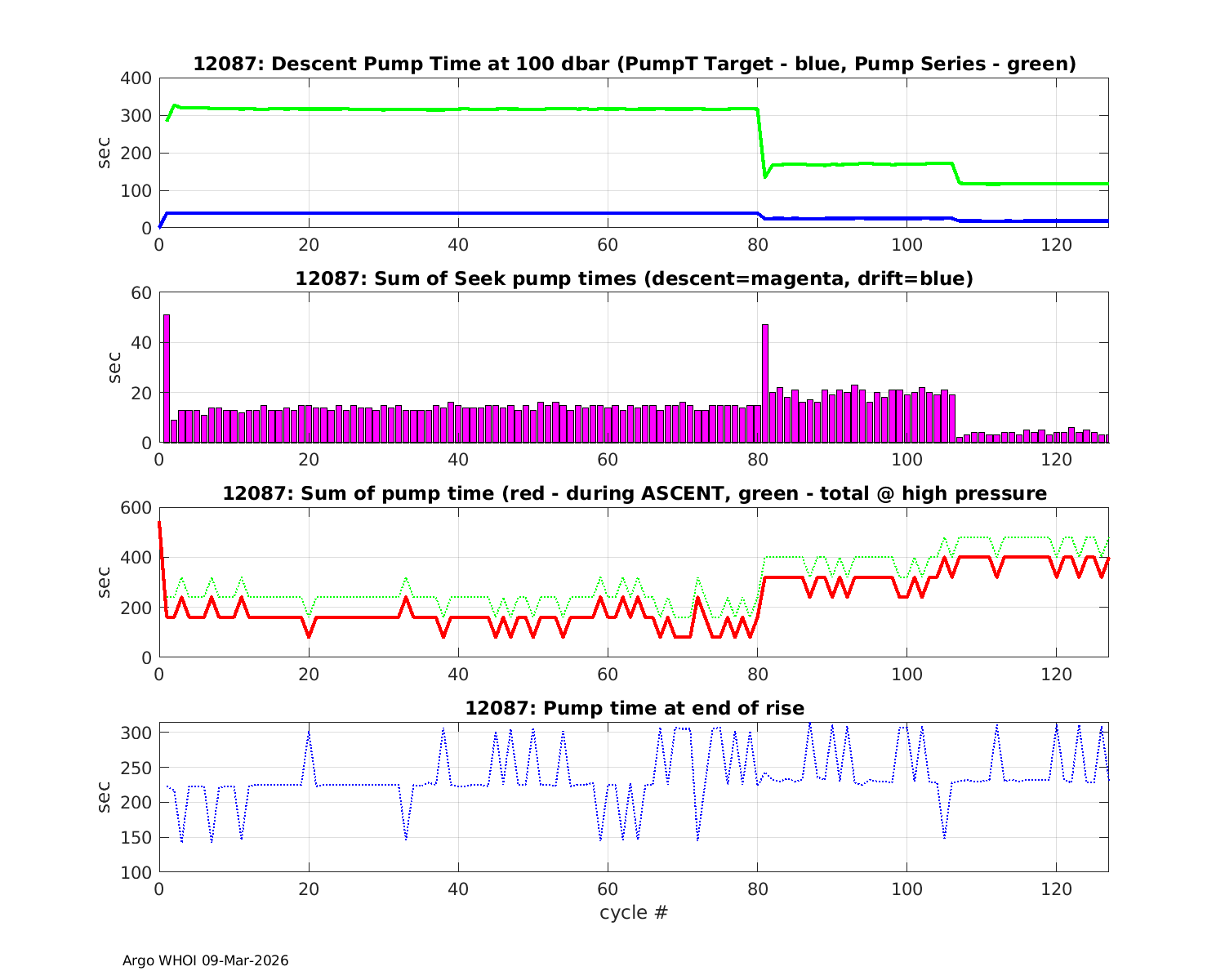

Pump Times
 |
Pump
 |

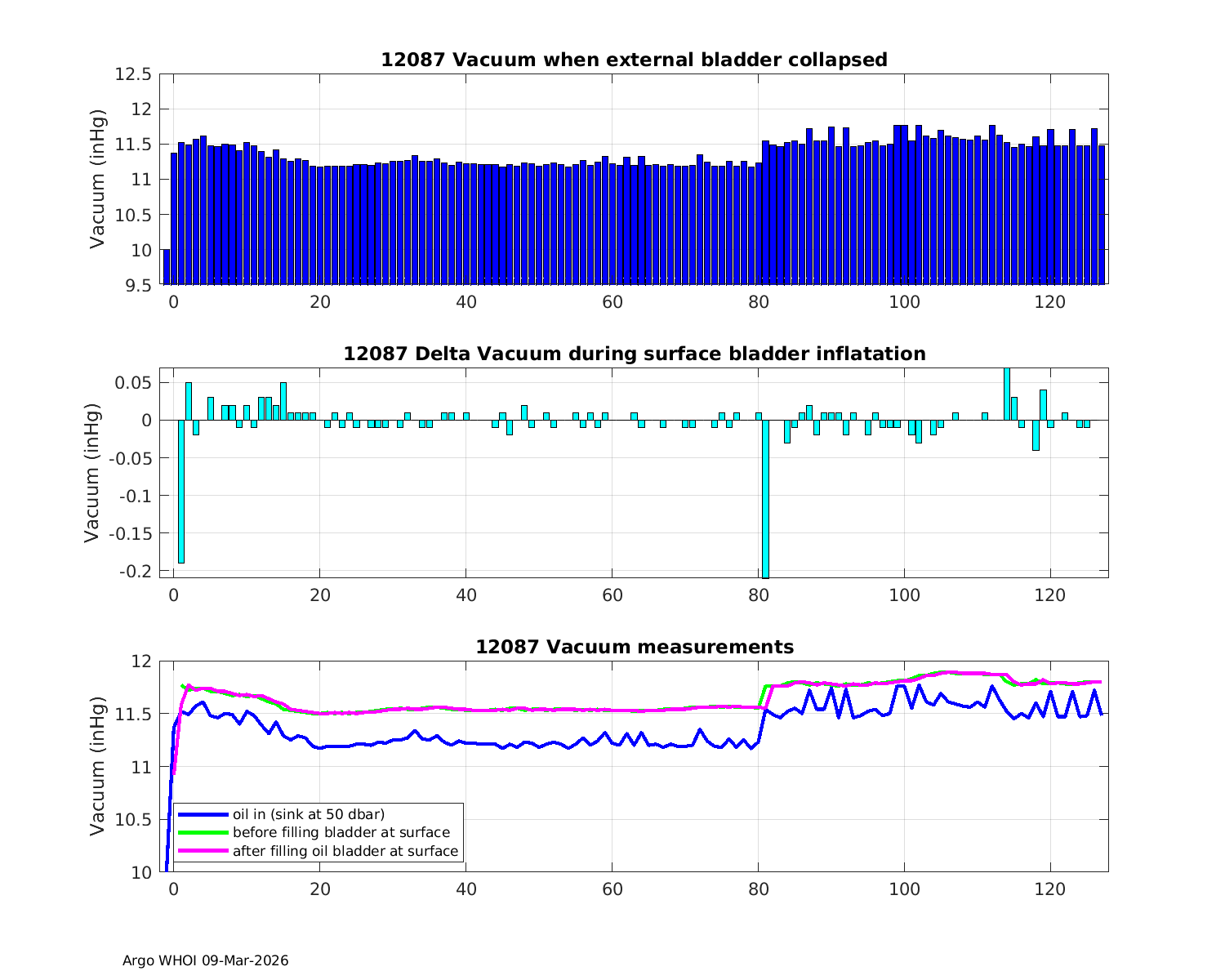

Vacuum
 |

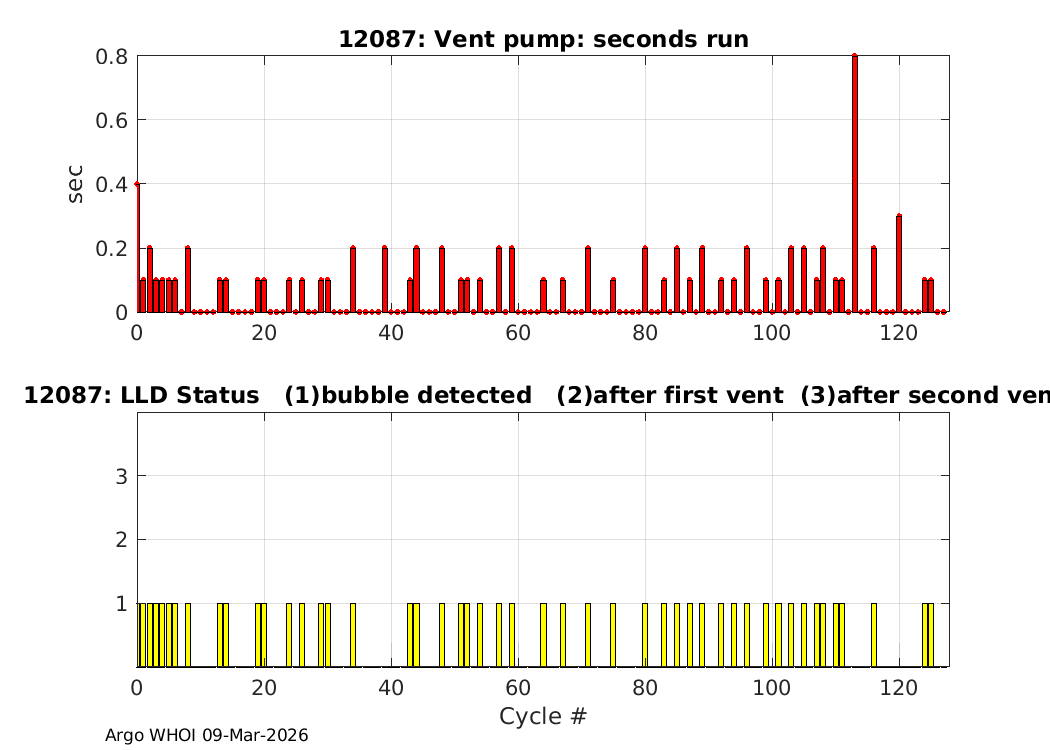

Vent
 |

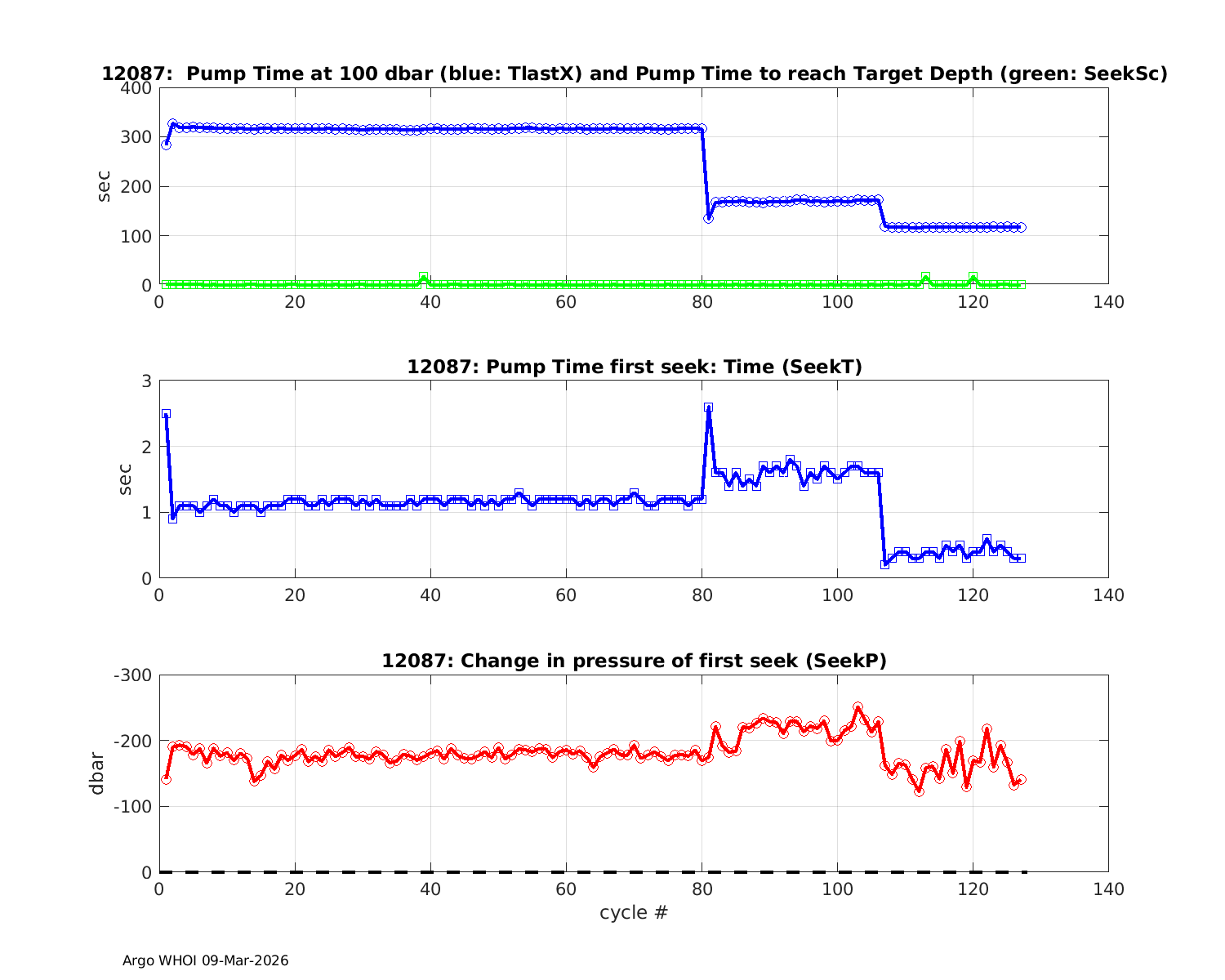

Seek Times
 |

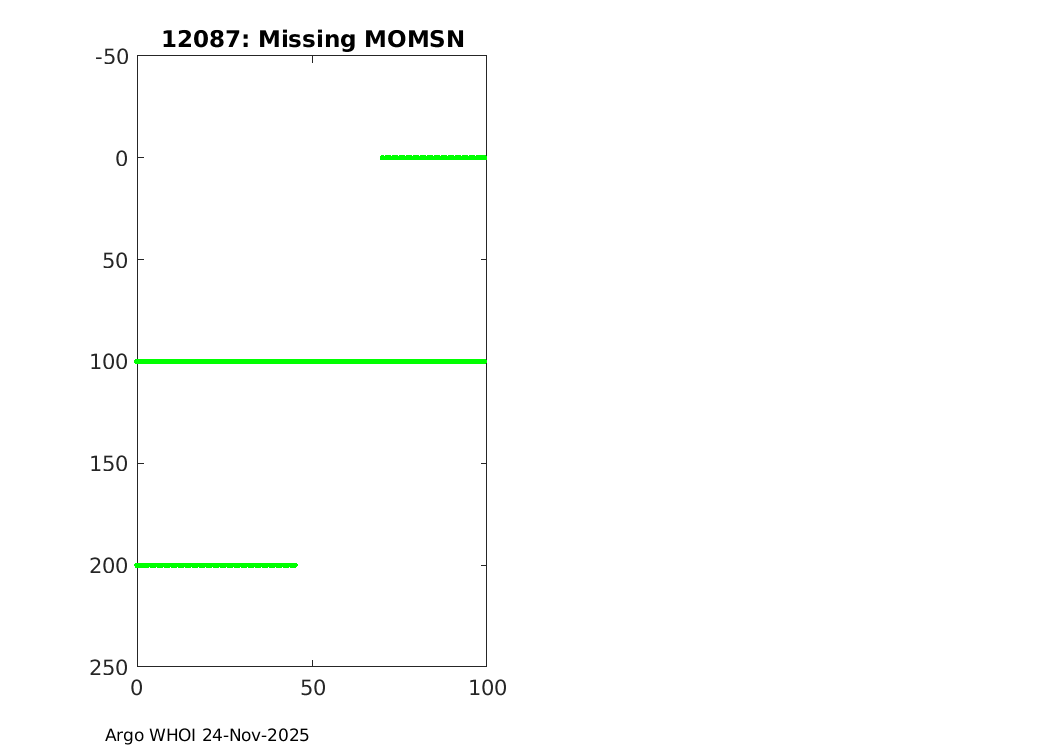

Iridium MOMSN
 |

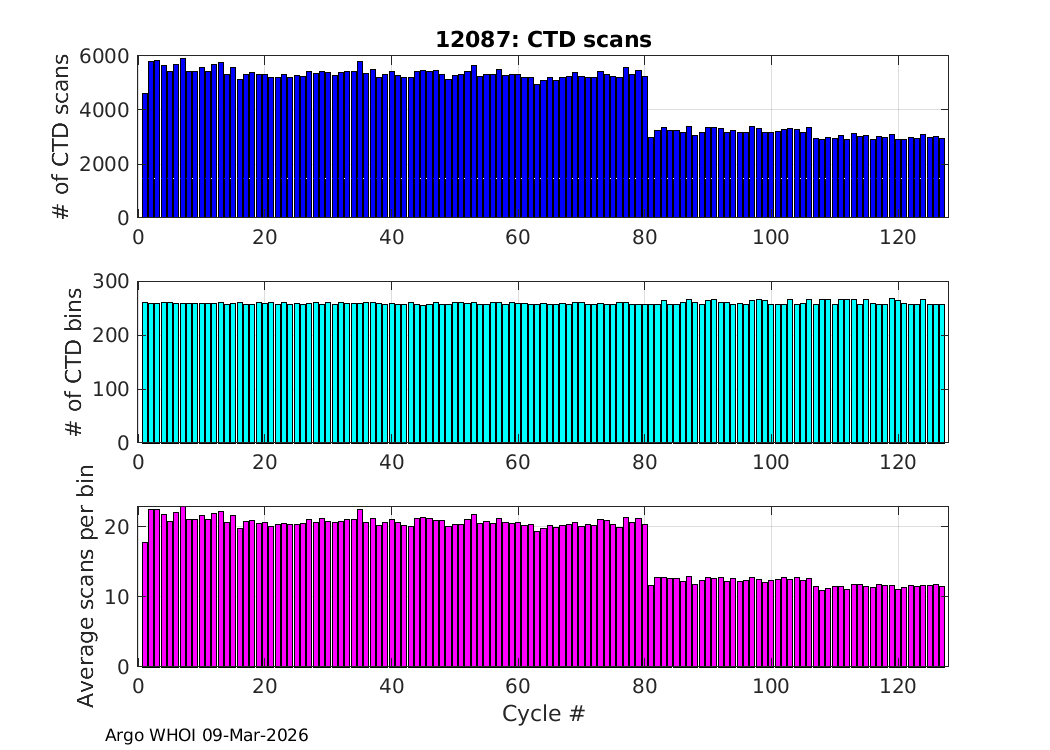

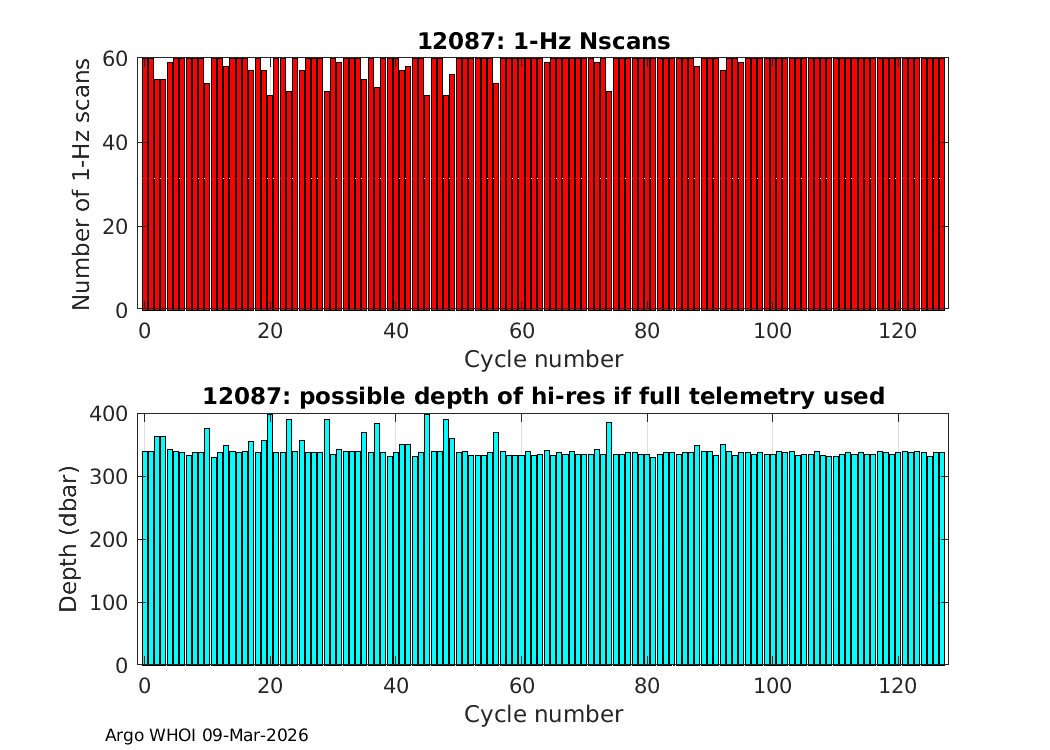

CTD scans
 |

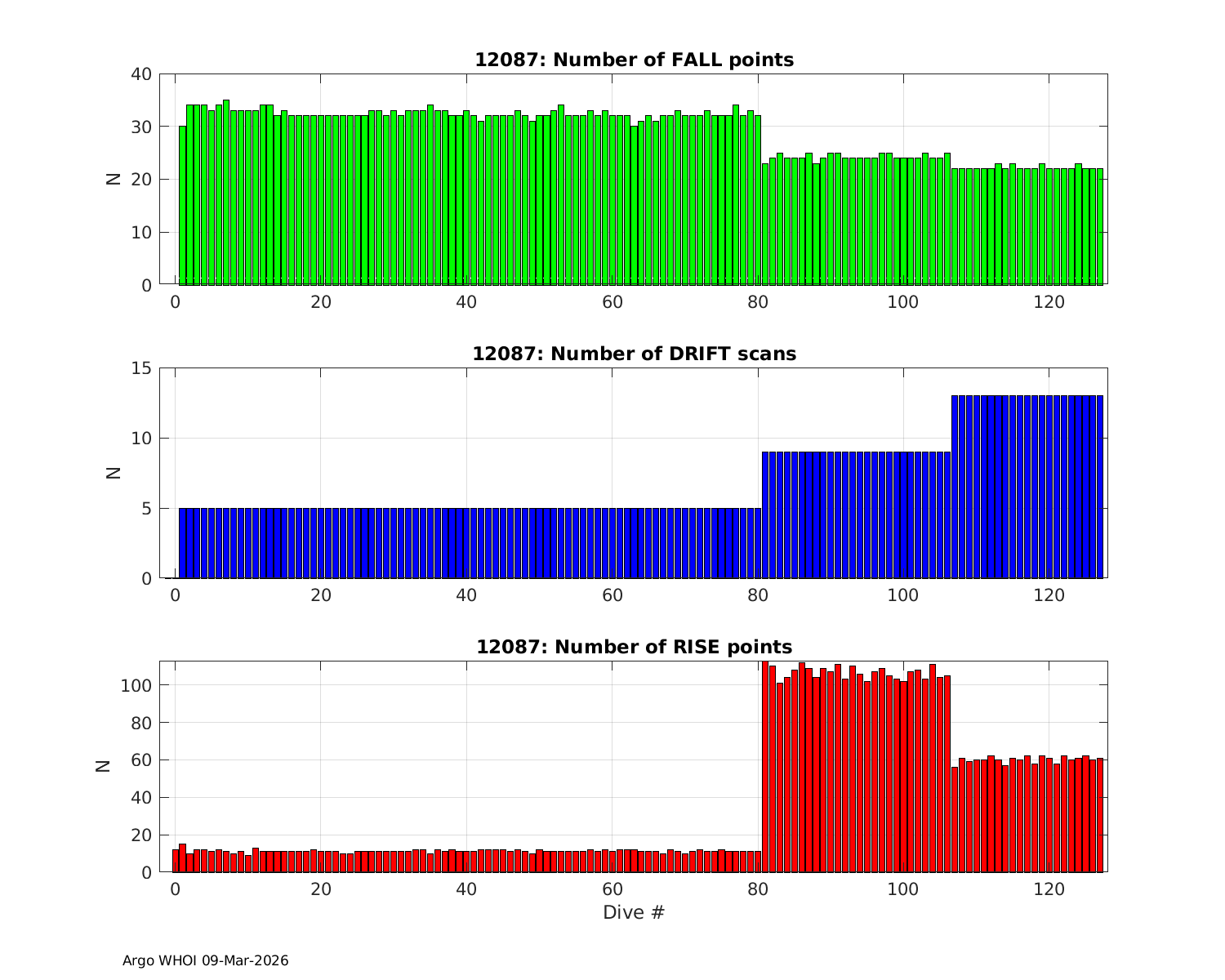

Fall/Drift/Rise Points
 |
Hi-res Scans
 |

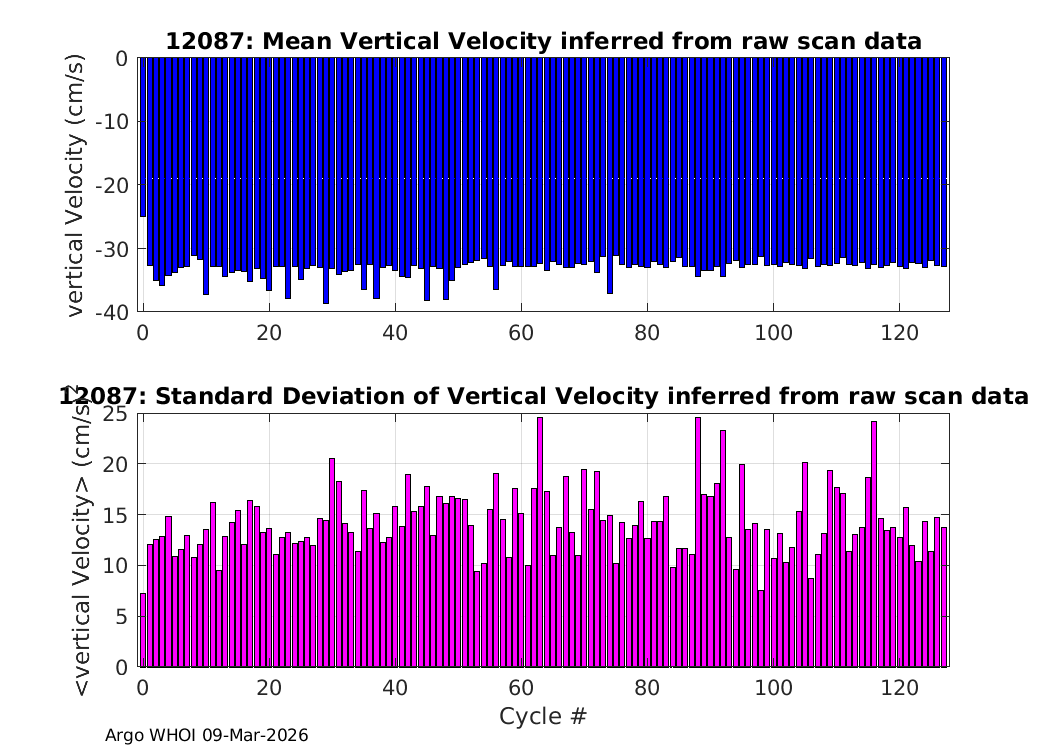

Hi-res W
 |
ccCor Deep
 |
Ballast Trim
 |
Pump Times
 |
|
