| WMO #: | 4903069 |
| DAC #: | 10382 |
| Serial #: | 12086 |
| |
| PI: | Peter BRICKLEY |
| |
| Last Report: | 2026-03-09 |
| Last Cycle: | 140 |
| |
| Last Cycle: | |
| PumpT_Target: | 29.0 s |
| Voltage - open: | 15.0 V |
| Voltage - load: | 14.9 V |
| |
| Hardware: | |
| Platform: | SOLODIR_TS38 |
| ROM version: | SBE 7Oct19 ARM V1.1 |
| Temperature: | SBE61, s/n: 6166 |
| Conductivity: | SBE61, s/n: 6166 |
| Pressure: | Kistler, s/n: 6230190 |
| Customisation: | n/a |
| |
| Deployment: | |
| Launched: | 2025-11-13 |
| Launch Platform: | RV Neil Armstrong |
| Cruise ID: | OOI Pioneer 22-2025 |
| Launch Deployer: | John Lund |
| |
| Links: | |
| Listing Files: | WHOI |
| Public plots of telemetry data: | WHOI |
| Plots based on GDAC data: | WHOI |
|
Energy Budget  |
Telemetry  |

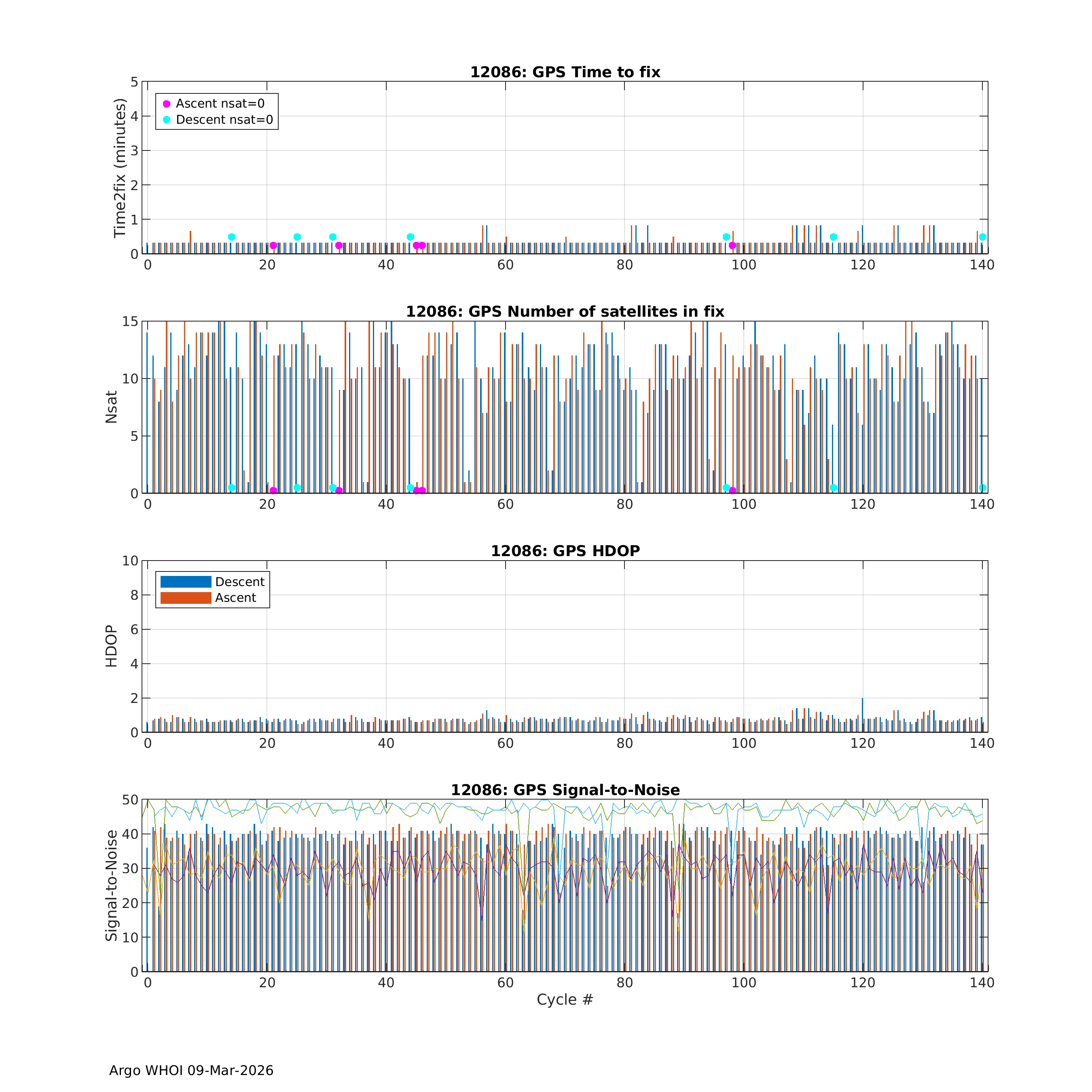

GPS  |
Ice Detect Status  |
Iridium SBD
 |
Exception Flags
 |

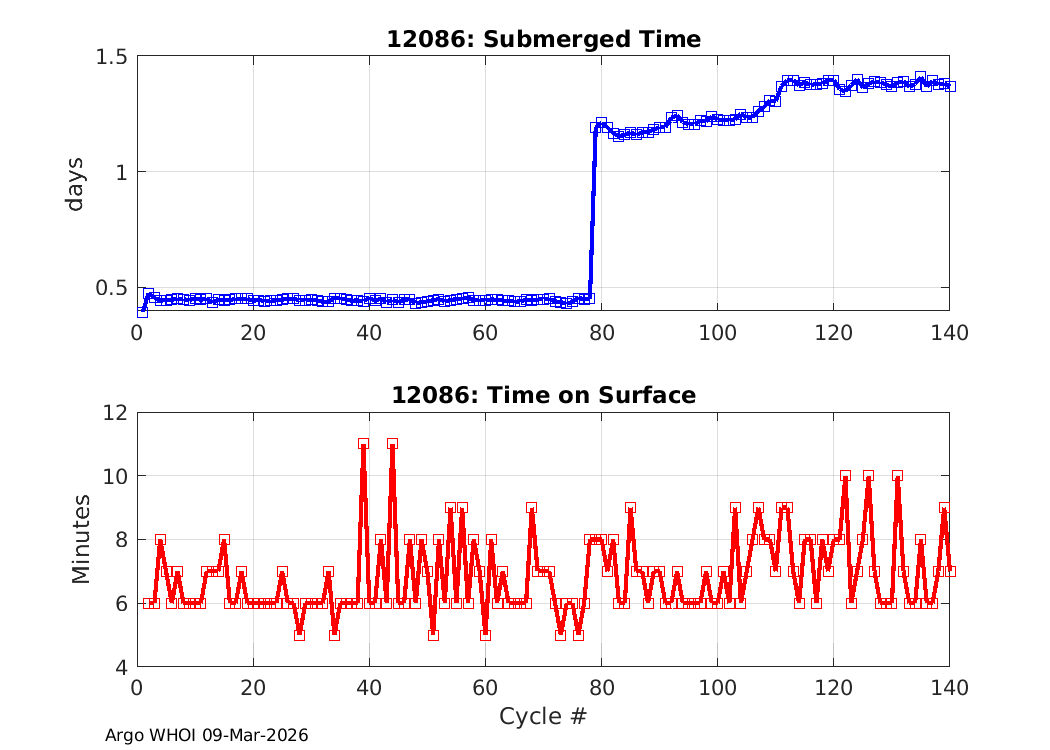

Cycle Times  |

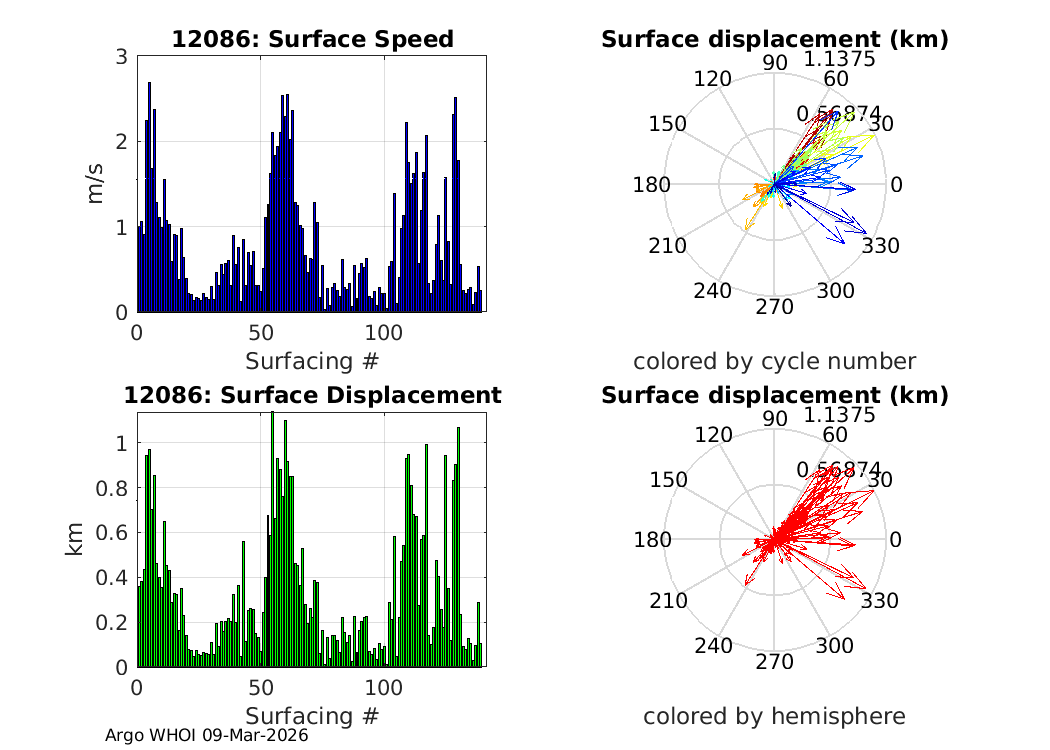

Surface  |
Battery Summary  |

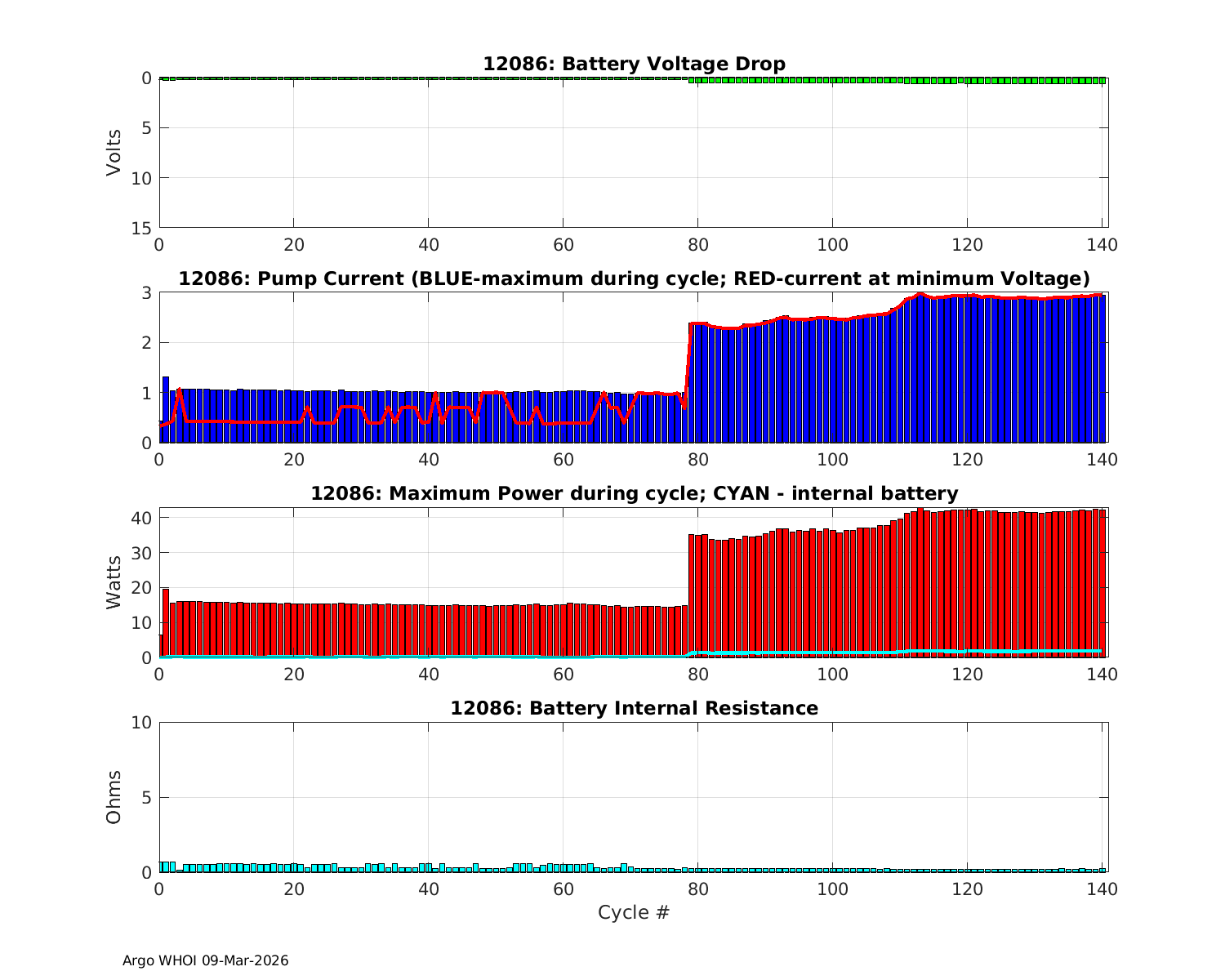

Batteries during Hydraulic Cycle  |

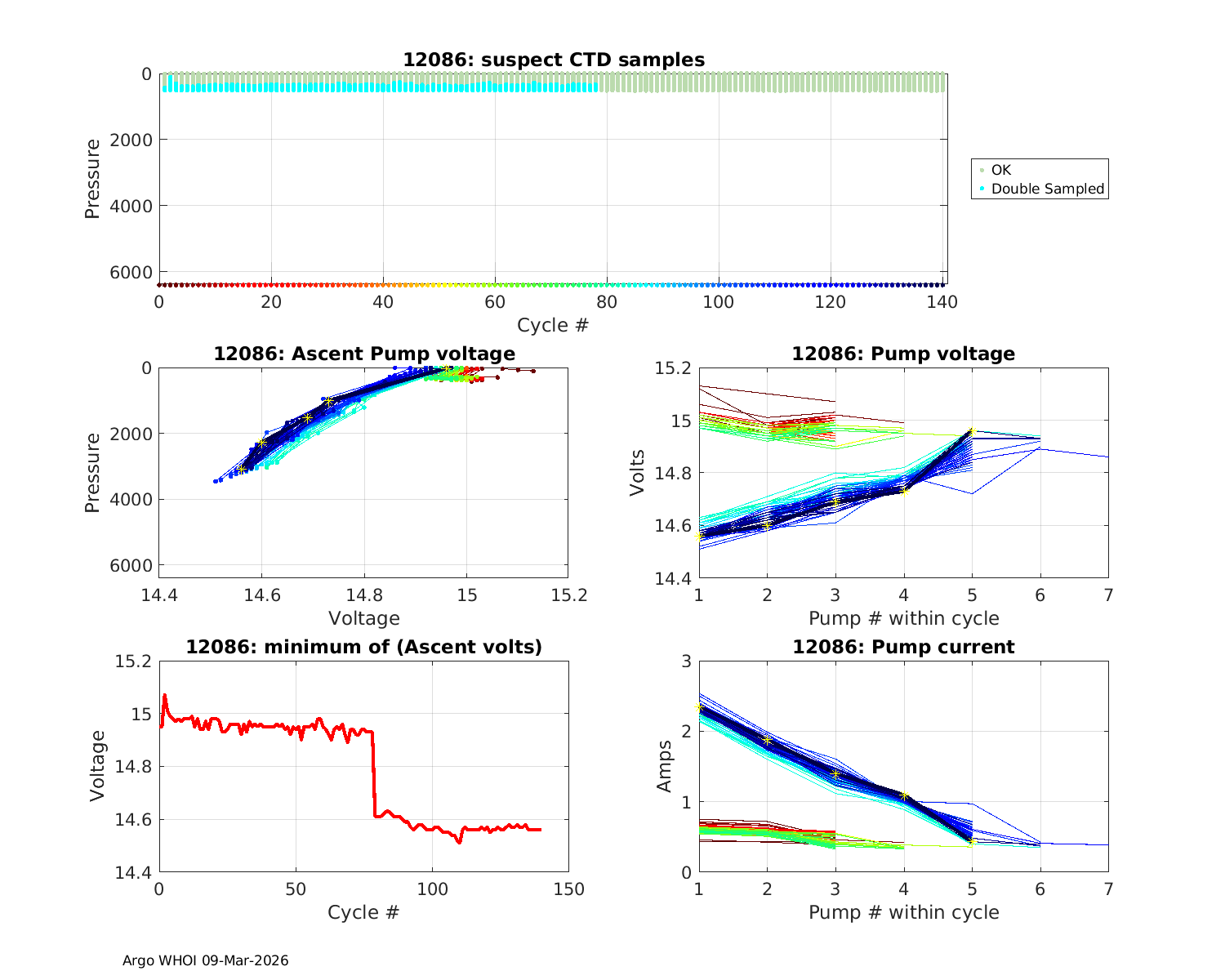

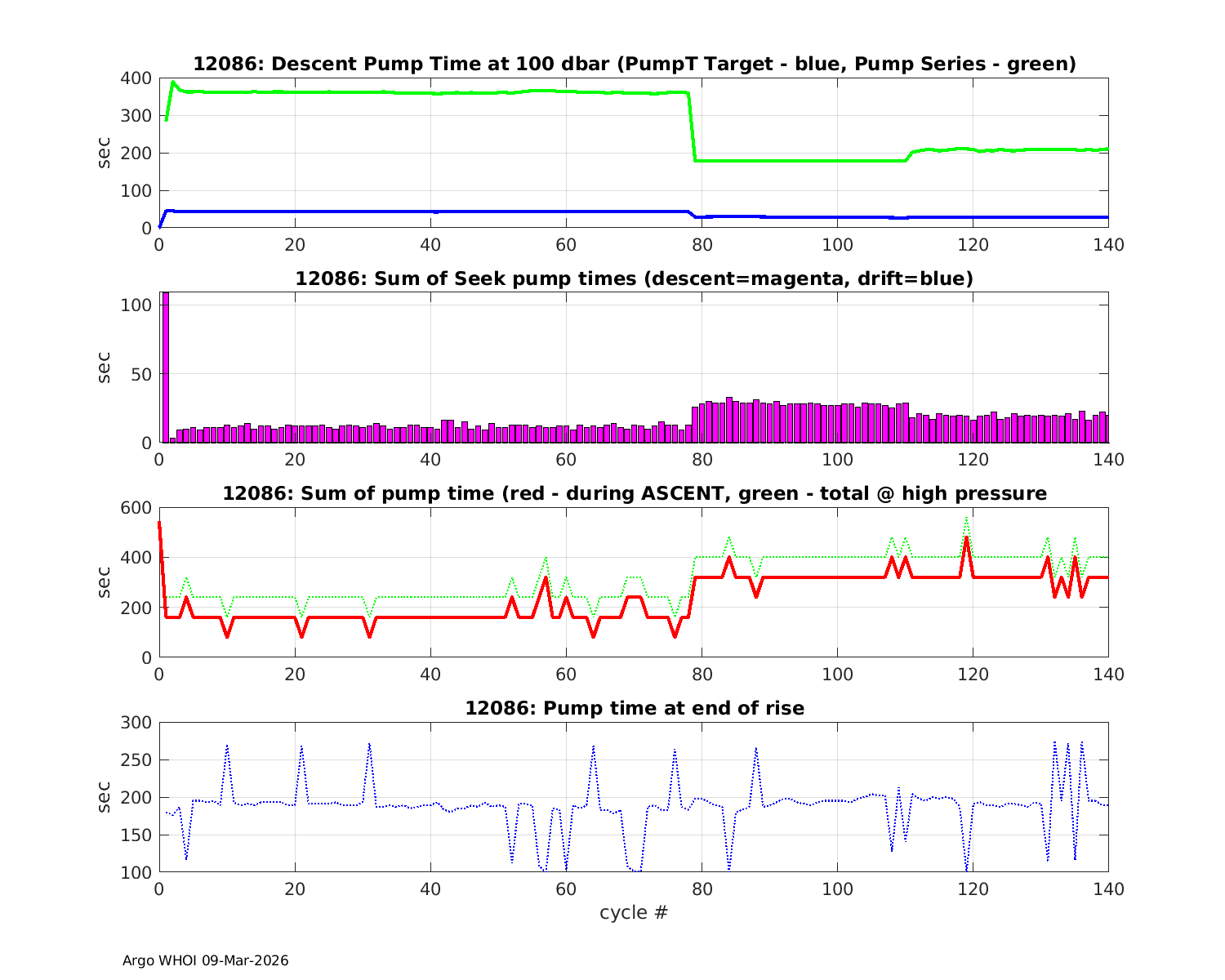

Pump Times  |

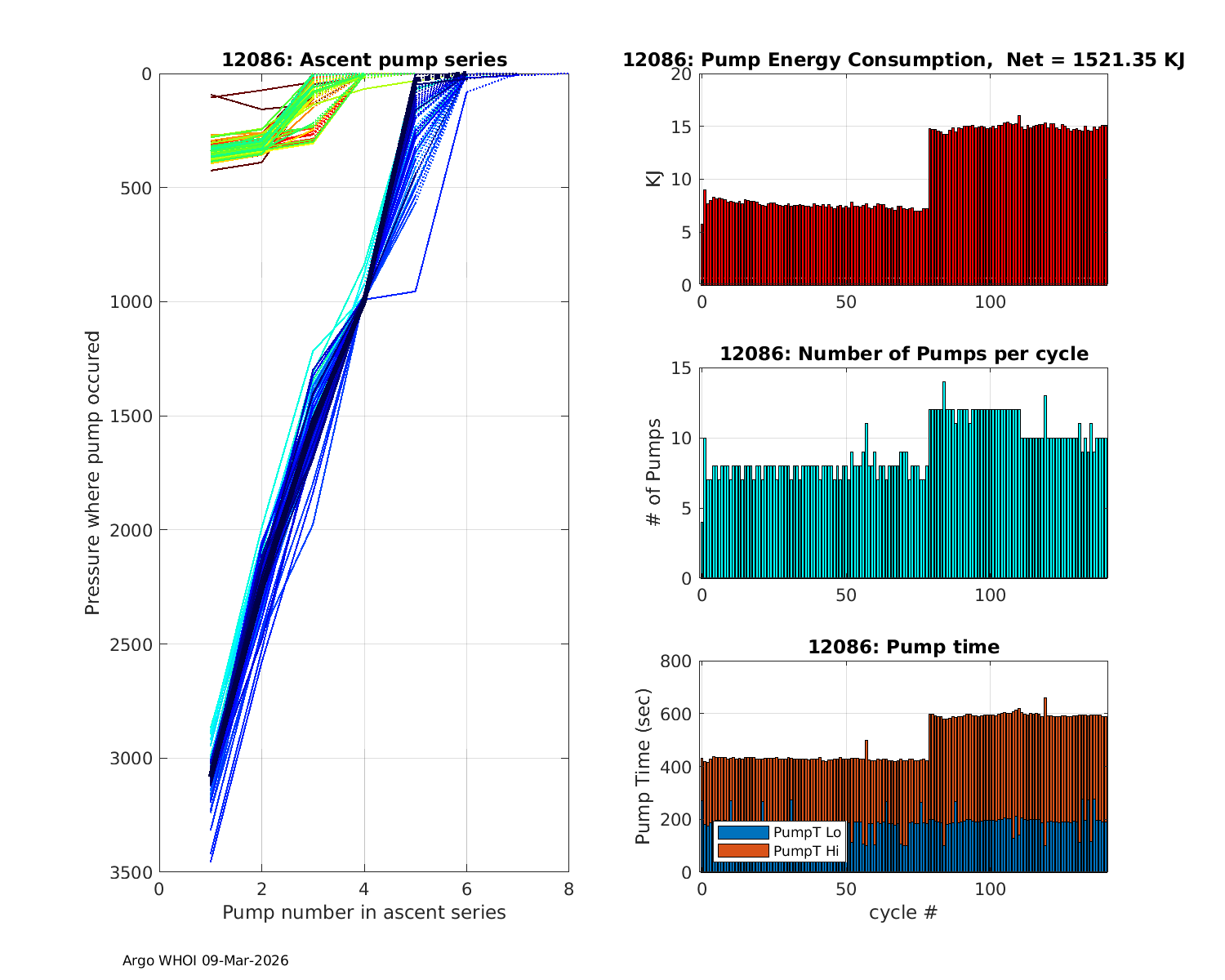

Pump  |

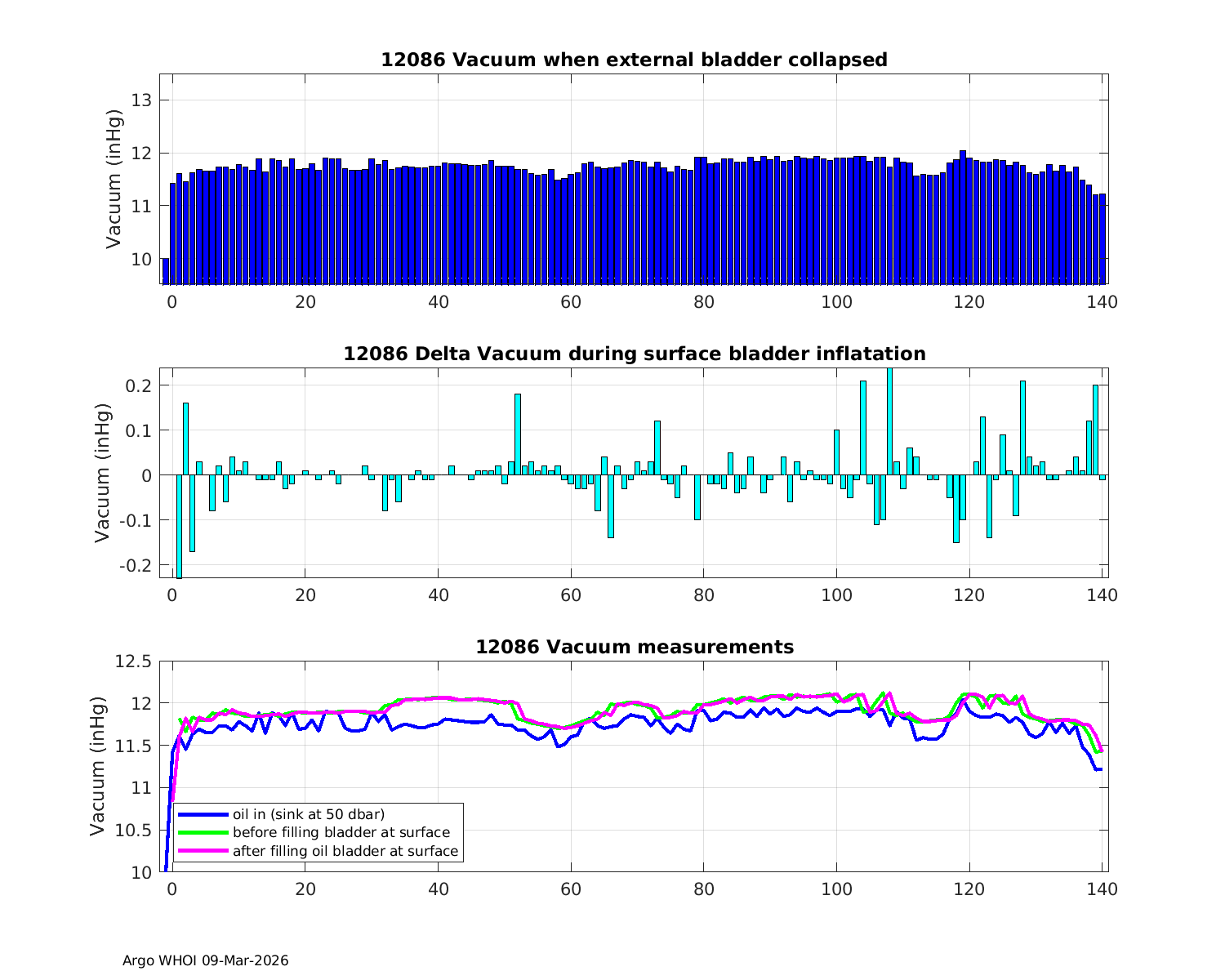

Vacuum  |

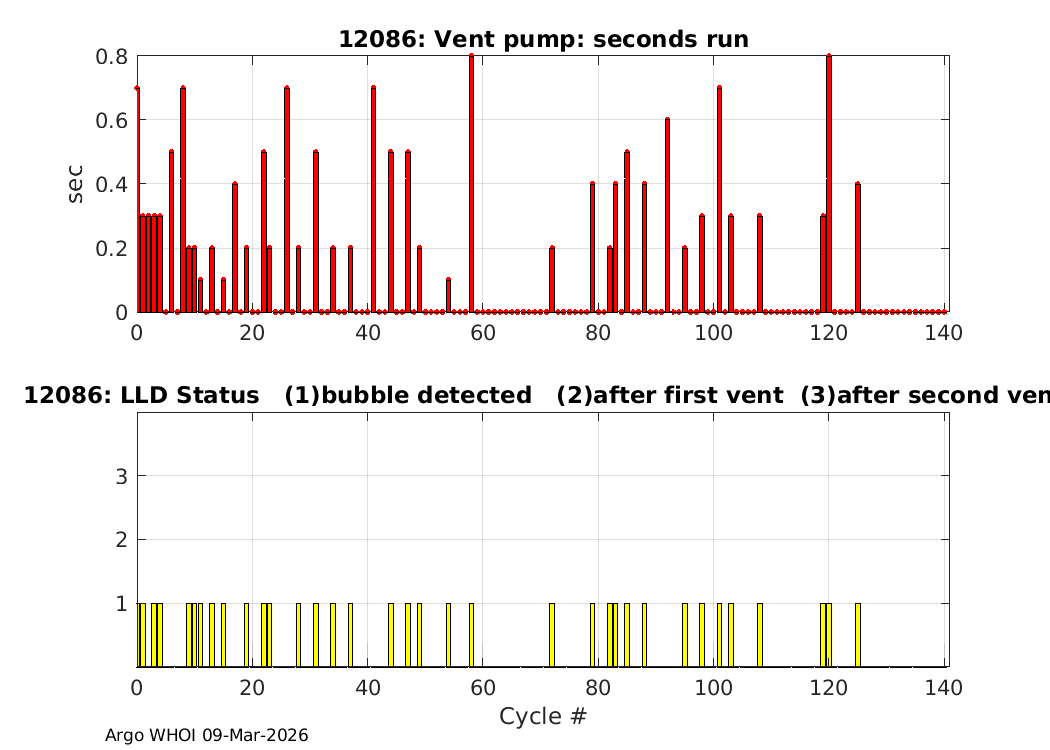

Vent  |

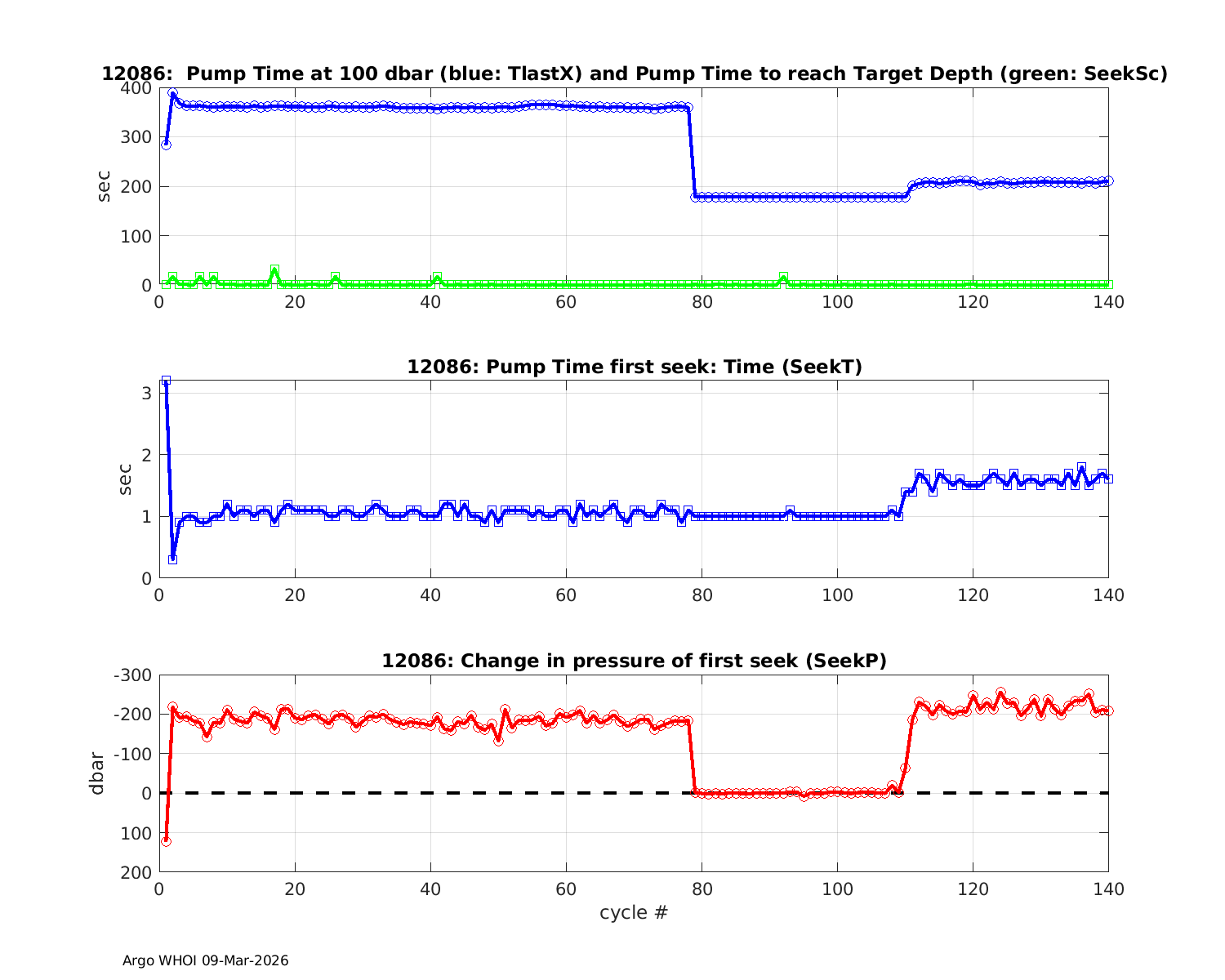

Seek Times  |

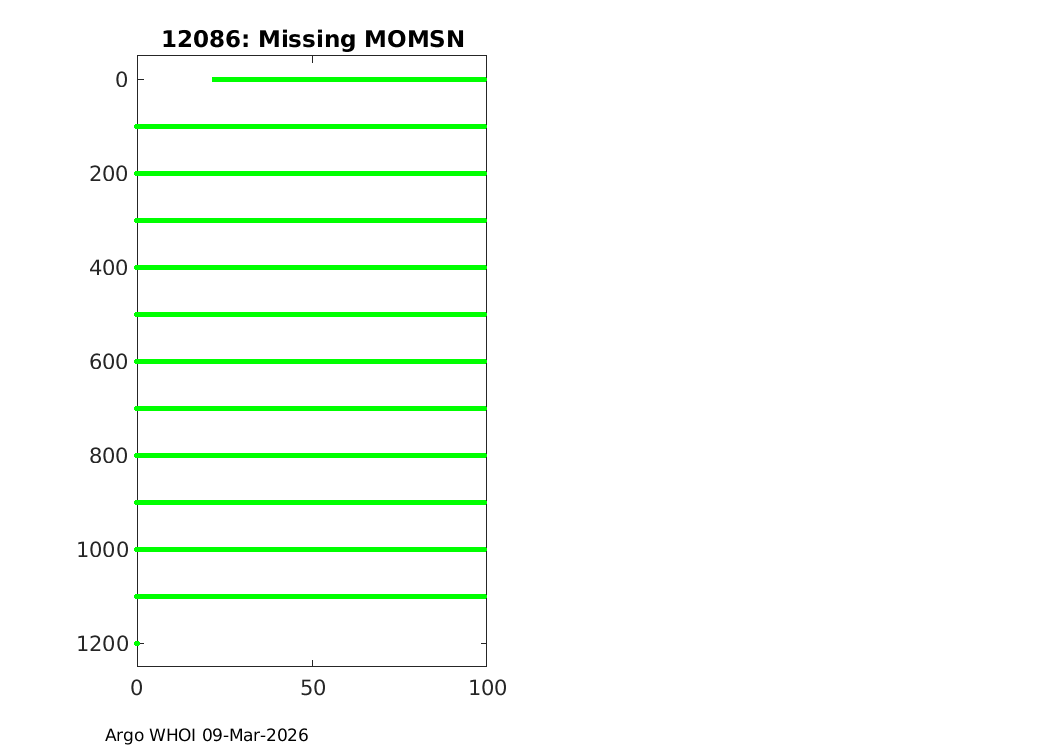

Iridium MOMSN
 |

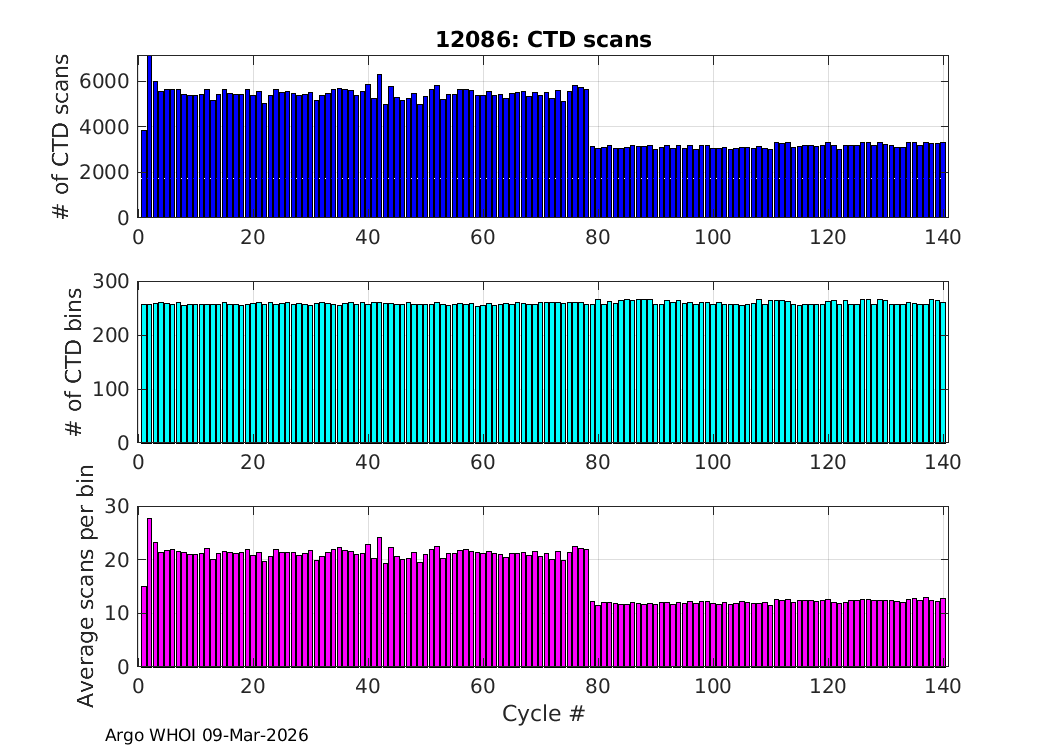

CTD scans  |

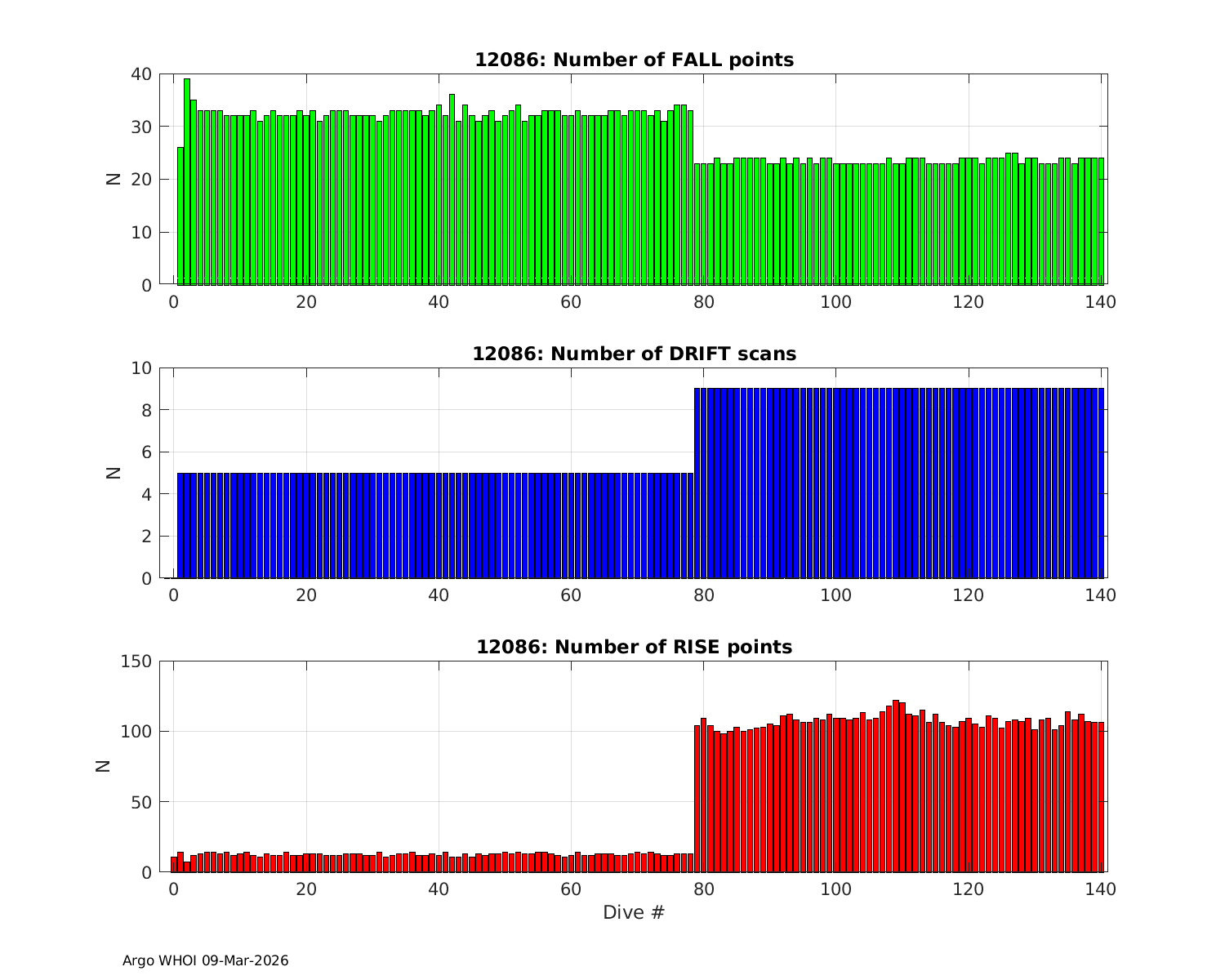

Fall/Drift/Rise Points  |

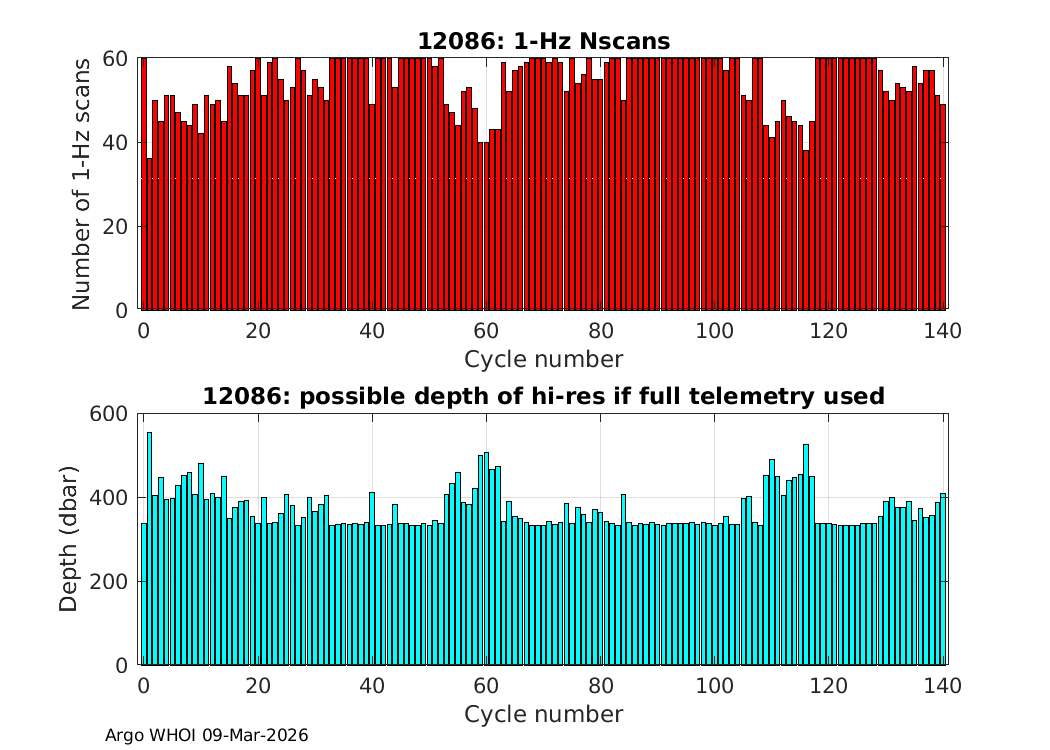

Hi-res Scans  |

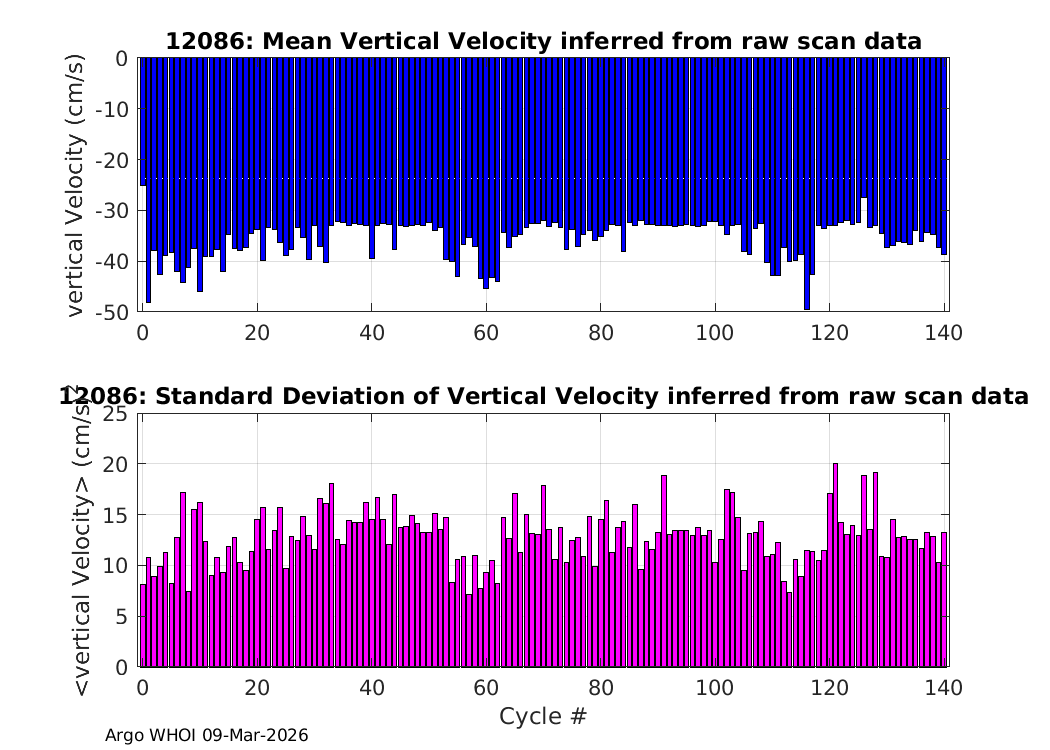

Hi-res W  |

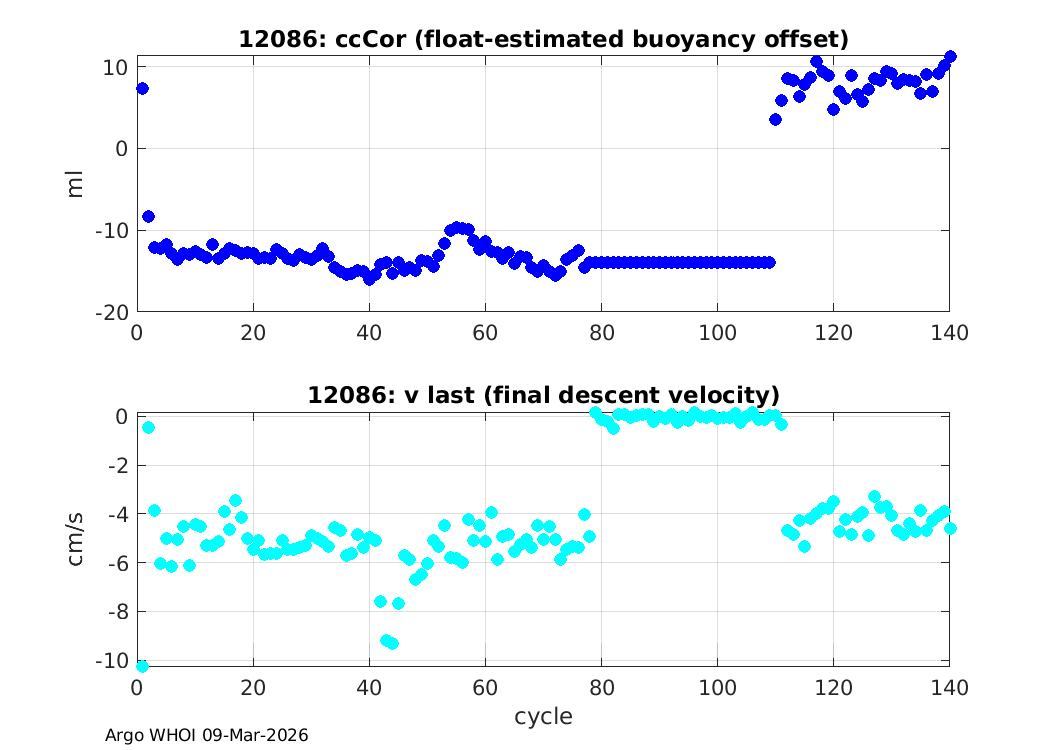

ccCor Deep  |
Ballast Trim  |
Pump Times  |
|
