| WMO #: | 1902506 |
| DAC #: | 9414 |
| Serial #: | 12070 |
| |
| PI: | Susan WIJFFELS, Steven JAYNE, Pelle ROBBINS |
| |
| Last Report: | 2024-03-13 |
| Last Cycle: | 73 |
| |
| Last Cycle: | |
| PumpT_Target: | 64.2 s |
| Voltage - open: | 14.8 V |
| Voltage - load: | 14.7 V |
| |
| Hardware: | |
| Platform: | SOLODIR_TS38 |
| ROM version: | SBE603 7Oct19 ARM V1.1 |
| Temperature: | SBE61_V5.0.3, s/n: 5902 |
| Conductivity: | SBE61_V5.0.3, s/n: 5902 |
| Pressure: | Kistler, s/n: 5831292 |
| Customisation: | n/a |
| |
| Deployment: | |
| Launched: | 2024-02-23 |
| Launch Platform: | Marcus G. Langseth |
| Cruise ID: | A13.5-2024 |
| Launch Deployer: | Jesse Anderson |
| |
| Links: | |
| Listing Files: | WHOI |
| Public plots of telemetry data: | WHOI |
| Plots based on GDAC data: | WHOI |
|
Energy Budget
 |
Telemetry
 |

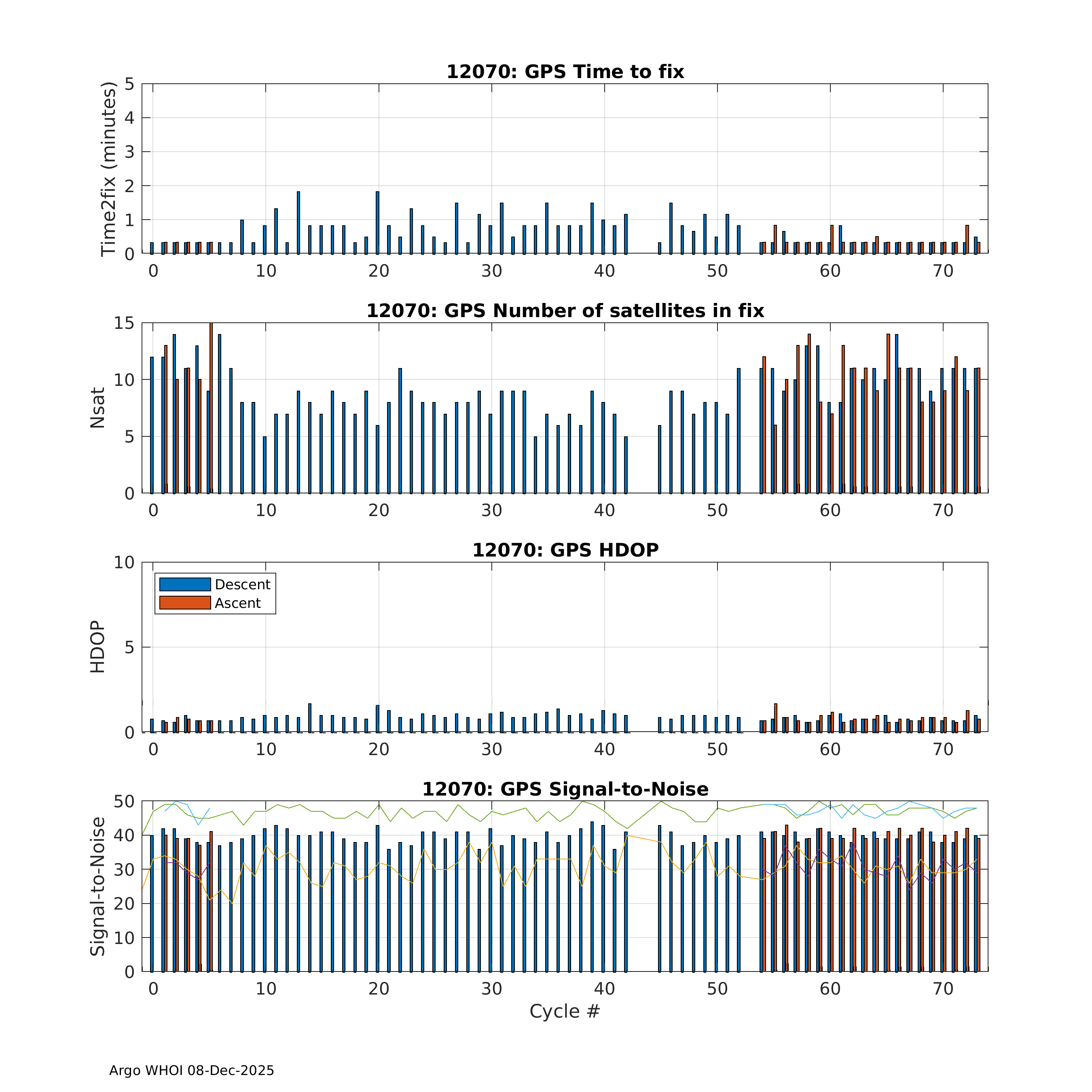

GPS
 |
Ice Detect Status
 |

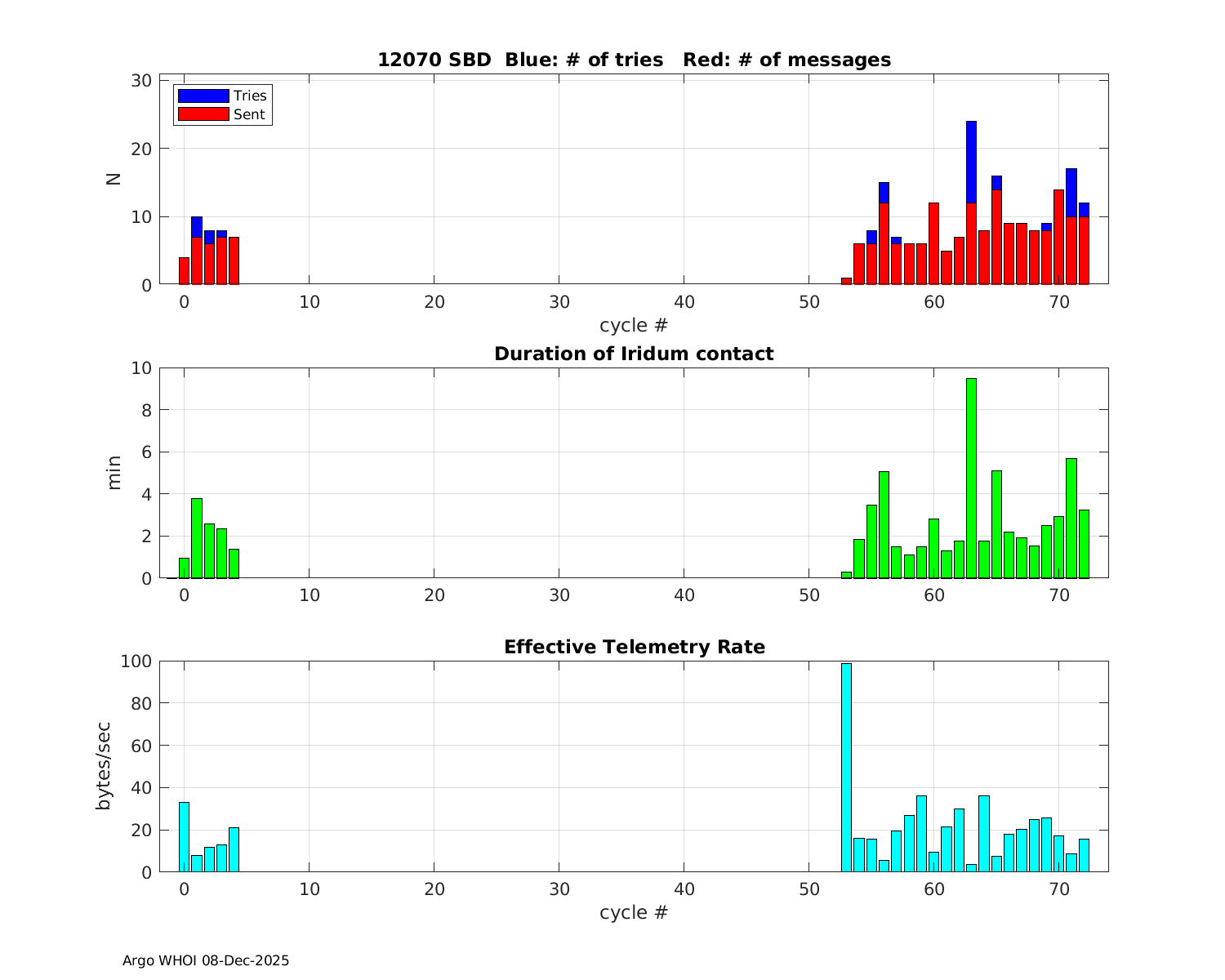

Iridium SBD
 |
Exception Flags
 |

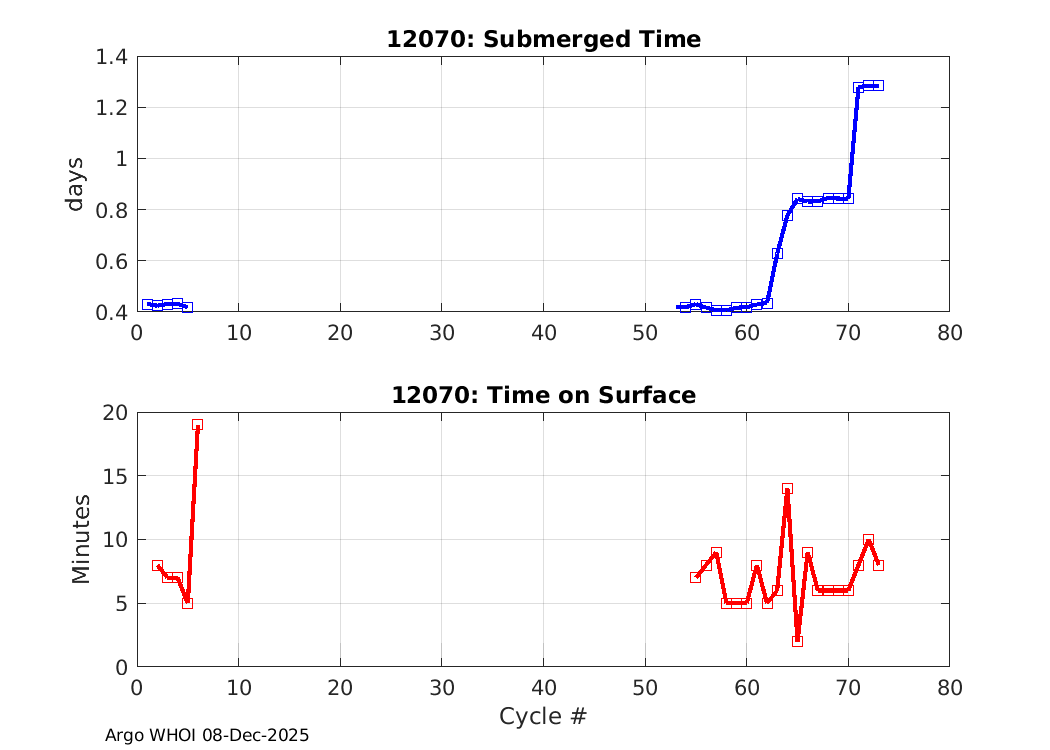

Cycle Times
 |

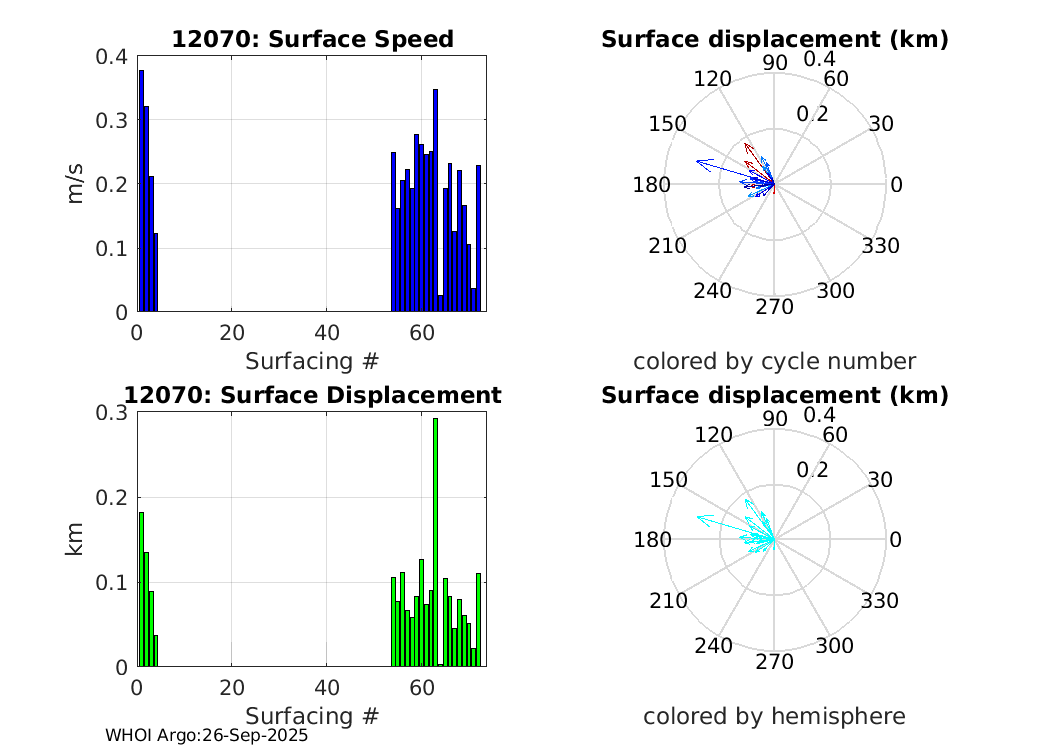

Surface
 |
Battery Summary
 |

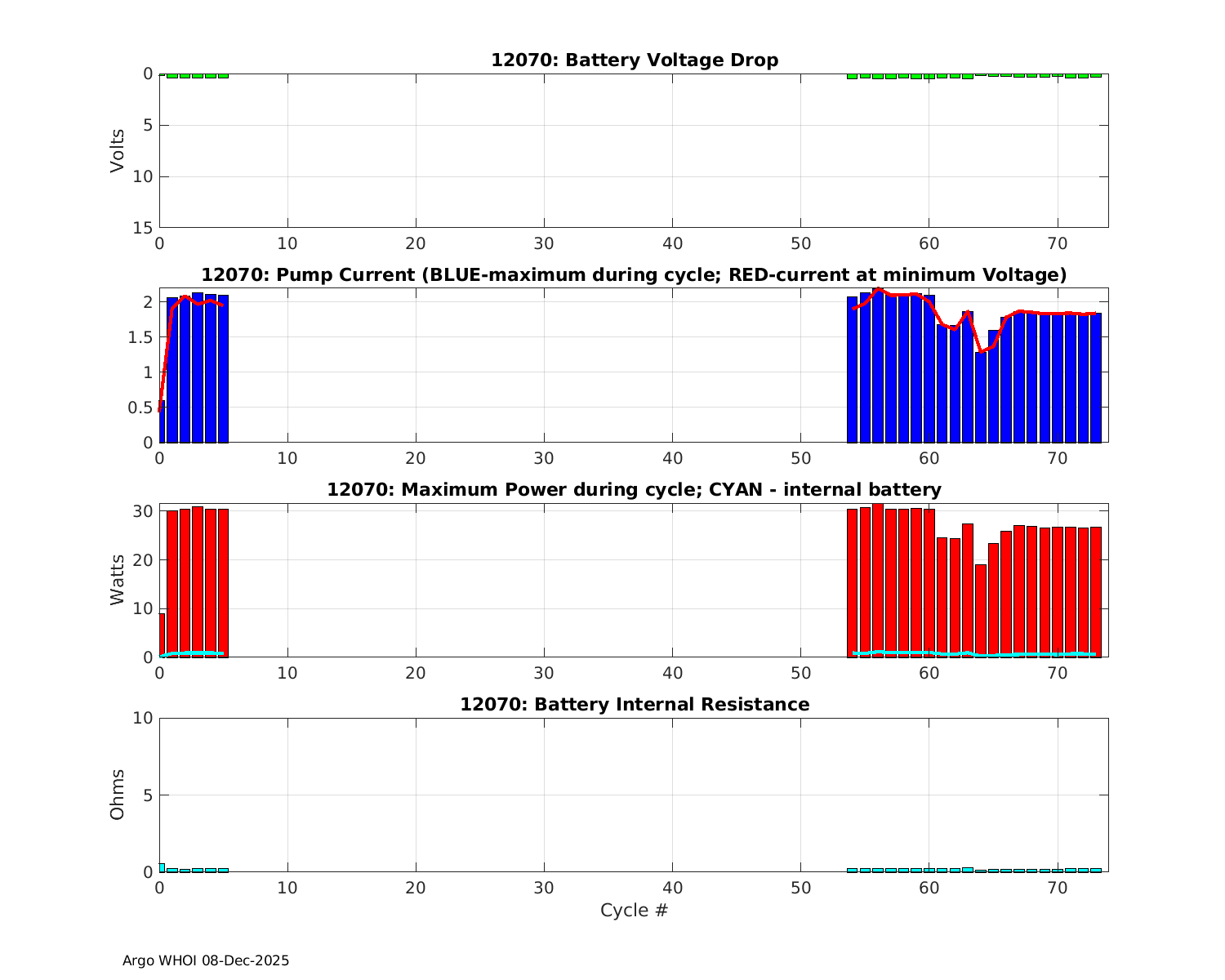

Batteries during Hydraulic Cycle
 |
Pump Times
 |

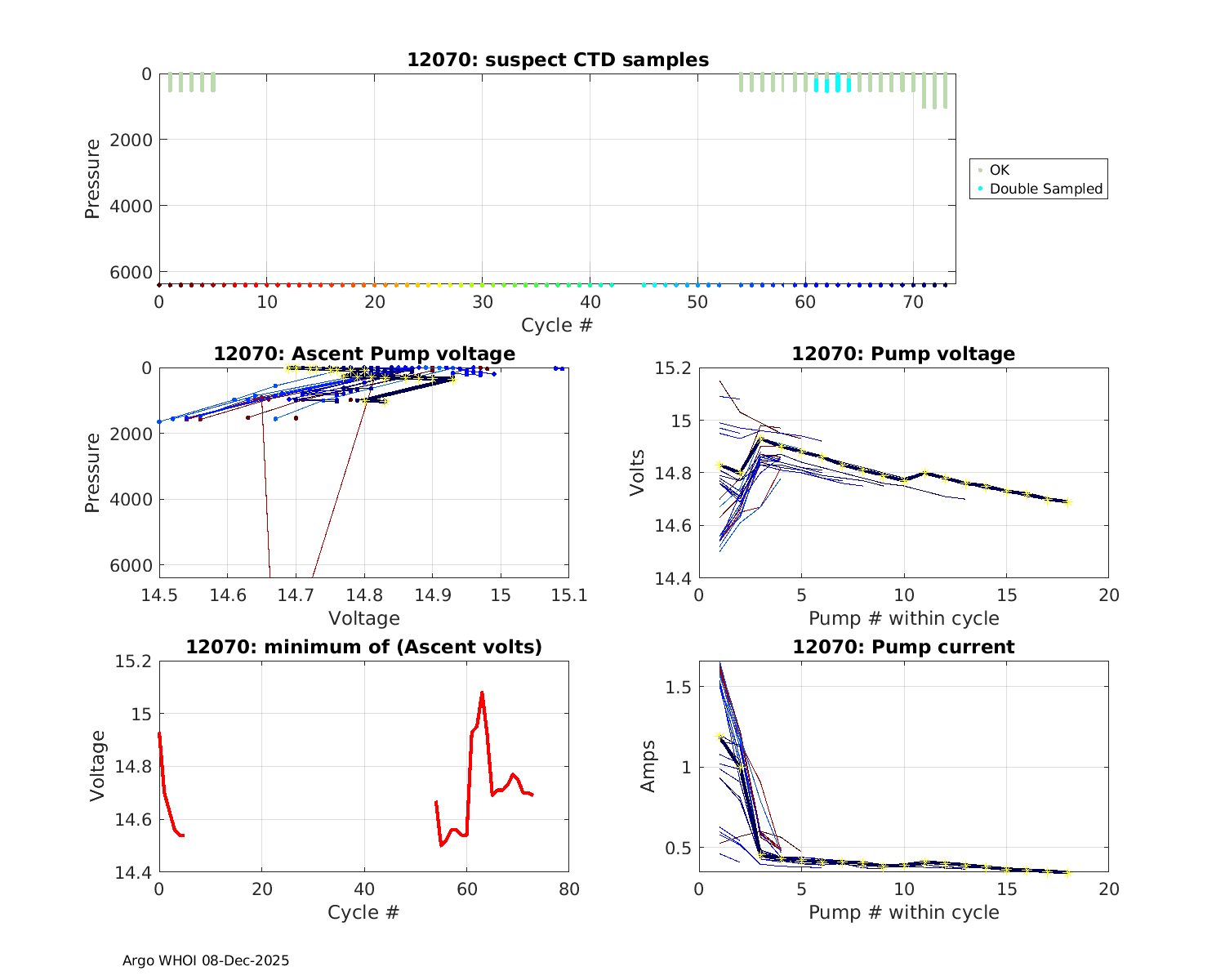

Pump
 |

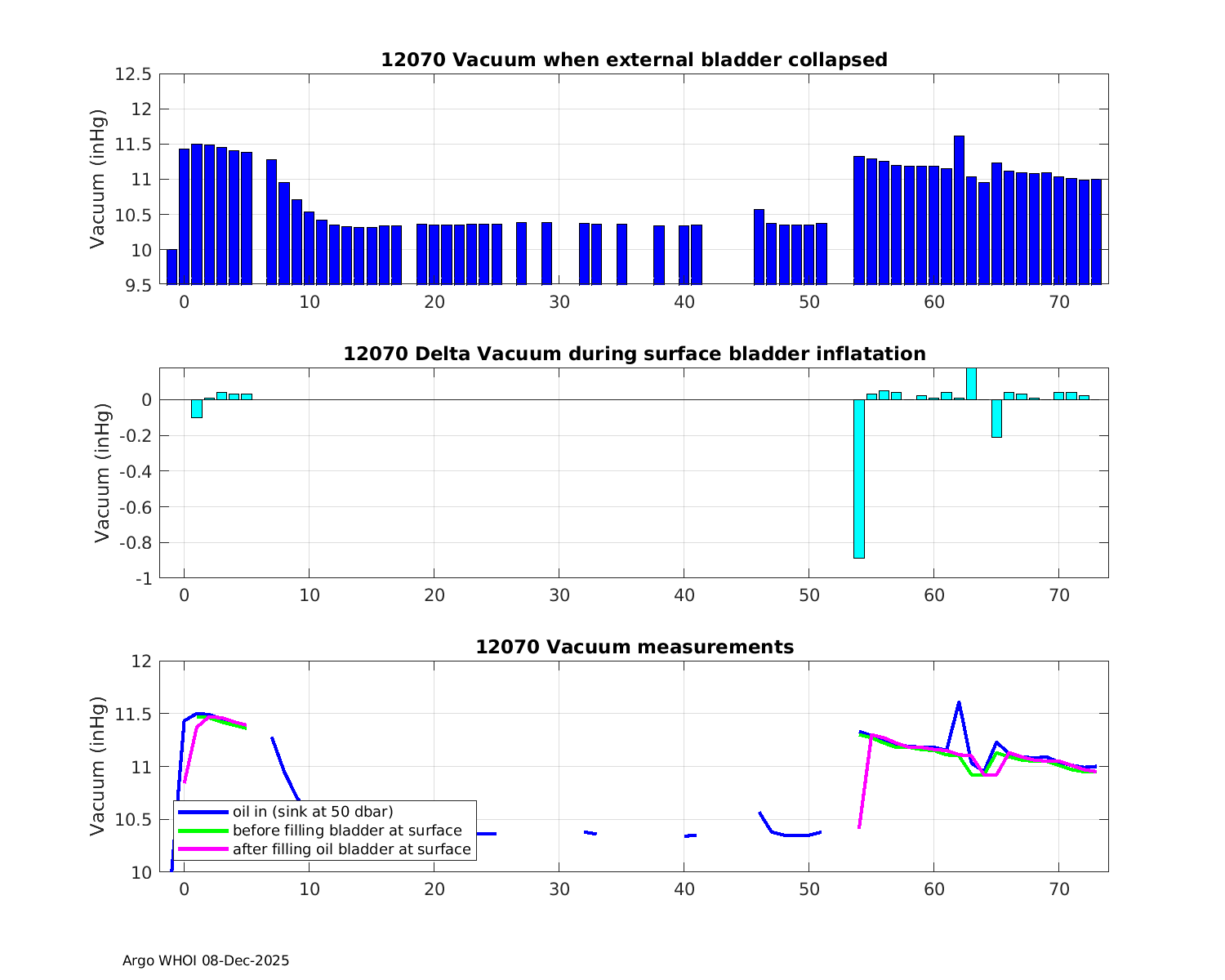

Vacuum
 |

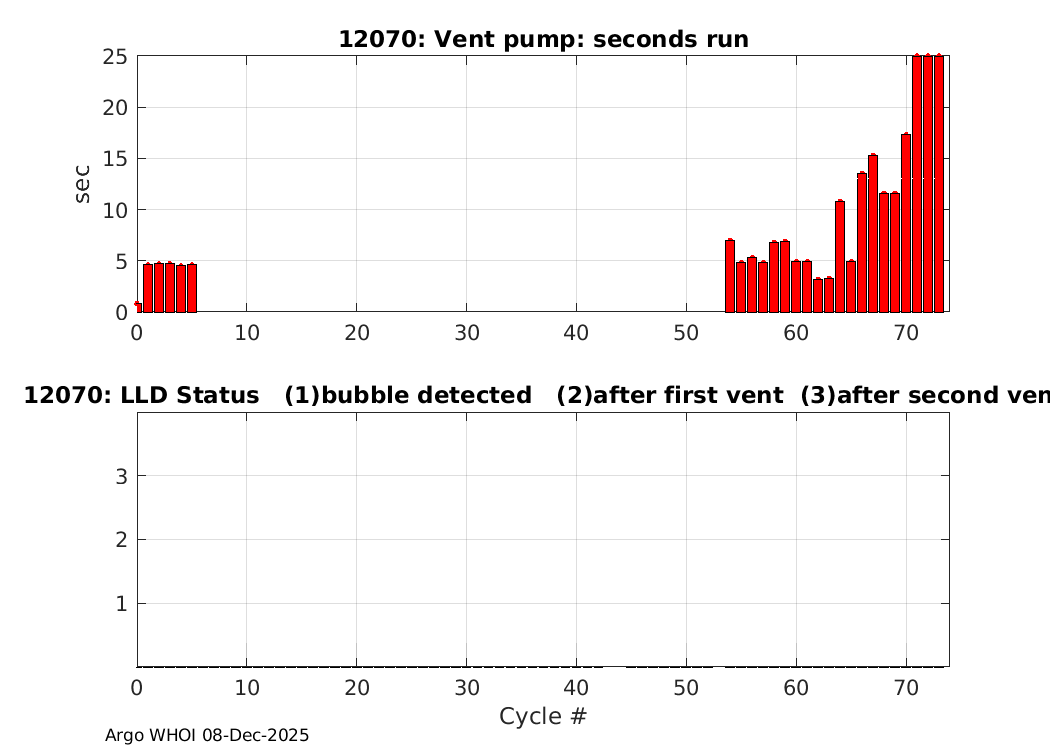

Vent
 |

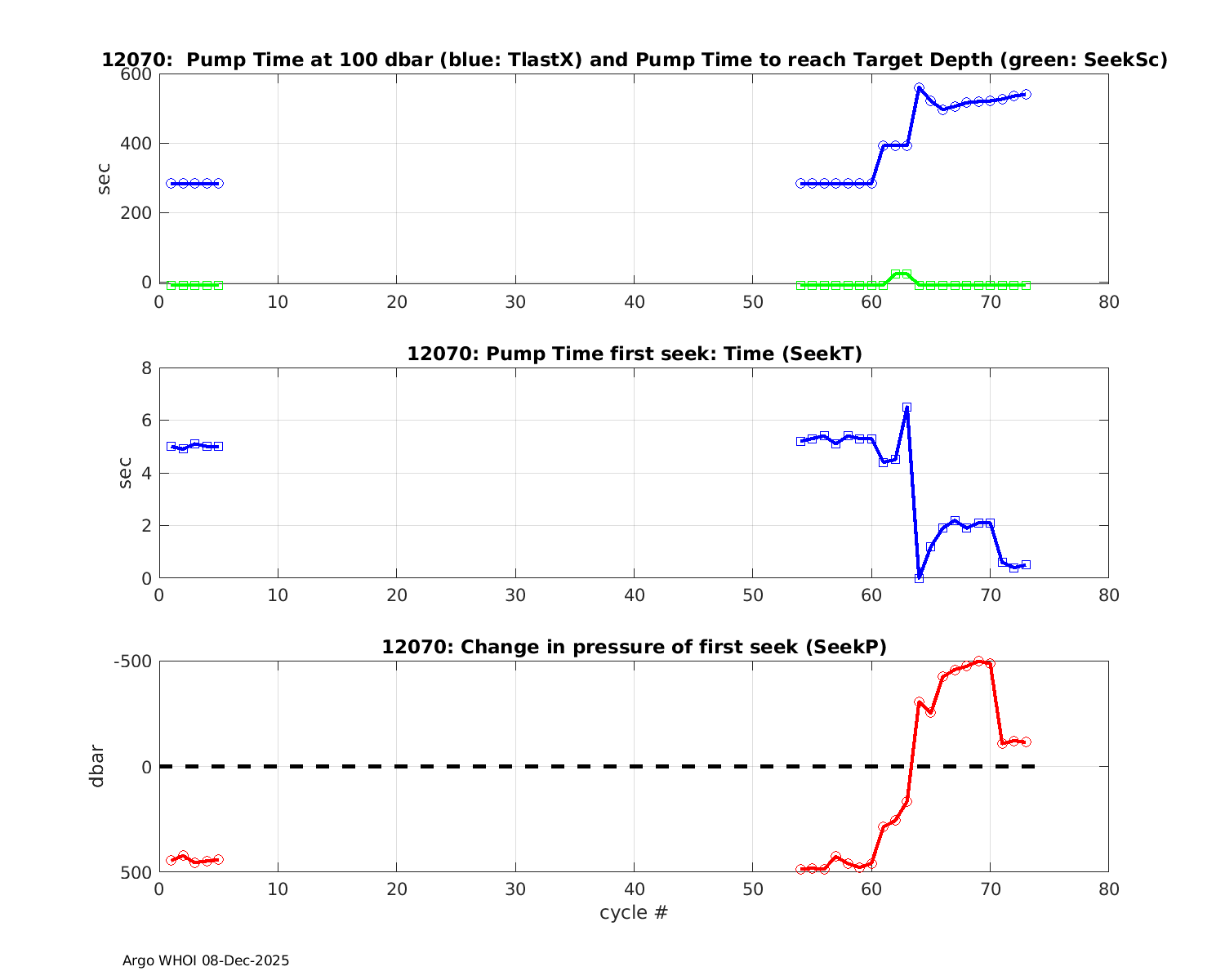

Seek Times
 |

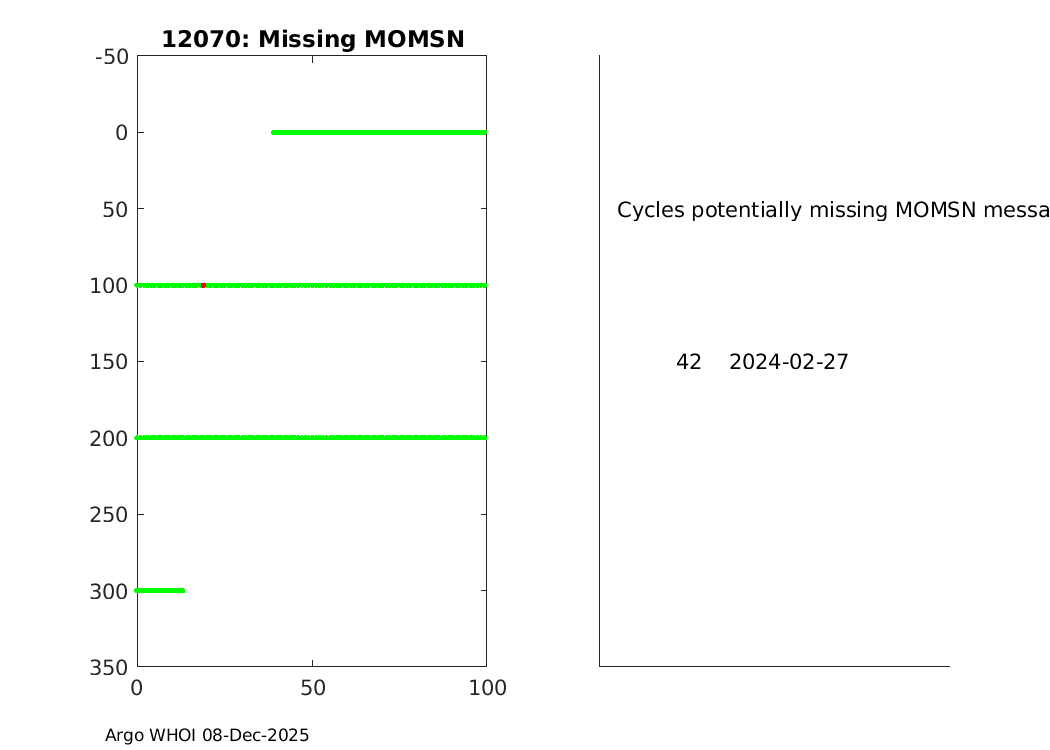

Iridium MOMSN
 |

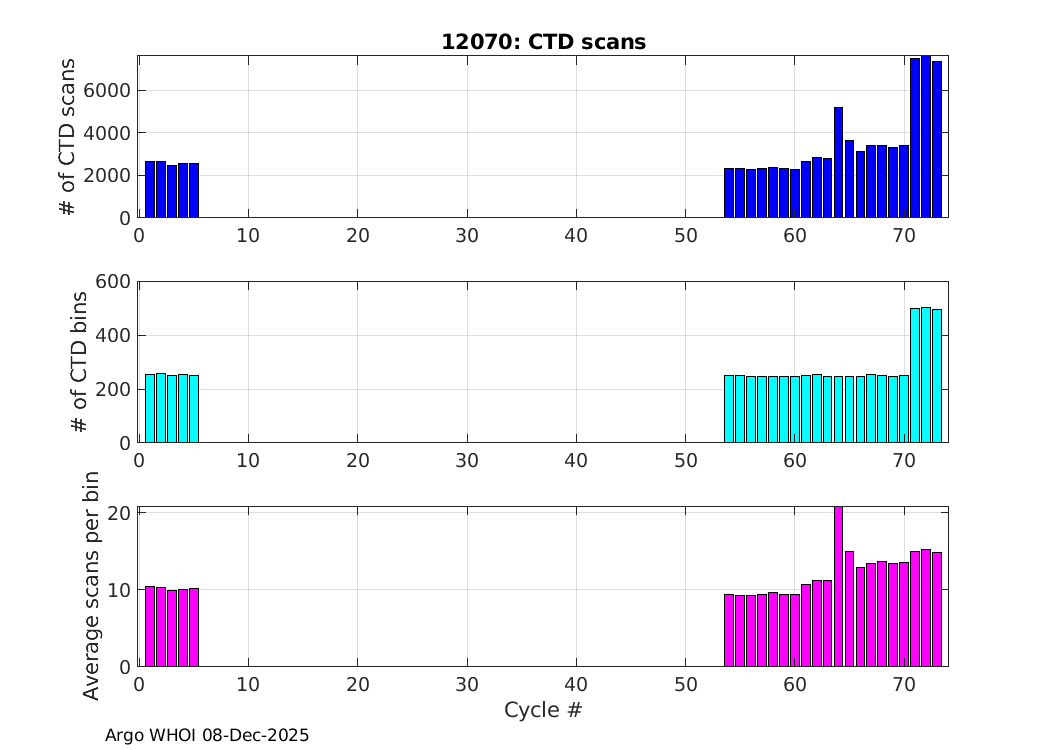

CTD scans
 |

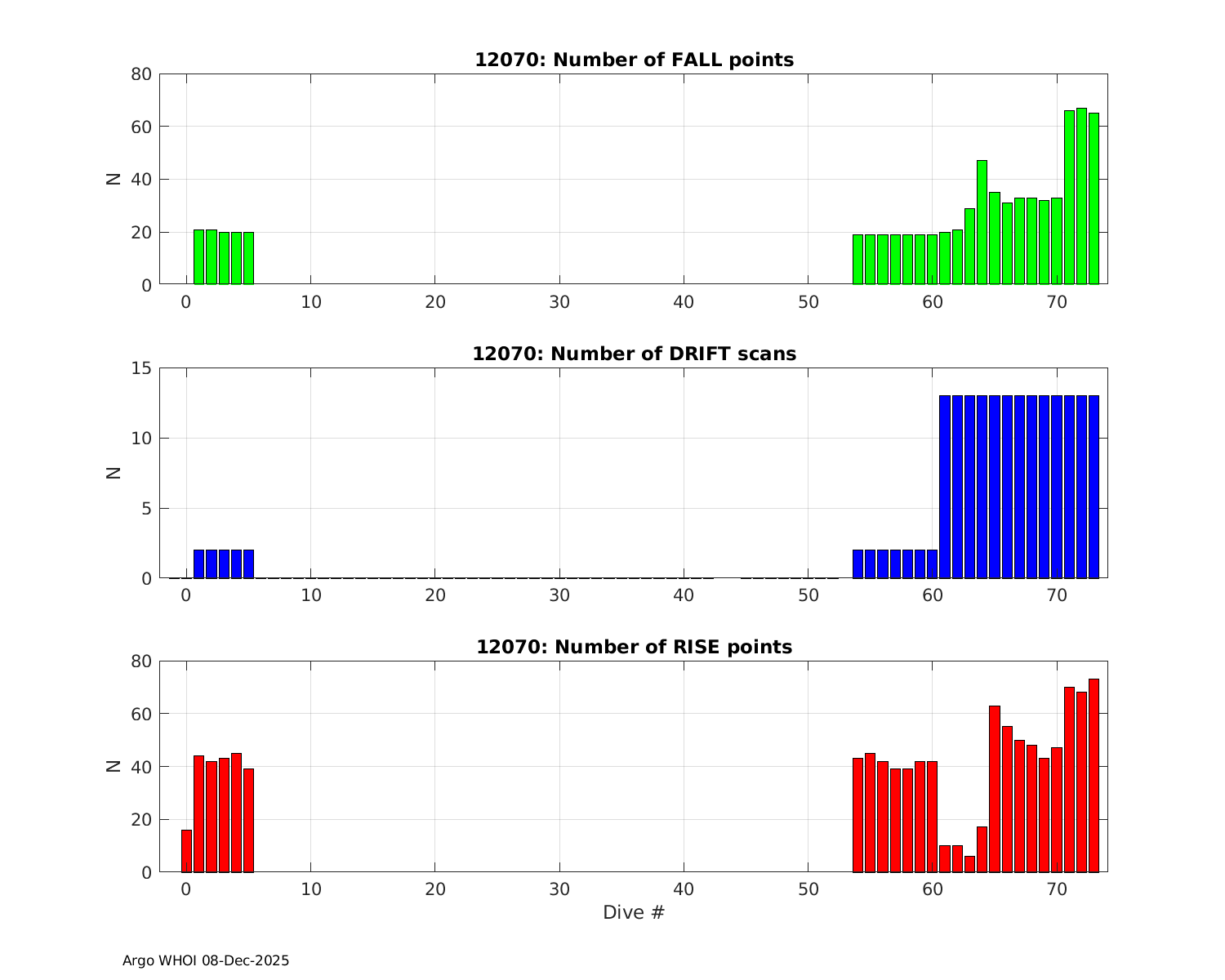

Fall/Drift/Rise Points
 |

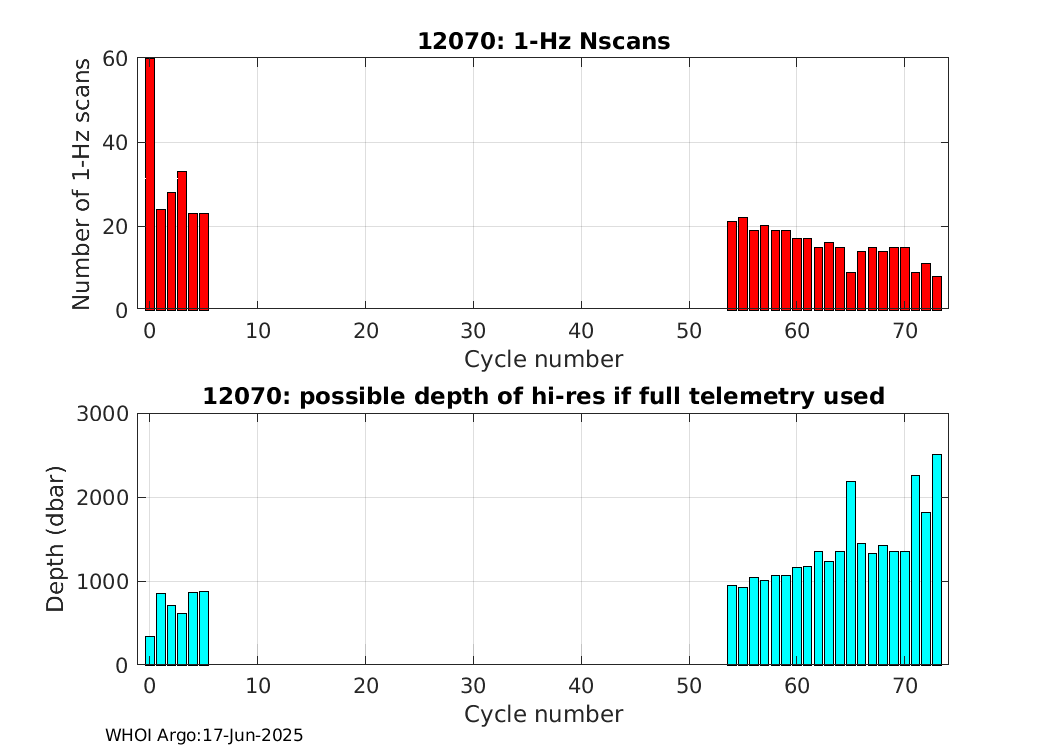

Hi-res Scans
 |

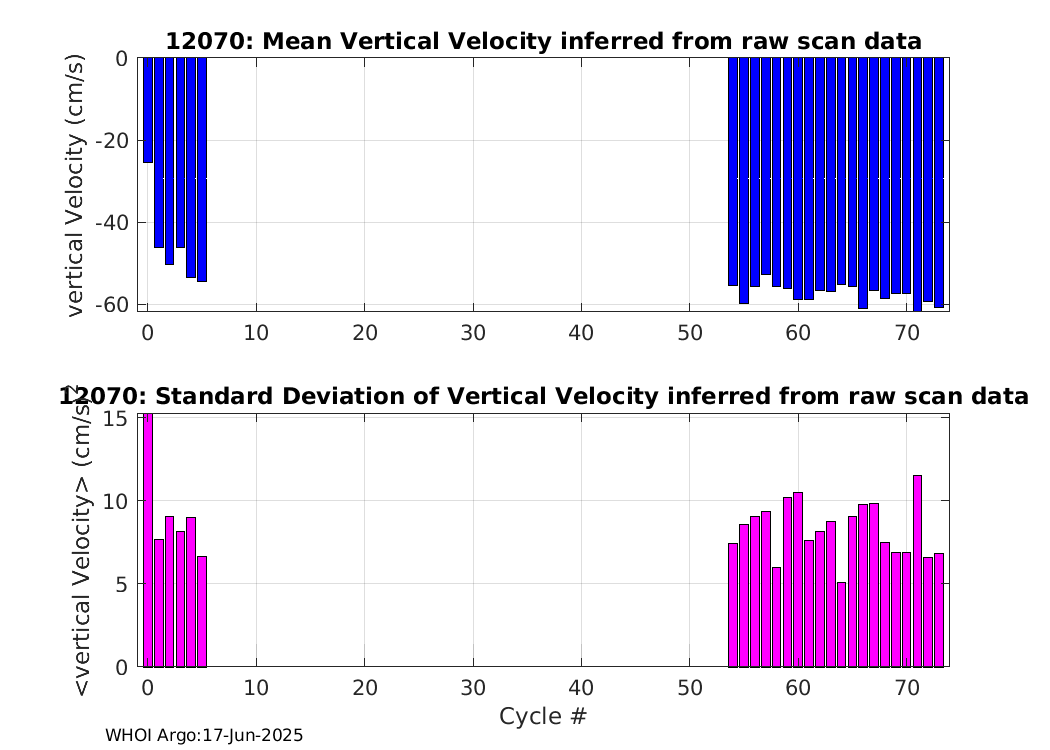

Hi-res W
 |

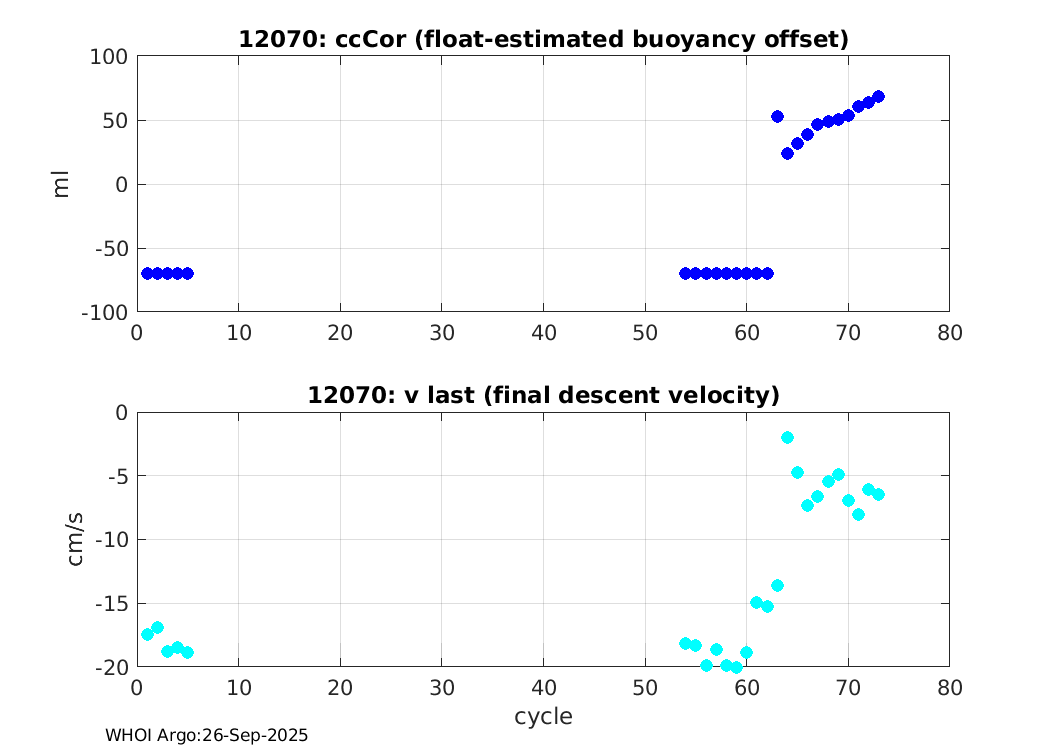

ccCor Deep
 |
Ballast Trim
 |
Pump Times
 |
|
