| WMO #: | 4902919 |
| DAC #: | 7471 |
| Serial #: | 10090 |
| |
| PI: | Breck OWENS, Steven JAYNE, Pelle ROBBINS |
| |
| Last Report: | 2024-11-09 |
| Last Cycle: | 262 |
| |
| Last Cycle: | |
| PumpT_Target: | 30.5 s |
| Voltage - open: | 11.5 V |
| Voltage - load: | 10.9 V |
| |
| Hardware: | |
| Platform: | SOLO2IR_TS9 |
| ROM version: | SBE602 11Dec15 ARM V2.1 |
| Temperature: | SBE41CP, s/n: 8635 |
| Conductivity: | SBE41CP, s/n: 8635 |
| Pressure: | Druck, s/n: 10300436 |
| Customisation: | n/a |
| |
| Deployment: | |
| Launched: | 2017-10-15 |
| Launch Platform: | MV CMA CGM Florida |
| Cruise ID: | AX07-2017 |
| Launch Deployer: | Zach Barton |
| |
| Links: | |
| Listing Files: | WHOI |
| Public plots of telemetry data: | WHOI |
| Plots based on GDAC data: | WHOI |
|
Energy Budget
 |
Telemetry
 |

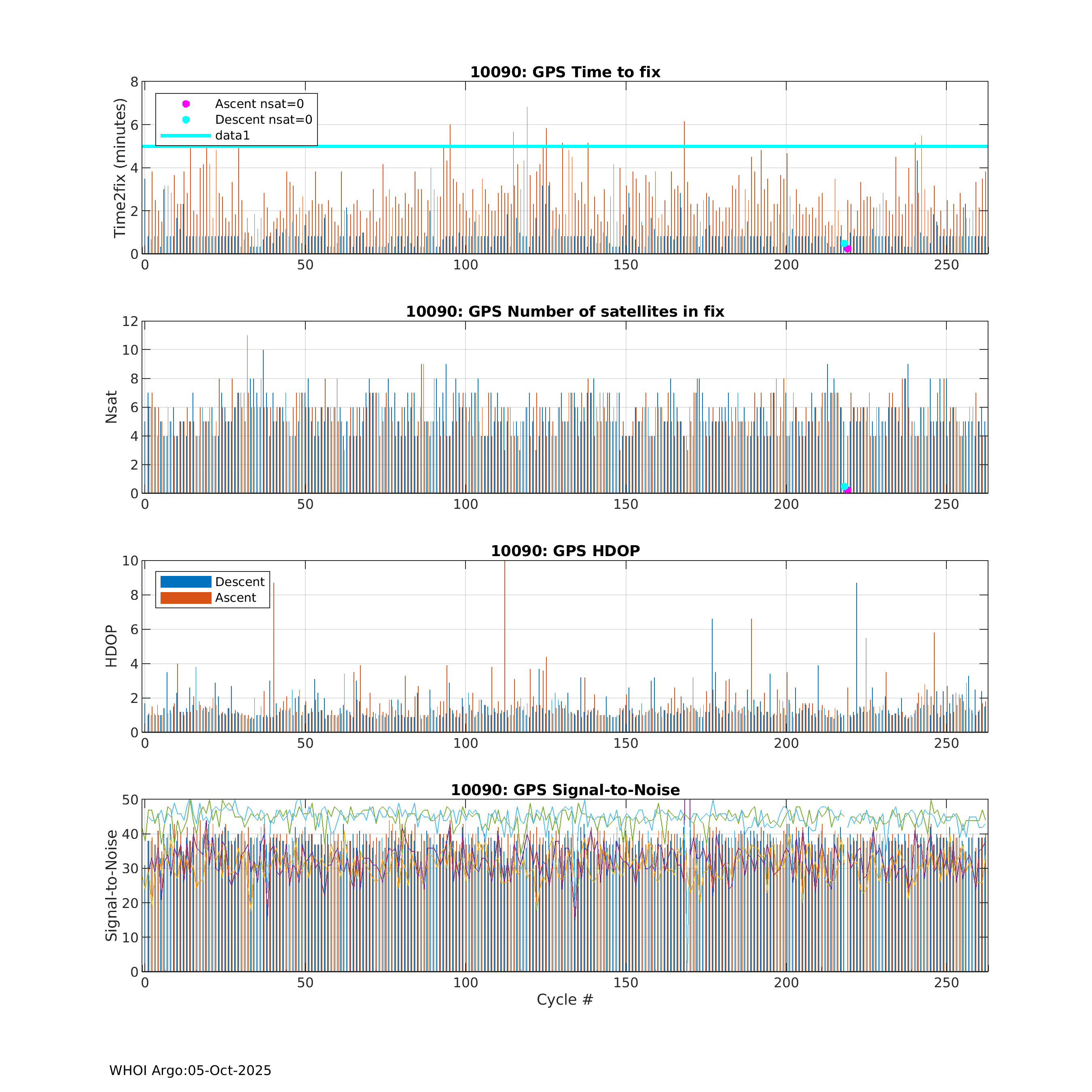

GPS
 |
Ice Detect Status
 |
Iridium SBD
 |
Exception Flags
 |
Cycle Times
 |

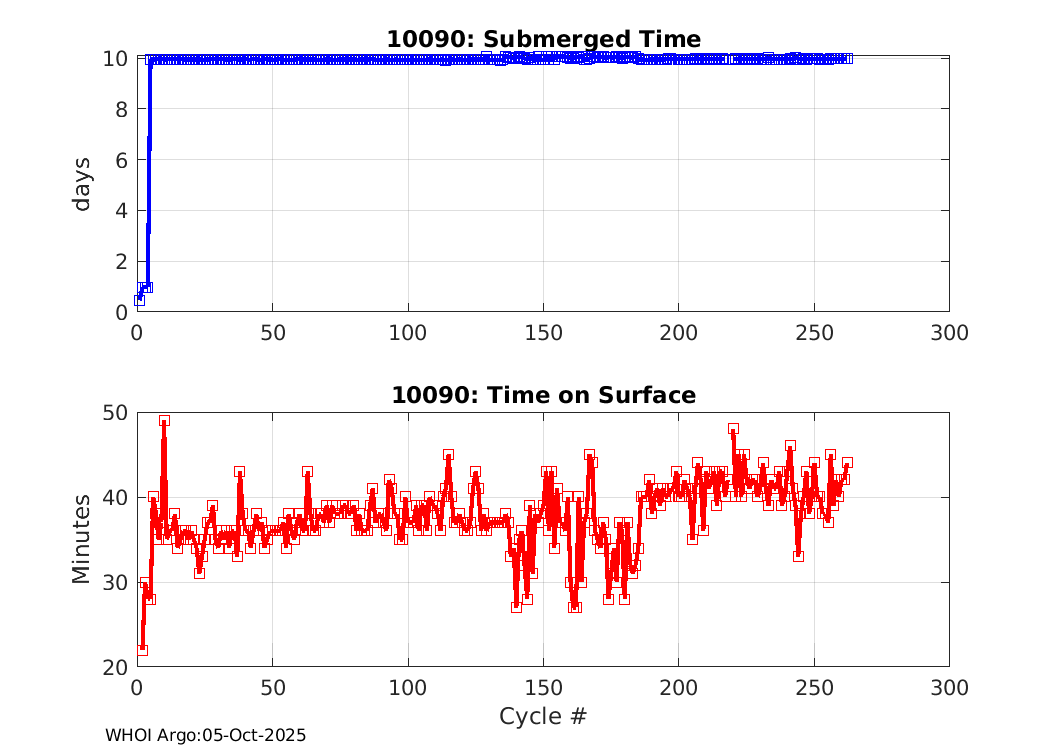

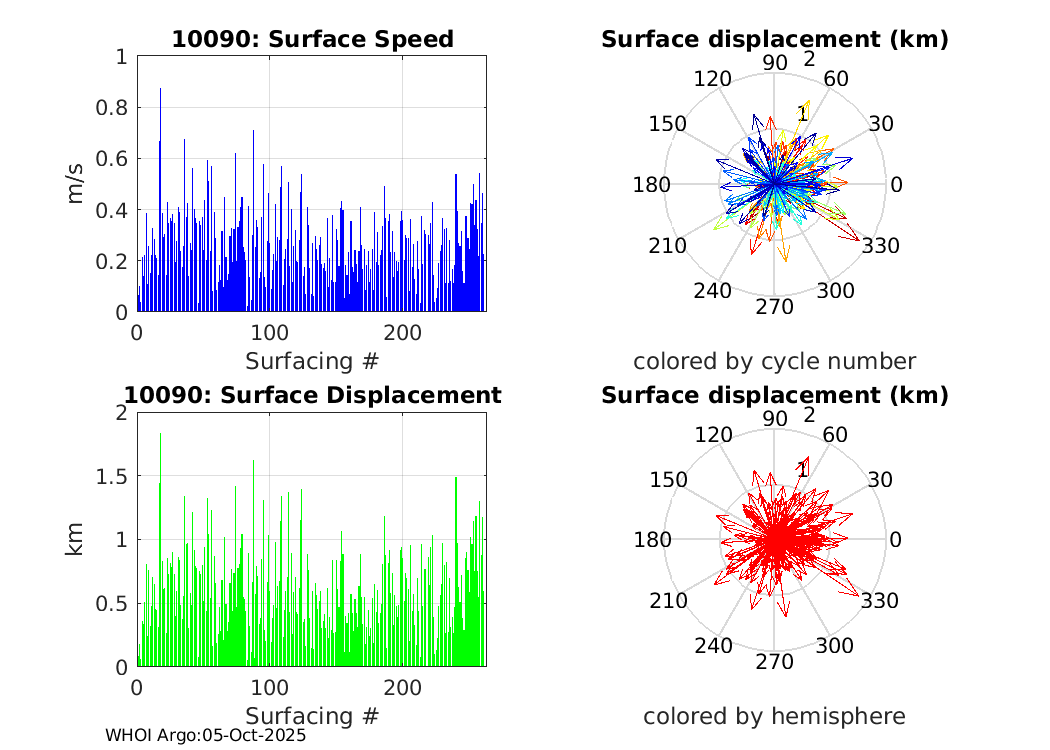

Surface
 |

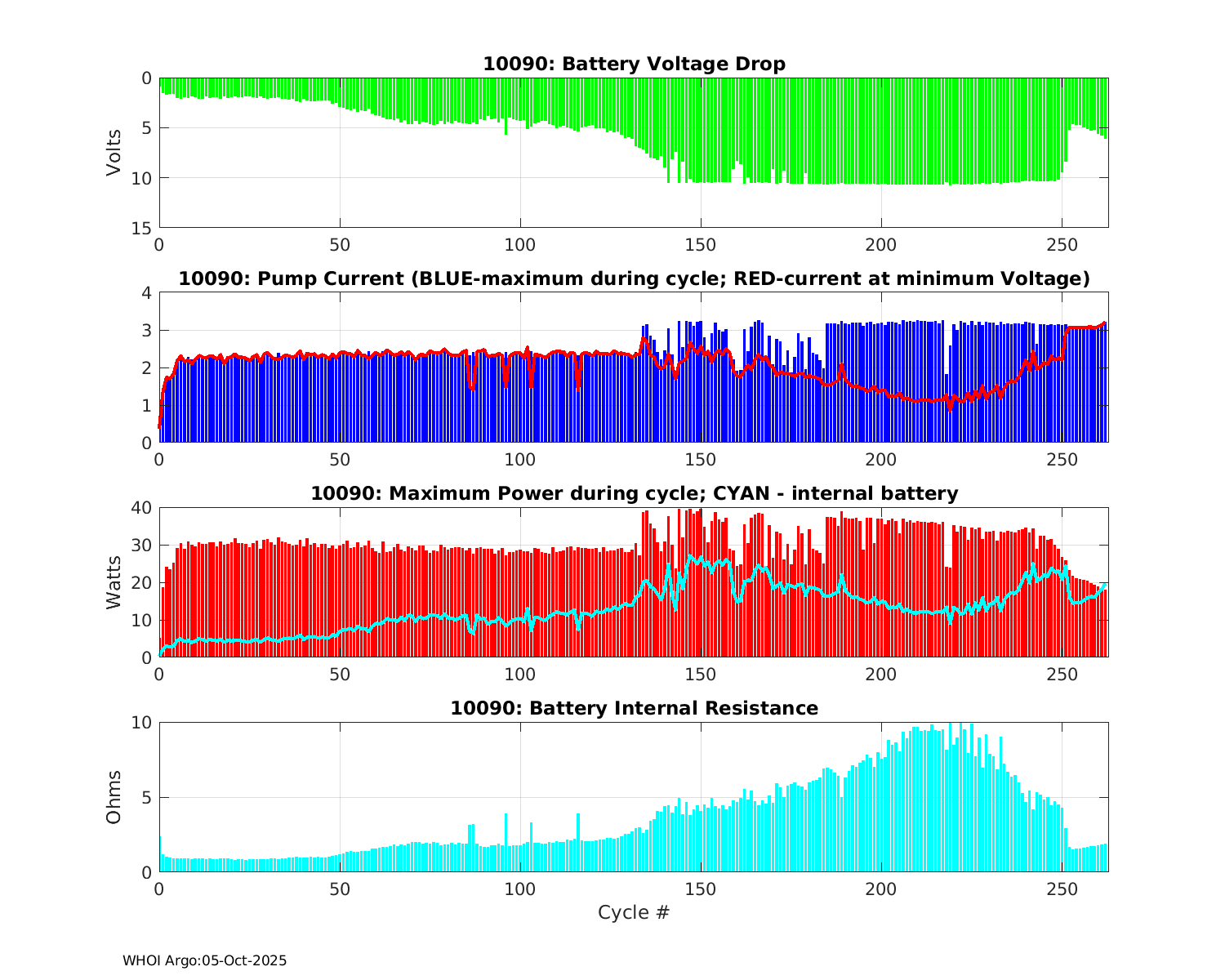

Battery Summary
 |

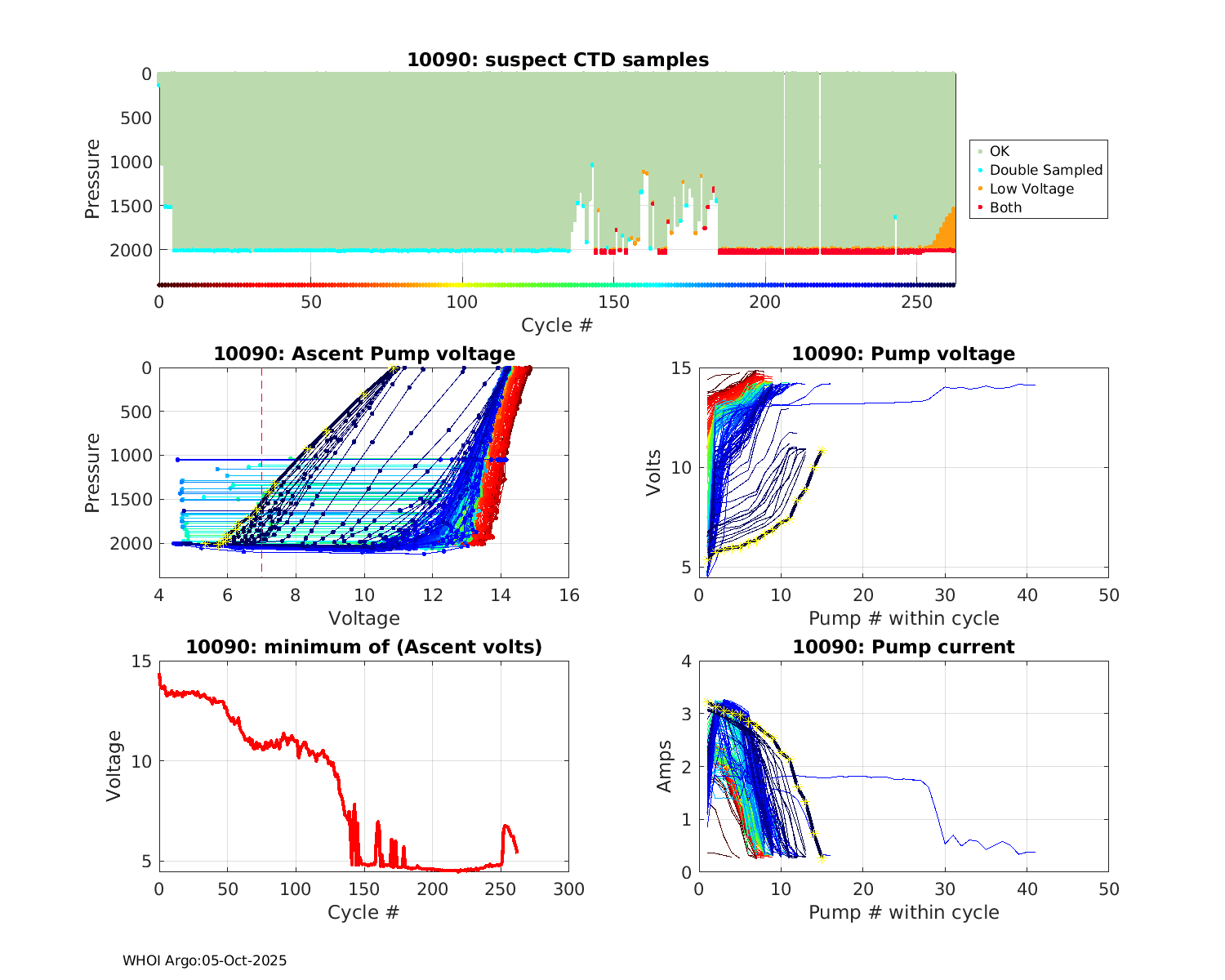

Batteries during Hydraulic Cycle
 |

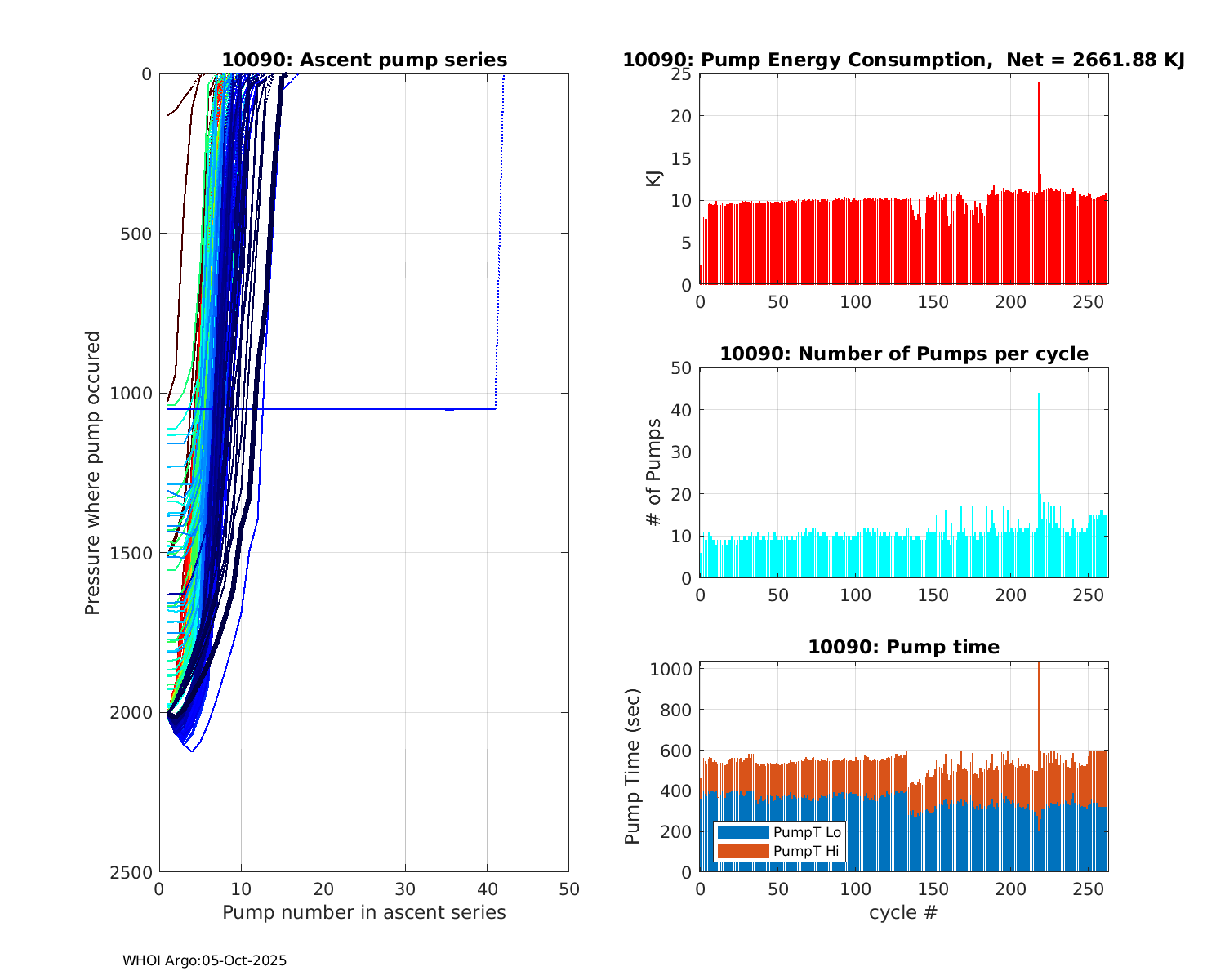

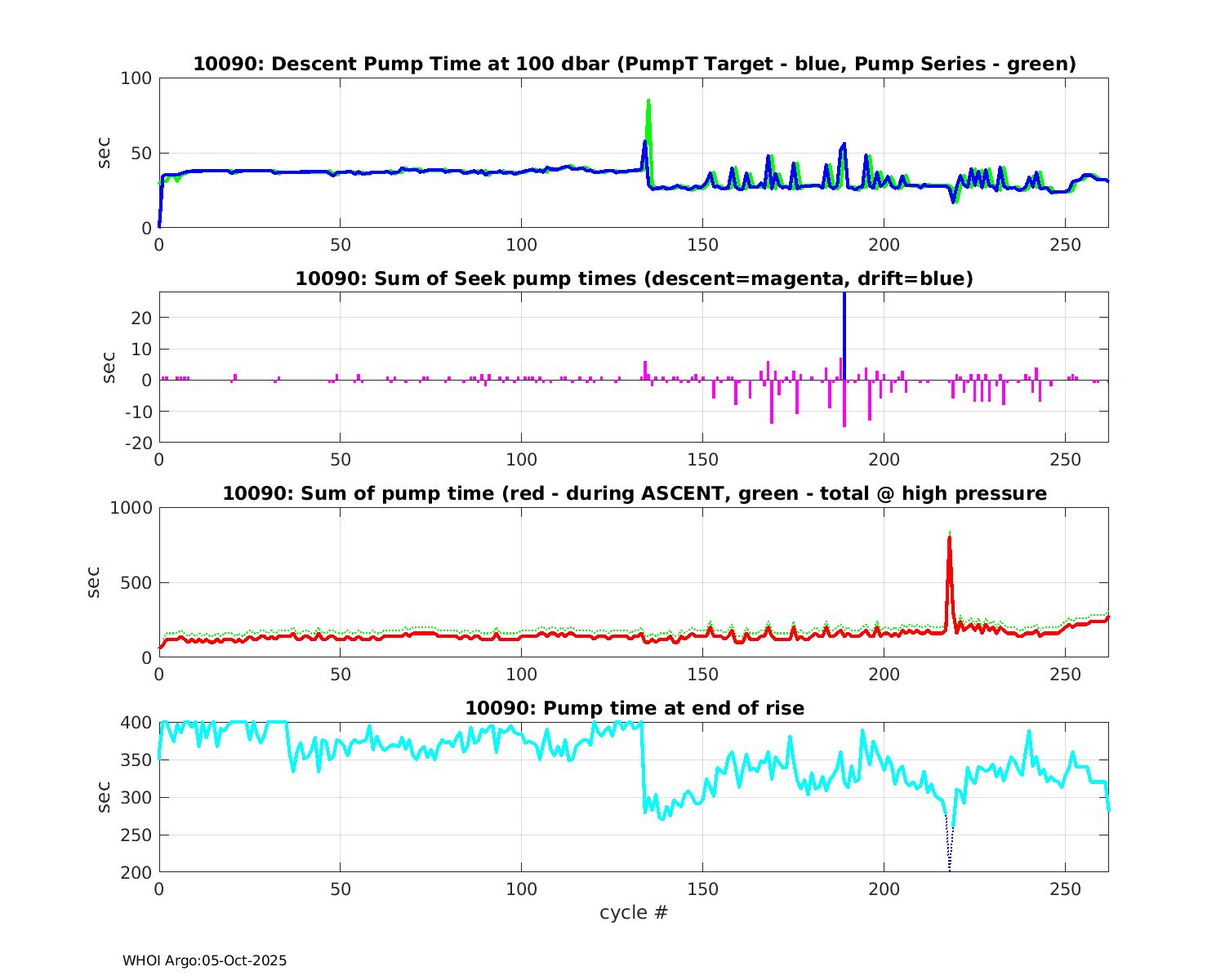

Pump Times
 |
Pump
 |

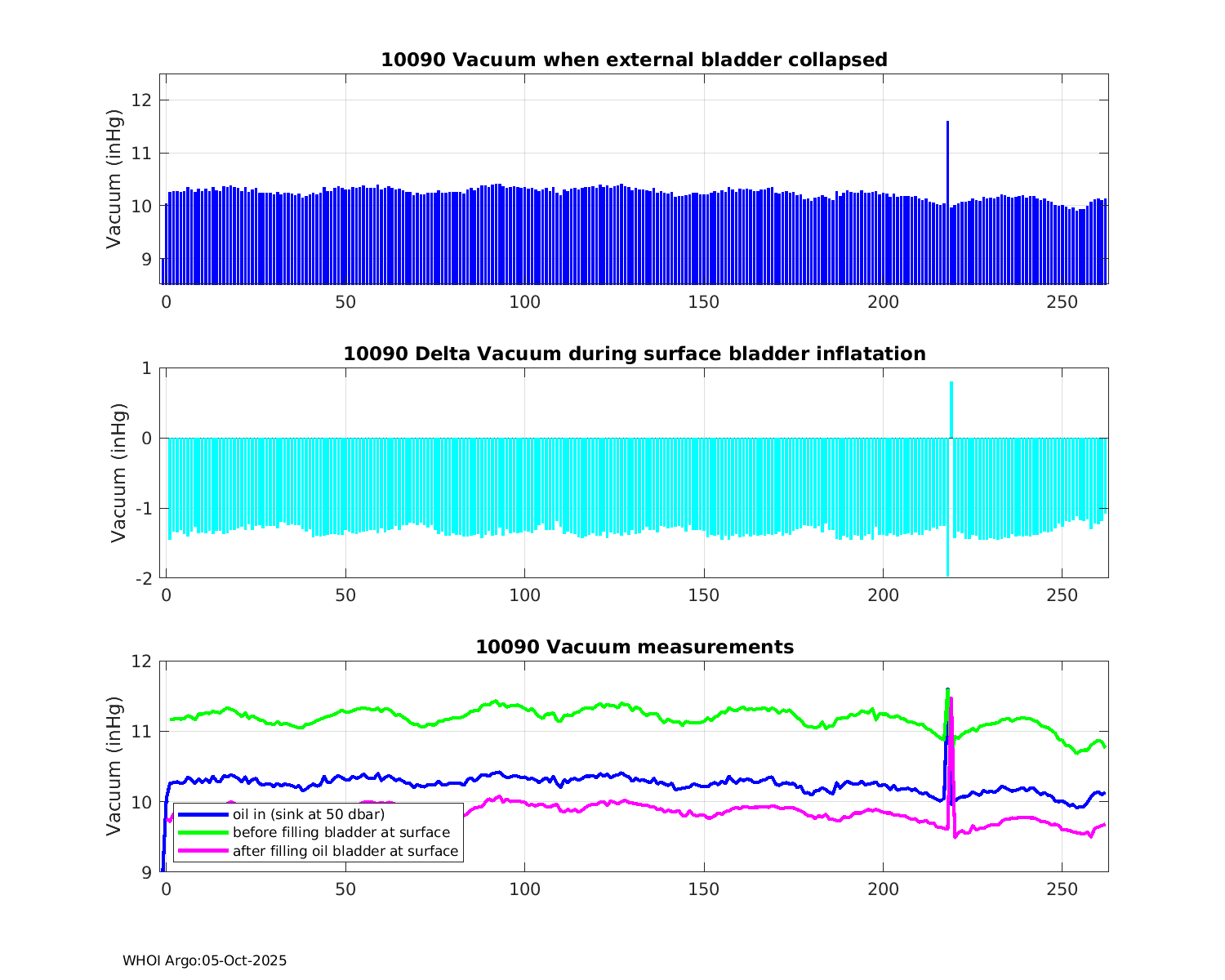

Vacuum
 |

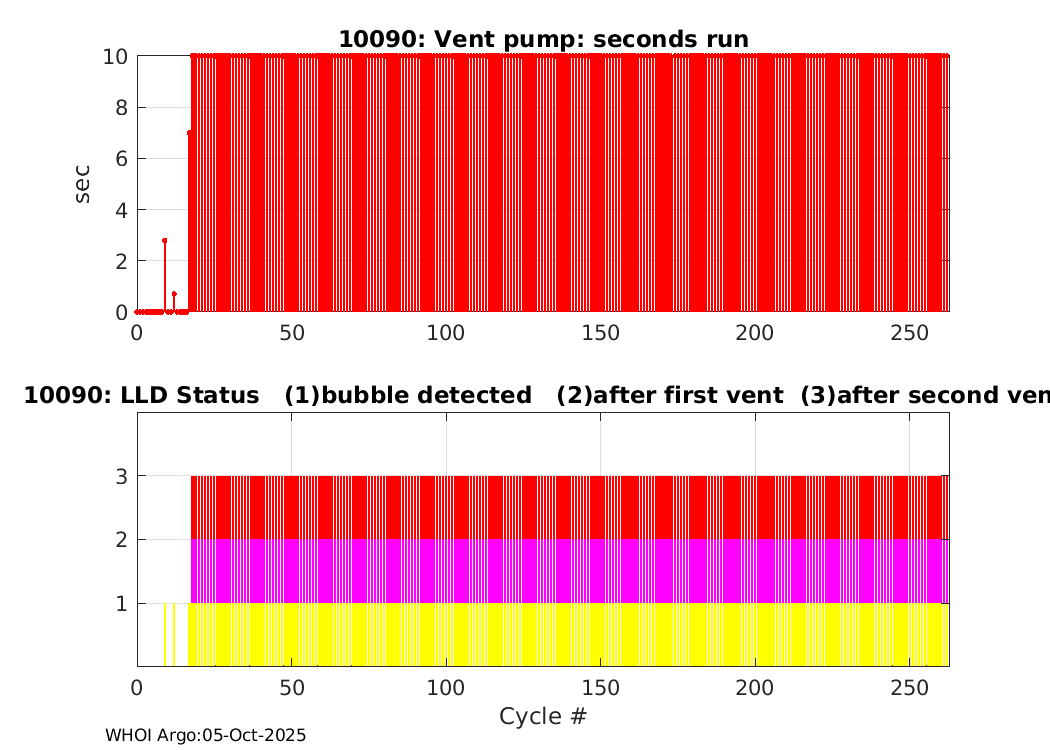

Vent
 |

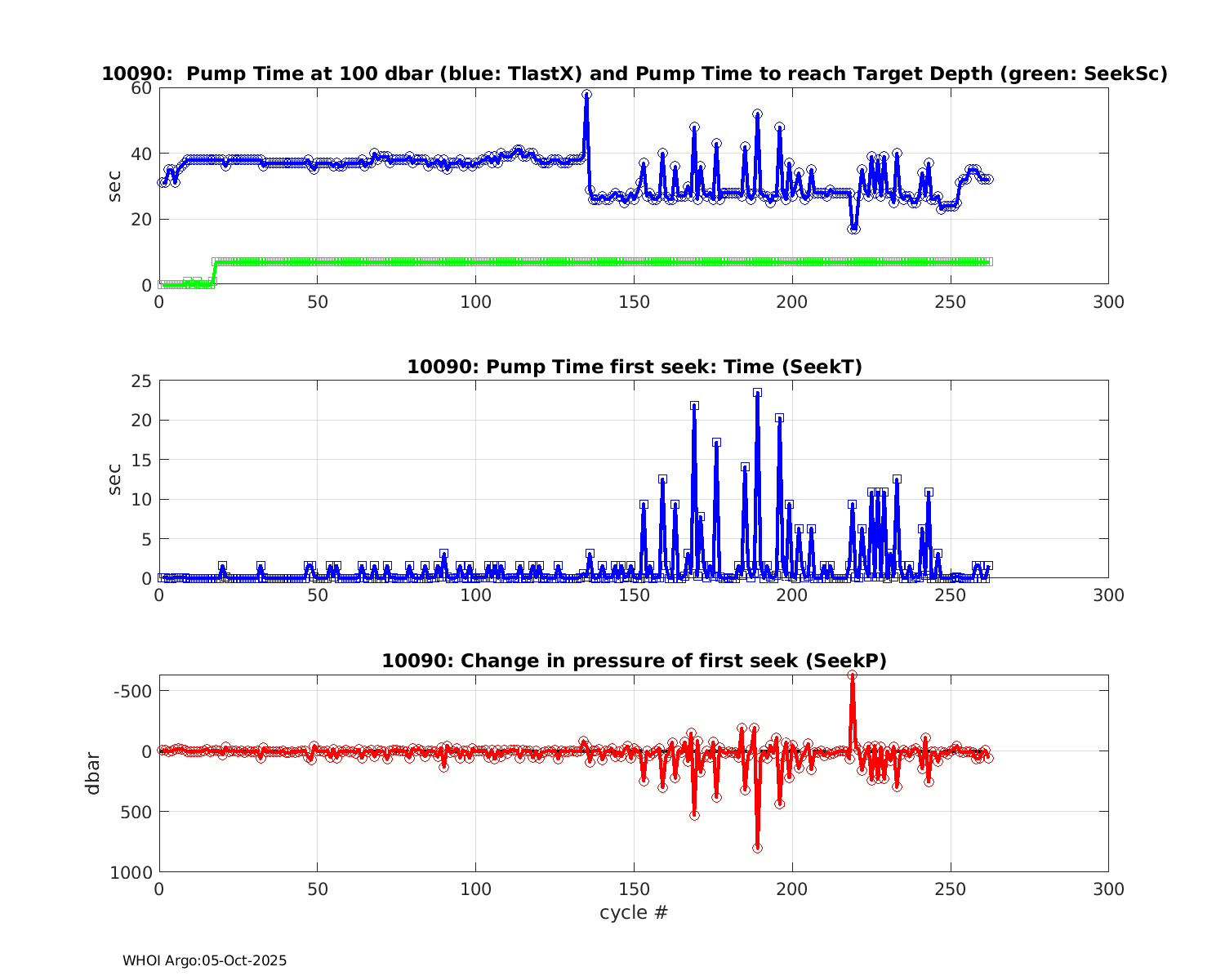

Seek Times
 |

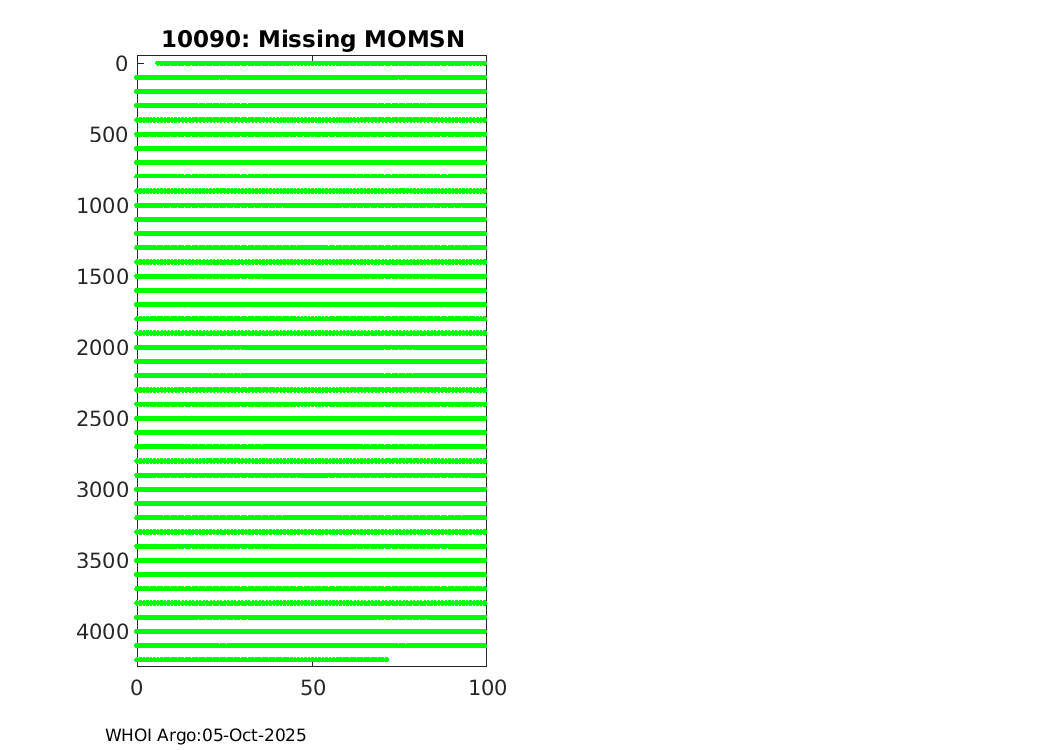

Iridium MOMSN
 |

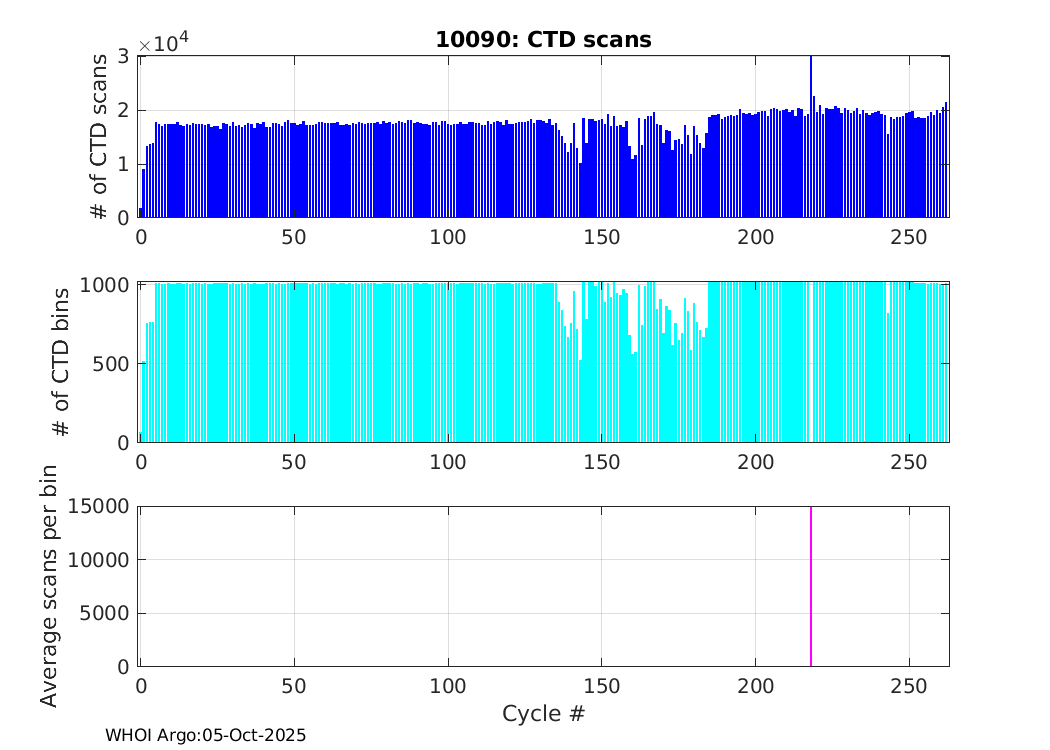

CTD scans
 |

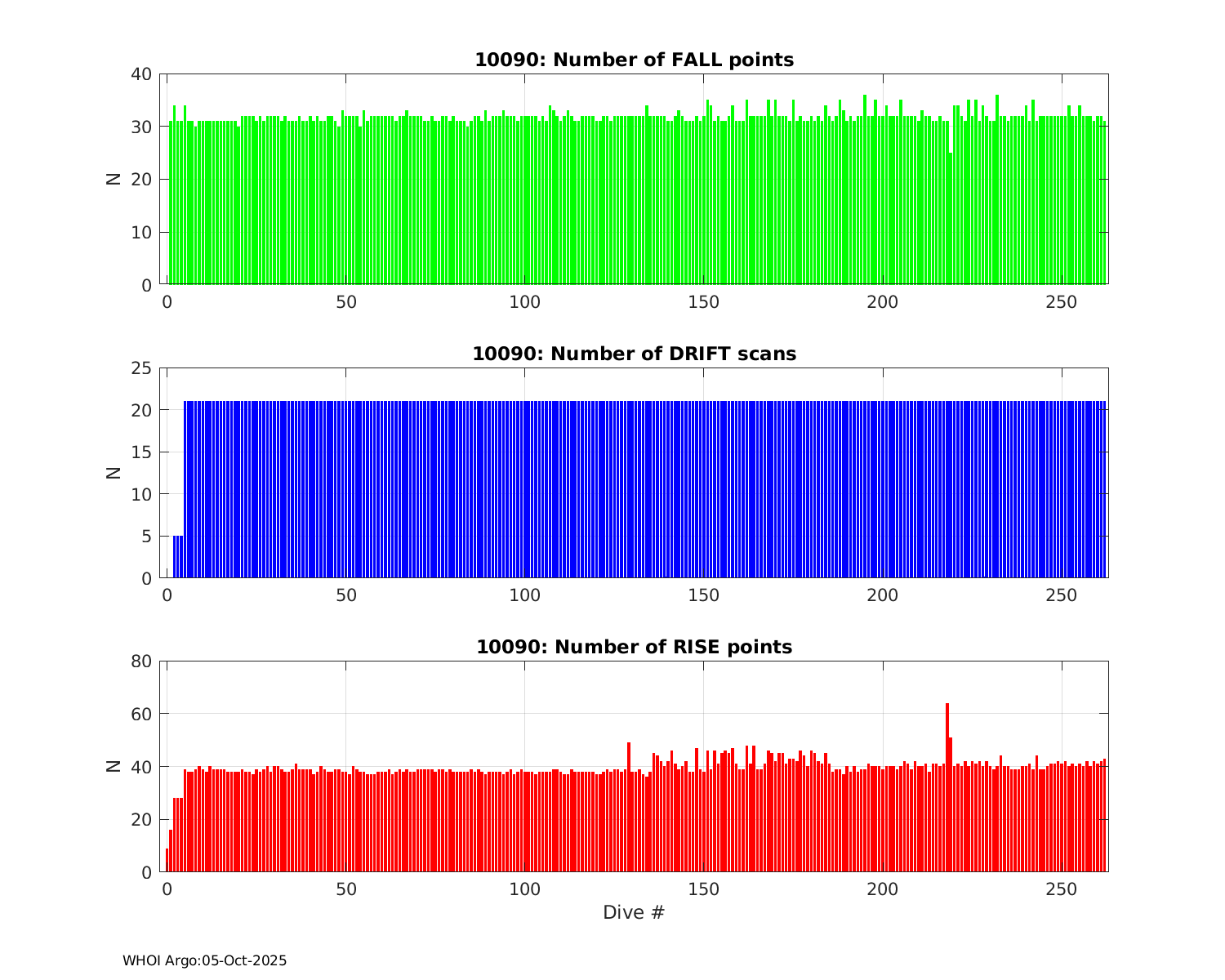

Fall/Drift/Rise Points
 |

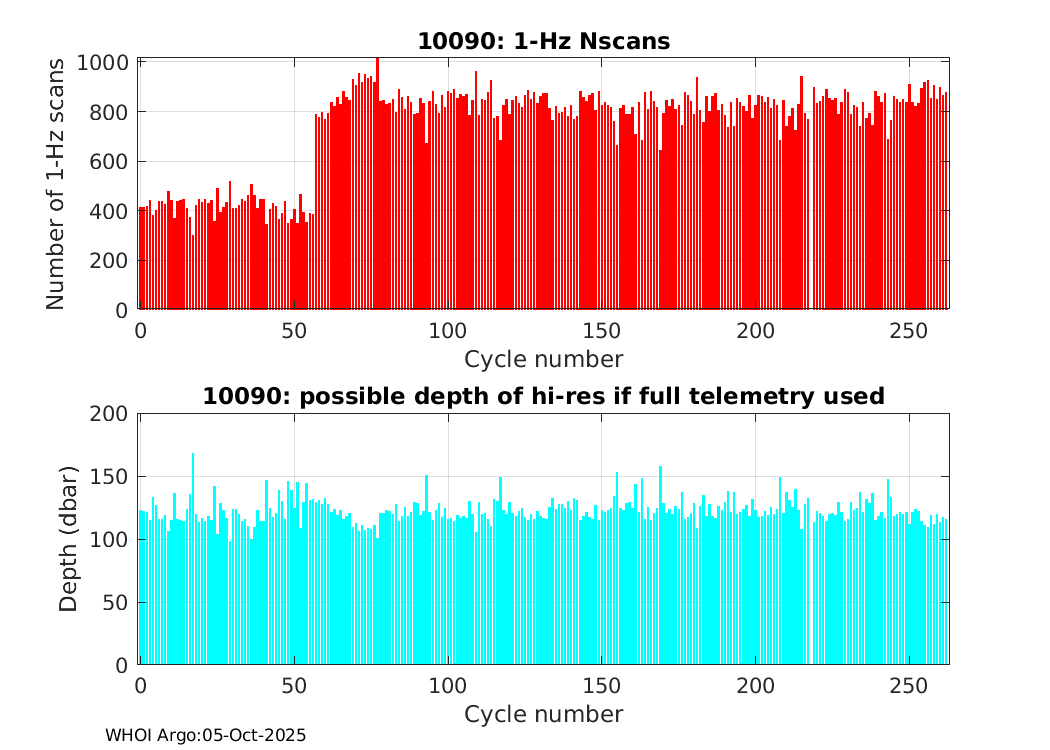

Hi-res Scans
 |

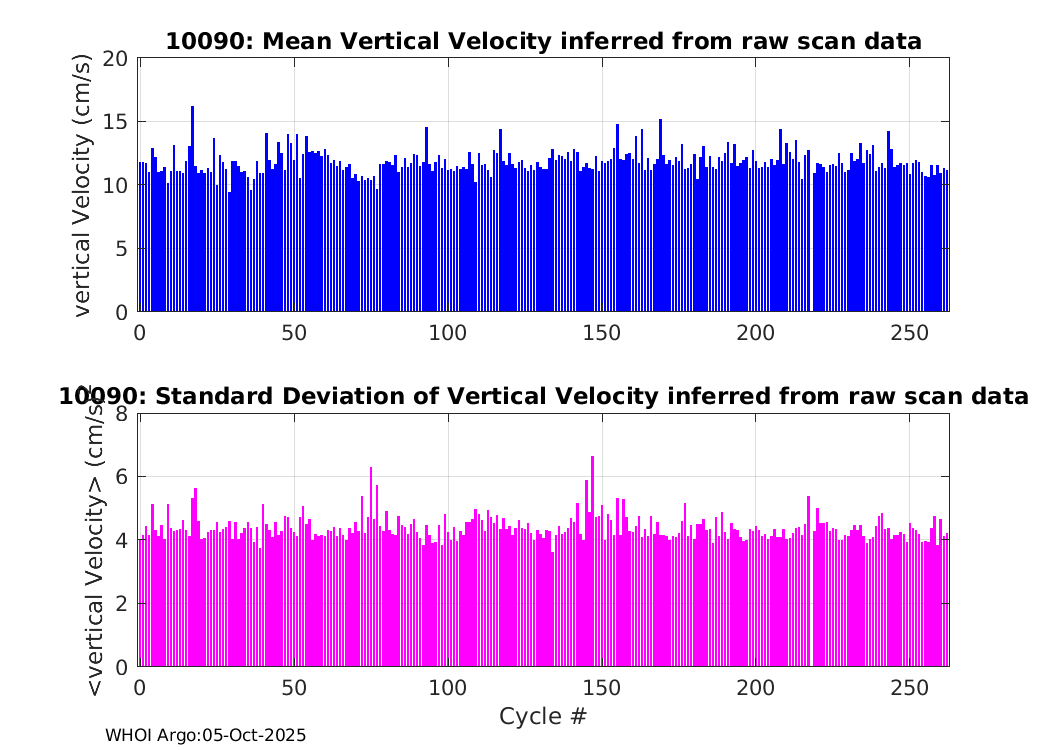

Hi-res W
 |
ccCor Deep
 |
Ballast Trim
 |
Pump Times
 |
|
