Argo Float WMO # 5900201 : Plots based on data files at the GDAC

Metadata:
WMO #: 5900201
PI: Breck Owens
DAC: AOML

DAC #: 225
WHOI Float #: 156
Last Heard From: 2003-08-07
Longevity: 1.23 yrs

Hardware:
Telcom: ARGOS 7289
Telcom: ARGOS 7289
Instrument: NM522_SB10
ROM version: 5.22
Temperature: SBE41CP, s/n: 0288
Conductivity: SBE41CP, s/n: 0288
Pressure: Paines, s/n: 2657717542

Deployment:
Deployed: 2002-05-04
Latitude: -29.000
Longitude: 10.282
Deployment Platform: M/V Lykes Energizer
Cruise ID: AX08
Deployer: Robert Roddy

GDAC file status:
Last Update: 2019-10-31
Profiles at GDAC: 46
GDAC D-files: 46
GDAC R-files: 0

Links (at WHOI):

Links (offsite):
Data Visualizations: at EuroArgo
Data Visualizations: at ArgoVis
Data Visualizations: at IFREMER
Altimeter Comparison: IFREMER
GDAC (data archive): GODAE
GDAC (data archive): Coriolis

Key: DMQC Status

DMQC Status
Profile Positions
Temperature-Salinity Relation
Deep T-S Relation
Temperature Sections (0-500 dbar)
Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)
Salt Anomaly Sections (0-500 dbar)
Temperature Sections
Salinity Sections
Density Sections
Salt Anomaly Sections

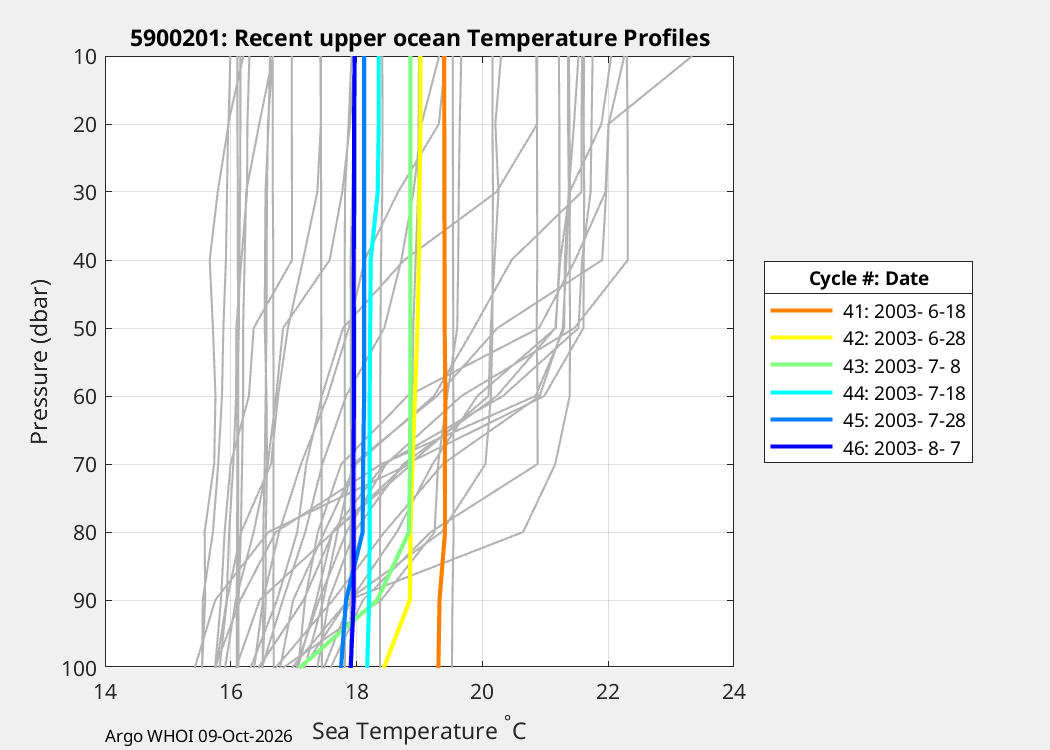

Temperature Profiles

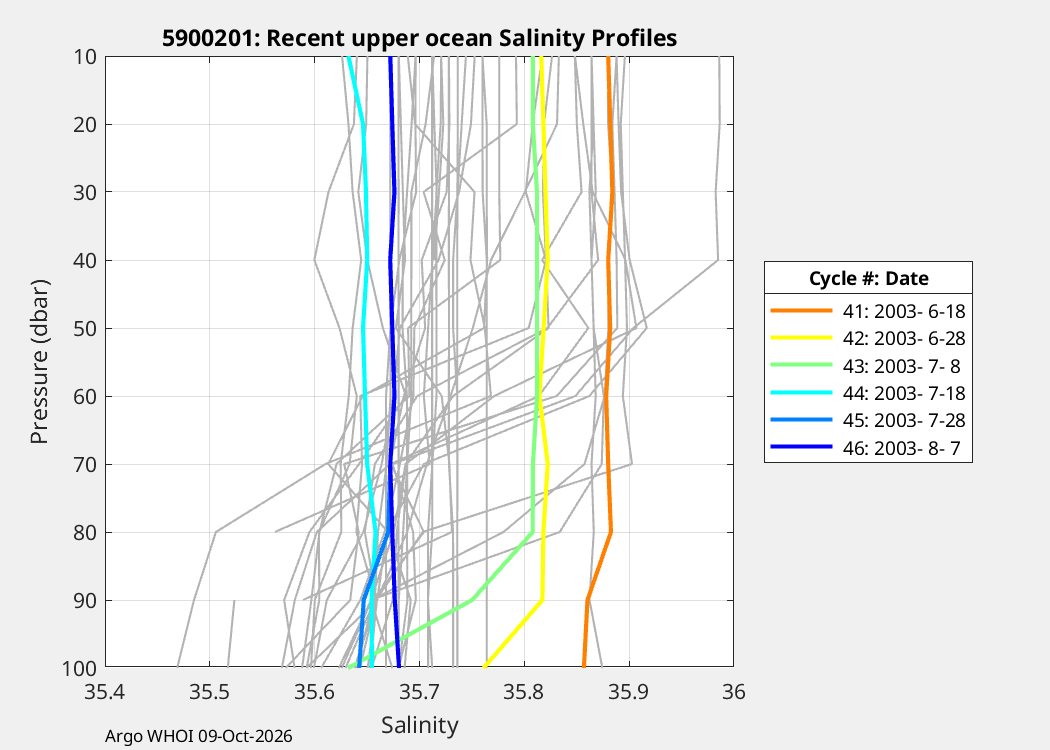

Salinity Profiles

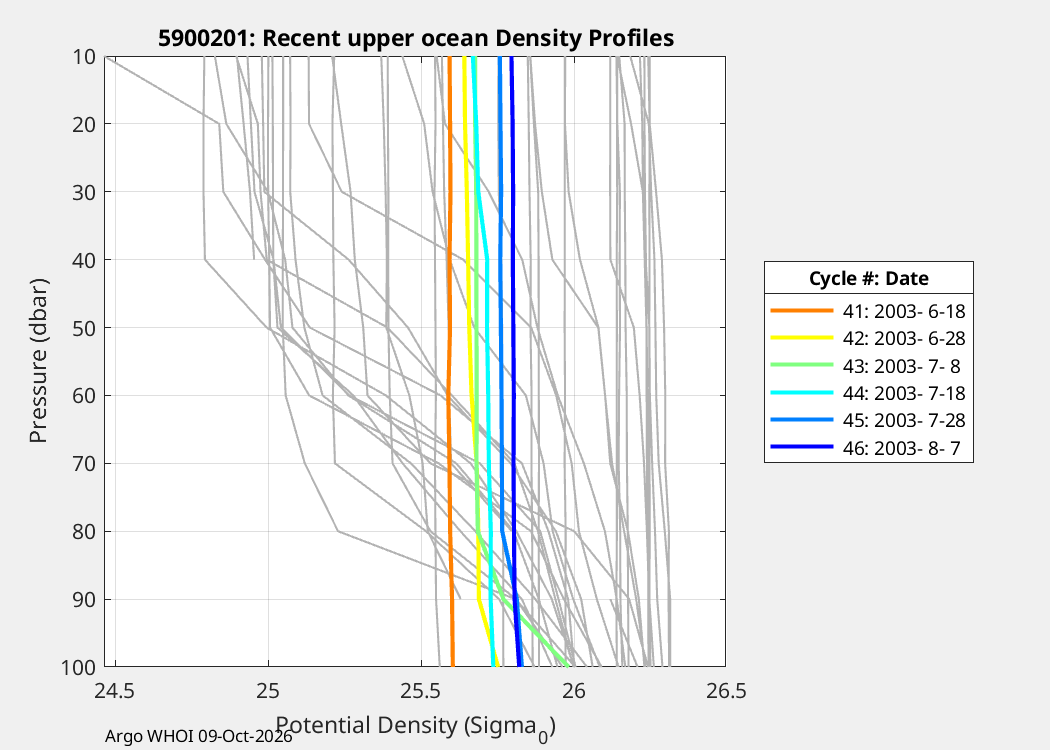

Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
Bathymetry
Submerged Displacement
Traj Cycle
Traj Position
Traj Drift 1
Traj Drift 2
Traj Speed
N-Square
Salinity vs CARS
OW Calibration Adjustment
OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info
Basin

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
1
2002
5/13
A A A
2
2002
5/23
A A B
3
2002
6/02
A B B
4
2002
6/12
A F F
5
2002
6/22
A B B
6
2002
7/03
A B B
7
2002
7/13
A A A
8
2002
7/22
A A A
9
2002
8/02
A A A
10
2002
8/12
A A A
11
2002
8/22
A A A
12
2002
9/01
A A A
13
2002
9/11
A A A
14
2002
9/21
A A A
15
2002
10/01
A A A
16
2002
10/11
A A A
17
2002
10/21
A A A
18
2002
10/31
A B B
19
2002
11/10
A D D
20
2002
11/20
A A A
21
2002
11/30
A A A
22
2002
12/10
A A A
23
2002
12/20
A B B
24
2002
12/30
A D D
25
2003
1/09
A A A
26
2003
1/19
A A A
27
2003
1/29
A A A
28
2003
2/08
A F F
29
2003
2/18
A B B
30
2003
2/28
A A A
31
2003
3/10
A A A
32
2003
3/20
A A A
33
2003
3/30
A A A
34
2003
4/09
A B B
35
2003
4/19
A A A
36
2003
4/29
A A B
37
2003
5/09
A B B
38
2003
5/19
A A A
39
2003
5/29
A A A
40
2003
6/08
A A A
41
2003
6/18
A A A
42
2003
6/28
A B B
43
2003
7/08
A B B
44
2003
7/18
A A A
45
2003
7/28
A A A
46
2003
8/07
A A A

Creation Date: 2024-02-27
