Argo Float WMO # 4903277 : Plots based on data files at the GDAC

Metadata:
WMO #: 4903277
PI: WHOI: Wijffels, Jayne, Robbins
DAC: AOML

DAC #: 8480
WHOI Float #: 7538
Last Heard From: 2020-10-18
Longevity: 16 days

Hardware:
Telcom: IRIDIUM 7538
Telcom: IRIDIUM 7538
Instrument: MRV240_SB30
ROM version: SBE602 15Aug17 ARM V2.4
Temperature: SBE41CP, s/n: 10878
Conductivity: SBE41CP, s/n: 10878
Pressure: Druck, s/n: 10936064

Deployment:
Deployed: 2020-10-02
Latitude: 25.146
Longitude: -86.841
Deployment Platform: Pelican
Cruise ID: PE 21-05
Deployer: K. Donohue

GDAC file status:
Last Update: 2020-10-18
Profiles at GDAC: 6
GDAC D-files: 0
GDAC R-files: 6
Links (at WHOI):
Telemetry plots: WHOI

Links (offsite):
Float Page: IFREMER
Altimeter Comparison: IFREMER
data access via ftp: GODAE GDAC
data access via ftp: Coriolis GDAC

Index Map

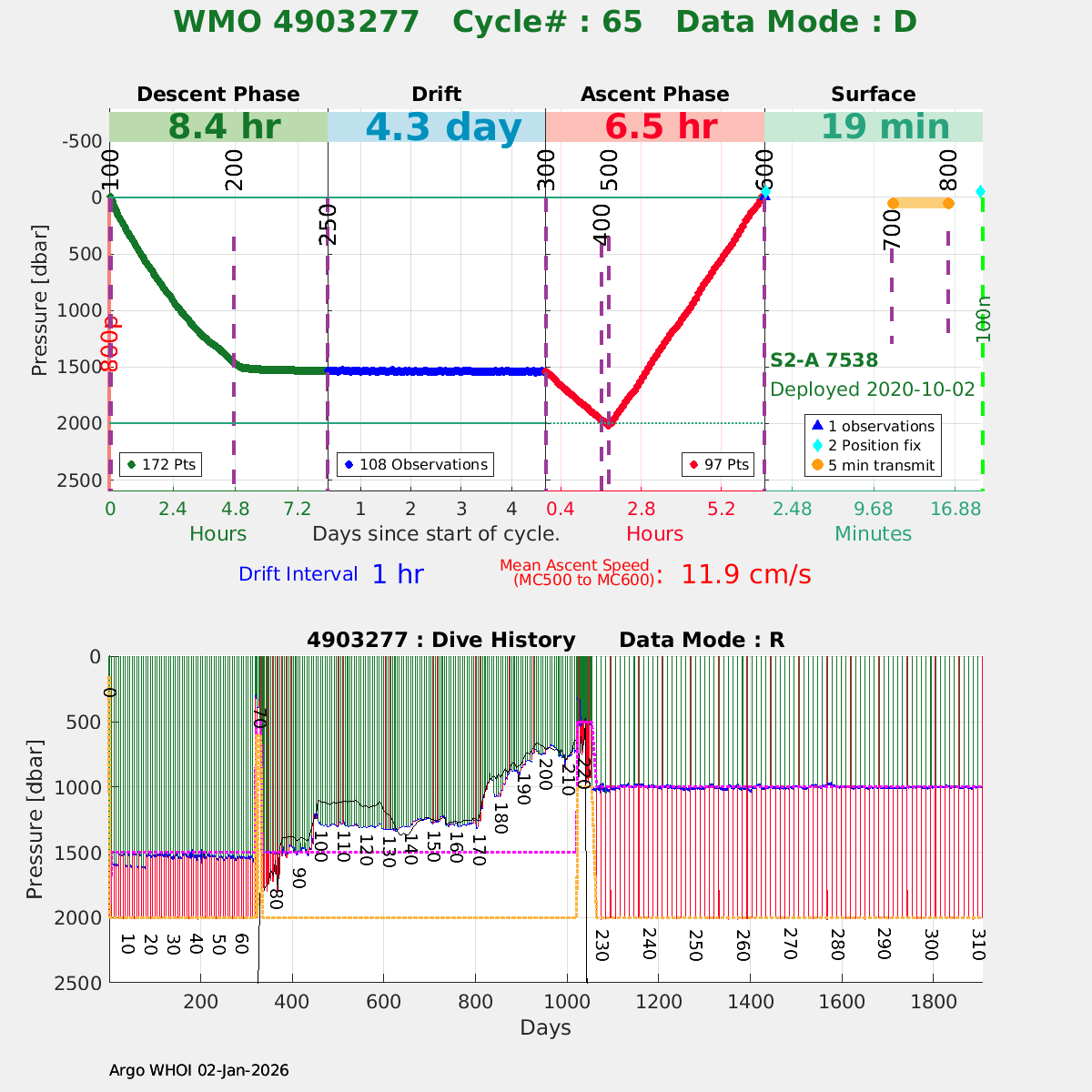

Trajectory
Bathymetry
Submerged Displacement
Temperature Contours (0-500 dbar)
Salinity Contours (0-500 dbar)
Density Contours (0-500 dbar)
Salt Anomaly Contours (0-500 dbar)
Temperature Contours
Salinity Contours
Density Contours
Salt Anomaly Contours
Temperature-Salinity Relation
Deep T-S Relation
Temperature Profiles
Salinity Profiles
Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
N-Square
Salinity vs CARS
OW Calibration Adjustment
Mean Salinity difference (RT vs DM)
GDAC File info

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
0
2020
10/02
A A A
1
2020
10/02
A A A
2
2020
10/03
A A A
3
2020
10/08
A A A
4
2020
10/13
A A A
5
2020
10/18
A A A
6
2020
10/23
A A A
7
2020
10/28
A A A

Creation Date: 2020-10-28
