Argo Float WMO # 4903235 : Plots based on data files at the GDAC

Metadata:
WMO #: 4903235
PI: Amy Bower, Steven Jayne, Heather Furey
DAC: AOML

DAC #: 8010
WHOI Float #: 7492
Last Heard From: 2020-03-02
Longevity: 255 days

Hardware:
Telcom: IRIDIUM 7492
Telcom: IRIDIUM 7492
Instrument: MRV240_SB30
ROM version: SBE602 15Aug17 ARM V2.4
Temperature: SBE41CP, s/n: 10748
Conductivity: SBE41CP, s/n: 10748
Pressure: Druck, s/n: 10720005

Deployment:
Deployed: 2019-06-21
Latitude: 26.256
Longitude: -88.010
Deployment Platform: PELICAN
Cruise ID: PE19_28_Donohue
Deployer: Daniela Munguia

GDAC file status:
Last Update: 2020-05-20
Profiles at GDAC: 52
GDAC D-files: 31
GDAC R-files: 21

Links (at WHOI):
Telemetry plots: WHOI
Calibration Plots: PDF (12-May-2020)

Links (offsite):
Float Page: IFREMER
Altimeter Comparison: IFREMER
data access via ftp: GODAE GDAC
data access via ftp: Coriolis GDAC

Index Map
Trajectory
Bathymetry
Submerged Displacement
Temperature Contours (0-500 dbar)
Salinity Contours (0-500 dbar)
Density Contours (0-500 dbar)
Salt Anomaly Contours (0-500 dbar)
Temperature Contours
Salinity Contours
Density Contours
Salt Anomaly Contours
Temperature-Salinity Relation
Deep T-S Relation

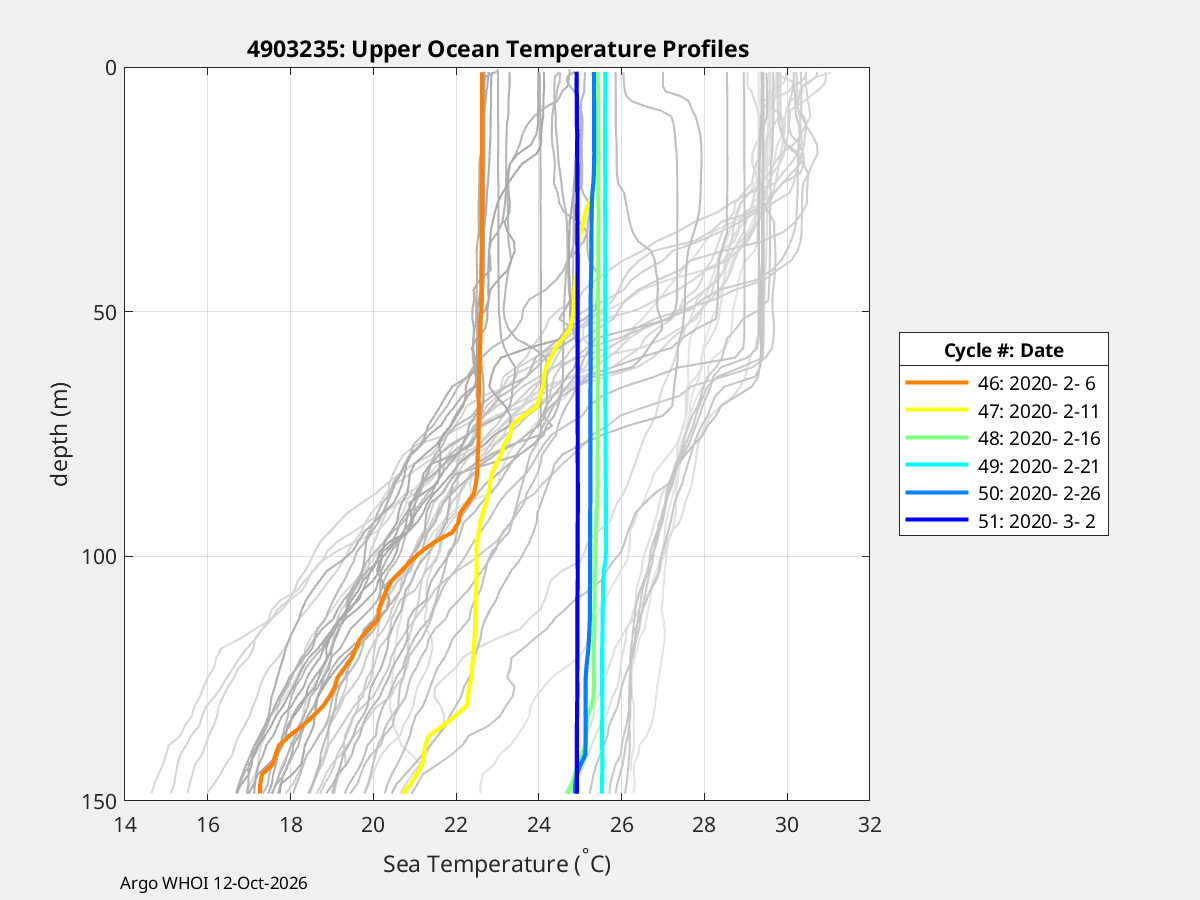

Temperature Profiles

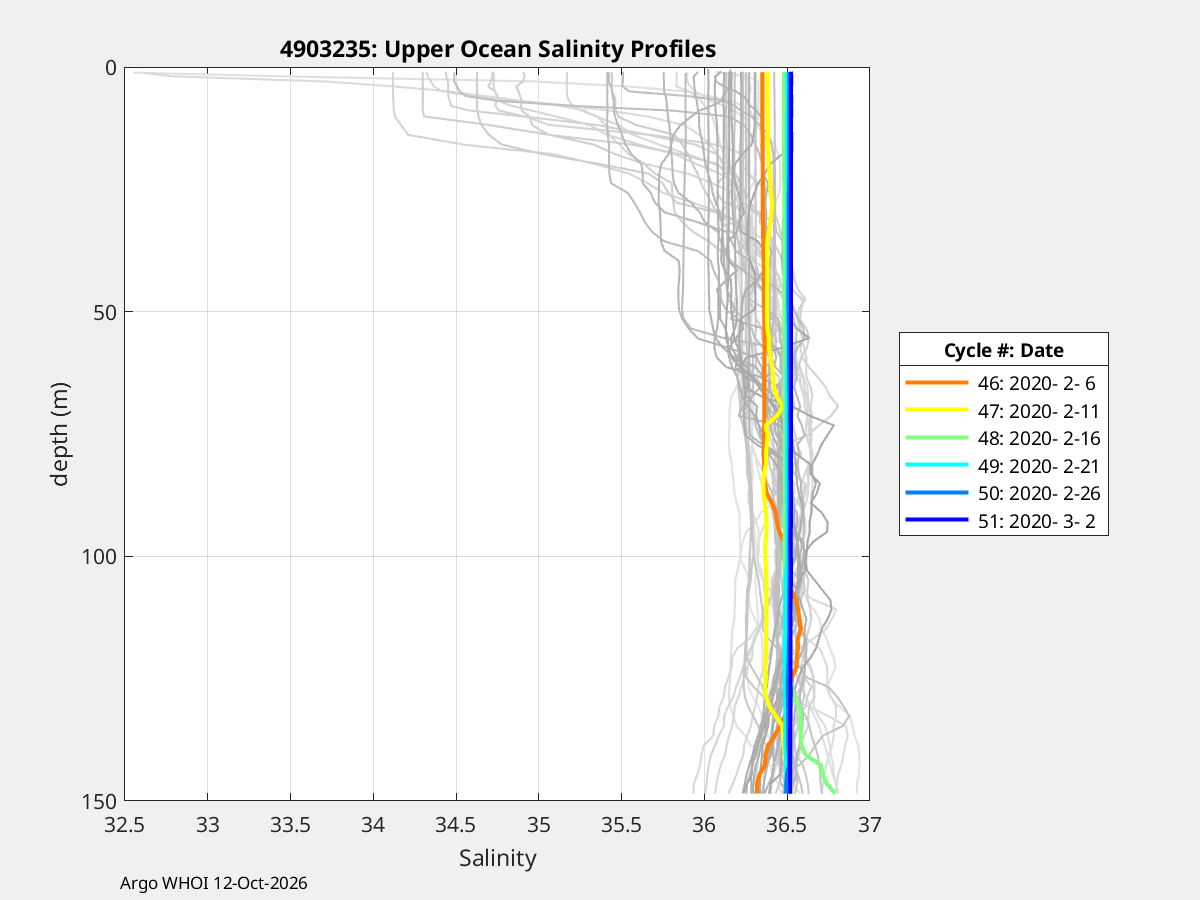

Salinity Profiles

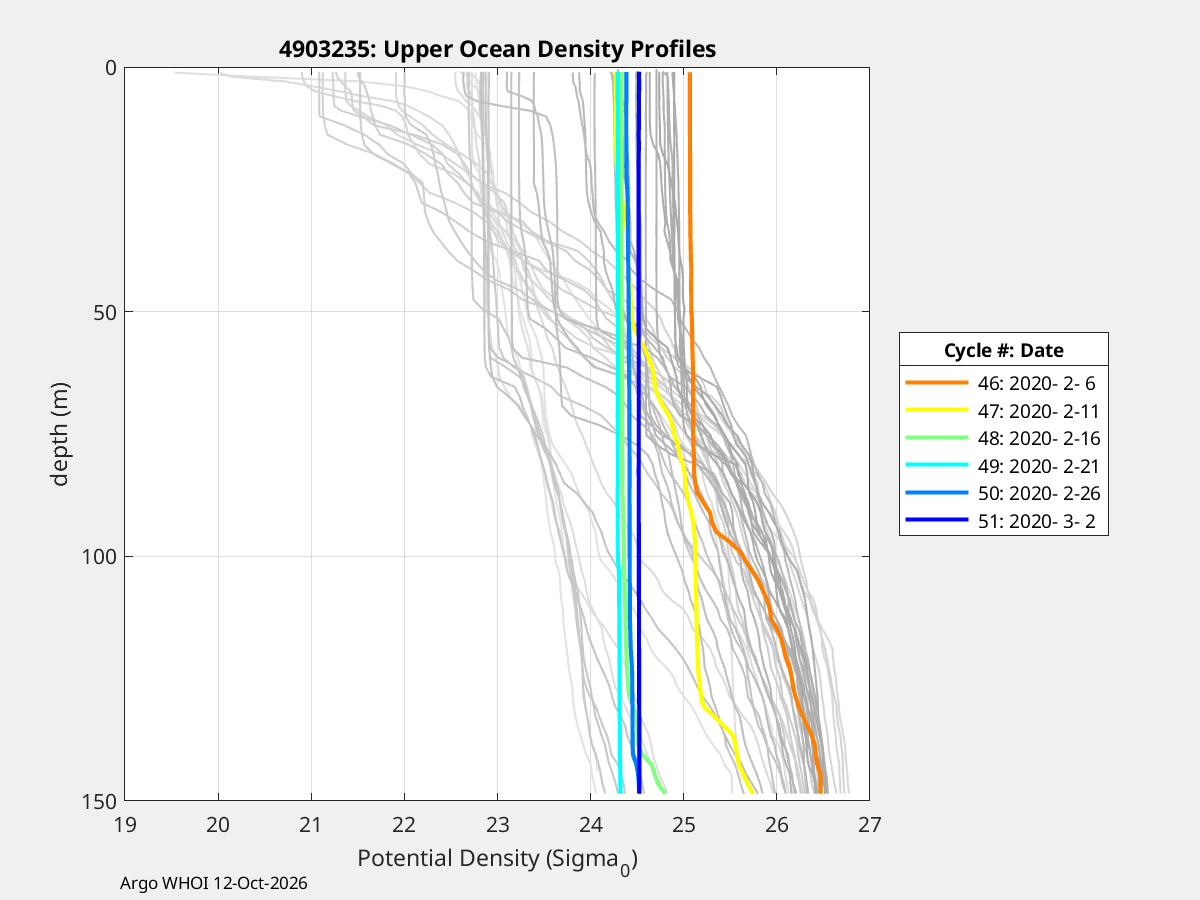

Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
N-Square
Salinity vs CARS
OW Calibration Adjustment
Mean Salinity difference (RT vs DM)
GDAC File info

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
0
2019
6/21
A A A
1
2019
6/26
A A A
2
2019
7/01
A A A
3
2019
7/06
A A A
4
2019
7/11
A A A
5
2019
7/16
A A A
6
2019
7/22
A A A
7
2019
7/27
A A A
8
2019
8/01
A A A
9
2019
8/06
A A A
10
2019
8/11
A A A
11
2019
8/16
A A A
12
2019
8/21
A A A
13
2019
8/26
A A A
14
2019
8/31
A A A
15
2019
9/05
A A A
16
2019
9/10
A A A
17
2019
9/15
A A A
18
2019
9/20
A A A
19
2019
9/25
A A A
20
2019
9/30
A A A
21
2019
10/05
A A A
22
2019
10/10
A A A
23
2019
10/15
A A A
24
2019
10/19
A A A
25
2019
10/24
A A A
26
2019
10/29
A A A
27
2019
11/03
A A A
28
2019
11/08
A A A
29
2019
11/13
A A A
30
2019
11/18
A A A
31
2019
11/23
A A A
32
2019
11/28
A A A
33
2019
12/03
A A A
34
2019
12/08
A A A
35
2019
12/13
A A A
36
2019
12/18
A A A
37
2019
12/23
A A A
38
2019
12/28
A A A
39
2020
1/02
A A A
40
2020
1/07
A A A
41
2020
1/12
A A A
42
2020
1/17
A A A
43
2020
1/22
A A A
44
2020
1/27
A A A
45
2020
2/01
A A A
46
2020
2/06
A A A
47
2020
2/11
A A A
48
2020
2/16
A A A
49
2020
2/21
A A A
50
2020
2/26
A A A
51
2020
3/02
A A A

Creation Date: 2020-06-21
