Argo Float WMO # 4901040 : Plots based on data files at the GDAC

Metadata:
WMO #: 4901040
PI: Breck Owens
DAC: AOML

DAC #: 3117
WHOI Float #: 821
Last Heard From: 2009-01-07
Longevity: 124 days

Hardware:
Telcom: IRIDIUM 20370
Telcom: IRIDIUM 20370
Instrument: SS120_SBDO19
ROM version: 1.20
Temperature: SBE41CP, s/n: 2009
Conductivity: SBE41CP, s/n: 2009
Pressure: Druck, s/n: 2619589

Deployment:
Deployed: 2008-08-31
Latitude: 80.083
Longitude: -174.280
Deployment Platform: Academic Federov
Cruise ID: n/a
Deployer: Kris Newehall

GDAC file status:
Last Update: 2018-12-07
Profiles at GDAC: 15
GDAC D-files: 0
GDAC R-files: 15

Links (at WHOI):
Telemetry plots: WHOI

Links (offsite):
Float Page: IFREMER
Altimeter Comparison: IFREMER
data access via ftp: GODAE GDAC
data access via ftp: Coriolis GDAC

Key: DMQC Status

DMQC Status
Profile Positions
Temperature-Salinity Relation
Deep T-S Relation
Temperature Sections (0-500 dbar)
Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)
Salt Anomaly Sections (0-500 dbar)
Temperature Sections
Salinity Sections
Density Sections
Salt Anomaly Sections

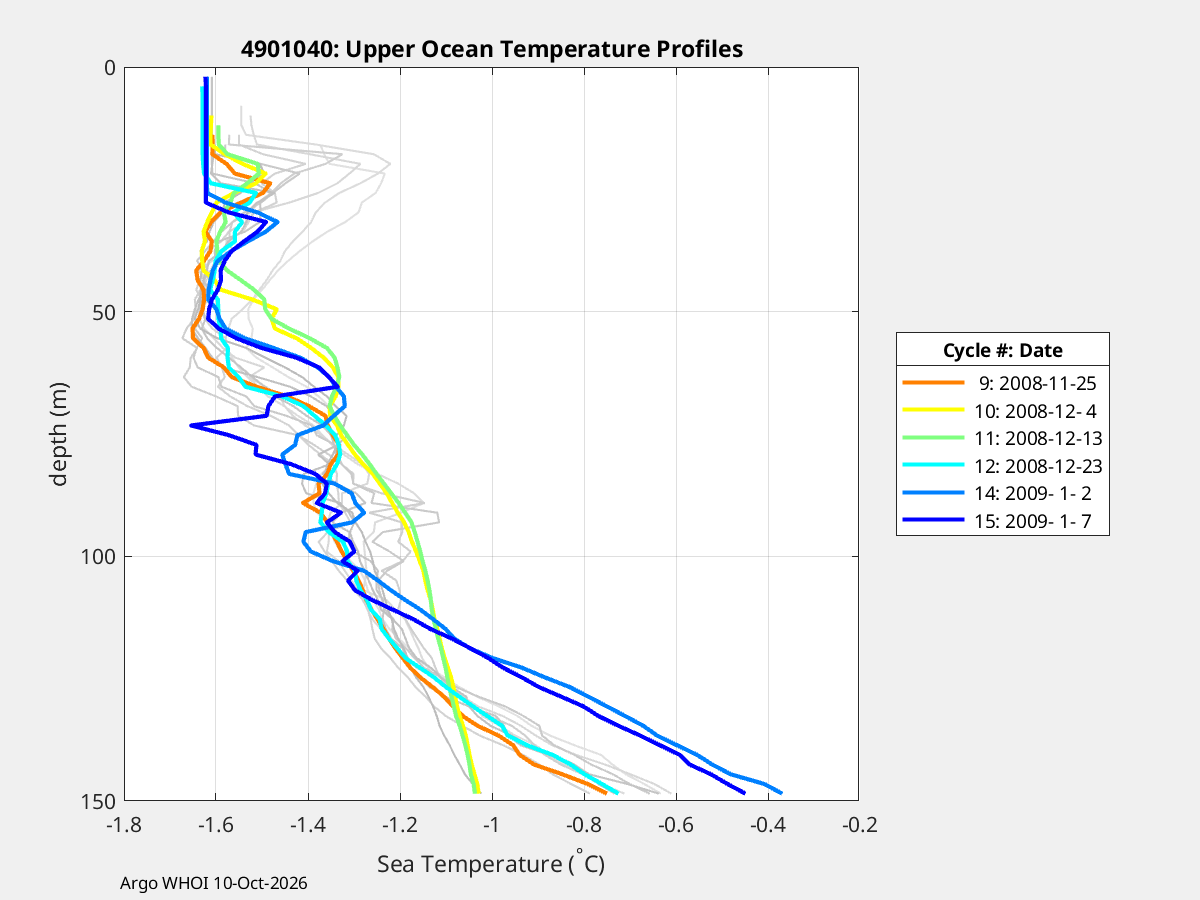

Temperature Profiles

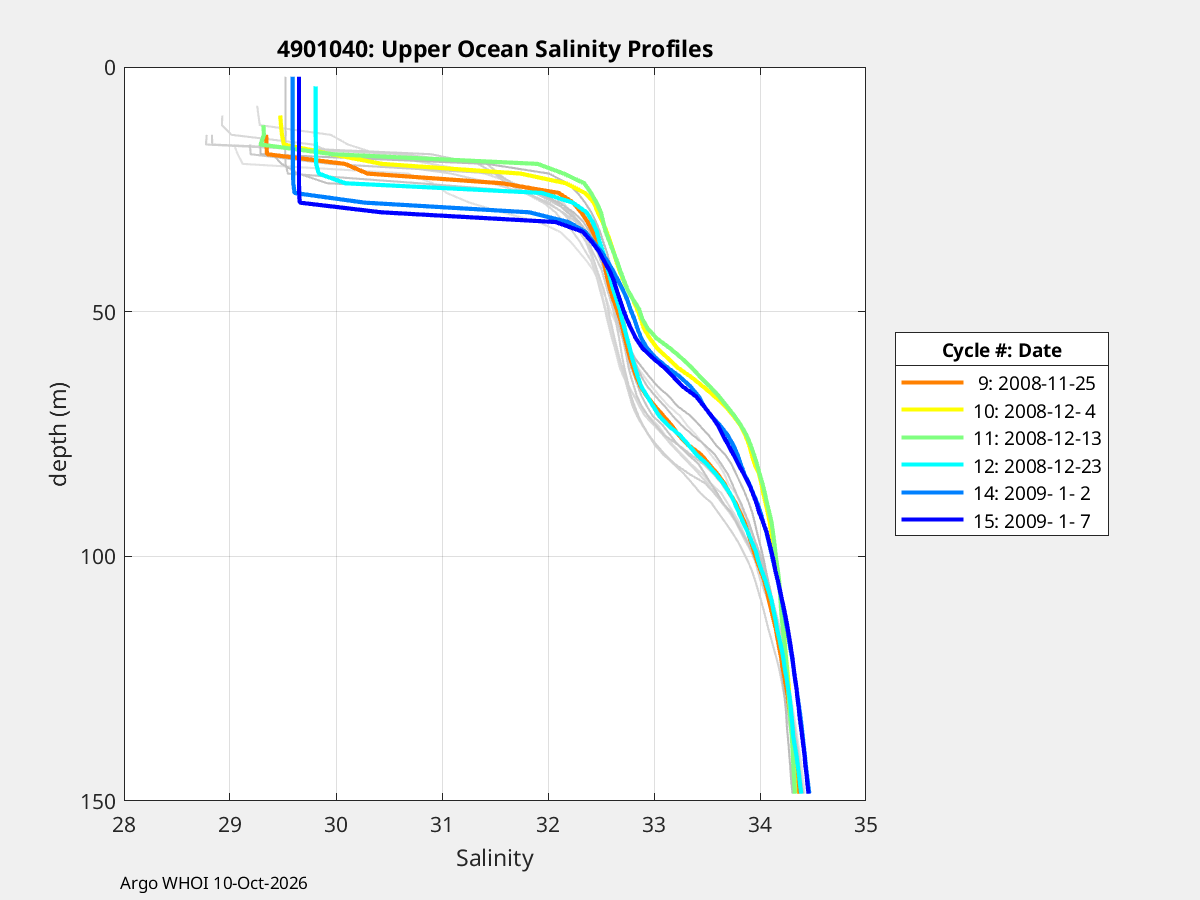

Salinity Profiles

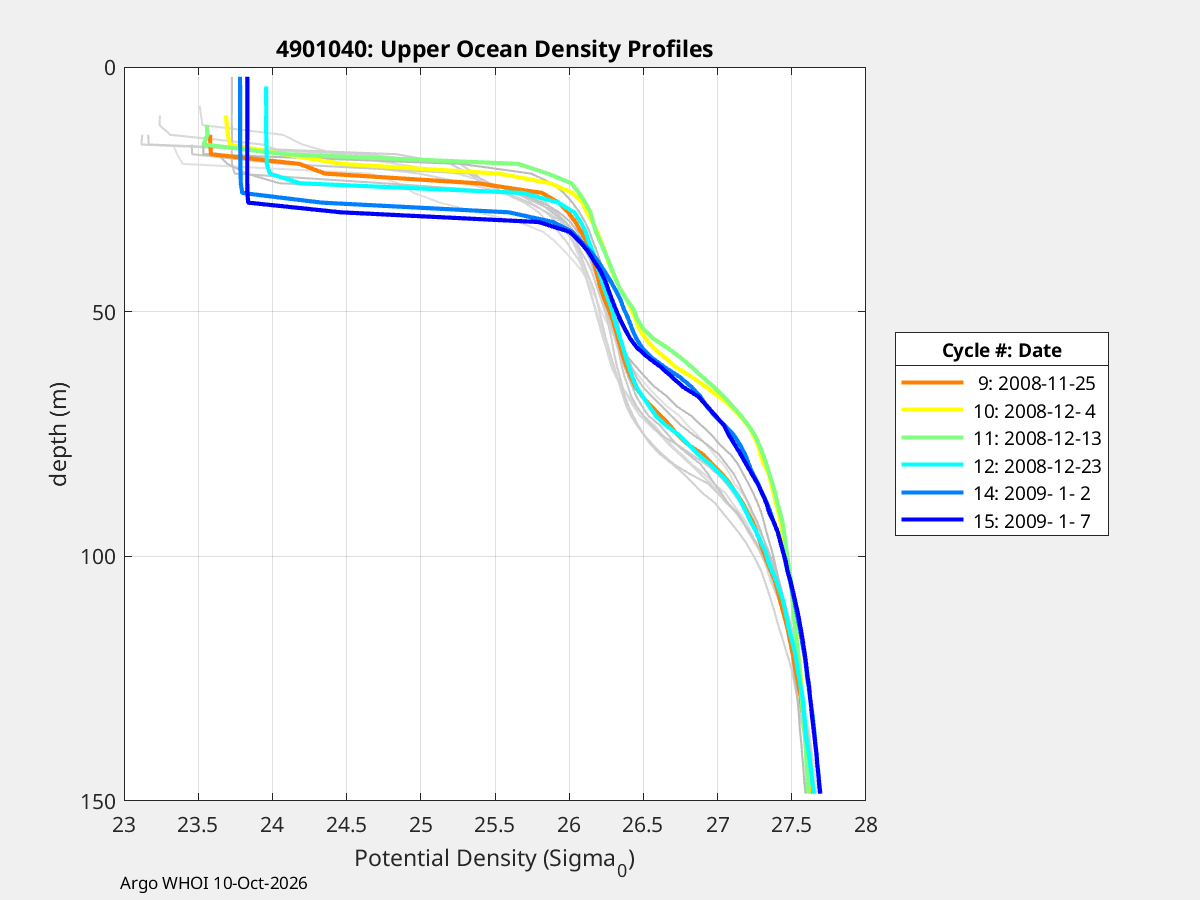

Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
Bathymetry
Submerged Displacement
N-Square
Salinity vs CARS
OW Calibration Adjustment
OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info
Basin

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
0
2008
9/05
A A A
1
2008
9/14
A A A
2
2008
9/23
A A A
3
2008
10/02
A A A
4
2008
10/11
A A A
5
2008
10/20
A A A
6
2008
10/29
A A A
7
2008
11/07
A B B
8
2008
11/16
A A A
9
2008
11/25
A A A
10
2008
12/04
A A A
11
2008
12/13
A A A
12
2008
12/23
A A A
14
2009
1/02
A A A
15
2009
1/07
A A A

Creation Date: 2020-12-30
