WMO # 4900589

Argo Float WMO # 4900589 : Plots based on data files at the GDAC

Metadata:
WMO #:	4900589
PI:	Breck Owens
DAC:	AOML

DAC #:	1211
WHOI Float #:	301
Last Heard From:	2008-07-09
Longevity:	3.59 yrs

Hardware:
Telcom:	ARGOS 42777
Telcom:	ARGOS 42777
Instrument:	SS105_SB17
ROM version:	1.10
Temperature:	SBE41CP, s/n: 0514
Conductivity:	SBE41CP, s/n: 0514
Pressure:	Druck, s/n: 5079

Deployment:
Deployed:	2004-12-05
Latitude:	22.535
Longitude:	-67.778
Deployment Platform:	Horizon Hawaii
Cruise ID:	AX10
Deployer:	Ben Kates

GDAC file status:
Last Update:	2019-08-14
Profiles at GDAC:	127
GDAC D-files:	127
GDAC R-files:	0

Links (at WHOI):

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

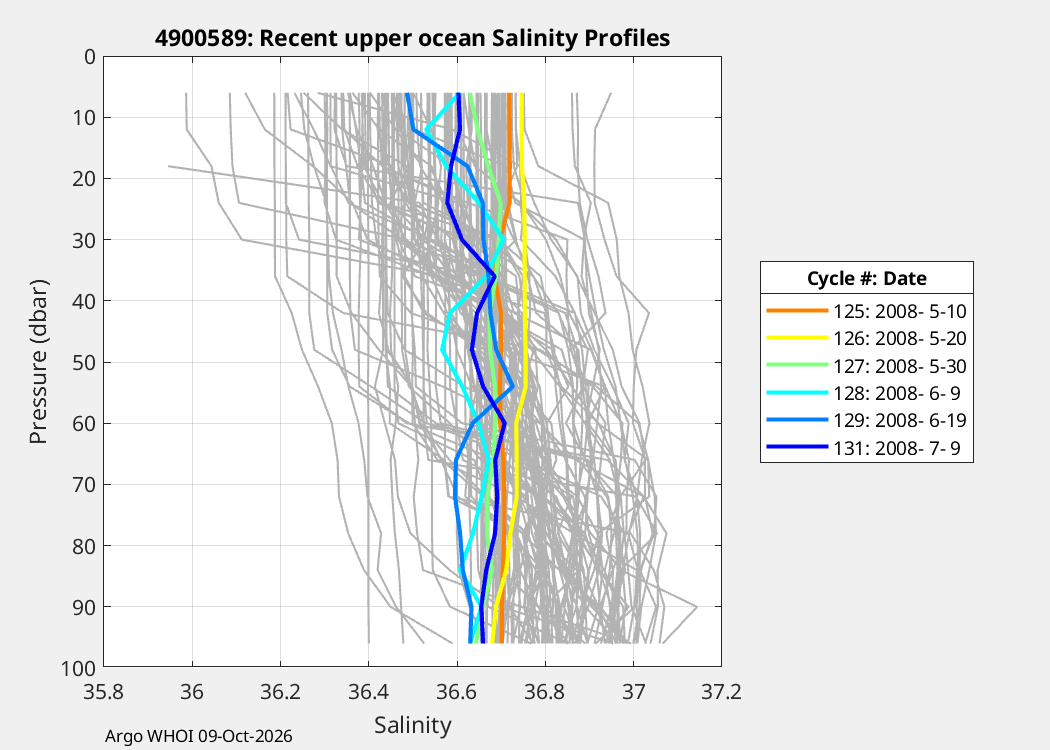

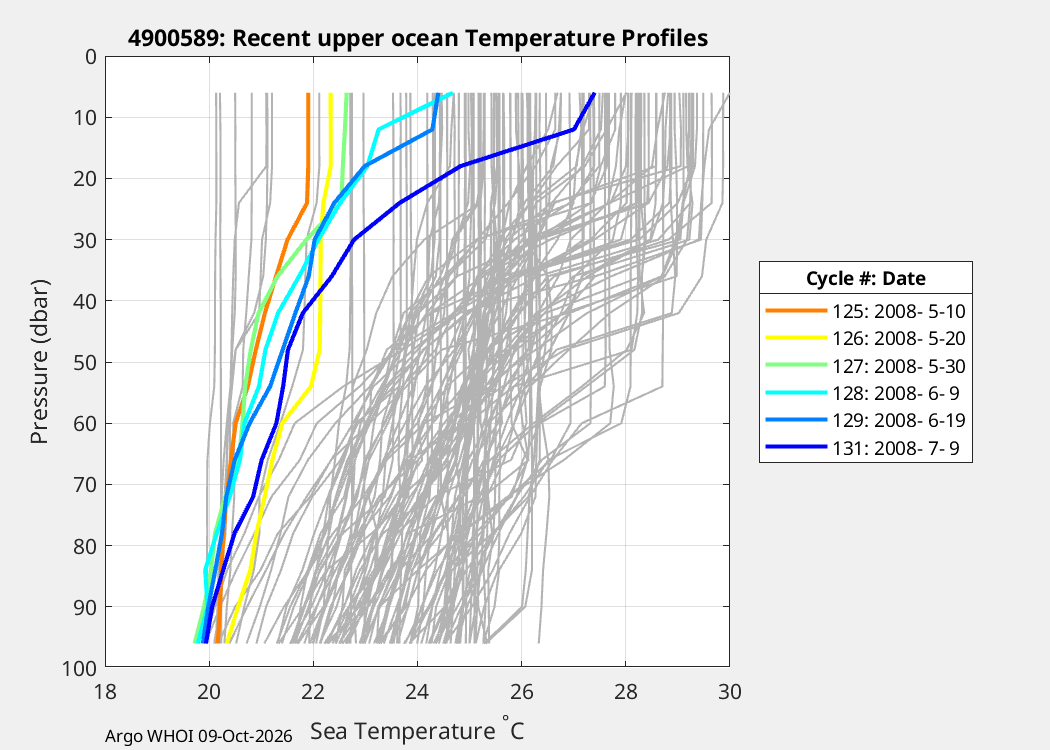

Temperature Profiles	Salinity Profiles

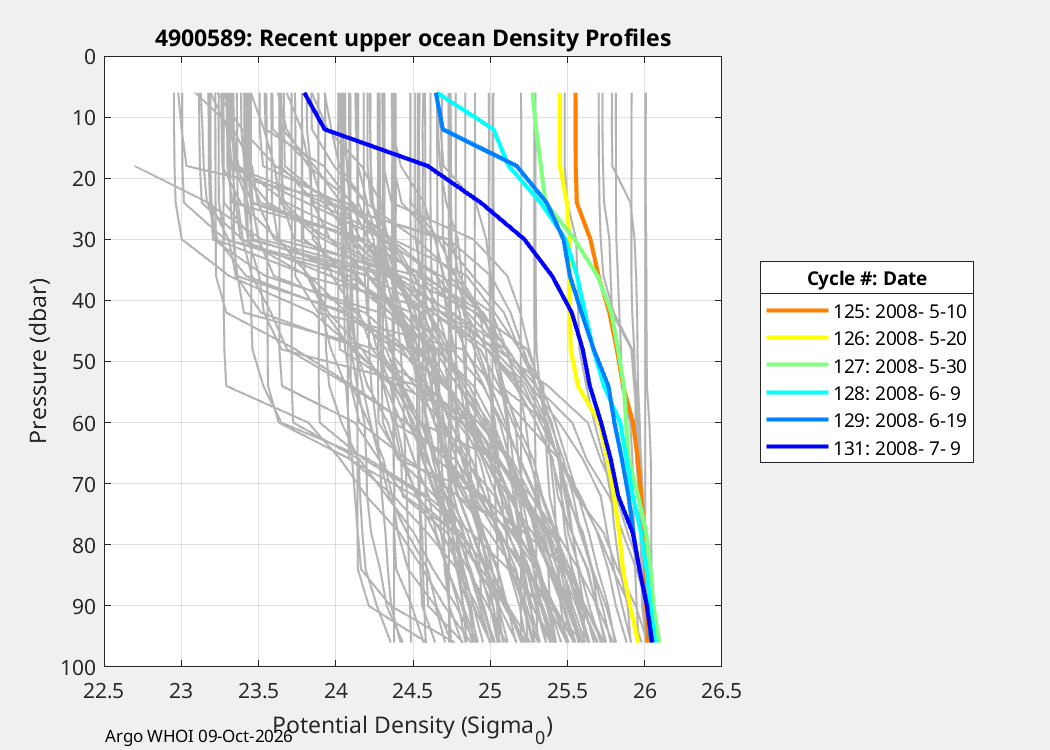

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement

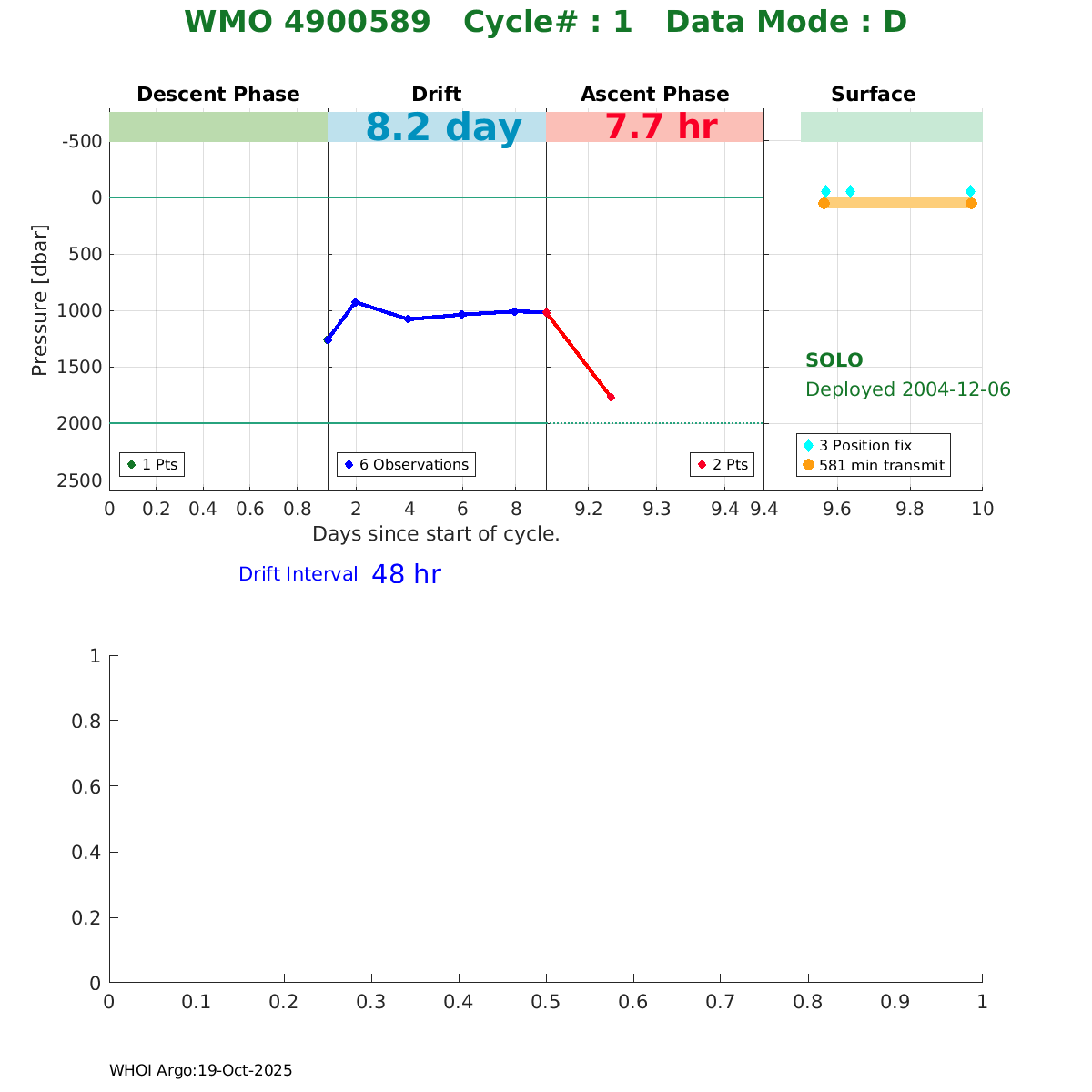

Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2004 12/07 A A A	1 2004 12/17 A B B	2 2004 12/27 A A A	3 2005 1/06 A A A	4 2005 1/16 A A A	5 2005 1/26 A B B	6 2005 2/05 A A A	7 2005 2/15 A A B	8 2005 2/25 A A B	9 2005 3/07 A A A	10 2005 3/17 A A A	11 2005 3/27 A A B	12 2005 4/06 A B B	13 2005 4/16 A B B	14 2005 4/26 A A A	15 2005 5/06 A A B	16 2005 5/16 A A A	17 2005 5/26 A A A	18 2005 6/05 A A A	19 2005 6/15 A A A
20 2005 6/25 A A A	21 2005 7/05 A A A	22 2005 7/15 A A A	23 2005 7/25 A A A	24 2005 8/04 A A A	25 2005 8/14 A A A	26 2005 8/24 A A A	27 2005 9/03 A A A	28 2005 9/13 A A A	29 2005 9/23 A A B	30 2005 10/03 A A A	31 2005 10/13 A A A	32 2005 10/23 A A A	33 2005 11/02 A A A	34 2005 11/12 A A A	35 2005 11/22 A A A	36 2005 12/02 A A A	37 2005 12/12 A A A	38 2005 12/22 A A A	39 2006 1/01 A A A
40 2006 1/11 A A A	41 2006 1/21 A A A	42 2006 1/31 A A A		44 2006 2/20 A A A	45 2006 3/02 A A A	46 2006 3/12 A A A		48 2006 4/01 A A A	49 2006 4/11 A A A	50 2006 4/21 A A A	51 2006 5/01 A A A	52 2006 5/11 A A A	53 2006 5/21 A A A	54 2006 5/31 A A A	55 2006 6/10 A A A	56 2006 6/20 A A A	57 2006 6/30 A A A	58 2006 7/10 A A A	59 2006 7/20 A A A
60 2006 7/30 A A A	61 2006 8/09 A A A	62 2006 8/19 A A A	63 2006 8/29 A A A	64 2006 9/08 A A A	65 2006 9/18 A A A	66 2006 9/28 A A A	67 2006 10/08 A A A	68 2006 10/18 A A A	69 2006 10/28 A A A	70 2006 11/07 A A A	71 2006 11/17 A A A	72 2006 11/27 A A A	73 2006 12/07 A A A	74 2006 12/17 A A A	75 2006 12/27 A A A	76 2007 1/06 A A A	77 2007 1/16 A A A	78 2007 1/26 A A A	79 2007 2/05 A A A
80 2007 2/15 A A A	81 2007 2/25 A A A	82 2007 3/07 A A A	83 2007 3/17 A F F	84 2007 3/27 A A A	85 2007 4/06 A A A	86 2007 4/16 A A A	87 2007 4/26 A A A	88 2007 5/06 A A A	89 2007 5/16 A B B	90 2007 5/26 A B B	91 2007 6/05 A B B	92 2007 6/15 A B B	93 2007 6/25 A B B	94 2007 7/05 A B B	95 2007 7/15 A B B	96 2007 7/25 A B B	97 2007 8/04 A B B	98 2007 8/14 A B B
100 2007 9/03 A B B	101 2007 9/13 A B B	102 2007 9/23 A B B	103 2007 10/03 A A A	104 2007 10/13 A B B	105 2007 10/23 A A B		107 2007 11/12 A B B	108 2007 11/22 A A A	109 2007 12/02 A A A	110 2007 12/12 A A A	111 2007 12/22 A A A	112 2008 1/01 A A A	113 2008 1/11 A A A	114 2008 1/21 A A A	115 2008 1/31 A F B	116 2008 2/10 A A A	117 2008 2/20 A B B	118 2008 3/01 A A A	119 2008 3/11 A A A
120 2008 3/21 A A A	121 2008 3/31 A A A	122 2008 4/10 A A A	123 2008 4/20 A A A	124 2008 4/30 A A A	125 2008 5/10 A A A	126 2008 5/20 A A A	127 2008 5/30 A A A	128 2008 6/09 A A A	129 2008 6/19 A A A		131 2008 7/09 A A A

Creation Date: 2024-02-27
