Argo Float WMO # 3902167 : Plots based on data files at the GDAC

Metadata:
WMO #: 3902167
PI: WHOI: Wijffels, Jayne, Robbins
DAC: AOML

DAC #: 8024
WHOI Float #: 11051
Last Heard From: 2020-04-12
Longevity: 227 days

Hardware:
Telcom: IRIDIUM 11051
Telcom: IRIDIUM 11051
Instrument: ALTO601_SB30
ROM version: 6.0.1
Temperature: SBE41CP, s/n: 11063
Conductivity: SBE41CP, s/n: 11063
Pressure: Druck, s/n: 10952717

Deployment:
Deployed: 2019-08-30
Latitude: 1.500
Longitude: -39.217
Deployment Platform: THOMAS G. THOMPSON
Cruise ID: TN371
Deployer: J. Nomura

GDAC file status:
Last Update: 2020-04-13
Profiles at GDAC: 84
GDAC D-files: 0
GDAC R-files: 84
Greylist: QC=4

Links (at WHOI):
Telemetry plots: WHOI

Links (offsite):
Float Page: IFREMER
Altimeter Comparison: IFREMER
data access via ftp: GODAE GDAC
data access via ftp: Coriolis GDAC

Index Map
Trajectory
Bathymetry
Submerged Displacement
Temperature Contours (0-500 dbar)
Salinity Contours (0-500 dbar)
Density Contours (0-500 dbar)
Salt Anomaly Contours (0-500 dbar)
Temperature Contours
Salinity Contours
Density Contours
Salt Anomaly Contours
Temperature-Salinity Relation
Deep T-S Relation

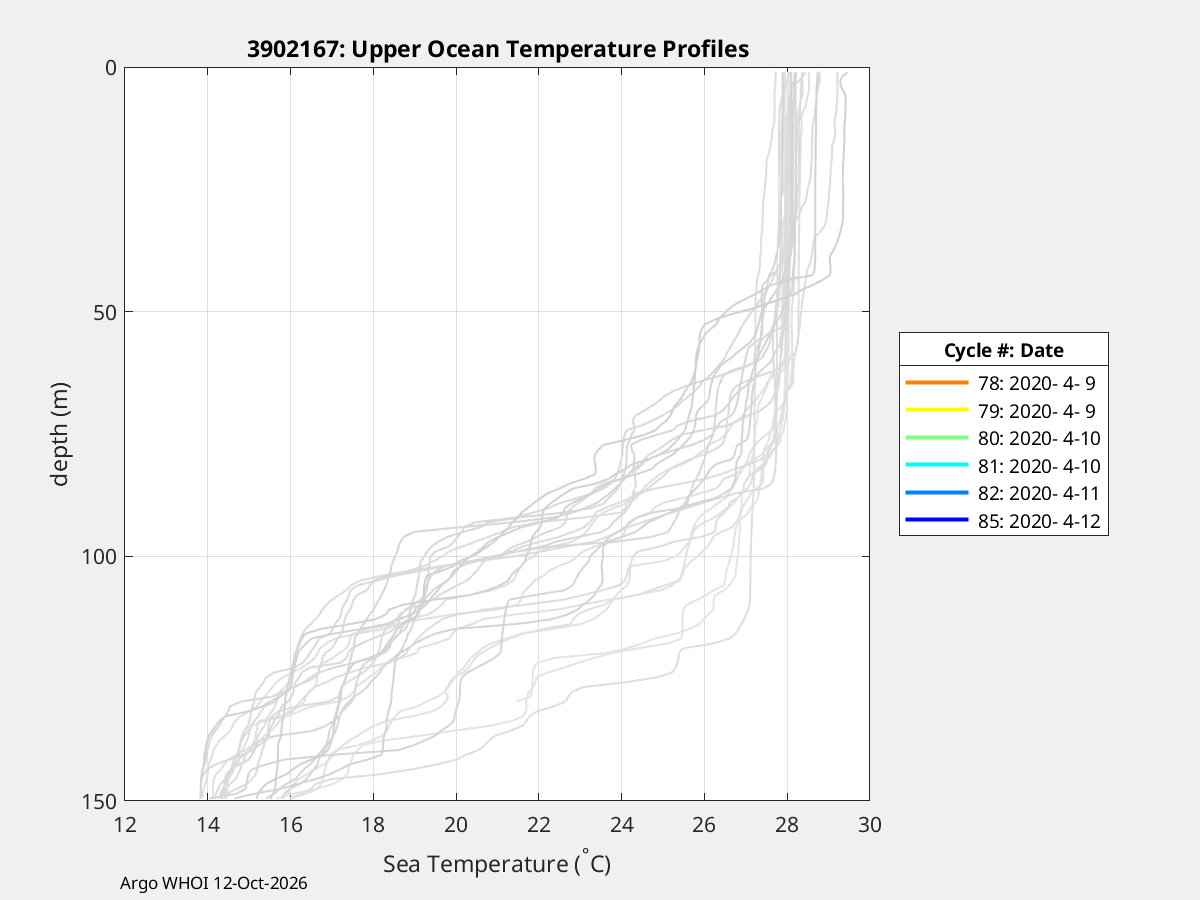

Temperature Profiles

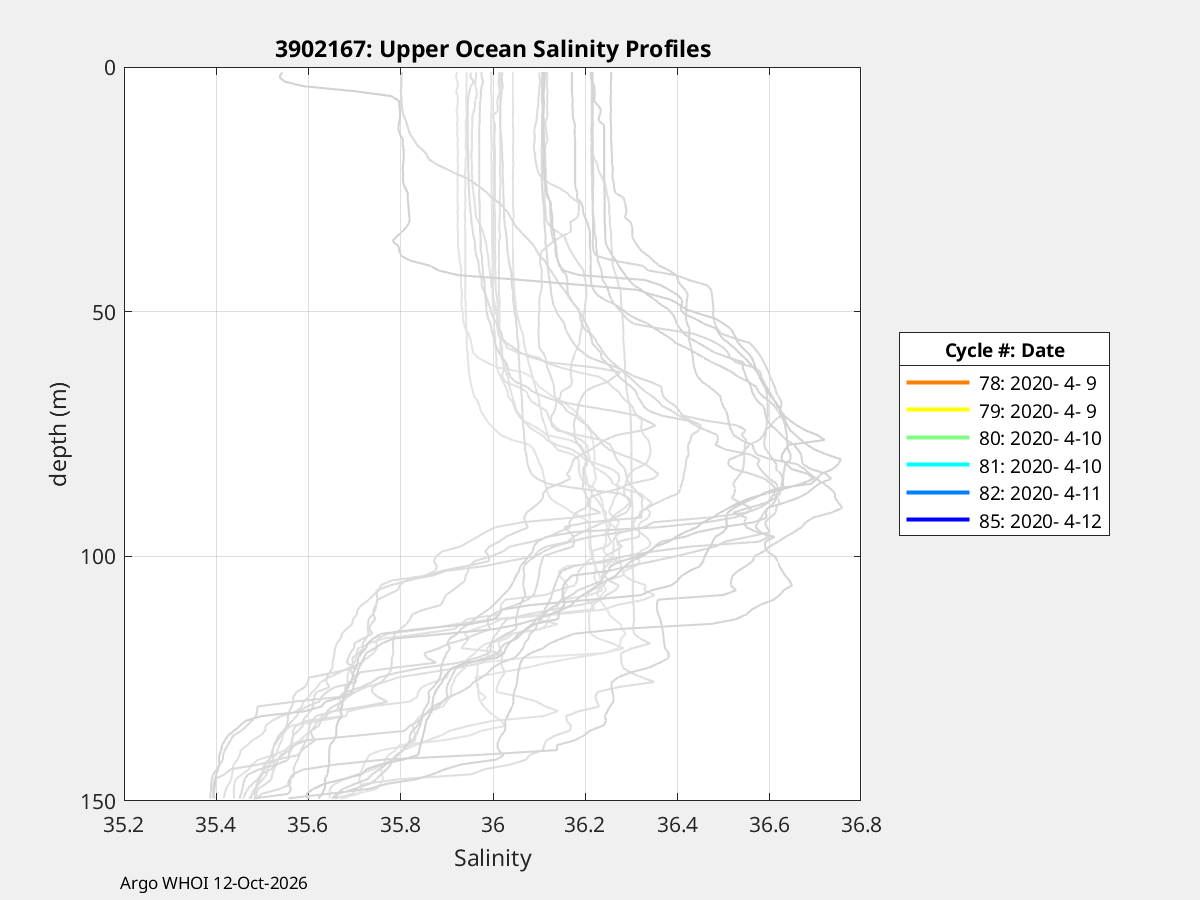

Salinity Profiles

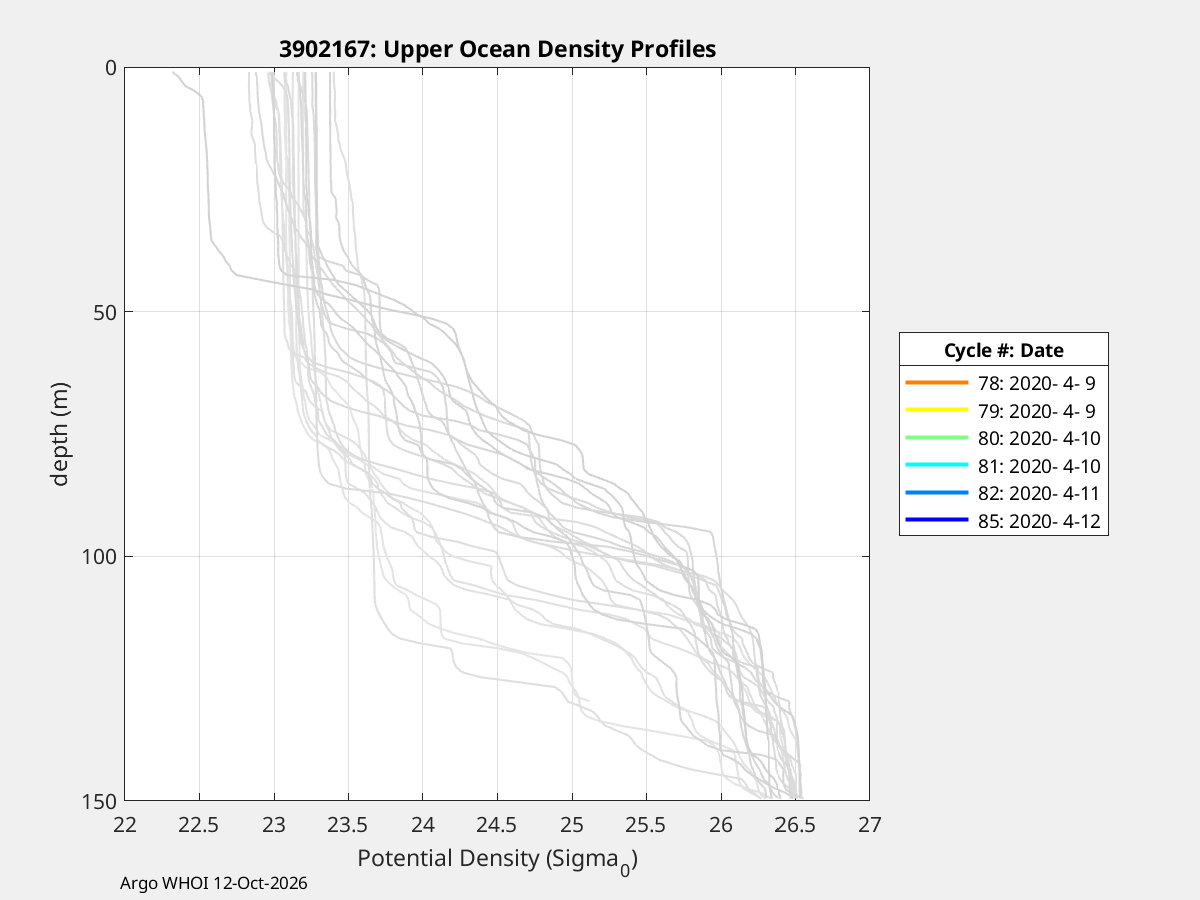

Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
N-Square
Salinity vs CARS
OW Calibration Adjustment
Mean Salinity difference (RT vs DM)

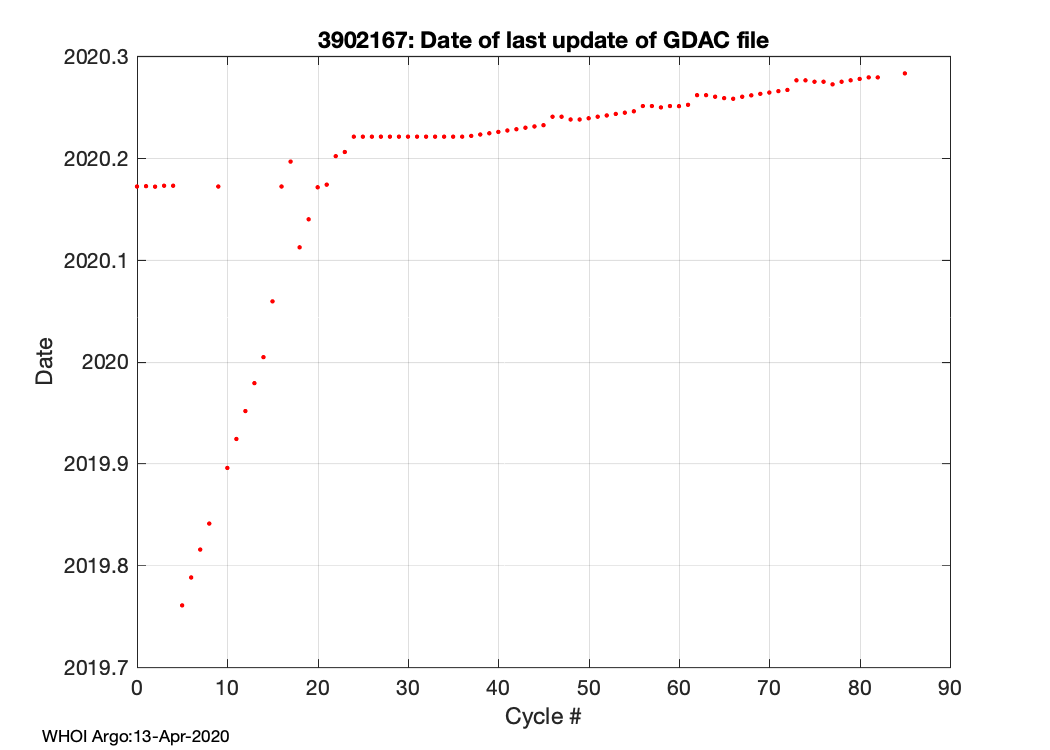

GDAC File info

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
0
2019
8/29
A A A
1
2019
8/30
A A A
2
2019
9/02
A B B
3
2019
9/04
A A A
4
2019
9/14
A A A
5
2019
9/24
A A A
6
2019
10/04
A A A
7
2019
10/14
A A A
8
2019
10/24
A A A
9
2019
11/03
A A A
10
2019
11/13
A A A
11
2019
11/23
A A A
12
2019
12/03
A A A
13
2019
12/13
A A A
14
2019
12/23
A A A
15
2020
1/02
A A A
16
2020
1/12
A A A
17
2020
1/22
A A B
18
2020
2/01
A A A
19
2020
2/11
A A A
20
2020
2/21
A A A
21
2020
3/02
A A A
22
2020
3/03
A A A
23
2020
3/13
A A A
24
2020
3/14
A A F
25
2020
3/14
A A F
26
2020
3/15
A A F
27
2020
3/15
A A F
28
2020
3/16
A A F
29
2020
3/16
A A F
30
2020
3/17
A A F
31
2020
3/17
A A F
32
2020
3/18
A A F
33
2020
3/18
A A F
34
2020
3/19
A A F
35
2020
3/19
A A F
36
2020
3/19
A A F
37
2020
3/20
A A F
38
2020
3/20
A A F
39
2020
3/21
A A F
40
2020
3/21
A A F
41
2020
3/22
A A F
42
2020
3/22
A A F
43
2020
3/23
A A F
44
2020
3/23
A A F
45
2020
3/24
A A F
46
2020
3/24
A A F
47
2020
3/25
A A F
48
2020
3/25
A A F
49
2020
3/26
A A F
50
2020
3/26
A A F
51
2020
3/27
A A F
52
2020
3/27
A A F
53
2020
3/28
A A F
54
2020
3/28
A A F
55
2020
3/29
A A F
56
2020
3/29
A A F
57
2020
3/30
A A F
58
2020
3/30
A A F
59
2020
3/31
A A F
60
2020
3/31
A A F
61
2020
4/01
A A F
62
2020
4/01
A A F
63
2020
4/02
A A F
64
2020
4/02
A A F
65
2020
4/03
A A F
66
2020
4/03
A A F
67
2020
4/04
A A F
68
2020
4/04
A A F
69
2020
4/05
A A F
70
2020
4/05
A A F
71
2020
4/06
A A F
72
2020
4/06
A A F
73
2020
4/07
A A F
74
2020
4/07
A A F
75
2020
4/08
A A F
76
2020
4/08
A A F
77
2020
4/08
A A F
78
2020
4/09
A A F
79
2020
4/09
A A F
80
2020
4/10
A A F
81
2020
4/10
A A F
82
2020
4/11
A A F
85
2020
4/12
A A F

Creation Date: 2020-06-21
