WMO # 1901686

Argo Float WMO # 1901686 : Plots based on data files at the GDAC

Metadata:
WMO #:	1901686
PI:	Breck Owens, Steve Jayne, and P.E. Robbins
DAC:	AOML

DAC #:	4917
WHOI Float #:	7140
Last Heard From:	2016-07-21
Longevity:	2.84 yrs

Hardware:
Telcom:	IRIDIUM 146780
Telcom:	IRIDIUM 146780
Instrument:	MRV130_SB30
ROM version:	SBE602 V1.3
Temperature:	SBE41CP, s/n: 4489
Conductivity:	SBE41CP, s/n: 4489
Pressure:	Druck, s/n: 3588067

Deployment:
Deployed:	2013-09-19
Latitude:	13.647
Longitude:	-28.996
Deployment Platform:	RONALD BROWN
Cruise ID:	A16N
Deployer:	Stefanick

GDAC file status:
Last Update:	2020-12-02
Profiles at GDAC:	312
GDAC D-files:	312
GDAC R-files:	0

Links (at WHOI):
Telemetry plots:	WHOI
Calibration Plots:	PDF (30-Sep-2020)

Links (offsite):
Data Visualizations:	at EuroArgo
Data Visualizations:	at ArgoVis
Data Visualizations:	at IFREMER
Altimeter Comparison:	IFREMER
GDAC (data archive):	GODAE
GDAC (data archive):	Coriolis

Key:	DMQC Status

DMQC Status	Profile Positions
Temperature-Salinity Relation	Deep T-S Relation
Temperature Sections (0-500 dbar)	Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)	Salt Anomaly Sections (0-500 dbar)
Temperature Sections	Salinity Sections
Density Sections	Salt Anomaly Sections

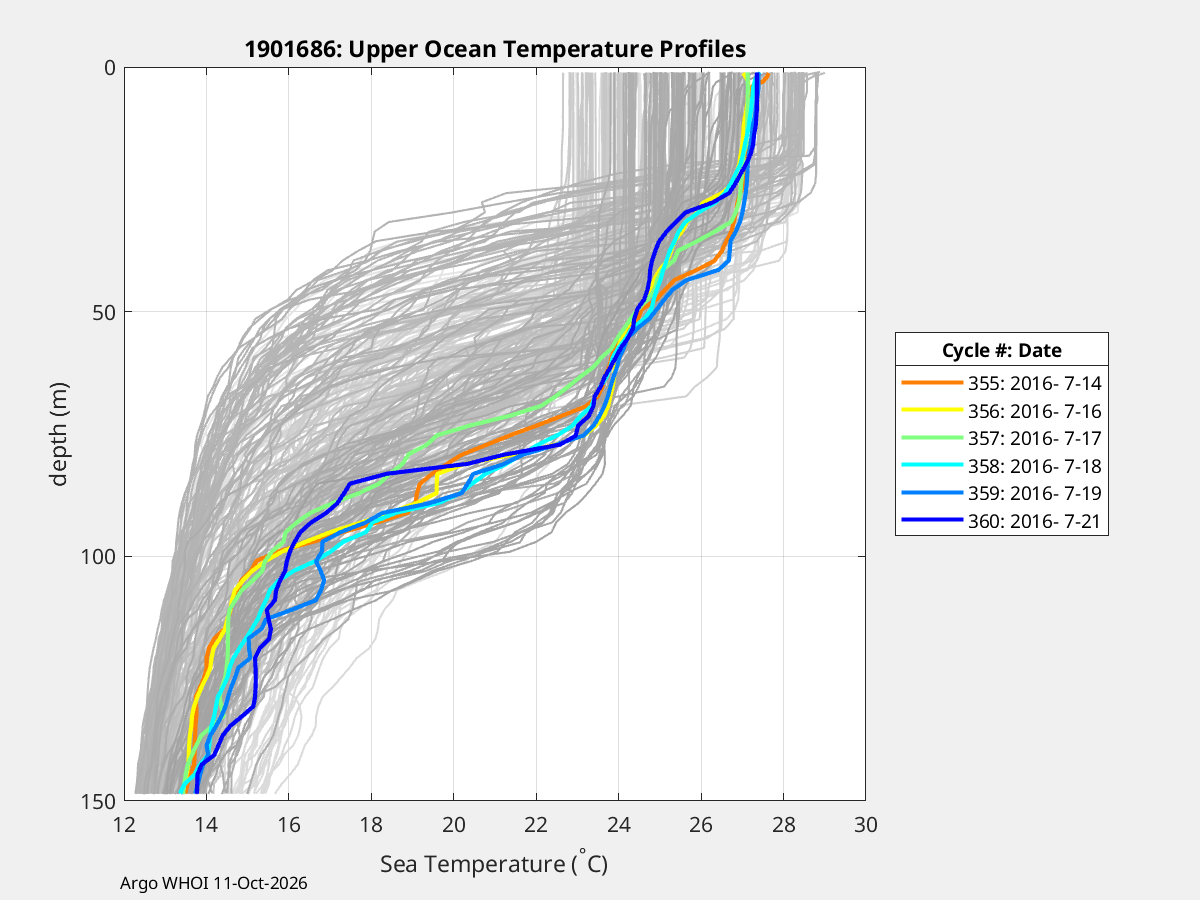

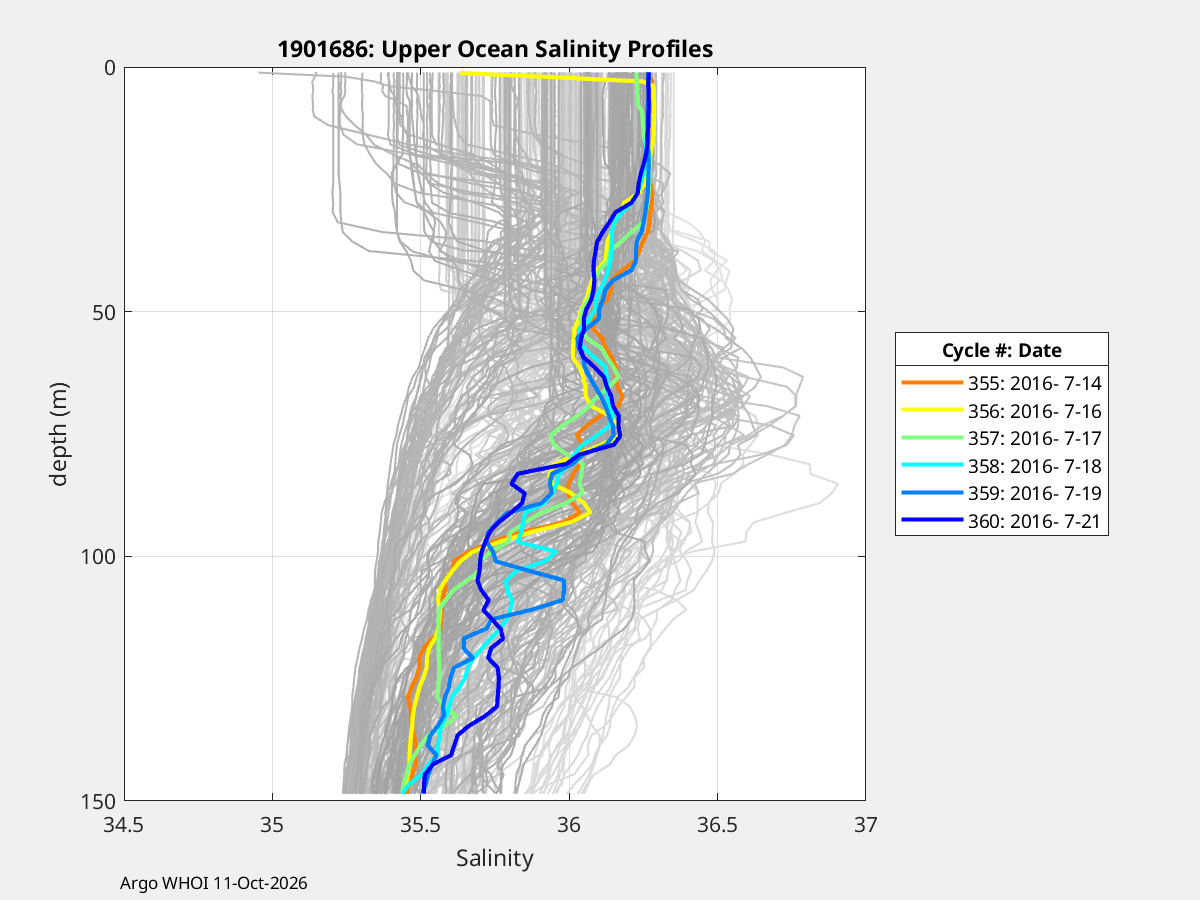

Temperature Profiles	Salinity Profiles

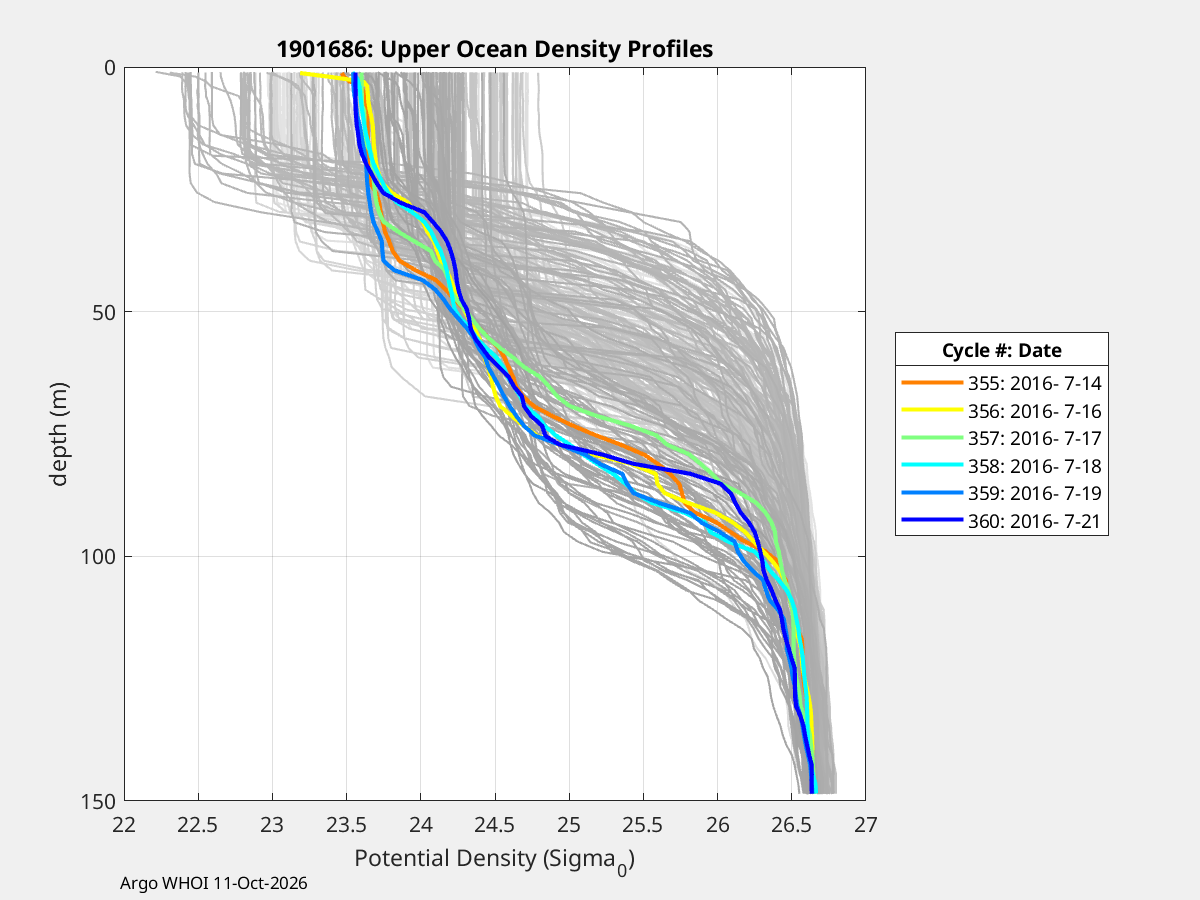

Density Profiles	Salt Anom Profiles
Temperature QC	Salinity QC
Pressure QC	Surface Fixes
Bathymetry	Submerged Displacement

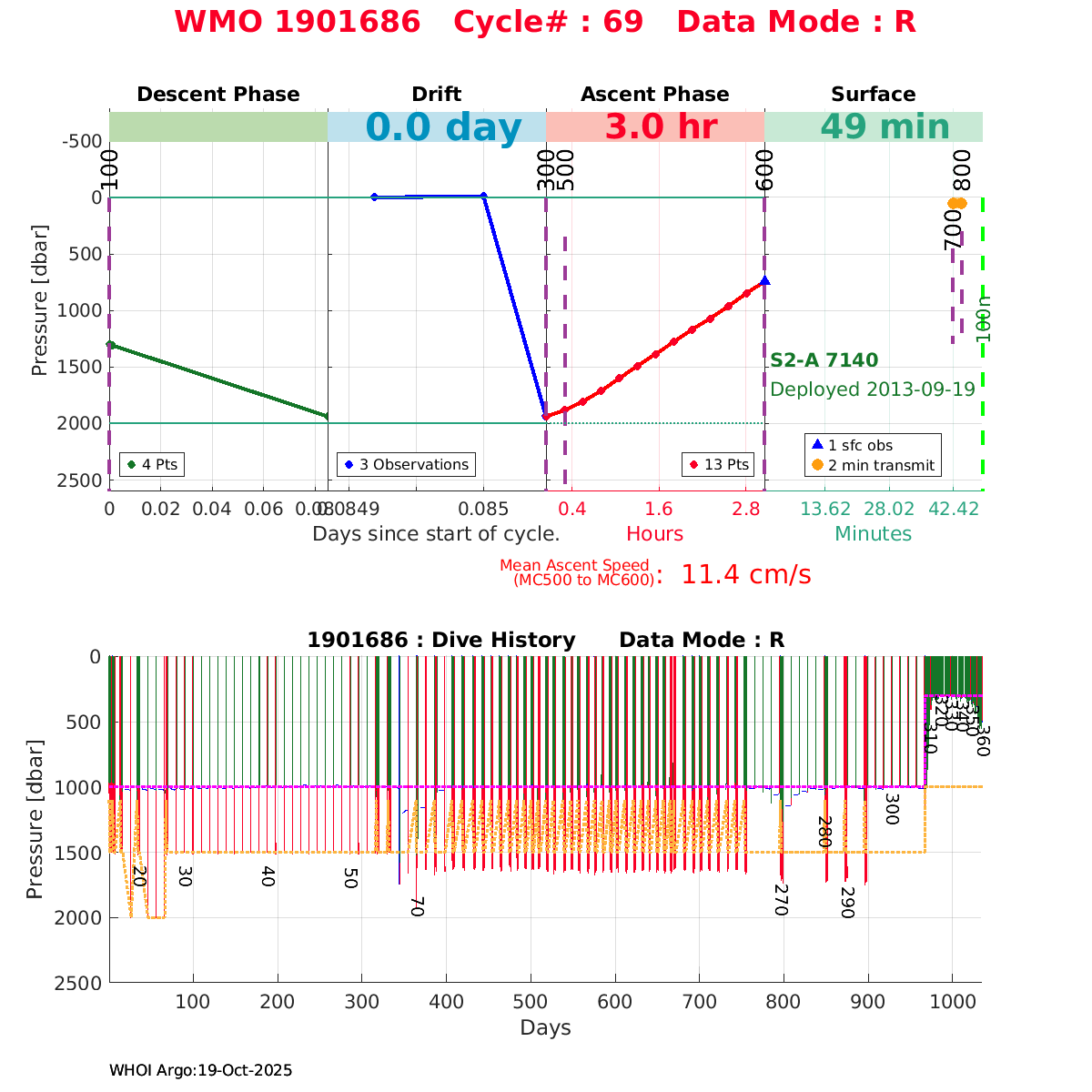

Traj Cycle	Traj Position
Traj Drift 1	Traj Drift 2
Traj Speed
N-Square	Salinity vs CARS
OW Calibration Adjustment	OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info	Basin

Status of Profile files at the GDAC
Cycle Number Date of Profile year month/day prof_pres_qc prof_temp_qc prof_psal_qc
0 2013 9/19 A A A	1 2013 9/19 A A A	2 2013 9/20 A A A	3 2013 9/21 A A A	4 2013 9/22 A A A		6 2013 9/23 A A A	7 2013 9/24 A A A	8 2013 9/25 A A A	9 2013 9/26 A A B		11 2013 10/03 A A A	12 2013 10/04 A A A	13 2013 10/05 A A A	14 2013 10/05 A A A	15 2013 10/15 A A A		17 2013 10/23 A A A	18 2013 10/24 A A A	19 2013 10/24 A A A
20 2013 10/25 A A A	21 2013 11/04 A A A	22 2013 11/14 A A A	23 2013 11/24 A A A		25 2013 11/26 A A A	26 2013 11/27 A A A	27 2013 11/28 A A A	28 2013 11/29 A A A	29 2013 12/08 A A A	30 2013 12/18 A A A	31 2013 12/28 A A A	32 2014 1/07 A A A	33 2014 1/17 A A A	34 2014 1/26 A A A	35 2014 2/05 A A A	36 2014 2/15 A A A	37 2014 2/25 A A A	38 2014 3/07 A A A	39 2014 3/16 A A A
40 2014 3/26 A A A	41 2014 4/05 A A A	42 2014 4/15 A A A	43 2014 4/25 A A A	44 2014 5/04 A A A	45 2014 5/14 A A A	46 2014 5/24 A A A	47 2014 6/03 A A A	48 2014 6/13 A A A	49 2014 6/22 A A A	50 2014 7/02 A A A	51 2014 7/12 A A A	52 2014 7/22 A A A	53 2014 8/01 A A A		55 2014 8/02 A A A	56 2014 8/03 A A A	57 2014 8/04 A A A	58 2014 8/05 A A A	59 2014 8/15 A A A
	61 2014 8/16 A A A	62 2014 8/17 A A A	63 2014 8/18 A A A	64 2014 8/19 A A A	65 2014 8/29 A A A	66 2014 8/30 A A A	67 2014 9/08 A A A		69 2014 9/18 A A A	70 2014 9/19 A A A	71 2014 9/19 A A A	72 2014 9/20 A A A	73 2014 9/30 A A A		75 2014 10/10 A A A	76 2014 10/11 A A A	77 2014 10/12 A A A	78 2014 10/13 A A A	79 2014 10/23 A A A
	81 2014 10/31 A A A	82 2014 11/01 A A A	83 2014 11/02 A A A	84 2014 11/03 A A A		86 2014 11/11 A A A	87 2014 11/12 A A A	88 2014 11/13 A A A	89 2014 11/14 A A A		91 2014 11/24 A A A	92 2014 11/25 A A A	93 2014 11/26 A A A	94 2014 11/27 A A A		96 2014 12/05 A A A	97 2014 12/06 A A A	98 2014 12/07 A A A	99 2014 12/08 A A A
	101 2014 12/16 A A A	102 2014 12/17 A A A	103 2014 12/18 A A A	104 2014 12/19 A A A		106 2014 12/26 A A A	107 2014 12/27 A A A	108 2014 12/28 A A A	109 2014 12/29 A A A		111 2015 1/05 A A A	112 2015 1/06 A A A	113 2015 1/07 A A A	114 2015 1/08 A A A		116 2015 1/15 A A A	117 2015 1/16 A A A	118 2015 1/17 A A A	119 2015 1/18 A A A
	121 2015 1/24 A A A	122 2015 1/25 A A A	123 2015 1/26 A A A	124 2015 1/27 A A A		126 2015 2/01 A A A	127 2015 2/02 A A A	128 2015 2/03 A A A	129 2015 2/04 A A A		131 2015 2/10 A A A	132 2015 2/11 A A A	133 2015 2/12 A A A	134 2015 2/13 A A A		136 2015 2/19 A A A	137 2015 2/20 A A A	138 2015 2/21 A A A	139 2015 2/22 A A A
	141 2015 2/28 A A A	142 2015 3/01 A A A	143 2015 3/02 A A A	144 2015 3/03 A A A		146 2015 3/11 A A A	147 2015 3/12 A A A	148 2015 3/13 A A A	149 2015 3/14 A A A		151 2015 3/20 A A A	152 2015 3/21 A A A	153 2015 3/22 A A A	154 2015 3/23 A A A		156 2015 3/29 A A A	157 2015 3/30 A A A	158 2015 3/31 A A A	159 2015 4/01 A A A
	161 2015 4/08 A A A	162 2015 4/09 A A A	163 2015 4/10 A A A	164 2015 4/11 A A A		166 2015 4/17 A A A	167 2015 4/18 A A A	168 2015 4/19 A A A	169 2015 4/20 A A A		171 2015 4/26 A A A	172 2015 4/27 A A A	173 2015 4/28 A A A	174 2015 4/29 A A A		176 2015 5/05 A A A	177 2015 5/06 A A A	178 2015 5/07 A A A	179 2015 5/08 A A A
	181 2015 5/13 A A A	182 2015 5/14 A A A	183 2015 5/15 A A A	184 2015 5/16 A A A		186 2015 5/23 A A A	187 2015 5/24 A A A	188 2015 5/25 A A A	189 2015 5/26 A A A		191 2015 6/03 A A A	192 2015 6/04 A A A	193 2015 6/05 A A A	194 2015 6/06 A A A		196 2015 6/12 A A A	197 2015 6/13 A A A	198 2015 6/14 A A A	199 2015 6/15 A A A
	201 2015 6/20 A A A	202 2015 6/21 A A A	203 2015 6/22 A A A	204 2015 6/23 A A A		206 2015 6/29 A A A	207 2015 6/30 A A A	208 2015 7/01 A A A	209 2015 7/02 A A A		211 2015 7/08 A A A	212 2015 7/09 A A A	213 2015 7/10 A A A	214 2015 7/11 A A A		216 2015 7/16 A A A	217 2015 7/17 A A A	218 2015 7/18 A A A	219 2015 7/19 A A A
	221 2015 7/20 A A A	222 2015 7/21 A A A	223 2015 7/22 A A A	224 2015 7/23 A A A		226 2015 8/01 A A A	227 2015 8/02 A A A	228 2015 8/03 A A A	229 2015 8/04 A A A		231 2015 8/11 A A A	232 2015 8/12 A A A	233 2015 8/13 A A A	234 2015 8/14 A A A		236 2015 8/20 A A A	237 2015 8/21 A A A	238 2015 8/22 A A A	239 2015 8/23 A A A
	241 2015 8/30 A A A	242 2015 8/31 A A A	243 2015 9/01 A A A	244 2015 9/02 A A A		246 2015 9/09 A A A	247 2015 9/10 A A A	248 2015 9/11 A A A	249 2015 9/12 A A A		251 2015 9/21 A A A	252 2015 9/22 A A A	253 2015 9/23 A A A	254 2015 9/24 A A A		256 2015 10/01 A A A	257 2015 10/02 A A A	258 2015 10/03 A A A	259 2015 10/04 A A A
	261 2015 10/12 A A A	262 2015 10/13 A A A	263 2015 10/14 A A A	264 2015 10/15 A A A	265 2015 10/25 A A A	266 2015 11/03 A A A	267 2015 11/13 A A A	268 2015 11/23 A A A		270 2015 11/24 A A A	271 2015 11/25 A A A	272 2015 11/26 A A A	273 2015 11/27 A A A	274 2015 12/07 A A A	275 2015 12/16 A A A	276 2015 12/26 A A A	277 2016 1/05 A A A	278 2016 1/14 A A A
280 2016 1/16 A A A	281 2016 1/17 A A A	282 2016 1/18 A A A	283 2016 1/19 A A A	284 2016 1/28 A A A	285 2016 2/07 A A A		287 2016 2/08 A A A	288 2016 2/09 A A A	289 2016 2/10 A A A	290 2016 2/11 A A A	291 2016 2/21 A A A	292 2016 3/02 A A A		294 2016 3/03 A A A	295 2016 3/04 A A A	296 2016 3/05 A A A	297 2016 3/06 A A A	298 2016 3/16 A A A	299 2016 3/25 A A A
300 2016 4/04 A A A	301 2016 4/14 A A A	302 2016 4/23 A A A	303 2016 5/03 A A A	304 2016 5/13 A A A	305 2016 5/13 A A A	306 2016 5/14 A A A	307 2016 5/15 A A A	308 2016 5/16 A A A	309 2016 5/18 A A A	310 2016 5/19 A A A	311 2016 5/20 A A A	312 2016 5/22 A A A	313 2016 5/23 A A A	314 2016 5/24 A A A	315 2016 5/25 A A A	316 2016 5/27 A A A	317 2016 5/28 A A A	318 2016 5/29 A A A	319 2016 5/30 A A A
320 2016 6/01 A A A	321 2016 6/02 A A A	322 2016 6/03 A A A	323 2016 6/04 A A A	324 2016 6/06 A A A	325 2016 6/07 A A A	326 2016 6/08 A A A	327 2016 6/09 A A A	328 2016 6/10 A A A	329 2016 6/12 A A A	330 2016 6/13 A A A	331 2016 6/14 A A A	332 2016 6/15 A A A	333 2016 6/17 A A A	334 2016 6/18 A A A	335 2016 6/19 A A A	336 2016 6/20 A A A	337 2016 6/22 A A A	338 2016 6/23 A A A	339 2016 6/24 A A A
340 2016 6/25 A A A	341 2016 6/27 A A A	342 2016 6/28 A A A	343 2016 6/29 A A A	344 2016 6/30 A A A	345 2016 7/02 A A A	346 2016 7/03 A A A	347 2016 7/04 A A A	348 2016 7/05 A A A	349 2016 7/07 A A A	350 2016 7/08 A A A	351 2016 7/09 A A A	352 2016 7/10 A A A	353 2016 7/12 A A A	354 2016 7/13 A A A	355 2016 7/14 A A A	356 2016 7/16 A A A	357 2016 7/17 A A A	358 2016 7/18 A A A	359 2016 7/19 A A A
360 2016 7/21 A A A
