Argo Float WMO # 1901571 : Plots based on data files at the GDAC

Metadata:
WMO #: 1901571
PI: Breck Owens
DAC: AOML

DAC #: 4181
WHOI Float #: 1109
Last Heard From: 2012-06-21
Longevity: 149 days

Hardware:
Telcom: ARGOS 104039
Telcom: ARGOS 104039
Instrument: SS206_SB19
ROM version: 2.06
Temperature: SBE41CP, s/n: 3074
Conductivity: SBE41CP, s/n: 3074
Pressure: Druck, s/n: 3150880

Deployment:
Deployed: 2012-01-23
Latitude: -38.227
Longitude: -51.029
Deployment Platform: James Cook
Cruise ID: GEOTRACES GA10
Deployer: Larry George

GDAC file status:
Last Update: 2019-06-21
Profiles at GDAC: 16
GDAC D-files: 16
GDAC R-files: 0

Links (at WHOI):

Links (offsite):
Data Visualizations: at EuroArgo
Data Visualizations: at ArgoVis
Data Visualizations: at IFREMER
Altimeter Comparison: IFREMER
GDAC (data archive): GODAE
GDAC (data archive): Coriolis

Key: DMQC Status

DMQC Status
Profile Positions
Temperature-Salinity Relation
Deep T-S Relation
Temperature Sections (0-500 dbar)
Salinity Sections (0-500 dbar)
Density Sections (0-500 dbar)
Salt Anomaly Sections (0-500 dbar)
Temperature Sections
Salinity Sections
Density Sections
Salt Anomaly Sections

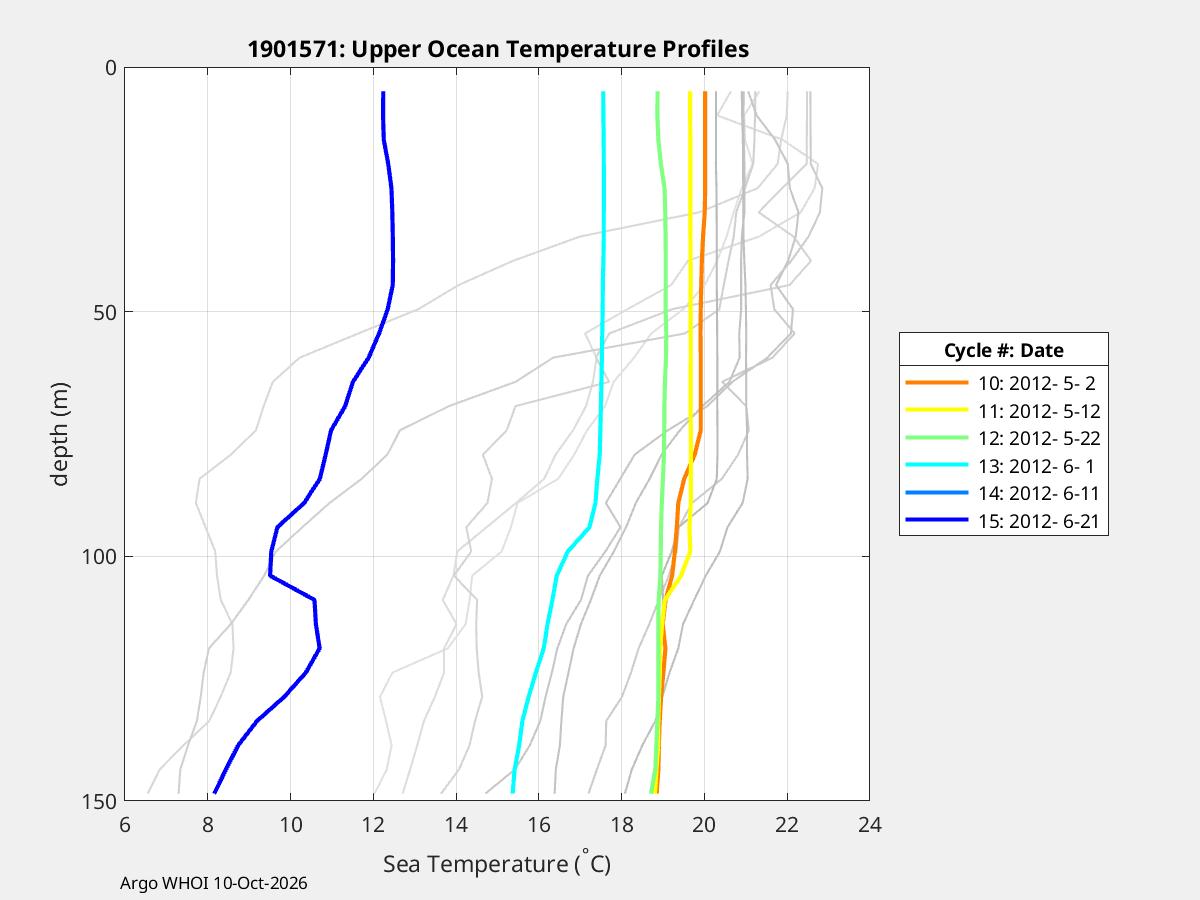

Temperature Profiles

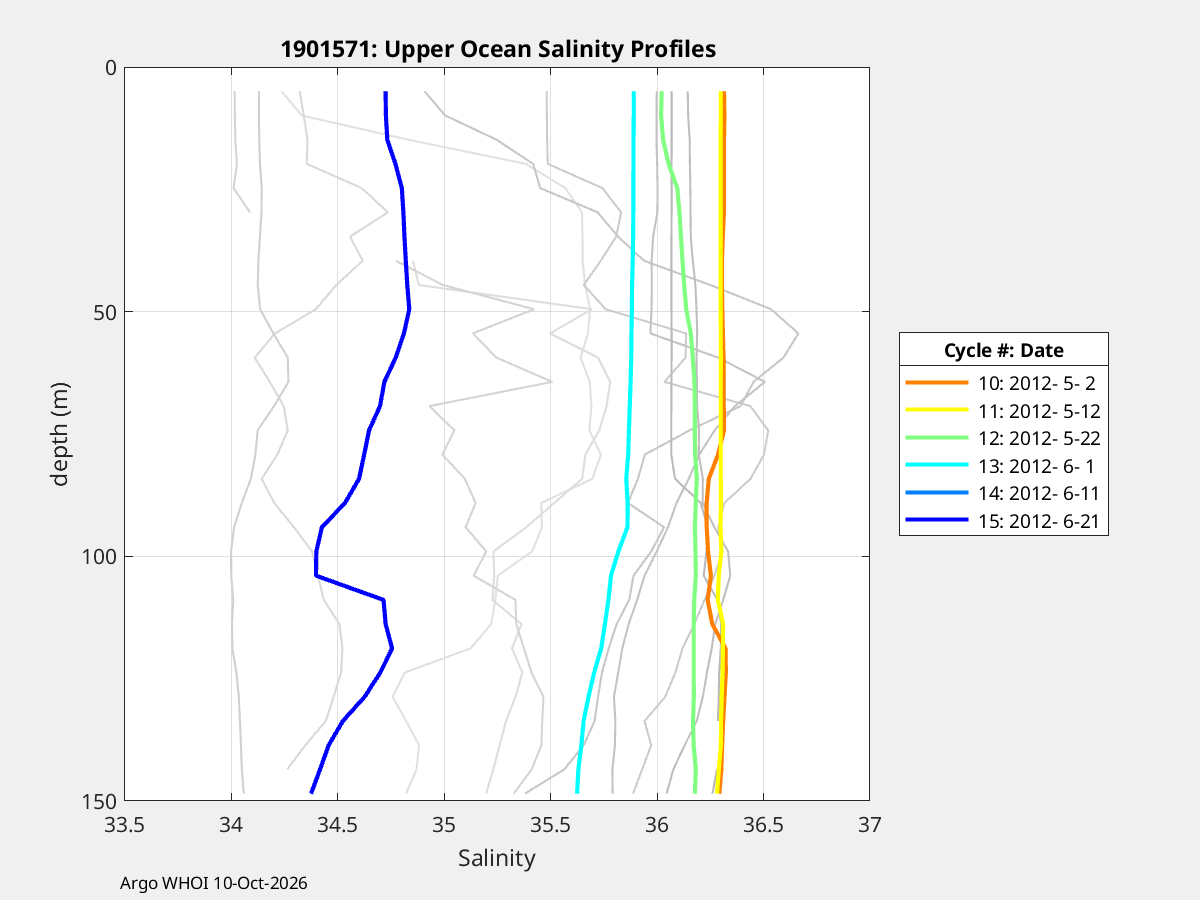

Salinity Profiles

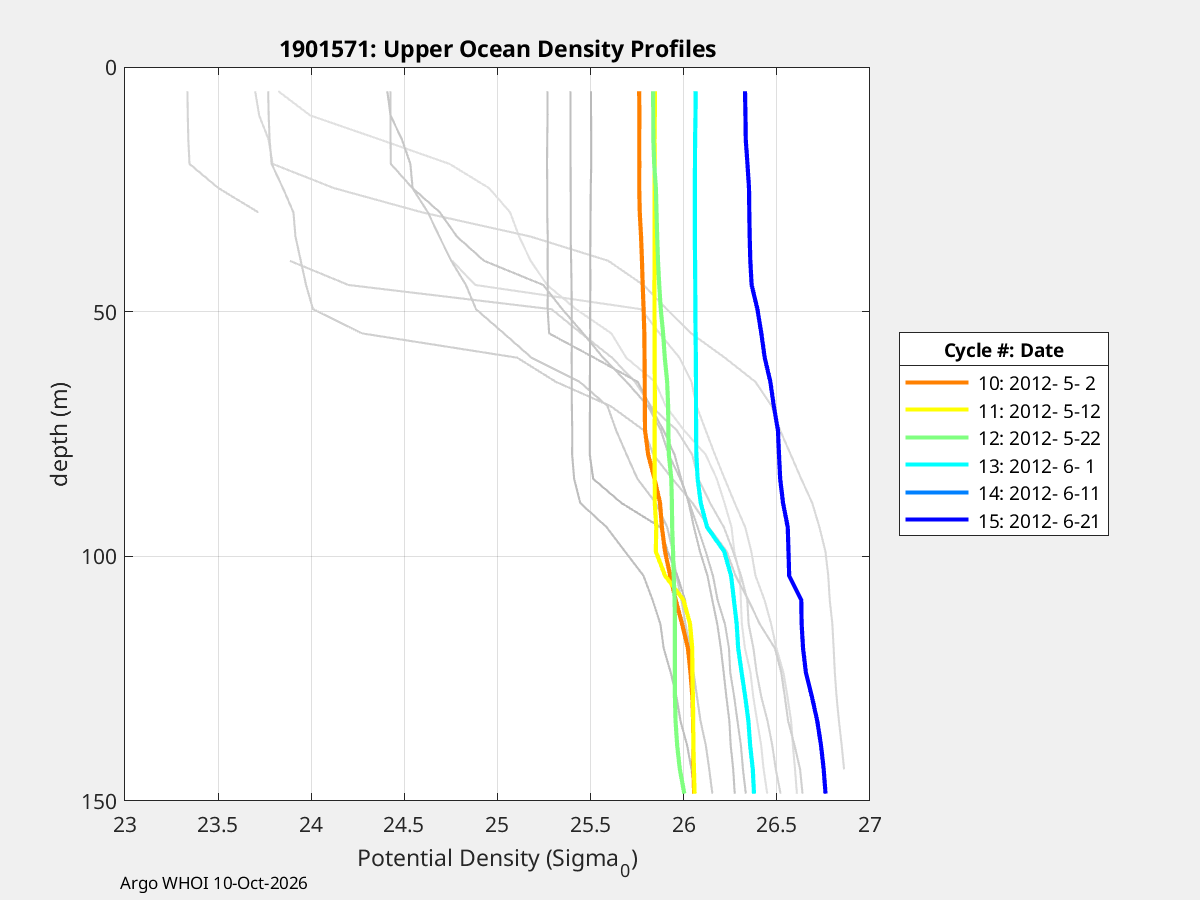

Density Profiles
Salt Anom Profiles
Temperature QC
Salinity QC
Pressure QC
Surface Fixes
Bathymetry
Submerged Displacement
Traj Cycle
Traj Position
Traj Drift 1
Traj Drift 2
Traj Speed
N-Square
Salinity vs CARS
OW Calibration Adjustment
OW Inputs
Mean Salinity difference (RT vs DM)
GDAC File info
Basin

Status of Profile files at the GDAC
Cycle Number
Date of Profile
year   month/day
prof_pres_qc     prof_temp_qc     prof_psal_qc
0
2012
1/24
A A A
1
2012
2/02
A A B
2
2012
2/12
A A B
3
2012
2/22
A A B
4
2012
3/03
A A A
5
2012
3/13
A A A
6
2012
3/23
A A A
7
2012
4/02
A A A
8
2012
4/12
A A A
9
2012
4/22
A A B
10
2012
5/02
A A A
11
2012
5/12
A B B
12
2012
5/22
A A A
13
2012
6/01
A A A
14
2012
6/11
B C C
15
2012
6/21
A A B

Creation Date: 2024-02-27
